寫在前面

從前我也是個白嫖怪，現在我想要當個被白嫖的人，如果有幫助，希望能留言個下次一定（老b站了hhhh）工程開源說明：分享在電賽期間的每個版本的程式，希望能對大家有幫助，本檔案大致進行說明下代碼的講解，懶得下載的人可以通過文章中的代碼自行除錯，

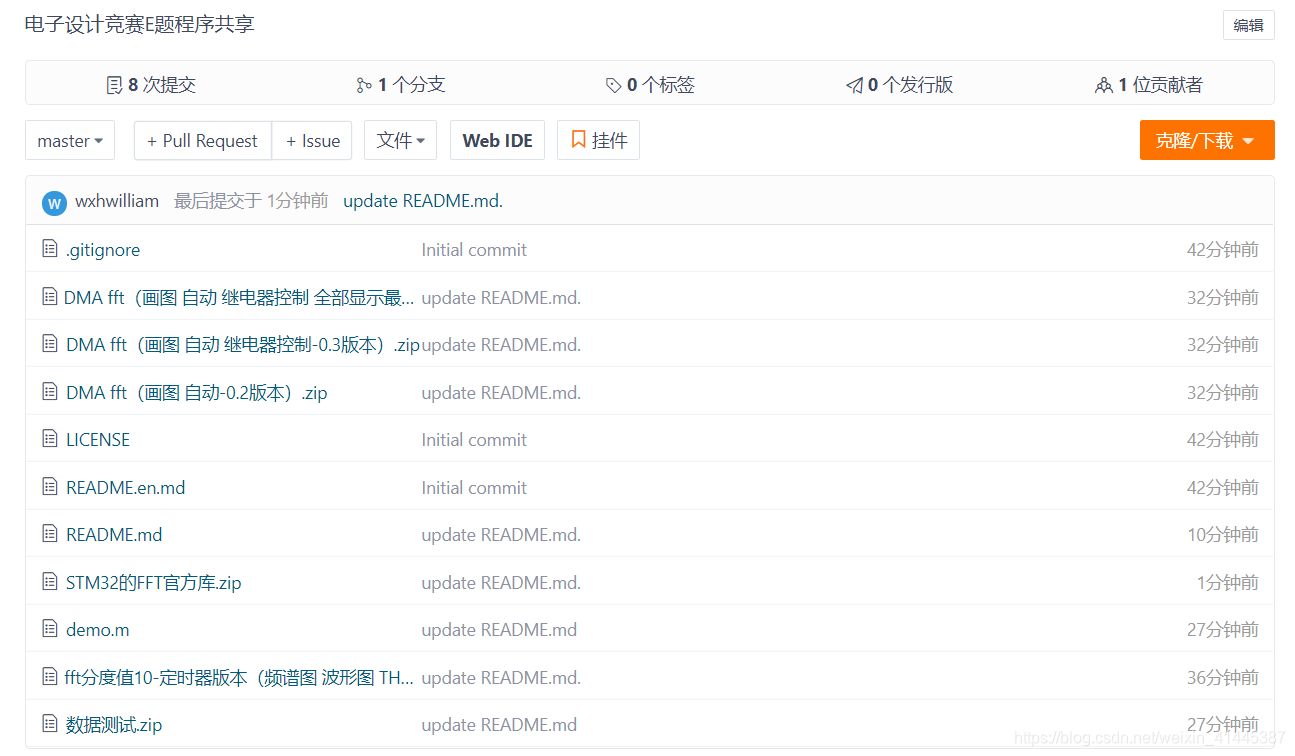

gitee鏈接

不習慣github，還是換成國內的平臺了，
快嫖我，快嫖我
在這里插入圖片描述

代碼功能描述

（備注：有些部分是直接把正點原子的例程的東西貼過來改寫的，所以大家在正點的板子上可能更方便操作，我們使用的板子是自己做的板子，所以螢屏顯示可能直接使用正點原子的板子無法正常顯示，這個只需要在正點的LCD的例程下面進行修改即可，別的按鍵功能只需要自行修改管腳即可），波形的幅值大小是根據我們的模擬部分進行擬合的，所以顯示的是放大器輸出的大約的幅值大小，

使用網版FFT，定時器3采集版本

我們為了保證進行FFT之后的精準程度（分度值），在權衡下，選擇了10240HZ為最后的采樣頻率，采樣點數為1024，這樣我們得到的頻域的資料的分度值是10hz，所以也就能保證我們比較精準取到1k，2k，3k，4k，5k頻率下的頻域的幅值資訊，
大致功能說明：

  • 使用PA1進行ADC的采樣，
  • 采樣定時器3進行定時采集（控制采樣時鐘），
  • 只進行一次采集測驗，復位后進行下次采集，
  • 繪制頻譜和波形圖，

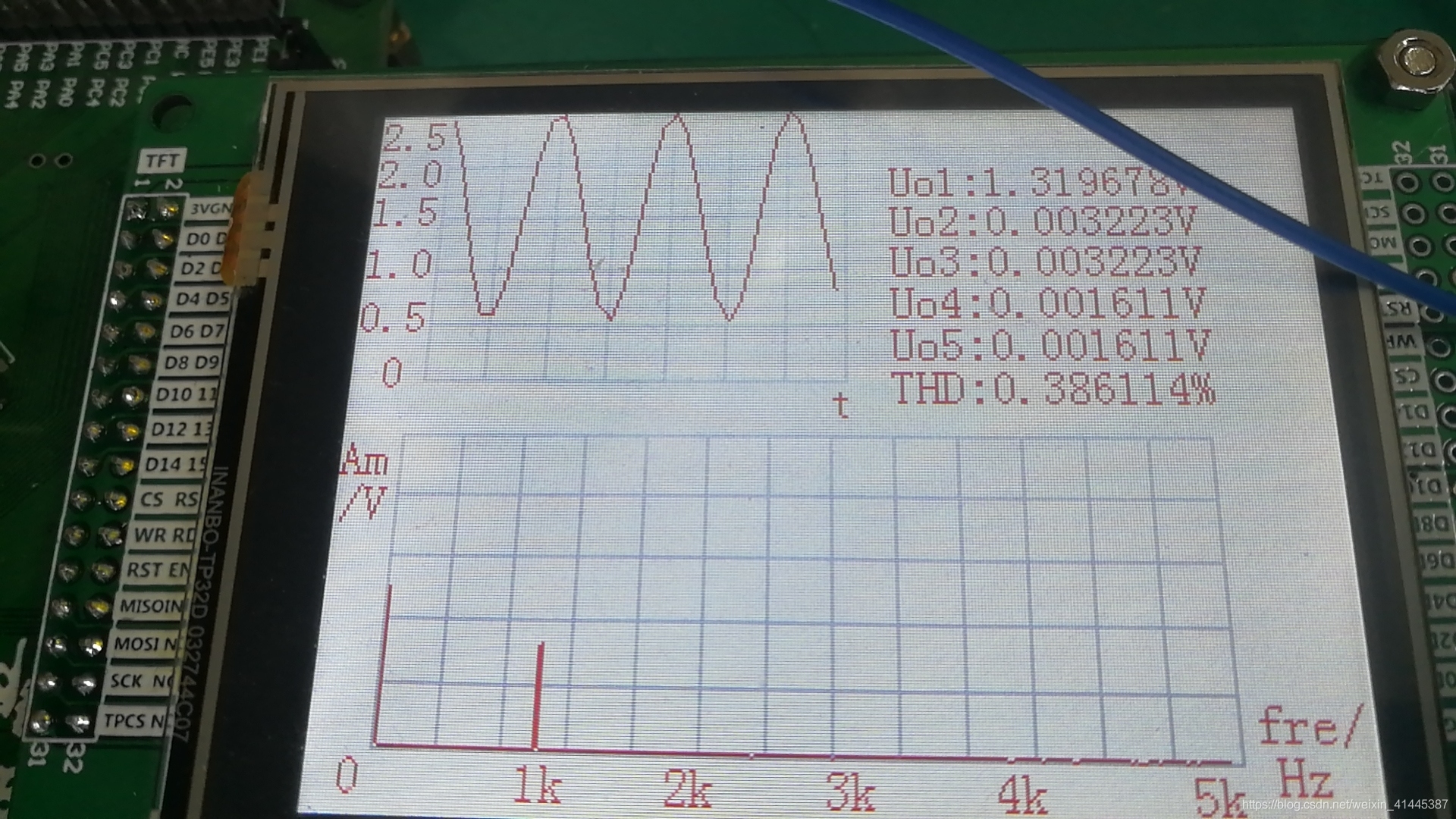

版本效果展示

在這里插入圖片描述

使用FFT庫函式，定時器輸出PWM波進行采集版本

我們為了保證進行FFT之后的精準程度（分度值），在權衡下，選擇了10240HZ為最后的采樣頻率，采樣點數為1024，這樣我們得到的頻域的資料的分度值是10hz，所以也就能保證我們比較精準取到1k，2k，3k，4k，5k頻率下的頻域的幅值資訊，
只進行講解說明最終版本的功能：

  • 使用PC1進行ADC的采樣，（和上個版本略有不同）
  • 通過繼電器切換控制不同失真狀態
  • 可以全自動回圈采集各種失真情況下的THD，全自動模式下，采集5次求均值進行保存顯示
  • 可以實作單種狀態回圈測量
  • 可以通過按鍵切換不同的失真狀態（控制繼電器）
  • 可以顯示頻譜和波形資料

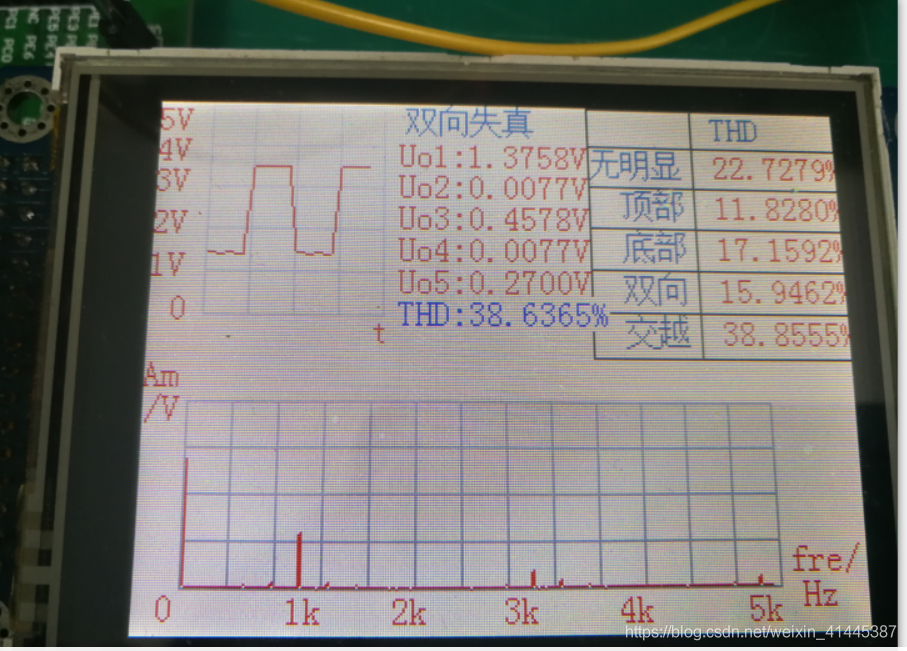

最終實作效果展示

這里是單獨測驗程式功能，沒有接繼電器，全自動模式測驗顯示的失真狀態的漢字可能對不上，隨機給了波進行測的，見諒，后面三種波形測驗放到了單次回圈的模式下，
在這里插入圖片描述

測驗三種1k的信號的理論值

  • 正弦：1%以內
  • 方波：大約38.87%
  • 三角波：大約11.81%

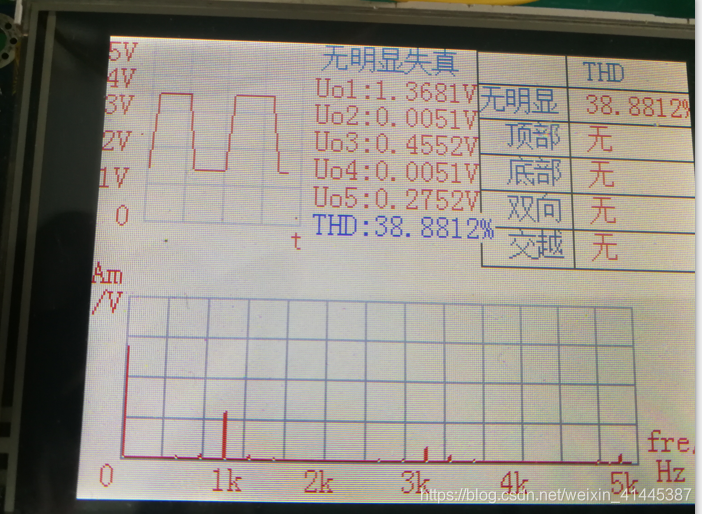

測量1k方波

在這里插入圖片描述

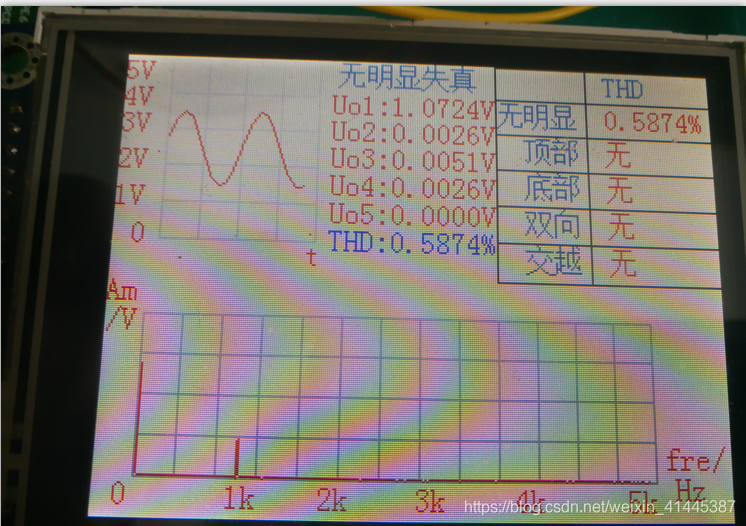

測驗1k正弦波

在這里插入圖片描述

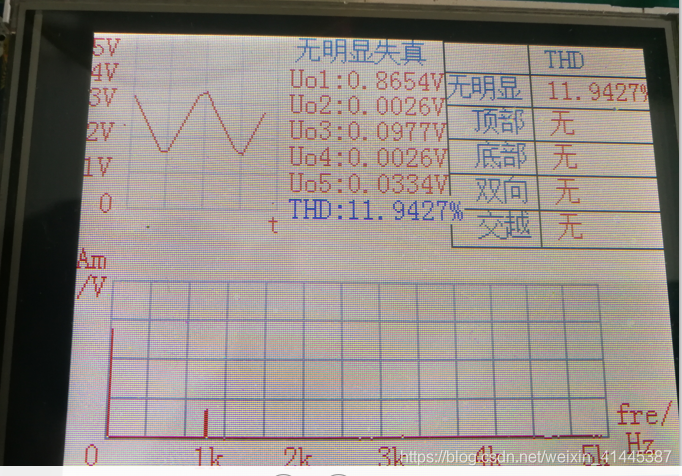

測驗1k三角波

在這里插入圖片描述

定時器3采集版本代碼：

這里的FFT演算法同前文，不進行展示，由于c檔案比較多，對沒有引數宣告，只是函式宣告的h檔案不再進行展示，lcd顯示屏的代碼不再展示，自行修改顯示到自己的平臺下，

main.c

/* Includes ------------------------------------------------------------------*/
#include "usart.h"
#include "fft.h"
#include <math.h>
#include "led.h"
#include "delay.h"
#include "key.h"
#include "sys.h"
#include "lcd.h"
#include "usart.h"
#include "adc.h"
#include "timer.h"
#include <stdio.h>
/* Private typedef -----------------------------------------------------------*/
/* Private define ------------------------------------------------------------*/
/* Private macro -------------------------------------------------------------*/
#define  N    1024          //采樣點數
#define  Fs   10240        //采樣頻率
#define  F    10          //解析度
/* Private variables ---------------------------------------------------------*/
/* Private function prototypes -----------------------------------------------*/
/* Private functions ---------------------------------------------------------*/
extern float data[1024];
extern int end;
/*螢屏設計頻譜*/
int x11=20;
int y11=120,y12=220; //豎
int x21=20,x22=280;//橫
int y21=120;
/*螢屏設計波形*/
int X1=20,X2=160;
int Y1=1,Y2=101;
int XX1=20,YY1=1;
//FFT測驗資料集 輸入陣列
complex  FFT_256PointIn[N];
//FFT測驗資料集 輸出陣列
float   FFT_256PointOut[N/2];
float   Mag[N/2];

u8 temp1[20];
//填入陣列												測驗
//void InitBufInArray()
//{
// unsigned short i;
// for(i=0; i<N; i++)
//	{
//       FFT_256PointIn[i].real  = 1500 * sin(2*PI * i * 2000.0 / Fs)
//		                             +10 * sin(2*PI * i * 1000.0 / Fs)
//		                             +4000 * sin(2*PI * i * 4000.0 / Fs);
//		   FFT_256PointIn[i].imag = 0;
//    }
//}

void InitBufInArray()
{
 unsigned short i;
 for(i=0; i<N; i++)
	{
       FFT_256PointIn[i].real  = data[i]*3.30/4096;//
		   FFT_256PointIn[i].imag = 0;
			 //測驗
//		   printf("%d      ",i);
//			 printf("%lf      \n",FFT_256PointIn[i].real);

    }
}
/******************************************************************
函式名稱:GetPowerMag()
函式功能:計算各次諧波幅值
引數說明:
備　　注:先將FFT_256PointIn分解成實部(X)和虛部(Y)，
         然后計算幅值:(sqrt(X*X+Y*Y)*2/N
         然后計算相位:atan2(Y/X)
作　　者:土耳其冰激凌
*******************************************************************/
void GetPowerMag()
{
    unsigned short i;
	  float  X,Y,P;
	 	c_abs(FFT_256PointIn,FFT_256PointOut,N/2);
    for(i=0; i<N/2; i++)
    {
			  X = FFT_256PointIn[i].real/N;    //計算實部
			  Y = FFT_256PointIn[i].imag/N;    //計算虛部
				if(i==0)
					Mag[i] = FFT_256PointOut[i]/N;    //計算幅值
				else
					Mag[i] = FFT_256PointOut[i]*2/N;
			  P = atan2(Y,X)*180/PI;           //計算相位

				printf("%d      ",i);
				printf("%d      ",F*i);
				printf("%f      \r\n",Mag[i]);
    }
}
/**
*計算歐總諧振失真函式
**/
void GetTHD()
{
	unsigned short i=20;//控制字符平移
	float  Uo1,Uo2,Uo3,Uo4,Uo5;
	double THD,thd_fz=0,thd_fm=0;
	Uo1=Mag[100];
	Uo2=Mag[200];
	Uo3=Mag[300];
	Uo4=Mag[400];
	Uo5=Mag[500];
	thd_fm=Uo1;
	thd_fz=Uo2*Uo2 + Uo3*Uo3 + Uo4*Uo4 + Uo5*Uo5;
	thd_fz=sqrt(thd_fz);
	THD=thd_fz/thd_fm*100;
	sprintf((unsigned char *)temp1,"Uo1:%5lfV",Uo1);
	LCD_ShowString(180,0+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo2:%5lfV",Uo2);
	LCD_ShowString(180,15+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo3:%5lfV",Uo3);
	LCD_ShowString(180,30+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo4:%5lfV",Uo4);
	LCD_ShowString(180,45+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo5:%5lfV",Uo5);
	LCD_ShowString(180,60+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"THD:%5lf%%",THD);
	LCD_ShowString(180,75+i,200,16,16,temp1);
	//測驗
//	printf("%lf      ",Uo1);
//	printf("%lf      ",Uo2);
//	printf("%lf      ",Uo3);
//	printf("%lf      ",Uo4);
//	printf("%lf      ",Uo5);
}
/*************

					畫波形圖
*
*/
void Getsignchart()
{
	int i;
	int con=8,x_con=4;
	for(i=0;i<35;i++){
				if(i==0){
						LCD_DrawPoint(20+i*x_con+1,101-data[i+4]*3.30/1024*con);
				}
				else
				{
					LCD_DrawPoint(20+i*x_con+1,101-data[i+4]*3.30/1024*con);
					LCD_DrawLine(20+(i-1)*x_con+1, 101-data[i-1+4]*3.30/1024*con, 20+i*x_con+1, 101-data[i+4]*3.30/1024*con);
				}
}
int main(void)
{
	int i,t;
	delay_init();//延時函式初始化
	SystemInit();//系統時鐘初始化
	USART_Configuration();//串口1初始化
	Adc_Init();		  		//ADC初始化
	TIM3_Int_Init(780*3+2,2);//1952*2
	//TIM3_Int_Init(780,8);//1952*2
	//TIM3_Int_Init(98,71);//1952*2
	LCD_Init();
	//printf("這是一個FFT 測驗實驗\r\n");
	 POINT_COLOR=GRAY;//設定字體為紅色
	 LCD_Display_Dir(1);
	 LCD_ShowNum(10,220,0,1,16);
	//畫圖頻譜區域
	 for(i=0;i<8;i++){
		LCD_DrawLine(XX1, Y1, XX1, Y2);
		XX1=XX1+20;
	 }
	 for(i=0;i<6;i++){
		LCD_DrawLine(X1, YY1, X2, YY1);
		YY1=YY1+20;
	 }
	 //設計頻譜引數
	 LCD_ShowString(285,200,32,16,16,"fre/");
	 LCD_ShowString(290,215,24,16,16,"Hz");
	 LCD_ShowString(0,120,32,16,16,"|A");
	 LCD_ShowString(1,135,32,16,16,"/V");
	 LCD_ShowString(65,221,24,16,16,"1k");
	 LCD_ShowString(110,221,24,16,16,"2k");
	 LCD_ShowString(158,221,24,16,16,"3k");
	 LCD_ShowString(208,221,24,16,16,"4k");
	 LCD_ShowString(265,221,24,16,16,"5k");
	 for(i=0;i<14;i++){
		LCD_DrawLine(x11, y11, x11, y12);
		x11=x11+20;
	 }
	 for(i=0;i<6;i++){
		LCD_DrawLine(x21, y21, x22, y21);
		y21=y21+20;
	 }
	//	printf("點數   頻率  幅值   實部  虛部\n");
//	GetPowerMag();
	while(1)
	{
		if(end==1) //接受一次
		{
			InitBufInArray();
			fft(N,FFT_256PointIn);
			POINT_COLOR=RED;//設定字體為紅色

			//printf("點數   頻率  幅值   實部  虛部\n");

			GetPowerMag();
			end=0;
			GetTHD();
			Getsignchart();
			for(i=0;i<256;i++){
				if(i==0){
					if(Mag[0]*50==0)
					LCD_DrawPoint(20+i+1,220);
				}
				else
				{
					LCD_DrawPoint(20+i+1,220-Mag[i*2]*25);
					LCD_DrawLine(20+i-1+1, 220-Mag[(i-1)*2]*25, 20+i+1, 220-Mag[i*2]*25);
				}
			}
		}
	}
}

adc.c

 #include "adc.h"
 #include "delay.h"

//初始化ADC
void  Adc_Init(void)
{
	ADC_InitTypeDef ADC_InitStructure;
	GPIO_InitTypeDef GPIO_InitStructure;
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA |RCC_APB2Periph_ADC1	, ENABLE );	  //使能ADC1通道時鐘
	RCC_ADCCLKConfig(RCC_PCLK2_Div6);   //設定ADC分頻因子6 72M/6=12,ADC最大時間不能超過14M
	//PA1 作為模擬通道輸入引腳
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;		//模擬輸入引腳
	GPIO_Init(GPIOA, &GPIO_InitStructure);
	ADC_DeInit(ADC1);  //復位ADC1,將外設 ADC1 的全部暫存器重設為預設值
	ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;	//ADC作業模式:ADC1和ADC2作業在獨立模式
	ADC_InitStructure.ADC_ScanConvMode = DISABLE;	//模數轉換作業在單通道模式
	ADC_InitStructure.ADC_ContinuousConvMode = ENABLE;	//模數轉換作業在單次轉換模式
	ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_None;	//轉換由軟體而不是外部觸發啟動
	ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right;	//ADC資料右對齊
	ADC_InitStructure.ADC_NbrOfChannel = 1;	//順序進行規則轉換的ADC通道的數目
	ADC_Init(ADC1, &ADC_InitStructure);	//根據ADC_InitStruct中指定的引數初始化外設ADCx的暫存器
    ADC_RegularChannelConfig(ADC1, ADC_Channel_1, 1, ADC_SampleTime_71Cycles5 );	   //ADC1,ADC通道,采樣時間為239.5周期
	ADC_Cmd(ADC1, ENABLE);	//使能指定的ADC1
	ADC_ResetCalibration(ADC1);	//使能復位校準
	while(ADC_GetResetCalibrationStatus(ADC1));	//等待復位校準結束
	ADC_StartCalibration(ADC1);	 //開啟AD校準
	while(ADC_GetCalibrationStatus(ADC1));	 //等待校準結束
	ADC_SoftwareStartConvCmd(ADC1, ENABLE);		//使能指定的ADC1的軟體轉換啟動功能

}

timer.c

#include "timer.h"
#include<stm32f10x.h>
#include "led.h"
#include "adc.h"
float data[1024];
int counter=0;
extern int adcx;
int end=0;
//通用定時器3中斷初始化
//這里時鐘選擇為APB1的2倍，而APB1為36M
//arr：自動重裝值，
//psc：時鐘預分頻數
//這里使用的是定時器3!
void TIM3_Int_Init(u16 arr,u16 psc)
{
    TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;
	NVIC_InitTypeDef NVIC_InitStructure;

	RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM3, ENABLE); //時鐘使能

	//定時器TIM3初始化
	TIM_TimeBaseStructure.TIM_Period = arr; //設定在下一個更新事件裝入活動的自動重裝載暫存器周期的值
	TIM_TimeBaseStructure.TIM_Prescaler =psc; //設定用來作為TIMx時鐘頻率除數的預分頻值
	TIM_TimeBaseStructure.TIM_ClockDivision = TIM_CKD_DIV1; //設定時鐘分割:TDTS = Tck_tim
	TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;  //TIM向上計數模式
	TIM_TimeBaseInit(TIM3, &TIM_TimeBaseStructure); //根據指定的引數初始化TIMx的時間基數單位

	TIM_ITConfig(TIM3,TIM_IT_Update,ENABLE ); //使能指定的TIM3中斷,允許更新中斷

	//中斷優先級NVIC設定
	NVIC_InitStructure.NVIC_IRQChannel = TIM3_IRQn;  //TIM3中斷
	NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0;  //先占優先級0級
	NVIC_InitStructure.NVIC_IRQChannelSubPriority = 3;  //從優先級3級
	NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE; //IRQ通道被使能
	NVIC_Init(&NVIC_InitStructure);  //初始化NVIC暫存器


	TIM_Cmd(TIM3, ENABLE);  //使能TIMx
}
//定時器3中斷服務程式
void TIM3_IRQHandler(void)   //TIM3中斷
{
	if (TIM_GetITStatus(TIM3, TIM_IT_Update) != RESET)  //檢查TIM3更新中斷發生與否
		{

		data[counter]=ADC_GetConversionValue(ADC1);
	  //printf("%.2f\r\n",data[counter]);//);
		counter++;
		if(counter==1024)
		{
			counter=0;
			end=1;
		 TIM_Cmd(TIM3, DISABLE);  //關閉

		}
TIM_ClearITPendingBit(TIM3, TIM_IT_Update  );  //清除TIMx更新中斷標志
		}
}

STM32DSP庫的使用

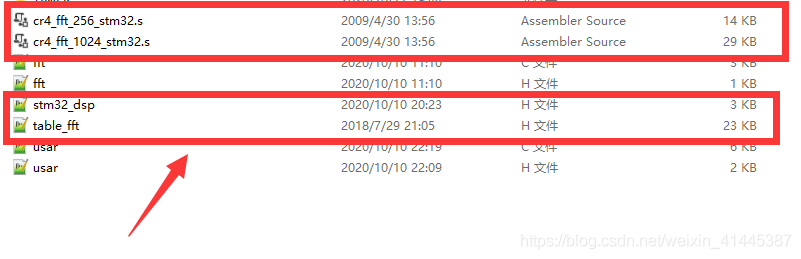

只需要下載STM32官方撰寫的庫函式，（已經把STM32官方撰寫的庫函式上傳到碼云）然后包含頭檔案即可，
在這里插入圖片描述
呼叫使用1024點的函式
也即為把采樣的1024個點輸入，存盤輸出即可得到計算結果，
這里左移是因為庫函式下的高16位是實數，低16位是虛數，

/********FFT變換**********/
void DSP_FFT1024()
{
	u16 i;

	for (i = 0; i <NPT ; i++)
	{
       input[i] = ADC_input[i]<<16;
    }

	cr4_fft_1024_stm32(output,input,NPT);   //FFT變換
	PowerMag(NPT);

}


/***************計算幅值*****************/
void PowerMag(u16 FFT_NPT)
{

//	s16 lx, ly;
	signed short lx, ly;
	u32 i;
	float mag, x, y;

	for (i = 0; i < FFT_NPT/2; i++ )
	{

		lx = (output[i]<<16)>>16;
		ly = (output[i]>>16);

		 x = FFT_NPT*((float)lx)/32768;
		 y = FFT_NPT*((float)ly)/32768;
		mag = sqrt(x*x+y*y)/FFT_NPT;
		Mag[i] = (unsigned long)(mag*65536)*3.30/4096;
//		printf("%d\r\n",i )	;
//		printf("%\r\n",Mag[i] )	;
	}
	Mag[0] = Mag[0]/2;
}

使用FFT庫函式最終版本

main.c

#include "stm32f10x.h"
#include "led.h"
#include "usart.h"
#include "fft.h"
#include "delay.h"
#include "key.h"
#include "sys.h"
#include "lcd.h"
#include "adc.h"
#include "img1.h"
#include <usar.h>
#include "timer.h"
#include <math.h>
#include <stdio.h>
#include <stdlib.h>
#include "img.h"
#include "stm32_dsp.h"
#include "table_fft.h"
/****************************變數區***************************************/
#define PI2 6.28318530717959
#define Fs 10240                   //采樣頻率 Hz
#define NPT 1024                    //采樣點數

u16 ADC_input[NPT];	//DMA讀取的電壓值
float thd;
long input[NPT];
long output[NPT];
double Mag[NPT];
float Mag_max;
u16 ADC_DataNum = 0;
s16 Fn_Num;
u16 ADC_flag = 0;
extern __IO uint16_t ADC_ConvertedValue[1024];    // ADC1轉換的電壓值通過MDA方式傳到SRAM
u8 temp1[20];
extern char auto_flag;
extern char auto_flag1;
extern char classify_flag;
float vpp=0;
double THD;
extern u8 flag_zidongkz;//自動控制狀態
extern double thd_1[5];
extern double thd_2[5];
extern double thd_3[5];
extern double thd_4[5];
extern double thd_5[5];
double mean_thd_1=0;
double mean_thd_2=0;
double mean_thd_3=0;
double mean_thd_4=0;
double mean_thd_5=0;
extern u8 cc;
extern u8 zt;
/**********************函式區*******************************************/
/*************

					gpio初始化
*
*/
void gpio_init()
{
	GPIO_InitTypeDef GPIO_InitStructure;
 	RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOF,ENABLE);
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;       //推挽輸出模式
	GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;			//輸出速率
	GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_0|GPIO_Pin_1|GPIO_Pin_2|GPIO_Pin_3|GPIO_Pin_4|GPIO_Pin_5|
																 GPIO_Pin_6|GPIO_Pin_7|GPIO_Pin_8; //選擇引腳
	GPIO_Init(GPIOF, &GPIO_InitStructure);//初始化GPIOF.0
}
//
void gpio()
{
	GPIO_ResetBits(GPIOF,GPIO_Pin_0);
	GPIO_ResetBits(GPIOF,GPIO_Pin_1);
	GPIO_ResetBits(GPIOF,GPIO_Pin_2);
	GPIO_ResetBits(GPIOF,GPIO_Pin_3);
	GPIO_ResetBits(GPIOF,GPIO_Pin_4);
	GPIO_ResetBits(GPIOF,GPIO_Pin_5);
	GPIO_ResetBits(GPIOF,GPIO_Pin_6);
	GPIO_ResetBits(GPIOF,GPIO_Pin_7);
	GPIO_ResetBits(GPIOF,GPIO_Pin_8);
}
void get_vpp()
{
	u16 i;
	u16 max=0,min=5000;
	max = 0;
  for(i=0; i < NPT; i++)
  {
		if(max < ADC_input[i])
		{
			max = ADC_input[i];
		}
  }
	for(i=0; i < NPT; i++)
  {
		if(min > ADC_input[i])
		{
			min = ADC_input[i];
		}
  }
	vpp = (max-min)*3.3/4096;

}

/***************計算幅值*****************/
void PowerMag(u16 FFT_NPT)
{

//	s16 lx, ly;
	signed short lx, ly;
	u32 i;
	float mag, x, y;

	for (i = 0; i < FFT_NPT/2; i++ )
	{

		lx = (output[i]<<16)>>16;
		ly = (output[i]>>16);

		 x = FFT_NPT*((float)lx)/32768;
		 y = FFT_NPT*((float)ly)/32768;
		mag = sqrt(x*x+y*y)/FFT_NPT;
		Mag[i] = (unsigned long)(mag*65536)*3.30/4096;
//		printf("%d\r\n",i )	;
//		printf("%\r\n",Mag[i] )	;
	}
	Mag[0] = Mag[0]/2;
}

/***********取最大值************/
void Compare_Max()
{
	u16 i;
	Mag_max = Mag[1];
    for(i=1; i < NPT/2; i++)
    {
		if(Mag_max < Mag[i])
		{
			Fn_Num = i;
			Mag_max = Mag[i];
		}
    }

}

/********FFT變換**********/
void DSP_FFT1024()
{
	u16 i;

	for (i = 0; i <NPT ; i++)
	{
       input[i] = ADC_input[i]<<16;
    }

	cr4_fft_1024_stm32(output,input,NPT);   //FFT變換
	PowerMag(NPT);

}

/***********計算歐總諧振失真函式**********/
void GetTHD()
{
	unsigned short i=17,con1=68;//控制字符平移
	float  Uo1,Uo2,Uo3,Uo4,Uo5;
	double thd_fz=0,thd_fm=0,xs=0.76*2.1;
	Uo1=Mag[100]*xs;
	Uo2=Mag[200]*xs;
	Uo3=Mag[300]*xs;
	Uo4=Mag[400]*xs;
	Uo5=Mag[500]*xs;
	thd_fm=Uo1;
	thd_fz=Uo2*Uo2 + Uo3*Uo3 + Uo4*Uo4 + Uo5*Uo5;
	thd_fz=sqrt(thd_fz);
	THD=thd_fz/thd_fm*100;
	sprintf((unsigned char *)temp1,"Uo1:%.4lfV",Uo1);
	LCD_ShowString(180-con1,0+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo2:%.4lfV",Uo2);
	LCD_ShowString(180-con1,15+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo3:%.4lfV",Uo3);
	LCD_ShowString(180-con1,30+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo4:%.4lfV",Uo4);
	LCD_ShowString(180-con1,45+i,200,16,16,temp1);
	sprintf((unsigned char *)temp1,"Uo5:%.4lfV",Uo5);
	LCD_ShowString(180-con1,60+i,200,16,16,temp1);
	POINT_COLOR=BLUE;
	sprintf((unsigned char *)temp1,"THD:%.4lf%%",THD);
	LCD_ShowString(180-con1,75+i,200,16,16,temp1);
	POINT_COLOR=RED;
	//sprintf((unsigned char *)temp1,"Vpp:%.4lfV",vpp*xs*0.9*0.96);
	//LCD_ShowString(180-con1,90+i,200,16,16,temp1);
	//測驗
//	printf("%lf      ",Uo1);
//	printf("%lf      ",Uo2);
//	printf("%lf      ",Uo3);
//	printf("%lf      ",Uo4);
//	printf("%lf      ",Uo5);
}

/*************

					畫波形圖
*
*/
void Getsignchart()
{
	int i,x0=25;
	double con=7.7,x_con=4,y_con=15;
	for(i=0;i<19;i++){
				if(i==0){
						LCD_DrawPoint(x0+i*x_con+1,y_con+99-ADC_input[i]*3.30/1024*con);
				}
				else
				{
					LCD_DrawPoint(x0+i*x_con+1,y_con+99-ADC_input[i]*3.30/1024*con);
					LCD_DrawLine(x0+(i-1)*x_con+1, y_con+99-ADC_input[i-1]*3.30/1024*con, x0+i*x_con+1, y_con+99-ADC_input[i]*3.30/1024*con);
				}
//				printf("%d      ",i);
//				printf("%lf      \n",data[i]*3.30/1024*con);
	 }
}


/*************

					畫頻譜圖
*
*/
void Getfreqchart()
{
	int i;
	float xs=27.4;
	 for(i=0;i<256;i++){
				if(i==0){
					if(Mag[0]*xs==0)
						LCD_DrawPoint(20+i+1,220);
					else
						LCD_DrawPoint(20+i+1,Mag[0]*xs);
				}
				else
				{
					LCD_DrawPoint(20+i+1,220-Mag[i*2]*xs);
					LCD_DrawLine(20+i-1+1, 220-Mag[(i-1)*2]*xs, 20+i+1, 220-Mag[i*2]*xs);
				}
			}
}


//畫圖設計函式
void LCD_Drawdesign()
{
	 u16 i ;
	/*螢屏設計頻譜*/
	int x11=20;
	int y11=140,y12=220; //豎
	int x21=20,x22=280;//橫
	int y21=140;
	/*螢屏設計波形*/
	int X1=25,X2=105;
	int Y1=1,Y2=101;
	int XX1=25,YY1=1;
	//printf("這是一個FFT 測驗實驗\r\n");
	 POINT_COLOR=RED;//設定字體為紅色 WHITE
	//設定頻譜引數
	 LCD_ShowString(0,0,32,16,16,"5V");
	 LCD_ShowString(0,15,32,16,16,"4V");
	 LCD_ShowString(0,30,32,16,16,"3V");
	 LCD_ShowString(0,50,32,16,16,"2V");
	 LCD_ShowString(0,70,32,16,16,"1V");
	 LCD_ShowString(10,90,32,16,16,"0");
	 LCD_ShowString(100,100,32,16,16,"t");
	 //設計頻譜引數
	 LCD_ShowString(285,200,32,16,16,"fre/");
	 LCD_ShowString(290,215,24,16,16,"Hz");
	 LCD_ShowString(0,120,32,16,16,"Am");
	 LCD_ShowString(1,135,32,16,16,"/V");
	 LCD_ShowString(65,221,24,16,16,"1k");
	 LCD_ShowString(110,221,24,16,16,"2k");
	 LCD_ShowString(158,221,24,16,16,"3k");
	 LCD_ShowString(208,221,24,16,16,"4k");
	 LCD_ShowString(265,221,24,16,16,"5k");
	 LCD_ShowNum(10,220,0,1,16);
	 POINT_COLOR=LGRAY;//設定字體為紅色 WHITE
	 LCD_Display_Dir(1);


	//畫圖波形區域
	 for(i=0;i<5;i++){
		LCD_DrawLine(XX1, Y1, XX1, Y2);
		XX1=XX1+20;
	 }
	 for(i=0;i<6;i++){
		LCD_DrawLine(X1, YY1, X2, YY1);
		YY1=YY1+20;
	 }
	 //畫圖頻譜區域
	 for(i=0;i<14;i++){
		LCD_DrawLine(x11, y11, x11, y12);
		x11=x11+20;
	 }
	 for(i=0;i<6;i++){
		LCD_DrawLine(x21, y21, x22, y21);
		y21=y21+20;
	 }
	 //設計引數顯示區域
	 POINT_COLOR=BLACK;//設定字體為紅色 WHITE
	 LCD_DrawRectangle(200,0,320,120);
	 LCD_DrawLine(200,19,320,19);
	 LCD_DrawLine(200,39,320,39);
	 LCD_DrawLine(200,59,320,59);
	 LCD_DrawLine(200,79,320,79);
	 LCD_DrawLine(200,99,320,99);
	 LCD_DrawLine(250,0,250,120);
	 //POINT_COLOR=LGRAY;//設定字體為紅色 WHITE
	 POINT_COLOR=DARKBLUE;
	 //設計顯示thd存盤區
	 Show_Graph(201,20,(u8*)wu,16,0);
   Show_Graph(215,20,(u8*)ming,16,0);
   Show_Graph(230,20,(u8*)xian,16,0);

	 Show_Graph(215,40,(u8*)ding,16,0);
   Show_Graph(230,40,(u8*)bu,16,0);

	 Show_Graph(215,60,(u8*)di,16,0);
   Show_Graph(230,60,(u8*)bu,16,0);

	 Show_Graph(215,80,(u8*)shuang,16,0);
   Show_Graph(230,80,(u8*)xiang,16,0);

	 Show_Graph(215,100,(u8*)jiao,16,0);
   Show_Graph(230,100,(u8*)yue,16,0);

	 LCD_ShowString(260,1,24,16,16,"THD");

}

/***************************************************
*
*
*             顯示種類漢字
*
*
*****************************************************/
void xianshi_classify()
{
	int con=65;
	if(classify_flag==0)
	{
		POINT_COLOR=DARKBLUE;
		Show_Graph(180-con,0,(u8*)wu,16,0);
		Show_Graph(195-con,0,(u8*)ming,16,0);
		Show_Graph(210-con,0,(u8*)xian,16,0);
		Show_Graph(225-con,0,(u8*)shi,16,0);
		Show_Graph(240-con,0,(u8*)zhen,16,0);
		//POINT_COLOR=RED;
	}
	if(classify_flag==1)
	{
		POINT_COLOR=DARKBLUE;
		Show_Graph(180-con,0,(u8*)ding,16,0);
		Show_Graph(195-con,0,(u8*)bu,16,0);
		Show_Graph(210-con,0,(u8*)shi,16,0);
		Show_Graph(225-con,0,(u8*)zhen,16,0);
		Show_Graph(240-con,0,(u8*)k,16,0);
		//POINT_COLOR=RED;
	}
	if(classify_flag==2)
	{
		POINT_COLOR=DARKBLUE;
		Show_Graph(180-con,0,(u8*)di,16,0);
		Show_Graph(195-con,0,(u8*)bu,16,0);
		Show_Graph(210-con,0,(u8*)shi,16,0);
		Show_Graph(225-con,0,(u8*)zhen,16,0);
		Show_Graph(240-con,0,(u8*)k,16,0);
		//POINT_COLOR=RED;
	}
	if(classify_flag==3)
	{
		POINT_COLOR=DARKBLUE;
		Show_Graph(180-con,0,(u8*)shuang,16,0);
		Show_Graph(195-con,0,(u8*)xiang,16,0);
		Show_Graph(210-con,0,(u8*)shi,16,0);
		Show_Graph(225-con,0,(u8*)zhen,16,0);
		Show_Graph(240-con,0,(u8*)k,16,0);
		//POINT_COLOR=RED;
	}
	if(classify_flag==4)
	{
		POINT_COLOR=DARKBLUE;
		Show_Graph(180-con,0,(u8*)jiao,16,0);
		Show_Graph(195-con,0,(u8*)yue,16,0);
		Show_Graph(210-con,0,(u8*)shi,16,0);
		Show_Graph(225-con,0,(u8*)zhen,16,0);
		Show_Graph(240-con,0,(u8*)k,16,0);
		//POINT_COLOR=RED;
	}
}
/**************************************************************
*
*
*
*
*                          全自動
*
*
*
*
***************************************************************/
void quanzidong()
{
	if(flag_zidongkz==0)
	{
		wushizhen
		delay_ms(900);
	}
	if(flag_zidongkz==1)
	{	dingbushizhen
		delay_ms(900);
	}
	if(flag_zidongkz==2)
	{
		dibushizhen
		delay_ms(900);
	}
	if(flag_zidongkz==3)
	{
		shuangxiangshizhen
		delay_ms(900);
	}
	if(flag_zidongkz==4)
	{
		jiaoyueshizhen
		delay_ms(900);
	}
}
void get_danci()
{
	if(classify_flag==0)
	{
		sprintf((unsigned char *)temp1,"%.4lf%%",THD);
	  LCD_ShowString(260,20,200,16,16,temp1);
		//Show_Graph(260,20,(u8*)wu,16,0);
		Show_Graph(260,40,(u8*)wu,16,0);
		Show_Graph(260,60,(u8*)wu,16,0);
		Show_Graph(260,80,(u8*)wu,16,0);
		Show_Graph(260,100,(u8*)wu,16,0);
	}
	if(classify_flag==1)
	{
		sprintf((unsigned char *)temp1,"%.4lf%%",THD);
	  LCD_ShowString(260,40,200,16,16,temp1);
		Show_Graph(260,20,(u8*)wu,16,0);
		//Show_Graph(260,40,(u8*)wu,16,0);
		Show_Graph(260,60,(u8*)wu,16,0);
		Show_Graph(260,80,(u8*)wu,16,0);
		Show_Graph(260,100,(u8*)wu,16,0);
	}
	if(classify_flag==2)
	{
		sprintf((unsigned char *)temp1,"%.4lf%%",THD);
	  LCD_ShowString(260,60,200,16,16,temp1);
		Show_Graph(260,20,(u8*)wu,16,0);
		Show_Graph(260,40,(u8*)wu,16,0);
		//Show_Graph(260,60,(u8*)wu,16,0);
		Show_Graph(260,80,(u8*)wu,16,0);
		Show_Graph(260,100,(u8*)wu,16,0);
	}
	if(classify_flag==3)
	{
		sprintf((unsigned char *)temp1,"%.4lf%%",THD);
	  LCD_ShowString(260,80,200,16,16,temp1);
		Show_Graph(260,20,(u8*)wu,16,0);
		Show_Graph(260,40,(u8*)wu,16,0);
		Show_Graph(260,60,(u8*)wu,16,0);
		//Show_Graph(260,80,(u8*)wu,16,0);
		Show_Graph(260,100,(u8*)wu,16,0);
	}
	if(classify_flag==4)
	{
		sprintf((unsigned char *)temp1,"%.4lf%%",THD);
	  LCD_ShowString(260,100,200,16,16,temp1);
		Show_Graph(260,20,(u8*)wu,16,0);
		Show_Graph(260,40,(u8*)wu,16,0);
		Show_Graph(260,60,(u8*)wu,16,0);
		Show_Graph(260,80,(u8*)wu,16,0);
		//Show_Graph(260,100,(u8*)wu,16,0);
	}
}
void get_thdmean()
{
	u8 i,n;//i 控制回圈 n控制求值
	//thd_1求平均
	if(thd_1[0]==0&&thd_1[1]==0&&thd_1[2]==0&&thd_1[3]==0&&thd_1[4]==0)
		 Show_Graph(260,20,(u8*)wu,16,0);
	else
	{
		n=0;mean_thd_1=0;
		for(i=0;i<5;i++)
		{
			if(thd_1[i]!=0)
			{
				n++;
				mean_thd_1+=thd_1[i];
			}
		}

		mean_thd_1=mean_thd_1/n;
		sprintf((unsigned char *)temp1,"%.4lf%%",mean_thd_1);
	  LCD_ShowString(260,20,200,16,16,temp1);
	}
	//thd_2求平均
	if(thd_2[0]==0&&thd_2[1]==0&&thd_2[2]==0&&thd_2[3]==0&&thd_2[4]==0)
		 Show_Graph(260,40,(u8*)wu,16,0);
	else
	{
		n=0;mean_thd_2=0;
		for(i=0;i<5;i++)
		{
			if(thd_2[i]!=0)
			{
				n++;
				mean_thd_2+=thd_2[i];
			}
		}
		mean_thd_2=mean_thd_2/n;
		sprintf((unsigned char *)temp1,"%.4lf%%",mean_thd_2);
	  LCD_ShowString(260,40,200,16,16,temp1);
	}
	//thd_3求平均
	if(thd_3[0]==0&&thd_3[1]==0&&thd_3[2]==0&&thd_3[3]==0&&thd_3[4]==0)
		 Show_Graph(260,60,(u8*)wu,16,0);
	else
	{
		n=0;mean_thd_3=0;
		for(i=0;i<5;i++)
		{
			if(thd_3[i]!=0)
			{
				n++;
				mean_thd_3+=thd_3[i];
			}
		}
		mean_thd_3=mean_thd_3/n;
		sprintf((unsigned char *)temp1,"%.4lf%%",mean_thd_3);
	  LCD_ShowString(260,60,200,16,16,temp1);
	}
	//thd_4求平均
	if(thd_4[0]==0&&thd_4[1]==0&&thd_4[2]==0&&thd_4[3]==0&&thd_4[4]==0)
		 Show_Graph(260,80,(u8*)wu,16,0);
	else
	{
		n=0;mean_thd_4=0;
		for(i=0;i<5;i++)
		{
			if(thd_4[i]!=0)
			{
				n++;
				mean_thd_4+=thd_4[i];
			}
		}
		mean_thd_4=mean_thd_4/n;
		sprintf((unsigned char *)temp1,"%.4lf%%",mean_thd_4);
	  LCD_ShowString(260,80,200,16,16,temp1);
	}

	if(thd_5[0]==0&&thd_5[1]==0&&thd_5[2]==0&&thd_5[3]==0&&thd_5[4]==0)
		 Show_Graph(260,100,(u8*)wu,16,0);
	else
	{
		n=0;mean_thd_5=0;
		for(i=0;i<5;i++)
		{
			if(thd_5[i]!=0)
			{
				n++;
				mean_thd_5+=thd_5[i];
			}
		}
		mean_thd_5=mean_thd_5/n;
		sprintf((unsigned char *)temp1,"%.4lf%%",mean_thd_5);
	  LCD_ShowString(260,100,200,16,16,temp1);
	}
}
/**************************************************************
*
*
*
*
*                          主函式
*
*
*
*
***************************************************************/
int main(void)
{
    u16 i ;

	SystemInit();//系統時鐘初始化
	//繼電器控制
	gpio_init();
	gpio();
	delay_init();
  TIME2_Init();
	ADC1_Init();
	NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);//設定中斷優先級分組為組2：2位搶占優先級，2位回應優先級
	USART_Configuration();//串口1初始化
	LCD_Init();
	KEY_Init();
	wushizhen
	TIM3_Int_Init(500,7199);//10Khz的計數頻率，計數到5000為500ms
	POINT_COLOR=RED;//設定字體為紅色
	Show_Graph(0,40,(u8*)tp1,240,1);
	delay_ms(1000);
	delay_ms(1000);
	POINT_COLOR=BLACK;//
	LCD_Clear(WHITE);
	Show_Graph(0,40,(u8*)tp,240,1);
	delay_ms(1000);
	delay_ms(1000);
	delay_ms(1000);
	LCD_Clear(WHITE);
	LCD_Drawdesign();
	auto_flag=1;
	auto_flag1=0;
	//	printf("點數   頻率  幅值   實部  虛部\n");
  //	GetPowerMag();
    while (1)
	{
		//quanzidong();
		//printf("check  %d",auto_flag1);
		if(auto_flag1==0)
		{
			quanzidong();
			delay_ms(1000);
			DMA_Cmd(DMA1_Channel1,ENABLE);
      TIM_Cmd(TIM2,ENABLE);    //開啟定時器2

		}
		if(auto_flag==0){
			delay_ms(1000);
			DMA_Cmd(DMA1_Channel1,ENABLE);
			TIM_Cmd(TIM2,ENABLE);    //開啟定時器2
		}
		if(ADC_flag == 1)
		{
			LCD_Clear(WHITE);
			xianshi_classify();
			LCD_Drawdesign();
			TIM_Cmd(TIM2,DISABLE);
			DMA_Cmd(DMA1_Channel1,DISABLE);
			ADC_flag = 0;
			POINT_COLOR=RED;//設定字體為紅色
			DSP_FFT1024();
			get_vpp();
			GetTHD();
			Getsignchart();
			Getfreqchart();
			DMA_Cmd(DMA1_Channel1,DISABLE);
			TIM_Cmd(TIM2,DISABLE);    //開啟定時器
			if(auto_flag1==0)
			{
				//printf("   %lf   %lf   %lf   %lf   %lf   %lf\n",mean_thd_1,thd_1[0],thd_1[1],thd_1[2],thd_1[3],thd_1[4]);
				if(flag_zidongkz==0)//
					thd_1[zt]=THD;
				if(flag_zidongkz==1)
					thd_2[zt]=THD;
				if(flag_zidongkz==2)
					thd_3[zt]=THD;
				if(flag_zidongkz==3)
					thd_4[zt]=THD;
				if(flag_zidongkz==4)
					thd_5[zt]=THD;
				zt++;
				if(zt==5)
				{
					zt=0;
					//printf("111");
					flag_zidongkz++;
					if(flag_zidongkz==5)
						flag_zidongkz=0;
					classify_flag=flag_zidongkz;

					//printf("%d      %d",flag_zidongkz,classify_flag);
				}

				get_thdmean();
			}
			else if(auto_flag==0||cc==0)
				get_danci();
		}

	}
}

/**************************************************
*
*
*                  DMA中斷服務函式
*
*
*
***************************************************/
void DMA1_Channel1_IRQHandler()
{
    int  i;
    if(DMA_GetITStatus(DMA_IT_TC))                      //判斷DMA傳輸完成中斷
    {
            for(i=0;i<NPT;i++)
            {
                ADC_input[i] = ADC_ConvertedValue[i];
//							printf("%d\r\n",ADC_input[i]);
//							printf("%f\r\n",(float)ADC_input[i]*3.3/4096);
            }
            ADC_flag = 1;
    }
    DMA_ClearITPendingBit(DMA_IT_TC);                   //清除DMA中斷標志位
}

timer.c

#include "timer.h"
#include<stm32f10x.h>
#include "led.h"
#include "delay.h"
#include "key.h"
extern char auto_flag;
int tt;
/*************************************************
函式:
功能: 定時器配置
引數: 無
回傳: 無
**************************************************/
void TIM2_Configuration(void)
{
	TIM_TimeBaseInitTypeDef TIM2_InitStructure;
    TIM_OCInitTypeDef TIM_OCInitStructure;


	TIM_DeInit(TIM2);
	RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM2, ENABLE);

	TIM_InternalClockConfig(TIM2);
	TIM2_InitStructure.TIM_ClockDivision = TIM_CKD_DIV1;
    TIM2_InitStructure.TIM_RepetitionCounter = 0;
	TIM2_InitStructure.TIM_CounterMode = TIM_CounterMode_Up;
//=====================采樣率調節↓=====================================
	TIM2_InitStructure.TIM_Period =585;  //  1170  389      585   780   239   //(799,43)頻率2048     //59,29(40K)   //44,19(80K)
	TIM2_InitStructure.TIM_Prescaler = 11;//     5  17          11   8      29
//==============================================================
	TIM_TimeBaseInit(TIM2, &TIM2_InitStructure);

    TIM_OCInitStructure.TIM_OCMode = TIM_OCMode_PWM1;   //TIM脈沖寬度調制模式1
    TIM_OCInitStructure.TIM_OutputState = TIM_OutputState_Enable;   //
    TIM_OCInitStructure.TIM_Pulse = 50;     //占空比（大于0就OK）
    TIM_OCInitStructure.TIM_OCNPolarity = TIM_OCPolarity_Low;   //TIM輸出比較級性低
    TIM_OC2Init(TIM2,&TIM_OCInitStructure);

    TIM_InternalClockConfig(TIM2);    //設定TIMx內部時鐘
    TIM_OC2PreloadConfig(TIM2,TIM_OCPreload_Enable);  //使能或失能TIMx在CCR2上的預裝載暫存器
    TIM_UpdateDisableConfig(TIM2,DISABLE);    //使能或失能TIMx更新事件

	TIM_ITConfig(TIM2, TIM_IT_Update, ENABLE);  //使能或失能指定的TIM中斷
	TIM_Cmd(TIM2,ENABLE);
}

void TIM2_NVIC_Configuration(void)
{

  NVIC_InitTypeDef NVIC_InitStructure;

  NVIC_InitStructure.NVIC_IRQChannel = TIM2_IRQn;
  NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 3;
  NVIC_InitStructure.NVIC_IRQChannelSubPriority = 3;
  NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;

  NVIC_Init(&NVIC_InitStructure);
}

void TIME2_Init()
{
    TIM2_NVIC_Configuration();
    TIM2_Configuration();
}

void TIM2_IRQHandler(void)
{
	if(TIM_GetITStatus(TIM2, TIM_IT_Update)==SET)
	{
//=================定時器2中斷處理函式================================

//====================測驗用，可以用示波器測量定時頻率↓==================
//          if(GPIO_ReadInputDataBit(GPIOC,GPIO_Pin_3))
//              led4(ON);
//          else
//              led4(OFF);
//===============================================================
		TIM_ClearFlag(TIM2, TIM_IT_Update); //清除溢位中斷標志
	}
}


void TIM3_Int_Init(u16 arr,u16 psc)
{
    TIM_TimeBaseInitTypeDef  TIM_TimeBaseStructure;
	NVIC_InitTypeDef NVIC_InitStructure;

	RCC_APB1PeriphClockCmd(RCC_APB1Periph_TIM3, ENABLE); //時鐘使能

	//定時器TIM3初始化
	TIM_TimeBaseStructure.TIM_Period = arr; //設定在下一個更新事件裝入活動的自動重裝載暫存器周期的值
	TIM_TimeBaseStructure.TIM_Prescaler =psc; //設定用來作為TIMx時鐘頻率除數的預分頻值
	TIM_TimeBaseStructure.TIM_ClockDivision = TIM_CKD_DIV1; //設定時鐘分割:TDTS = Tck_tim
	TIM_TimeBaseStructure.TIM_CounterMode = TIM_CounterMode_Up;  //TIM向上計數模式
	TIM_TimeBaseInit(TIM3, &TIM_TimeBaseStructure); //根據指定的引數初始化TIMx的時間基數單位

	TIM_ITConfig(TIM3,TIM_IT_Update,ENABLE ); //使能指定的TIM3中斷,允許更新中斷

	//中斷優先級NVIC設定
	NVIC_InitStructure.NVIC_IRQChannel = TIM3_IRQn;  //TIM3中斷
	NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0;  //先占優先級0級
	NVIC_InitStructure.NVIC_IRQChannelSubPriority = 3;  //從優先級3級
	NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE; //IRQ通道被使能
	NVIC_Init(&NVIC_InitStructure);  //初始化NVIC暫存器


	TIM_Cmd(TIM3, ENABLE);  //使能TIMx
}
//定時器3中斷服務程式
void TIM3_IRQHandler(void)   //TIM3中斷
{

	if (TIM_GetITStatus(TIM3, TIM_IT_Update) != RESET)  //檢查TIM3更新中斷發生與否
		{
		KEY_Scan();
		TIM_ClearITPendingBit(TIM3, TIM_IT_Update  );  //清除TIMx更新中斷標志
		}
}

ADC.c

#include "adc.h"

#define ADC1_DR_Address    ((u32)0x40012400+0x4c)

__IO uint16_t ADC_ConvertedValue[1024];

/**
  * @brief  使能ADC1和DMA1的時鐘，初始化PC.01
  * @param  無
  * @retval 無
  */
static void ADC1_GPIO_Config(void)
{
	GPIO_InitTypeDef GPIO_InitStructure;

	/* Enable DMA clock */
	RCC_AHBPeriphClockCmd(RCC_AHBPeriph_DMA1, ENABLE);

	/* Enable ADC1 and GPIOC clock */
	RCC_APB2PeriphClockCmd(RCC_APB2Periph_ADC1 | RCC_APB2Periph_GPIOC, ENABLE);

	/* Configure PC.01  as analog input */
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_1;
	GPIO_InitStructure.GPIO_Mode = GPIO_Mode_AIN;
	GPIO_Init(GPIOC, &GPIO_InitStructure);				// PC1,輸入時不用設定速率
}

/**
  * @brief  配置ADC1的作業模式為MDA模式
  * @param  無
  * @retval 無
  */
static void ADC1_Mode_Config(void)
{
	DMA_InitTypeDef DMA_InitStructure;
	ADC_InitTypeDef ADC_InitStructure;
    NVIC_InitTypeDef    NVIC_InitStructure;


    NVIC_PriorityGroupConfig(NVIC_PriorityGroup_1);
	NVIC_InitStructure.NVIC_IRQChannel = DMA1_Channel1_IRQn;
	NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority = 0;
	NVIC_InitStructure.NVIC_IRQChannelSubPriority = 0;
	NVIC_InitStructure.NVIC_IRQChannelCmd = ENABLE;
	NVIC_Init(&NVIC_InitStructure);

    NVIC_InitStructure.NVIC_IRQChannel  = ADC1_2_IRQn;
    NVIC_InitStructure.NVIC_IRQChannelPreemptionPriority=1;//先占優先級0
    NVIC_InitStructure.NVIC_IRQChannelSubPriority   = 1;   //從優先級
    NVIC_InitStructure.NVIC_IRQChannelCmd   = ENABLE;
    NVIC_Init(&NVIC_InitStructure);
	/* DMA channel1 configuration */
	DMA_DeInit(DMA1_Channel1);

	DMA_InitStructure.DMA_PeripheralBaseAddr = ADC1_DR_Address;	 			//ADC地址
	DMA_InitStructure.DMA_MemoryBaseAddr = (u32)ADC_ConvertedValue;	//記憶體地址
	DMA_InitStructure.DMA_DIR = DMA_DIR_PeripheralSRC;
	DMA_InitStructure.DMA_BufferSize = 1024;
	DMA_InitStructure.DMA_PeripheralInc = DMA_PeripheralInc_Disable;	//外設地址固定
	DMA_InitStructure.DMA_MemoryInc = DMA_MemoryInc_Enable;  				//記憶體地址
	DMA_InitStructure.DMA_PeripheralDataSize = DMA_PeripheralDataSize_HalfWord;	//半字
	DMA_InitStructure.DMA_MemoryDataSize = DMA_MemoryDataSize_HalfWord;
	DMA_InitStructure.DMA_Mode = DMA_Mode_Circular;										//回圈傳輸
	DMA_InitStructure.DMA_Priority = DMA_Priority_High;
	DMA_InitStructure.DMA_M2M = DMA_M2M_Disable;
	DMA_Init(DMA1_Channel1, &DMA_InitStructure);

	/* Enable DMA channel1 */
    DMA_ITConfig(DMA1_Channel1,DMA_IT_TC,ENABLE);   //使能DMA傳輸完成中斷請求
	DMA_Cmd(DMA1_Channel1, ENABLE);

	/* ADC1 configuration */
	ADC_InitStructure.ADC_Mode = ADC_Mode_Independent;			//獨立ADC模式
	ADC_InitStructure.ADC_ScanConvMode = DISABLE ; 	 				//禁止掃描模式，掃描模式用于多通道采集
	ADC_InitStructure.ADC_ContinuousConvMode = DISABLE;			//不開啟連續轉換模式
	ADC_InitStructure.ADC_ExternalTrigConv = ADC_ExternalTrigConv_T2_CC2;
	ADC_InitStructure.ADC_DataAlign = ADC_DataAlign_Right; 	//采集資料右對齊
	ADC_InitStructure.ADC_NbrOfChannel = 1;	 								//要轉換的通道數目1
	ADC_Init(ADC1, &ADC_InitStructure);

	/*配置ADC時鐘，為PCLK2的6分頻，即12MHz*/
	RCC_ADCCLKConfig(RCC_PCLK2_Div6);
	/*配置ADC1的通道11為55.	5個采樣周期，序列為1 */
	ADC_RegularChannelConfig(ADC1, ADC_Channel_11, 1, ADC_SampleTime_55Cycles5);

	/* Enable ADC1 DMA */
	ADC_DMACmd(ADC1, ENABLE);

	/* Enable ADC1 */
	ADC_Cmd(ADC1, ENABLE);

	/*復位校準暫存器 */
	ADC_ResetCalibration(ADC1);
	/*等待校準暫存器復位完成 */
	while(ADC_GetResetCalibrationStatus(ADC1));

	/* ADC校準 */
	ADC_StartCalibration(ADC1);
	/* 等待校準完成*/
	while(ADC_GetCalibrationStatus(ADC1));

	/* 使用定時器觸發ADC轉換 */
	ADC_ExternalTrigConvCmd(ADC1,ENABLE);
}

/**
  * @brief  ADC1初始化
  * @param  無
  * @retval 無
  */
void ADC1_Init(void)
{
	ADC1_GPIO_Config();
	ADC1_Mode_Config();
}

key.c

#include "key.h"

char auto_flag;
char auto_flag1,classify_flag;
u8 flag_zidongkz;//自動控制狀態
double thd_1[5]={0,0,0,0,0};
double thd_2[5]={0,0,0,0,0};
double thd_3[5]={0,0,0,0,0};
double thd_4[5]={0,0,0,0,0};
double thd_5[5]={0,0,0,0,0};
u8 cc=1;
u8 zt=0;

/*-------------------------------------------------------------------------------
程式名稱：KEY_Init
程式描述：按鍵引腳初始化，打開埠時鐘，配置埠引腳，埠作業頻率，埠輸入模式
輸入引數：無
回傳引數：無
備    注：無
---------------------------------------------------------------------------------*/
void KEY_Init(void)
{
  GPIO_InitTypeDef GPIO_InitStructure;
  RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOG, ENABLE);
	GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_2 |GPIO_Pin_3 | GPIO_Pin_4| GPIO_Pin_5| GPIO_Pin_6;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU;
  GPIO_Init(GPIOG, &GPIO_InitStructure);

  RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOD, ENABLE);
	GPIO_InitStructure.GPIO_Pin = GPIO_Pin_11 | GPIO_Pin_13 | GPIO_Pin_12;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_10MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_IPU;
  GPIO_Init(GPIOD, &GPIO_InitStructure);
}
void KEY_Scan()
{
	static u16 key1_sum=0,key2_sum=0,key3_sum=0,key4_sum=0,key5_sum=0\
		,key6_sum=0,key7_sum=0,key8_sum=0;
	u8 z;
	if(KEY1==0)
	{
		key1_sum++;
		if(key1_sum==1)
		{
			/*功能補充*/
			wushizhen
			delay_ms(800);
			classify_flag=0;
			//printf("		KEY1\r\n");
		}
	}
	else
		key1_sum=0;
	if(KEY2==0)
	{
		key2_sum++;
		if(key2_sum==1)
		{
			/*功能補充*/
			dingbushizhen
			delay_ms(800);
			classify_flag=1;

		}
	}
	else
		key2_sum=0;

	if(KEY3==0)
	{
		key3_sum++;
		if(key3_sum==1)
		{
			dibushizhen
			delay_ms(800);
			classify_flag=2;

			/*功能補充*/
		}
	}
	else
		key3_sum=0;
	if(KEY4==0)
	{
		key4_sum++;
		if(key4_sum==1)
		{
			/*功能補充*/
			shuangxiangshizhen
			delay_ms(800);
			classify_flag=3;
		}
	}
	else
		key4_sum=0;

	if(KEY6==0)
	{
		key6_sum++;
		if(key6_sum==1)
		{
			/*功能補充*/
			jiaoyueshizhen
			delay_ms(800);
			classify_flag=4;
		}
	}
	else
		key6_sum=0;



	if(KEY5==0)
	{
		key5_sum++;
		if(key5_sum==1)
		{
			/*功能補充*/
			auto_flag1=0;
			cc=1;
			zt=0;
			classify_flag=0;
			flag_zidongkz=0;
			for(z=0; z < 5; z++)
			{
				thd_1[z]=0;
				thd_2[z]=0;
				thd_3[z]=0;
				thd_4[z]=0;
				thd_5[z]=0;
			}
		}
	}
	else
		key5_sum=0;


	if(KEY7==0)
	{
		key7_sum++;
		if(key7_sum==1)
		{
			/*功能補充*/
			auto_flag=0;

		}
	}
	else
		key7_sum=0;
	//暫停
	if(KEY8==0)
	{
		key8_sum++;
		if(key8_sum==1)
		{
			/*功能補充*/
			if(cc==0)
			{
				auto_flag=1;
				delay_ms(800);
			  DMA_Cmd(DMA1_Channel1,ENABLE);
        TIM_Cmd(TIM2,ENABLE);    //開啟定時器2
			  delay_ms(1000);
			}
			else{
				delay_ms(1000);
				cc=0;
				auto_flag1=1;

				DMA_Cmd(DMA1_Channel1,DISABLE);
        TIM_Cmd(TIM2,DISABLE);
			}
		}
	}
	else
		key8_sum=0;
}

key.h

#ifndef __KEY_H
#define __KEY_H

#include "stm32f10x.h"
#include "sys.h"
#include "delay.h"
#include "usart.h"
#include "adc.h"
#include "timer.h"
#include "lcd.h"

#define wushizhen \
GPIO_ResetBits(GPIOF,GPIO_Pin_1);GPIO_SetBits(GPIOF,GPIO_Pin_2);\
GPIO_ResetBits(GPIOF,GPIO_Pin_3);GPIO_SetBits(GPIOF,GPIO_Pin_4);GPIO_ResetBits(GPIOF,GPIO_Pin_5);\
GPIO_SetBits(GPIOF,GPIO_Pin_6);GPIO_ResetBits(GPIOF,GPIO_Pin_7);GPIO_ResetBits(GPIOF,GPIO_Pin_8);

#define dingbushizhen \
GPIO_ResetBits(GPIOF,GPIO_Pin_1);GPIO_ResetBits(GPIOF,GPIO_Pin_2);\
GPIO_SetBits(GPIOF,GPIO_Pin_3);GPIO_SetBits(GPIOF,GPIO_Pin_4);GPIO_ResetBits(GPIOF,GPIO_Pin_5);\
GPIO_ResetBits(GPIOF,GPIO_Pin_6);GPIO_SetBits(GPIOF,GPIO_Pin_7);GPIO_ResetBits(GPIOF,GPIO_Pin_8);

#define dibushizhen \
GPIO_SetBits(GPIOF,GPIO_Pin_1);GPIO_ResetBits(GPIOF,GPIO_Pin_2);\
GPIO_ResetBits(GPIOF,GPIO_Pin_3);GPIO_SetBits(GPIOF,GPIO_Pin_4);GPIO_ResetBits(GPIOF,GPIO_Pin_5);\
GPIO_ResetBits(GPIOF,GPIO_Pin_6);GPIO_SetBits(GPIOF,GPIO_Pin_7);GPIO_ResetBits(GPIOF,GPIO_Pin_8);

#define shuangxiangshizhen \
GPIO_ResetBits(GPIOF,GPIO_Pin_1);GPIO_SetBits(GPIOF,GPIO_Pin_2);\
GPIO_ResetBits(GPIOF,GPIO_Pin_3);GPIO_SetBits(GPIOF,GPIO_Pin_4);GPIO_ResetBits(GPIOF,GPIO_Pin_5);\
GPIO_ResetBits(GPIOF,GPIO_Pin_6);GPIO_ResetBits(GPIOF,GPIO_Pin_7);GPIO_SetBits(GPIOF,GPIO_Pin_8);

#define jiaoyueshizhen \
GPIO_ResetBits(GPIOF,GPIO_Pin_1);GPIO_SetBits(GPIOF,GPIO_Pin_2);\
GPIO_ResetBits(GPIOF,GPIO_Pin_3);GPIO_ResetBits(GPIOF,GPIO_Pin_4);GPIO_SetBits(GPIOF,GPIO_Pin_5);\
GPIO_ResetBits(GPIOF,GPIO_Pin_6);GPIO_SetBits(GPIOF,GPIO_Pin_7);GPIO_ResetBits(GPIOF,GPIO_Pin_8);

#define KEY1 GPIO_ReadInputDataBit(GPIOG,GPIO_Pin_6)
#define KEY2 GPIO_ReadInputDataBit(GPIOG,GPIO_Pin_5)
#define KEY3 GPIO_ReadInputDataBit(GPIOG,GPIO_Pin_4)
#define KEY4 GPIO_ReadInputDataBit(GPIOG,GPIO_Pin_3)
#define KEY5 GPIO_ReadInputDataBit(GPIOG,GPIO_Pin_2)
#define KEY6 GPIO_ReadInputDataBit(GPIOD,GPIO_Pin_13)
#define KEY7 GPIO_ReadInputDataBit(GPIOD,GPIO_Pin_12)
#define KEY8 GPIO_ReadInputDataBit(GPIOD,GPIO_Pin_11)
extern __IO uint16_t ADC_ConvertedValue[1024];    // ADC1轉換的電壓值通過MDA方式傳到SRAM

void KEY_Init(void);
void KEY_Scan();
#endif

顯示圖片和漢字問題

詳細參考博文：DIY顯示
呼叫這個函式，自己安排位置，

//顯示一個DIY圖形
//x,y:圖形顯示的坐標
//num:第幾個圖形
//size:圖形大小
//mode:0,正常顯示,1,疊加顯示
void Show_Graph(u16 x,u16 y,u8 *num,u8 size,u8 mode)
{
	u8 temp;
	u16 t,t1;
	u16 y0 = y;
	u16 x0 = x;
	u16 csize=(size/8+((size%8)?1:0))*(size);//得到字體一個字符對應點陣集所占的位元組數
	for(t = 0;t < csize;t++)
	{
		temp = num[t];
		for(t1 = 0;t1 < 8;t1++)
		{
			if(temp&0x80)LCD_Fast_DrawPoint(x,y,POINT_COLOR);
			else if(mode==0)LCD_Fast_DrawPoint(x,y,BACK_COLOR);
			temp<<=1;
			y++;
			if((y-y0) == size)
			{
				y=y0;
				x++;
				break;
			}
			if((x-x0) == size)
				{
					x = x0;
					break;
				}
		}
	}
}

img.h

#ifndef __IMG_H
#define __IMG_H
const unsigned char wu[]= {0x00,0x01,0x02,0x02,0x42,0x04,0x42,0x08,0x42,0x30,0x43,0xC0,0x7E,0x00,0x42,0x00,0x43,0xFC,0x42,0x02,0x42,0x02,0x42,0x02,0x02,0x02,0x02,0x0E,0x00,0x00,0x00,0x00};/*"無",0*/
const unsigned char ming[]= {0x00,0x00,0x3F,0xF0,0x22,0x20,0x22,0x20,0x22,0x20,0x3F,0xF1,0x00,0x02,0x00,0x0C,0x7F,0xF0,0x44,0x40,0x44,0x40,0x44,0x42,0x44,0x41,0x7F,0xFE,0x00,0x00,0x00,0x00};/*"明",1*/
const unsigned char xian[]= {0x00,0x02,0x00,0x42,0x00,0x22,0x7F,0x1A,0x49,0x02,0x49,0xFE,0x49,0x02,0x49,0x02,0x49,0x02,0x49,0xFE,0x49,0x02,0x7F,0x0A,0x00,0x12,0x00,0x62,0x00,0x02,0x00,0x00};/*"顯",2*/
const unsigned char shi[]= {0x00,0x81,0x02,0x81,0x0C,0x82,0x78,0x84,0x08,0x88,0x08,0xB0,0x08,0xC0,0xFF,0x80,0x08,0xC0,0x08,0xB0,0x08,0x88,0x08,0x84,0x08,0x82,0x00,0x81,0x00,0x81,0x00,0x00};/*"失",3*/
const unsigned char zhen[]= {0x00,0x08,0x20,0x08,0x20,0x09,0x2F,0xFA,0x2A,0xAC,0x2A,0xA8,0x2A,0xA8,0xFA,0xA8,0x2A,0xA8,0x2A,0xA8,0x2A,0xAC,0x2F,0xFA,0x20,0x09,0x20,0x08,0x00,0x08,0x00,0x00};/*"真",4*/
const unsigned char ding[]= {0x20,0x00,0x20,0x04,0x20,0x02,0x3F,0xFC,0x20,0x00,0x20,0x00,0x20,0x01,0x4F,0xF2,0x48,0x04,0x58,0x18,0x6B,0xE0,0x48,0x08,0x48,0x04,0x4F,0xF2,0x40,0x01,0x00,0x00};/*"頂",5*/
const unsigned char bu[]= {0x02,0x00,0x22,0x00,0x2A,0x7E,0xA6,0x44,0x62,0x44,0x22,0x44,0x26,0x44,0x2A,0x7E,0x22,0x00,0x02,0x00,0x7F,0xFF,0x40,0x10,0x44,0x08,0x5B,0x10,0x60,0xE0,0x00,0x00};/*"部",6*/
const unsigned char di[]= {0x00,0x01,0x00,0x06,0x3F,0xF8,0x20,0x00,0x20,0x00,0x27,0xFF,0x24,0x42,0xA4,0x44,0x64,0x40,0x27,0xC2,0x28,0x71,0x28,0x48,0x28,0x44,0x28,0x42,0x20,0x4F,0x00,0x00};/*"底",7*/
const unsigned char shuang[]= {0x20,0x02,0x2C,0x0C,0x23,0x30,0x20,0xC0,0x23,0x30,0x3C,0x0C,0x00,0x01,0x20,0x02,0x3F,0x04,0x20,0xC8,0x20,0x30,0x20,0xC8,0x23,0x04,0x3C,0x02,0x00,0x01,0x00,0x00};/*"雙",8*/
const unsigned char xiang[]= {0x00,0x00,0x1F,0xFF,0x10,0x00,0x10,0x00,0x30,0x00,0x53,0xF8,0x92,0x10,0x12,0x10,0x12,0x10,0x13,0xF8,0x10,0x00,0x10,0x02,0x10,0x01,0x1F,0xFE,0x00,0x00,0x00,0x00};/*"向",9*/
const unsigned char jiao[]= {0x10,0x01,0x10,0x81,0x11,0x02,0x16,0x02,0x10,0x84,0x10,0x44,0x90,0x28,0x70,0x10,0x10,0x28,0x10,0x44,0x11,0x82,0x14,0x02,0x12,0x01,0x11,0x81,0x10,0x01,0x00,0x00};/*"交",10*/
const unsigned char yue[]= {0x02,0x01,0x12,0x7E,0x12,0x08,0xFF,0xFC,0x12,0x22,0x12,0x22,0x00,0x02,0x1F,0xF2,0x10,0x22,0x10,0x0A,0xFF,0x92,0x10,0x62,0x91,0x92,0x56,0x3A,0x00,0x02,0x00,0x00};/*"越",11*/
const unsigned char k[]= {0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00};/*"越",11*/

 #endif

img1.h

這里是電賽的標志和放大器裝置這幾個字的顯示圖片

#ifndef __IMG1_H
#define __IMG1_H
const unsigned char tp[]= {

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x0E,0x00,0xF0,0x00,0x06,0x01,0x00,0x00,0x70,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0x80,0x00,0x01,0xC0,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x00,0x8E,0x07,0x80,0x00,0x71,0xC0,0x00,0xFF,0xDF,0xF8,0x00,0x03,0x80,0x00,0x01,0xC0,0x3C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x30,0x70,0x01,
0xEE,0x03,0x80,0x00,0x71,0xC0,0x00,0xE1,0xDC,0x38,0x00,0x03,0x80,0x00,0x01,0xE0,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x70,0x70,0x03,0xCE,0x03,0x80,0x00,0x71,0xC0,0x00,0xE1,0xDC,0x38,0x00,0x03,0x80,0x00,0x00,0xE0,0x78,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x70,0x70,0x01,0x8E,0x01,0xC0,0x00,
0x71,0xC0,0x00,0xE1,0xDC,0x38,0x00,0x03,0x80,0x00,0x00,0xE0,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x73,0xF0,0x0C,0x0E,0x19,0xE0,0x7F,0xF1,0xFF,0xC0,0xFF,0xDF,0xF8,0x00,0x03,0x80,0x00,0x00,0xE4,0x00,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFB,0xFE,0x0F,0xCE,0x3C,0xE0,0x7F,0xF1,0xFF,0xC0,0xFF,
0xDF,0xF8,0x00,0x03,0x80,0x00,0xFF,0xF7,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFB,0xFE,0x0F,0xFE,0x1C,0x70,0x00,0x71,0xC0,0x00,0x08,0x30,0x00,0x00,0x03,0x80,0x00,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0x0E,0x3F,0xFE,0x00,0x7F,0xFE,0x78,0x00,0x71,0xC0,0x00,0x1E,0x70,0x00,0x1F,0xFF,
0xFF,0xF0,0x38,0x78,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x3F,0x7E,0x00,0x0F,0xEF,0xF8,0x00,0x71,0xC0,0x00,0x1C,0x78,0x00,0x1F,0xFF,0xFF,0xF0,0x38,0x78,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x1E,0x7E,0x18,0x0E,0x07,0xF8,0x00,0x71,0xC0,0x03,0xFF,0xFF,0xFC,0x00,0x03,0x80,0x00,0x3C,0x7C,
0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x1C,0x7E,0x1F,0xDE,0x07,0x00,0x7F,0xF1,0xFF,0x83,0xFF,0xFF,0xFC,0x00,0x03,0xC0,0x00,0x3C,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x1C,0x77,0x0F,0xFE,0x03,0x80,0x7F,0xF1,0xFF,0x80,0x03,0xFE,0x00,0x00,0x07,0xC0,0x00,0x1C,0xFF,0xFC,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x00,0x3F,0xE1,0xC0,0x00,0x71,0xC0,0x00,0x1F,0x8F,0x80,0x00,0x07,0xC0,0x00,0x1C,0xE7,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xF0,0x70,0x07,0x1C,0xE1,0xE0,0x00,0x71,0xC0,0x07,0xFE,0x07,0xFE,0x00,0x0F,0xE0,0x00,0x1C,0xE7,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0xFF,0xF0,0x70,0x0F,0x9C,0x1F,0xF0,0x00,0x71,0xC0,0x03,0xF8,0x00,0xFE,0x00,0x1E,0xE0,0x00,0x1D,0xC7,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x07,0xDC,0x1F,0xF0,0x00,0x71,0xC0,0x00,0x00,0x00,0x1C,0x00,0x1C,0xF0,0x00,0x0F,0xC7,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,
0x70,0x03,0xF8,0x00,0xF0,0x00,0x71,0xC0,0x00,0xFF,0xDF,0xF8,0x00,0x3C,0x78,0x00,0x0F,0xC3,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x01,0xF8,0x00,0x00,0xFF,0xF1,0xFF,0xC0,0xE1,0xDC,0x38,0x00,0x78,0x38,0x00,0x0F,0x83,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x00,0x78,0x30,
0x00,0xFF,0xF1,0xFF,0xC0,0xE1,0xDC,0x38,0x00,0xF0,0x3C,0x00,0x07,0x83,0x8F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x08,0xFC,0x3F,0xC0,0x00,0x71,0xC0,0x00,0xE1,0xDC,0x38,0x01,0xE0,0x1F,0x00,0x0F,0x83,0x87,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x38,0xFF,0x0F,0xF8,0x00,0x71,0xC0,
0x00,0xE1,0xDC,0x38,0x07,0xC0,0x0F,0x80,0x1F,0xC3,0x87,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x70,0x3F,0xCF,0xC0,0xF0,0x00,0x71,0xC0,0x00,0xFF,0xDF,0xF8,0x0F,0x80,0x07,0xE0,0x3D,0xF3,0xC3,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFC,0x70,0x1F,0xC3,0xF0,0x00,0x00,0x71,0xC0,0x00,0xFF,0xDF,0xF8,
0x1F,0x00,0x01,0xF8,0xF8,0x7F,0xF3,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFC,0x70,0x1F,0x01,0xE0,0x00,0x00,0x71,0xC0,0x00,0xE1,0xDC,0x38,0x0E,0x00,0x00,0xF0,0xF0,0x3D,0xE1,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x06,0x00,0x00,0x00,0x00,0x70,0x00,0x00,0xC0,0x00,0x30,0x00,0x00,0x00,0x00,
0xC0,0x08,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xF8,0x00,0x70,0x38,0x00,0x00,0x0E,0x00,0x03,0xFF,
0xF0,0x00,0x00,0x03,0x80,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x00,0x70,0x38,0x00,0x00,0x1E,0x00,0x03,0xFF,0xFF,0xFC,0x00,0x03,0x80,0x00,0x00,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC3,0x8E,0x38,0x00,0x70,0x39,0xC0,0x00,0x0E,0x00,0x00,0xE3,0x8F,0xFC,0x0F,0xFF,
0xFF,0xE0,0x00,0x1C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xC3,0x8C,0x38,0x0F,0xFF,0xBB,0xC0,0x7F,0xFF,0xFF,0xC0,0xE3,0x80,0xE0,0x0F,0xFF,0xFF,0xE0,0x00,0x1C,0x38,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x0F,0xFF,0xBF,0x80,0x7F,0xFF,0xFF,0xC0,0xE3,0x80,0x70,0x00,0x03,0xC0,0x00,0x00,0x1C,
0x3C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x00,0x70,0x33,0x00,0x70,0x00,0x03,0xC0,0xE3,0x80,0x70,0x01,0xFF,0xFF,0x00,0x00,0x1C,0x1C,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x00,0x70,0x38,0x00,0x70,0x40,0x03,0xC0,0xE3,0x80,0x70,0x01,0xFF,0xFF,0x00,0x3F,0xFF,0xFC,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xF0,0x00,0x00,0x70,0x3E,0x00,0x71,0xE1,0xE3,0xC0,0xE3,0x80,0x78,0x01,0xC0,0x07,0x00,0x3F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFC,0x07,0xFF,0x3F,0x80,0x07,0xE0,0xF0,0x00,0xE3,0x87,0xF8,0x01,0xC0,0x0F,0x00,0x00,0x1C,0x0F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x01,0xFF,0xFF,0xFC,0x07,0xFF,0x3B,0xF0,0x1F,0x80,0x7C,0x00,0xE3,0x87,0xFC,0x01,0xFF,0xFF,0x00,0x00,0x1C,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x70,0x00,0x00,0x01,0xB8,0xE0,0x7E,0x07,0x1F,0x07,0xFF,0xF7,0x3C,0x01,0xC0,0x0F,0x00,0x00,0x1C,0x07,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,
0xE0,0x00,0x03,0xF0,0x00,0x78,0x07,0x0F,0x87,0xFF,0xF7,0x3E,0x01,0xFF,0xFF,0x00,0x00,0x1C,0x02,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0xE0,0x00,0x03,0x80,0x00,0x30,0x07,0x03,0x00,0xF3,0x87,0x3F,0x01,0xFF,0xFF,0x00,0x00,0x1E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0xE0,0x00,0x03,0x00,
0x00,0x00,0x07,0x87,0x00,0xE3,0x87,0x3E,0x01,0xC0,0x0F,0x00,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xE0,0x1F,0xFF,0xFF,0xE0,0x03,0xFF,0xFF,0x00,0xE3,0x87,0x38,0x01,0xFF,0xFF,0x00,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0xE0,0x1F,0xFF,0xFF,0xE0,0x03,0xC7,0x80,
0x00,0xE1,0xC7,0x38,0x01,0xFF,0xFF,0x00,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0xE0,0x00,0x07,0xE0,0x00,0x03,0x83,0x80,0x00,0xE1,0xC7,0x38,0x01,0xC0,0x07,0x00,0x00,0x7F,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xE0,0x03,0x87,0x78,0x00,0x03,0x83,0x80,0x00,0xE1,0xC7,0xF8,
0x01,0xC0,0x0F,0x00,0x00,0x77,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xE0,0x07,0xCE,0x3C,0x00,0x03,0x83,0xC0,0x00,0xE1,0xC7,0xF8,0x3F,0xFF,0xFF,0xF8,0x01,0xF3,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0xE0,0x01,0xFC,0x3F,0x00,0x03,0x81,0xE0,0x00,0xE1,0xE7,0x38,0x3F,0xFF,0xFF,0xF8,
0x03,0xE3,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xE0,0x00,0x78,0x3F,0xE0,0xE3,0x81,0xF0,0x00,0xE0,0xE7,0x38,0x00,0x30,0x30,0x00,0x0F,0xC1,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0xE0,0x00,0xF3,0xF9,0xF1,0xE3,0x80,0xF8,0x00,0xE0,0xF0,0x38,0x01,0xF8,0x7C,0x00,0x3F,0x00,0xF8,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x38,0x00,0xE0,0x07,0xE1,0xF8,0x60,0xF7,0x80,0x7F,0x00,0xE0,0x78,0x38,0x07,0xE0,0x3F,0x00,0xFE,0x00,0x3E,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xFE,0x1F,0x80,0x7C,0x00,0xFF,0x80,0x1F,0xC0,0xF0,0x3C,0x30,0x0F,0x80,0x07,0xE0,0x78,0x00,0x1F,0x80,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0C,0x00,0x18,0x00,0x00,0x00,0x07,0x80,0xF0,0x18,0x00,0x06,0x00,0x00,0xC0,0x00,0x00,0x07,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00
}

  ;





const unsigned char tp1[]= {

 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF ,
 0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xFC,0x07,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xF8,0x03,0xFF ,
 0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xF8,0x03,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xF0,0x01,0xFF,0xFF,0xFF,0xFC,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xE0,0x00,0xFF,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xE0,0x00,0xFF,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0xE0,0x00,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xC0,0x00,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0xC0,0x00,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x7F,0xFF,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0x0F,0xFF,0xFF,0xC0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFC ,
 0x07,0xFF,0xFF,0xC0,0x00,0x7F,0xFF,0xFF,0xCF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xF8,0x03,0xFF,0xFF,0xE0,0x00,0xFF,0xFF,0xFF,0x07,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xF8,0x01,0xFF,0xFF,0xE0 ,
 0x00,0xFF,0xFF,0xFC,0x01,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xF0,0x00,0xFF,0xFF,0xE0,0x00,0xFF,0xFF,0xFC,0x00,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xF0,0x00,0xFF,0xFF,0xE0,0x00,0xFF,0xFF,0xF8 ,
 0x00,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xE0,0x00,0xFF,0xFF,0xF0,0x01,0xFF,0xFF,0xF8,0x00,0x7F,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xE0,0x00,0xFF,0xFF,0xF0,0x01,0xFF,0xFF,0xF8,0x00,0x7F,0xFF,0x80 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xE0,0x00,0x7F,0xFF,0xF8,0x03,0xFF,0xFF,0xF0,0x00,0x7F,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xE0,0x00,0x7F,0xFF,0xFC,0x07,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xC0,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xE0,0x00,0x7F,0xFF,0xFE,0x0F,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xC0,0x00,0x7F,0xFF,0xFF,0x1F,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xC0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xE0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x3F,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0xFF,0xFF,0xE0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xE0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF ,
 0xFF,0xE0,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xE0,0x00,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x03,0xFF,0xFF,0xF0,0x00,0xFF ,
 0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x3F,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xF0,0x00,0xFF,0xFF,0xFC,0x0F,0xFF,0xFF,0xF0,0x00,0x7F,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x07,0xFF,0xFF,0xF8,0x01,0xFF,0xFF,0xF0,0x07,0xFF ,
 0xFF,0xF8,0x00,0x7F,0xFF,0xFF,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xF8,0x01,0xFF,0xFF,0xE0,0x01,0xFF,0xFF,0xF8,0x00,0xFF,0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x0F,0xFF,0xFF,0xFC,0x03,0xFF,0xFF,0xC0,0x00,0xFF,0xFF,0xFC,0x00,0xFF ,
 0xFF,0xFF,0x80,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xFE,0x07,0xFF,0xFF,0x80,0x00,0x7F,0xFF,0xFC,0x00,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0x1F,0xFF,0xFF,0x80,0x00,0x7F,0xFF,0xFE,0x03,0xFF,0xFF,0xFF,0xC0,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0x00,0x00,0x3F,0xFF,0xFF,0x07,0xFF,0xFF,0xFF,0xC0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFE,0x00,0x00,0x1F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x3F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,0x02,0x00,0x0F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xE0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFC,0x00,0xF4,0x0F,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x07,0xF8,0x07,0xFF,0xFF,0xFF,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x7F,0xFF,0xFF,0xFF,0xFF,0xFF,0xF8,0x0F,0xFC,0x07,0xFF,0xFF,0x07,0xFF,0xFF,0xFF,0xF0,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xF8,0x0F,0xFF,0xF8,0x0F,0xFC,0x07,0xFF,0xF8,0x01,0xFF,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xF0 ,
 0x03,0xFF,0xF0,0x1F,0xFE,0x03,0xFF,0xF0,0x00,0x7F,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0xC0,0x01,0xFF,0xF0,0x3F,0xFF,0x03,0xFF,0xE0,0x00,0x3F,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x80,0x00,0xFF,0xF0,0x3F ,
 0xFF,0x03,0xFF,0xC0,0x00,0x1F,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x80,0x00,0x7F,0xF0,0x7F,0xFF,0x03,0xFF,0x80,0x00,0x1F,0xFF,0xFF,0xF8,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFF,0x00,0x00,0x3F,0xE0,0x7F,0xFF,0x81,0xFF,0x80 ,
 0x00,0x0F,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0xFF,0xFF,0xFE,0x00,0x00,0x1F,0xE0,0x7F,0xFF,0xC1,0xFF,0x00,0x00,0x07,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFE,0x00,0x00,0x1F,0xE0,0xFF,0xFF,0xC1,0xFF,0x00,0x00,0x07,0xFF,0xFF ,
 0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xFC,0x10,0x00,0x0F,0xE0,0xFF,0xFF,0xC0,0xFE,0x00,0x38,0x03,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x01,0xE0,0x0F,0xE0,0xFF,0xFF,0xC0,0xFE,0x01,0xFC,0x03,0xFF,0xFF,0xFC,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x07,0xF0,0x07,0xC0,0xFF,0xFF,0xE0,0xFC,0x03,0xFE,0x01,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF8,0x0F,0xFC,0x07,0xC0,0xFF,0xFF,0xE0,0xFC,0x07,0xFF,0x01,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF0,0x1F,0xFE,0x03,0xC1,0xFF,0xFF,0xE0,0xF8,0x8F,0xFF,0x80,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xF0,0x3F,0xFF,0x03,0xC1,0xFF,0xFF,0xF0,0x78,0x1F,0xFF,0xC0,0xFF,0xFF,0xFC,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00 ,
 0x00,0x01,0xFF,0xFF,0xF0,0x3F,0xFF,0x83,0xC1,0xFF,0xFF,0xF0,0x78,0x1F,0xFF,0xC0,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF,0xE0,0x7F,0xFF,0x81,0xC1,0xFF,0xFF,0xF0,0x78,0xBF,0xFF,0xE0,0xFF,0xFF,0xFE,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x01,0xFF,0xFF ,
 0xE0,0x7F,0xFF,0xC1,0xC3,0xFF,0xFF,0xF0,0x70,0x7F,0xFF,0xE0,0x7F,0xFF,0xFE,0x00,0x00,0x00










      轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/176470.html

標籤：其他


上一篇：8051單片機的C語言程式設計
下一篇：CAN光纖轉換器CAN轉光纖CAN光端機在樓宇消防中的應用案例
標籤雲
其他(157675) Python(38076) JavaScript(25376) Java(17977) C(15215) 區塊鏈(8255) C＃(7972) AI(7469) 爪哇(7425) MySQL(7132) html(6777) 基礎類(6313) sql(6102) 熊猫(6058) PHP(5869) 数组(5741) R(5409) Linux(5327) 反应(5209) 腳本語言(PerlPython)(5129) 非技術區(4971) Android(4554) 数据框(4311) css(4259) 节点.js(4032) C語言(3288) json(3245) 列表(3129) 扑(3119) C++語言(3117) 安卓(2998) 打字稿(2995) VBA(2789) Java相關(2746) 疑難問題(2699) 细绳(2522) 單片機工控(2479) iOS(2429) ASP.NET(2402) MongoDB(2323) 麻木的(2285) 正则表达式(2254) 字典(2211) 循环(2198) 迅速(2185) 擅长(2169) 镖(2155) 功能(1967) .NET技术(1958) Web開發(1951) python-3.x(1918) HtmlCss(1915) 弹簧靴(1913) C++(1909) xml(1889) PostgreSQL(1872) .NETCore(1853) 谷歌表格(1846) Unity3D(1843) for循环(1842)

熱門瀏覽
  • 網閘典型架構簡述

    網閘架構一般分為兩種：三主機的三系統架構網閘和雙主機的2+1架構網閘。 三主機架構分別為內端機、外端機和仲裁機。三機無論從軟體和硬體上均各自獨立。首先從硬體上來看，三機都用各自獨立的主板、記憶體及存盤設備。從軟體上來看，三機有各自獨立的作業系統。這樣能達到完全的三機獨立。對于“2+1”系統，“2”分為 ......

    uj5u.com 2020-09-10 02:00:44 more
  • 如何從xshell上傳檔案到centos linux虛擬機里

    如何從xshell上傳檔案到centos linux虛擬機里及：虛擬機CentOs下執行 yum -y install lrzsz命令，出現錯誤：鏡像無法找到軟體包 前言 一、安裝lrzsz步驟 二、上傳檔案 三、遇到的問題及解決方案 總結 前言 提示：其實很簡單，往虛擬機上安裝一個上傳檔案的工具 ......

    uj5u.com 2020-09-10 02:00:47 more
  • 一、SQLMAP入門

    一、SQLMAP入門 1、判斷是否存在注入 sqlmap.py -u 網址/id=1 id=1不可缺少。當注入點后面的引數大于兩個時。需要加雙引號， sqlmap.py -u "網址/id=1&uid=1" 2、判斷文本中的請求是否存在注入 從文本中加載http請求，SQLMAP可以從一個文本檔案中 ......

    uj5u.com 2020-09-10 02:00:50 more
  • Metasploit 簡單使用教程

    metasploit 簡單使用教程 浩先生， 2020-08-28 16:18:25 分類專欄： kail 網路安全 linux 文章標簽： linux資訊安全 編輯 著作權 metasploit 使用教程 前言 一、Metasploit是什么？ 二、準備作業 三、具體步驟 前言 Msfconsole ......

    uj5u.com 2020-09-10 02:00:53 more
  • 游戲逆向之驅動層與用戶層通訊

    驅動層代碼： #pragma once #include <ntifs.h> #define add_code CTL_CODE(FILE_DEVICE_UNKNOWN,0x800,METHOD_BUFFERED,FILE_ANY_ACCESS) /* 更多游戲逆向視頻www.yxfzedu.com ......

    uj5u.com 2020-09-10 02:00:56 more
  • 北斗電力時鐘（北斗授時服務器）讓網路資料更精準

    北斗電力時鐘（北斗授時服務器）讓網路資料更精準 北斗電力時鐘（北斗授時服務器）讓網路資料更精準 京準電子科技官微——ahjzsz 近幾年，資訊技術的得了快速發展，互聯網在逐漸普及，其在人們生活和生產中都得到了廣泛應用，并且取得了不錯的應用效果。計算機網路資訊在電力系統中的應用，一方面使電力系統的運行 ......

    uj5u.com 2020-09-10 02:01:03 more
  • 【CTF】CTFHub 技能樹 彩蛋 writeup

    ?碎碎念 CTFHub：https://www.ctfhub.com/ 筆者入門CTF時時剛開始刷的是bugku的舊平臺，后來才有了CTFHub。 感覺不論是網頁UI設計，還是題目質量，賽事跟蹤，工具軟體都做得很不錯。 而且因為獨到的金幣制度的確讓人有一種想去刷題賺金幣的感覺。 個人還是非常喜歡這個 ......

    uj5u.com 2020-09-10 02:04:05 more
  • 02windows基礎操作

    我學到了一下幾點 Windows系統目錄結構與滲透的作用 常見Windows的服務詳解 Windows埠詳解 常用的Windows注冊表詳解 hacker DOS命令詳解（net user / type /md /rd/ dir /cd /net use copy、批處理 等） 利用dos命令制作 ......

    uj5u.com 2020-09-10 02:04:18 more
  • 03.Linux基礎操作

    我學到了以下幾點 01Linux系統介紹02系統安裝，密碼啊破解03Linux常用命令04LAMP 01LINUX windows： win03 8 12 16 19 配置不繁瑣 Linux：redhat,centos(紅帽社區版)，Ubuntu server,suse unix:金融機構，證券，銀 ......

    uj5u.com 2020-09-10 02:04:30 more
  • 05HTML

    01HTML介紹 02頭部標簽講解03基礎標簽講解04表單標簽講解 HTML前段語言 js1.了解代碼2.根據代碼 懂得挖掘漏洞 （POST注入/XSS漏洞上傳）3.黑帽seo 白帽seo 客戶網站被黑帽植入劫持代碼如何處理4.熟悉html表單 <html><head><title>TDK標題，描述 ......

    uj5u.com 2020-09-10 02:04:36 more
最新发布
  • 2023年最新微信小程式抓包教程

    01 開門見山 隔一個月發一篇文章，不過分。 首先回顧一下《微信系結手機號資料庫被脫庫事件》，我也是第一時間得知了這個訊息，然后跟蹤了整件事情的經過。下面是這起事件的相關截圖以及近日流出的一萬條資料樣本： 個人認為這件事也沒什么，還不如關注一下之前45億快遞資料查詢渠道疑似在近日復活的訊息。 訊息是 ......

    uj5u.com 2023-04-20 08:48:24 more
  • web3 產品介紹：metamask 錢包 使用最多的瀏覽器插件錢包

    Metamask錢包是一種基于區塊鏈技術的數字貨幣錢包，它允許用戶在安全、便捷的環境下管理自己的加密資產。Metamask錢包是以太坊生態系統中最流行的錢包之一，它具有易于使用、安全性高和功能強大等優點。 本文將詳細介紹Metamask錢包的功能和使用方法。 一、 Metamask錢包的功能 數字資 ......

    uj5u.com 2023-04-20 08:47:46 more
  • vulnhub_Earth

    前言 靶機地址->>>vulnhub_Earth 攻擊機ip：192.168.20.121 靶機ip：192.168.20.122 參考文章 https://www.cnblogs.com/Jing-X/archive/2022/04/03/16097695.html https://www.cnb ......

    uj5u.com 2023-04-20 07:46:20 more
  • 從4k到42k，軟體測驗工程師的漲薪史，給我看哭了

    清明節一過，盲猜大家已經無心上班，在數著日子準備過五一，但一想到銀行卡里的余額……瞬間心情就不美麗了。最近，2023年高校畢業生就業調查顯示，本科畢業月平均起薪為5825元。調查一出，便有很多同學表示自己又被平均了。看著這一資料，不免讓人想到前不久中國青年報的一項調查：近六成大學生認為畢業10年內會 ......

    uj5u.com 2023-04-20 07:44:00 more
  • 最新版本 Stable Diffusion 開源 AI 繪畫工具之中文自動提詞篇

    🎈 標簽生成器 由于輸入正向提示詞 prompt 和反向提示詞 negative prompt 都是使用英文，所以對學習母語的我們非常不友好 使用網址：https://tinygeeker.github.io/p/ai-prompt-generator 這個網址是為了讓大家在使用 AI 繪畫的時候 ......

    uj5u.com 2023-04-20 07:43:36 more
  • 漫談前端自動化測驗演進之路及測驗工具分析

    隨著前端技術的不斷發展和應用程式的日益復雜，前端自動化測驗也在不斷演進。隨著 Web 應用程式變得越來越復雜，自動化測驗的需求也越來越高。如今，自動化測驗已經成為 Web 應用程式開發程序中不可或缺的一部分，它們可以幫助開發人員更快地發現和修復錯誤，提高應用程式的性能和可靠性。 ......

    uj5u.com 2023-04-20 07:43:16 more
  • CANN開發實踐：4個DVPP記憶體問題的典型案例解讀

    摘要：由于DVPP媒體資料處理功能對存放輸入、輸出資料的記憶體有更高的要求（例如，記憶體首地址128位元組對齊），因此需呼叫專用的記憶體申請介面，那么本期就分享幾個關于DVPP記憶體問題的典型案例，并給出原因分析及解決方法。 本文分享自華為云社區《FAQ_DVPP記憶體問題案例》，作者：昇騰CANN。 DVPP ......

    uj5u.com 2023-04-20 07:43:03 more
  • msf學習

    msf學習 以kali自帶的msf為例 一、msf核心模塊與功能 msf模塊都放在/usr/share/metasploit-framework/modules目錄下 1、auxiliary 輔助模塊，輔助滲透（埠掃描、登錄密碼爆破、漏洞驗證等） 2、encoders 編碼器模塊，主要包含各種編碼 ......

    uj5u.com 2023-04-20 07:42:59 more
  • Halcon軟體安裝與界面簡介

    1. 下載Halcon17版本到到本地 2. 雙擊安裝包后 3. 步驟如下 1.2 Halcon軟體安裝 界面分為四大塊 1. Halcon的五個助手 1) 影像采集助手：與相機連接，設定相機引數，采集影像 2) 標定助手：九點標定或是其它的標定，生成標定檔案及內參外參，可以將像素單位轉換為長度單位 ......

    uj5u.com 2023-04-20 07:42:17 more
  • 在MacOS下使用Unity3D開發游戲

    第一次發博客，先發一下我的游戲開發環境吧。 去年2月份買了一臺MacBookPro2021 M1pro(以下簡稱mbp)，這一年來一直在用mbp開發游戲。我大致分享一下我的開發工具以及使用體驗。 1、Unity 官網鏈接： https://unity.cn/releases 我一般使用的Apple ......

    uj5u.com 2023-04-20 07:40:19 more

Copyright © 2010-2020 有解無憂
