概述

實作步驟：

• 使用自然語言處理（NLP）從每個檔案的正文中決議文本，
• 使用術語頻率-逆檔案頻率（TF-IDF）將每個檔案實體𝑑𝑖轉換為特征向量 feature，

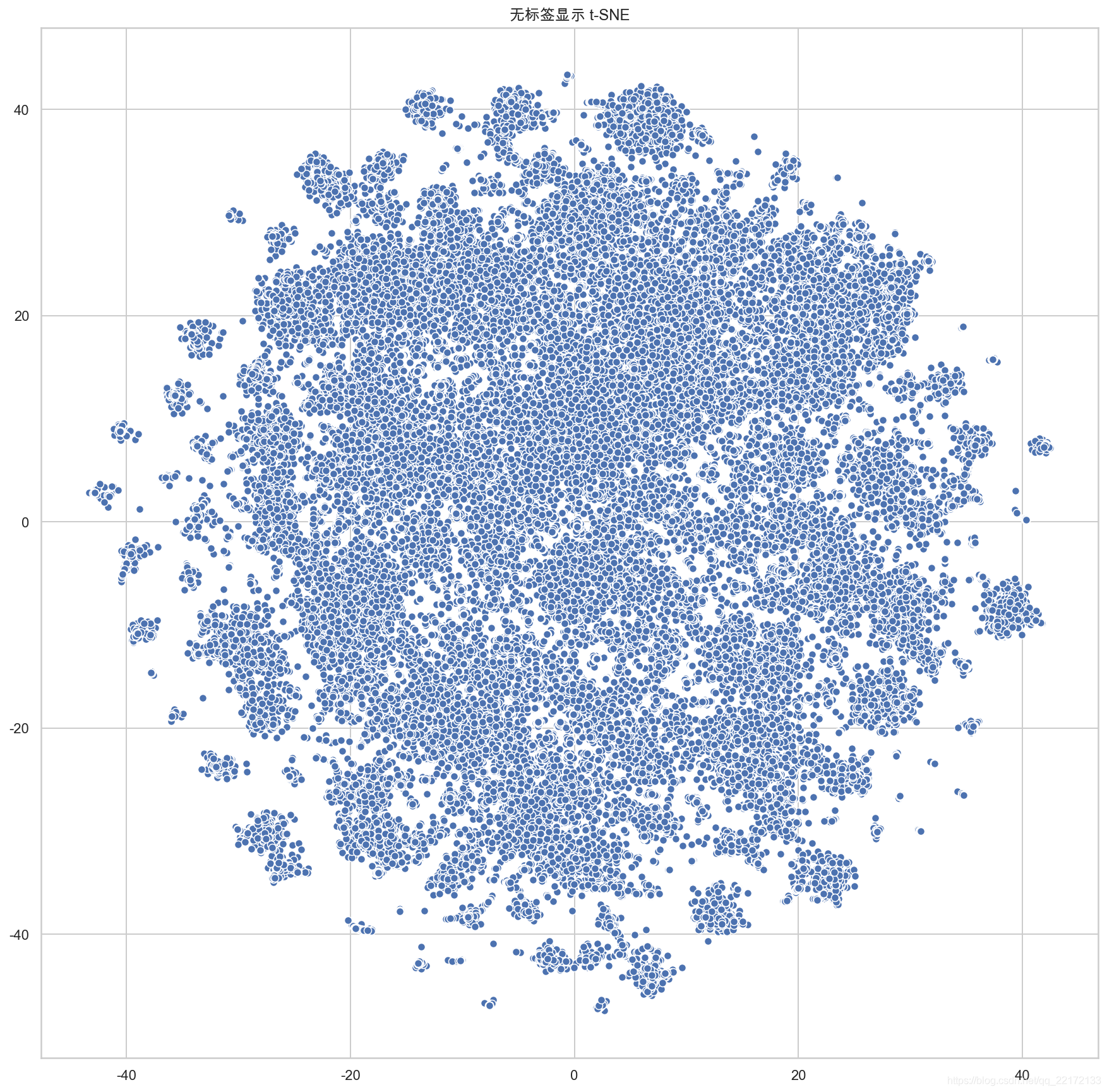

• 使用 t 分布隨機近鄰嵌入（t-SNE）對每個特征向量進行降維，將相似的文章聚集在二維平面 𝑋1 中，
• 使用主成分分析（PCA）將資料的維數投影到多個維，這些維將保持 0.95 的方差，同時消除嵌入 𝑌2 時的噪聲和離群值，

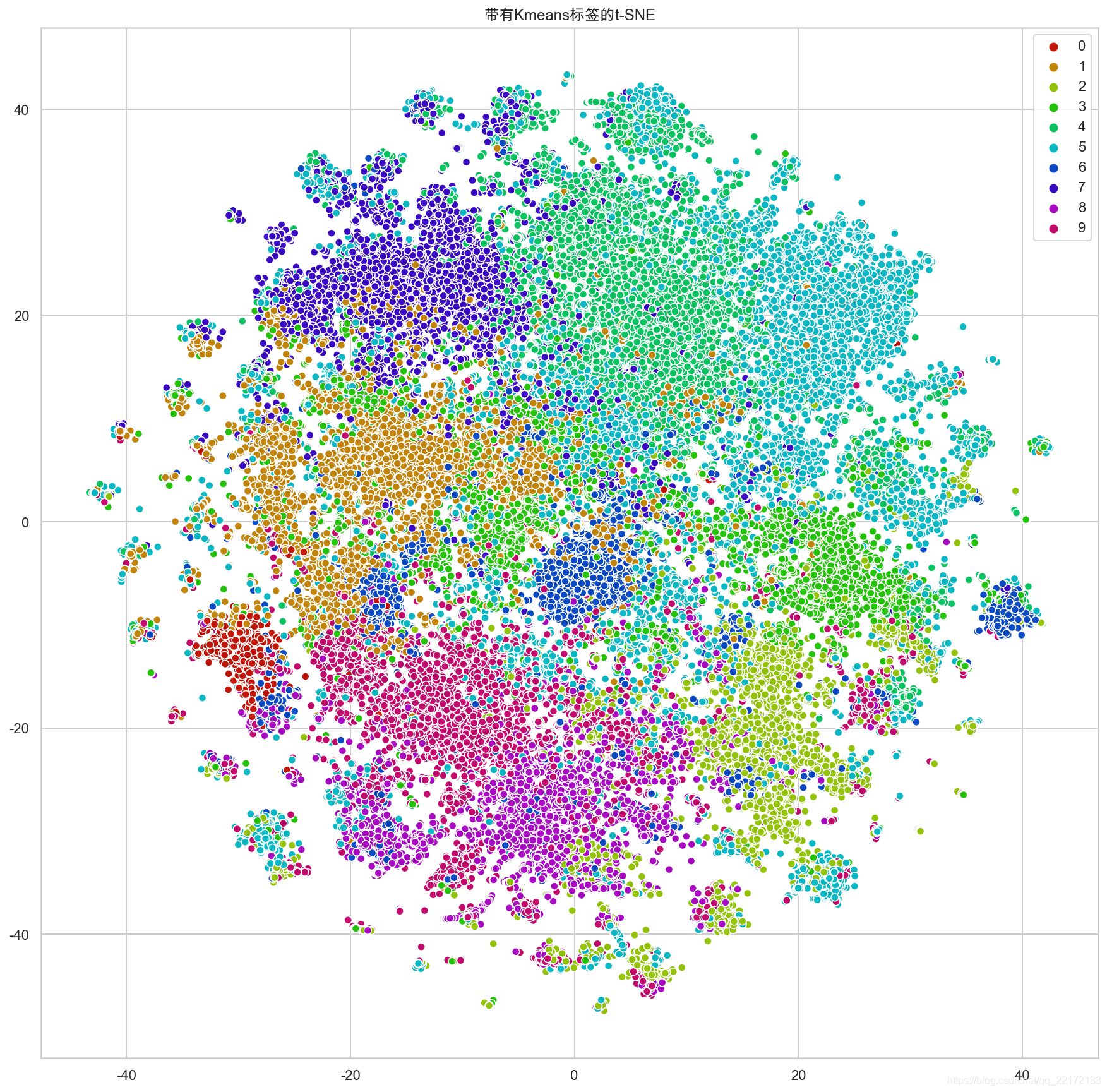

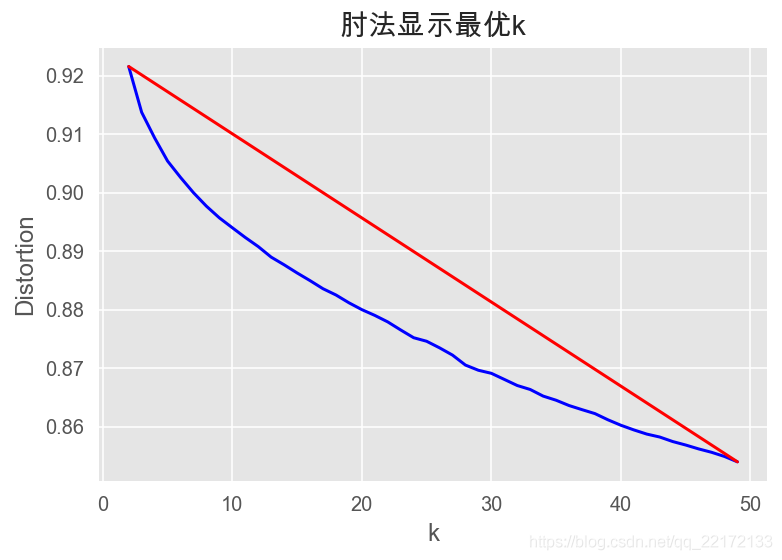

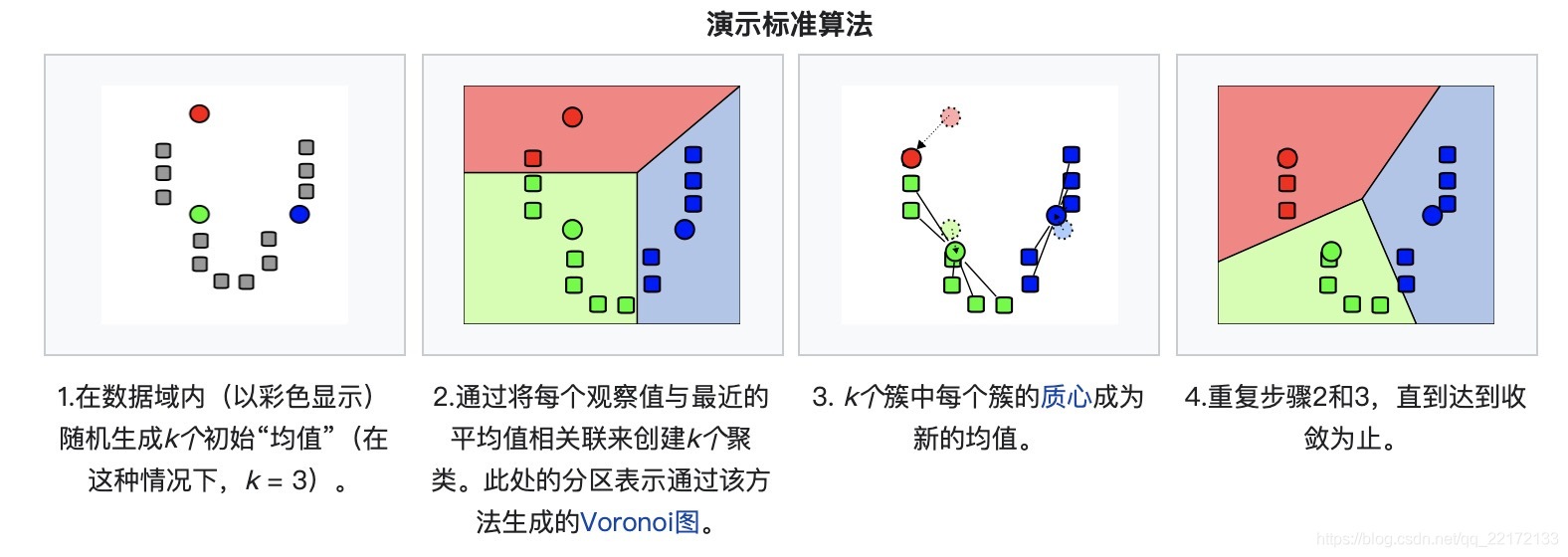

• 在 𝑌2 上應用 k-means 聚類，其中𝑘為 10，以標記 𝑌1 上的每個聚類，
• 使用潛在狄利克雷分配（LDA）建模，以從每個聚類中發現關鍵字，

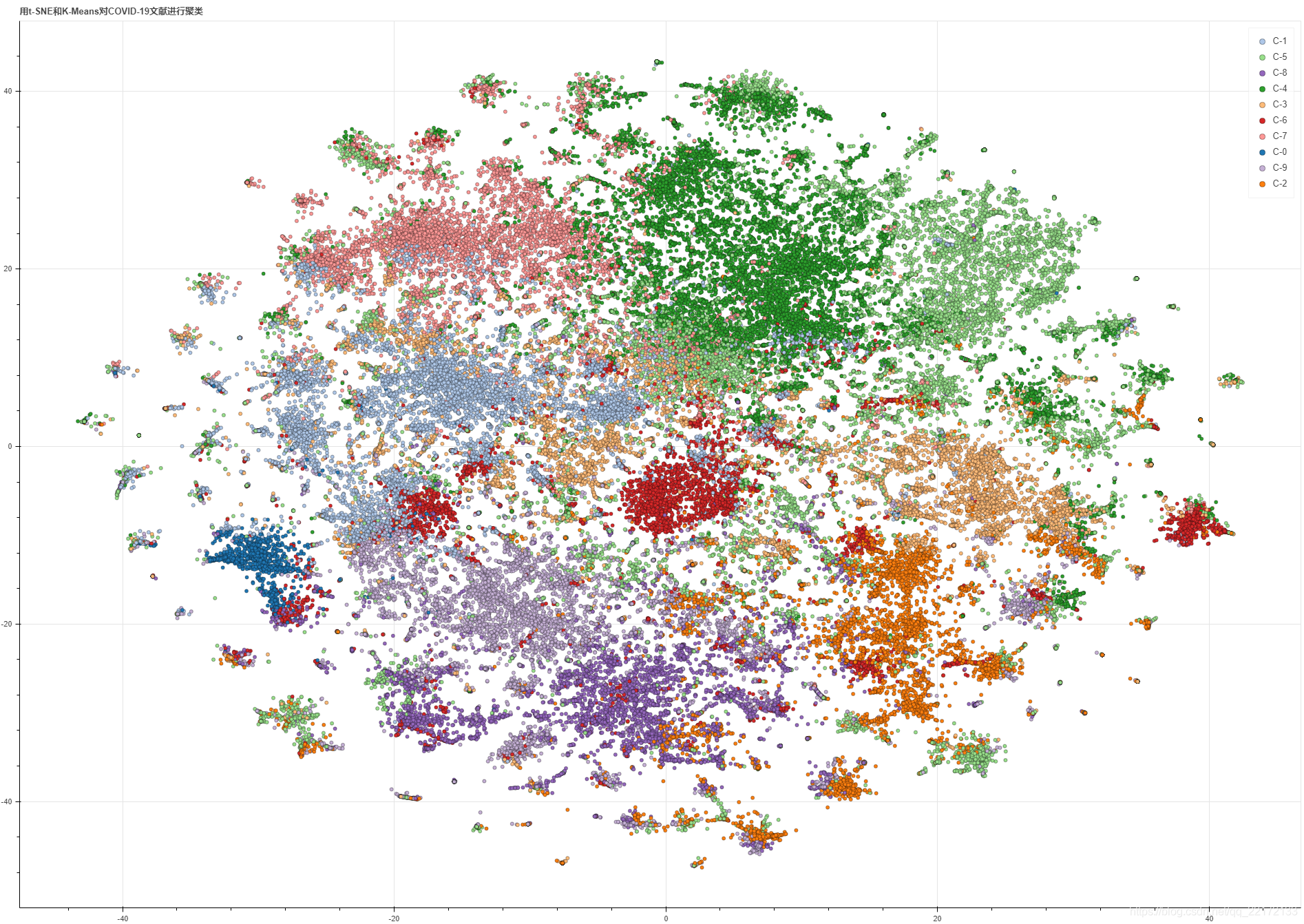

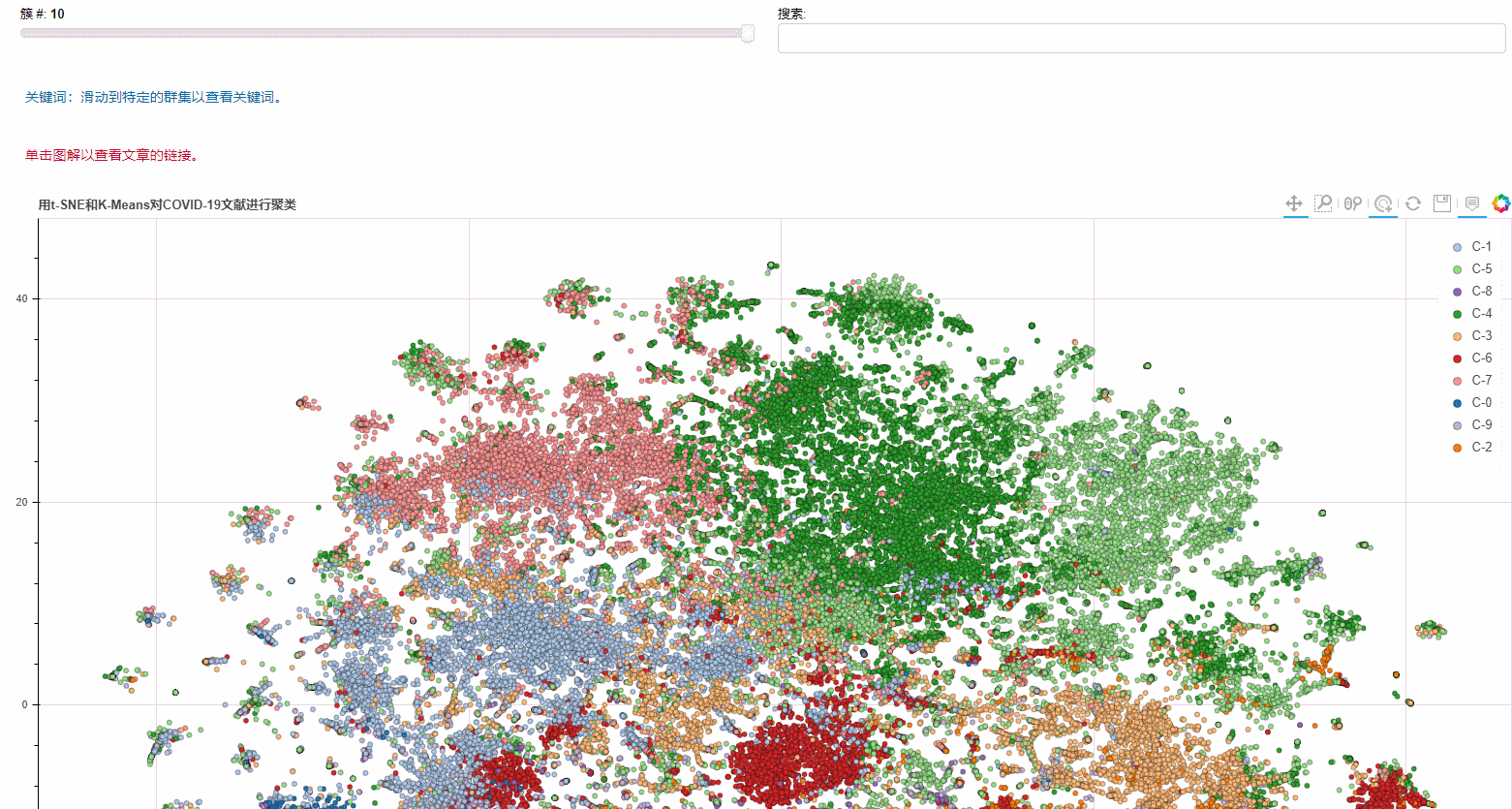

• 在可視化圖形上可視地查找聚類，并使用隨機梯度下降（SGD）進行分類，

資料獲取和加載

資料集說明：
為了應對COVID-19大流行，白宮和主要研究小組的聯盟已經準備好了COVID-19開放研究資料集（CORD-19）， CORD-19的資源超過300,000篇學術文章，涉及COVID-19，SARS-CoV-2和相關的冠狀病毒， 我們本文中采用的就是該資料集，

import numpy as np # linear algebra
import pandas as pd # data processing, CSV file I/O (e.g. pd.read_csv)
import glob
import json

import matplotlib.pyplot as plt

#設定字體、圖形樣式
%matplotlib inline
%config InlineBackend.figure_format = 'retina'
plt.rcParams['font.sans-serif'] = [u'SimHei']
plt.rcParams['axes.unicode_minus'] = False
plt.rcParams['font.sans-serif'] = ['Arial Unicode MS']
plt.style.use('ggplot')

實驗資料

我們可以通過：https://www.kaggle.com/allen-institute-for-ai/CORD-19-research-challenge/download 下載文獻資料，下載完成后，先加載文獻集的元資料，如下：

root_path = '/Users/shen/Documents/local jupyter/COVID-19/archive/'
metadata_path = f'{root_path}/metadata.csv'
meta_df = pd.read_csv(metadata_path, dtype={
    'pubmed_id': str,
    'Microsoft Academic Paper ID': str,
    'doi': str
})
meta_df.head()

/usr/local/lib/python3.8/site-packages/IPython/core/interactiveshell.py:3145: DtypeWarning: Columns (5,13,14,16) have mixed types.Specify dtype option on import or set low_memory=False.
  has_raised = await self.run_ast_nodes(code_ast.body, cell_name,

當我們后續將文章聚類，以查看哪些文章聚類在一起時，“title”和“journal”屬性可能在以后有用，

meta_df.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 301667 entries, 0 to 301666
Data columns (total 19 columns):
 #   Column            Non-Null Count   Dtype
---  ------            --------------   -----
 0   cord_uid          301667 non-null  object
 1   sha               111985 non-null  object
 2   source_x          301667 non-null  object
 3   title             301587 non-null  object
 4   doi               186832 non-null  object
 5   pmcid             116337 non-null  object
 6   pubmed_id         164429 non-null  object
 7   license           301667 non-null  object
 8   abstract          214463 non-null  object
 9   publish_time      301501 non-null  object
 10  authors           291797 non-null  object
 11  journal           282758 non-null  object
 12  mag_id            0 non-null       float64
 13  who_covidence_id  99624 non-null   object
 14  arxiv_id          3884 non-null    object
 15  pdf_json_files    111985 non-null  object
 16  pmc_json_files    85059 non-null   object
 17  url               203159 non-null  object
 18  s2_id             268534 non-null  float64
dtypes: float64(2), object(17)
memory usage: 43.7+ MB

提取文獻路徑

所有的文獻資料已轉化為 json 格式的資料，直接加載即可，資料中提供了兩種格式的文獻資料，分別是PDF的和pmc的，因為資料較多，運行比較耗時，我們這里中選擇了PDF的文獻，

all_json = glob.glob(f'{root_path}document_parses/pdf_json/*.json', recursive=True)
len(all_json)

118839

一些方法和類的定義

先來定義一個檔案閱讀器

class FileReader:
    def __init__(self, file_path):
        with open(file_path) as file:
            content = json.load(file)
            self.paper_id = content['paper_id']
            self.abstract = []
            self.body_text = []
            # Abstract
            for entry in content['abstract']:
                self.abstract.append(entry['text'])
            # Body text
            for entry in content['body_text']:
                self.body_text.append(entry['text'])
            self.abstract = '\n'.join(self.abstract)
            self.body_text = '\n'.join(self.body_text)
    def __repr__(self):
        return f'{self.paper_id}: {self.abstract[:200]}... {self.body_text[:200]}...'
first_row = FileReader(all_json[0])
print(first_row)

efe13333c69a364cb5d4463ba93815e6fc2d91c6: Background... a1111111111 a1111111111 a1111111111 a1111111111 a1111111111 available data; 78%). In addition, significant increases in the levels of lactate dehydrogenase and α-hydroxybutyrate dehydrogenase were det...

輔助功能會在字符長度達到一定數量時在每個單詞后添加斷點，

def get_breaks(content, length):
    data = ""
    words = content.split(' ')
    total_chars = 0

    # 添加每個長度的字符
    for i in range(len(words)):
        total_chars += len(words[i])
        if total_chars > length:
            data = data + "<br>" + words[i]
            total_chars = 0
        else:
            data = data + " " + words[i]
    return data

將資料加載到DataFrame

將文章讀入 DataFrame 資料中，這里會比較慢：

%%time

dict_ = {'paper_id': [], 'doi':[], 'abstract': [], 'body_text': [], 'authors': [], 'title': [], 'journal': [], 'abstract_summary': []}
for idx, entry in enumerate(all_json):
    if idx % (len(all_json) // 10) == 0:
        print(f'Processing index: {idx} of {len(all_json)}')

    try:
        content = FileReader(entry)
    except Exception as e:
        continue  # 無效的文章格式，跳過

    # 獲取元資料資訊
    meta_data = meta_df.loc[meta_df['sha'] == content.paper_id]
    # 沒有元資料，跳過本文
    if len(meta_data) == 0:
        continue

    dict_['abstract'].append(content.abstract)
    dict_['paper_id'].append(content.paper_id)
    dict_['body_text'].append(content.body_text)

    # 為要在繪圖中使用的摘要創建一列
    if len(content.abstract) == 0:
        # 沒有提供摘要
        dict_['abstract_summary'].append("Not provided.")
    elif len(content.abstract.split(' ')) > 100:
        # 提供的摘要太長，取前100個字 + ...
        info = content.abstract.split(' ')[:100]
        summary = get_breaks(' '.join(info), 40)
        dict_['abstract_summary'].append(summary + "...")
    else:
        summary = get_breaks(content.abstract, 40)
        dict_['abstract_summary'].append(summary)

    # 獲取元資料資訊
    meta_data = meta_df.loc[meta_df['sha'] == content.paper_id]

    try:
        # 如果超過一位作者
        authors = meta_data['authors'].values[0].split(';')
        if len(authors) > 2:
            # 如果作者多于2名，在兩者之間用html標記分隔
            dict_['authors'].append(get_breaks('. '.join(authors), 40))
        else:
            dict_['authors'].append(". ".join(authors))
    except Exception as e:
        # 如果只有一位作者或為Null值
        dict_['authors'].append(meta_data['authors'].values[0])

    # 添加標題資訊
    try:
        title = get_breaks(meta_data['title'].values[0], 40)
        dict_['title'].append(title)
    # 沒有提供標題
    except Exception as e:
        dict_['title'].append(meta_data['title'].values[0])

    # 添加日記資訊
    dict_['journal'].append(meta_data['journal'].values[0])

    # 添加 doi
    dict_['doi'].append(meta_data['doi'].values[0])

df_covid = pd.DataFrame(dict_, columns=['paper_id', 'doi', 'abstract', 'body_text', 'authors', 'title', 'journal', 'abstract_summary'])
df_covid.head()

Processing index: 0 of 118839
Processing index: 11883 of 118839
Processing index: 23766 of 118839
Processing index: 35649 of 118839
Processing index: 47532 of 118839
Processing index: 59415 of 118839
Processing index: 71298 of 118839
Processing index: 83181 of 118839
Processing index: 95064 of 118839
Processing index: 106947 of 118839
Processing index: 118830 of 118839

熟悉資料

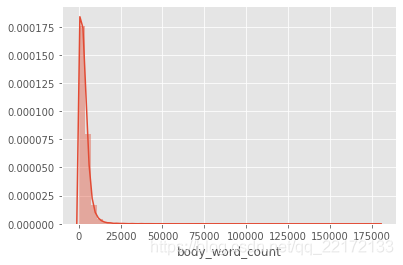

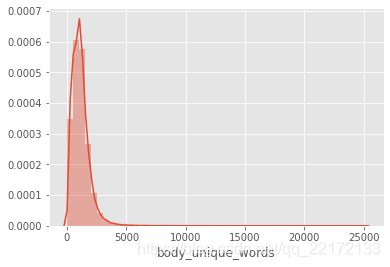

對摘要和正文的字數進行統計

# 摘要中的字數統計
df_covid['abstract_word_count'] = df_covid['abstract'].apply(lambda x: len(x.strip().split()))
# 正文中的字數統計
df_covid['body_word_count'] = df_covid['body_text'].apply(lambda x: len(x.strip().split()))
# 正文中唯一詞的統計
df_covid['body_unique_words']=df_covid['body_text'].apply(lambda x:len(set(str(x).split())))
df_covid.head()

處理重復項

df_covid.info()

<class 'pandas.core.frame.DataFrame'>
RangeIndex: 105888 entries, 0 to 105887
Data columns (total 11 columns):
 #   Column               Non-Null Count   Dtype
---  ------               --------------   -----
 0   paper_id             105888 non-null  object
 1   doi                  102776 non-null  object
 2   abstract             105888 non-null  object
 3   body_text            105888 non-null  object
 4   authors              104211 non-null  object
 5   title                105887 non-null  object
 6   journal              95374 non-null   object
 7   abstract_summary     105888 non-null  object
 8   abstract_word_count  105888 non-null  int64
 9   body_word_count      105888 non-null  int64
 10  body_unique_words    105888 non-null  int64
dtypes: int64(3), object(8)
memory usage: 8.9+ MB

df_covid['abstract'].describe(include='all')

count     105888
unique     71331
top
freq       34018
Name: abstract, dtype: object

根據唯一值，我們可以看到一些重復項，這可能是由于作者將文章提交到多個期刊引起的，我們從資料集中洗掉重復項：

df_covid.drop_duplicates(['abstract', 'body_text'], inplace=True)
df_covid['abstract'].describe(include='all')

count     105675
unique     71331
top
freq       33877
Name: abstract, dtype: object

df_covid['body_text'].describe(include='all')

count                              105675
unique                             105668
top       J o u r n a l P r e -p r o o f
freq                                    2
Name: body_text, dtype: object

現在看來沒有重復項了，

再來看看資料

df_covid.head()

論文主體，使用body_text欄位

論文鏈接，使用doi欄位

df_covid.describe()

資料預處理

現在已經加載了資料集，我們為了聚類效果，需要先清洗文本，首先，洗掉 Null 值：

df_covid.dropna(inplace=True)
df_covid.info()

<class 'pandas.core.frame.DataFrame'>
Int64Index: 93295 entries, 0 to 105887
Data columns (total 11 columns):
 #   Column               Non-Null Count  Dtype
---  ------               --------------  -----
 0   paper_id             93295 non-null  object
 1   doi                  93295 non-null  object
 2   abstract             93295 non-null  object
 3   body_text            93295 non-null  object
 4   authors              93295 non-null  object
 5   title                93295 non-null  object
 6   journal              93295 non-null  object
 7   abstract_summary     93295 non-null  object
 8   abstract_word_count  93295 non-null  int64
 9   body_word_count      93295 non-null  int64
 10  body_unique_words    93295 non-null  int64
dtypes: int64(3), object(8)
memory usage: 8.5+ MB

接下來，我們將確定每篇論文的語言，大部分都是英語，但不全是，因此需要識別語言，以便我們知道如何處理，

from tqdm import tqdm
from langdetect import detect
from langdetect import DetectorFactory

# 設定種子
DetectorFactory.seed = 0

# 保留標簽-語言
languages = []

# 文本遍歷
for ii in tqdm(range(0,len(df_covid))):
    # 按body_text分成串列
    text = df_covid.iloc[ii]['body_text'].split(" ")

    lang = "en"
    try:
        if len(text) > 50:
            lang = detect(" ".join(text[:50]))
        elif len(text) > 0:
            lang = detect(" ".join(text[:len(text)]))
    # 檔案開頭的格式不正確
    except Exception as e:
        all_words = set(text)
        try:
            lang = detect(" ".join(all_words))
        except Exception as e:

            try:
                # 通過摘要標記
                lang = detect(df_covid.iloc[ii]['abstract_summary'])
            except Exception as e:
                lang = "unknown"
                pass

    languages.append(lang)

100%|██████████| 93295/93295 [09:31<00:00, 163.21it/s]

from pprint import pprint

languages_dict = {}
for lang in set(languages):
    languages_dict[lang] = languages.count(lang)

print("Total: {}\n".format(len(languages)))
pprint(languages_dict)

Total: 93295

{'af': 3,
 'ca': 4,
 'cy': 7,
 'de': 1158,
 'en': 90495,
 'es': 840,
 'et': 1,
 'fr': 566,
 'id': 1,
 'it': 42,
 'nl': 123,
 'pl': 1,
 'pt': 43,
 'ro': 1,
 'sq': 1,
 'sv': 1,
 'tl': 2,
 'tr': 1,
 'vi': 1,
 'zh-cn': 4}

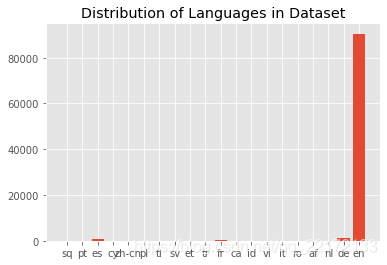

看一下各語言的分布情況：

df_covid['language'] = languages
plt.bar(range(len(languages_dict)), list(languages_dict.values()), align='center')
plt.xticks(range(len(languages_dict)), list(languages_dict.keys()))
plt.title("Distribution of Languages in Dataset")
plt.show()

其他語言的論文很少，洗掉所有非英語的語言：

df_covid = df_covid[df_covid['language'] == 'en']
df_covid.info()

<class 'pandas.core.frame.DataFrame'>
Int64Index: 90495 entries, 0 to 105887
Data columns (total 12 columns):
 #   Column               Non-Null Count  Dtype
---  ------               --------------  -----
 0   paper_id             90495 non-null  object
 1   doi                  90495 non-null  object
 2   abstract             90495 non-null  object
 3   body_text            90495 non-null  object
 4   authors              90495 non-null  object
 5   title                90495 non-null  object
 6   journal              90495 non-null  object
 7   abstract_summary     90495 non-null  object
 8   abstract_word_count  90495 non-null  int64
 9   body_word_count      90495 non-null  int64
 10  body_unique_words    90495 non-null  int64
 11  language             90495 non-null  object
dtypes: int64(3), object(9)
memory usage: 9.0+ MB

# 下載 spacy 決議器
from IPython.utils import io
with io.capture_output() as captured:
    !pip install https://s3-us-west-2.amazonaws.com/ai2-s2-scispacy/releases/v0.2.4/en_core_sci_lg-0.2.4.tar.gz

#NLP
import spacy
from spacy.lang.en.stop_words import STOP_WORDS
import en_core_sci_lg

/usr/local/lib/python3.8/site-packages/spacy/util.py:275: UserWarning: [W031] Model 'en_core_sci_lg' (0.2.4) requires spaCy v2.2 and is incompatible with the current spaCy version (2.3.2). This may lead to unexpected results or runtime errors. To resolve this, download a newer compatible model or retrain your custom model with the current spaCy version. For more details and available updates, run: python -m spacy validate
  warnings.warn(warn_msg)

為了在聚類時降噪，洗掉英文停用詞(一些沒有實際含義的詞，比如the a it等)

import string

punctuations = string.punctuation
stopwords = list(STOP_WORDS)
stopwords[:10]

['’s',
 'sometimes',
 'until',
 'may',
 'most',
 'each',
 'formerly',
 'nevertheless',
 'ever',
 'though']

custom_stop_words = [
    'doi', 'preprint', 'copyright', 'peer', 'reviewed', 'org', 'https', 'et', 'al', 'author', 'figure',
    'rights', 'reserved', 'permission', 'used', 'using', 'biorxiv', 'medrxiv', 'license', 'fig', 'fig.',
    'al.', 'Elsevier', 'PMC', 'CZI', 'www'
]

for w in custom_stop_words:
    if w not in stopwords:
        stopwords.append(w)

接下來，創建一個處理文本資料的函式，該函式會將文本轉換為小寫字母，洗掉標點符號和停用詞，對于決議器，使用en_core_sci_lg，

parser = en_core_sci_lg.load(disable=["tagger", "ner"])
parser.max_length = 7000000

def spacy_tokenizer(sentence):
    mytokens = parser(sentence)
    mytokens = [ word.lemma_.lower().strip() if word.lemma_ != "-PRON-" else word.lower_ for word in mytokens ]
    mytokens = [ word for word in mytokens if word not in stopwords and word not in punctuations ]
    mytokens = " ".join([i for i in mytokens])
    return mytokens

在body_text上應用文本處理功能，

tqdm.pandas()
df_covid["processed_text"] = df_covid["body_text"].progress_apply(spacy_tokenizer)

/usr/local/lib/python3.8/site-packages/tqdm/std.py:697: FutureWarning: The Panel class is removed from pandas. Accessing it from the top-level namespace will also be removed in the next version
  from pandas import Panel
100%|██████████| 90495/90495 [6:34:56<00:00,  3.82it/s]

讓我們看一下論文中的字數統計：

import seaborn as sns

sns.distplot(df_covid['body_word_count'])
df_covid['body_word_count'].describe()

count     90495.000000
mean       3529.074413
std        3817.917262
min           1.000000
25%        1402.500000
50%        2851.000000
75%        4550.000000
max      179548.000000
Name: body_word_count, dtype: float64

sns.distplot(df_covid['body_unique_words'])
df_covid['body_unique_words'].describe()

count    90495.000000
mean      1153.912758
std        813.610719
min          1.000000
25%        635.000000
50%       1037.000000
75%       1465.000000
max      25156.000000
Name: body_unique_words, dtype: float64

這兩幅圖使我們對正在處理的內容有了一個很好的了解， 大多數論文的長度約為5000字， 兩個圖中的長尾巴都是由例外值引起的， 實際上，約有98％的論文篇幅少于20,000個字，而少數論文則超過200,000個！

向量化

目前，我們已經對資料進行了預處理，現在將其轉換為可以由我們演算法處理的格式，

我們將使用TF/IDF，這是衡量每個單詞對整個文獻重要性衡量的標準方式，

from sklearn.feature_extraction.text import TfidfVectorizer
def vectorize(text, maxx_features):

    vectorizer = TfidfVectorizer(max_features=maxx_features)
    X = vectorizer.fit_transform(text)
    return X

向量化我們的資料，我們將基于正文的內容進行聚類，特征最大數量我們限制為前2 ** 12，首先為了降低噪聲，此外，太多的話運行時間也會過長，

text = df_covid['processed_text'].values
X = vectorize(text, 2 ** 12)
X.shape

(90495, 4096)

PCA

對矢量資料進行主成分分析（PCA），這樣做的原因是，通過PCA保留大部分資訊，但是可以從資料中消除一些噪音/離群值，使k-means的聚類更加容易，

注意，X_reduced僅用于k-均值，t-SNE仍使用通過tf-idf對NLP處理的文本生成的原始特征向量X，

from sklearn.decomposition import PCA

pca = PCA(n_components=0.95, random_state=42)
X_reduced= pca.fit_transform(X.toarray())
X_reduced.shape

(90495, 2793)

聚類劃分

為了分開文獻，將在矢量文本上運行k-means， 給定簇數k，k-means將通過取平均距離到隨機初始化的質心的方式對每個向量進行分類，重心迭代更新，

from sklearn.cluster import KMeans

我們需要找到最佳k值，具體做法是讓k從1開始取值直到取到你認為合適的上限(一般來說這個上限不會太大，這里因為文獻類目較多，我們選取上限為50)，對每一個k值進行聚類并且記下對于的SSE，然后畫出k和SSE的關系圖（手肘形），最后選取肘部對應的k作為我們的最佳聚類數，

from sklearn import metrics
from scipy.spatial.distance import cdist

# 用不同的k運行kmeans
distortions = []
K = range(2, 50)
for k in K:
    k_means = KMeans(n_clusters=k, random_state=42).fit(X_reduced)
    k_means.fit(X_reduced)
    distortions.append(sum(np.min(cdist(X_reduced, k_means.cluster_centers_, 'euclidean'), axis=1)) / X.shape[0])

X_line = [K[0], K[-1]]
Y_line = [distortions[0], distortions[-1]]

plt.plot(K, distortions, 'b-')
plt.plot(X_line, Y_line, 'r')
plt.xlabel('k')
plt.ylabel('Distortion')
plt.title('肘法顯示最優k')
plt.show()

在該圖中，我們可以看到較好的k值在8-15之間， 此后，失真的降低就不那么明顯了， 為簡單起見，我們將使用k = 10，現在我們有了一個合適的k值，然后在經過PCA處理的特征向量（X_reduced）上運行k-means：

k = 10
kmeans = KMeans(n_clusters=k, random_state=42)
y_pred = kmeans.fit_predict(X_reduced)
df_covid['y'] = y_pred

使用t-SNE降維

t分布隨機鄰域嵌入（t-distributed stochastic neighbor embedding，t-SNE），是一種用于探索高維資料的非線性降維機器學習演算法，它將多維資料映射到適合于人類觀察的兩個或多個維度，PCA是一種線性演算法，它不能解釋特征之間的復雜多項式關系，而t-SNE是基于在鄰域圖上隨機游走的概率分布來找到資料內的結構，

from sklearn.manifold import TSNE

tsne = TSNE(verbose=1, perplexity=100, random_state=42)
X_embedded = tsne.fit_transform(X.toarray())

[t-SNE] Computing 301 nearest neighbors...
[t-SNE] Indexed 90495 samples in 114.698s...
[t-SNE] Computed neighbors for 90495 samples in 51904.808s...
[t-SNE] Computed conditional probabilities for sample 1000 / 90495
[t-SNE] Computed conditional probabilities for sample 2000 / 90495
[t-SNE] Computed conditional probabilities for sample 3000 / 90495
[t-SNE] Computed conditional probabilities for sample 4000 / 90495
[t-SNE] Computed conditional probabilities for sample 5000 / 90495
[t-SNE] Computed conditional probabilities for sample 6000 / 90495
[t-SNE] Computed conditional probabilities for sample 7000 / 90495
[t-SNE] Computed conditional probabilities for sample 8000 / 90495
[t-SNE] Computed conditional probabilities for sample 9000 / 90495
[t-SNE] Computed conditional probabilities for sample 10000 / 90495
[t-SNE] Computed conditional probabilities for sample 11000 / 90495
[t-SNE] Computed conditional probabilities for sample 12000 / 90495
[t-SNE] Computed conditional probabilities for sample 13000 / 90495
[t-SNE] Computed conditional probabilities for sample 14000 / 90495
[t-SNE] Computed conditional probabilities for sample 15000 / 90495
[t-SNE] Computed conditional probabilities for sample 16000 / 90495
[t-SNE] Computed conditional probabilities for sample 17000 / 90495
[t-SNE] Computed conditional probabilities for sample 18000 / 90495
[t-SNE] Computed conditional probabilities for sample 19000 / 90495
[t-SNE] Computed conditional probabilities for sample 20000 / 90495
[t-SNE] Computed conditional probabilities for sample 21000 / 90495
[t-SNE] Computed conditional probabilities for sample 22000 / 90495
[t-SNE] Computed conditional probabilities for sample 23000 / 90495
[t-SNE] Computed conditional probabilities for sample 24000 / 90495
[t-SNE] Computed conditional probabilities for sample 25000 / 90495
[t-SNE] Computed conditional probabilities for sample 26000 / 90495
[t-SNE] Computed conditional probabilities for sample 27000 / 90495
[t-SNE] Computed conditional probabilities for sample 28000 / 90495
[t-SNE] Computed conditional probabilities for sample 29000 / 90495
[t-SNE] Computed conditional probabilities for sample 30000 / 90495
[t-SNE] Computed conditional probabilities for sample 31000 / 90495
[t-SNE] Computed conditional probabilities for sample 32000 / 90495
[t-SNE] Computed conditional probabilities for sample 33000 / 90495
[t-SNE] Computed conditional probabilities for sample 34000 / 90495
[t-SNE] Computed conditional probabilities for sample 35000 / 90495
[t-SNE] Computed conditional probabilities for sample 36000 / 90495
[t-SNE] Computed conditional probabilities for sample 37000 / 90495
[t-SNE] Computed conditional probabilities for sample 38000 / 90495
[t-SNE] Computed conditional probabilities for sample 39000 / 90495
[t-SNE] Computed conditional probabilities for sample 40000 / 90495
[t-SNE] Computed conditional probabilities for sample 41000 / 90495
[t-SNE] Computed conditional probabilities for sample 42000 / 90495
[t-SNE] Computed conditional probabilities for sample 43000 / 90495
[t-SNE] Computed conditional probabilities for sample 44000 / 90495
[t-SNE] Computed conditional probabilities for sample 45000 / 90495
[t-SNE] Computed conditional probabilities for sample 46000 / 90495
[t-SNE] Computed conditional probabilities for sample 47000 / 90495
[t-SNE] Computed conditional probabilities for sample 48000 / 90495
[t-SNE] Computed conditional probabilities for sample 49000 / 90495
[t-SNE] Computed conditional probabilities for sample 50000 / 90495
[t-SNE] Computed conditional probabilities for sample 51000 / 90495
[t-SNE] Computed conditional probabilities for sample 52000 / 90495
[t-SNE] Computed conditional probabilities for sample 53000 / 90495
[t-SNE] Computed conditional probabilities for sample 54000 / 90495
[t-SNE] Computed conditional probabilities for sample 55000 / 90495
[t-SNE] Computed conditional probabilities for sample 56000 / 90495
[t-SNE] Computed conditional probabilities for sample 57000 / 90495
[t-SNE] Computed conditional probabilities for sample 58000 / 90495
[t-SNE] Computed conditional probabilities for sample 59000 / 90495
[t-SNE] Computed conditional probabilities for sample 60000 / 90495
[t-SNE] Computed conditional probabilities for sample 61000 / 90495
[t-SNE] Computed conditional probabilities for sample 62000 / 90495
[t-SNE] Computed conditional probabilities for sample 63000 / 90495
[t-SNE] Computed conditional probabilities for sample 64000 / 90495
[t-SNE] Computed conditional probabilities for sample 65000 / 90495
[t-SNE] Computed conditional probabilities for sample 66000 / 90495
[t-SNE] Computed conditional probabilities for sample 67000 / 90495
[t-SNE] Computed conditional probabilities for sample 68000 / 90495
[t-SNE] Computed conditional probabilities for sample 69000 / 90495
[t-SNE] Computed conditional probabilities for sample 70000 / 90495
[t-SNE] Computed conditional probabilities for sample 71000 / 90495
[t-SNE] Computed conditional probabilities for sample 72000 / 90495
[t-SNE] Computed conditional probabilities for sample 73000 / 90495
[t-SNE] Computed conditional probabilities for sample 74000 / 90495
[t-SNE] Computed conditional probabilities for sample 75000 / 90495
[t-SNE] Computed conditional probabilities for sample 76000 / 90495
[t-SNE] Computed conditional probabilities for sample 77000 / 90495
[t-SNE] Computed conditional probabilities for sample 78000 / 90495
[t-SNE] Computed conditional probabilities for sample 79000 / 90495
[t-SNE] Computed conditional probabilities for sample 80000 / 90495
[t-SNE] Computed conditional probabilities for sample 81000 / 90495
[t-SNE] Computed conditional probabilities for sample 82000 / 90495
[t-SNE] Computed conditional probabilities for sample 83000 / 90495
[t-SNE] Computed conditional probabilities for sample 84000 / 90495
[t-SNE] Computed conditional probabilities for sample 85000 / 90495
[t-SNE] Computed conditional probabilities for sample 86000 / 90495
[t-SNE] Computed conditional probabilities for sample 87000 / 90495
[t-SNE] Computed conditional probabilities for sample 88000 / 90495
[t-SNE] Computed conditional probabilities for sample 89000 / 90495
[t-SNE] Computed conditional probabilities for sample 90000 / 90495
[t-SNE] Computed conditional probabilities for sample 90495 / 90495
[t-SNE] Mean sigma: 0.324191
[t-SNE] KL divergence after 250 iterations with early exaggeration: 110.000687
[t-SNE] KL divergence after 1000 iterations: 3.334843

讓我們看一下資料壓縮為2維后的樣子：

%matplotlib inline
import matplotlib.pyplot as plt
import seaborn as sns

plt.rcParams['font.family'] = ['Arial Unicode MS'] #用來正常顯示中文標簽
plt.rcParams['axes.unicode_minus'] = False #用來正常顯示負號

sns.set_style('whitegrid',{'font.sans-serif':['Arial Unicode MS','Arial']})


# 設定顏色
palette = sns.color_palette("bright", 1)

plt.figure(figsize=(15, 15))
sns.scatterplot(X_embedded[:,0], X_embedded[:,1], palette=palette)
plt.title('無標簽顯示 t-SNE')
plt.savefig("./t-sne_covid19.png")
plt.show()

從圖上也看不出什么來，我們可以看到一些簇，但是靠近中心的許多實體很難分離，t-SNE在降低尺寸方面做得很好，但是現在我們需要一些標簽，我們可以使用k-means發現的聚類作為標簽，這樣有助于從視覺上區分文獻主題，

# 設定顏色
palette = sns.hls_palette(10, l=.4, s=.9)

plt.figure(figsize=(15, 15))
sns.scatterplot(X_embedded[:,0], X_embedded[:,1], hue=y_pred, legend='full', palette=palette)
plt.title('帶有Kmeans標簽的t-SNE')
plt.savefig("./improved_cluster_tsne.png")
plt.show()

這張圖就能很好的區分文獻的分組方式，即使k-means和t-SNE是獨立運行的，但是它們也能夠在集群上達成共識，通過t-SNE可以確定每個文獻在圖中的位置，而通過k-means則可以確定標簽（顏色），不過，也有一些標簽（k-means）很分散的散布在繪圖上（t-SNE），因為有些文獻的主題經常相交，很難將它們清晰地分開，

作為一種無監督的方法，這些演算法可以找到人類不熟悉的資料劃分方式，通過對劃分結果的研究，我們可能會發現一些隱藏的資料資訊，從而推進進一步的研究，當然資料的這種組織方式并不能充當簡單的搜索引擎，我們目前只是對文獻的數學相似性執行聚類和降維，

主題建模

現在，我們將嘗試在每個聚類中找到可以充當關鍵字的詞，K-means將文章聚類，但未標記主題，通過主題建模，我們將發現每個集群最重要的關鍵字是什么，通過提供關鍵字以快速識別集群的主題，

對于主題建模，我們將使用LDA（隱含狄利克雷分布）， 在LDA中，每個檔案都可以通過主題分布來描述，每個主題都可以通過單詞分布來描述，首先，我們將創建10個矢量化容器，每個集群標簽一個，

from sklearn.decomposition import LatentDirichletAllocation
from sklearn.feature_extraction.text import CountVectorizer

vectorizers = []

for ii in range(0, 10):
    # Creating a vectorizer
    vectorizers.append(CountVectorizer(min_df=5, max_df=0.9, stop_words='english', lowercase=True, token_pattern='[a-zA-Z\-][a-zA-Z\-]{2,}'))

vectorizers[0]

CountVectorizer(max_df=0.9, min_df=5, stop_words='english',
                token_pattern='[a-zA-Z\\-][a-zA-Z\\-]{2,}')

現在，我們將對每個集群的資料進行矢量化處理：

vectorized_data = []

for current_cluster, cvec in enumerate(vectorizers):
    try:
        vectorized_data.append(cvec.fit_transform(df_covid.loc[df_covid['y'] == current_cluster, 'processed_text']))
    except Exception as e:
        print("集群中實體不足: " + str(current_cluster))
        vectorized_data.append(None)

len(vectorized_data)

10

主題建模使用LDA來完成，可以通過共享的主題來解釋集群，

NUM_TOPICS_PER_CLUSTER = 10

lda_models = []
for ii in range(0, NUM_TOPICS_PER_CLUSTER):
    # 隱含狄利克雷分布模型
    lda = LatentDirichletAllocation(n_components=NUM_TOPICS_PER_CLUSTER, max_iter=10, learning_method='online',verbose=False, random_state=42)
    lda_models.append(lda)

lda_models[0]

LatentDirichletAllocation(learning_method='online', random_state=42,
                          verbose=False)

對于每個集群，我們在上一步中創建了一個對應的LDA模型，現在，我們將對所有LDA模型進行適當的聚類轉換，

clusters_lda_data = []

for current_cluster, lda in enumerate(lda_models):

    if vectorized_data[current_cluster] != None:
        clusters_lda_data.append((lda.fit_transform(vectorized_data[current_cluster])))

從每個群集中提取關鍵字：

# 輸出每個主題的關鍵字的功能：
def selected_topics(model, vectorizer, top_n=3):
    current_words = []
    keywords = []

    for idx, topic in enumerate(model.components_):
        words = [(vectorizer.get_feature_names()[i], topic[i]) for i in topic.argsort()[:-top_n - 1:-1]]
        for word in words:
            if word[0] not in current_words:
                keywords.append(word)
                current_words.append(word[0])

    keywords.sort(key = lambda x: x[1])
    keywords.reverse()
    return_values = []
    for ii in keywords:
        return_values.append(ii[0])
    return return_values

將單個群集的關鍵字串列追加到長度為NUM_TOPICS_PER_CLUSTER的串列中：

all_keywords = []
for current_vectorizer, lda in enumerate(lda_models):

    if vectorized_data[current_vectorizer] != None:
        all_keywords.append(selected_topics(lda, vectorizers[current_vectorizer]))

all_keywords[0][:10]

['ang',
 'covid-',
 'patient',
 'bind',
 'protein',
 'lung',
 'sars-cov-',
 'gene',
 'tmprss',
 'effect']

len(all_keywords)

10

我們先把當前輸出內容保存到檔案，不然重新運行上面的內容非常耗時（我斷斷續續的運行了兩三天，尤其是矢量化和t-SNE），

f=open('topics.txt','w')

count = 0

for ii in all_keywords:

    if vectorized_data[count] != None:
        f.write(', '.join(ii) + "\n")
    else:
        f.write("實體數量不足， \n")
        f.write(', '.join(ii) + "\n")
    count += 1

f.close()

import pickle

# 保存COVID-19 DataFrame
pickle.dump(df_covid, open("df_covid.p", "wb" ))

# 保存最終的t-SNE
pickle.dump(X_embedded, open("X_embedded.p", "wb" ))

# 保存用k-means生成的標簽（10）
pickle.dump(y_pred, open("y_pred.p", "wb" ))

分類

在運行kmeans之后，現在已對資料進行“標記”，這意味著我們現在可以使用監督學習來了解聚類的概括程度，這只是評估聚類的一種方法，如果k-means能夠在資料中找到有意義的拆分，則應該可以訓練分類器來預測給定實體應屬于哪個聚類，

# 列印分類模型報告
def classification_report(model_name, test, pred):
    from sklearn.metrics import precision_score, recall_score
    from sklearn.metrics import accuracy_score
    from sklearn.metrics import f1_score

    print(model_name, ":\n")
    print("Accuracy Score: ", '{:,.3f}'.format(float(accuracy_score(test, pred)) * 100), "%")
    print("     Precision: ", '{:,.3f}'.format(float(precision_score(test, pred, average='macro')) * 100), "%")
    print("        Recall: ", '{:,.3f}'.format(float(recall_score(test, pred, average='macro')) * 100), "%")
    print("      F1 score: ", '{:,.3f}'.format(float(f1_score(test, pred, average='macro')) * 100), "%")

劃分訓練集和測驗集

from sklearn.model_selection import train_test_split

# 測驗集大小為資料的20％，隨機種子為42
X_train, X_test, y_train, y_test = train_test_split(X.toarray(),y_pred, test_size=0.2, random_state=42)

print("X_train size:", len(X_train))
print("X_test size:", len(X_test), "\n")

X_train size: 72396
X_test size: 18099

精確率：預測結果為正例樣本中真實為正例的比例（查得準）；

召回率：真實為正例的樣本中預測結果為正例的比例（查的全，對正樣本的區分能力）；

F1分數：精度和查全率的諧波平均值，只有精度和召回率都很高時，F1分數才會很高，

from sklearn.model_selection import cross_val_score
from sklearn.model_selection import cross_val_predict
from sklearn.linear_model import SGDClassifier

# SGD 實體
sgd_clf = SGDClassifier(max_iter=10000, tol=1e-3, random_state=42, n_jobs=4)
# 訓練 SGD
sgd_clf.fit(X_train, y_train)

# 交叉驗證
sgd_pred = cross_val_predict(sgd_clf, X_train, y_train, cv=3, n_jobs=4)

# 分類報告
classification_report("隨機梯度下降報告（訓練集）", y_train, sgd_pred)

隨機梯度下降報告（訓練集） :

Accuracy Score:  93.015 %
     Precision:  93.202 %
        Recall:  92.543 %
      F1 score:  92.829 %

然后看看測驗集表現如何：

sgd_pred = cross_val_predict(sgd_clf, X_test, y_test, cv=3, n_jobs=4)

classification_report("隨機梯度下降報告（測驗集）", y_test, sgd_pred)

隨機梯度下降報告（測驗集） :

Accuracy Score:  91.292 %
     Precision:  91.038 %
        Recall:  90.799 %
      F1 score:  90.887 %

現在，讓我們看看模型在整個資料集中如何：

sgd_cv_score = cross_val_score(sgd_clf, X.toarray(), y_pred, cv=10)
print("Mean cv Score - SGD: {:,.3f}".format(float(sgd_cv_score.mean()) * 100), "%")

Mean cv Score - SGD: 93.484 %

BokehJS 繪制資料

前面的步驟為我們提供了聚類標簽和二維的論文資料集，然后通過k-means，我們可以看到論文的劃分情況，為了理解同一聚類的相似之處，我們還對每組論文進行了主題建模，以挑選出關鍵詞，

現在我們會使用Bokeh進行繪圖，它會將實際論文與其在t-SNE圖上的位置配對，通過這種方法，將更容易看到這些論文是如何組合在一起的，從而可以研究資料集和評估聚類，

import os

# 切換到lib目錄以加載繪圖python腳本
main_path = os.getcwd()
lib_path = '/Users/shen/Documents/local jupyter/COVID-19/archive/resources'
os.chdir(lib_path)

# 繪圖所需的庫
import bokeh
from bokeh.models import ColumnDataSource, HoverTool, LinearColorMapper, CustomJS, Slider, TapTool, TextInput
from bokeh.palettes import Category20
from bokeh.transform import linear_cmap, transform
from bokeh.io import output_file, show, output_notebook
from bokeh.plotting import figure
from bokeh.models import RadioButtonGroup, TextInput, Div, Paragraph
from bokeh.layouts import column, widgetbox, row, layout
from bokeh.layouts import column

os.chdir(main_path)

函式加載：

# 處理當前選擇的文章
def selected_code():
    code = """
            var titles = [];
            var authors = [];
            var journals = [];
            var links = [];
            cb_data.source.selected.indices.forEach(index => titles.push(source.data['titles'][index]));
            cb_data.source.selected.indices.forEach(index => authors.push(source.data['authors'][index]));
            cb_data.source.selected.indices.forEach(index => journals.push(source.data['journal'][index]));
            cb_data.source.selected.indices.forEach(index => links.push(source.data['links'][index]));
            var title = "<h4>" + titles[0].toString().replace(/<br>/g, ' ') + "</h4>";
            var authors = "<p1><b>作者:</b> " + authors[0].toString().replace(/<br>/g, ' ') + "<br>"
          //  var journal = "<b>刊物:</b>" + journals[0].toString() + "<br>"
            var link = "<b>文章鏈接:</b> <a href='" + "http://doi.org/" + links[0].toString() + "'>" + "http://doi.org/" + links[0].toString() + "</a></p1>"
            current_selection.text = title + authors + link
            current_selection.change.emit();
    """
    return code

# 處理關鍵字并搜索
def input_callback(plot, source, out_text, topics):


    # slider call back
    callback = CustomJS(args=dict(p=plot, source=source, out_text=out_text, topics=topics), code="""
				var key = text.value;
				key = key.toLowerCase();
				var cluster = slider.value;
                var data = source.data;

                console.log(cluster);

                var x = data['x'];
                var y = data['y'];
                var x_backup = data['x_backup'];
                var y_backup = data['y_backup'];
                var labels = data['desc'];
                var abstract = data['abstract'];
                var titles = data['titles'];
                var authors = data['authors'];
                var journal = data['journal'];
                if (cluster == '10') {
                    out_text.text = '關鍵詞：滑動到特定的群集以查看關鍵詞，';
                    for (var i = 0; i < x.length; i++) {
						if(abstract[i].includes(key) ||
						titles[i].includes(key) ||
						authors[i].includes(key) ||
						journal[i].includes(key)) {
							x[i] = x_backup[i];
							y[i] = y_backup[i];
						} else {
							x[i] = undefined;
							y[i] = undefined;
						}
                    }
                }
                else {
                    out_text.text = '關鍵詞: ' + topics[Number(cluster)];
                    for (var i = 0; i < x.length; i++) {
                        if(labels[i] == cluster) {
							if(abstract[i].includes(key) ||
							titles[i].includes(key) ||
							authors[i].includes(key) ||
							journal[i].includes(key)) {
								x[i] = x_backup[i];
								y[i] = y_backup[i];
							} else {
								x[i] = undefined;
								y[i] = undefined;
							}
                        } else {
                            x[i] = undefined;
                            y[i] = undefined;
                        }
                    }
                }
            source.change.emit();
            """)
    return callback

每個集群加載關鍵字：

import os

topic_path = 'topics.txt'
with open(topic_path) as f:
    topics = f.readlines()

# 在notebook中顯示
output_notebook()
# 目標標簽
y_labels = y_pred

# 資料源
source = ColumnDataSource(data=dict(
    x= X_embedded[:,0],
    y= X_embedded[:,1],
    x_backup = X_embedded[:,0],
    y_backup = X_embedded[:,1],
    desc= y_labels,
    titles= df_covid['title'],
    authors = df_covid['authors'],
    journal = df_covid['journal'],
    abstract = df_covid['abstract_summary'],
    labels = ["C-" + str(x) for x in y_labels],
    links = df_covid['doi']
    ))

# 滑鼠懸停的資訊顯示
hover = HoverTool(tooltips=[
    ("標題", "@titles{safe}"),
    ("作者", "@authors{safe}"),
    ("出版物", "@journal"),
    ("簡介", "@abstract{safe}"),
    ("文章鏈接", "@links")
],
point_policy="follow_mouse")

# 繪圖顏色
mapper = linear_cmap(field_name='desc',
                     palette=Category20[10],
                     low=min(y_labels) ,high=max(y_labels))

# 大小
plot = figure(plot_width=1200, plot_height=850,
           tools=[hover, 'pan', 'wheel_zoom', 'box_zoom', 'reset', 'save', 'tap'],
           title="用t-SNE和K-Means對COVID-19文獻進行聚類",
           toolbar_location="above")

# 繪圖
plot.scatter('x', 'y', size=5,
          source=source,
          fill_color=mapper,
          line_alpha=0.3,
          line_color="black",
          legend = 'labels')
plot.legend.background_fill_alpha = 0.6

BokehDeprecationWarning: 'legend' keyword is deprecated, use explicit 'legend_label', 'legend_field', or 'legend_group' keywords instead

部件加載：

# 關鍵字
text_banner = Paragraph(text= '關鍵詞：滑動到特定的群集以查看關鍵詞，', height=45)
input_callback_1 = input_callback(plot, source, text_banner, topics)

# 當前選擇的文章
div_curr = Div(text="""單擊圖解以查看文章的鏈接，""",height=150)
callback_selected = CustomJS(args=dict(source=source, current_selection=div_curr), code=selected_code())
taptool = plot.select(type=TapTool)
taptool.callback = callback_selected

# 工具列
# slider = Slider(start=0, end=10, value=10, step=1, title="簇 #", callback=input_callback_1)
slider = Slider(start=0, end=10, value=10, step=1, title="簇 #")

# slider.callback = input_callback_1

keyword = TextInput(title="搜索:")
# keyword.callback = input_callback_1

# 回掉引數
input_callback_1.args["text"] = keyword
input_callback_1.args["slider"] = slider

slider.js_on_change('value', input_callback_1)
keyword.js_on_change('value', input_callback_1)

樣式設定：

slider.sizing_mode = "stretch_width"
slider.margin=15

keyword.sizing_mode = "scale_both"
keyword.margin=15

div_curr.style={'color': '#BF0A30', 'font-family': 'Helvetica Neue, Helvetica, Arial, sans-serif;', 'font-size': '1.1em'}
div_curr.sizing_mode = "scale_both"
div_curr.margin = 20

text_banner.style={'color': '#0269A4', 'font-family': 'Helvetica Neue, Helvetica, Arial, sans-serif;', 'font-size': '1.1em'}
text_banner.sizing_mode = "scale_both"
text_banner.margin = 20

plot.sizing_mode = "scale_both"
plot.margin = 5

r = row(div_curr,text_banner)
r.sizing_mode = "stretch_width"

顯示：

# 頁面布局
l = layout([
    [slider, keyword],
#     [slider],
    [text_banner],
    [div_curr],
    [plot],
])
l.sizing_mode = "scale_both"

output_file('t-sne_covid-19_interactive.html')
show(l)

這里沒法放html片段，所以我把最終結果制作成動圖展示：
