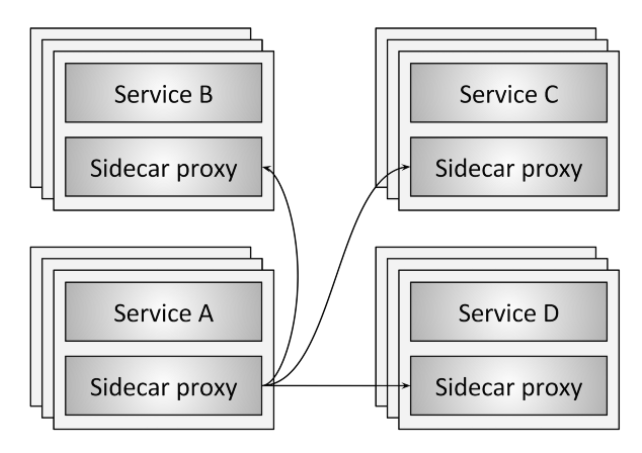

服務網格（Service Mesh）是致力于解決服務間通訊的基礎設施層，它負責在現代云原生應用程式的復雜服務拓撲來可靠地傳遞請求，實際上，Service Mesh 通常是通過一組輕量級網路代理（Sidecar proxy），與應用程式代碼部署在一起來實作，而無需感知應用程式本身，
資料面
- Service discovery: What are all of the upstream/backend service instances that are available?
- Health checking: Are the upstream service instances returned by service discovery healthy and ready to accept network traffic? This may include both active (e.g., out-of-band pings to a
/healthcheckendpoint) and passive (e.g., using 3 consecutive 5xx as an indication of an unhealthy state) health checking. - Routing: Given a REST request for
/foofrom the local service instance, to which upstream service cluster should the request be sent? - Load balancing: Once an upstream service cluster has been selected during routing, to which upstream service instance should the request be sent? With what timeout? With what circuit breaking settings? If the request fails should it be retried?
- Authentication and authorization: For incoming requests, can the caller be cryptographically attested using mTLS or some other mechanism? If attested, is the caller allowed to invoke the requested endpoint or should an unauthenticated response be returned?
- Observability: For each request, detailed statistics, logging, and distributed tracing data should be generated so that operators can understand distributed traffic flow and debug problems as they occur.

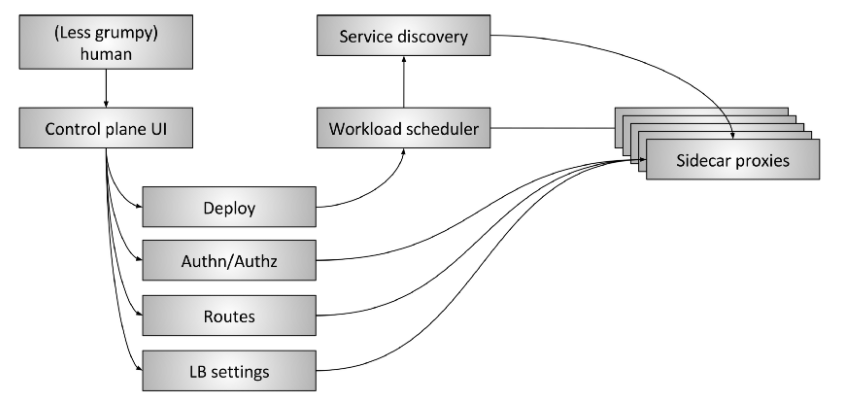

控制面
- The human: There is still a (hopefully less grumpy) human in the loop making high level decisions about the overall system.
- Control plane UI: The human interacts with some type of UI to control the system. This might be a web portal, a CLI, or some other interface. Through the UI, the operator has access to global system configuration settings such as deploy control (blue/green and/or traffic shifting), authentication and authorization settings, route table specification (e.g., when service A requests
/foowhat happens), and load balancer settings (e.g., timeouts, retries, circuit breakers, etc.). - Workload scheduler: Services are run on an infrastructure via some type of scheduling system (e.g., Kubernetes or Nomad). The scheduler is responsible for bootstrapping a service along with its sidecar proxy.
- Service discovery: As the scheduler starts and stops service instances it reports liveness state into a service discovery system.
- Sidecar proxy configuration APIs: The sidecar proxies dynamically fetch state from various system components in an eventually consistent way without operator involvement. The entire system composed of all currently running service instances and sidecar proxies eventually converge.
目前行業流行資料planes與控制planes:
- Data planes: Linkerd, NGINX, HAProxy, Envoy, Traefik
- Control planes: Istio, Nelson, SmartStack

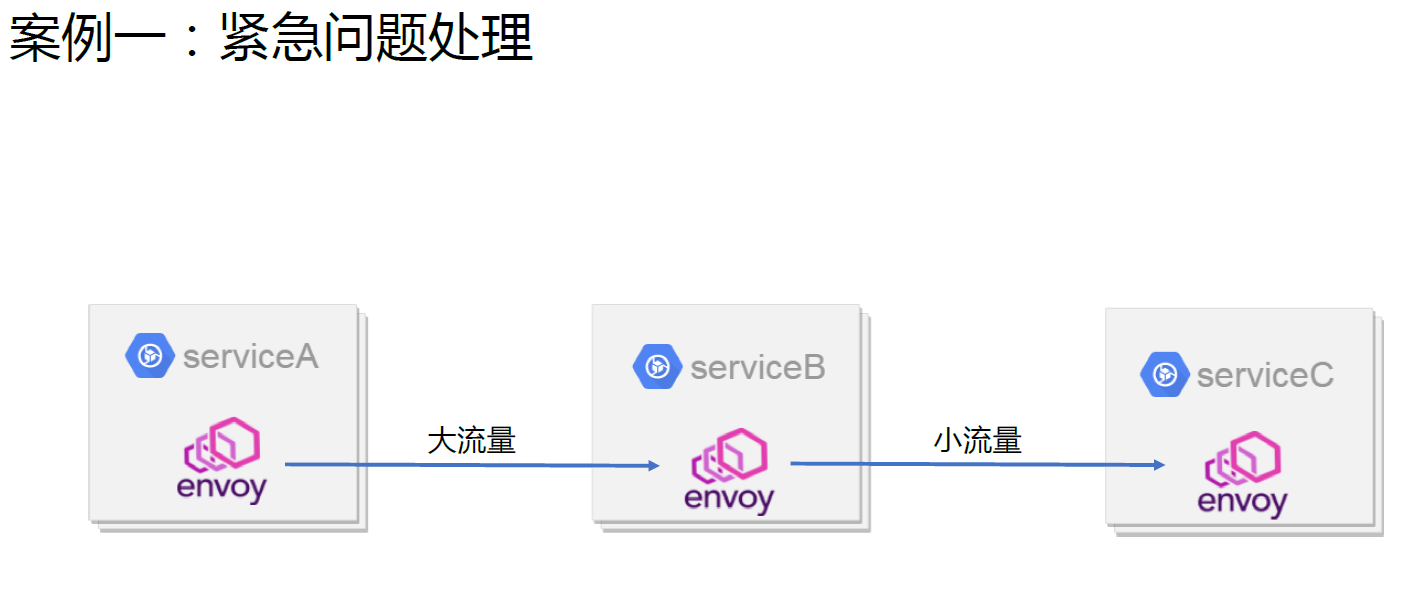

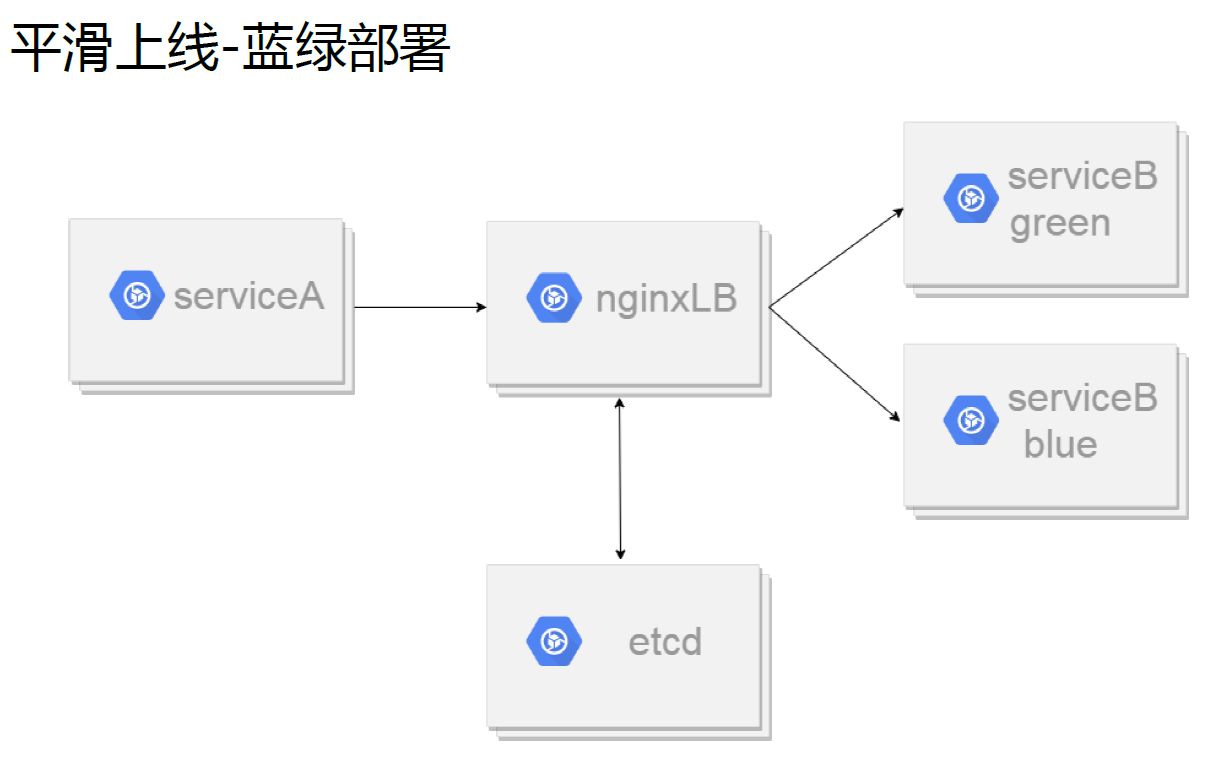

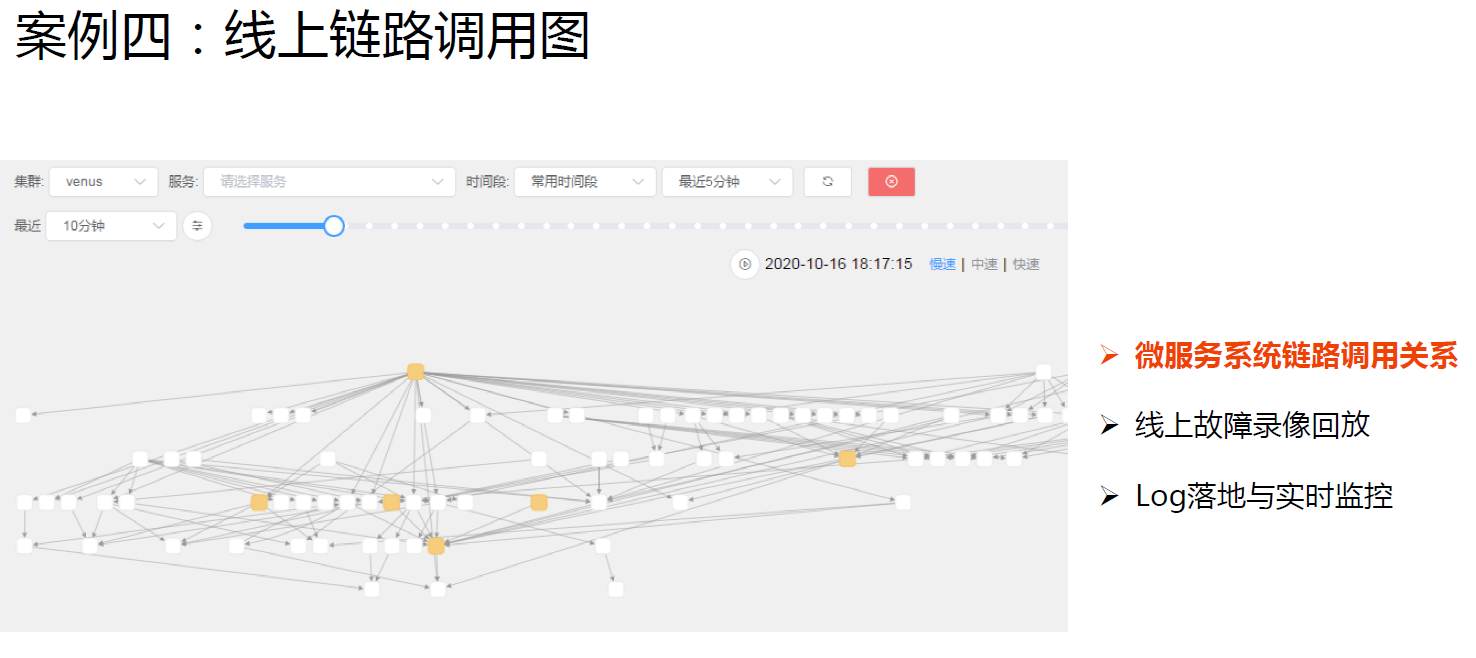

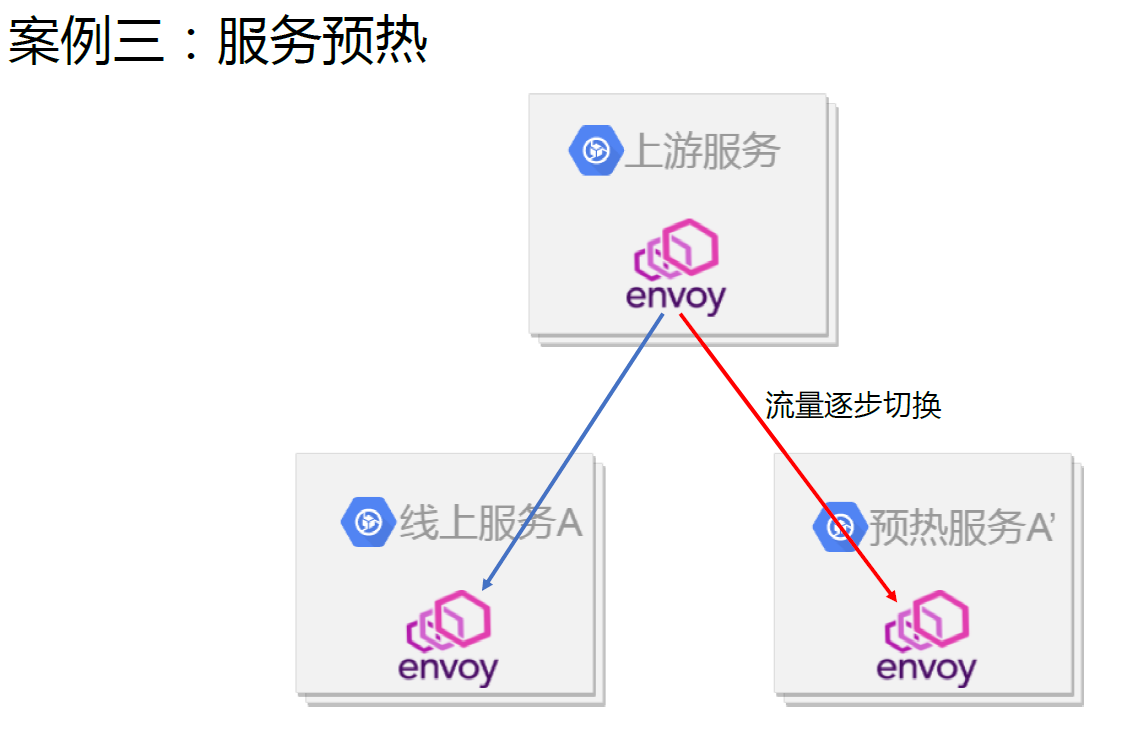

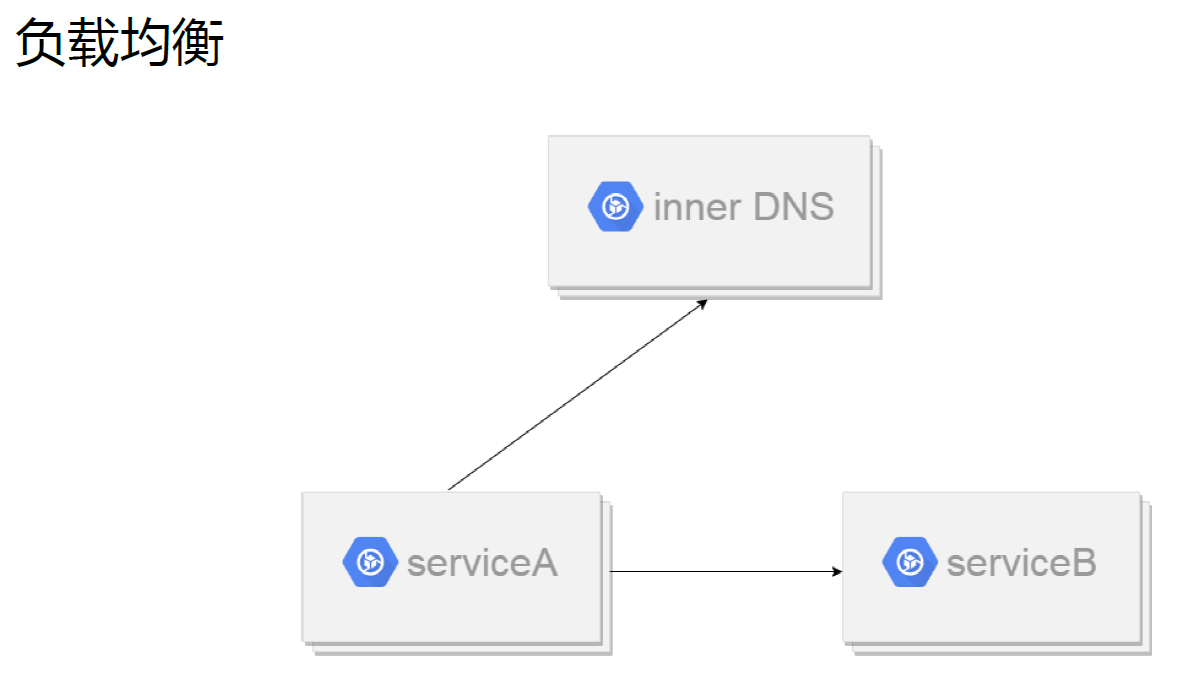

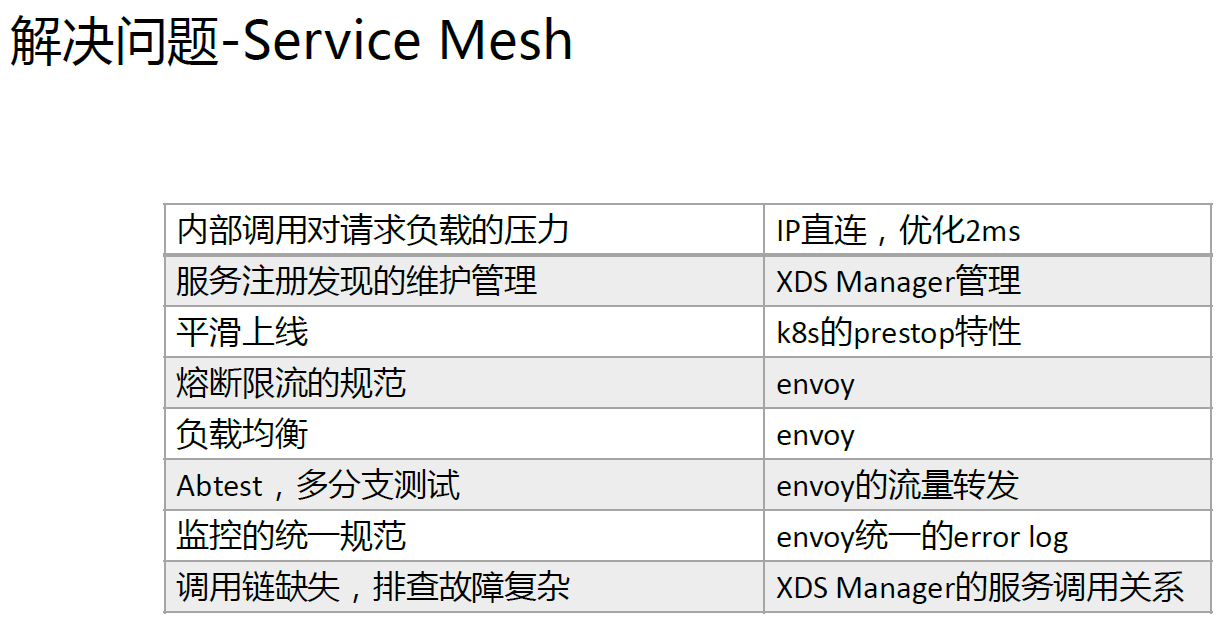

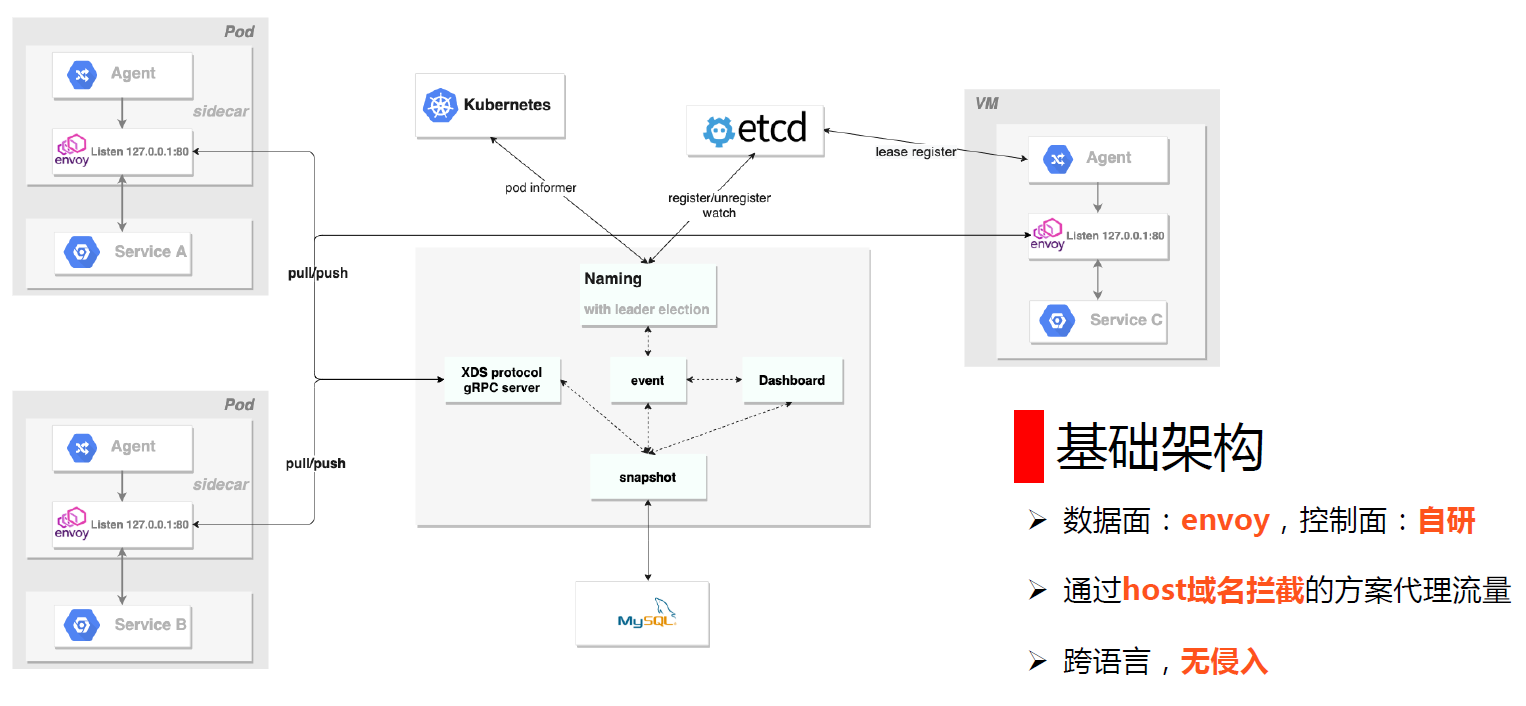

場景

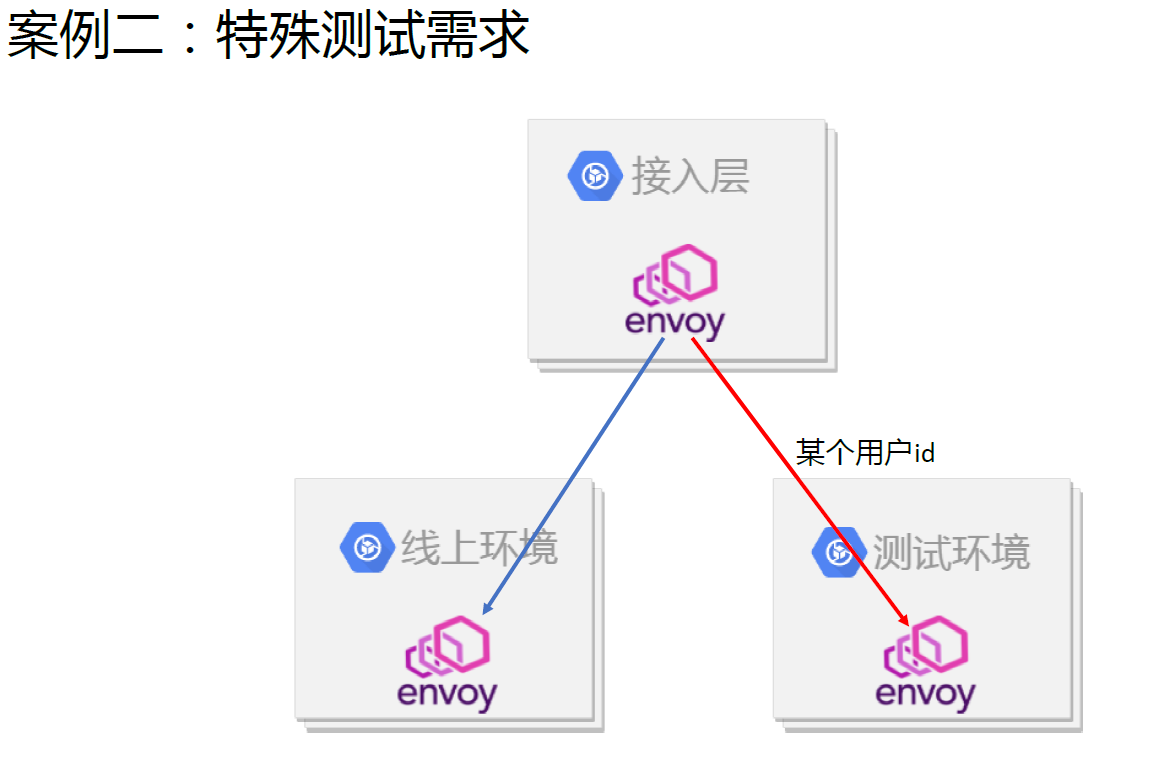

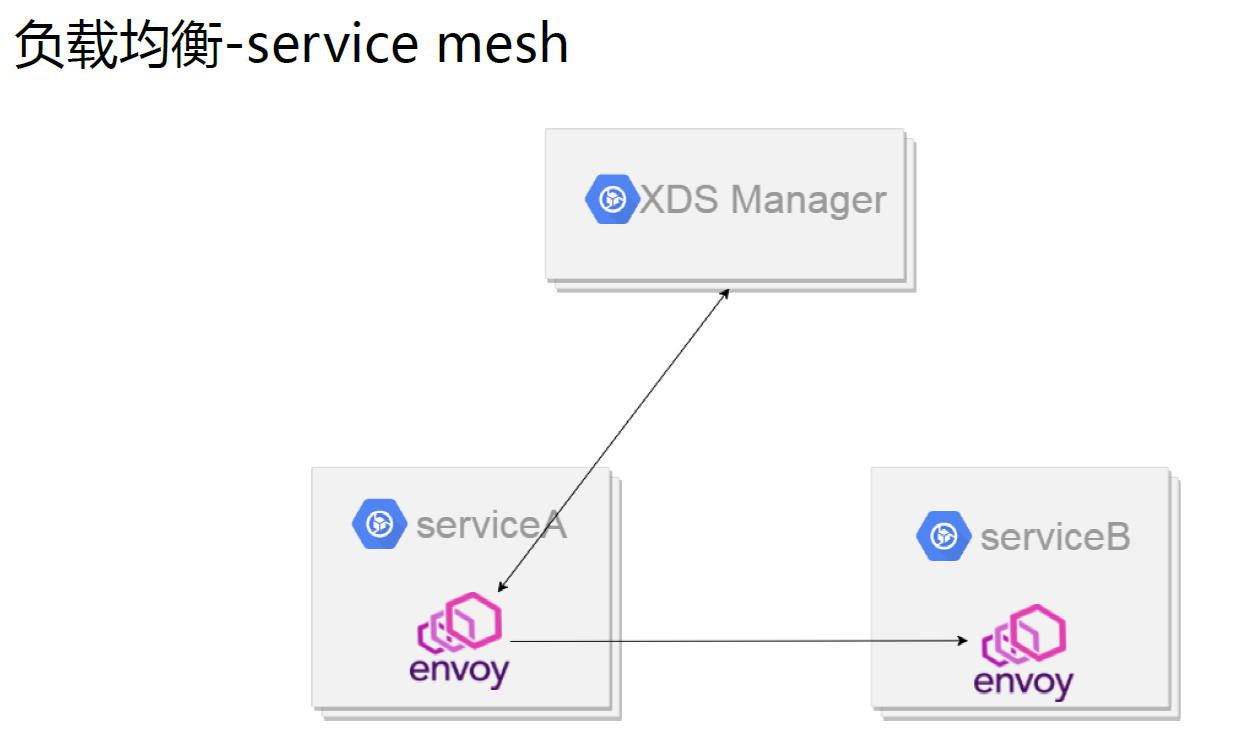

另一案例是：

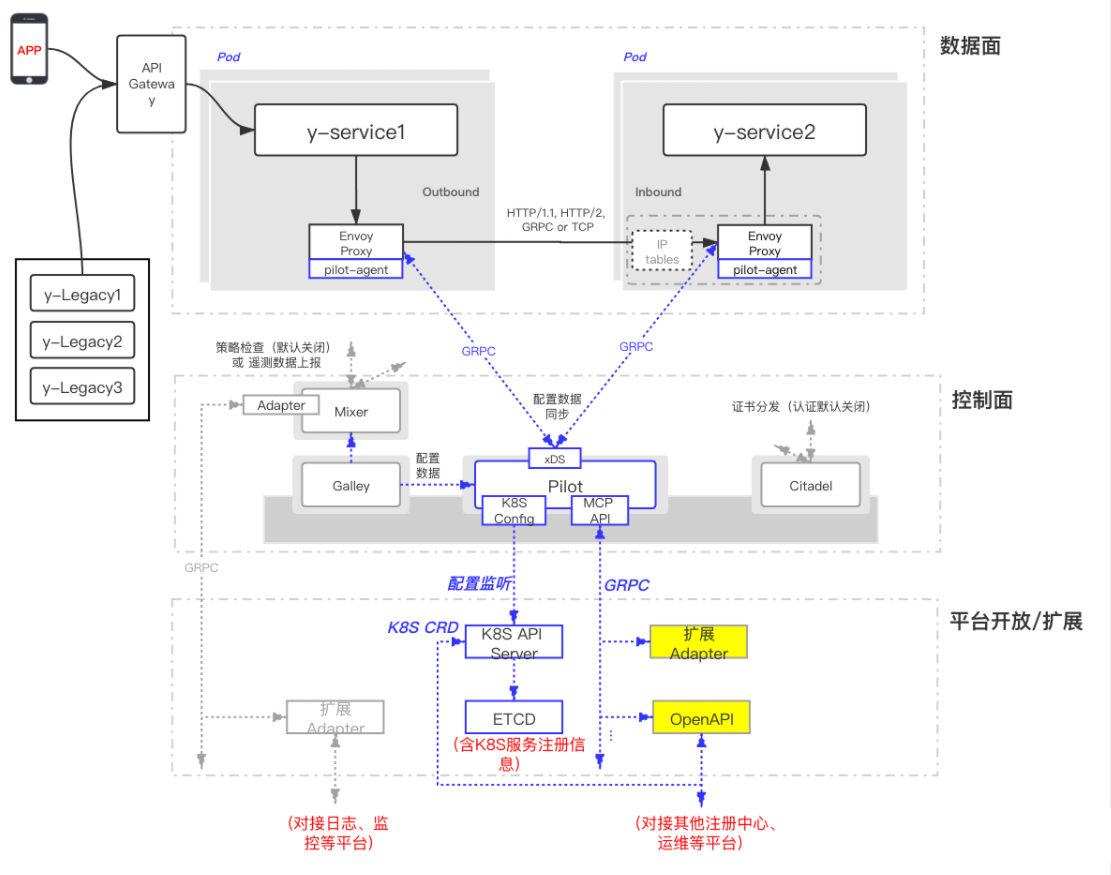

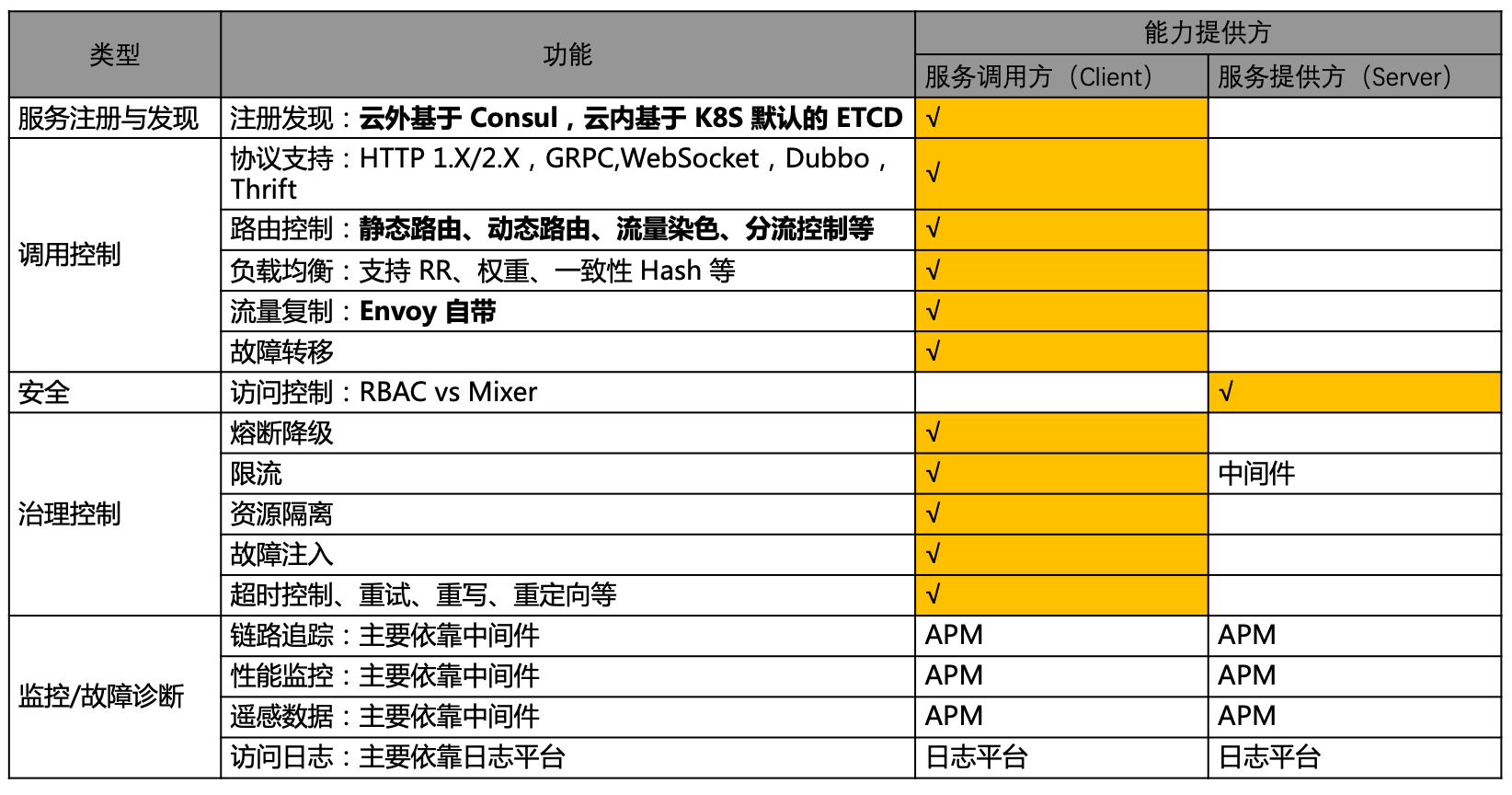

基于 Istio+Envoy 的方案：
- 資料面以 Envoy Proxy 作為代理組件
- 控制面以 Pilot 為核心組件
- 平臺開放與擴展主要通過 Kubernetes CRD與Mesh Configuration Protocol（簡稱為 MCP，一套標準 GRPC 協議）

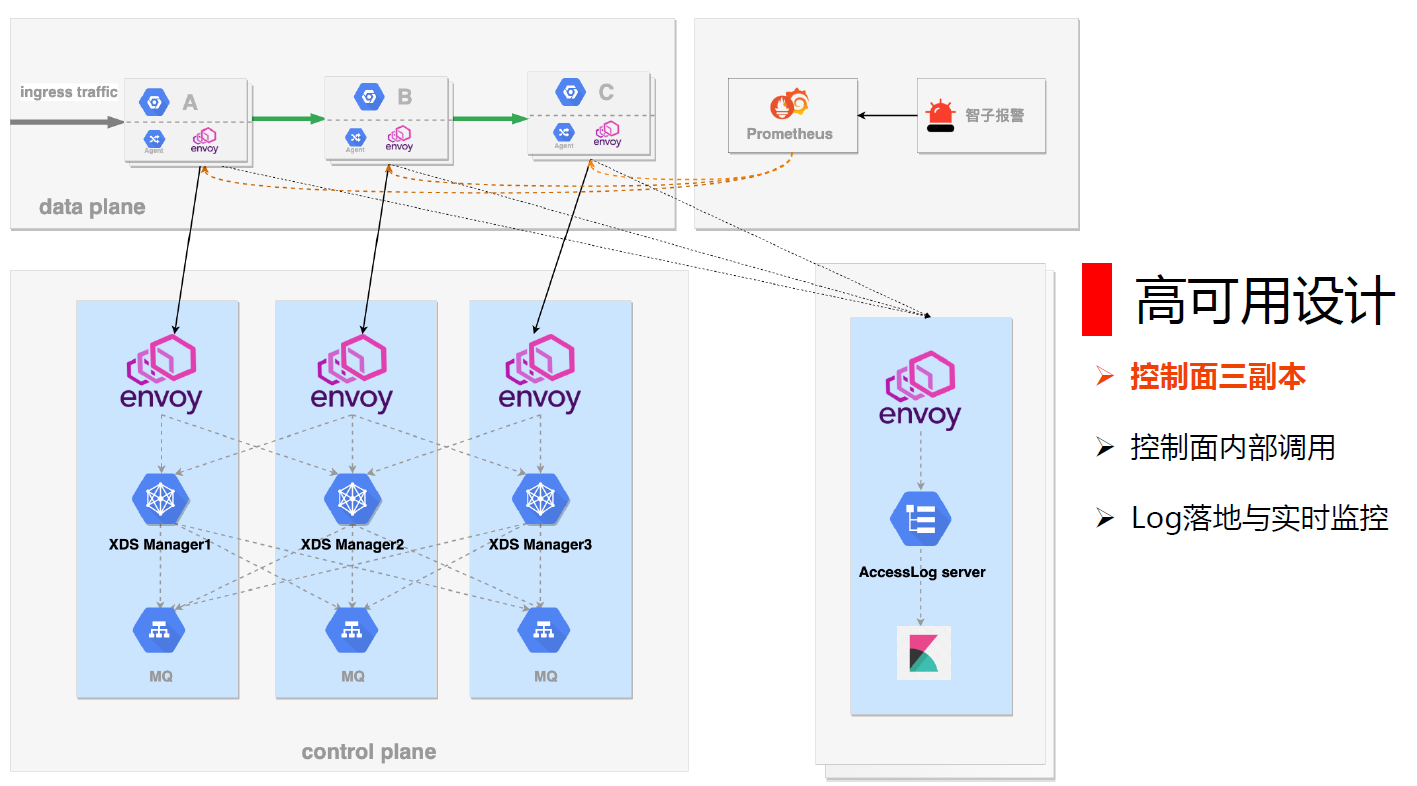

- 高可用設計主要基于 Kubernetes 及 Istio 機制實作
