Android StorageManager實作原理剖析

引言

在現在的Android手機中，EMMC已經從32G，64G開始了向128G, 512G的快速轉變，
隨著5G時代的到來，以及近些年Camera的興起，越來越多資料將會在本地進行運算和存盤，
那么，對于存盤的管理就會越來越受人重視，

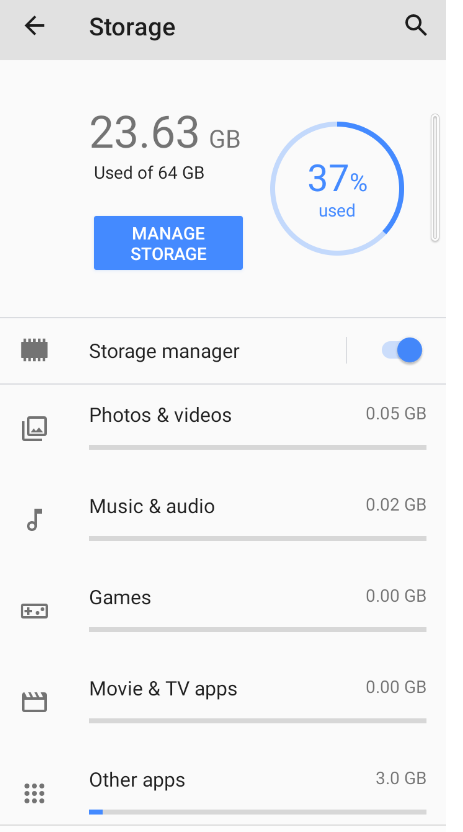

下圖是一個AOSP Pixel的Storage截圖，當然，這個界面各個廠商也是修改的最兇的，

我們這里主要分析的是原生的Storage manager的清理邏輯，以及下方各型別資料存盤記錄的規則，

Storage manager

Storage manager實作邏輯分析

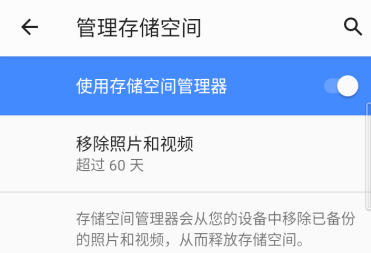

在點擊Storage manager的界面后，我們可以看到如下的界面：

那么點擊移除照片和視頻，將會有30天，60天，90天這幾個選項，
代碼實作的路徑為src/com/android/settings/deletionhelper/AutomaticStorageManagerSettings.java
在進來之后，初始化的方法為：

    @Override
    public View onCreateView(
            LayoutInflater inflater, ViewGroup container, Bundle savedInstanceState) {
        View view = super.onCreateView(inflater, container, savedInstanceState);

        initializeDaysToRetainPreference();
        initializeSwitchBar();

        return view;
    }

可以看到時進行了初始化Perference和SwitchBar的初始化設定，

    private void initializeDaysToRetainPreference() {
        mDaysToRetain = (DropDownPreference) findPreference(KEY_DAYS);
        mDaysToRetain.setOnPreferenceChangeListener(this);

        ContentResolver cr = getContentResolver();
        int photosDaysToRetain =
                Settings.Secure.getInt(
                        cr,
                        Settings.Secure.AUTOMATIC_STORAGE_MANAGER_DAYS_TO_RETAIN,
                        Utils.getDefaultStorageManagerDaysToRetain(getResources()));
        String[] stringValues =
                getResources().getStringArray(R.array.automatic_storage_management_days_values);
        mDaysToRetain.setValue(stringValues[daysValueToIndex(photosDaysToRetain, stringValues)]);
    }

在這邊，將會從資料庫中取出保存的AUTOMATIC_STORAGE_MANAGER_DAYS_TO_RETAIN的值，并進行顯示，

    private void initializeSwitchBar() {
        final SettingsActivity activity = (SettingsActivity) getActivity();
        mSwitchBar = activity.getSwitchBar();
        mSwitchBar.setSwitchBarText(R.string.automatic_storage_manager_master_switch_title,
                R.string.automatic_storage_manager_master_switch_title);
        mSwitchBar.show();
        mSwitchController =
                new AutomaticStorageManagerSwitchBarController(
                        getContext(),
                        mSwitchBar,
                        mMetricsFeatureProvider,
                        mDaysToRetain,
                        getFragmentManager());
    }

取到的值，將會通過AutomaticStorageManagerSwitchBarController物件來進行初始化的保存，
而當每次用戶操作資料有改變的時候，我們將會通過監聽來獲得：

    @Override
    public boolean onPreferenceChange(Preference preference, Object newValue) {
        if (KEY_DAYS.equals(preference.getKey())) {
            Settings.Secure.putInt(
                    getContentResolver(),
                    Settings.Secure.AUTOMATIC_STORAGE_MANAGER_DAYS_TO_RETAIN,
                    Integer.parseInt((String) newValue));
        }
        return true;
    }

這邊其實就是會將對應的值寫到資料庫中，那么AUTOMATIC_STORAGE_MANAGER_DAYS_TO_RETAIN這個變數，就會非常的重要，
定義如下：

        /**
         * How many days of information for the automatic storage manager to retain on the device.
         *
         * @hide
         */
        public static final String AUTOMATIC_STORAGE_MANAGER_DAYS_TO_RETAIN =
                "automatic_storage_manager_days_to_retain";

那么定義出來的天數是怎么檢測的呢？這就從一個廣播說起：

        <!-- Automatic storage management tasks. -->
        <service
            android:name=".automatic.AutomaticStorageManagementJobService"
            android:label="@string/automatic_storage_manager_service_label"
            android:permission="android.permission.BIND_JOB_SERVICE"
            android:enabled="@bool/enable_automatic_storage_management"
            android:exported="false"/>

        <receiver android:name=".automatic.AutomaticStorageBroadcastReceiver"
                  android:enabled="@bool/enable_automatic_storage_management">
            <intent-filter>
                <action android:name="android.intent.action.BOOT_COMPLETED" />
            </intent-filter>
        </receiver>

因為我們前面設定的是天數，所以這邊我們將會起一個receiver來接收boot_complete的廣播，

    @Override
    public void onReceive(Context context, Intent intent) {
        // Automatic deletion service
        JobScheduler jobScheduler =
                (JobScheduler) context.getSystemService(Context.JOB_SCHEDULER_SERVICE);
        ComponentName component = new ComponentName(context,
                AutomaticStorageManagementJobService.class);
        long periodicOverride = SystemProperties.getLong(DEBUG_PERIOD_FLAG, PERIOD);
        JobInfo job = new JobInfo.Builder(AUTOMATIC_STORAGE_JOB_ID, component)
                .setRequiresCharging(true)
                .setRequiresDeviceIdle(true)
                .setPeriodic(periodicOverride)
                .build();
        jobScheduler.schedule(job);
    }

這邊可以看到，其實就是根據boot complete的時間，設定了jobscheduler的service去定時執行AutomaticStorageManagementJobService，
實作的檔案為AutomaticStorageManagementJobService.java
在這邊我們關注的是onStartJob的方法：

    @Override
    public boolean onStartJob(JobParameters args) {
        // We need to double-check the preconditions here because they are not enforced for a
        // periodic job.
        if (!preconditionsFulfilled()) {
            // By telling the system to re-schedule the job, it will attempt to execute again at a
            // later idle window -- possibly one where we are charging.
            jobFinished(args, true);
            return false;
        }

        mProvider = FeatureFactory.getFactory(this).getStorageManagementJobProvider();
        if (maybeDisableDueToPolicy(mProvider, this, getClock())) {
            jobFinished(args, false);
            return false;
        }

        if (!volumeNeedsManagement()) {
            Log.i(TAG, "Skipping automatic storage management.");
            Settings.Secure.putLong(getContentResolver(),
                    Settings.Secure.AUTOMATIC_STORAGE_MANAGER_LAST_RUN,
                    System.currentTimeMillis());
            jobFinished(args, false);
            return false;
        }

        if (!Utils.isStorageManagerEnabled(getApplicationContext())) {
            Intent maybeShowNotificationIntent =
                    new Intent(NotificationController.INTENT_ACTION_SHOW_NOTIFICATION);
            maybeShowNotificationIntent.setClass(getApplicationContext(),
                    NotificationController.class);
            getApplicationContext().sendBroadcast(maybeShowNotificationIntent);
            jobFinished(args, false);
            return false;
        }

        if (mProvider != null) {
            return mProvider.onStartJob(this, args, getDaysToRetain());
        }

        jobFinished(args, false);
        return false;
    }

當系統在低存盤的模式下，并且打開了automatic storage management的功能，那么才會最后去執行mProvider的onStartJob的作業，
mProvider在AOSP中的實作就基本上終止了，pixel會使用檔案管理器替換掉這個功能，
而華為，小米，Oppo，Vivo等廠商也是使用不同的定制化的apk去overlay storageManager，
這里需要注意，這個其實可以被overlay，override掉，所以也方便了各大廠商在這邊的定制，

各種型別計算方案實作

計算這邊我們分為兩部分，第一部分是我們點擊Settings的Perference后，進行的Activity跳轉，

    @Override
    public boolean handlePreferenceTreeClick(Preference preference) {
        if (preference == null) {
            return false;
        }

        Intent intent = null;
        if (preference.getKey() == null) {
            return false;
        }
        switch (preference.getKey()) {
            case PHOTO_KEY:
                intent = getPhotosIntent();
                break;
            case AUDIO_KEY:
                intent = getAudioIntent();
                break;
            case GAME_KEY:
                intent = getGamesIntent();
                break;
            case MOVIES_KEY:
                intent = getMoviesIntent();
                break;
            case OTHER_APPS_KEY:
                // Because we are likely constructed with a null volume, this is theoretically
                // possible.
                if (mVolume == null) {
                    break;
                }
                intent = getAppsIntent();
                break;
            case FILES_KEY:
                intent = getFilesIntent();
                FeatureFactory.getFactory(mContext).getMetricsFeatureProvider().action(
                        mContext, SettingsEnums.STORAGE_FILES);
                break;
            case SYSTEM_KEY:
                final SystemInfoFragment dialog = new SystemInfoFragment();
                dialog.setTargetFragment(mFragment, 0);
                dialog.show(mFragment.getFragmentManager(), SYSTEM_FRAGMENT_TAG);
                return true;
        }

        if (intent != null) {
            intent.putExtra(Intent.EXTRA_USER_ID, mUserId);

            Utils.launchIntent(mFragment, intent);
            return true;
        }

        return super.handlePreferenceTreeClick(preference);
    }

其實在這邊，就可以很容易的定義不同的perference以及將會出發的intent，
以點擊Photo為例：

    private Intent getPhotosIntent() {
        Bundle args = getWorkAnnotatedBundle(2);
        args.putString(
                ManageApplications.EXTRA_CLASSNAME, Settings.PhotosStorageActivity.class.getName());
        args.putInt(
                ManageApplications.EXTRA_STORAGE_TYPE,
                ManageApplications.STORAGE_TYPE_PHOTOS_VIDEOS);
        return new SubSettingLauncher(mContext)
                .setDestination(ManageApplications.class.getName())
                .setTitleRes(R.string.storage_photos_videos)
                .setArguments(args)
                .setSourceMetricsCategory(mMetricsFeatureProvider.getMetricsCategory(mFragment))
                .toIntent();
    }

這里就會丁志偉相應跳轉的activity了，

計算的方式如下，仍然以Photo的型別來進行說明：
這里其實是會有一個多用戶的概念：

    public void onLoadFinished(SparseArray<StorageAsyncLoader.AppsStorageResult> result,
            int userId) {
        final StorageAsyncLoader.AppsStorageResult data = result.get(userId);
        final StorageAsyncLoader.AppsStorageResult profileData = result.get(
                Utils.getManagedProfileId(mContext.getSystemService(UserManager.class), userId));

        mPhotoPreference.setStorageSize(getPhotosSize(data, profileData), mTotalSize);
        mAudioPreference.setStorageSize(getAudioSize(data, profileData), mTotalSize);
        mGamePreference.setStorageSize(getGamesSize(data, profileData), mTotalSize);
        mMoviesPreference.setStorageSize(getMoviesSize(data, profileData), mTotalSize);
        mAppPreference.setStorageSize(getAppsSize(data, profileData), mTotalSize);
        mFilePreference.setStorageSize(getFilesSize(data, profileData), mTotalSize);

        if (mSystemPreference != null) {
            // Everything else that hasn't already been attributed is tracked as
            // belonging to system.
            long attributedSize = 0;
            for (int i = 0; i < result.size(); i++) {
                final StorageAsyncLoader.AppsStorageResult otherData = result.valueAt(i);
                attributedSize +=
                        otherData.gamesSize
                                + otherData.musicAppsSize
                                + otherData.videoAppsSize
                                + otherData.photosAppsSize
                                + otherData.otherAppsSize;
                attributedSize += otherData.externalStats.totalBytes
                        - otherData.externalStats.appBytes;
            }

            final long systemSize = Math.max(TrafficStats.GB_IN_BYTES, mUsedBytes - attributedSize);
            mSystemPreference.setStorageSize(systemSize, mTotalSize);
        }
    }

這里其實就是拿兩個data：

        final StorageAsyncLoader.AppsStorageResult data = result.get(userId);
        final StorageAsyncLoader.AppsStorageResult profileData = result.get(
                Utils.getManagedProfileId(mContext.getSystemService(UserManager.class), userId));

然后進行后續photo，games等內容的傳遞，

    private long getPhotosSize(StorageAsyncLoader.AppsStorageResult data,
            StorageAsyncLoader.AppsStorageResult profileData) {
        if (profileData != null) {
            return data.photosAppsSize + data.externalStats.imageBytes
                    + data.externalStats.videoBytes
                    + profileData.photosAppsSize + profileData.externalStats.imageBytes
                    + profileData.externalStats.videoBytes;
        } else {
            return data.photosAppsSize + data.externalStats.imageBytes
                    + data.externalStats.videoBytes;
        }
    }

在photo中，其實只是對data的photo的size進行了相加，

    public static class AppsStorageResult {
        public long gamesSize;
        public long musicAppsSize;
        public long photosAppsSize;
        public long videoAppsSize;
        public long otherAppsSize;
        public long cacheSize;
        public StorageStatsSource.ExternalStorageStats externalStats;
    }

因為在AppsStorageResult類中，已經對其進行了計算，
這里就要提一下StorageAsyncLoader的實作了，在函式初始化后，將會對app進行loadapp的操作，

    @Override
    public SparseArray<AppsStorageResult> loadInBackground() {
        return loadApps();
    }

    private SparseArray<AppsStorageResult> loadApps() {
        mSeenPackages = new ArraySet<>();
        SparseArray<AppsStorageResult> result = new SparseArray<>();
        List<UserInfo> infos = mUserManager.getUsers();
        // Sort the users by user id ascending.
        Collections.sort(
                infos,
                new Comparator<UserInfo>() {
                    @Override
                    public int compare(UserInfo userInfo, UserInfo otherUser) {
                        return Integer.compare(userInfo.id, otherUser.id);
                    }
                });
        for (int i = 0, userCount = infos.size(); i < userCount; i++) {
            UserInfo info = infos.get(i);
            result.put(info.id, getStorageResultForUser(info.id));
        }
        return result;
    }

這邊會去呼叫getStorageResultForUser進行統計，然后put到result中，

    private AppsStorageResult getStorageResultForUser(int userId) {
        Log.d(TAG, "Loading apps");
        List<ApplicationInfo> applicationInfos =
                mPackageManager.getInstalledApplicationsAsUser(0, userId);
        AppsStorageResult result = new AppsStorageResult();
        UserHandle myUser = UserHandle.of(userId);
        for (int i = 0, size = applicationInfos.size(); i < size; i++) {
            ApplicationInfo app = applicationInfos.get(i);

            StorageStatsSource.AppStorageStats stats;
            try {
                stats = mStatsManager.getStatsForPackage(mUuid, app.packageName, myUser);
            } catch (NameNotFoundException | IOException e) {
                // This may happen if the package was removed during our calculation.
                Log.w(TAG, "App unexpectedly not found", e);
                continue;
            }

            final long dataSize = stats.getDataBytes();
            final long cacheQuota = mStatsManager.getCacheQuotaBytes(mUuid, app.uid);
            final long cacheBytes = stats.getCacheBytes();
            long blamedSize = dataSize;
            // Technically, we could overages as freeable on the storage settings screen.
            // If the app is using more cache than its quota, we would accidentally subtract the
            // overage from the system size (because it shows up as unused) during our attribution.
            // Thus, we cap the attribution at the quota size.
            if (cacheQuota < cacheBytes) {
                blamedSize = blamedSize - cacheBytes + cacheQuota;
            }

            // This isn't quite right because it slams the first user by user id with the whole code
            // size, but this ensures that we count all apps seen once.
            if (!mSeenPackages.contains(app.packageName)) {
                blamedSize += stats.getCodeBytes();
                mSeenPackages.add(app.packageName);
            }

            switch (app.category) {
                case CATEGORY_GAME:
                    result.gamesSize += blamedSize;
                    break;
                case CATEGORY_AUDIO:
                    result.musicAppsSize += blamedSize;
                    break;
                case CATEGORY_VIDEO:
                    result.videoAppsSize += blamedSize;
                    break;
                case CATEGORY_IMAGE:
                    result.photosAppsSize += blamedSize;
                    break;
                default:
                    // The deprecated game flag does not set the category.
                    if ((app.flags & ApplicationInfo.FLAG_IS_GAME) != 0) {
                        result.gamesSize += blamedSize;
                        break;
                    }
                    result.otherAppsSize += blamedSize;
                    break;
            }
        }

        Log.d(TAG, "Loading external stats");
        try {
            result.externalStats = mStatsManager.getExternalStorageStats(mUuid,
                    UserHandle.of(userId));
        } catch (IOException e) {
            Log.w(TAG, e);
        }
        Log.d(TAG, "Obtaining result completed");
        return result;
    }

針對不同APP的category來進行類別的劃分，并且進行size的計算，
