（四）理解容器之間的連通性

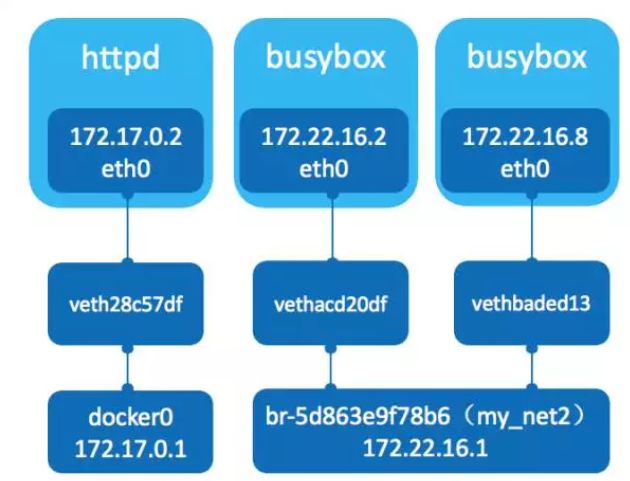

通過前面小節的實踐，當前 docker host 的網路拓撲結構如下圖所示，今天我們將討論這幾個容器之間的連通性，
兩個 busybox 容器都掛在 my_net2 上，應該能夠互通，我們驗證一下：
root@cuiyongchao:~# docker run -it --network my_net2 --ip 172.22.0.88 busybox
/ # ifconfig
eth0 Link encap:Ethernet HWaddr 02:42:AC:16:00:58
inet addr:172.22.0.88 Bcast:172.22.255.255 Mask:255.255.0.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:8 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:0
RX bytes:656 (656.0 B) TX bytes:0 (0.0 B)
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 (0.0 B) TX bytes:0 (0.0 B)
/ # ping 172.22.0.1 -c 1
PING 172.22.0.1 (172.22.0.1): 56 data bytes
64 bytes from 172.22.0.1: seq=0 ttl=64 time=0.152 ms
--- 172.22.0.1 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 0.152/0.152/0.152 ms
/ # ping 172.22.0.2 -c 1
PING 172.22.0.2 (172.22.0.2): 56 data bytes
64 bytes from 172.22.0.2: seq=0 ttl=64 time=0.127 ms
--- 172.22.0.2 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 0.127/0.127/0.127 ms
/ #
可見同一網路中的容器、網關之間都是可以通信的，
my_net2 與默認 bridge 網路能通信嗎？從拓撲圖可知，兩個網路屬于不同的網橋，應該不能通信，我們通過實驗驗證一下，讓 busybox 容器 ping httpd 容器：
/ # ping 172.17.0.2 -c 1
PING 172.17.0.2 (172.17.0.2): 56 data bytes
--- 172.17.0.2 ping statistics ---
1 packets transmitted, 0 packets received, 100% packet loss
/ #
? 確實 ping 不通，符合預期，“等等！不同的網路如果加上路由應該就可以通信了吧？”我已經聽到有讀者在建議了，
? 這是一個非常非常好的想法，確實，如果 host 上對每個網路的都有一條路由，同時作業系統上打開了 ip forwarding，host 就成了一個路由器，掛接在不同網橋上的網路就能夠相互通信，下面我們來看看 docker host 滿不滿足這些條件呢？
ip r 查看 host 上的路由表
root@cuiyongchao:~# ip r
default via 10.0.0.254 dev ens33 proto static
10.0.0.0/24 dev ens33 proto kernel scope link src 10.0.0.20
172.17.0.0/16 dev docker0 proto kernel scope link src 172.17.0.1
172.22.0.0/16 dev br-ba21840c1713 proto kernel scope link src 172.22.0.1
172.17.0.0/16 和 172.22.16.0/24 兩個網路的路由都定義好了，再看看 ip forwarding：
# sysctl net.ipv4.ip_forward
net.ipv4.ip_forward = 1
ip forwarding 也已經啟用了，
條件都滿足，為什么不能通行呢？
我們還得看看 iptables-save：
-A DOCKER-ISOLATION-STAGE-1 -i br-ba21840c1713 ! -o br-ba21840c1713 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -i br-283474cba87c ! -o br-283474cba87c -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -i docker0 ! -o docker0 -j DOCKER-ISOLATION-STAGE-2
-A DOCKER-ISOLATION-STAGE-1 -j RETURN
-A DOCKER-ISOLATION-STAGE-2 -o br-ba21840c1713 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -o br-283474cba87c -j DROP
-A DOCKER-ISOLATION-STAGE-2 -o docker0 -j DROP
-A DOCKER-ISOLATION-STAGE-2 -j RETURN
原因就在這里了：iptables DROP 掉了網橋 docker0 與 br-ba21840c1713 之間雙向的流量，
從規則的命名 DOCKER-ISOLATION 可知 docker 在設計上就是要隔離不同的 netwrok，
那么接下來的問題是：怎樣才能讓 busybox 與 httpd 通信呢？答案是：為 httpd 容器添加一塊 net_my2 的網卡，這個可以通過docker network connect 命令實作，
root@cuiyongchao:~# docker network connect my_net2 631d88d3f0d9
root@cuiyongchao:~# docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
631d88d3f0d9 httpd "bash" 23 seconds ago Up 22 seconds 80/tcp elated_volhard
我們在 httpd 容器中查看一下網路配置：
root@631d88d3f0d9:/usr/local/apache2# ip a
bash: ip: command not found
root@631d88d3f0d9:/usr/local/apache2# ifconfig
eth0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.17.0.2 netmask 255.255.0.0 broadcast 172.17.255.255
ether 02:42:ac:11:00:02 txqueuelen 0 (Ethernet)
RX packets 3969 bytes 8864961 (8.4 MiB)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 3861 bytes 209797 (204.8 KiB)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
eth1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST> mtu 1500
inet 172.22.0.4 netmask 255.255.0.0 broadcast 172.22.255.255
ether 02:42:ac:16:00:04 txqueuelen 0 (Ethernet)
RX packets 12 bytes 936 (936.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 0 bytes 0 (0.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
lo: flags=73<UP,LOOPBACK,RUNNING> mtu 65536
inet 127.0.0.1 netmask 255.0.0.0
loop txqueuelen 1000 (Local Loopback)
RX packets 2 bytes 171 (171.0 B)
RX errors 0 dropped 0 overruns 0 frame 0
TX packets 2 bytes 171 (171.0 B)
TX errors 0 dropped 0 overruns 0 carrier 0 collisions 0
容器中增加了一個網卡 eth1，分配了 my_net2 的 IP 172.22.0.4，現在 busybox 應該能夠訪問 httpd 了，驗證一下：
/ # ping 172.22.0.4 -c 1
PING 172.22.0.4 (172.22.0.4): 56 data bytes
64 bytes from 172.22.0.4: seq=0 ttl=64 time=0.098 ms
--- 172.22.0.4 ping statistics ---
1 packets transmitted, 1 packets received, 0% packet loss
round-trip min/avg/max = 0.098/0.098/0.098 ms
/ #
busybox 能夠 ping 到 httpd，并且可以訪問 httpd 的 web 服務，當前網路結構如圖所示：
