摘要

MIC（最大資訊系數） 可以檢測變數之間的非線性相關性，常用于特征工程中的特征選擇，即通過計算各特征與因變數之間的MIC，從中挑選出對因變數影響較大的特征，剔除資訊量較少的特征，從而使得用于建模的變數更具代表性，一般使用該方法時，需要有較大的資料樣本，本文通過python實作了MIC（最大資訊系數）計算，并將代碼進行了封裝，方便讀者呼叫，

python實作代碼

此物件用于計算離散變數的熵、條件熵、熵增益（互資訊）和熵增益率
.x_num：在變數x方向上劃分的區間數，可以指定最小和最大值，也可不指定
.y_num：在變數y方向上劃分的區間數，可以指定最小和最大值，也可不指定
.cal_mut_info()：由概率矩陣計算互資訊
.divide_bin():由劃磁區間計算概率矩陣
cal_MIC()：計算最大資訊系數
用法：直接呼叫cal_MIC() 函式計算兩個變數之間的MIC

# -*- coding: utf-8 -*-
# @Time : 2020/12/3 13:44
# @Author : CyrusMay WJ
# @FileName: MIC.py
# @Software: PyCharm
# @Blog ：https://blog.csdn.net/Cyrus_May

import numpy as np
import logging
import sys

class CyrusMIC(object):
    logger = logging.getLogger()
    logger.setLevel(logging.INFO)
    screen_handler = logging.StreamHandler(sys.stdout)
    screen_handler.setLevel(logging.INFO)
    formatter = logging.Formatter('%(asctime)s - %(module)s.%(funcName)s:%(lineno)d - %(levelname)s - %(message)s')
    screen_handler.setFormatter(formatter)
    logger.addHandler(screen_handler)
    def __init__(self,x_num=[None,None],y_num=[None,None]):
        self.x_max_num = x_num[1]
        self.x_min_num = x_num[0]
        self.y_min_num = y_num[0]
        self.y_max_num = y_num[1]

        self.x = None
        self.y = None

    def cal_mut_info(self,p_matrix):
        """
        計算互資訊值
        :param p_matrix: 變數X和Y的構成的概率矩陣
        :return: 互資訊值
        """
        mut_info = 0
        p_matrix = np.array(p_matrix)
        for i in range(p_matrix.shape[0]):
            for j in range(p_matrix.shape[1]):
                if p_matrix[i,j] != 0:
                    mut_info += p_matrix[i,j]*np.log2(p_matrix[i,j]/(p_matrix[i,:].sum()*p_matrix[:,j].sum()))
        self.logger.info("資訊系數為：{}".format(mut_info/np.log2(min(p_matrix.shape[0],p_matrix.shape[1]))))
        return mut_info/np.log2(min(p_matrix.shape[0],p_matrix.shape[1]))

    def divide_bin(self,x_num,y_num):
        """
        指定在兩個變數方向上需劃分的網格數，回傳概率矩陣
        :param x_num:
        :param y_num:
        :return: p_matrix
        """
        p_matrix = np.zeros([x_num,y_num])
        x_bin = np.linspace(self.x.min(),self.x.max()+1,x_num+1)
        y_bin = np.linspace(self.y.min(),self.y.max()+1,y_num+1)
        for i in range(x_num):
            for j in range(y_num):
                p_matrix[i,j] = sum([1 if (self.x[value] < x_bin[i + 1] and self.x[value] >= x_bin[i] and self.y[value] < y_bin[j + 1] and
                      self.y[value] >= y_bin[j]) else 0 for value in range(self.x.shape[0])])/self.x.shape[0]
        return p_matrix

    def cal_MIC(self,x,y):
        self.x = np.array(x).reshape((-1,))
        self.y = np.array(y).reshape((-1,))
        if not self.x_max_num:
            self.x_max_num = int(round(self.x.shape[0]**0.3,0))
            self.y_max_num = self.x_max_num
            self.x_min_num = 2
            self.y_min_num = 2
        mics = []
        for i in range(self.x_min_num,self.x_max_num+1):
            for j in range(self.y_min_num,self.x_max_num+1):
                self.logger.info("劃磁區間數量為：[{},{}]".format(i,j))
                mics.append(self.cal_mut_info(self.divide_bin(i,j)))
        self.logger.info("最大資訊系數為:{}".format(max(mics)))
        return max(mics)

計算實體

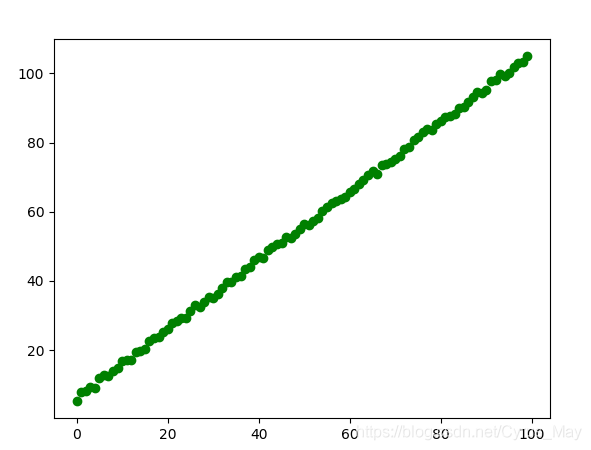

計算加入噪聲的線性相關變數的MIC

if __name__ == '__main__':
    import matplotlib.pyplot as plt
    x = np.arange(0,100)
    y = x + 5 + np.array([np.random.random() for i in range(x.shape[0])] )
    plt.scatter(x,y,c = 'g')
    mic_tool = CyrusMIC()
    mic_tool.cal_MIC(x,y)
    plt.show()

2020-12-03 17:27:06,617 - MIC.cal_mut_info:41 - INFO - 資訊系數為：0.7193485237183258
2020-12-03 17:27:06,618 - MIC.cal_MIC:71 - INFO - 劃磁區間數量為：[4,2]
2020-12-03 17:27:06,621 - MIC.cal_mut_info:41 - INFO - 資訊系數為：1.0
2020-12-03 17:27:06,621 - MIC.cal_MIC:71 - INFO - 劃磁區間數量為：[4,3]
2020-12-03 17:27:06,631 - MIC.cal_mut_info:41 - INFO - 資訊系數為：0.714608689855715
2020-12-03 17:27:06,631 - MIC.cal_MIC:71 - INFO - 劃磁區間數量為：[4,4]
2020-12-03 17:27:06,643 - MIC.cal_mut_info:41 - INFO - 資訊系數為：0.9694248603634986
2020-12-03 17:27:06,643 - MIC.cal_MIC:73 - INFO - 最大資訊系數為:1.0

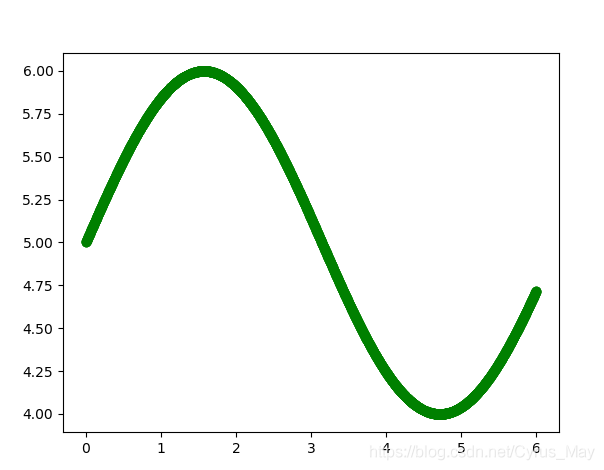

計算具有正弦關系變數的MIC

if __name__ == '__main__':
    import matplotlib.pyplot as plt
    x = np.arange(0,6,0.002)
    y = np.sin(x)+5
    plt.scatter(x,y,c = 'g')
    mic_tool = CyrusMIC()
    mic_tool.cal_MIC(x,y)
    plt.show()

2020-12-03 17:32:17,002 - MIC.cal_MIC:71 - INFO - 劃磁區間數量為：[11,9]
2020-12-03 17:32:17,221 - MIC.cal_mut_info:41 - INFO - 資訊系數為：0.5534001973540179
2020-12-03 17:32:17,221 - MIC.cal_MIC:71 - INFO - 劃磁區間數量為：[11,10]
2020-12-03 17:32:17,477 - MIC.cal_mut_info:41 - INFO - 資訊系數為：0.540981036470426
2020-12-03 17:32:17,477 - MIC.cal_MIC:71 - INFO - 劃磁區間數量為：[11,11]
2020-12-03 17:32:17,755 - MIC.cal_mut_info:41 - INFO - 資訊系數為：0.5571694750793418
2020-12-03 17:32:17,755 - MIC.cal_MIC:73 - INFO - 最大資訊系數為:0.9204753790747687

by CyrusMay 2020 12 03
