muduo原始碼分析3——TSD

1 什么是tsd

因為全域變數在所有執行緒中是共享的，如何才能擁有只在單個執行緒中共享的全域資料呢？這就需要tsd了，
可能會有疑問，這玩意到底有啥用，在執行緒中定義一個變數，其內部函式不也能使用嗎？但是其不是全域的，需要傳入到函式，

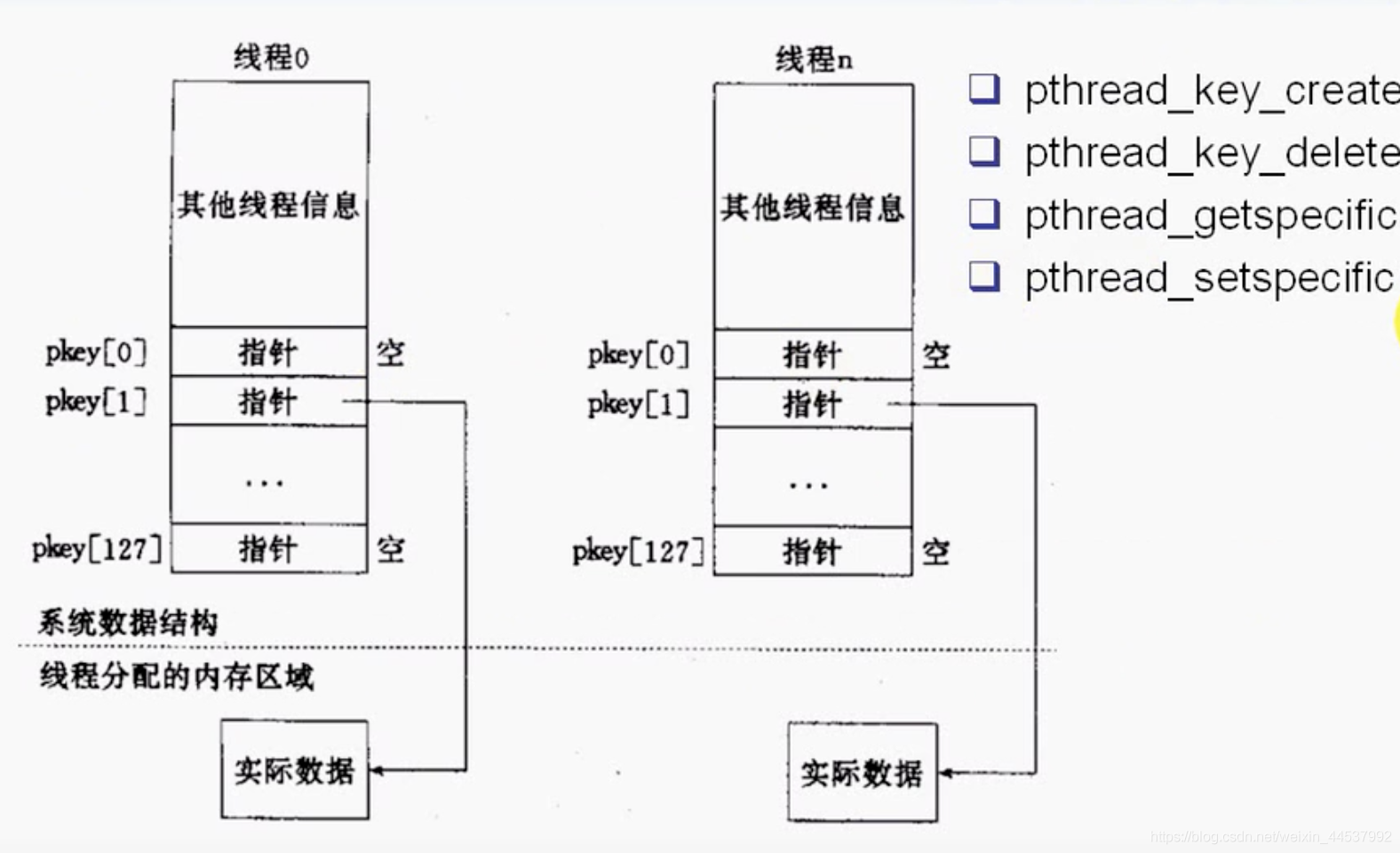

1. 執行緒私有資料采用了一種被稱為一鍵多值的技術，即一個鍵對應多個數值，當需要使用該值時，通過key獲取實際資料，
2. key一旦被創建，所有執行緒都可以訪問它，但各執行緒可根據自己的需要往key中填入不同的值，這就相當于提供了一個同名而不同值的全域變數，一鍵多值，
3. 一個執行緒中可以有多個key


2 相關函式

int pthread_key_create(pthread_key_t *key, void (*destructor) (void *))
創建成功回傳0，失敗回傳errno

destructor定義后，當執行緒結束時，會呼叫該函式來完成key指向記憶體清理

int pthread_key_delete(pthread_key_t key);
成功回傳0，失敗回傳errno
man手冊解釋如下，cleanup操作可以在pthread_key_delete呼叫前后，pthread_key_delete只負責洗掉key指標，但是cleanup是destructor函式完成

It is the responsibility of the application to free any application storage or perform any cleanup actions for data structures related to the deleted key or associated thread-specific data in any threads; this cleanup can be done either before or after pthread_key_delete() is called.

int pthread_setspecific(pthread_key_t key, const void *value);
成功回傳0，失敗回傳errno
設定key指向的值

void * pthread_getspecific(pthread_key_t key);
成功回傳0，失敗回傳errno
回傳指向的值的指標

3 測驗代碼

下面寫了測驗代碼

1. 兩個執行緒中，都使用了一個key，但是指向的是不同的值
2. fun()中使用pthread_getspecific獲取執行緒內部全域變數，省去傳參

#include <iostream>

using namespace std;
pthread_t tid1,tid2;
pthread_key_t key;
void deleter(void* key)
{
    cout<<"deleter"<<key<<endl;

    free(key);  //清理記憶體

}
void* thread_fun2(void*)
{
    int *myValue = new int(2);
    int priValue = 11;
    pthread_setspecific(key,(void*)myValue);
    printf("thread2:%lu return %d\n", pthread_self(), *(int*)pthread_getspecific(key));
    printf("priValue is %d\n",priValue);

}
void fun()
{
    cout<<"fun"<<*(int*)pthread_getspecific(key)<<endl;//myValue就是執行緒內部的全域變數
}
void* thread_fun1(void*)
{
    int priValue = 10;
    int *myVec = new int[10];
    cout<<"myVec"<<myVec<<endl;
    myVec[0] = 22;
    myVec[1] = 33;
    pthread_setspecific(key,(void*)myVec);
    pthread_create(&tid2,NULL,thread_fun2,NULL);
    printf("thread1:%lu return %d\n", pthread_self(), *(int*)pthread_getspecific(key));
    fun();
}

int main()
{
    pthread_key_create(&key, deleter);  //創建key和洗掉器
    cout<<"go"<<endl;
    pthread_create(&tid1,NULL,thread_fun1,NULL);

    pthread_join(tid1,NULL);
    pthread_join(tid2,NULL);

    pthread_key_delete(key);  //在洗掉key之前，要先清理執行緒
    cout<<"end"<<endl;

    return 0;


}

xili271948@er04180p:/data/lxz/muduo_test/pthread_key$ ./copymain go
myVec0x7fd4e0000b20
thread1:140552344831744 return 22
22
deleter0x7fd4e0000b20
thread2:140552267888384 return 2
priValue is 11
deleter0x7fd4d8000b20
end

4 muduo中的tsd

4.1 muduo的tsd怎么用

value()函式做了如下作業

1. 先pthread_getspecific，如果key沒有設定過值，則new T，再set
2. 如果key設定了值，則回傳get的值
3. 注意其回傳的是參考，所以可以直接對key指向的值進行更改

每次只需要呼叫value函式即可，完成get，set等操作，

// Use of this source code is governed by a BSD-style license
// that can be found in the License file.
//
// Author: Shuo Chen (chenshuo at chenshuo dot com)

#ifndef MUDUO_BASE_THREADLOCAL_H
#define MUDUO_BASE_THREADLOCAL_H

#include "muduo/base/Mutex.h"
#include "muduo/base/noncopyable.h"

#include <pthread.h>

namespace muduo
{

template<typename T>
class ThreadLocal : noncopyable
{
 public:
  ThreadLocal()
  {
    MCHECK(pthread_key_create(&pkey_, &ThreadLocal::destructor));
  }

  ~ThreadLocal()
  {
    MCHECK(pthread_key_delete(pkey_));
  }

  T& value()
  {
    T* perThreadValue = static_cast<T*>(pthread_getspecific(pkey_));
    if (!perThreadValue)
    {
      T* newObj = new T();
      MCHECK(pthread_setspecific(pkey_, newObj));
      perThreadValue = newObj;
    }
    return *perThreadValue;
  }

 private:

  static void destructor(void *x)
  {
    T* obj = static_cast<T*>(x);
    typedef char T_must_be_complete_type[sizeof(T) == 0 ? -1 : 1];
    T_must_be_complete_type dummy; (void) dummy;
    delete obj;
  }

 private:
  pthread_key_t pkey_;
};

}  // namespace muduo

#endif  // MUDUO_BASE_THREADLOCAL_H

4.2 muduo 測驗代碼

#include "muduo/base/ThreadLocal.h"
#include "muduo/base/CurrentThread.h"
#include "muduo/base/Thread.h"

#include <stdio.h>

class Test : muduo::noncopyable
{
 public:
  Test()
  {
    printf("tid=%d, constructing %p\n", muduo::CurrentThread::tid(), this);
  }

  ~Test()
  {
    printf("tid=%d, destructing %p %s\n", muduo::CurrentThread::tid(), this, name_.c_str());
  }

  const muduo::string& name() const { return name_; }
  void setName(const muduo::string& n) { name_ = n; }

 private:
  muduo::string name_;
};

muduo::ThreadLocal<Test> testObj1;
muduo::ThreadLocal<Test> testObj2;

void print()
{
  printf("tid=%d, obj1 %p name=%s\n",
         muduo::CurrentThread::tid(),
         &testObj1.value(),
         testObj1.value().name().c_str());
  printf("tid=%d, obj2 %p name=%s\n",
         muduo::CurrentThread::tid(),
         &testObj2.value(),
         testObj2.value().name().c_str());
}

void threadFunc()
{
  print();
  testObj1.value().setName("changed 1");
  testObj2.value().setName("changed 42");
  print();
}

int main()
{
  testObj1.value().setName("main one");
  print();
  muduo::Thread t1(threadFunc);
  t1.start();
  t1.join();
  testObj2.value().setName("main two");
  print();

  pthread_exit(0);
}

lxz@lxz-VirtualBox:~/liuxz/testmuduo/threadlocal/build$ ./thread_local
tid=2665, constructing 0x55b96a73ee70
tid=2665, obj1 0x55b96a73ee70 name=main one
tid=2665, constructing 0x55b96a73f2b0
tid=2665, obj2 0x55b96a73f2b0 name=
tid=2666, constructing 0x7fd93c000b20
tid=2666, obj1 0x7fd93c000b20 name=
tid=2666, constructing 0x7fd93c000b50
tid=2666, obj2 0x7fd93c000b50 name=
tid=2666, obj1 0x7fd93c000b20 name=changed 1
tid=2666, obj2 0x7fd93c000b50 name=changed 42
tid=2666, destructing 0x7fd93c000b20 changed 1
tid=2666, destructing 0x7fd93c000b50 changed 42
tid=2665, obj1 0x55b96a73ee70 name=main one
tid=2665, obj2 0x55b96a73f2b0 name=main two
tid=2665, destructing 0x55b96a73ee70 main one
tid=2665, destructing 0x55b96a73f2b0 main two
