1.準備作業

1.1.防火墻開通埠 9876 10911 9800

firewall-cmd --zone=public --add-port=9876/tcp --permanent
firewall-cmd --zone=public --add-port=10911/tcp --permanent
firewall-cmd --zone=public --add-port=9800/tcp --permanent
firewall-cmd --reload

1.2.創建存盤檔案夾

mkdir -p /root/rocketmq/data/namesrv/logs /root/rocketmq/data/namesrv/store /root/rocketmq/conf /root/rocketmq/data/broker/logs /root/rocketmq/data/broker/store

1.3.進入到 /root/rocketmq/conf 檔案夾下創建檔案 broker.conf

cd /root/rocketmq/conf
touch broker.conf

1.4.編輯 broker.conf 檔案

vi broker.conf

1.5.加入以下配置 {}括號內需要換成自己服務器的外網IP

brokerClusterName = DefaultCluster

brokerName = broker-a

brokerId = 0

deleteWhen = 04

fileReservedTime = 48

brokerRole = ASYNC_MASTER

flushDiskType = ASYNC_FLUSH

brokerIP1 = {本地外網 IP}

6.拉取鏡像

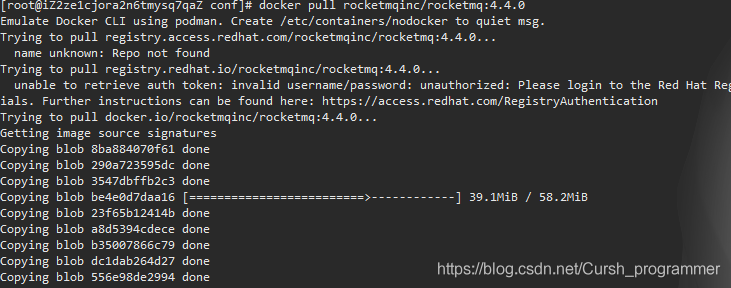

docker pull rocketmqinc/rocketmq:4.4.0

docker pull styletang/rocketmq-console-ng

等其下載完畢

2.創建 Namesrv 容器

2.1運行創建容器命令

docker run -d -p 9876:9876 -v /root/rocketmq/data/namesrv/logs:/root/logs -v /root/rocketmq/data/namesrv/store:/root/store --name rmqnamesrv -e "MAX_POSSIBLE_HEAP=100000000" rocketmqinc/rocketmq:4.4.0 sh mqnamesrv

2.2啟動容器

docker start rmqnamesrv

2.3查看容器時候啟動

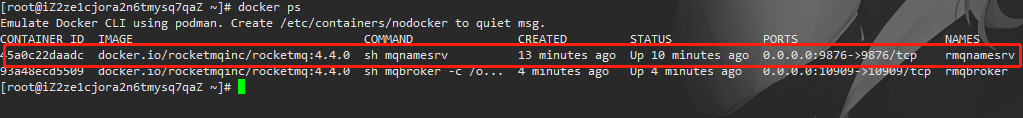

docker ps

在這里插入圖片描述
可以看到 Namesrv 已經啟動了

3.創建 broker 容器

3.1運行創建容器命令

docker run -d -p 10911:10911 -p 10909:10909 -v  /root/rocketmq/data/broker/logs:/root/logs -v  /root/rocketmq/data/broker/store:/root/store -v  /root/rocketmq/conf/broker.conf:/opt/rocketmq-4.4.0/conf/broker.conf --name rmqbroker -e "NAMESRV_ADDR=namesrv:9876" -e "MAX_POSSIBLE_HEAP=200000000" rocketmqinc/rocketmq:4.4.0 sh mqbroker -c /opt/rocketmq-4.4.0/conf/broker.conf

3.2啟動容器

docker start rmqbroke

3.3查看容器時候啟動

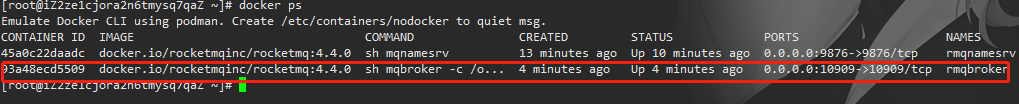

docker ps

也是啟動成功了

3.4.創建 console控制臺容器

運行創建容器命令

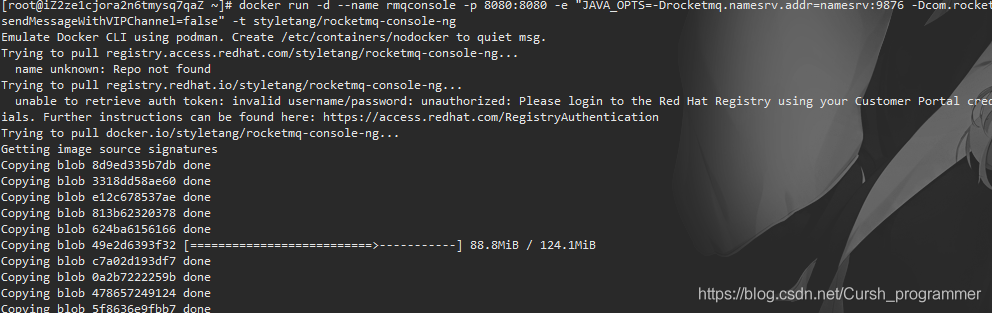

docker run -d --name rmqconsole -p 9800:8080 -e "JAVA_OPTS=-Drocketmq.namesrv.addr=namesrv:9876 -Dcom.rocketmq.sendMessageWithVIPChannel=false" -t styletang/rocketmq-console-ng

等下載完畢
