即便你的集群能夠平穩運行，Kubernetes升級依舊是一項艱難的任務，由于每3個月Kubernetes會發布一個新版本，所以升級是十分必要的，如果一年內你不升級你的Kubernetes集群，你就會落后許多，Rancher致力于解決開發運維人員的痛點，于是創建了新的開源專案System Upgrade Controller可以幫助開發人員平滑升級，

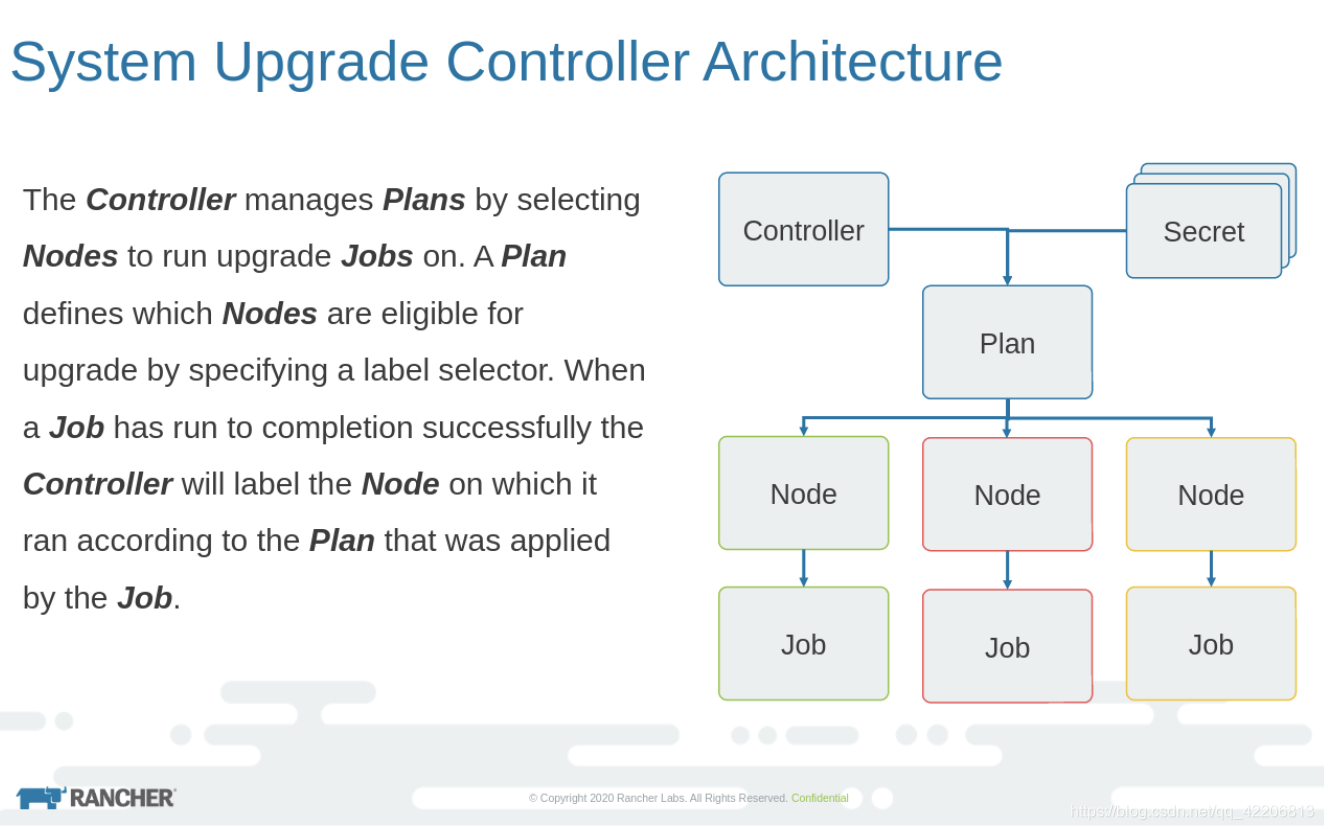

System Upgrade Controller引入了一個新的Kubernetes自定義資源定義（CRD），稱為Plan，現在Plan是處理升級行程的主要組件，以下是從git repo獲取的架構圖：
使用System Upgrade Controller自動升級K3s
升級K3s Kubernetes集群有兩個主要要求：
-
CRD安裝
-
創建Plan
首先，讓我們檢查當前正在運行的K3s集群版本，
運行以下命令，即可快速安裝：
#For master install:
curl -sfL https://get.k3s.io | INSTALL_K3S_VERSION=v1.16.3-k3s.2 sh
#For joining nodes:
K3S_TOKEN is created at /var/lib/rancher/k3s/server/node-token on the server.
For adding nodes, K3S_URL and K3S_TOKEN needs to be passed:
curl -sfL https://get.k3s.io | K3S_URL=https://myserver:6443 K3S_TOKEN=XXX sh -
KUBECONFIG file is create at /etc/rancher/k3s/k3s.yaml location
kubectl get nodes
NAME STATUS ROLES AGE VERSION
kube-node-c155 Ready <none> 25h v1.16.3-k3s.2
kube-node-2404 Ready <none> 25h v1.16.3-k3s.2
kube-master-303d Ready master 25h v1.16.3-k3s.2
現在，我們部署CRD：
kind: Namespace
metadata:
name: system-upgrade
---
apiVersion: v1
kind: ServiceAccount
metadata:
name: system-upgrade
namespace: system-upgrade
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
name: system-upgrade
roleRef:
apiGroup: rbac.authorization.k8s.io
kind: ClusterRole
name: cluster-admin
subjects:
- kind: ServiceAccount
name: system-upgrade
namespace: system-upgrade
---
apiVersion: v1
kind: ConfigMap
metadata:
name: default-controller-env
namespace: system-upgrade
data:
SYSTEM_UPGRADE_CONTROLLER_DEBUG: "false"
SYSTEM_UPGRADE_CONTROLLER_THREADS: "2"
SYSTEM_UPGRADE_JOB_ACTIVE_DEADLINE_SECONDS: "900"
SYSTEM_UPGRADE_JOB_BACKOFF_LIMIT: "99"
SYSTEM_UPGRADE_JOB_IMAGE_PULL_POLICY: "Always"
SYSTEM_UPGRADE_JOB_KUBECTL_IMAGE: "rancher/kubectl:v1.18.3"
SYSTEM_UPGRADE_JOB_PRIVILEGED: "true"
SYSTEM_UPGRADE_JOB_TTL_SECONDS_AFTER_FINISH: "900"
SYSTEM_UPGRADE_PLAN_POLLING_INTERVAL: "15m"
---
apiVersion: apps/v1
kind: Deployment
metadata:
name: system-upgrade-controller
namespace: system-upgrade
spec:
selector:
matchLabels:
upgrade.cattle.io/controller: system-upgrade-controller
template:
metadata:
labels:
upgrade.cattle.io/controller: system-upgrade-controller # necessary to avoid drain
spec:
affinity:
nodeAffinity:
requiredDuringSchedulingIgnoredDuringExecution:
nodeSelectorTerms:
- matchExpressions:
- {key: "node-role.kubernetes.io/master", operator: In, values: ["true"]}
serviceAccountName: system-upgrade
tolerations:
- key: "CriticalAddonsOnly"
operator: "Exists"
- key: "node-role.kubernetes.io/master"
operator: "Exists"
effect: "NoSchedule"
containers:
- name: system-upgrade-controller
image: rancher/system-upgrade-controller:v0.5.0
imagePullPolicy: IfNotPresent
envFrom:
- configMapRef:
name: default-controller-env
env:
- name: SYSTEM_UPGRADE_CONTROLLER_NAME
valueFrom:
fieldRef:
fieldPath: metadata.labels['upgrade.cattle.io/controller']
- name: SYSTEM_UPGRADE_CONTROLLER_NAMESPACE
valueFrom:
fieldRef:
fieldPath: metadata.namespace
volumeMounts:
- name: etc-ssl
mountPath: /etc/ssl
- name: tmp
mountPath: /tmp
volumes:
- name: etc-ssl
hostPath:
path: /etc/ssl
type: Directory
- name: tmp
emptyDir: {}
將上面的yaml分解，它將創建以下組件：
-
system-upgrade命名空間
-
system-upgrade服務賬戶
-
system-upgrade ClusterRoleBinding
-
用于設定容器中環境變數的config map
-
實際部署
現在，我們來部署yaml：
#Get the Lateest release tag
curl -s "https://api.github.com/repos/rancher/system-upgrade-controller/releases/latest" | awk -F '"' '/tag_name/{print $4}'
v0.6.2
# Apply the controller manifest
kubectl apply -f https://raw.githubusercontent.com/rancher/system-upgrade-controller/v0.6.2/manifests/system-upgrade-controller.yaml
namespace/system-upgrade created
serviceaccount/system-upgrade created
clusterrolebinding.rbac.authorization.k8s.io/system-upgrade created
configmap/default-controller-env created
deployment.apps/system-upgrade-controller created
# Verify everything is running
kubectl get all -n system-upgrade
NAME READY STATUS RESTARTS AGE
pod/system-upgrade-controller-7fff98589f-blcxs 1/1 Running 0 5m26s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/system-upgrade-controller 1/1 1 1 5m28s
NAME DESIRED CURRENT READY AGE
replicaset.apps/system-upgrade-controller-7fff98589f 1 1 1 5m28s
創建一個K3s升級Plan
現在，是時候創建一個升級Plan，我們將使用在Git repo示例檔案夾中提到的示例Plan，
---
apiVersion: upgrade.cattle.io/v1
kind: Plan
metadata:
name: k3s-server
namespace: system-upgrade
labels:
k3s-upgrade: server
spec:
concurrency: 1
version: v1.17.4+k3s1
nodeSelector:
matchExpressions:
- {key: k3s-upgrade, operator: Exists}
- {key: k3s-upgrade, operator: NotIn, values: ["disabled", "false"]}
- {key: k3s.io/hostname, operator: Exists}
- {key: k3os.io/mode, operator: DoesNotExist}
- {key: node-role.kubernetes.io/master, operator: In, values: ["true"]}
serviceAccountName: system-upgrade
cordon: true
# drain:
# force: true
upgrade:
image: rancher/k3s-upgrade
---
apiVersion: upgrade.cattle.io/v1
kind: Plan
metadata:
name: k3s-agent
namespace: system-upgrade
labels:
k3s-upgrade: agent
spec:
concurrency: 2
version: v1.17.4+k3s1
nodeSelector:
matchExpressions:
- {key: k3s-upgrade, operator: Exists}
- {key: k3s-upgrade, operator: NotIn, values: ["disabled", "false"]}
- {key: k3s.io/hostname, operator: Exists}
- {key: k3os.io/mode, operator: DoesNotExist}
- {key: node-role.kubernetes.io/master, operator: NotIn, values: ["true"]}
serviceAccountName: system-upgrade
prepare:
# Since v0.5.0-m1 SUC will use the resolved version of the plan for the tag on the prepare container.
# image: rancher/k3s-upgrade:v1.17.4-k3s1
image: rancher/k3s-upgrade
args: ["prepare", "k3s-server"]
drain:
force: true
upgrade:
image: rancher/k3s-upgrade
拆解以上yaml，它將創建：
與運算式匹配的Plan，以了解需要升級的內容，所以在上述例子中，我們有2個plan：k3s-server和k3s-agent，node-role.kubernetes.io/master為true和k3s-upgrade的節點將被server Plan占用，帶false的將由client Plan占用，所以標簽必須要設定正確，接下來，我們來apply Plan，
#Set the Node Labels
kubectl label node kube-master-303d node-role.kubernetes.io/master=true
# Apply the plan manifest
kubectl apply -f https://raw.githubusercontent.com/rancher/system-upgrade-controller/master/examples/k3s-upgrade.yaml
plan.upgrade.cattle.io/k3s-server created
plan.upgrade.cattle.io/k3s-agent created
# We see that the jobs have started
kubectl get jobs -n system-upgrade
NAME COMPLETIONS DURATION AGE
apply-k3s-server-on-kube-master-303d-with-9efdeac5f6ede78-125aa 0/1 40s 40s
apply-k3s-agent-on-kube-node-2404-with-9efdeac5f6ede78917-07df3 0/1 39s 39s
apply-k3s-agent-on-kube-node-c155-with-9efdeac5f6ede78917-9a585 0/1 39s 39s
# Upgrade in-progress, completed on the `node-role.kubernetes.io/master=true` node
kubectl get nodes
NAME STATUS ROLES AGE VERSION
kube-node-2404 Ready,SchedulingDisabled <none> 26h v1.16.3-k3s.2
kube-node-c155 Ready,SchedulingDisabled <none> 26h v1.16.3-k3s.2
kube-master-303d Ready master 26h v1.17.4+k3s1
# In a few minutes all nodes get upgraded to latest version as per the plan
kubectl get nodes
NAME STATUS ROLES AGE VERSION
kube-node-2404 Ready <none> 26h v1.17.4+k3s1
kube-node-c155 Ready <none> 26h v1.17.4+k3s1
kube-master-303d Ready master 26h v1.17.4+k3s1
我們的K3s Kubernetes升級完成！極為輕松而且十分順利，Project可以更新底層作業系統并重啟節點，歡迎嘗試喲！
Github地址：
https://github.com/rancher/system-upgrade-controller
