一、顯示學號姓名

這是本次實驗要顯示的全部字模,

"浮",0x00,0x08,0x20,0x3C,0x13,0xC0,0x10,0x04,0x82,0x44,0x41,0x28,0x48,0x00,0x0B,0xF8,
0x10,0x10,0x10,0x20,0xE7,0xFE,0x20,0x20,0x20,0x20,0x20,0x20,0x20,0xA0,0x00,0x40,/*"浮",0*/
"空",0x02,0x00,0x01,0x00,0x7F,0xFE,0x40,0x02,0x88,0x24,0x10,0x10,0x20,0x08,0x00,0x00,
0x1F,0xF0,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x7F,0xFC,0x00,0x00,/*"空",1*/
"花",0x08,0x20,0x08,0x20,0xFF,0xFE,0x08,0x20,0x00,0x00,0x08,0x88,0x08,0x90,0x10,0xA0,
0x30,0xC0,0x50,0x80,0x91,0x80,0x12,0x82,0x14,0x82,0x10,0x82,0x10,0x7E,0x10,0x00,/*"花",2*/
"園",0x00,0x00,0x7F,0xFC,0x40,0x04,0x4F,0xE4,0x40,0x04,0x40,0x04,0x5F,0xF4,0x44,0x84,
0x44,0x84,0x44,0x84,0x48,0x94,0x48,0x94,0x50,0x74,0x40,0x04,0x7F,0xFC,0x40,0x04,/*"園",3*/

"重",0x00,0x10,0x00,0xF8,0x3F,0x00,0x01,0x00,0xFF,0xFE,0x01,0x00,0x1F,0xF0,0x11,0x10,
0x1F,0xF0,0x11,0x10,0x1F,0xF0,0x01,0x00,0x3F,0xF8,0x01,0x00,0xFF,0xFE,0x00,0x00,/*"重",0*/
"慶",0x01,0x00,0x00,0x80,0x3F,0xFE,0x20,0x00,0x20,0x80,0x20,0x80,0x20,0x80,0x2F,0xFC,
0x20,0x80,0x21,0x40,0x21,0x40,0x22,0x20,0x42,0x20,0x44,0x10,0x88,0x08,0x10,0x06,/*"慶",1*/
"交",0x02,0x00,0x01,0x00,0x01,0x00,0xFF,0xFE,0x00,0x00,0x10,0x10,0x10,0x08,0x20,0x24,
0x48,0x24,0x04,0x40,0x02,0x80,0x01,0x00,0x02,0x80,0x0C,0x40,0x30,0x30,0xC0,0x0E,/*"交",2*/
"大",0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0x01,0x00,0xFF,0xFE,0x01,0x00,0x01,0x00,
0x02,0x80,0x02,0x80,0x04,0x40,0x04,0x40,0x08,0x20,0x10,0x10,0x20,0x08,0xC0,0x06,/*"大",3*/

"溫",0x00,0x00,0x23,0xF8,0x12,0x08,0x12,0x08,0x83,0xF8,0x42,0x08,0x42,0x08,0x13,0xF8,
0x10,0x00,0x27,0xFC,0xE4,0xA4,0x24,0xA4,0x24,0xA4,0x24,0xA4,0x2F,0xFE,0x00,0x00,/*"溫",0*/
"濕",0x00,0x00,0x27,0xF8,0x14,0x08,0x14,0x08,0x87,0xF8,0x44,0x08,0x44,0x08,0x17,0xF8,
0x11,0x20,0x21,0x20,0xE9,0x24,0x25,0x28,0x23,0x30,0x21,0x20,0x2F,0xFE,0x00,0x00,/*"濕",1*/
"度",0x01,0x00,0x00,0x80,0x3F,0xFE,0x22,0x20,0x22,0x20,0x3F,0xFC,0x22,0x20,0x22,0x20,
0x23,0xE0,0x20,0x00,0x2F,0xF0,0x24,0x10,0x42,0x20,0x41,0xC0,0x86,0x30,0x38,0x0E,/*"度",2*/

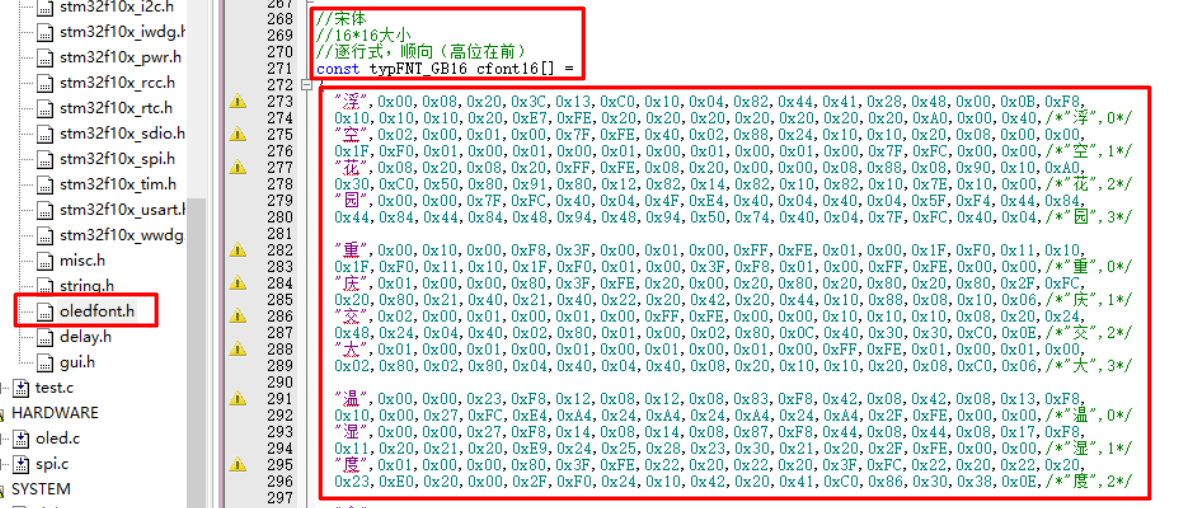

將字模代碼添加到工程中
user→gui.c→oledfont.h→cfont 16[]

代碼實作

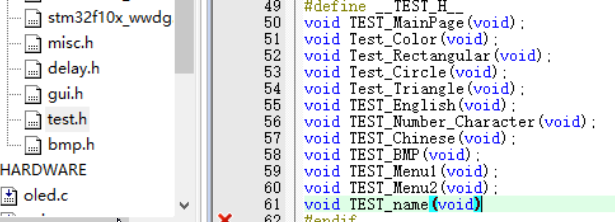

test.c→test.h宣告一個新的函式void TEST_name(void)；

然后在test.c中實作

void TEST_name(void)
{
	GUI_ShowString(0,16,"631807060512",16,1);
	GUI_ShowCHinese(0,32,16,"浮慷訓園",1);
}

main函式

int main(void)
{
	delay_init();	    	       //延時函式初始化
	NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);	 //設定NVIC中斷分組2:2位搶占優先級，2位回應優先級
	OLED_Init();			         //初始化OLED
	OLED_Clear(0);             //清屏（全黑）
	while(1)
	{
		TEST_name();
		delay_ms(1500);
	  delay_ms(1300);
	}
}

函式說明——
GUI_ShowString() 的引數

引數一：X 坐標
引數二：Y 坐標
引數三：字串（ASCLL碼中的）
引數四：bit（表示字符顯示格式，這里我用的 16 ，和漢字一樣高）
引數五：顯示樣式（1：白字黑底；0：黑字白底）

GUI_ShowChinese() 的引數

引數一：X 坐標
引數二：Y 坐標
引數三：漢字點陣大小（這里使用的是 16×16 的，引數應該是 16）
引數四：要顯示的漢字
引數五：顯示樣式（1：白字黑底；0：黑字白底）

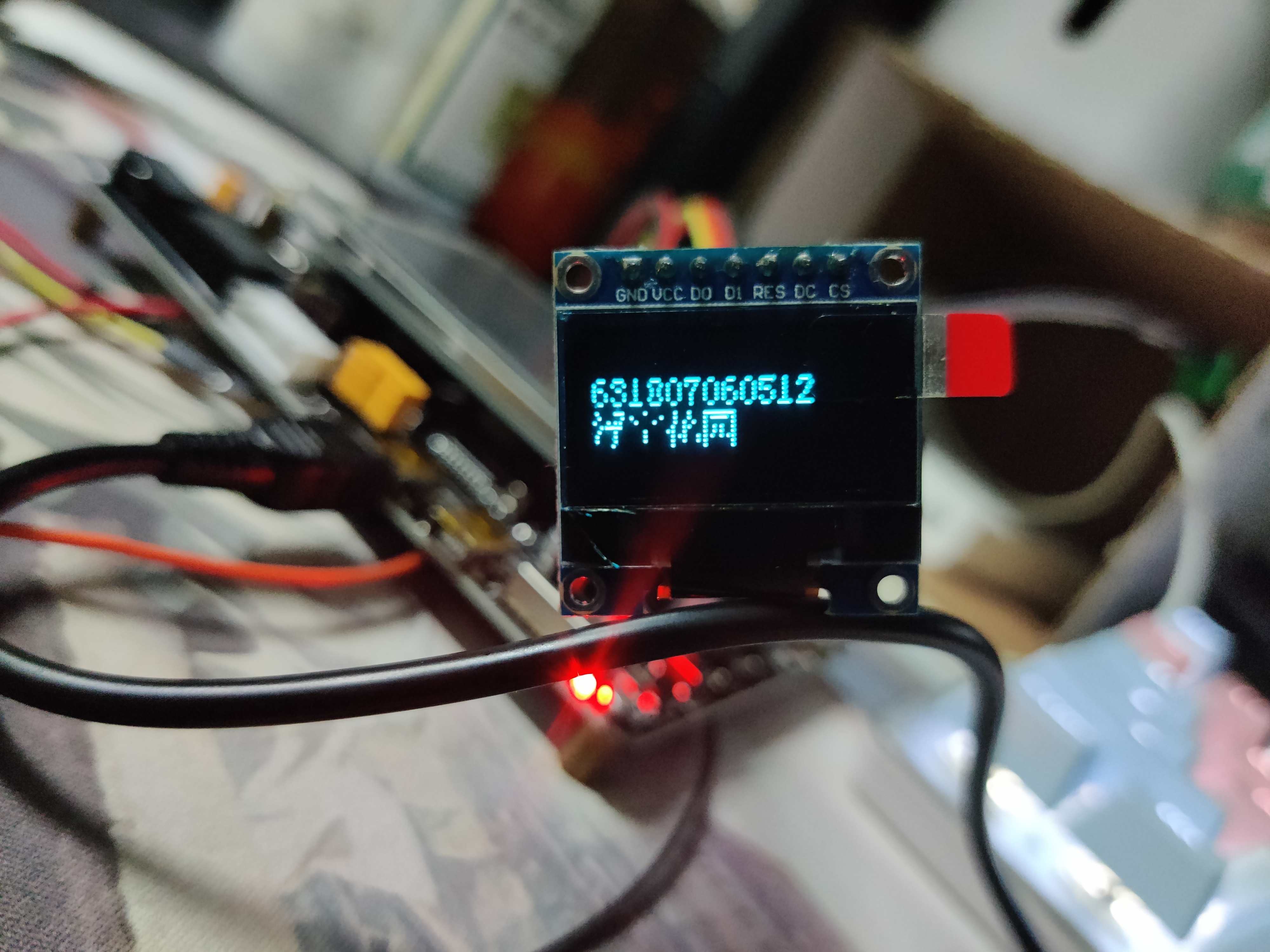

顯示效果

二、左右滾動長字符

代碼實作
main函式

int main(void)
{
	delay_init();	    	       //延時函式初始化
	NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2);	 //設定NVIC中斷分組2:2位搶占優先級，2位回應優先級
	OLED_Init();			         //初始化OLED
	OLED_Clear(0);             //清屏（全黑）
	while(1)
	{
		OLED_WR_Byte(0x2E,OLED_CMD);        //關閉滾動
		OLED_WR_Byte(0x27,OLED_CMD);        //水平向左或者右滾動 26/27
		OLED_WR_Byte(0x00,OLED_CMD);        //虛擬位元組
		OLED_WR_Byte(0x00,OLED_CMD);        //起始頁 0
		OLED_WR_Byte(0x07,OLED_CMD);        //滾動時間間隔
		OLED_WR_Byte(0x01,OLED_CMD);        //終止頁 1
		OLED_WR_Byte(0x00,OLED_CMD);        //虛擬位元組
		OLED_WR_Byte(0xFF,OLED_CMD);        //虛擬位元組
		TEST_name();
		OLED_WR_Byte(0x2F,OLED_CMD);        //開啟滾動
		delay_ms(1500);
		delay_ms(1350);
	}
}

TEST_name

void TEST_name(void)
{
	GUI_ShowCHinese(0,0,16,"重慶交大",1);
	GUI_ShowString(0,16,"631807060512",16,1);
	GUI_ShowCHinese(0,32,16,"浮慷訓園",1);
}

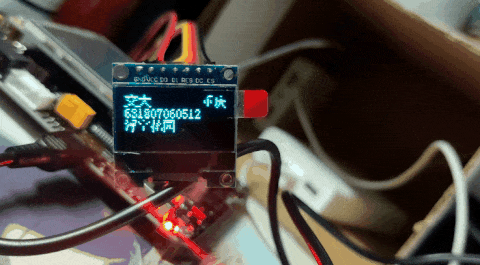

顯示效果
