一、準備作業

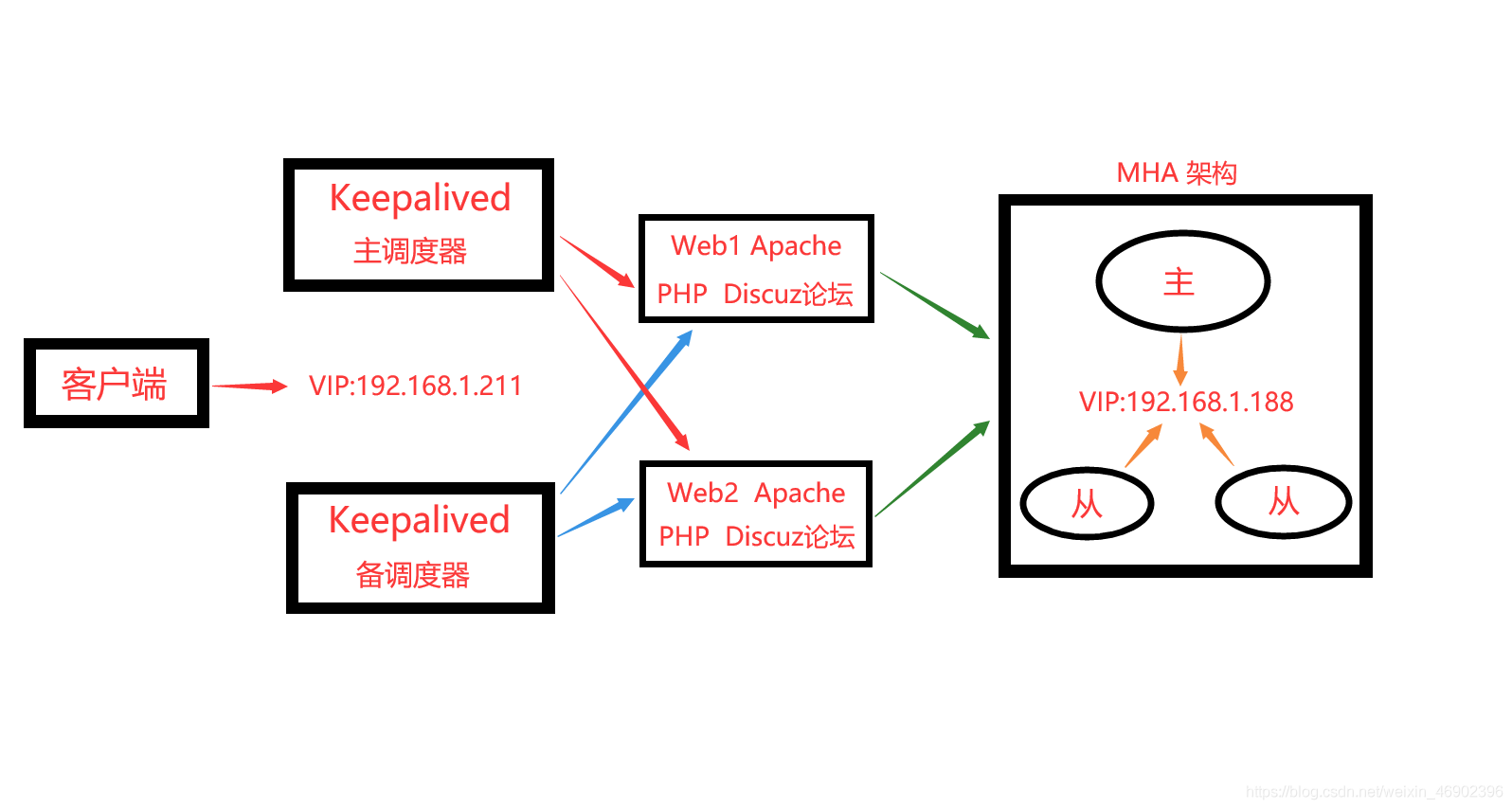

1.專案拓補圖

2.專案環境

二、部署 MySQL 資料庫

• 如果未安裝 MySQL 資料庫 需看：Centos7安裝Mysql資料庫 來進行安裝，
• MHA 軟體包從這個鏈接下載：https://pan.baidu.com/s/1c39hxF-beUxu9Cl_OaZSuQ
• 提取碼：whwo

1.配置免密登陸

• 在 master，slave1，slave2 上分別生成密鑰對，

[root@master ~]# ssh-keygen -t rsa				#一路回車即可

• 每臺節點分別將自己的公鑰發送到另外的三臺節點，（下面以 master 主機為例）

[root@master ~]# ssh-copy-id 192.168.1.2
[root@master ~]# ssh-copy-id 192.168.1.3

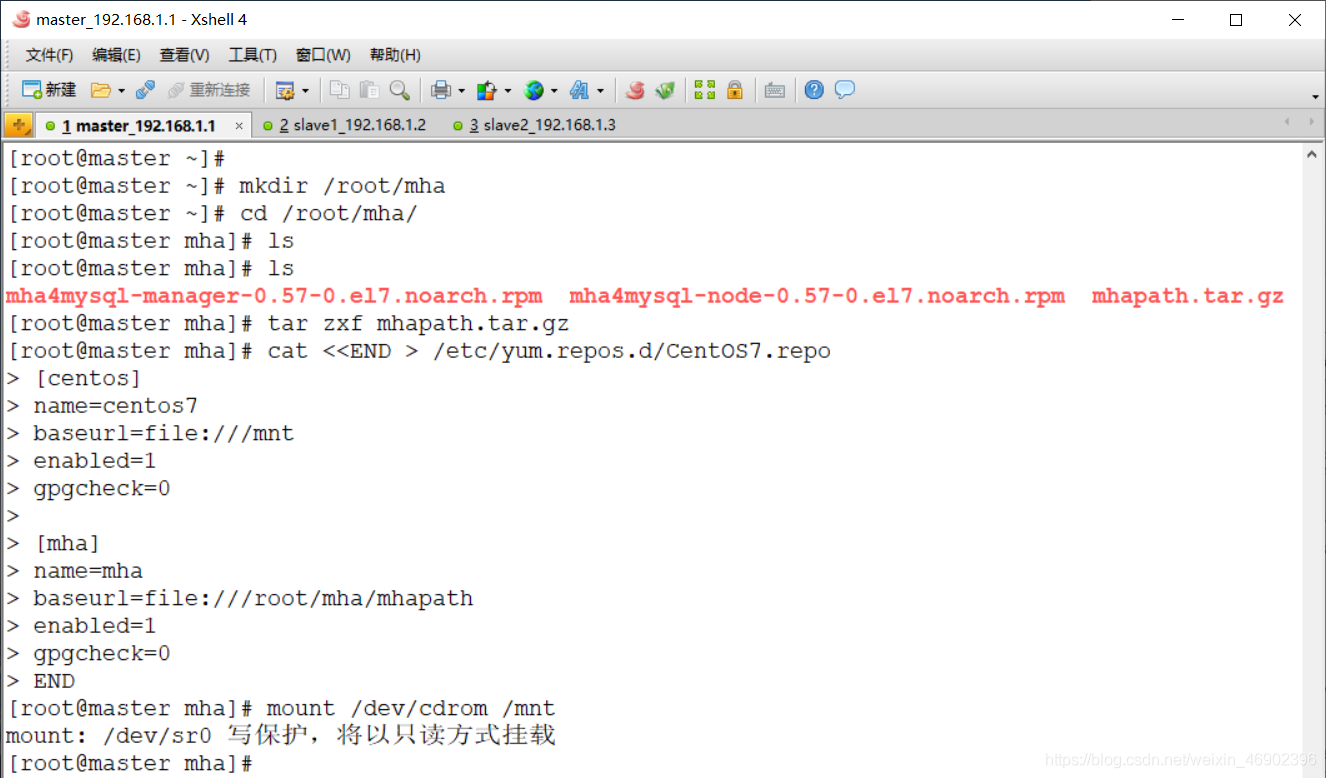

2.安裝 MHA 軟體包

準備作業：master slave1 slave2 都要做

[root@master ~]# mkdir /root/mha
[root@master ~]# cd /root/mha
[root@master mha]# ls
mha4mysql-manager-0.57-0.el7.noarch.rpm  mhapath.tar.gz  mha4mysql-node-0.57-0.el7.noarch.rpm
[root@master mha]# tar zxf mhapath.tar.gz
[root@master mha]# cat <<END > /etc/yum.repos.d/CentOS7.repo
[centos]
name=centos7
baseurl=file:///mnt
enabled=1
gpgcheck=0

[mha]
name=mha
baseurl=file:///root/mha/mhapath
enabled=1
gpgcheck=0
END
[root@master mha]# mount /dev/cdrom /mnt/

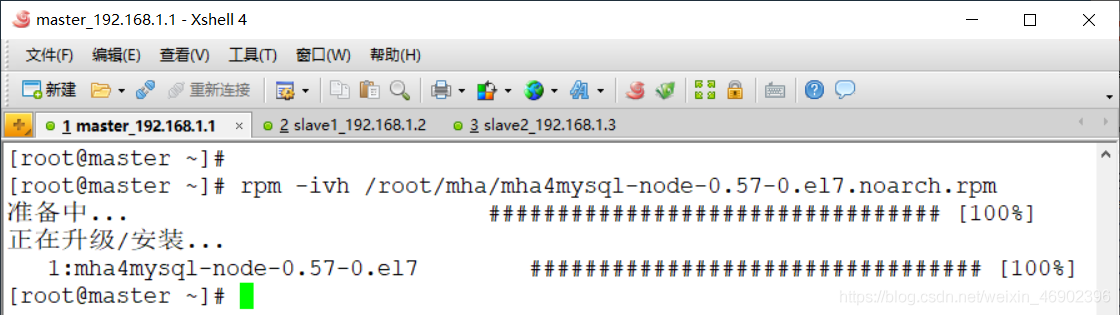

1）在各節點上安裝 mha4mysql-node

[root@master ~]# yum -y install perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager --skip-broken --nogpgcheck

[root@master ~]# rpm -ivh /root/mha/mha4mysql-node-0.57-0.el7.noarch.rpm

2）在 master 上安裝 manager 節點

[root@master ~]# yum -y install perl-DBD-MySQL perl-Config-Tiny perl-Log-Dispatch perl-Parallel-ForkManager perl-Time-HiRes perl-ExtUtils-CBuilder perl-ExtUtils-MakeMaker perl-CPAN

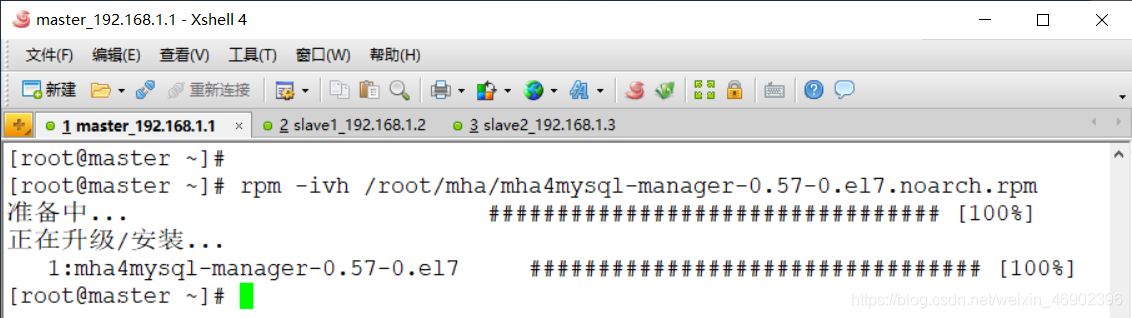

[root@master ~]# rpm -ivh /root/mha/mha4mysql-manager-0.57-0.el7.noarch.rpm

3.配置主從復制

1）主服務器上配置

[root@master ~]# cat <<END >> /etc/my.cnf
log-bin=mysql-bin-master
server-id=1
END
[root@master ~]# systemctl restart mysqld

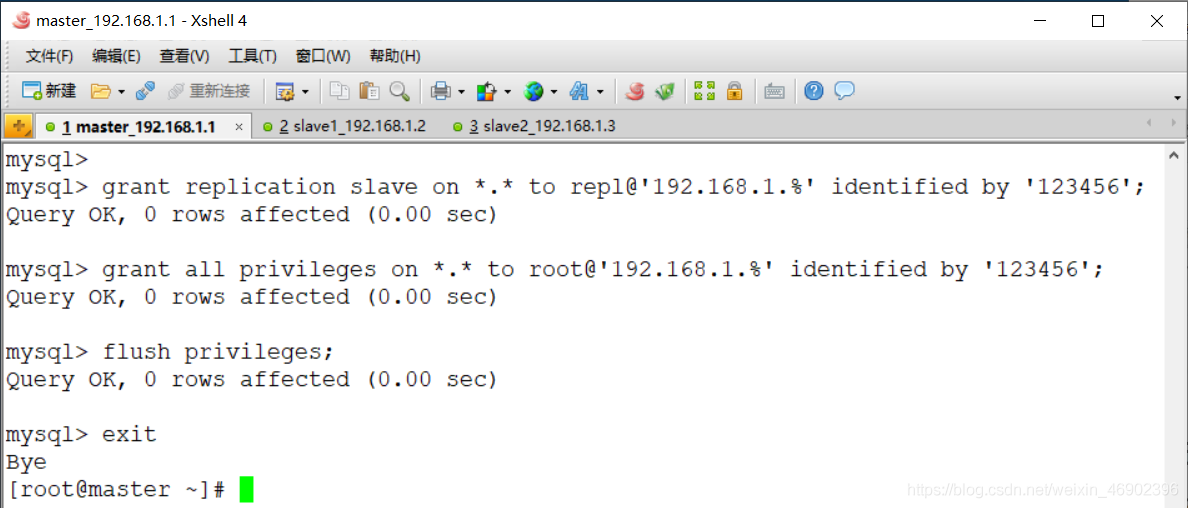

[root@master ~]# mysql -uroot -p123456
mysql> grant replication slave on *.* to repl@'192.168.1.%' identified by '123456';
mysql> grant all privileges on *.* to root@'192.168.1.%' identified by '123456';
mysql> flush privileges;
mysql> exit

2）從服務器上配置

兩臺從節點操作一致

[root@slave1 ~]# cat <<END >> /etc/my.cnf
log-bin=mysql-slave1			#slave2改為2
server-id=2						#slave2改為3
log_slave_updates=1
END
[root@slave1 ~]# systemctl restart mysqld
[root@slave1 ~]# mysql -uroot -p123456

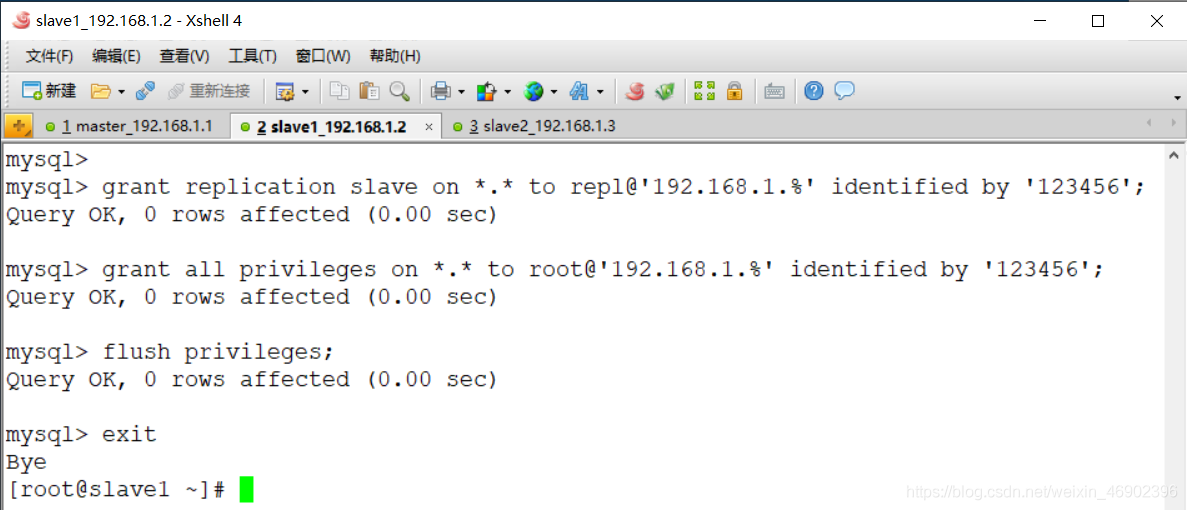

mysql> grant replication slave on *.* to repl@'192.168.1.%' identified by '123456';
mysql> grant all privileges on *.* to root@'192.168.1.%' identified by '123456';
mysql> flush privileges;
mysql> exit

3）建立主從復制

在 slave1 slave2 上操作

[root@slave1 ~]# mysql -uroot -p123456

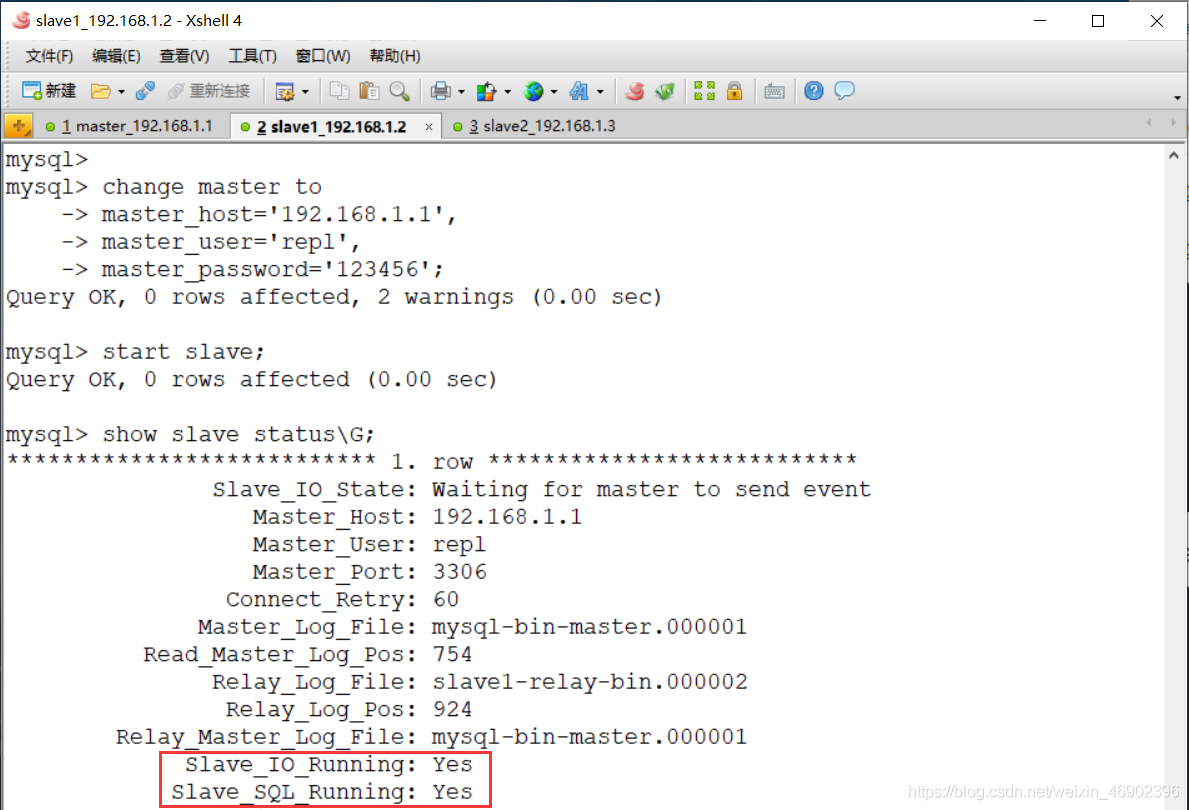

mysql> change master to
master_host='192.168.1.1',
master_user='repl',
master_password='123456';
mysql> start slave;
mysql> show slave status\G;

4.設定 MySQL 程式及 binglog 程式的軟連接

master和兩臺從節點都要做

[root@master ~]# ln -s /usr/local/mysql/bin/mysql /usr/bin/mysql
[root@master ~]# ln -s /usr/local/mysql/bin/mysqlbinlog /usr/local/bin/mysqlbinlog

5.在兩臺 Slave 設定臨時只讀和不自動清除中繼日志

[root@slave1 ~]# mysql -uroot -p123456 -e 'set global read_only=1'
[root@slave1 ~]# mysql -uroot -p123456 -e 'set global relay_log_purge=0'

6.配置 MHA 作業目錄及組態檔

[root@master ~]# mkdir -p /etc/masterha
[root@master ~]# mkdir -p /var/log/masterha/app1
[root@master ~]# vim /etc/masterha/app1.cnf
[server default]
manager_workdir=/var/log/masterha/app1
manager_log=/var/log/masterha/app1/manager.log
master_binlog_dir=/usr/local/mysql/data/
user=root
password=123456
ping_interval=1
remote_workdir=/tmp
repl_user=repl
repl_password=123456
ssh_user=root

[server1]
hostname=192.168.1.1
port=3306

[server2]
hostname=192.168.1.2
port=3306
candidate_master=1
check_repl_delay=0

[server3]
hostname=192.168.1.3
port=3306

7.檢查 MHA 的環境是否作業正常

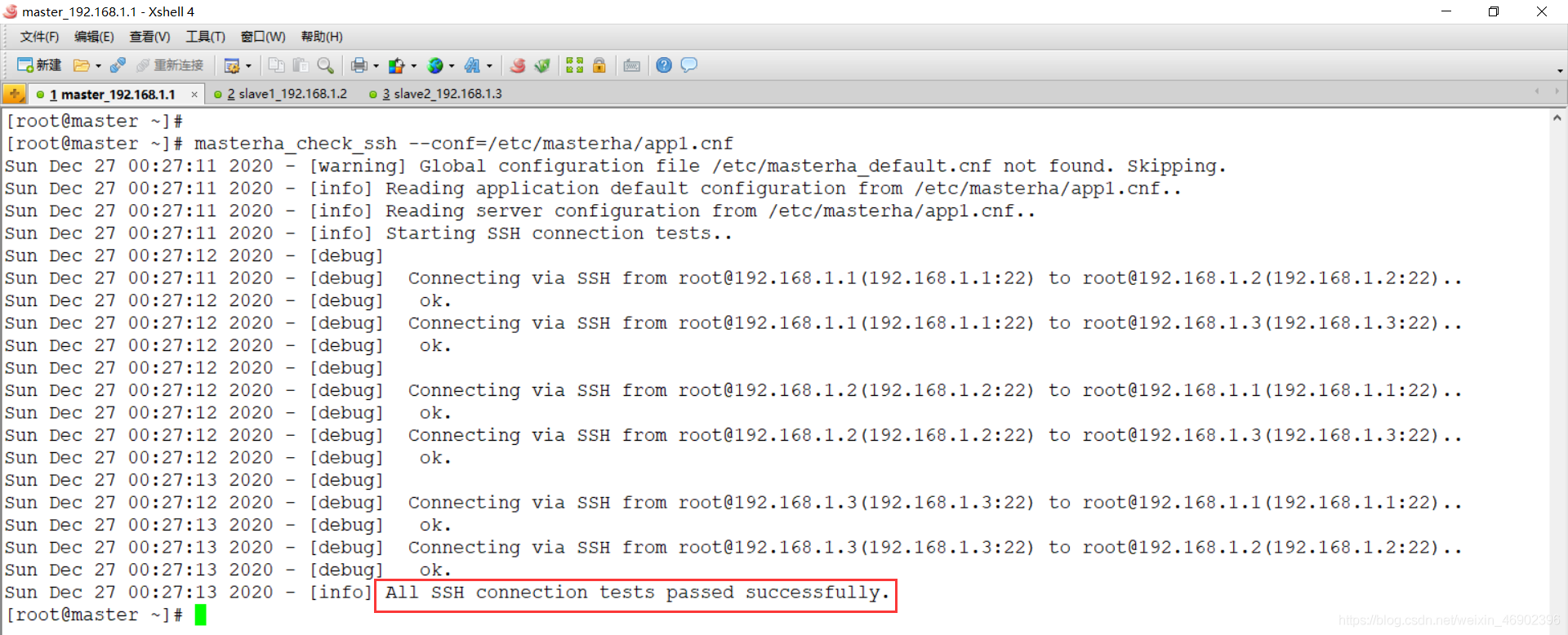

1）檢測 SSH 連接是否配置正常

[root@master ~]# masterha_check_ssh --conf=/etc/masterha/app1.cnf

2）在管理節點檢查復制配置

[root@master ~]# masterha_check_repl --conf=/etc/masterha/app1.cnf

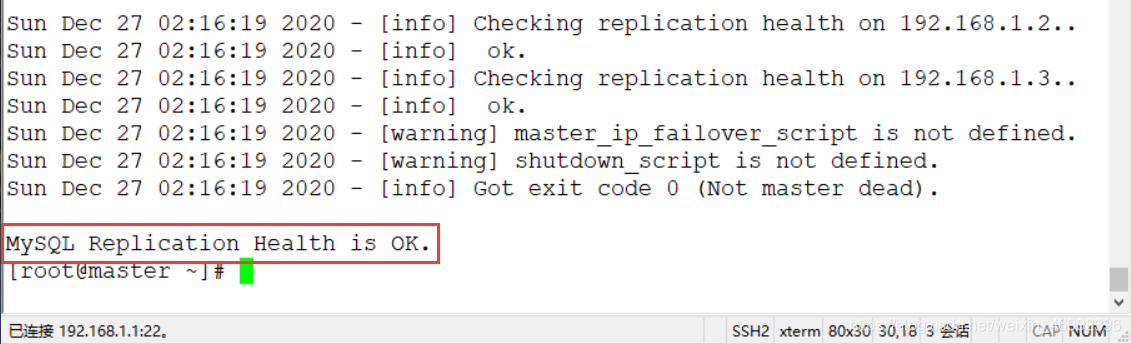

最后顯示如下說明環境沒有問題：
MySQL Replication Health is OK.

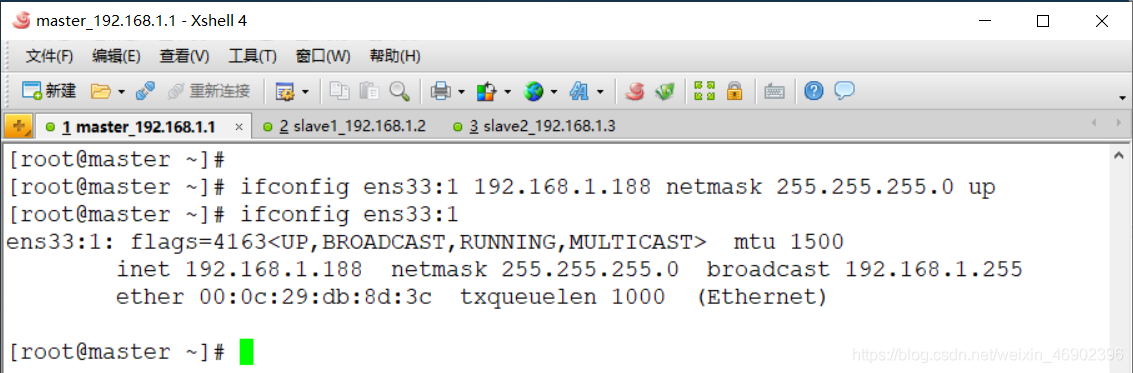

9.配置 VIP 地址

master 上操作

[root@master ~]# ifconfig ens33:1 192.168.1.188 netmask 255.255.255.0 up
[root@master ~]# ifconfig ens33:1

1）修改 MHA 組態檔，使其支持 VIP

[root@master ~]# vim /etc/masterha/app1.cnf
在 [server default] 項下面添加：
master_ip_failover_script=/usr/bin/master_ip_failover

2）撰寫 VIP 自動切換腳本

[root@master ~]# vim /usr/bin/master_ip_failover
#!/usr/bin/env perl
use strict;
use warnings FATAL => 'all';

use Getopt::Long;

my (
    $command,          $ssh_user,        $orig_master_host, $orig_master_ip,
    $orig_master_port, $new_master_host, $new_master_ip,    $new_master_port
);

my $vip = '192.168.1.188/24';
my $key = '1';
my $ssh_start_vip = "/sbin/ifconfig ens33:$key $vip";
my $ssh_stop_vip = "/sbin/ifconfig ens33:$key down";

GetOptions(
    'command=s'          => \$command,
    'ssh_user=s'         => \$ssh_user,
    'orig_master_host=s' => \$orig_master_host,
    'orig_master_ip=s'   => \$orig_master_ip,
    'orig_master_port=i' => \$orig_master_port,
    'new_master_host=s'  => \$new_master_host,
    'new_master_ip=s'    => \$new_master_ip,
    'new_master_port=i'  => \$new_master_port,
);

exit &main();

sub main {

    print "\n\nIN SCRIPT TEST====$ssh_stop_vip==$ssh_start_vip===\n\n";

    if ( $command eq "stop" || $command eq "stopssh" ) {

        my $exit_code = 1;
        eval {
            print "Disabling the VIP on old master: $orig_master_host \n";
            &stop_vip();
            $exit_code = 0;
        };
        if ($@) {
            warn "Got Error: $@\n";
            exit $exit_code;
        }
        exit $exit_code;
    }
    elsif ( $command eq "start" ) {

        my $exit_code = 10;
        eval {
          print "Enabling the VIP - $vip on the new master - $new_master_host \n";
          &start_vip();
          $exit_code = 0;
        };
        if ($@) {
            warn $@;
            exit $exit_code;
        }
        exit $exit_code;
    }
    elsif ( $command eq "status" ) {
        print "Checking the Status of the script.. OK \n";
        exit 0;
    }
    else {
         &usage();
         exit 1;
        }
    }
    sub start_vip() {
        `ssh $ssh_user\@$new_master_host \" $ssh_start_vip \"`;
        }
    sub stop_vip() {
        `ssh $ssh_user\@$orig_master_host \" $ssh_stop_vip \"`;
        }
sub usage {
print
"Usage: master_ip_failover --command=start|stop|stopssh|status --orig_master_host=host --orig_master_ip=ip --orig_master_port=port --new_master_host=host --new_master_ip=ip --new_master_port=port\n";
}
[root@master ~]# chmod +x /usr/bin/master_ip_failover

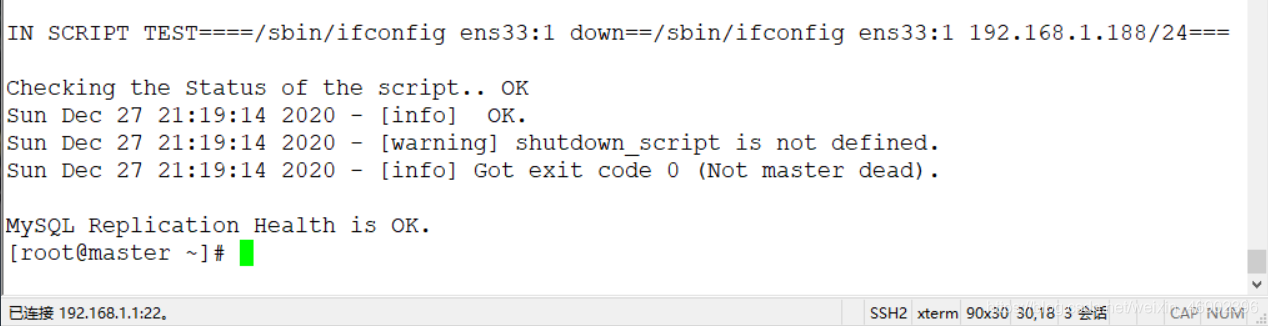

再次檢測，結果應該和上面檢測結果一樣才對

[root@master ~]# masterha_check_repl --conf=/etc/masterha/app1.cnf

10.開啟監控

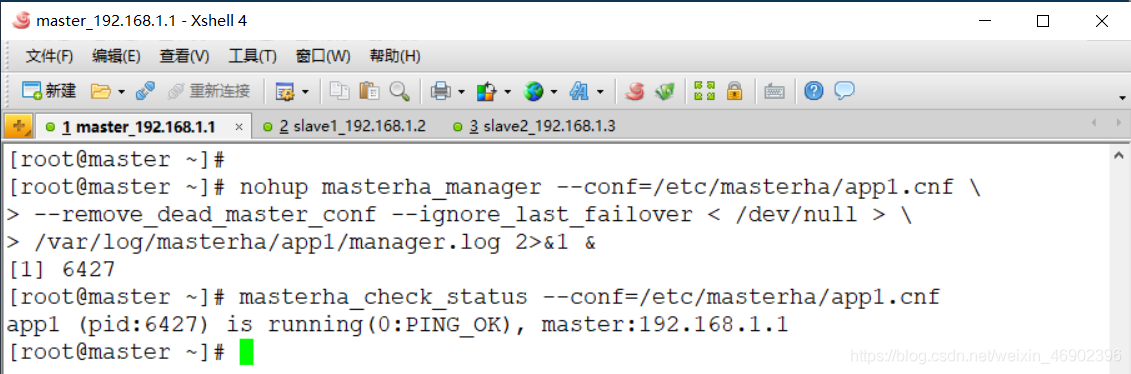

[root@master ~]# nohup masterha_manager --conf=/etc/masterha/app1.cnf \
--remove_dead_master_conf --ignore_last_failover < /dev/null > \
/var/log/masterha/app1/manager.log 2>&1 &
[root@master ~]# masterha_check_status --conf=/etc/masterha/app1.cnf

三、部署 Apahce+PHP 架構

掛光碟，并配置yum源

• Apache+PHP 軟體包從這個鏈接下載：https://pan.baidu.com/s/13XBKIFTSrVlZ106nWGNVjw
• 提取碼：l9we

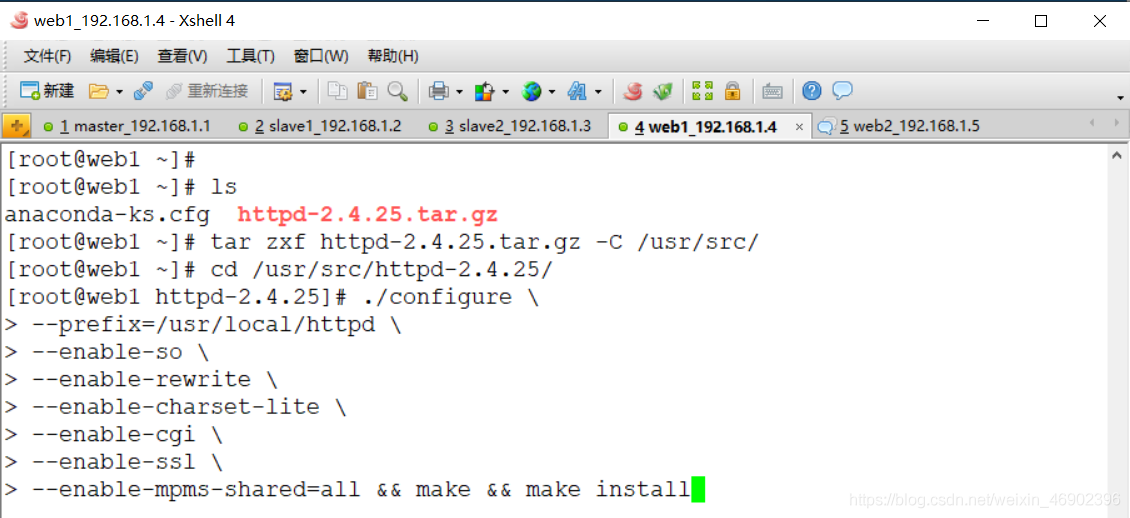

1.安裝并啟動 Apache

[root@web1 ~]# yum -y install gcc gcc-c++ apr apr-devel cyrus-sasl-devel expat-devel libdb-devel openldap-devel apr-util-devel apr-util pcre-devel pcre openssl*

[root@web1 ~]# ls
anaconda-ks.cfg  httpd-2.4.25.tar.gz
[root@web1 ~]# tar zxf httpd-2.4.25.tar.gz -C /usr/src/
[root@web1 ~]# cd /usr/src/httpd-2.4.25/
[root@web1 httpd-2.4.25]# ./configure \
--prefix=/usr/local/httpd \
--enable-so \
--enable-rewrite \
--enable-charset-lite \
--enable-cgi \
--enable-ssl \
--enable-mpms-shared=all && make && make install

復制啟動腳本

[root@web1~]# cp /usr/local/httpd/bin/apachectl /etc/init.d/apache
[root@web1 ~]# vim /etc/init.d/apache
在 #!/bin/bash 下面添加：
#chkconfig: 2345 11 88
#despriction:httpd apache server
[root@web1 ~]# chkconfig --add apache

[root@web1 ~]# vim /usr/local/httpd/conf/httpd.conf
204 ServerName web1:80			#web2將 web1:80 改為 web2:80

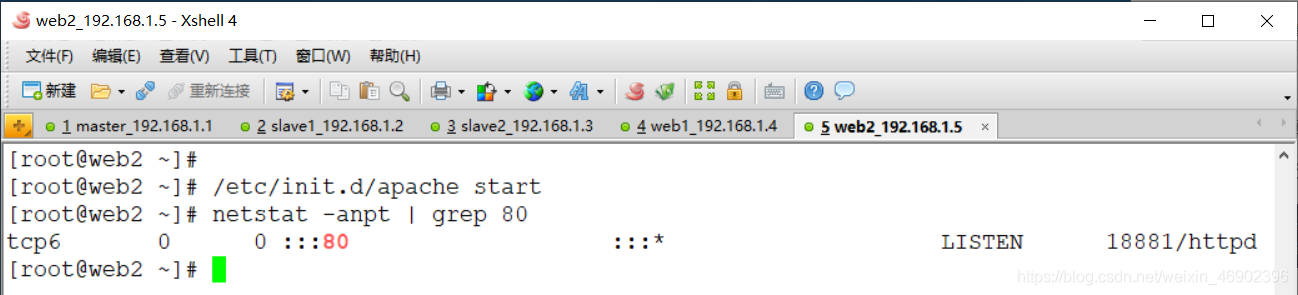

[root@web2 ~]# /etc/init.d/apache start
[root@web2 ~]# netstat -anpt | grep 80

2.安裝PHP

[root@web1 ~]# yum -y install php-mcrypt libmcrypt libmcrypt-devel autoconf freetype gd libmcrypt libpng libpng-devel libjpeg libxml2 libxml2-devel zlib curl curl-devel re2c libmcrypt-devel freetype-devel libjpeg-devel bzip2-devel

[root@web1 ~]# ls
anaconda-ks.cfg  httpd-2.4.25.tar.gz  libmcrypt-2.5.8.tar.gz  php-5.5.38.tar.gz

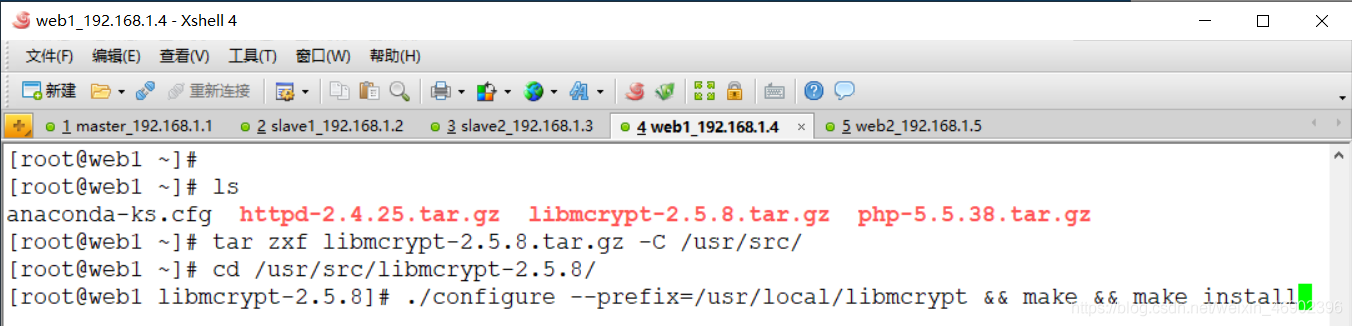

[root@web1 ~]# tar zxf libmcrypt-2.5.8.tar.gz -C /usr/src/
[root@web1 ~]# cd /usr/src/libmcrypt-2.5.8/
[root@web1 libmcrypt-2.5.8]# ./configure --prefix=/usr/local/libmcrypt && make && make install

[root@web1 ~]# tar -zxf php-5.5.38.tar.gz -C /usr/src/
[root@web1 ~]# cd /usr/src/php-5.5.38
[root@web1 php-5.5.38]# ./configure \
--prefix=/usr/local/php5.5 \
--with-mysql=mysqlnd \
--with-pdo-mysql=mysqlnd \
--with-mysqli=mysqlnd \
--with-openssl \
--enable-fpm \
--enable-sockets \
--enable-sysvshm \
--enable-mbstring \
--with-freetype-dir \
--with-jpeg-dir \
--with-png-dir \
--with-zlib \
--with-libxml-dir=/usr \
--enable-xml --with-mhash \
--with-mcrypt=/usr/local/libmcrypt \
--with-config-file-path=/etc \
--with-config-file-scan-dir=/usr/local/php5.5/etc/ \
--with-bz2 \
--enable-maintainer-zts \
--with-apxs2=/usr/local/httpd/bin/apxs && make && make install
[root@web1 php-5.5.38]# cp php.ini-production /usr/local/php5.5/etc/php.ini

3.配置PHP，測驗后端資料庫VIP

[root@web1 ~]# vim /usr/local/httpd/conf/httpd.conf
263     DirectoryIndex index.html index.php
401     AddType application/x-http-php .php .phtml
[root@web1 ~]# /etc/init.d/apache restart

1）創建測驗頁面

[root@web1 ~]# vim /usr/local/httpd/htdocs/index.php
<?php
phpinfo();
?>
[root@web1 ~]# /etc/init.d/apache restart

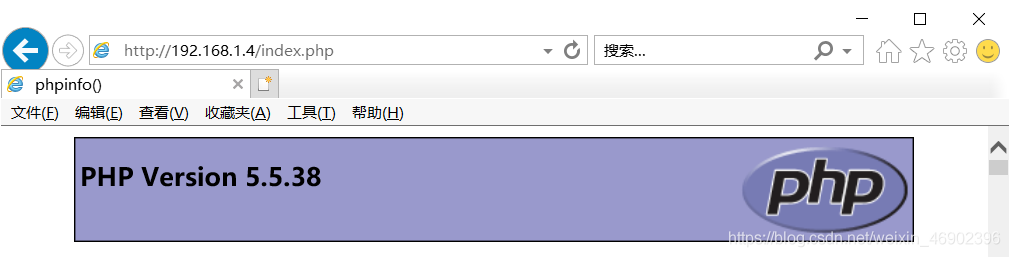

2）訪問驗證

4.安裝 Discuz 論壇

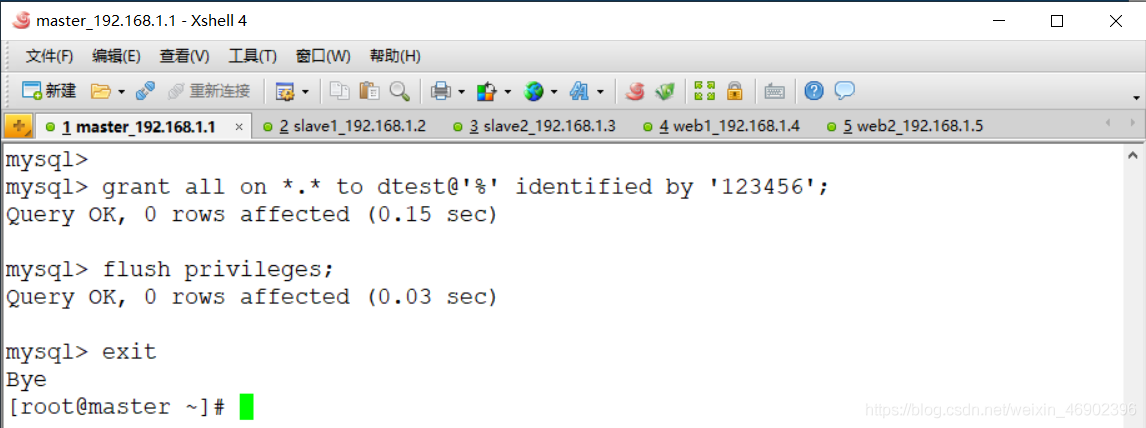

1）在 Master 上創建一個 Discuz 論壇賬號

mysql> grant all on *.* to dtest@'%' identified by '123456';
mysql> flush privileges;

2）在 Web1 上創建測驗頁面

[root@web1 ~]# vim /usr/local/httpd/htdocs/test.php
<?php
$link=mysql_connect('192.168.1.188','dtest','123456');
if ($link)echo "恭喜你,資料庫連接成功！！";
mysql_close();
?>

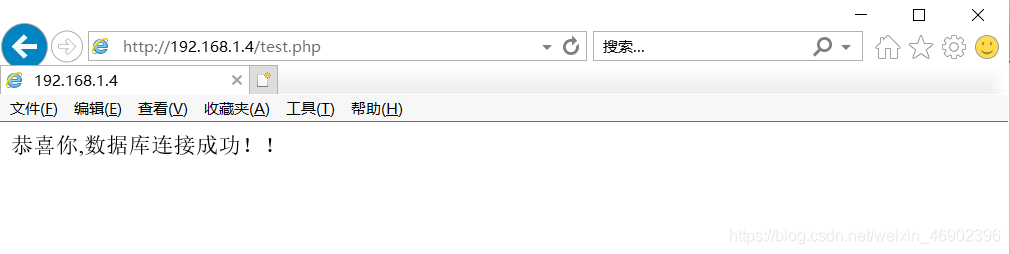

3）訪問測驗

4）安裝 Discuz 論壇

web1上操作

[root@web1 ~]# ls
[root@web1 ~]# unzip Discuz_X3.3_SC_UTF8.zip -d discuz
[root@web1 ~]# cd discuz/
[root@web1 discuz]# cp -r upload/ /usr/local/httpd/htdocs/discuz
[root@web1 discuz]# vim /usr/local/php5.5/etc/php.ini
202 short_open_tag = 0n
[root@web1 discuz]# /etc/init.d/apache restart
[root@web1 discuz]# chown -R daemon:daemon /usr/local/httpd/htdocs/

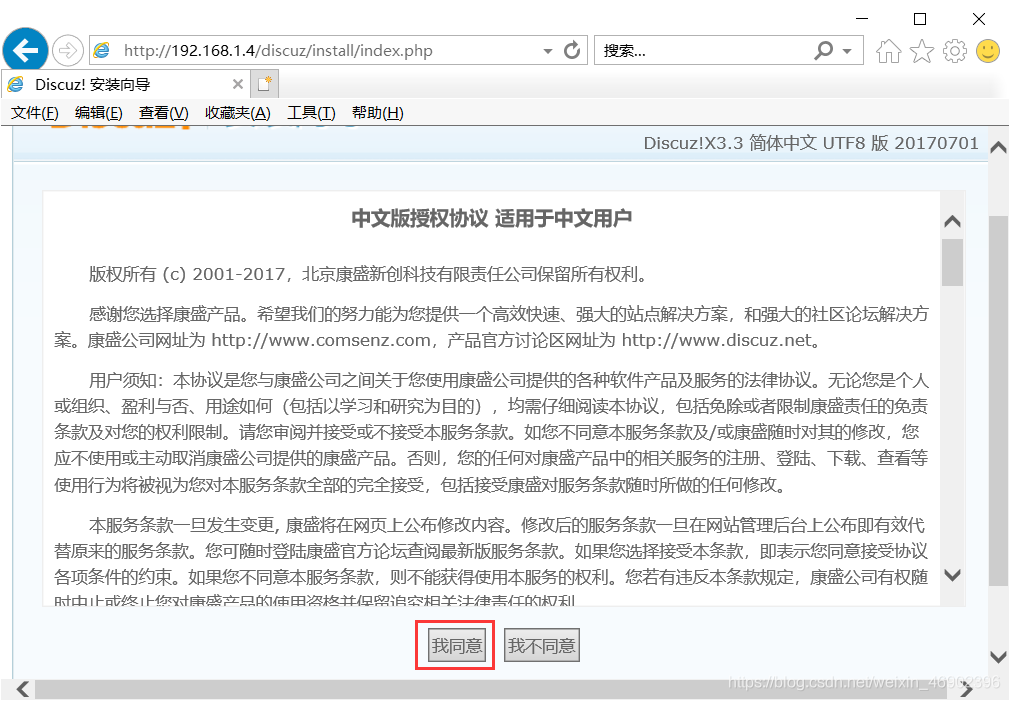

5）在瀏覽器上安裝 Discuz 論壇

訪問：http://192.168.1.4/discuz/install/index.php

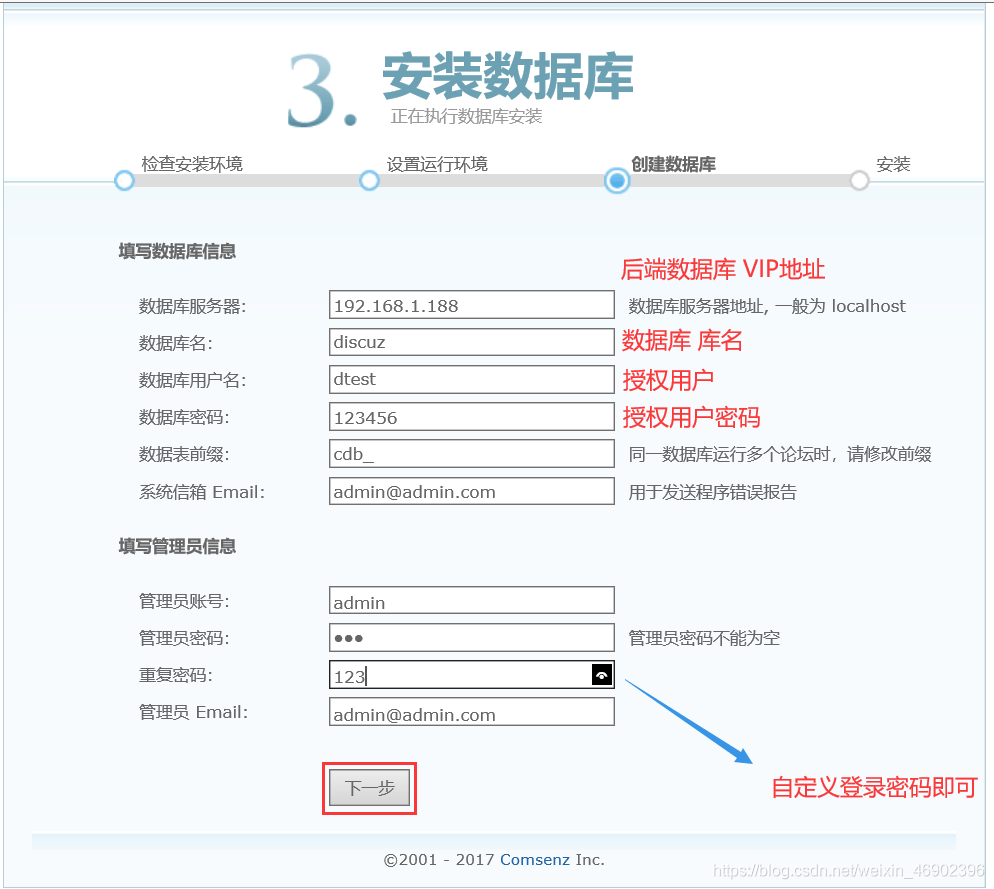

繼續下一步，到我如下，按我下圖填寫

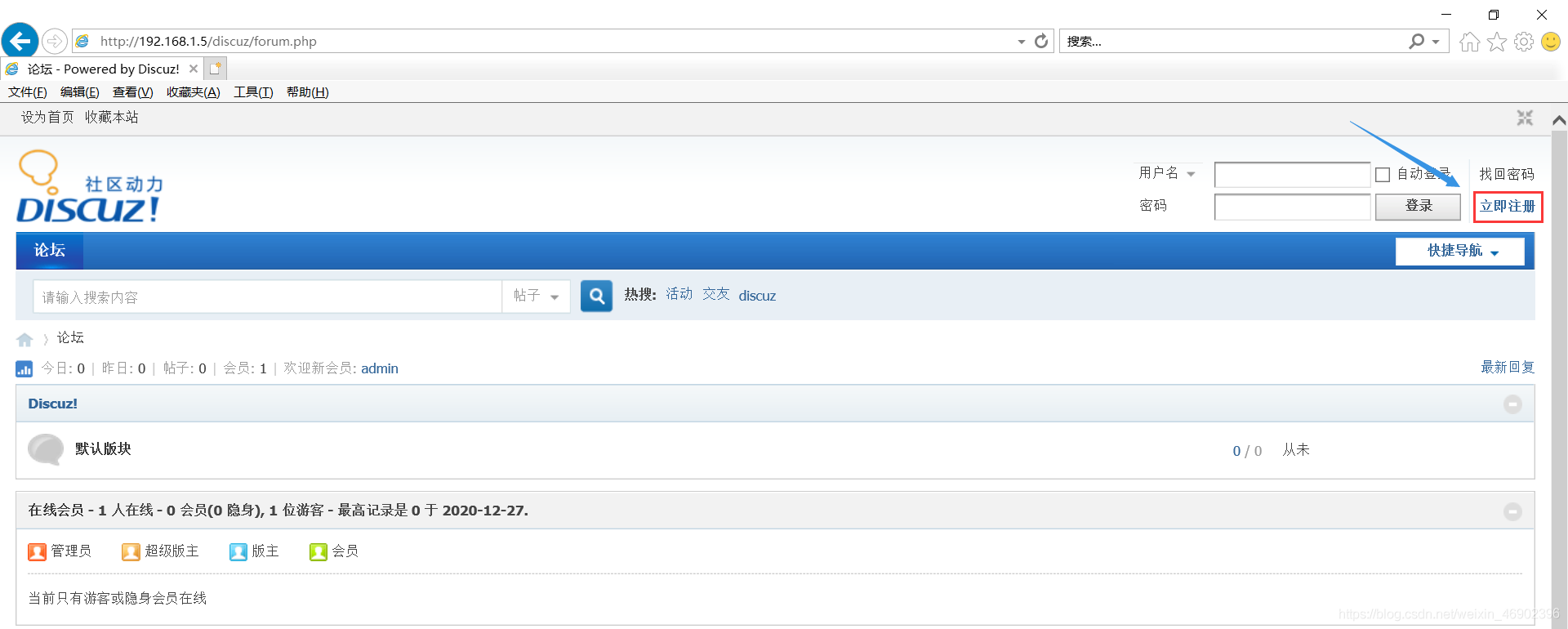

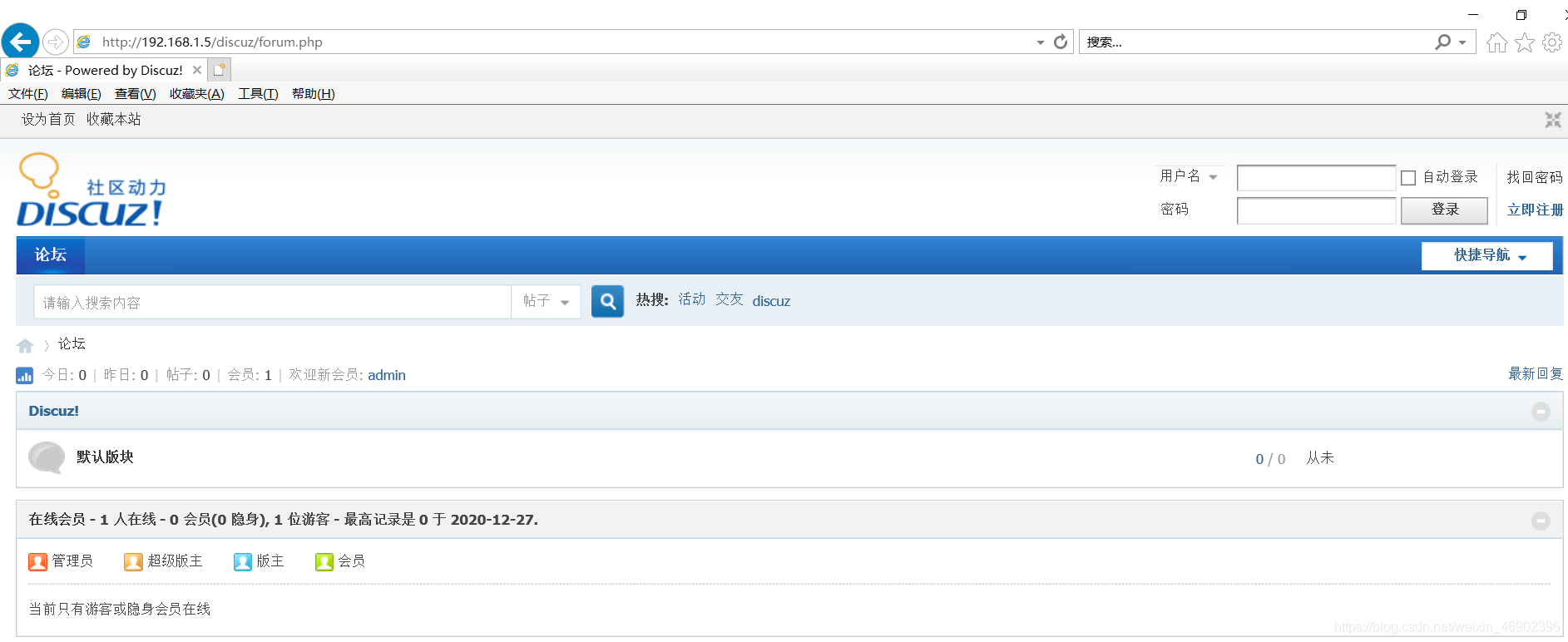

安裝完成后點擊右下角的訪問

因為 Web1 上都已經安裝好了，這里直接把 Web1 安裝好的 Discuz，傳給 Web2

[root@web1 ~]# scp -r /usr/local/httpd/ 192.168.1.5:/usr/local/

[root@web2 ~]# /etc/init.d/apache restart
[root@web2 ~]# chown -R daemon:daemon /usr/local/httpd/htdocs/

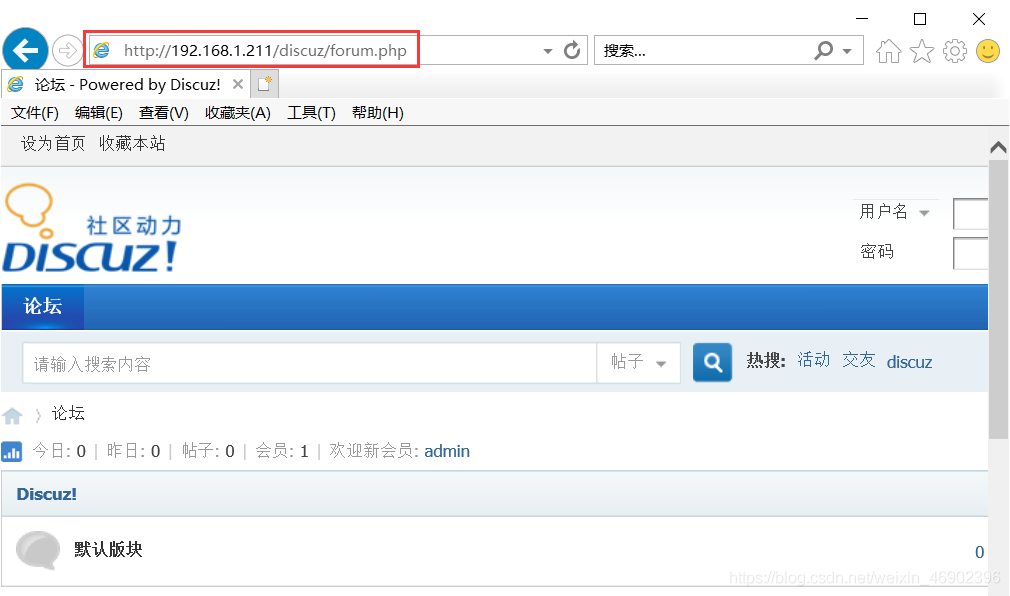

訪問并測驗資料一致性

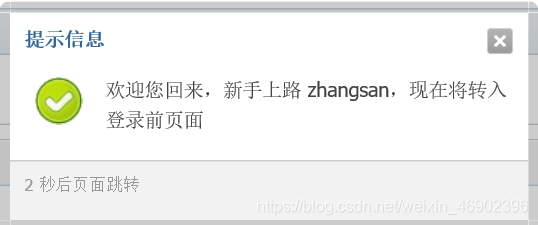

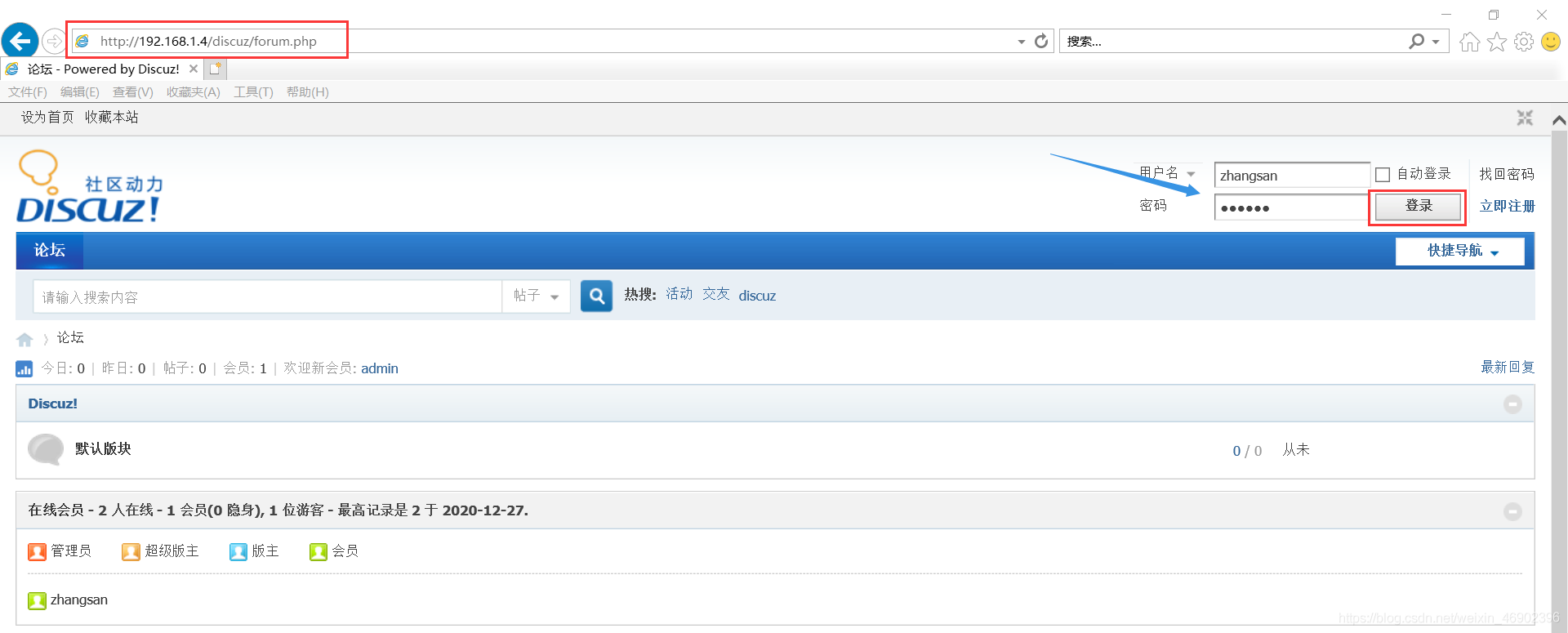

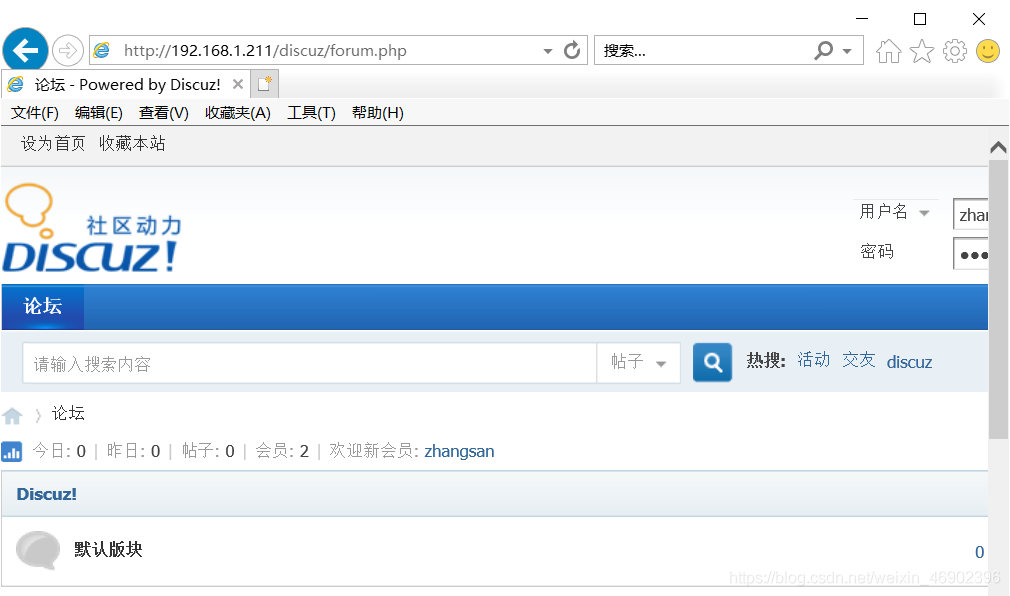

到 Web1 的論壇中，登陸 zhangsan 賬號，可以登陸

這是因為兩個 Discuz 后端的資料庫都是一個，資料都是在資料庫中的，所以其中資料都是一樣的，

四、部署 Keepliaved 雙機熱備

掛光碟，并配置yum源

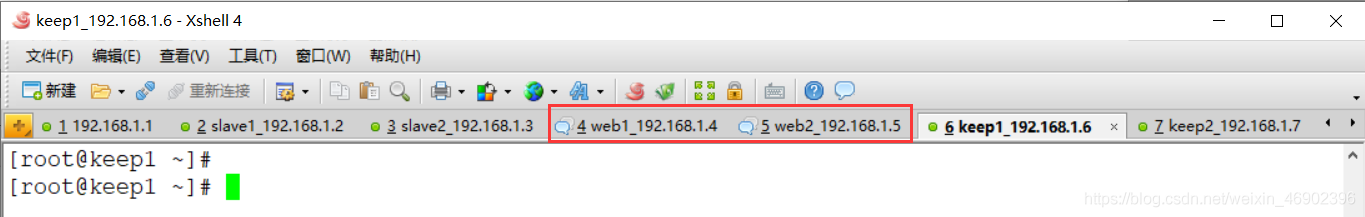

1.配置主和備調度器

主備操作稍微不同，不同的地方下面我會說

[root@keep1 ~]# yum -y install ipvsadm keepalived
[root@keep1 ~]# cd /etc/keepalived/
[root@keep1 keepalived]# rm -rf keepalived.conf
[root@keep1 keepalived]# vim keepalived.conf
global_defs {
   router_id master
}

vrrp_instance VI_1 {
    state MASTER
    interface ens33
    virtual_router_id 51
    priority 100
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.1.211
    }
}

virtual_server 192.168.1.211 80 {
    delay_loop 6
    lb_algo rr
    lb_kind DR
    persistence_timeout 0
    protocol TCP

    real_server 192.168.1.4 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }

    real_server 192.168.1.5 80 {
        weight 1
        TCP_CHECK {
            connect_port 80
            connect_timeout 3
            nb_get_retry 3
            delay_before_retry 3
        }
    }
}
備調度器需要做以下修改：
將 router_id master 改為 router_id backup
將 state MASTER 修改為 state BACKUP
將 priority 100 修改為 priority 99
[root@keep1 keepalived]# systemctl start keepalived

3.配置 Web 節點的內核引數

Web1，Web2節點操作一致

[root@web1 ~]# vim /root/vip.sh
#!/bin/sh
VIP=192.168.1.211
case  $1  in
start)
    ifconfig lo:0 $VIP netmask 255.255.255.255 broadcast $VIP
    /sbin/route add -host $VIP dev lo:0
    echo "1" >/proc/sys/net/ipv4/conf/lo/arp_ignore
    echo "2" >/proc/sys/net/ipv4/conf/lo/arp_announce
    echo "1" >/proc/sys/net/ipv4/conf/all/arp_ignore
    echo "2" >/proc/sys/net/ipv4/conf/all/arp_announce
    sysctl -p >/dev/null 2>&1
    echo "RealServer Start OK"
    exit 0
;;
stop)
    ifconfig lo:0 down
    route del $VIP >/dev/null 2>&1
    echo "0" >/proc/sys/net/ipv4/conf/lo/arp_ignore
    echo "0" >/proc/sys/net/ipv4/conf/lo/arp_announce
    echo "0" >/proc/sys/net/ipv4/conf/all/arp_ignore
    echo "0" >/proc/sys/net/ipv4/conf/all/arp_announce
    echo "RealServer Stoped OK"
    exit 1
;;
*)
    echo "Usage: $0 {start|stop}"
;;
esac
[root@web1 ~]# chmod +x /root/vip.sh
[root@web1 ~]# cd /root/
[root@web1 ~]# ./vip.sh start

4.訪問驗證

通過 VIP 的地址訪問 Discuz 論壇：

測驗和后端 MySQL 通信：
右上角登陸，登陸剛剛創建的 zhangsan 用戶，可以登陸上去

通過查看日志，來查看是否輪詢
web1

[root@web1 ~]# tail -f /usr/local/httpd/logs/access_log

web2

[root@web2 ~]# tail -f /usr/local/httpd/logs/access_log

只要重繪頁面一次，那個符號應該在 Web1 和 Web2 中變動，表示那個終端有變動

五、故障切換 Keepaliaved 和 MHA

[root@master ~]# systemctl stop mysqld

[root@keep1 ~]# systemctl stop keepalived		 #如果關閉后VIP還未漂移，關機該機器即可

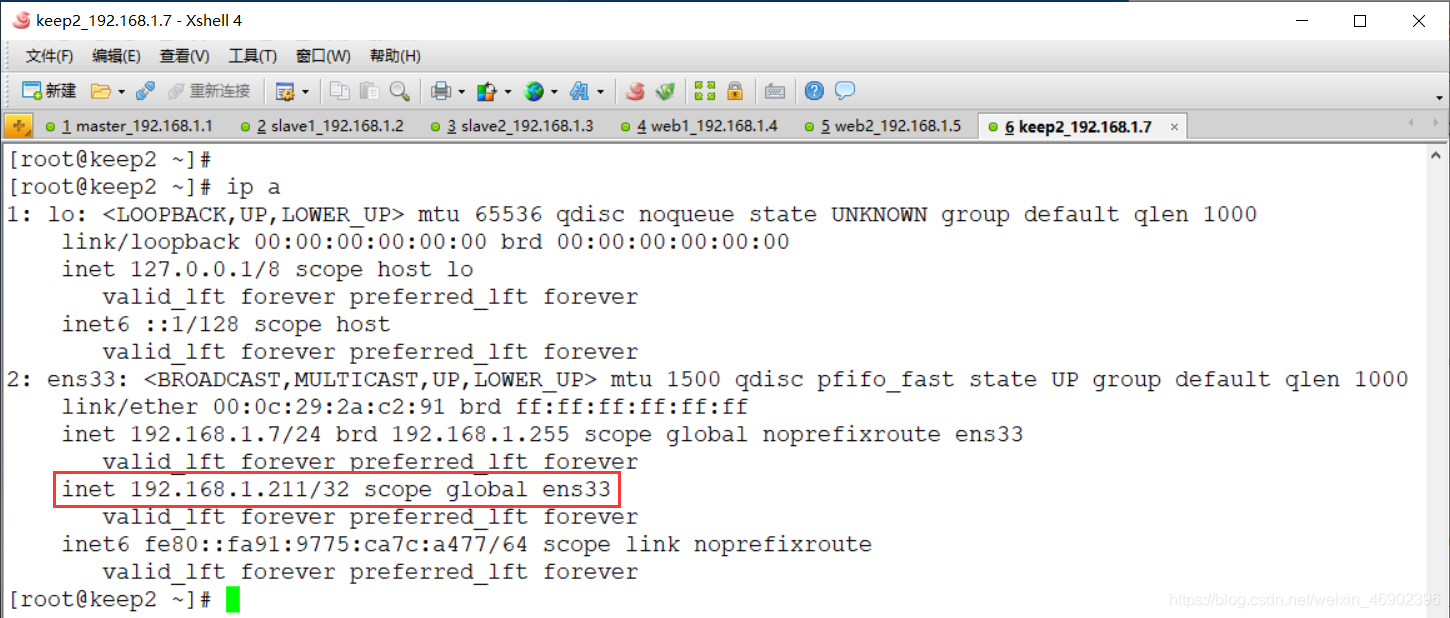

Keepalived VIP漂移了

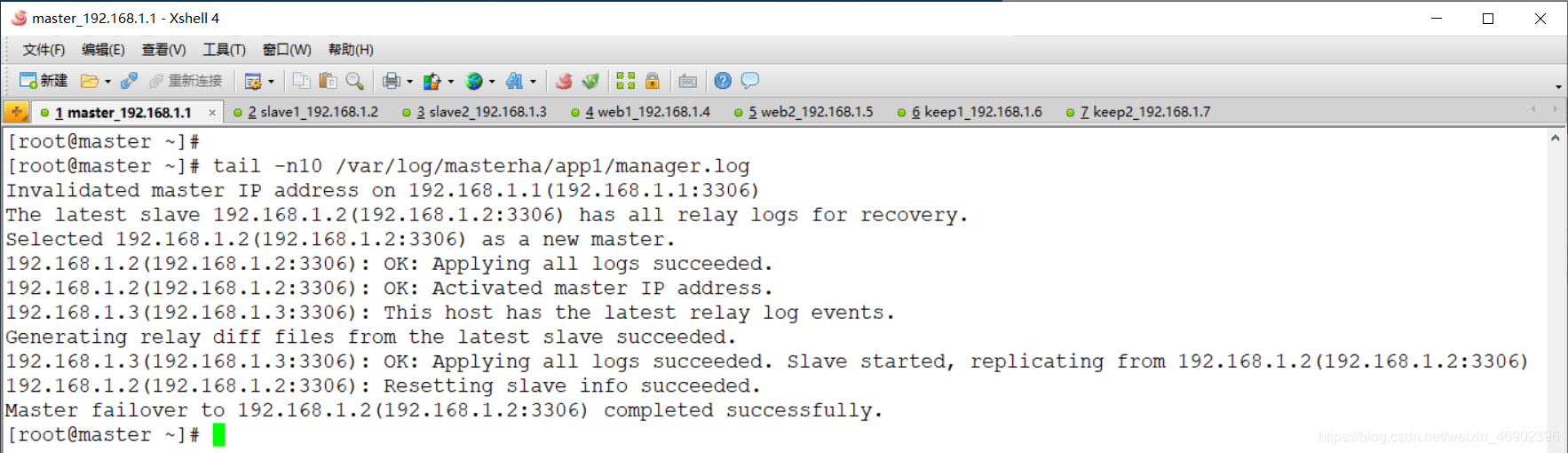

查看 Manager 日志

[root@master ~]# tail -n10 /var/log/masterha/app1/manager.log

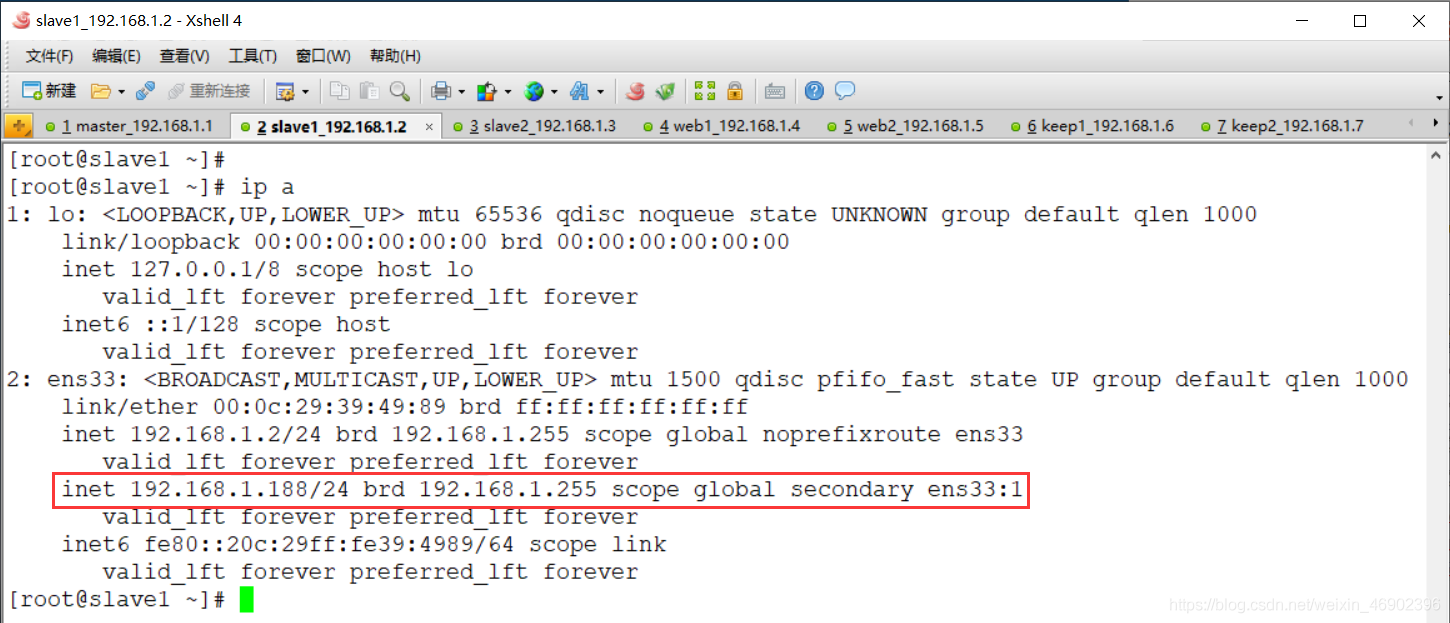

在 192.168.1.2 主機中查看 MHA VIP 是否漂移

訪問測驗
