Prometheus+Grafana全方位監控Kubernetes集群

1.k8s監控指標

kubernetes本身監控

• Node資源利用率
• Node數量
• Pods數量
• 資源物件狀態

Pod監控

• pod數量
• 容器資源利用率
• 應用程式

實作思路

• pod性能
  • 使用cadvisor進行實作，監控容器的CPU、記憶體利用率
• Node性能
  • 使用node-exporter實作，主要監控節點CPU、記憶體利用率
• K8S資源物件
  • 使用kube-state-metrics實作，主要用于監控pod、deployment、service

k8s服務發現參考檔案： https://prometheus.io/docs/prometheus/latest/configuration/configuration/#kubernetes_sd_config

本文將會實作k8s全方位監控，并配合grafana展示k8s資源物件的使用狀態，以及配合alertmanager告警

2.k8s基礎環境準備

2.1.環境準備

2.2.部署nfs作為prometheus存盤

[root@nfs ~]# mkdir /data/prometheus

[root@nfs ~]# yum -y install nfs-utils

[root@nfs ~]# vim /etc/exports
/data/prometheus   192.168.16.0/24(rw,sync,no_root_squash)

[root@nfs ~]# systemctl restart nfs

[root@nfs ~]# showmount -e
Export list for nfs:
/data/prometheus 192.168.16.0/24

[root@nfs ~]# chomd -R 777 /data

2.3.獲取prometheus yaml檔案

在這里下載

https://github.com/kubernetes/kubernetes/tree/release-1.16/cluster/addons/prometheus

直接克隆完整目錄也可以

https://github.com/kubernetes/kubernetes.git

已將所有yaml進行了修改，可以參考本人寫的yaml

本人yaml鏈接：鏈接：https://pan.baidu.com/s/1LN8AzLFo2JIvYX0nmgq0EQ
提取碼：u4t0
復制這段內容后打開百度網盤手機App，操作更方便哦

prometheus在github的k8s目錄中master分支已經找不到了，可以在release-1.16這里找到

1.拉取prometheus yaml檔案
[root@k8s-master ~/k8s]# git clone https://github.com/kubernetes/kubernetes.git

2.將prometheus yaml檔案復制到其他目錄
[root@k8s-master ~/k8s]# cp -rp kubernetes/cluster/addons/prometheus/ .

本人的yaml檔案

官方yaml檔案

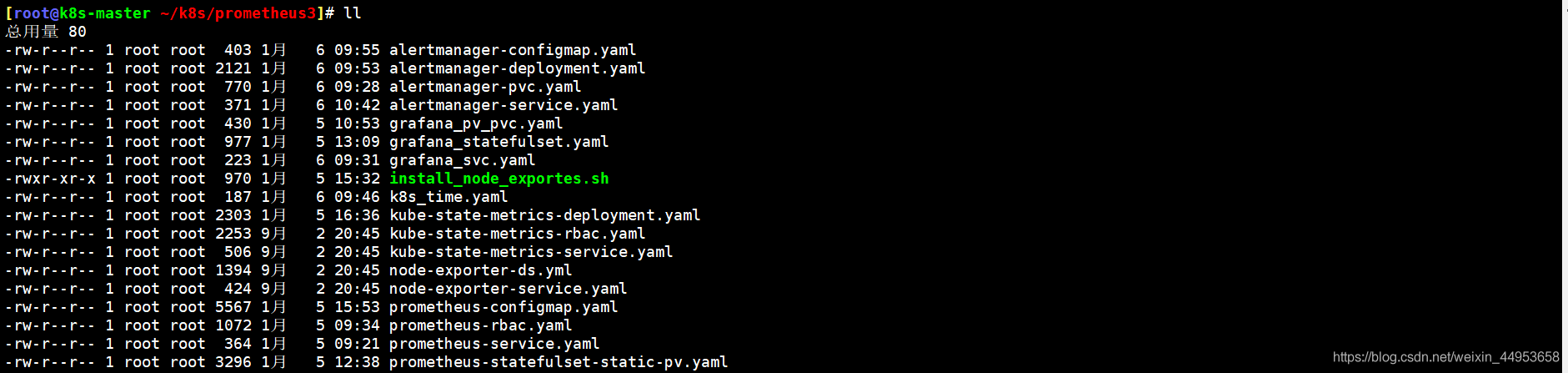

檔案說明

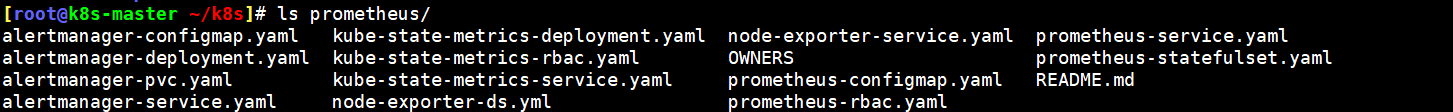

主要分為四部分：prometheus部署、alertmanager部署、kube-state-metrics部署、node-exporter部署

2.4.創建命名空間prometheus

創建一個ns為prometheus，將除了kube-state-metrics外的yaml中的namespace修改為prometheus

1.創建ns
[root@k8s-master ~/k8s/prometheus]# kubectl create namespace prometheus
namespace/prometheus created

2.修改
用vim打開輸入以下命令
:%s/namespace: kube-system/namespace: prometheus/g

3.在k8s中部署prometheus

3.1.prometheus-yaml準備

主要用到以下幾個yaml
[root@k8s-master ~/k8s/prometheus]# ls prometheus-*
prometheus-configmap.yaml  prometheus-rbac.yaml  prometheus-service.yaml  prometheus-statefulset.yaml

創建順序

先創建prometheus-rbac.yaml

在創建prometheus-configmap.yaml

在創建prometheus-statefulset.yaml

最后創建prometheus-service.yaml

3.2.創建rbac資源

[root@k8s-master ~/k8s/prometheus]# kubectl create -f prometheus-rbac.yaml
serviceaccount/prometheus created
clusterrole.rbac.authorization.k8s.io/prometheus created
clusterrolebinding.rbac.authorization.k8s.io/prometheus created

3.3.創建configmap資源

[root@k8s-master ~/k8s/prometheus]# kubectl create -f prometheus-configmap.yaml
configmap/prometheus-config created

3.4.創建statefulset資源

github上的statefulset資源使用的是storageclasee動態創建pv，由于不會使用storageclass，因此將statefulset資源進行改造，使用靜態pv做存盤

3.4.1.改造statefulst資源支持靜態pv

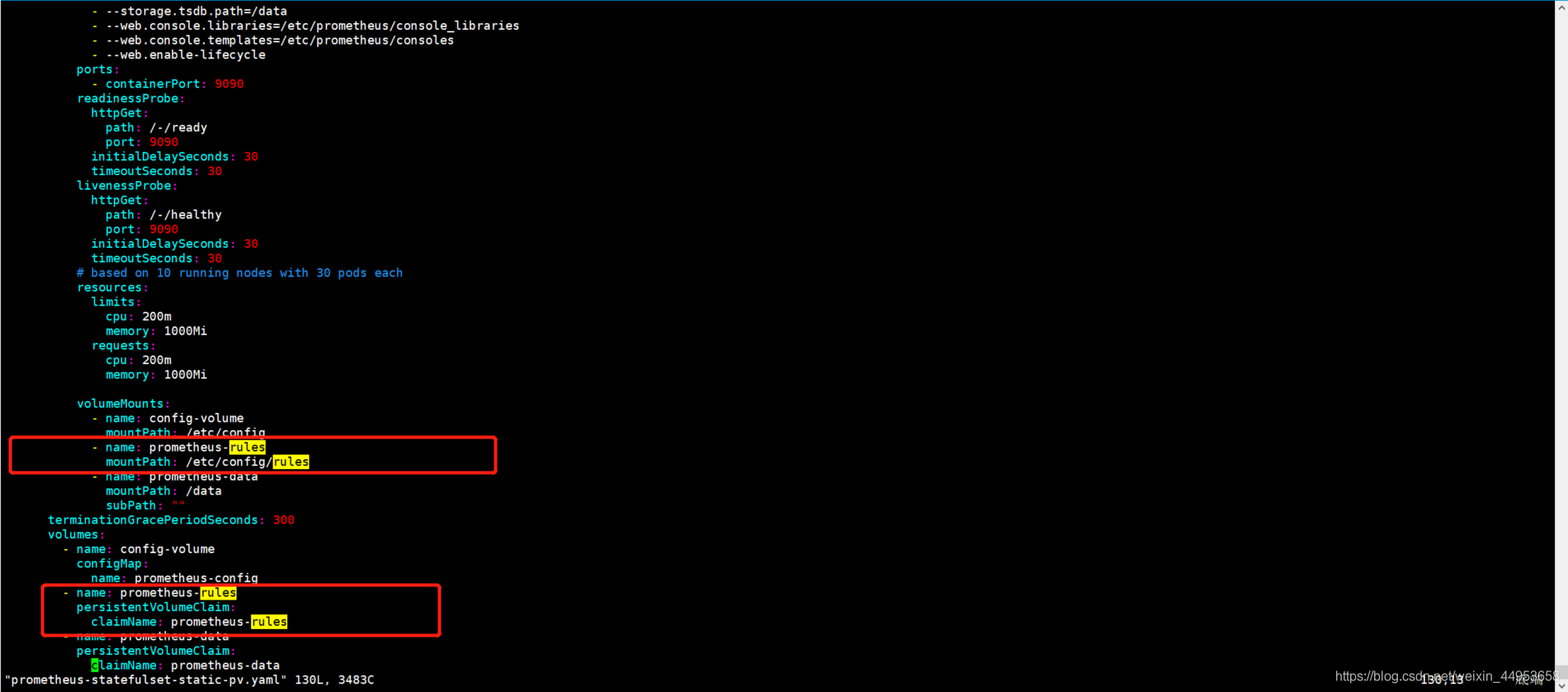

改造思路：在yaml中增加pv、pvc的配置，在將原來的storageclass配置項洗掉，在120行的volume中增加pvc的配置即可

[root@k8s-master ~/k8s/prometheus]# vim prometheus-statefulset-static-pv.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: prometheus-data
  namespace: prometheus
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 16Gi
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-prometheus
spec:
  capacity:
    storage: 16Gi
  accessModes:
    - ReadWriteOnce
  nfs:
    path: /data/prometheus/prometheus_data
    server: 192.168.16.105
---
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: prometheus
  namespace: kube-system
  labels:
    k8s-app: prometheus
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
    version: v2.2.1
spec:
  serviceName: "prometheus"
  replicas: 1
  podManagementPolicy: "Parallel"
  updateStrategy:
   type: "RollingUpdate"
  selector:
    matchLabels:
      k8s-app: prometheus
  template:
    metadata:
      labels:
        k8s-app: prometheus
    spec:
      priorityClassName: system-cluster-critical
      serviceAccountName: prometheus
      initContainers:
      - name: "init-chown-data"
        image: "busybox:latest"
        imagePullPolicy: "IfNotPresent"
        command: ["chown", "-R", "65534:65534", "/data"]
        volumeMounts:
        - name: prometheus-data
          mountPath: /data
          subPath: ""
      containers:
        - name: prometheus-server-configmap-reload
          image: "jimmidyson/configmap-reload:v0.1"
          imagePullPolicy: "IfNotPresent"
          args:
            - --volume-dir=/etc/config
            - --webhook-url=http://localhost:9090/-/reload
          volumeMounts:
            - name: config-volume
              mountPath: /etc/config
              readOnly: true
          resources:
            limits:
              cpu: 10m
              memory: 10Mi
            requests:
              cpu: 10m
              memory: 10Mi

        - name: prometheus-server
          image: "prom/prometheus:v2.23.0"
          imagePullPolicy: "IfNotPresent"
          args:
            - --config.file=/etc/config/prometheus.yml
            - --storage.tsdb.path=/data
            - --web.console.libraries=/etc/prometheus/console_libraries
            - --web.console.templates=/etc/prometheus/consoles
            - --web.enable-lifecycle
          ports:
            - containerPort: 9090
          readinessProbe:
            httpGet:
              path: /-/ready
              port: 9090
            initialDelaySeconds: 30
            timeoutSeconds: 30
          livenessProbe:
            httpGet:
              path: /-/healthy
              port: 9090
            initialDelaySeconds: 30
            timeoutSeconds: 30
          # based on 10 running nodes with 30 pods each
          resources:
            limits:
              cpu: 200m
              memory: 1000Mi
            requests:
              cpu: 200m
              memory: 1000Mi

          volumeMounts:
            - name: config-volume
              mountPath: /etc/config
            - name: prometheus-data
              mountPath: /data
              subPath: ""
      terminationGracePeriodSeconds: 300
      volumes:
        - name: config-volume
          configMap:
            name: prometheus-config
        - name: prometheus-data
          persistentVolumeClaim:
            claimName: prometheus-data

3.4.2.創建statefulset資源

[root@k8s-master ~/k8s/prometheus]# kubectl create -f  prometheus-statefulset-static-pv.yaml
persistentvolumeclaim/prometheus-data created
persistentvolume/pv-prometheus created
statefulset.apps/prometheus created

3.5.創建service資源

3.5.1.修改service資源支持nodeport

[root@k8s-master ~/k8s/prometheus]# vim prometheus-service.yaml
kind: Service
apiVersion: v1
metadata:
  name: prometheus
  namespace: prometheus
  labels:
    kubernetes.io/name: "Prometheus"
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
spec:
  type: NodePort
  ports:
    - name: http
      port: 9090
      protocol: TCP
      targetPort: 9090
  selector:
    k8s-app: prometheus

3.5.2.創建service資源

[root@k8s-master ~/k8s/prometheus]# kubectl create -f prometheus-service.yaml
service/prometheus created

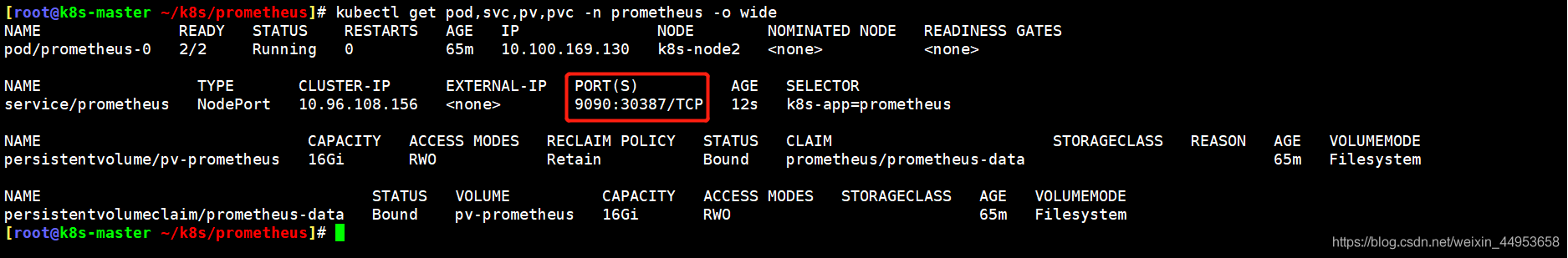

3.6.查看創建的prometheus所有資源型別

[root@k8s-master ~/k8s/prometheus]# kubectl get pod,svc,pv,pvc -n prometheus -o wide

主要訪問30387埠看到prometheus

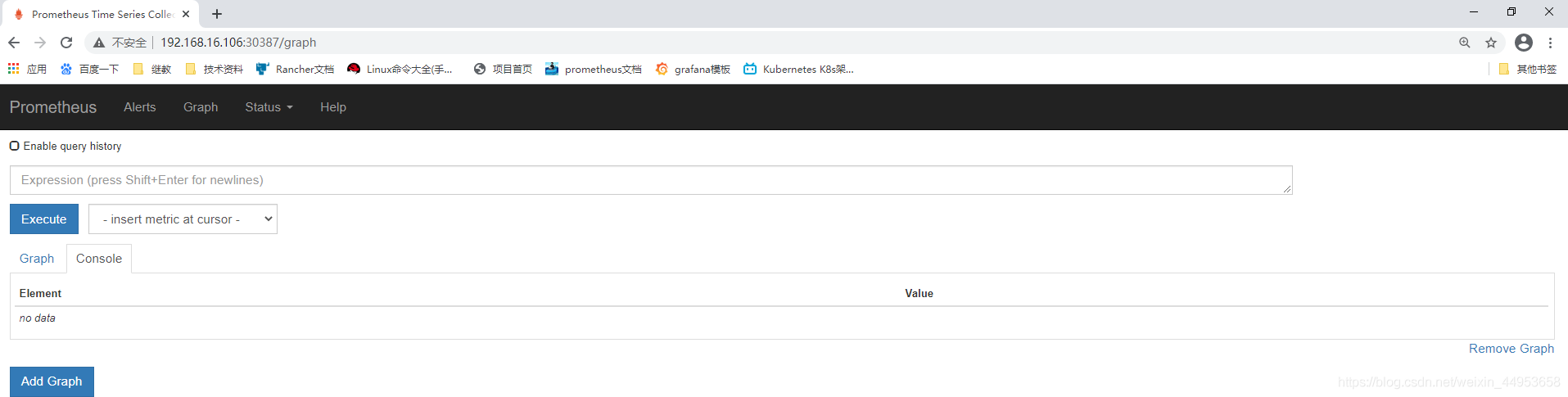

3.7.訪問prometheus

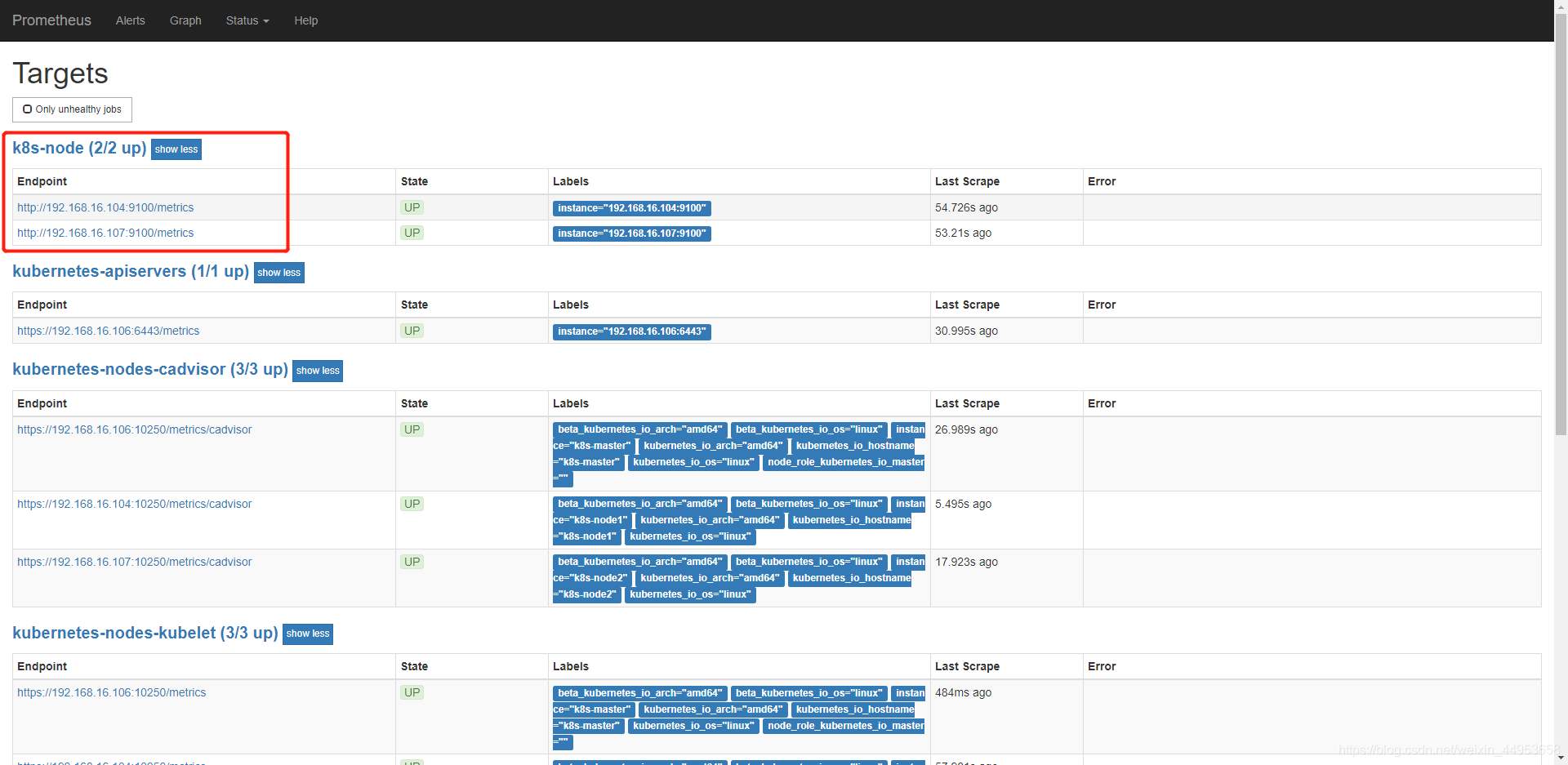

使用任意node節點的ip加30387埠即可訪問：http://192.168.16.106:30387/

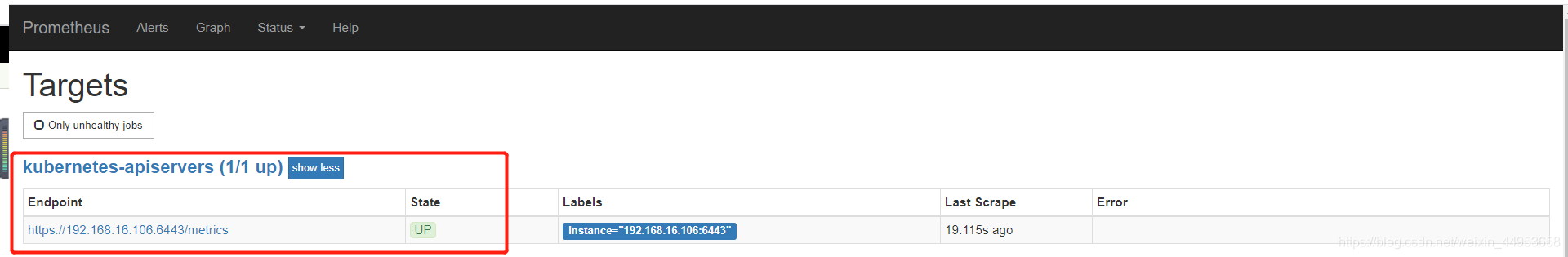

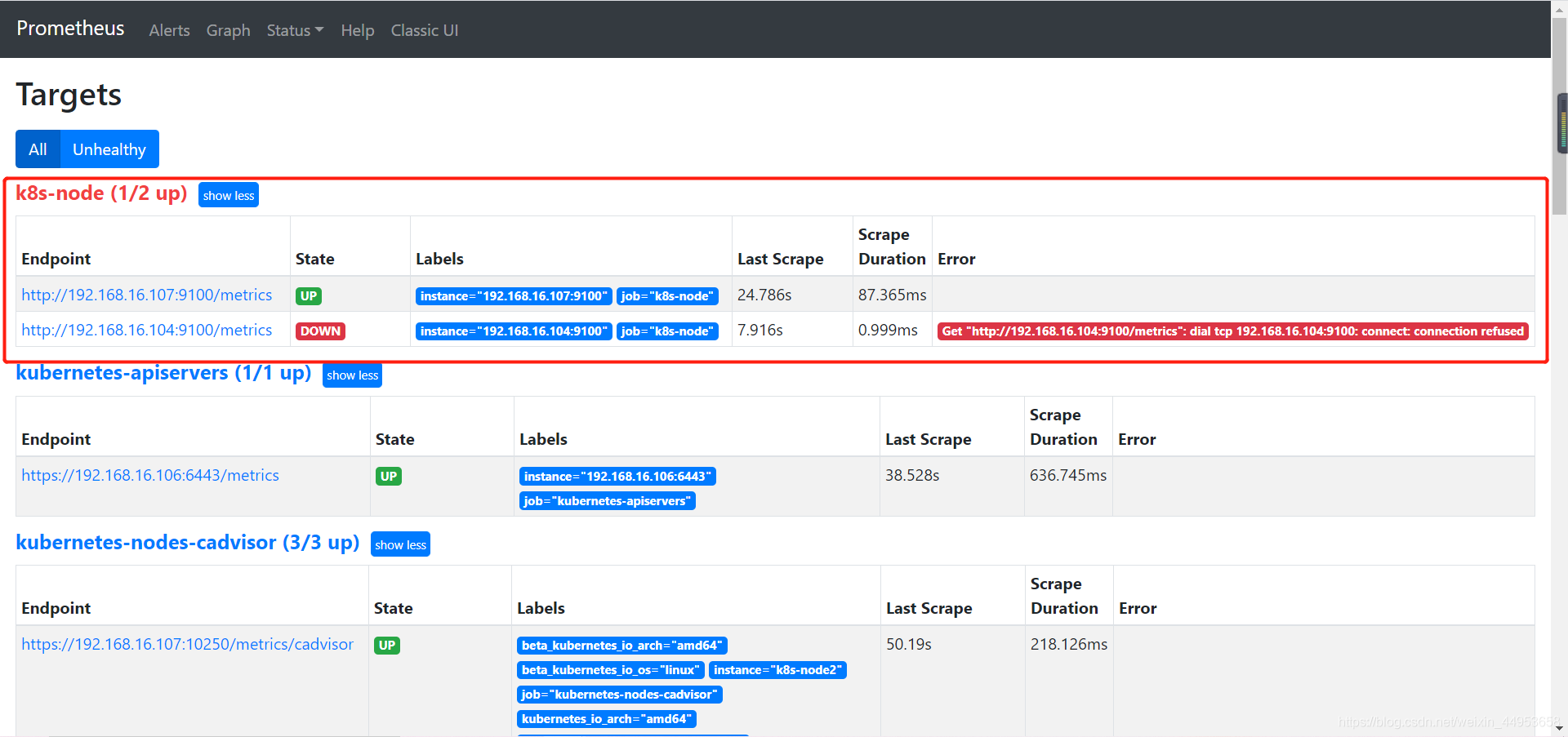

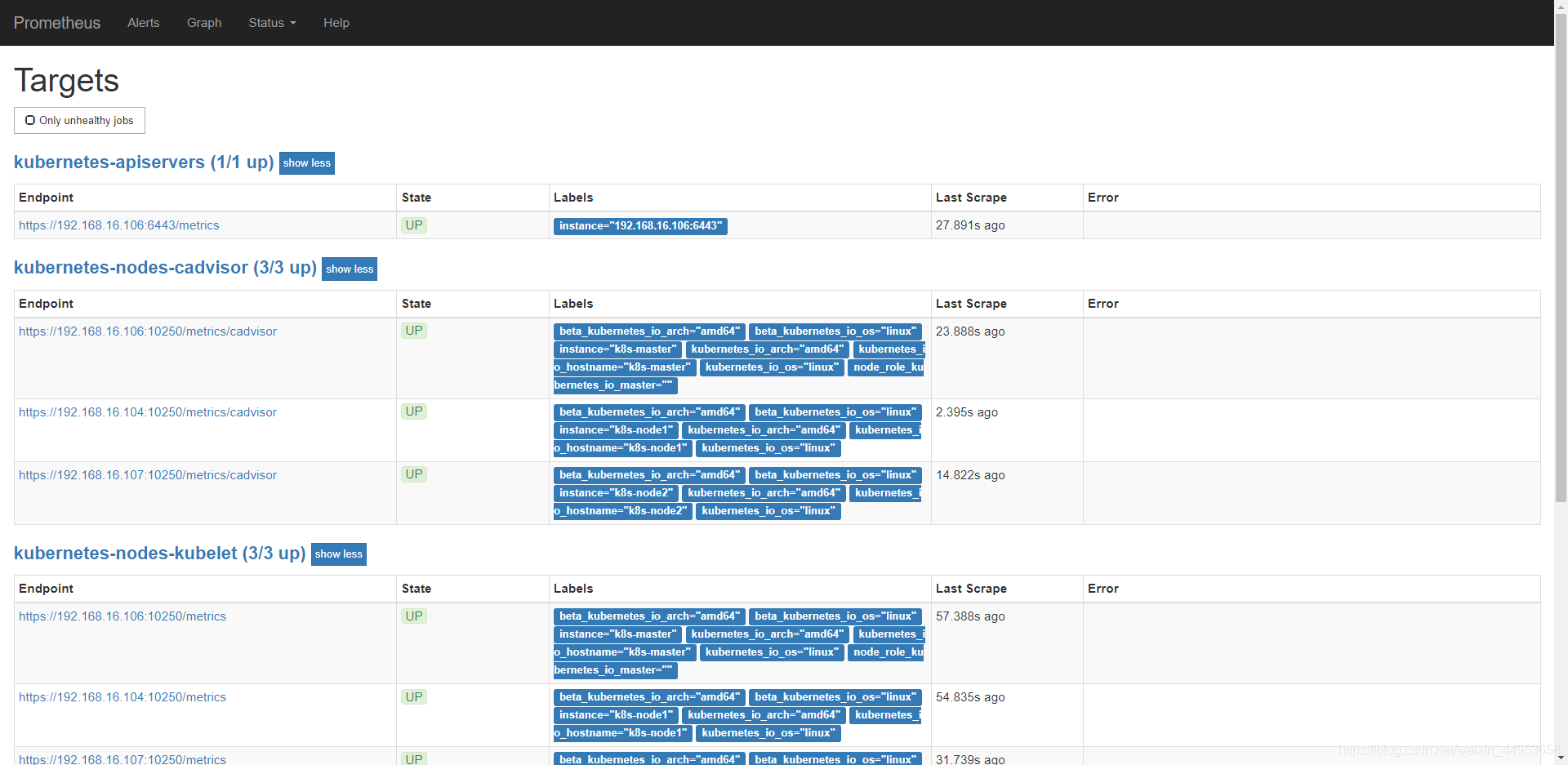

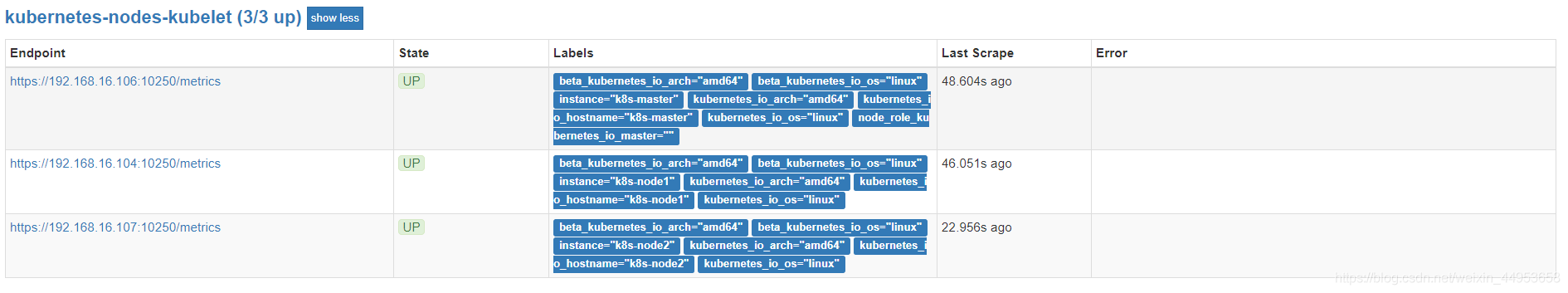

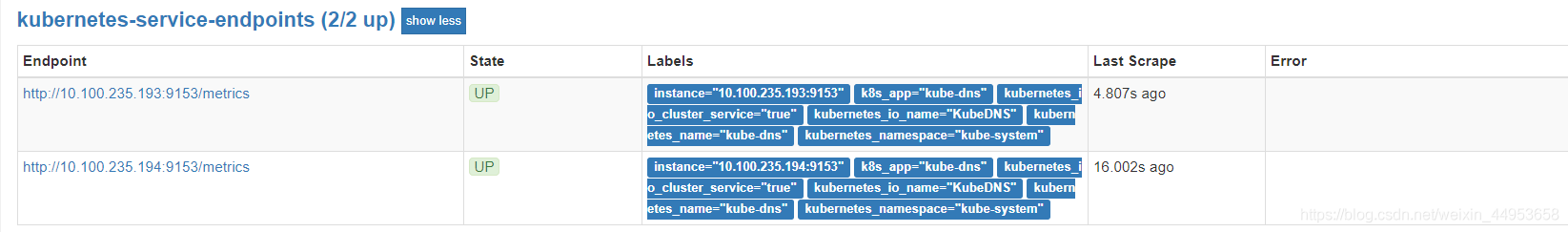

查看監控主機

可以看到已經有很多了，這些配置都是configmap資源中配置的

3.8.prometheus組態檔解釋

3.8.1.進入prometheus容器

語法：kubectl exec -it pod名 進入的環境 -c 容器名稱 -n 命名空間

[root@k8s-master ~/k8s/prometheus]# kubectl exec -it prometheus-0 sh -c prometheus-server -n prometheus
/prometheus $

組態檔位于:/etc/config/prometheus.yml

tsdb存盤位于:/data

3.8.2.組態檔解釋

/prometheus $ more /etc/config/prometheus.yml

scrape_configs:
- job_name: prometheus
  static_configs:
  - targets:
    - localhost:9090

靜態配置，將本機加到了prometheus監控，這個localhost就是運行prometheus容器的地址

kubernetes-apiservers自動發現

將apiserver的地址進行暴露并獲取監控指標

- job_name: kubernetes-apiservers
  kubernetes_sd_configs:
  - role: endpoints
  relabel_configs:
  - action: keep
    regex: default;kubernetes;https
    source_labels:
    - __meta_kubernetes_namespace
    - __meta_kubernetes_service_name
    - __meta_kubernetes_endpoint_port_name
  scheme: https
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: true
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

k8s的node節點自動發現

自動發現k8s中的所有node節點并進行監控

- job_name: kubernetes-nodes-cadvisor
  kubernetes_sd_configs:
  - role: node
  relabel_configs:
  - action: labelmap
    regex: __meta_kubernetes_node_label_(.+)
  - target_label: __metrics_path__
    replacement: /metrics/cadvisor
  scheme: https
  tls_config:
    ca_file: /var/run/secrets/kubernetes.io/serviceaccount/ca.crt
    insecure_skip_verify: true
  bearer_token_file: /var/run/secrets/kubernetes.io/serviceaccount/token

發現endpoint的資源

主要是發現endpoint資源型別的pod，可以通過kubectl get ep查看誰是endpoint資源

- job_name: kubernetes-service-endpoints
  kubernetes_sd_configs:
  - role: endpoints
  relabel_configs:
  - action: keep
    regex: true
    source_labels:
    - __meta_kubernetes_service_annotation_prometheus_io_scrape
  - action: replace
    regex: (https?)
    source_labels:
    - __meta_kubernetes_service_annotation_prometheus_io_scheme
    target_label: __scheme__
  - action: replace
    regex: (.+)
    source_labels:
    - __meta_kubernetes_service_annotation_prometheus_io_path
    target_label: __metrics_path__
  - action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    source_labels:
    - __address__
    - __meta_kubernetes_service_annotation_prometheus_io_port
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_service_label_(.+)
  - action: replace
    source_labels:
    - __meta_kubernetes_namespace
    target_label: kubernetes_namespace
  - action: replace
    source_labels:
    - __meta_kubernetes_service_name
    target_label: kubernetes_name

發現services

- job_name: kubernetes-services
  kubernetes_sd_configs:
  - role: service
  metrics_path: /probe
  params:
    module:
    - http_2xx
  relabel_configs:
  - action: keep
    regex: true
    source_labels:
    - __meta_kubernetes_service_annotation_prometheus_io_probe
  - source_labels:
    - __address__
    target_label: __param_target
  - replacement: blackbox
    target_label: __address__
  - source_labels:
    - __param_target
    target_label: instance
  - action: labelmap
    regex: __meta_kubernetes_service_label_(.+)
  - source_labels:
    - __meta_kubernetes_namespace
    target_label: kubernetes_namespace
  - source_labels:
    - __meta_kubernetes_service_name
    target_label: kubernetes_name

發現pod

- job_name: kubernetes-pods
  kubernetes_sd_configs:
  - role: pod
  relabel_configs:
  - action: keep
    regex: true
    source_labels:
    - __meta_kubernetes_pod_annotation_prometheus_io_scrape
  - action: replace
    regex: (.+)
    source_labels:
    - __meta_kubernetes_pod_annotation_prometheus_io_path
    target_label: __metrics_path__
  - action: replace
    regex: ([^:]+)(?::\d+)?;(\d+)
    replacement: $1:$2
    source_labels:
    - __address__
    - __meta_kubernetes_pod_annotation_prometheus_io_port
    target_label: __address__
  - action: labelmap
    regex: __meta_kubernetes_pod_label_(.+)
  - action: replace
    source_labels:
    - __meta_kubernetes_namespace
    target_label: kubernetes_namespace
  - action: replace
    source_labels:
    - __meta_kubernetes_pod_name
    target_label: kubernetes_pod_name

3.9.k8s metrics頁面

metrics頁面訪問如下也沒關系，metrics貌似只能集群內部進行訪問

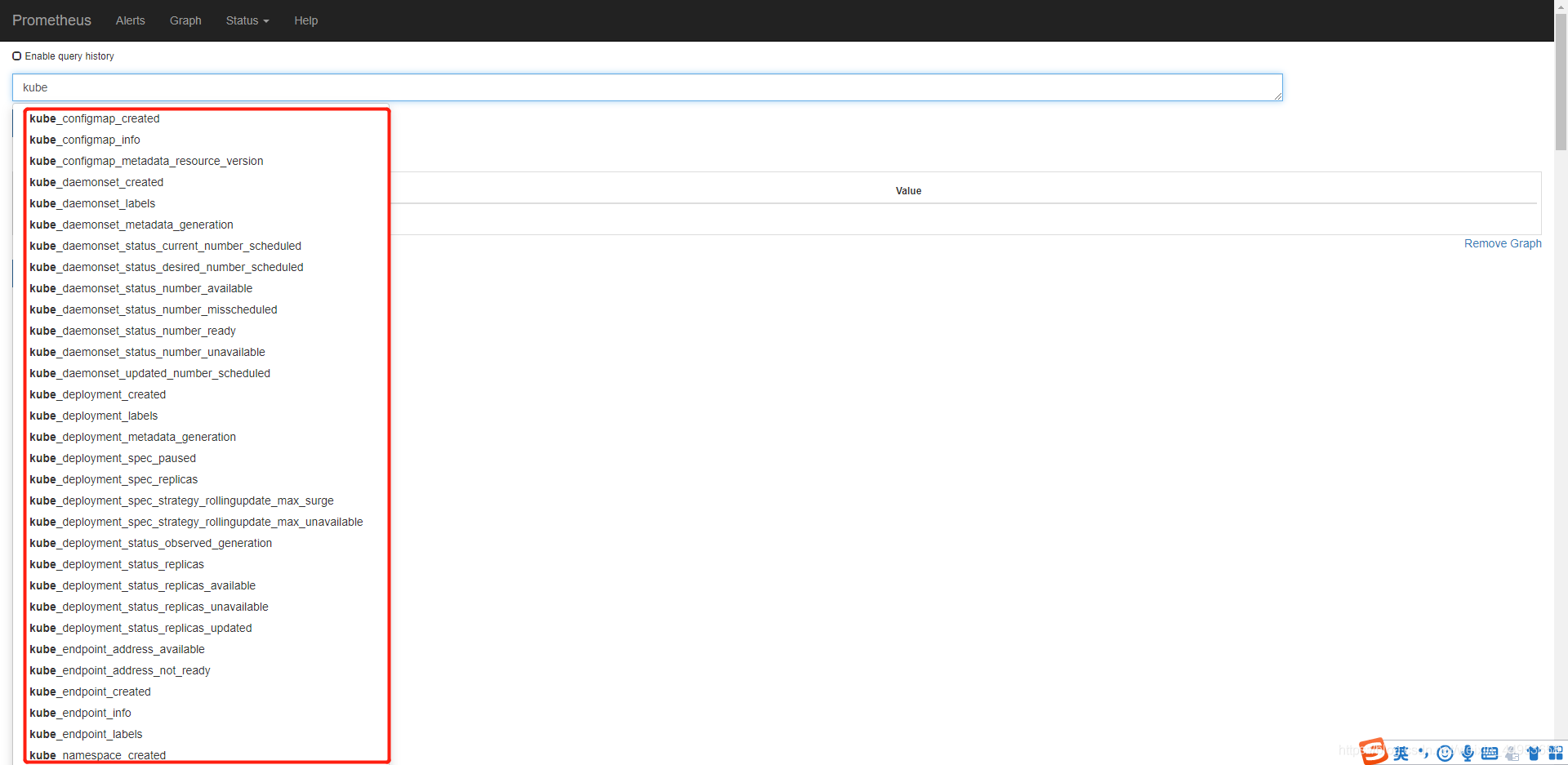

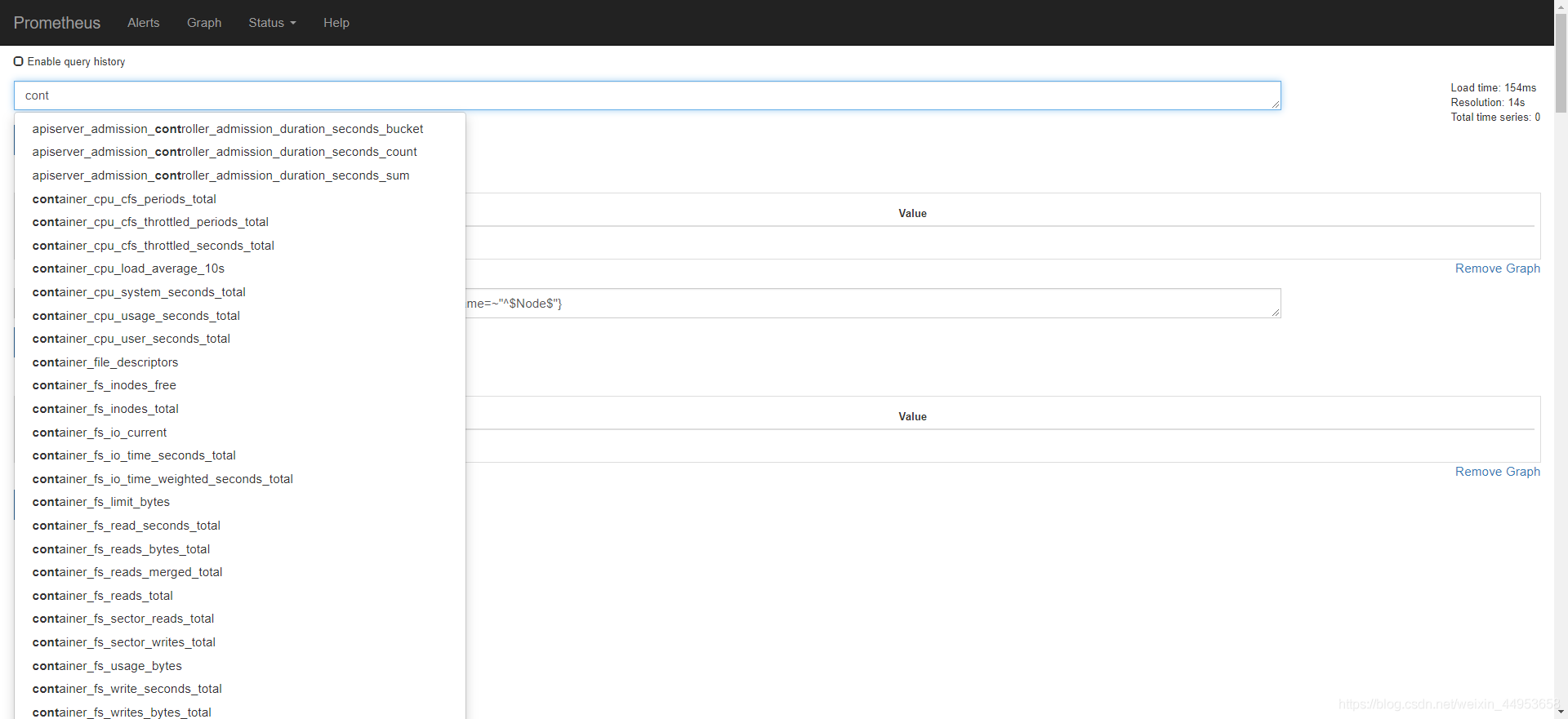

只要能在prometheus搜索到container資料就可以

4.在k8s中部署grafana

4.1.撰寫granfana-pv-pvc資源

1.撰寫資源
[root@k8s-master ~/k8s/prometheus3]# vim grafana_pv_pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: grafana-ui-data
  namespace: grafana-ui
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 3Gi
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-grafana-ui-data
  namespace: grafana-ui
spec:
  capacity:
    storage: 3Gi
  accessModes:
    - ReadWriteOnce
  nfs:
    path: /data/prometheus/grafana
    server: 192.168.16.105

2.在nfs上創建對應的掛載點
[root@nfs ~]# mkdir /data/prometheus/grafana

4.2.撰寫granfana-statefulset資源

[root@k8s-master ~/k8s/prometheus3]# vim grafana_statefulset.yaml
apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: grafana-ui
  namespace: grafana-ui
spec:
  serviceName: "grafana-ui"
  replicas: 1
  selector:
    matchLabels:
      app: grafana-ui
  template:
    metadata:
      labels:
        app: grafana-ui
    spec:
      containers:
      - name: grafana-ui
        image: grafana/grafana:6.6.2
        imagePullPolicy: "IfNotPresent"
        ports:
          - containerPort: 3000
            protocol: TCP
        resources:
          limits:
            cpu: 100m
            memory: 256Mi
          requests:
            cpu: 100m
            memory: 256Mi
        volumeMounts:
          - name: grafana-ui-data
            mountPath: /var/lib/grafana
            subPath: ""
      securityContext:
        fsGroup: 472
        runAsUser: 472
      volumes:
        - name: grafana-ui-data
          persistentVolumeClaim:
            claimName: grafana-ui-data

4.3.撰寫granfana-svc資源

[root@k8s-master ~/k8s/prometheus3]# vim grafana_svc.yaml
apiVersion: v1
kind: Service
metadata:
  name: grafana-ui
  namespace: grafana-ui
spec:
  type: NodePort
  ports:
    - name: http
      port: 3000
      protocol: TCP
      targetPort: 3000
  selector:
    app: grafana-ui

4.4.k8s創建grafana

[root@k8s-master ~/k8s/prometheus3]# kubectl create -f grafana_pv_pvc.yaml
persistentvolumeclaim "grafana-ui-data" created
persistentvolume "pv-grafana-ui-data" created
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f prometheus-statefulset-static-pv.yaml
persistentvolumeclaim/prometheus-data created
persistentvolume/pv-prometheus created
statefulset.apps/prometheus created
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f grafana_svc.yaml
service/grafana-ui created

4.5.查看資源運行狀態

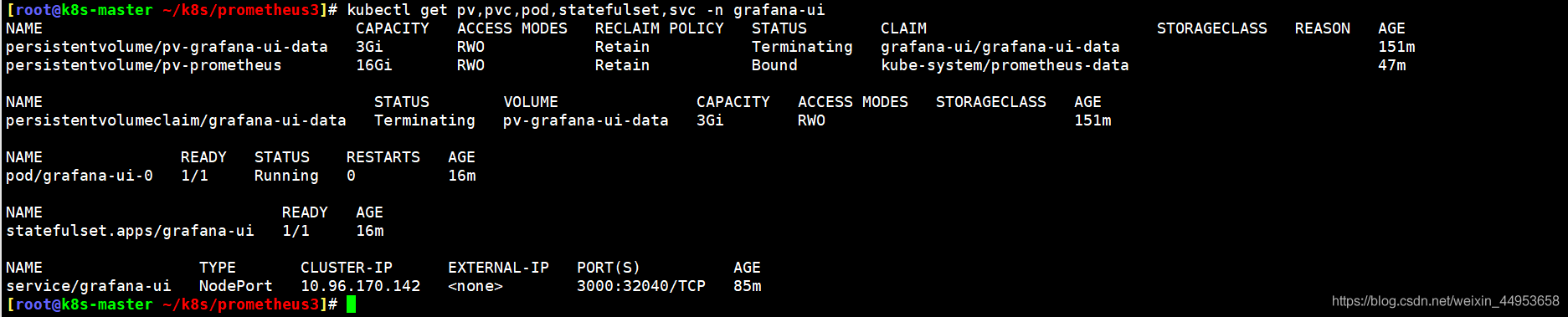

[root@k8s-master ~/k8s/prometheus3]# kubectl get pv,pvc,pod,statefulset,svc -n grafana-ui
NAME                                  CAPACITY   ACCESS MODES   RECLAIM POLICY   STATUS        CLAIM                         STORAGECLASS   REASON   AGE
persistentvolume/pv-grafana-ui-data   3Gi        RWO            Retain           Terminating   grafana-ui/grafana-ui-data                            151m
persistentvolume/pv-prometheus        16Gi       RWO            Retain           Bound         kube-system/prometheus-data                           47m

NAME                                    STATUS        VOLUME               CAPACITY   ACCESS MODES   STORAGECLASS   AGE
persistentvolumeclaim/grafana-ui-data   Terminating   pv-grafana-ui-data   3Gi        RWO                           151m

NAME               READY   STATUS    RESTARTS   AGE
pod/grafana-ui-0   1/1     Running   0          16m

NAME                          READY   AGE
statefulset.apps/grafana-ui   1/1     16m

NAME                 TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)          AGE
service/grafana-ui   NodePort   10.96.170.142   <none>        3000:32040/TCP   85m

4.6.登陸grafana

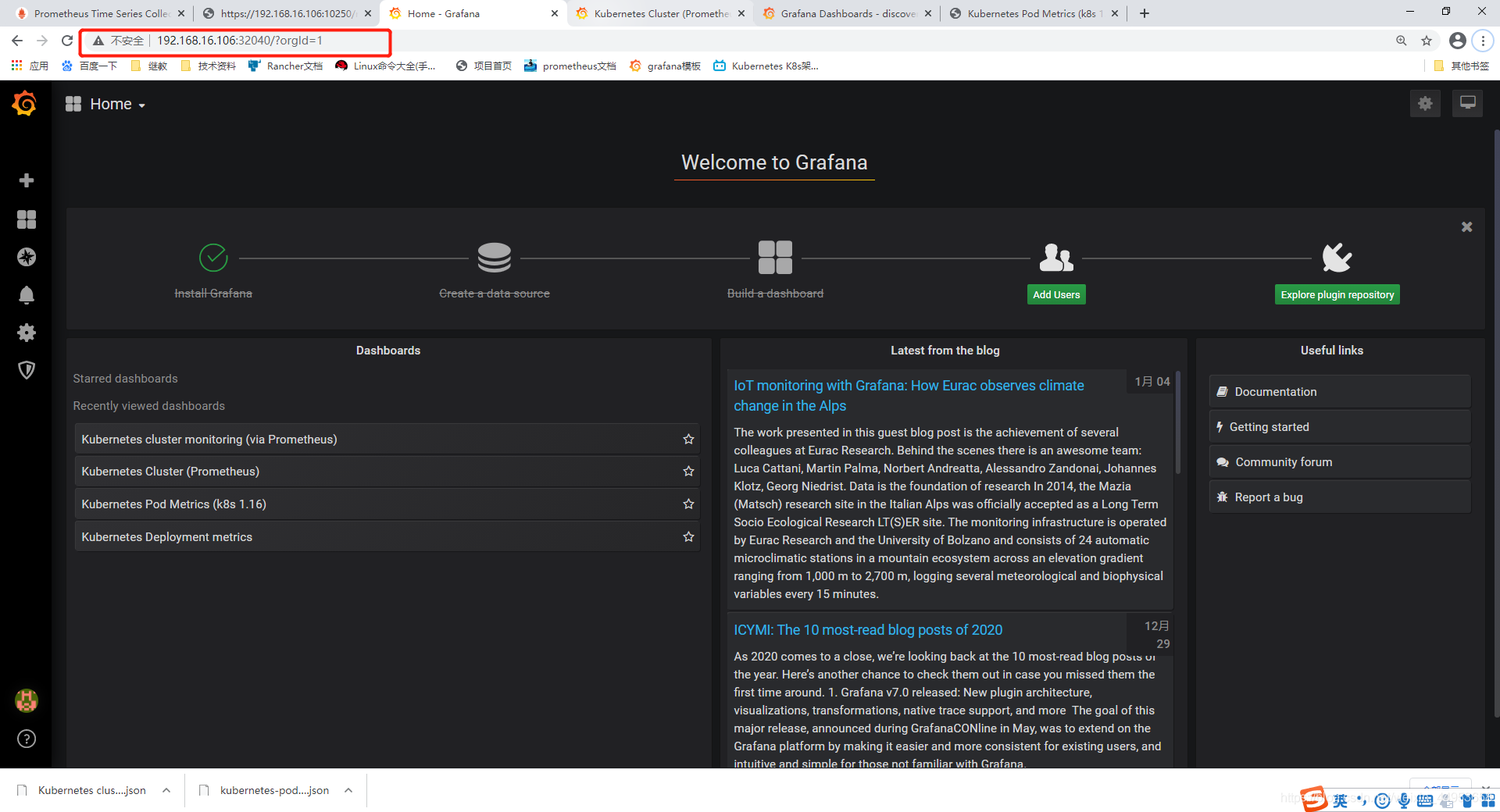

訪問：集群任意ip和32040埠即可訪問

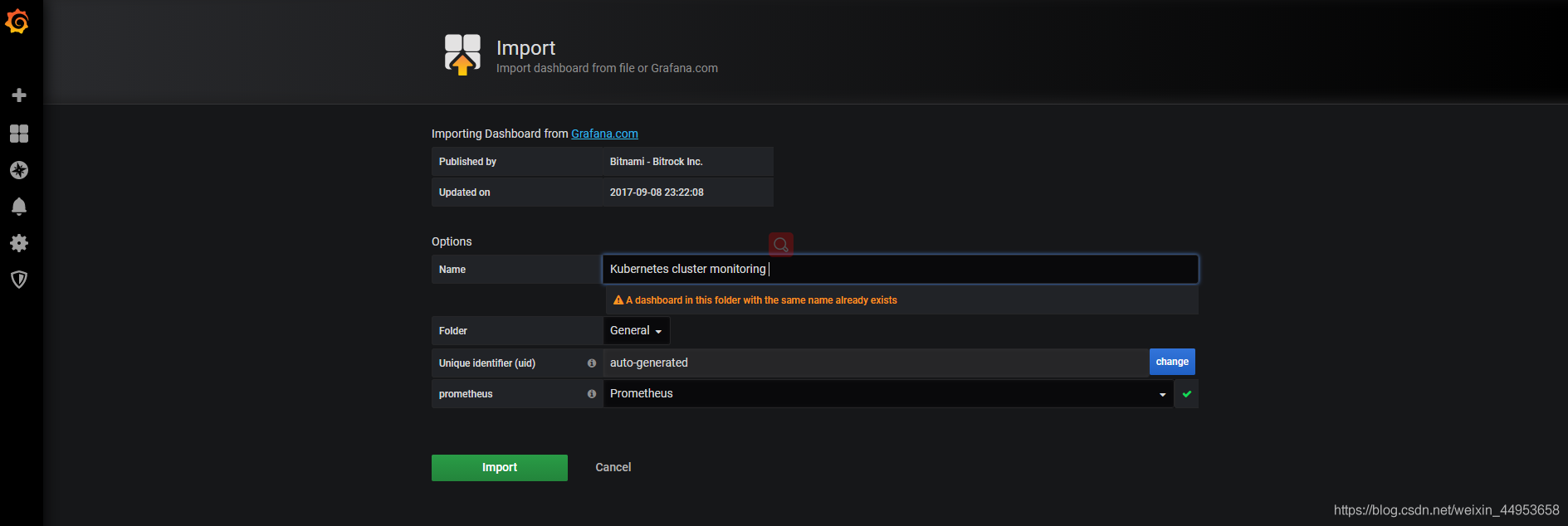

4.7.匯入k8s資源監控pod資源模板

推薦模板：

• 集群資源監控：3119
• 資源狀態監控：6417
• node監控：9276

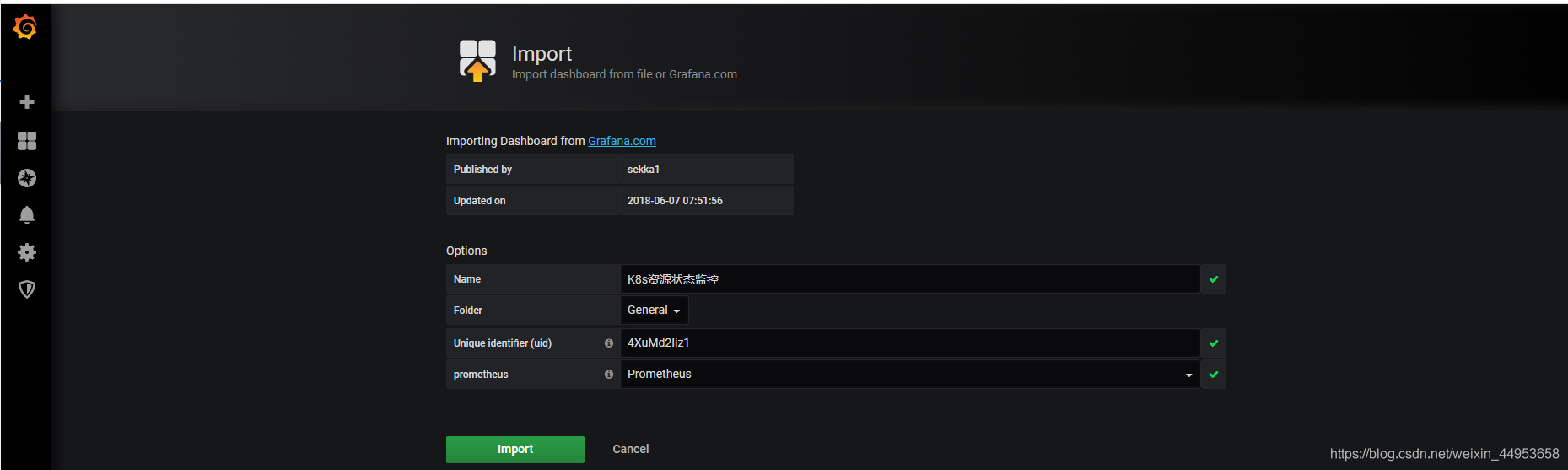

匯入成功

4.8.解決模板運算式問題無法展現所有pod

4.8.1.問題描述

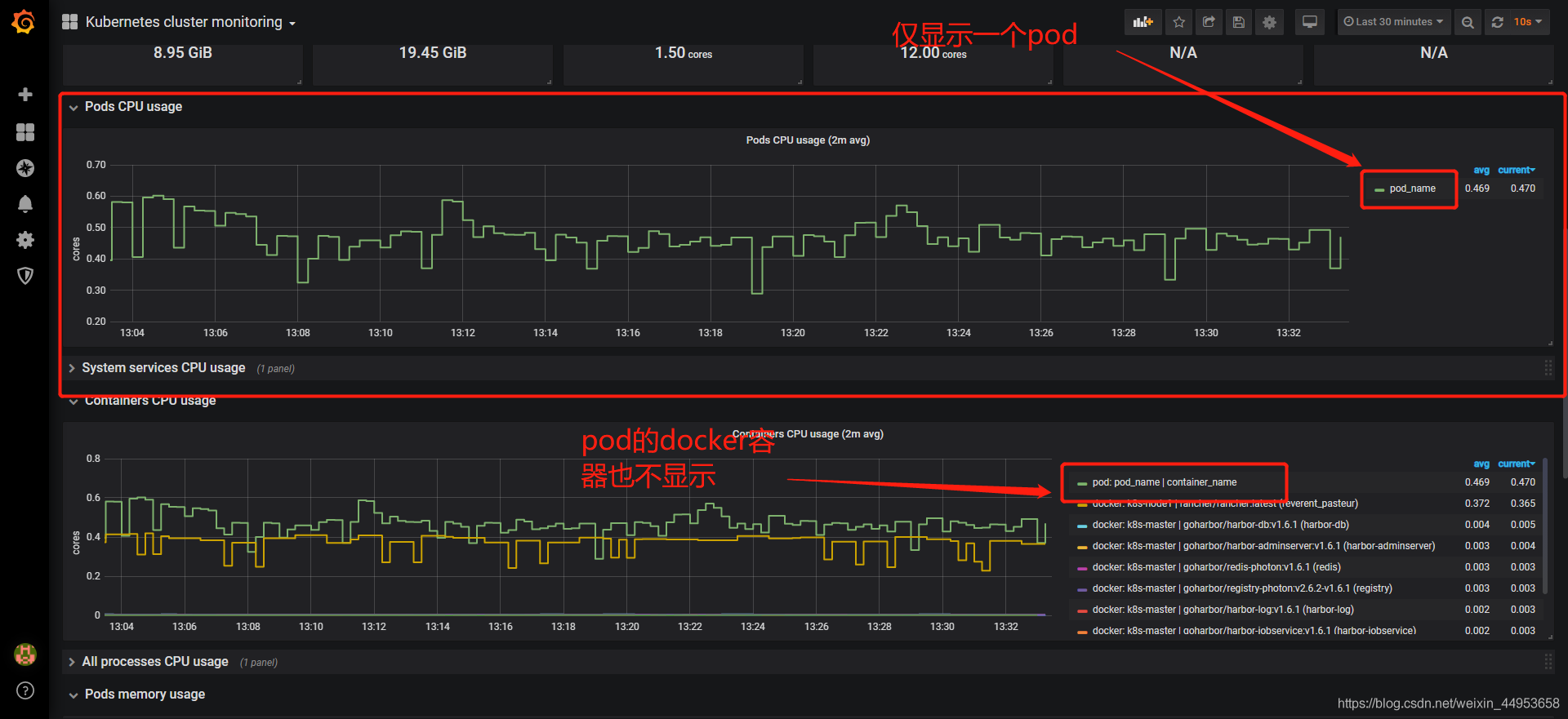

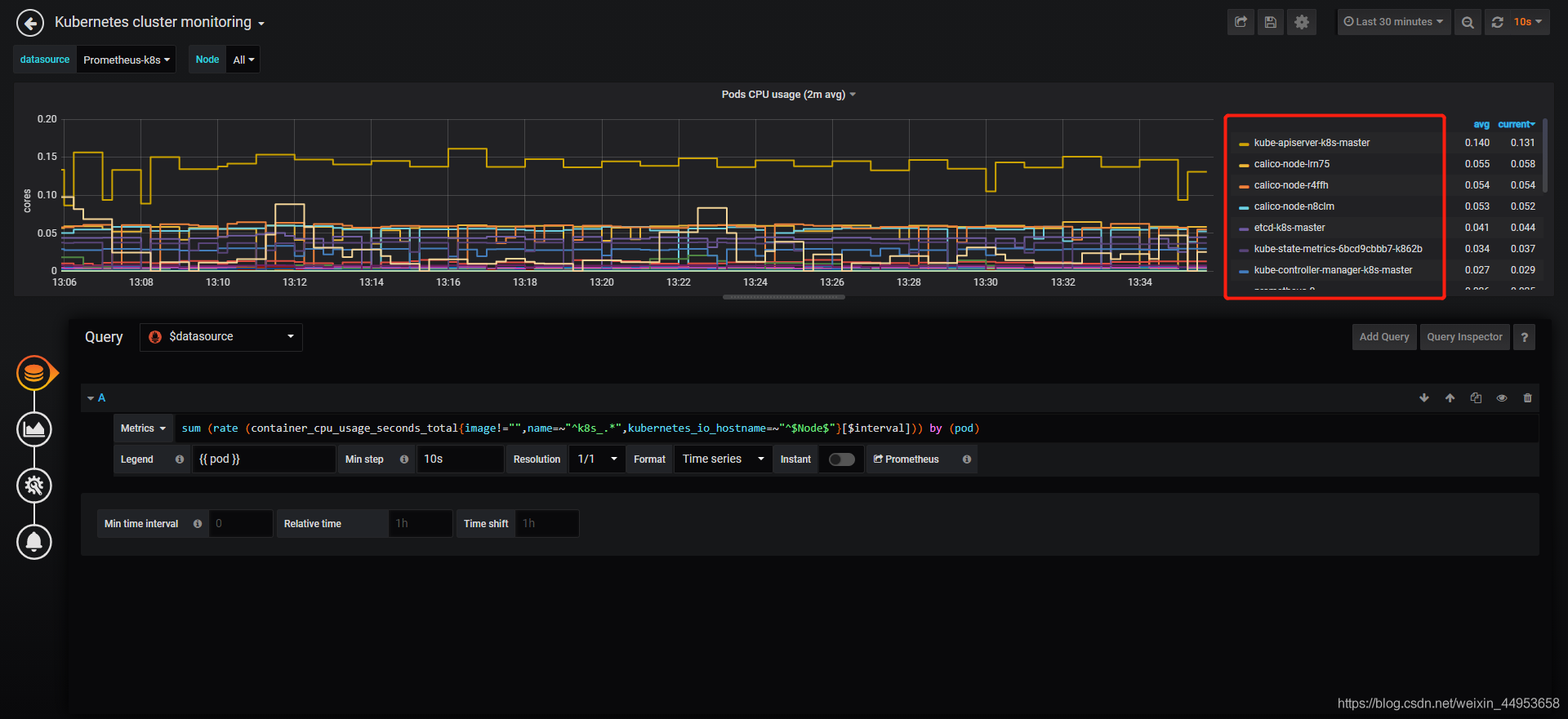

模板中的圖形關于pod和docker的全部有問題，僅單單顯示一個pod

4.8.2.問題解決

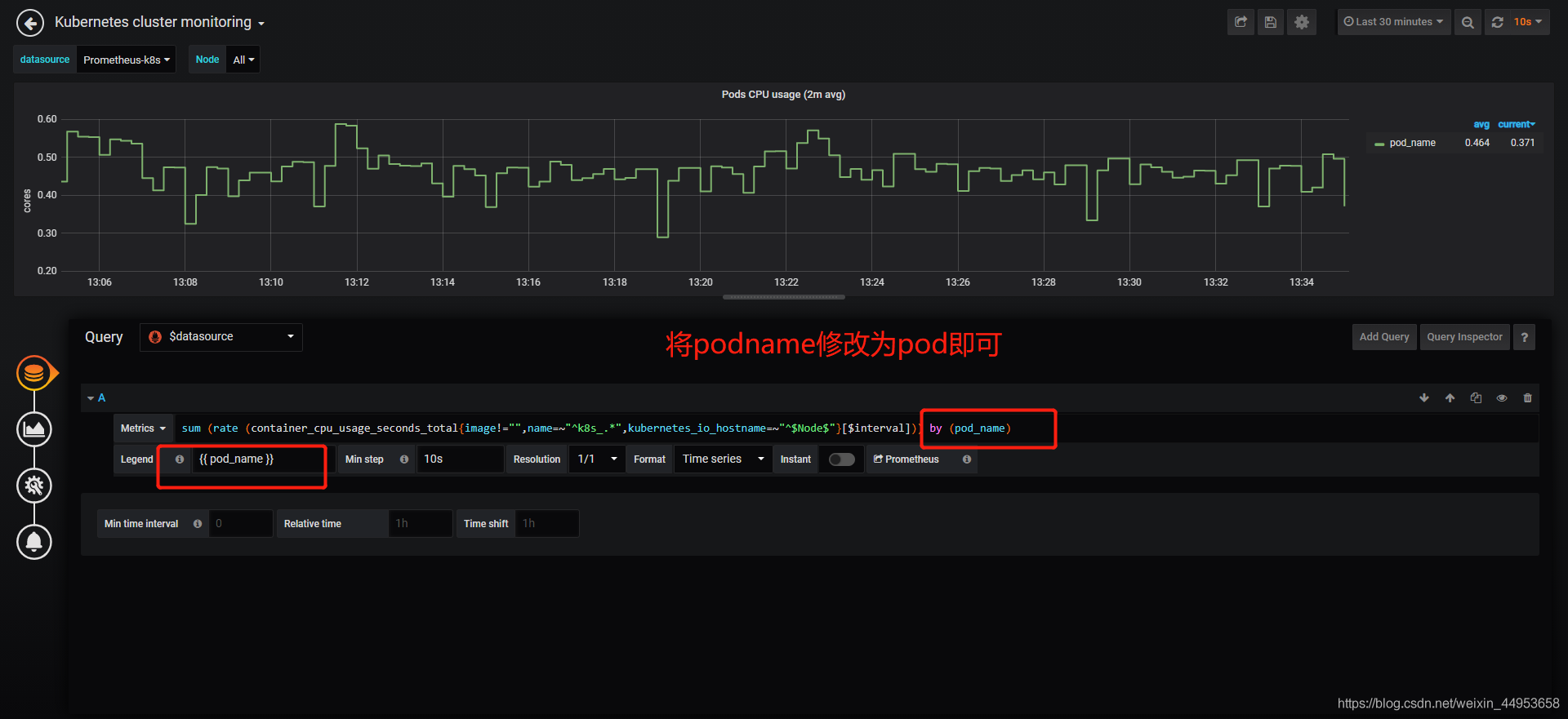

修改他們的運算式就可以了，將pod_name修改為pod

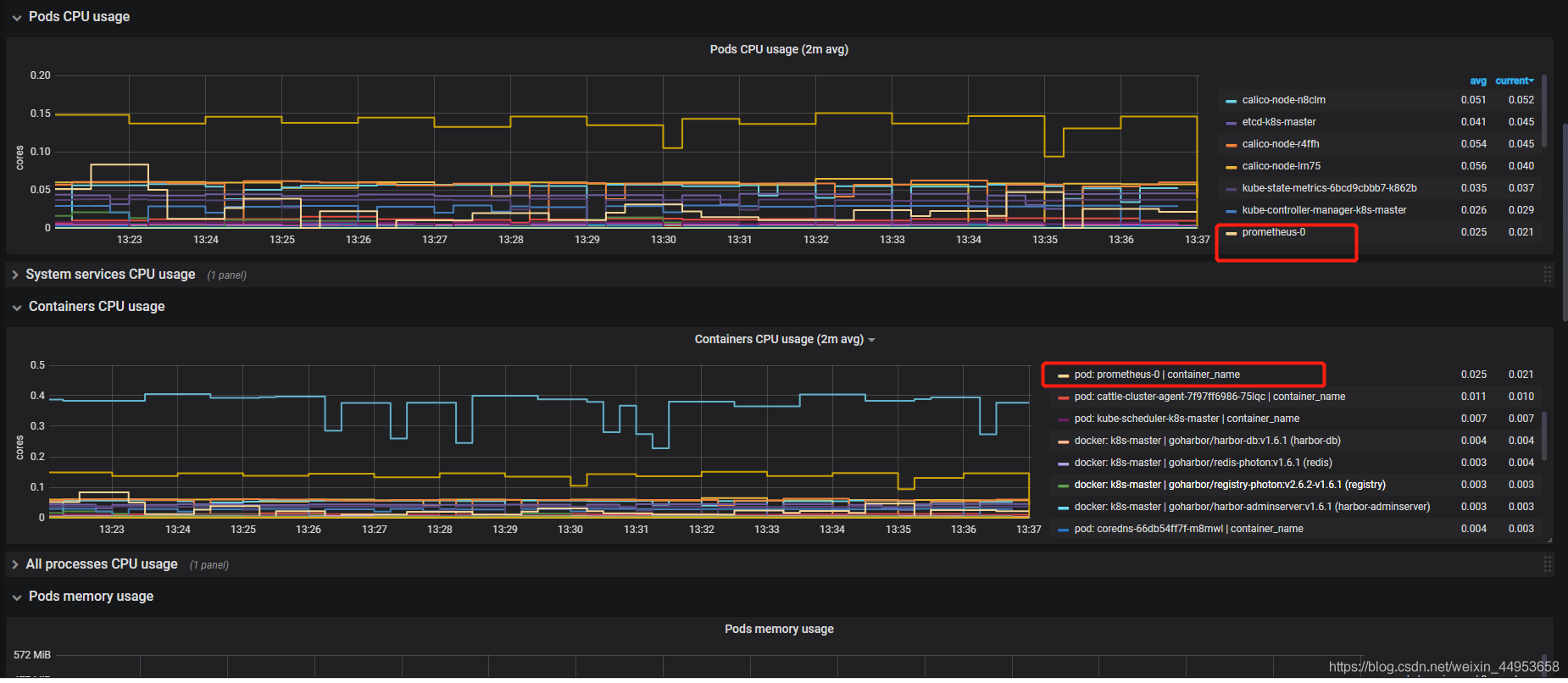

修改為立馬顯示出所有pod，所有關于pod和docker的都是這么改

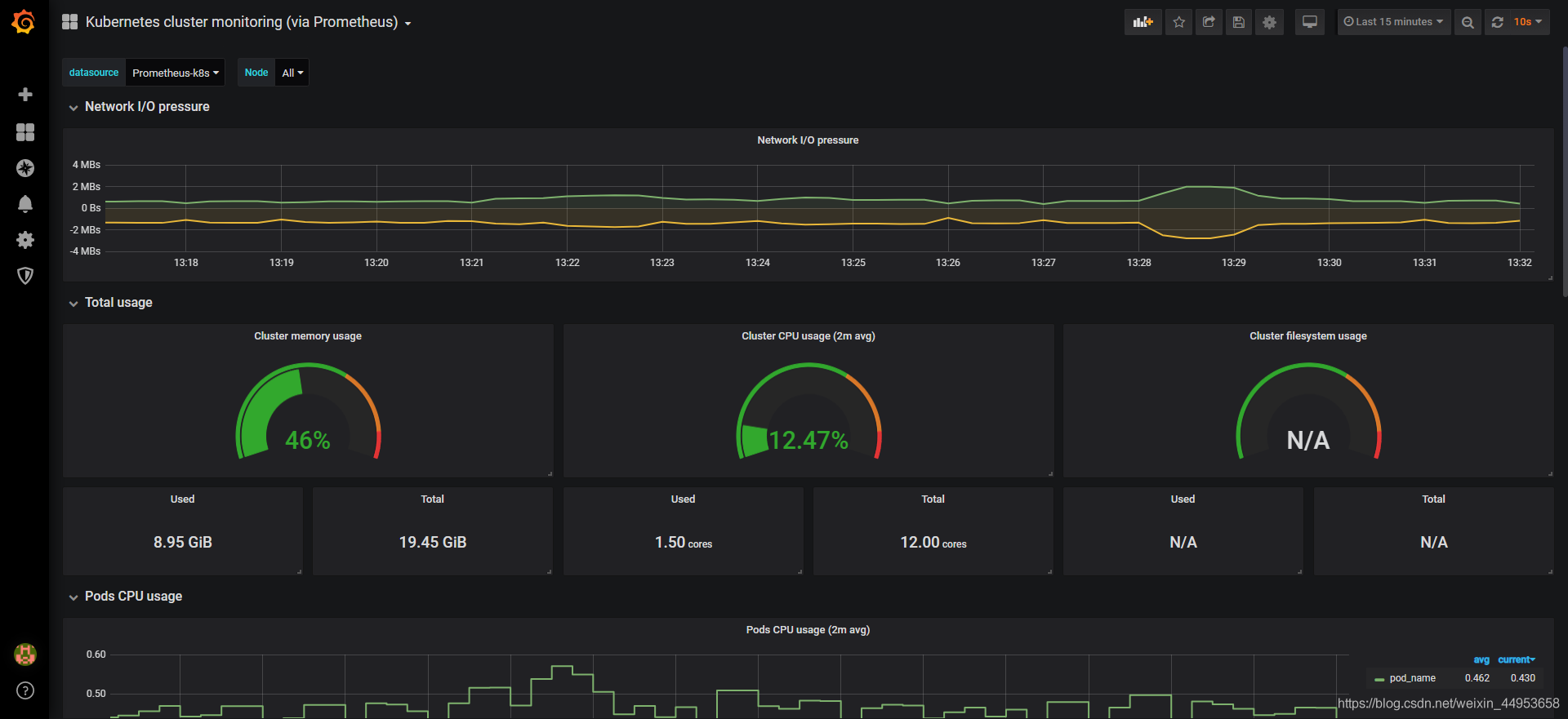

最終展示效果

5.監控k8s node節點

對于node節點的監控我們不用部署在k8s里，直接在每臺node機器上安裝node_exporter即可

5.1.撰寫一鍵部署node_exporter腳本

[root@k8s-master ~/k8s/prometheus3]# vim install_node_exportes.sh
#!/bin/bash
#批量安裝node_exporter
soft_dir=/root/soft
if [ ! -e $soft_dir ];then
        mkdir $soft_dir
fi

netstat -lnpt | grep 9100
if [ $? -eq 0 ];then
        use=`netstat -lnpt | grep 9100 | awk -F/ '{print $NF}'`
        echo "9100埠已經被占用，占用者是 $use"
        exit 1
fi

cd $soft_dir
wget http://192.168.16.106:888/prometheus/node_exporter-1.0.1.linux-amd64.tar.gz
tar xf node_exporter-1.0.1.linux-amd64.tar.gz
mv node_exporter-1.0.1.linux-amd64 /usr/local/node_exporter

cat <<EOF >/usr/lib/systemd/system/node_exporter.service
[Unit]
Description=https://prometheus.io

[Service]
Restart=on-failure
ExecStart=/usr/local/node_exporter/node_exporter --collector.systemd --collector.systemd.unit-whitelist=(docker|kubelet|node_exporter).service

[Install]
WantedBy=multi-user.target
EOF

systemctl daemon-reload
systemctl enable node_exporter
systemctl restart node_exporter

netstat -lnpt | grep 9100

if [ $? -eq 0 ];then
        ehoc "node_eporter install finish..."
fi

5.2.對k8s的node進行執行node_exporter腳本

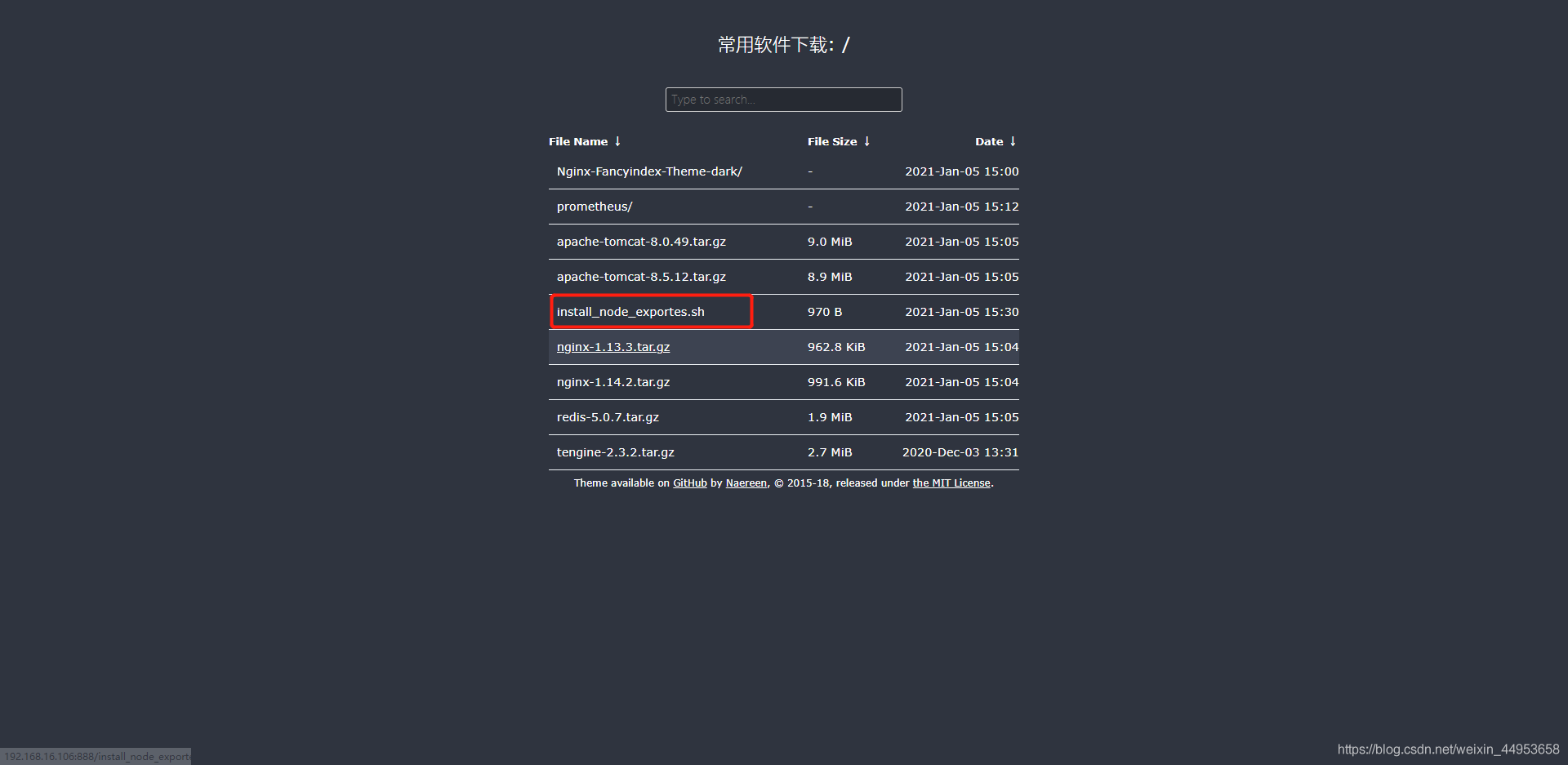

在這里下載腳本用就行了

[root@k8s-node1 ~]# wget http://192.168.16.106:888/install_node_exportes.sh

[root@k8s-node1 ~]# sh install_node_exportes.sh

[root@k8s-node1 ~]#  netstat -lnpt | grep 9100
tcp6       0      0 :::9100                 :::*                    LISTEN      14906/node_exporter

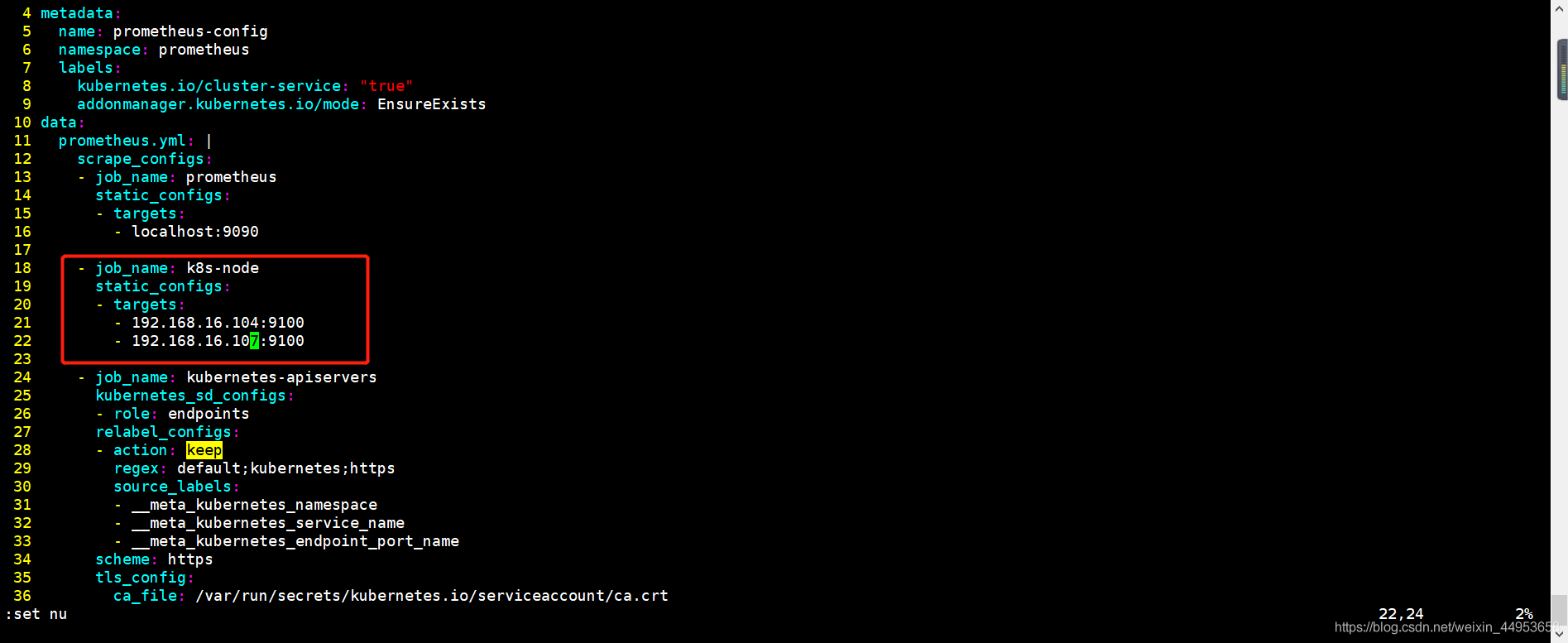

5.3.在prometheus的configmap資源中增加node節點配置

[root@k8s-master ~/k8s/prometheus3]# vim prometheus-configmap.yaml
    - job_name: k8s-node
      static_configs:
      - targets:
        - 192.168.16.104:9100
        - 192.168.16.107:9100

更新配置

更新完配置，prometheus頁面會立馬顯示，因此每當configmap一修改，prometheus容器就會多載

[root@k8s-master ~/k8s/prometheus3]# kubectl apply -f prometheus-configmap.yaml
configmap/prometheus-config created

成功添加node監控

5.4.匯入k8s node主機監控模板

node監控：9276

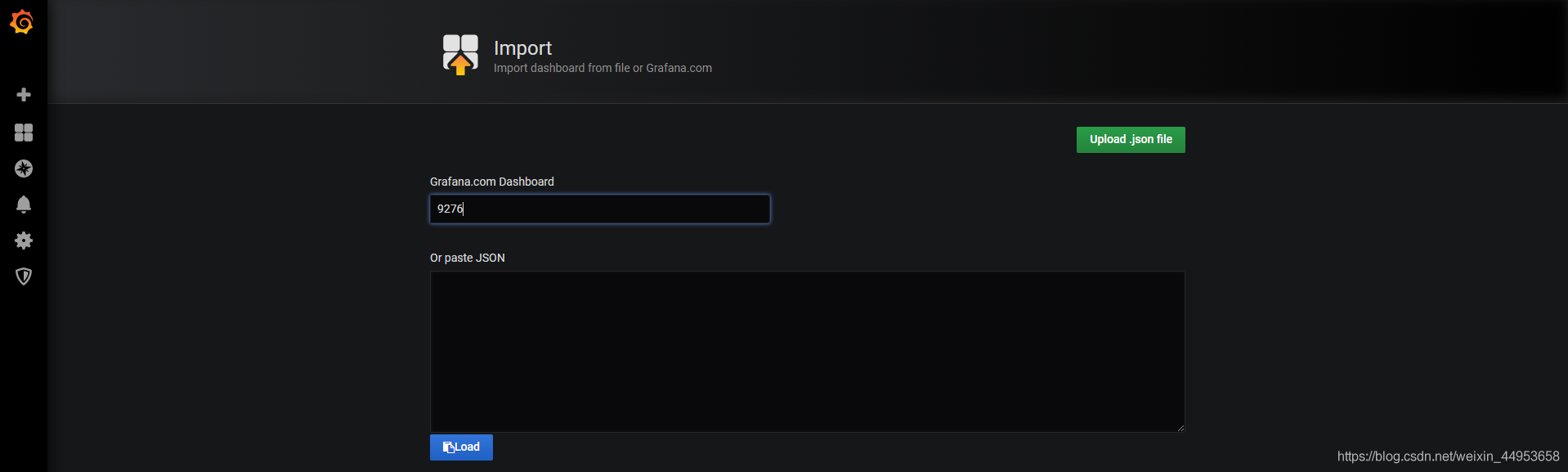

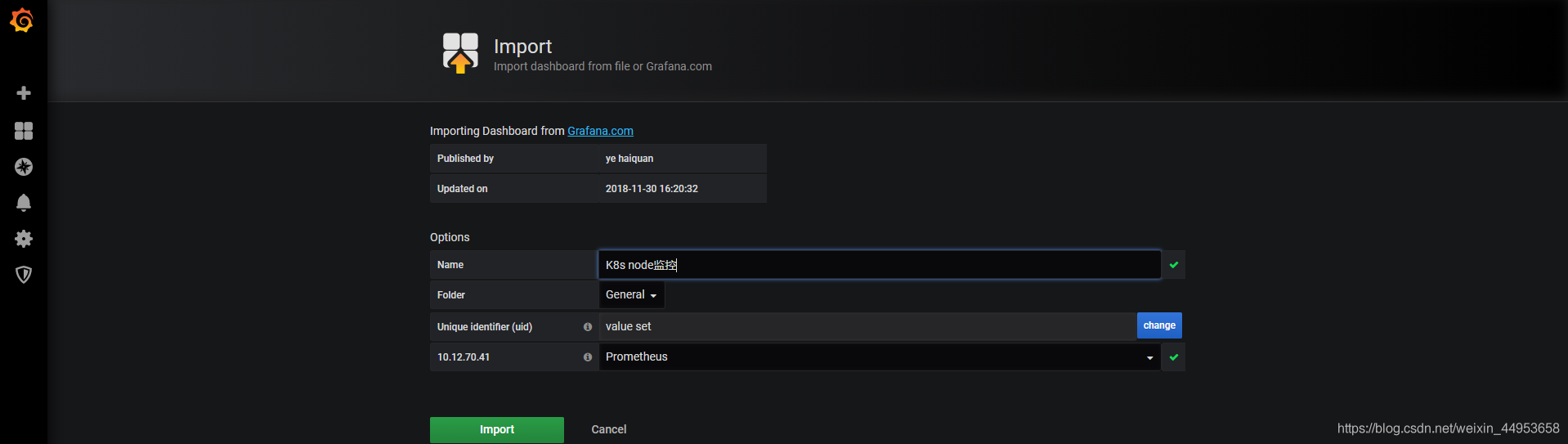

填寫資訊

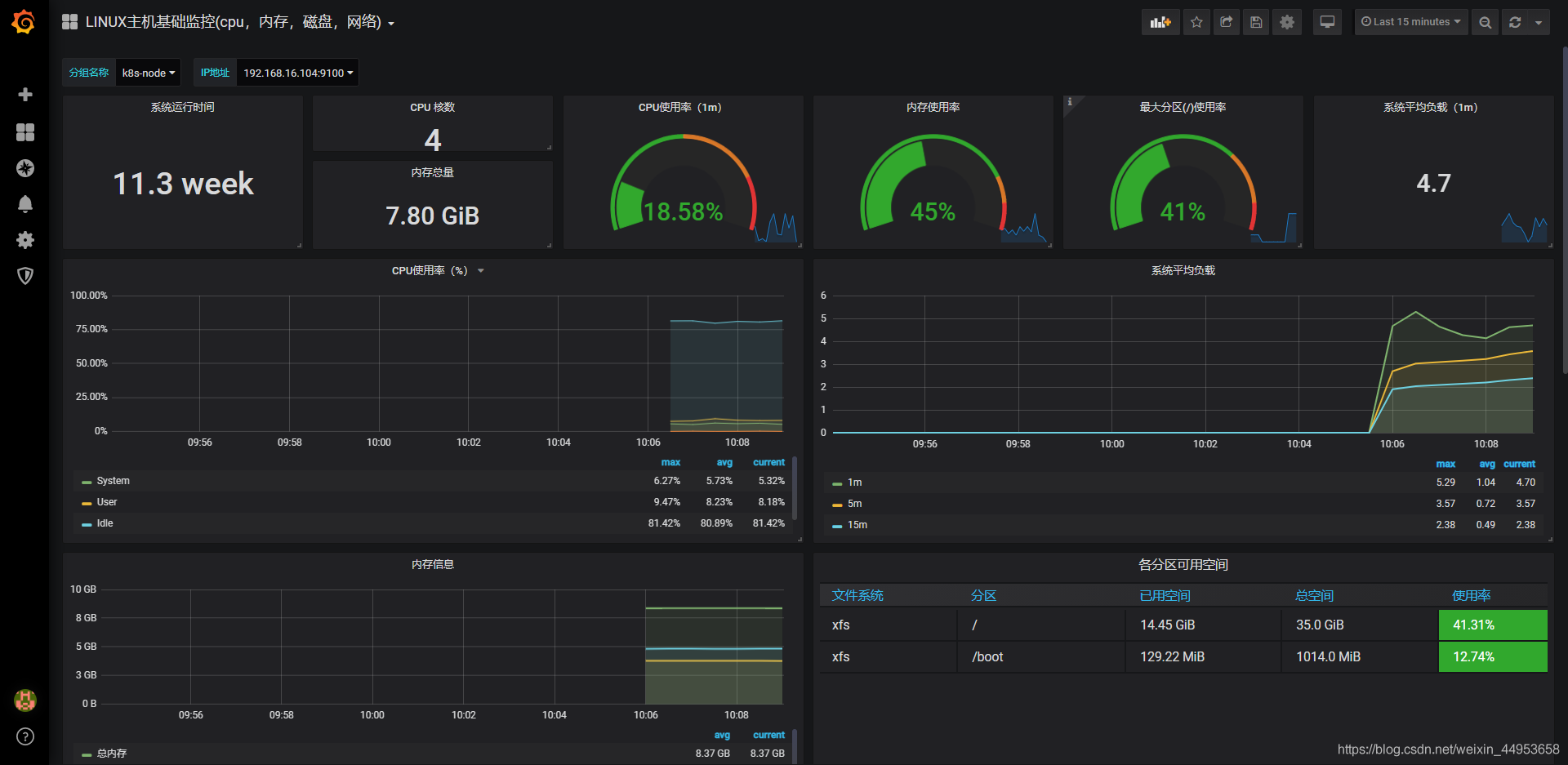

查看圖形

6.k8s使用kube-state-metrics-監控資源狀態

6.1.創建rbac資源

[root@k8s-master ~/k8s/prometheus3]# kubectl create kube-state-metrics-rbac.yaml

6.2.創建deployment資源

deployment資源里面結合了configmap資源

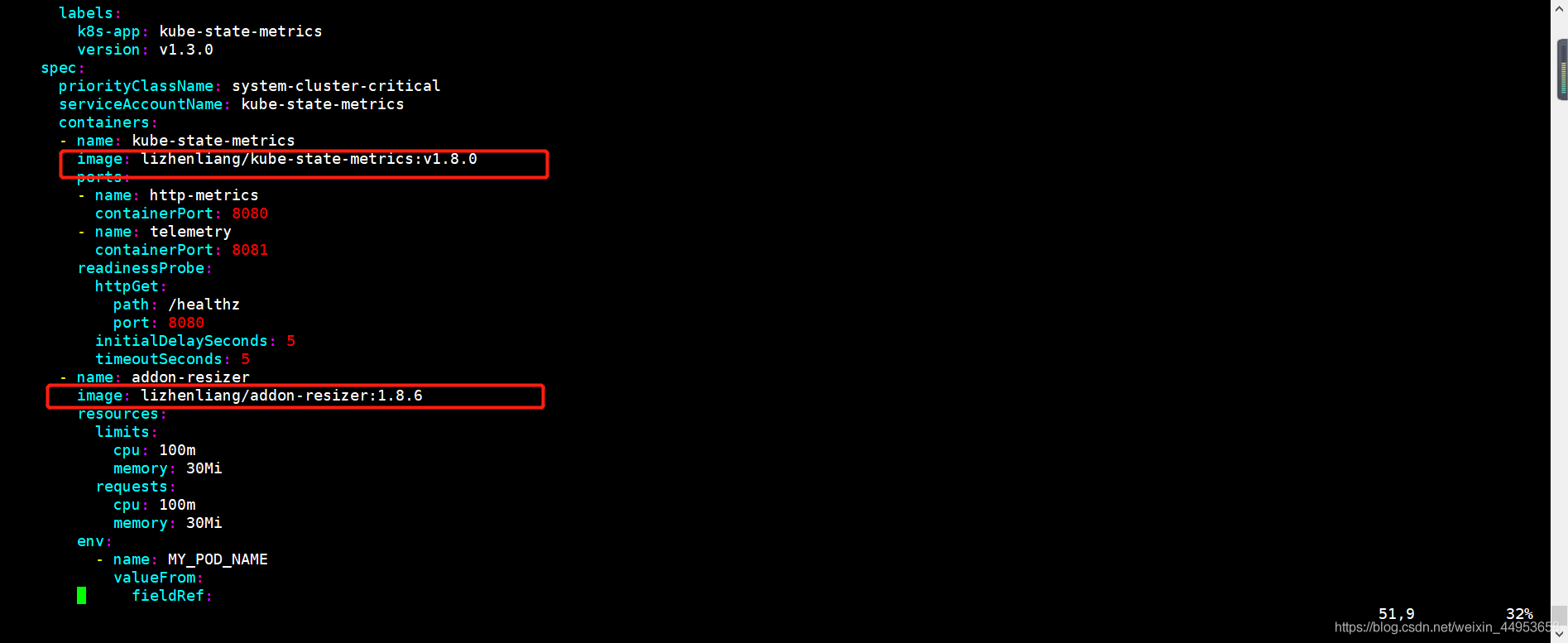

需要把鏡像的地址修改成lizhenliang/kube-state-metrics:v1.8.0、lizhenliang/addon-resizer:1.8.6

[root@k8s-master ~/k8s/prometheus3]# kubectl create -f kube-state-metrics-deployment.yaml

6.3.創建service資源

[root@k8s-master ~/k8s/prometheus3]# kubectl create -f kube-state-metrics-service.yaml

6.4.資源準備就緒

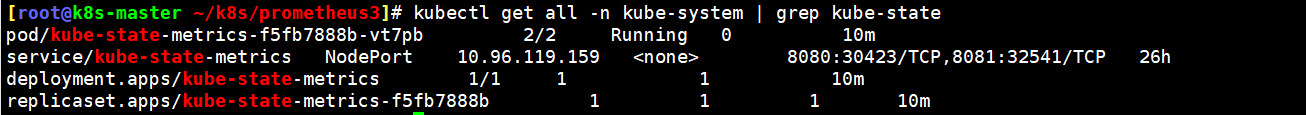

[root@k8s-master ~/k8s/prometheus3]# kubectl get all -n kube-system | grep kube-state

6.5.在prometheus查看是否獲取監控指標

安裝完kube-state-metrics之后，直接就可以在prometheus上查詢監控指標，都是以kube開頭的

6.6.匯入k8s 資源狀態模板

資源狀態監控：6417

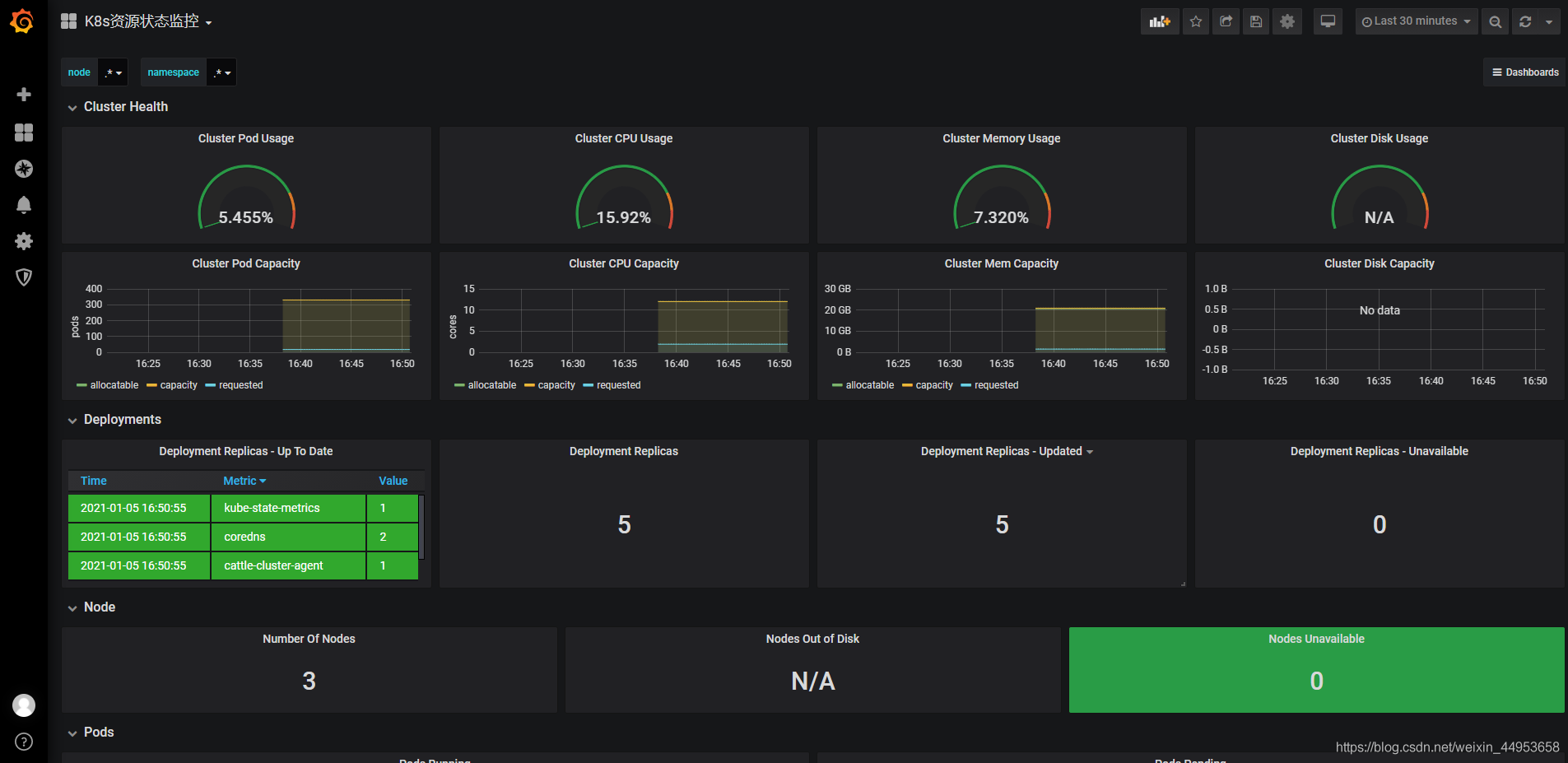

查看圖形，也是有很多監控不到

7.在k8s中部署alertmanager實作告警系統

7.1.創建alertmanager-pv-pvc資源

1.撰寫yaml
[root@k8s-master ~/k8s/prometheus3]# vim alertmanager-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: alertmanager-data
  namespace: alertmanager
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: EnsureExists
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: "2Gi"
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-alertmanager-data
  namespace: alertmanager
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  nfs:
    path: /data/prometheus/alertmanager
    server: 192.168.16.105

2.創建
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f alertmanager-pvc.yaml
persistentvolumeclaim/alertmanager created
persistentvolume/pv-alertmanager-data create

7.2.創建alertmanager-cm資源增加微信告警配置

增加微信報警

1.增加微信告警配置
[root@k8s-master ~/k8s/prometheus3]# vim alertmanager-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: alertmanager-config
  namespace: alertmanager
  labels:
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: EnsureExists
data:
  alertmanager.yml: |
    global:
      resolve_timeout: 5m

    receivers:
    - name: 'wechat'
      wechat_configs:
        - corp_id: 'ww48f74fc8ed3a07ba'
          to_party: '1'
          agent_id: '1000003'
          api_secret: 'j3ocaGJJM7KejlqzBIJ38b6D6t9QhqlIAh7k4fA1cT0'
          send_resolved: true

    route:
      group_interval: 1m
      group_wait: 10s
      receiver: wechat
      repeat_interval: 1m

2.創建資源
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f alertmanager-configmap.yaml
configmap/alertmanager-config created

7.3.創建alertmanager-deployment資源

[root@k8s-master ~/k8s/prometheus3]# kubectl create -f alertmanager-deployment.yaml
deployment.apps/alertmanager created

7.4.創建alertmanager-service資源

[root@k8s-master ~/k8s/prometheus3]# kubectl create -f alertmanager-service.yaml
service/alertmanager created

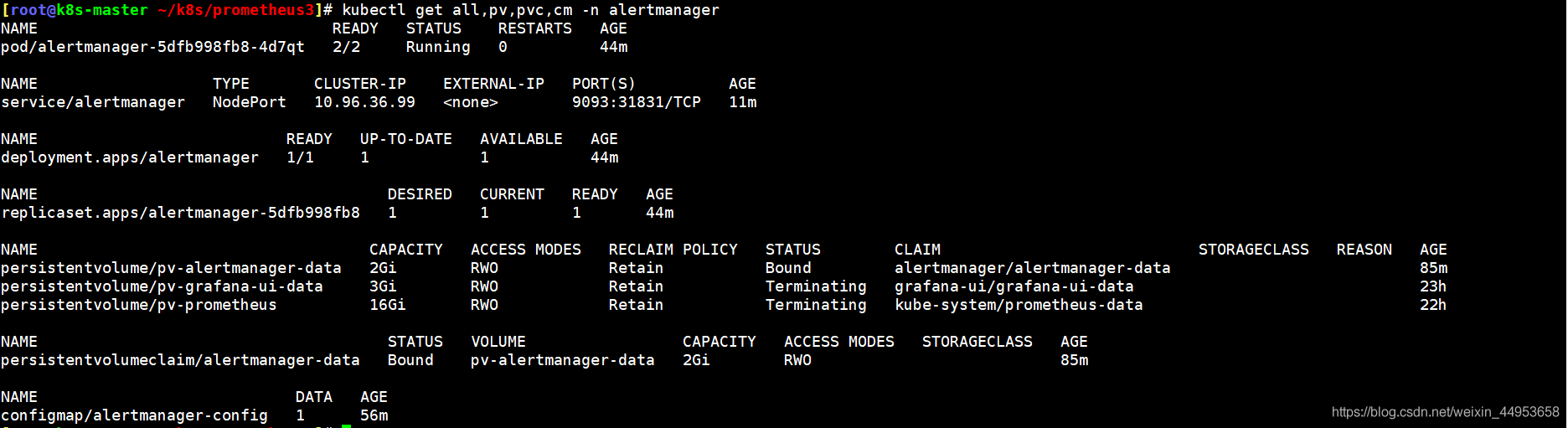

7.5查看alertmanager所有資源

[root@k8s-master ~/k8s/prometheus3]# kubectl get all,pv,pvc,cm -n alertmanager

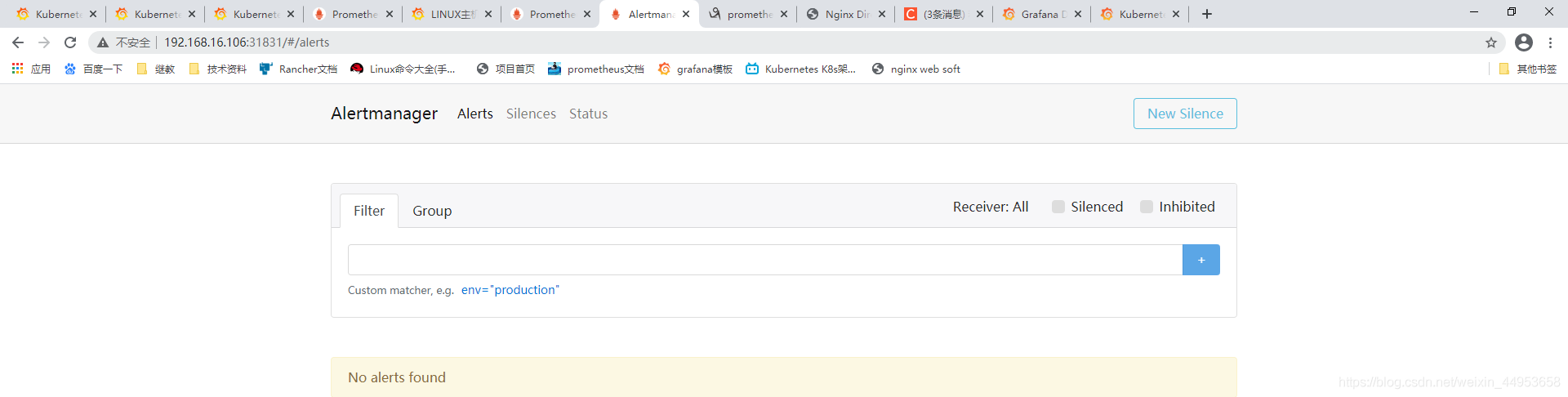

7.6.訪問alertmanager

任意node節點+31831埠即可

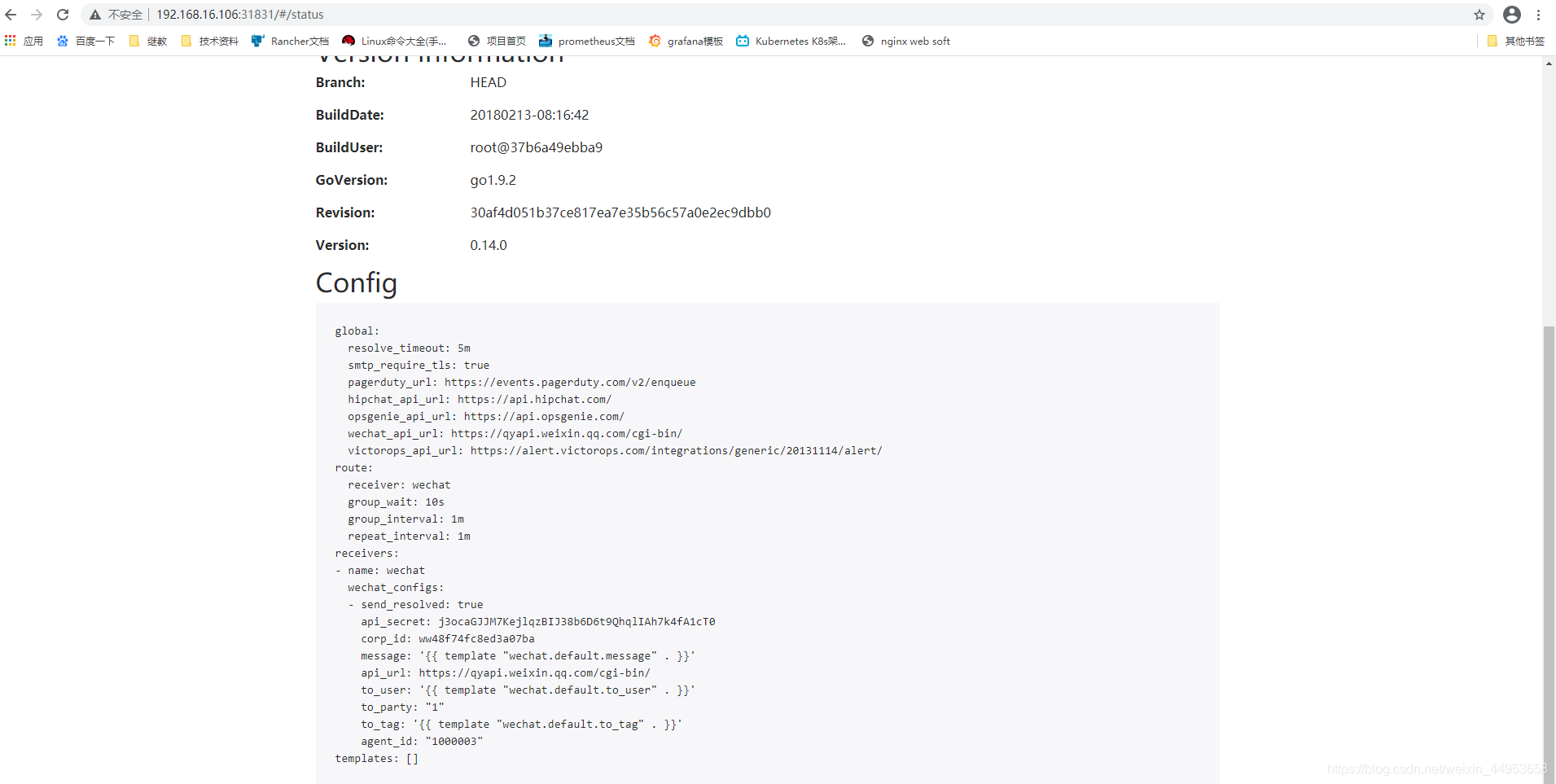

組態檔已經支持微信報警

8.配置alertmanager實作k8s告警系統

8.1.在NFS上準備兩個告警規則檔案

我們對于告警規則檔案不采用configmap的方式而是采用pv、pvc的方式把告警規則掛載到容器里

1.在nfs上創建pv存盤路徑
[root@nfs ~]# mkdir /data/prometheus/rules
[root@nfs ~]# chmod -R 777 /data
[root@nfs ~]# cd /data/prometheus/rules

2.準備主機宕機的告警規則檔案
[root@nfs rules]# vim hostdown.yml
groups:
- name: general.rules
  rules:
  - alert: 主機宕機
    expr: up == 0
    for: 1m
    labels:
      serverity: error
    annotations:
      summary: "主機 {{ $labels.instance }} 停止作業"
      description: "{{ $labels.instance }} job {{ $labels.job }} 已經宕機5分鐘以上!"

3.準備主機基礎監控告警規則檔案
[root@nfs rules]# vim node.yml
groups:
- name: node.rules
  rules:
  - alert: NodeFilessystemUsage
    expr: 100 - (node_filesystem_free_bytes{fstype=~"ext4|xfs",mountpoint="/"} / node_filesystem_size_bytes{fstype=~"ext4|xfs",mountpoint="/"} *100) > 80
    for: 1m
    labels:
      serverity: warning
    annotations:
      summary: "主機 {{ $labels.instance }} : {{ $labels.mountpoint }} 磁盤使用率過高"
      description: "{{ $labels.instance }} : {{ $labels.mountpoint }} 磁盤使用率超過80% (當前值: {{ $value }}) "

  - alert: NodeMemoryUsage
    expr: 100 - ((node_memory_MemFree_bytes+node_memory_Cached_bytes+node_memory_Buffers_bytes) / node_memory_MemTotal_bytes * 100) > 80
    for: 1m
    labels:
      serverity: warning
    annotations:
      summary: "主機 {{ $labels.instance }} 記憶體使用率過高"
      description: "{{ $labels.instance }} 記憶體使用率超過80% (當前值: {{ $value }}) "

  - alert: NodeCpuUsage
    expr: 100 - (avg(irate(node_cpu_seconds_total{mode='idle'}[5m])) by (instance) *100) > 80
    for: 1m
    labels:
      serverity: warning
    annotations:
      summary: "主機 {{ $labels.instance }} CPU使用率過高"
      description: "{{ $labels.instance }} CPU使用率超過80% (當前值: {{ $value }}) "

8.2.撰寫rules告警規則的pv、pvcyaml檔案

1.撰寫資源檔案
[root@k8s-master ~/k8s/prometheus3]# vim prometheus-rules-pvc.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: prometheus-rules
  namespace: kube-system
  labels:
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: "2Gi"
---
apiVersion: v1
kind: PersistentVolume
metadata:
  name: pv-prometheus-rules
spec:
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  nfs:
    path: /data/prometheus/rules
    server: 192.168.16.105

2.創建資源
[root@k8s-master ~/k8s/prometheus3]# kubectl create -f prometheus-rules-pvc.yaml
persistentvolumeclaim/prometheus-rules created
persistentvolume/pv-prometheus-rules created

8.3.修改prometheus的statefulset資源集成rules

在prometheus的statefulset資源中增加rules的pvc掛載路徑

[root@k8s-master ~/k8s/prometheus3]# vim prometheus-statefulset-static-pv.yaml
          volumeMounts:
            - name: config-volume
              mountPath: /etc/config
            - name: prometheus-rules
              mountPath: /etc/config/rules
            - name: prometheus-data
              mountPath: /data
              subPath: ""
      terminationGracePeriodSeconds: 300
      volumes:
        - name: config-volume
          configMap:
            name: prometheus-config
        - name: prometheus-rules
          persistentVolumeClaim:
            claimName: prometheus-rules
        - name: prometheus-data
          persistentVolumeClaim:
            claimName: prometheus-data

8.4.更新prometheus-statefulset資源

[root@k8s-master ~/k8s/prometheus3]# kubectl apply -f prometheus-statefulset-static-pv.yaml

8.5.修改prometheus-configmap資源配置alertmanager地址

1.修改配置增加alertmanager地址
[root@k8s-master ~/k8s/prometheus3]# vim prometheus-configmap.yaml
    alerting:
      alertmanagers:
      - static_configs:
        - targets:
          - 192.168.16.106:31831

2.更新資源
[root@k8s-master ~/k8s/prometheus3]# kubectl apply -f prometheus-configmap.yaml
configmap/prometheus-config configured

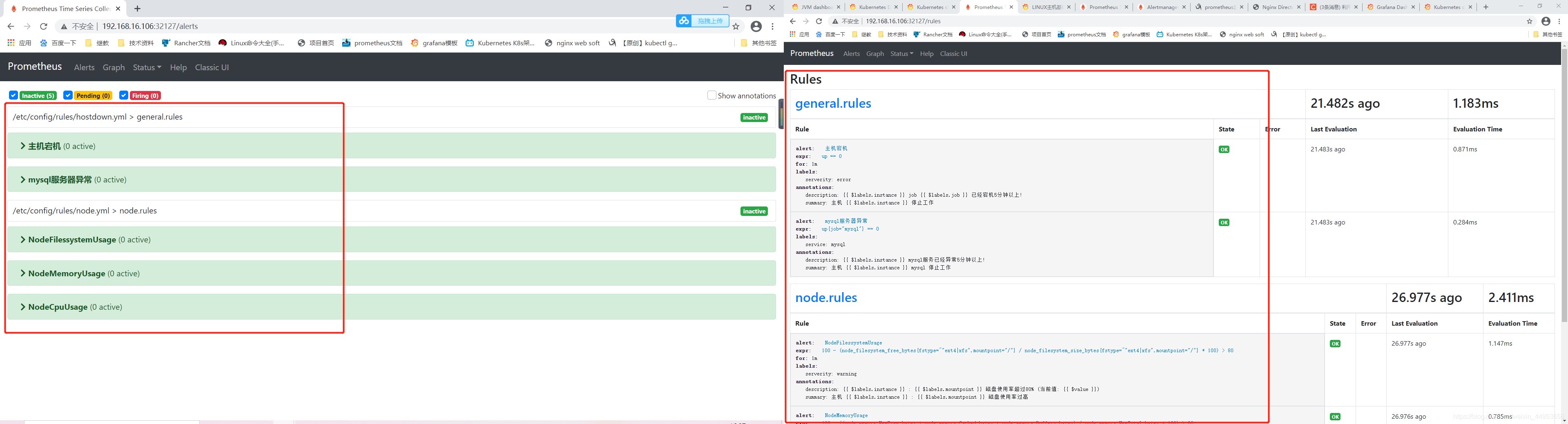

8.5.查看頁面是否增加告警規則

已經成功填加rules告警規則

8.6.模擬node主機宕機并查看微信告警內容

模擬觸發告警

將任意一個node節點的node_exporter停掉即可
[root@k8s-node1 ~]# systemctl stop node_exporter

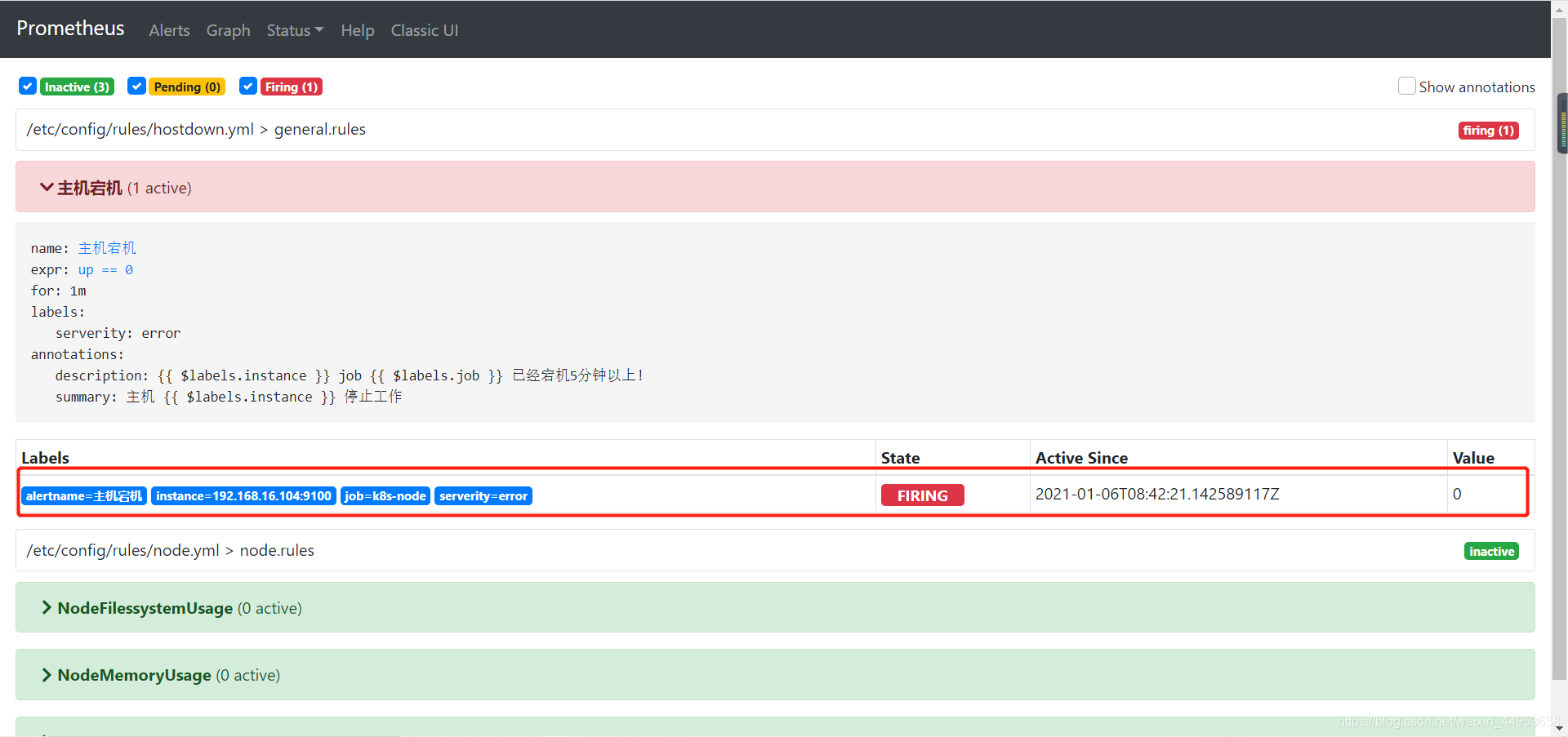

告警已經產生

告警訊息已經發送

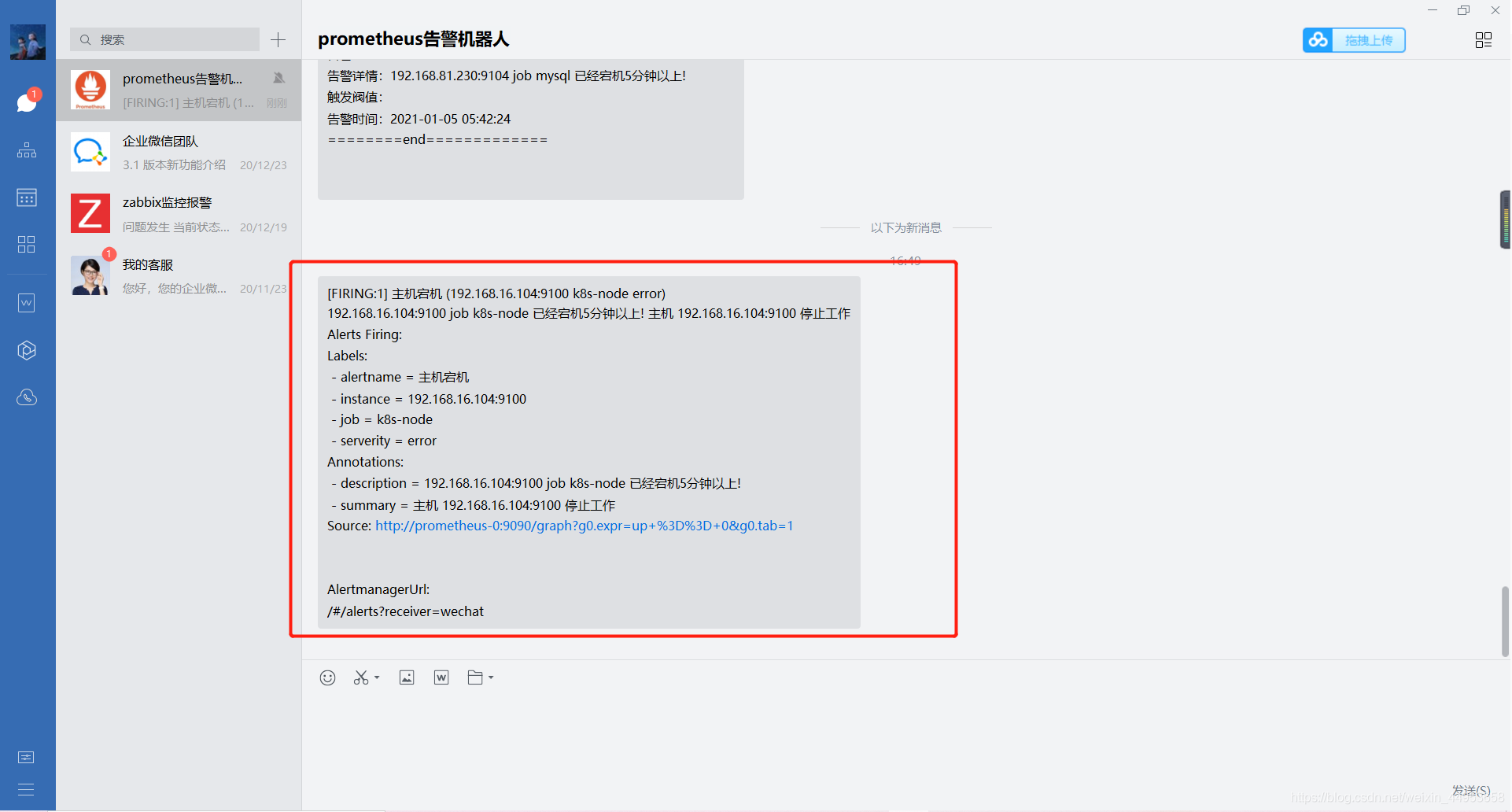

查看告警內容

已經成功收到告警，k8s監控系列篇到此結束
