需求描述：前后端分離系統，用SpringBoot整合Spark API,呼叫大量資料（幾百GB，上TB）進行處理計算，單機環境難以達到性能要求，此，需整合直接呼叫spark跑程式，且在集群跑…
在此，一臺測驗服務器模擬，搭建偽分布spark集群，用standalone模式運行，

文章目錄

一、集群環境
二、專案配置環境

一、集群環境

包版本：
  1.java1.8
  2.spark 2.3.1
  3.scala 2.11
  4.CentOS Linux release 7.3.1611 (Core)

1、查看服務配置資訊，包括記憶體、磁盤、CPU,spark任務會用到

[root@tycloud-x86-testserver ~]# free -h
              total        used        free      shared  buff/cache   available
Mem:            62G         33G        2.2G         31M         26G         28G
Swap:           31G        594M         30G

[root@tycloud-x86-testserver ~]# df -lh
檔案系統             容量  已用  可用 已用% 掛載點
/dev/mapper/cl-root   94G   80G  9.2G   90% /
devtmpfs              32G     0   32G    0% /dev
tmpfs                 32G   84K   32G    1% /dev/shm
tmpfs                 32G   18M   32G    1% /run
tmpfs                 32G     0   32G    0% /sys/fs/cgroup
/dev/sda1            976M  142M  767M   16% /boot
/dev/mapper/cl-home  1.5T  360G  1.1T   25% /home
tmpfs                6.3G   16K  6.3G    1% /run/user/42
shm                   64M     0   64M    0% /home/var/lib/docker/containers/ce39e6a0ea16e708a5f8d79c0f78643a2a9a197738aa2b546bc2e02b6320db1c/shm
shm                   64M     0   64M    0% /home/var/lib/docker/containers/9d9f34fdd554a33a8a5e5c9752c1fb74e3c1b091e8422a2d247c06f36305d121/shm
shm                   64M     0   64M    0% /home/var/lib/docker/containers/0ba5dc4159c3191f329f67e1de2bf30d5db8edd34fe5582a771a493c9ea0d050/shm
shm                   64M  8.0K   64M    1% /home/var/lib/docker/containers/4071c651e6186522cd5efe0eaed4483000136c89855f6050725b431794f56464/shm
tmpfs                6.3G     0  6.3G    0% /run/user/0

查看CPU資訊（型號）
[root@tycloud-x86-testserver ~]# cat /proc/cpuinfo | grep name | cut -f2 -d: | uniq -c
     40  Intel(R) Xeon(R) CPU E5-2630 v4 @ 2.20GHz
 物理封裝的處理器的id，查看物理CPU個數
[root@tycloud-x86-testserver]#  cat /proc/cpuinfo| grep "physical id"| sort| uniq| wc -l
2
位于相同物理封裝的處理器中的內核數量，每個物理CPU中core的個數(即核數）
[root@tycloud-x86-testserver ~]# cat /proc/cpuinfo| grep "cpu cores"| uniq
cpu cores       : 10
查看邏輯CPU的個數
[root@tycloud-x86-testserver ~]# cat /proc/cpuinfo| grep "processor"| wc -l
40

2、spark偽分布集群配置(省略很多，起來就行…)
下載的spark包，拷貝到服務器上，進入conf目錄下

cp spark-env.sh.template spark-env.sh

export JAVA_HOME=/opt/java
export SPARK_MASTER_IP=10.11.100.120
export SPARK_MASTER_HOST=tycloud-x86-testserver
export SPARK_MASTER_PORT=7077     #-- master主節點埠
export SCALA_HOME=/opt/scala
export SPARK_HOME=/opt/spark2.31
export SPARK_WORKER_MEMORY=40g
export SPARK_WORKER_OPTS="
-Dspark.worker.cleanup.enabled=true
-Dspark.worker.cleanup.interval=1800
-Dspark.worker.cleanup.appDataTtl=3600"

cp spark-defaults.conf.template spark-defaults.conf

spark.master   spark://tycloud-x86-testserver:7077

vim slaves

localhost

cd …/sbin ./start-all.sh 啟動MASTER和WORKER行程

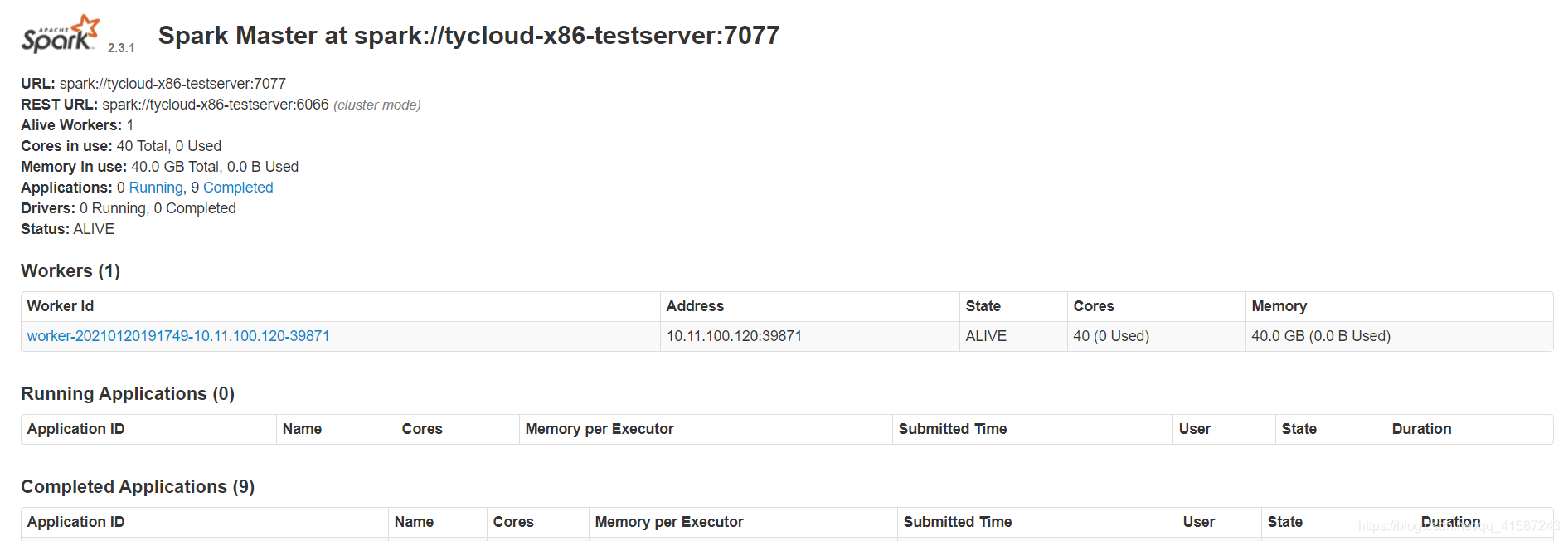

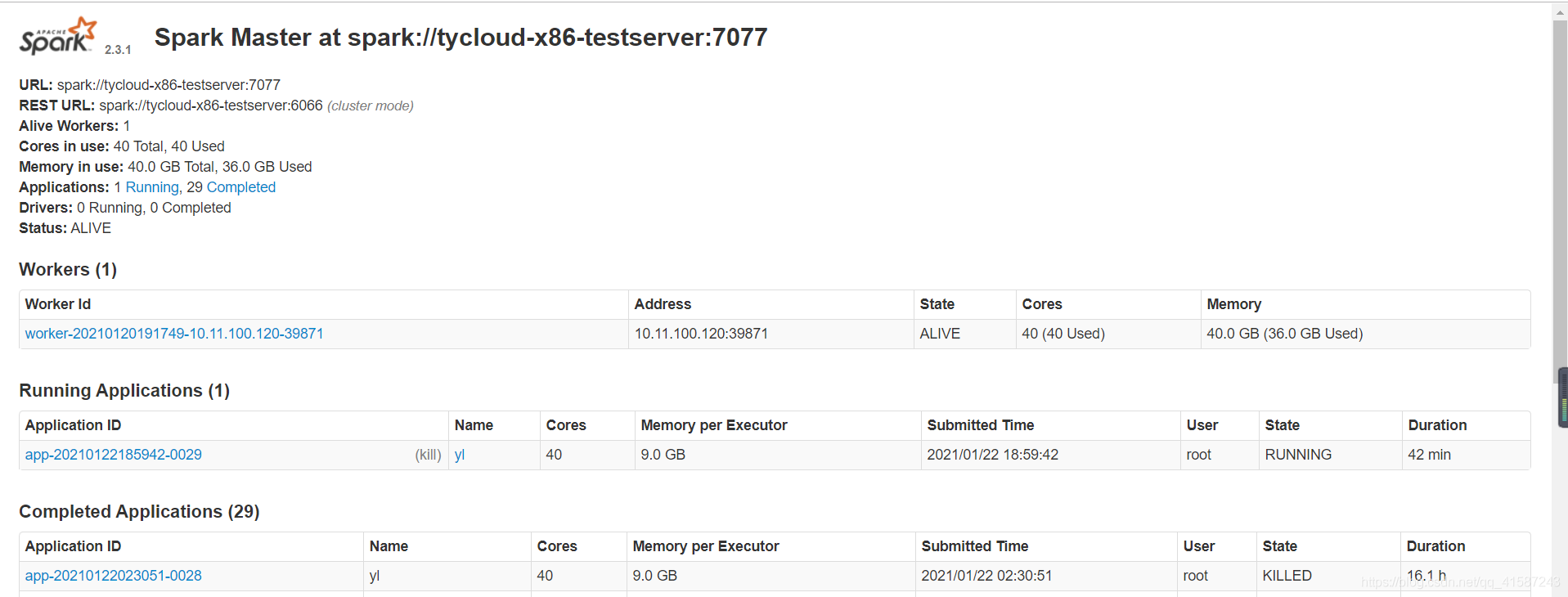

訪問Spark UI界面 10.11.100.120:8080

二、專案配置環境

1、創建SpringBoot專案，
可手動搭建框架結構，初學者可訪問(https://start.spring.io/)來頁面配置匯出Spring專案，
2、添加pom.xml依賴，強調此處spark依賴必須和集群版本一致，否則會報錯，此處不看錯誤，單純配置，后續我會復現錯誤，給大家展示分析錯誤問題

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.analysis</groupId>
    <artifactId>yl</artifactId>
    <version>1.0-SNAPSHOT</version>
    <name>yl</name>
    <packaging>war</packaging>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.1.6.RELEASE</version>
        <relativePath/>
    </parent>

    <properties>
        <java.version>1.8</java.version>
        <druid.version>1.1.9</druid.version>
        <mybatis.version>1.2.0</mybatis.version>
        <spark.version>2.3.1</spark.version>
        <spring.boot.version>2.1.6.RELEASE</spring.boot.version>
        <swagger.version>2.9.2</swagger.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>druid-spring-boot-starter</artifactId>
            <version>${druid.version}</version>
        </dependency>

        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>${mybatis.version}</version>
        </dependency>

        <!-- 使用外置tomcat -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-tomcat</artifactId>
            <version>${spring.boot.version}</version>
            <scope>provided</scope>
        </dependency>

        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-core_2.11</artifactId>
            <version>${spark.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.spark/spark-sql_2.10 -->
        <dependency>
            <groupId>org.apache.spark</groupId>
            <artifactId>spark-sql_2.11</artifactId>
            <version>${spark.version}</version>
        </dependency>

        <!-- 因為我們需要使用Scala代碼，所以我們還需要加入scala-library依賴 -->
        <dependency>
            <groupId>org.scala-lang</groupId>
            <artifactId>scala-library</artifactId>
            <version>2.11.8</version>
        </dependency>

        <!--spark決議xml依賴包 https://mvnrepository.com/artifact/com.databricks/spark-xml -->
        <dependency>
            <groupId>com.databricks</groupId>
            <artifactId>spark-xml_2.11</artifactId>
            <version>0.11.0</version>
        </dependency>

        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.47</version>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
            <optional>true</optional>
            <version>${spring.boot.version}</version>
        </dependency>

        <!-- swagger依賴包 -->
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>${swagger.version}</version>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>${swagger.version}</version>
        </dependency>

       <!-- hadoop依賴包 -->
        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-common</artifactId>
            <version>2.7.7</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.apache.hadoop</groupId>
            <artifactId>hadoop-mapreduce-client-core</artifactId>
            <version>2.7.7</version>
            <exclusions>
                <exclusion>
                    <groupId>org.slf4j</groupId>
                    <artifactId>slf4j-log4j12</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

<!--        <dependency>-->
<!--            <groupId>org.springframework.boot</groupId>-->
<!--            <artifactId>spring-boot-starter-data-redis</artifactId>-->
<!--            <version>${spring.boot.version}</version>-->
<!--        </dependency>-->

<!--        <dependency>-->
<!--            <groupId>redis.clients</groupId>-->
<!--            <artifactId>jedis</artifactId>-->
<!--            <version>3.0.0</version>-->
<!--        </dependency>-->

        <!-- https://mvnrepository.com/artifact/io.netty/netty-all -->
        <dependency>
            <groupId>io.netty</groupId>
            <artifactId>netty-all</artifactId>
            <version>4.1.17.Final</version>
        </dependency>
        <dependency>
            <groupId>net.sf.json-lib</groupId>
            <artifactId>json-lib</artifactId>
            <version>2.4</version>
            <classifier>jdk15</classifier>
        </dependency>
        <!--Data 注解依賴-->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.16.10</version>
            <scope>provided</scope>
        </dependency>
    </dependencies>

    <build>
        <finalName>yl</finalName>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <configuration>
                    <fork>true</fork>
                </configuration>
            </plugin>
            <!-- 編譯scala插件 -->
            <plugin>
                <groupId>org.scala-tools</groupId>
                <artifactId>maven-scala-plugin</artifactId>
                <version>2.15.2</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>compile</goal>
                            <goal>testCompile</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>2.6</version>
                <configuration>
                    <failOnMissingWebXml>false</failOnMissingWebXml>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-dependency-plugin</artifactId>
                <executions>
                    <execution>
                        <id>copy-dependencies</id>
                        <phase>compile</phase>
                        <goals>
                            <goal>copy-dependencies</goal>
                        </goals>
                        <configuration>
                            <outputDirectory>${project.build.directory}/${project.build.finalName}/WEB-INF/lib</outputDirectory>
                            <includeScope>system</includeScope>
                        </configuration>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>
</project>

3、配置SparkConf，以及一些配置引數，部分引數是在運行中由于環境問題等因素，加以限制，也可以作為優化spark任務的引數配置
若有感興趣的同學可關注，咨詢博主，具體引數曾出現過什么問題？

package com.analysis.yl.config;

import org.apache.spark.SparkConf;
import org.apache.spark.api.java.JavaSparkContext;
import org.apache.spark.sql.SparkSession;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.boot.autoconfigure.condition.ConditionalOnMissingBean;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.support.PropertySourcesPlaceholderConfigurer;
import org.springframework.core.env.Environment;

@Configuration
public class SparkConfig {
    @Value("${spark.app.name}")
    private String appName;
    @Value("${spark.home}")
    private String sparkHome;
    @Value("${spark.master.uri}")
    private String sparkMasterUri;
    @Value("${spark.driver.memory}")
    private String sparkDriverMemory;
    @Value("${spark.worker.memory}")
    private String sparkWorkerMemory;
    @Value("${spark.executor.memory}")
    private String sparkExecutorMemory;
    @Value("${spark.executor.cores}")
    private String sparkExecutorCores;
    @Value("${spark.num.executors}")
    private String sparkExecutorsNum;
     @Value("${spark.network.timeout}")
    private String networkTimeout;
     @Value("${spark.executor.heartbeatInterval}")
    private String heartbeatIntervalTime;
     @Value("${spark.driver.maxResultSize}")
    private String maxResultSize;
    @Value("${spark.rpc.message.maxSize}")
    private String sparkRpcMessageMaxSize;

    @Bean
    public SparkConf sparkConf() {
        SparkConf sparkConf = new SparkConf()
                .setAppName(appName)
                .setMaster(sparkMasterUri)
                .set("spark.driver.memory",sparkDriverMemory)
                .set("spark.driver.maxResultSize",maxResultSize)
                .set("spark.worker.memory",sparkWorkerMemory) //"26g"
                .set("spark.executor.memory",sparkExecutorMemory)
                .set("spark.executor.cores",sparkExecutorCores)
                .set("spark.executor.heartbeatInterval",heartbeatIntervalTime)
                .set("spark.num.executors",sparkExecutorsNum)
                .set("spark.network.timeout",networkTimeout)
                .set("spark.rpc.message.maxSize",sparkRpcMessageMaxSize);
        //                .set("spark.shuffle.memoryFraction","0") //默認0.2
        return sparkConf;
    }

    @Bean
    @ConditionalOnMissingBean(JavaSparkContext.class)
    public JavaSparkContext javaSparkContext(){
        return new JavaSparkContext(sparkConf());
    }

    @Bean
    public SparkSession sparkSession(){
        return SparkSession
                .builder()
                .sparkContext(javaSparkContext().sc())
                .appName(appName)
                .getOrCreate();
    }
    @Bean
    public static PropertySourcesPlaceholderConfigurer propertySourcesPlaceholderConfigurer(){
        return new PropertySourcesPlaceholderConfigurer();
    }
}

4、配置好Conf后，需要在application.yml檔案中配置引數，具體配置如下：
注釋部分是曾出現的問題，就順手寫上了，并不代表別的引數沒出現過問題~~

spark:
  app:
    name: yl
  home: 127.0.0.1
  master:
    uri: spark://tycloud-x86-testserver:7077
  driver:
    memory: 4g
    maxResultSize: 4g
  worker:
    memory: 40g
 #cores 5  、num 8 、memory 5g  才是最完美的，報錯，加引數限制
  executor:
    cores: 10
    memory: 9g
    heartbeatInterval: 1000000
  num:
    executors: 4
  network:
    timeout: 1474830
  rpc:
    message:
      maxSize: 1024   #默認值是128MB,最大2047MB
      #輸序列化資料應該是有大小的限制，此錯誤訊息意味著將一些較大的物件從driver端發送到executors
      #Job aborted due to stage failure: Serialized task 5829:0 was 354127887 bytes, which exceeds max allowed:spark.rpc.message.maxSize (134217728 bytes)

5、撰寫測驗spark程式，用springboot介面呼叫(ServiceImpl)

public class TestServiceImpl implements TestService {

    private Logger logger = LoggerFactory.getLogger(TestServiceImpl .class);

    //SparkSession 在Conf里面已經加載SparkConf配置   @Autowired
    private SparkSession sparkSession;
    //TODO  程式處理邏輯呼叫Spark代碼
}

細節問題：肯定要在服務器和自己的電腦上相互配好主機名映射了，不然聯調問題一大堆了，，，，，

6、編譯打包程式，部署到服務器上測驗
此處Spark程式使用scala代碼撰寫，所以就不能像純springBoot一樣打包了，需先編譯scala程式，然后再編譯打包，，，

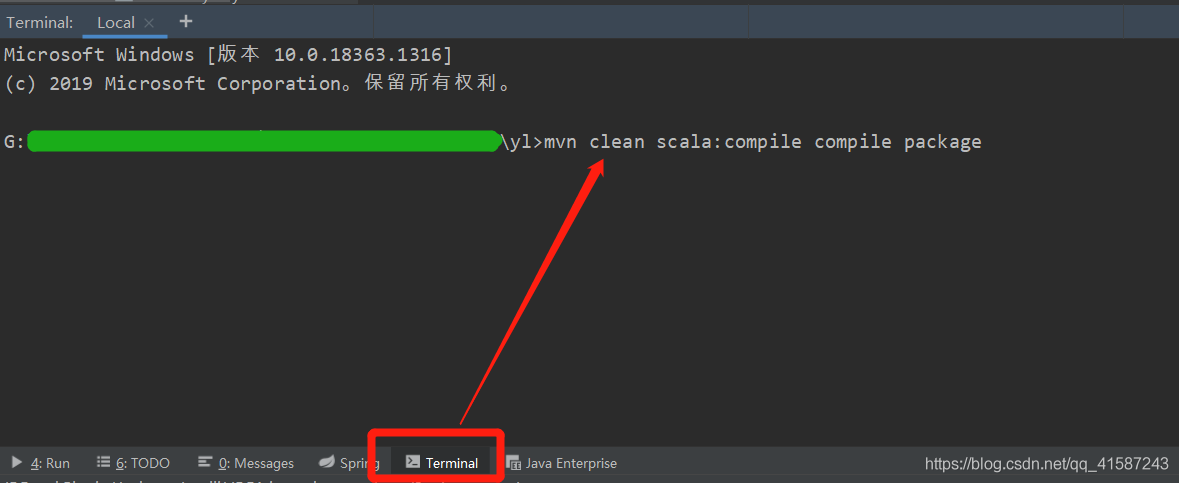

mvn clean scala:compile compile package
當然這個命令直接在idea的

7、丟到tomcat里，啟動，查看后臺日志，沒錯！

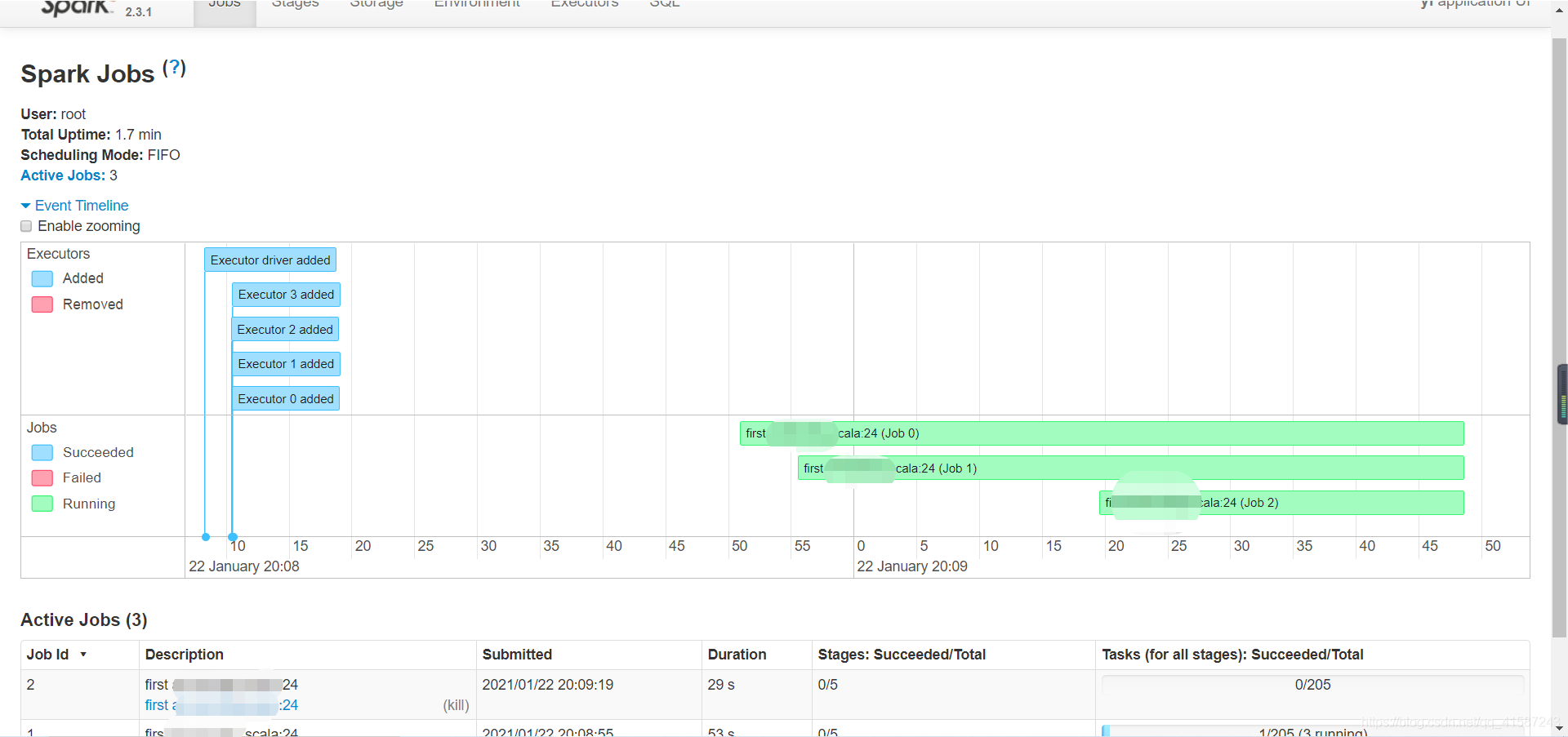

查看Spark UI界面、Spark Job已經啟動，成功！！！！！！
在這里插入圖片描述

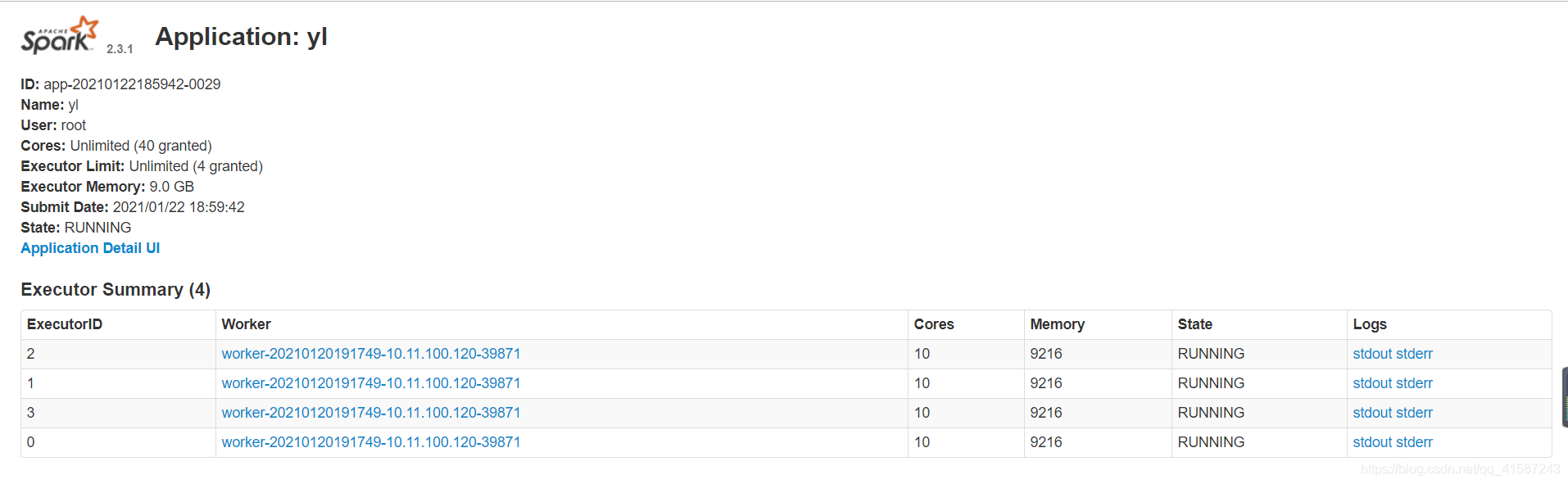

executors個數、每個executor中cores個數都是依據application.yml配置生成的，
8、接下來介面呼叫測驗spark程式了…

在之前的專案中，曾經SpringBoot也整合過hadoop、hive、hbase，有需要的學者，可留言找博主，后續也會分享~~~

有不足之處，歡迎各位留言反饋，錯誤經驗下節分享，

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/251722.html

標籤：其他

上一篇：SparkSQL 之 DataFrame, DataSet, RDD 之間的轉換及關系

下一篇：spark原始碼學習 -worker啟動訊息通信，inbox，outbox創建

spring boot整合spark，集群模式或local模式運行，http請求呼叫spark API，啟動job任務配置、優化spark配置等

文章目錄

一、集群環境

二、專案配置環境
