小丑竟然是自己

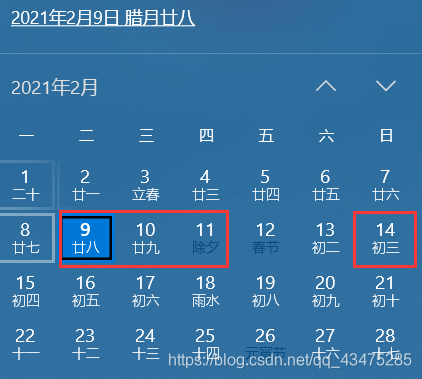

今天上午剛打完美賽，和其他兩個隊友一起奮斗了四天，最后一晚通宵，徹夜未眠，雖然很累，但看到寫出一篇25頁全英latex排版論文還是挺開心的，如果不得獎的話都打算退出建模圈了，比完賽看了一眼桌面右下角時間
還有兩天就除夕了，還有五天就情人節了，額額額，我為什么要加一個就字，情人節好像和我還沒啥關系，，，
但至少曾今還是有關系的，曾經有過兩段感情，包括初戀，都是以我被分手告終，有時候想想是有點難過，可能的確是自己的原因吧，要么是自己性格的缺陷或者自己還不夠足夠優秀吧
既然情人節快到了，整理了幾種畫玫瑰線的代碼，祝大家早日找到幸福的TA
Python版本動態畫玫瑰
代碼
import turtle
# 設定初始位置
turtle.penup()
turtle.left(90)
turtle.fd(200)
turtle.pendown()
turtle.right(90)
# 花蕊
turtle.fillcolor("red")
turtle.begin_fill()
turtle.circle(10, 180)
turtle.circle(25, 110)
turtle.left(50)
turtle.circle(60, 45)
turtle.circle(20, 170)
turtle.right(24)
turtle.fd(30)
turtle.left(10)
turtle.circle(30, 110)
turtle.fd(20)
turtle.left(40)
turtle.circle(90, 70)
turtle.circle(30, 150)
turtle.right(30)
turtle.fd(15)
turtle.circle(80, 90)
turtle.left(15)
turtle.fd(45)
turtle.right(165)
turtle.fd(20)
turtle.left(155)
turtle.circle(150, 80)
turtle.left(50)
turtle.circle(150, 90)
turtle.end_fill()
# 花瓣1
turtle.left(150)
turtle.circle(-90, 70)
turtle.left(20)
turtle.circle(75, 105)
turtle.setheading(60)
turtle.circle(80, 98)
turtle.circle(-90, 40)
# 花瓣2
turtle.left(180)
turtle.circle(90, 40)
turtle.circle(-80, 98)
turtle.setheading(-83)
# 葉子1
turtle.fd(30)
turtle.left(90)
turtle.fd(25)
turtle.left(45)
turtle.fillcolor("green")
turtle.begin_fill()
turtle.circle(-80, 90)
turtle.right(90)
turtle.circle(-80, 90)
turtle.end_fill()
turtle.right(135)
turtle.fd(60)
turtle.left(180)
turtle.fd(85)
turtle.left(90)
turtle.fd(80)
# 葉子2
turtle.right(90)
turtle.right(45)
turtle.fillcolor("green")
turtle.begin_fill()
turtle.circle(80, 90)
turtle.left(90)
turtle.circle(80, 90)
turtle.end_fill()
turtle.left(135)
turtle.fd(60)
turtle.left(180)
turtle.fd(60)
turtle.right(90)
turtle.circle(200, 60)
turtle.pendown()
turtle.done()
效果
c語言畫心形
代碼
#include <stdio.h>
#include <math.h>
int main()
{
//FILE *fp = fopen("graph.txt", "w+");
float x, y, f;
for(y = 1.6; y >= -1.6; y -= 0.15){
for(x = -1.1; x <= 1.1; x += 0.05){
f = x*x + pow(y - pow(x*x, 1.0/3), 2) - 1; //函式方程
//fputc(f <= 1E-5 ? '*' : ' ', fp);
putchar(f <= 1E-5 ? '*' : ' ');
}
//fputc('\n', fp);
putchar('\n');
}
for(y = 1.6; y >= -1.6; y -= 0.15){
for(x = -1.1; x <= 1.1; x += 0.05){
f = x*x + pow(y - pow(x*x, 1.0/3), 2) - 1; //函式方程
//fputc(f > 1E-5 ? '*' : ' ', fp);
putchar(f > 1E-5 ? '*' : ' ');
}
//fputc('\n', fp);
putchar('\n');
}
//fclose(fp);
return 0;
}

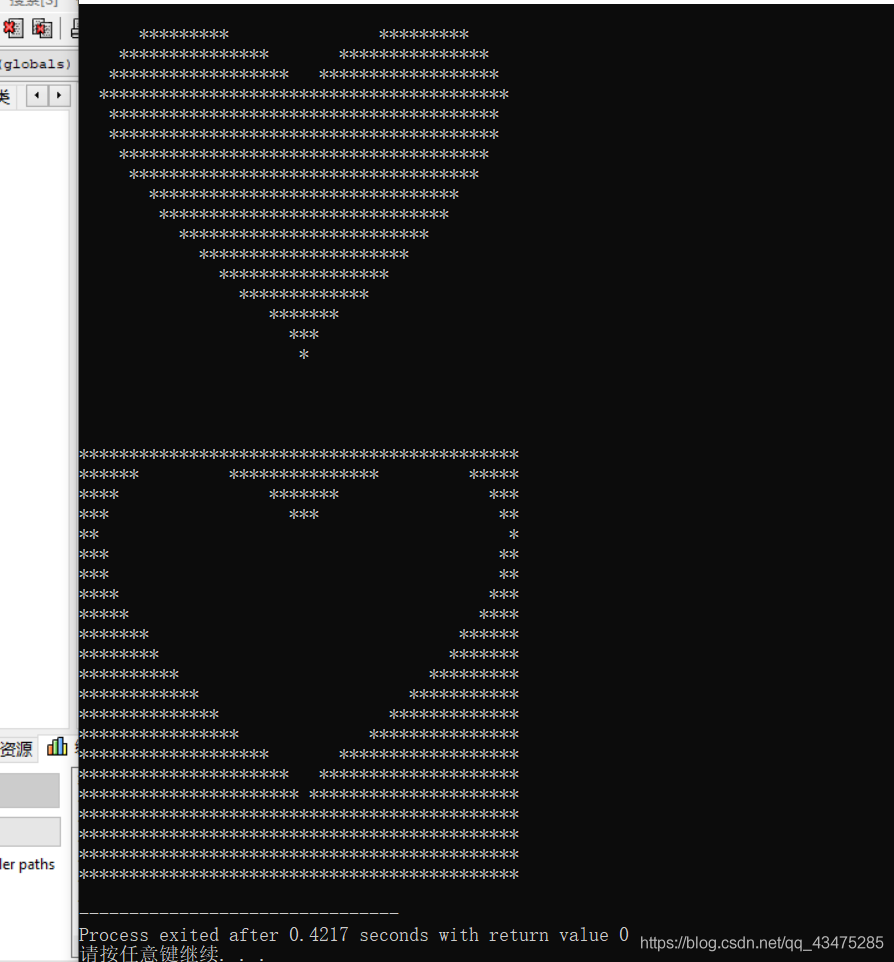

由于c沒有圖形界面，只有在控制臺輸出啦
matlab畫3D玫瑰
代碼
function drawrose
grid on
[x,t]=meshgrid((0:24)./24,(0:0.5:575)./575.*20.*pi+4*pi);
p=(pi/2)*exp(-t./(8*pi));
change=sin(15*t)/150;
u=1-(1-mod(3.6*t,2*pi)./pi).^4./2+change;
y=2*(x.^2-x).^2.*sin(p);
r=u.*(x.*sin(p)+y.*cos(p));
h=u.*(x.*cos(p)-y.*sin(p));
map=[1.0000 0.6471 0.8275
0.9984 0.6353 0.8130
0.9969 0.6236 0.7985
0.9953 0.6118 0.7840
0.9937 0.6000 0.7695
0.9921 0.5882 0.7550
0.9906 0.5765 0.7404
0.9890 0.5647 0.7259
0.9874 0.5529 0.7114
0.9859 0.5412 0.6969
0.9843 0.5294 0.6824
0.9757 0.5149 0.6730
0.9670 0.5004 0.6636
0.9584 0.4859 0.6541
0.9498 0.4714 0.6447
0.9411 0.4568 0.6353
0.9325 0.4423 0.6259
0.9239 0.4278 0.6165
0.9153 0.4133 0.6070
0.9066 0.3988 0.5976
0.8980 0.3843 0.5882
0.8937 0.3780 0.5756
0.8894 0.3718 0.5631
0.8851 0.3655 0.5505
0.8808 0.3592 0.5380
0.8764 0.3529 0.5254
0.8721 0.3467 0.5129
0.8678 0.3404 0.5003
0.8635 0.3341 0.4878
0.8592 0.3279 0.4752
0.8549 0.3216 0.4627
0.8561 0.3165 0.4596
0.8573 0.3114 0.4564
0.8584 0.3063 0.4533
0.8596 0.3012 0.4502
0.8608 0.2961 0.4471
0.8620 0.2910 0.4439
0.8632 0.2859 0.4408
0.8643 0.2808 0.4377
0.8655 0.2757 0.4345
0.8667 0.2706 0.4314
0.8549 0.2620 0.4165
0.8432 0.2533 0.4016
0.8314 0.2447 0.3867
0.8196 0.2361 0.3718
0.8078 0.2274 0.3569
0.7961 0.2188 0.3420
0.7843 0.2102 0.3271
0.7725 0.2016 0.3122
0.7608 0.1929 0.2973
0.7490 0.1843 0.2824
0.7553 0.1827 0.2855
0.7616 0.1812 0.2887
0.7678 0.1796 0.2918
0.7741 0.1780 0.2949
0.7804 0.1764 0.2980
0.7867 0.1749 0.3012
0.7930 0.1733 0.3043
0.7992 0.1717 0.3074
0.8055 0.1702 0.3106
0.8118 0.1686 0.3137
0.7977 0.1631 0.3023
0.7836 0.1576 0.2910
0.7694 0.1521 0.2796
0.7553 0.1466 0.2682
0.7412 0.1411 0.2569
0.7271 0.1357 0.2455
0.7130 0.1302 0.2341
0.6988 0.1247 0.2227
0.6847 0.1192 0.2114
0.6706 0.1137 0.2000
0.6686 0.1141 0.1996
0.6667 0.1145 0.1992
0.6647 0.1149 0.1988
0.6628 0.1153 0.1984
0.6608 0.1157 0.1981
0.6588 0.1160 0.1977
0.6569 0.1164 0.1973
0.6549 0.1168 0.1969
0.6530 0.1172 0.1965
0.6510 0.1176 0.1961];
set(gca,'CameraPosition',[2 2 2])
hold on
surface(r.*cos(t),r.*sin(t),h,'EdgeAlpha',0.1,...
'EdgeColor',[0 0 0],'FaceColor','interp')
colormap(map)
end

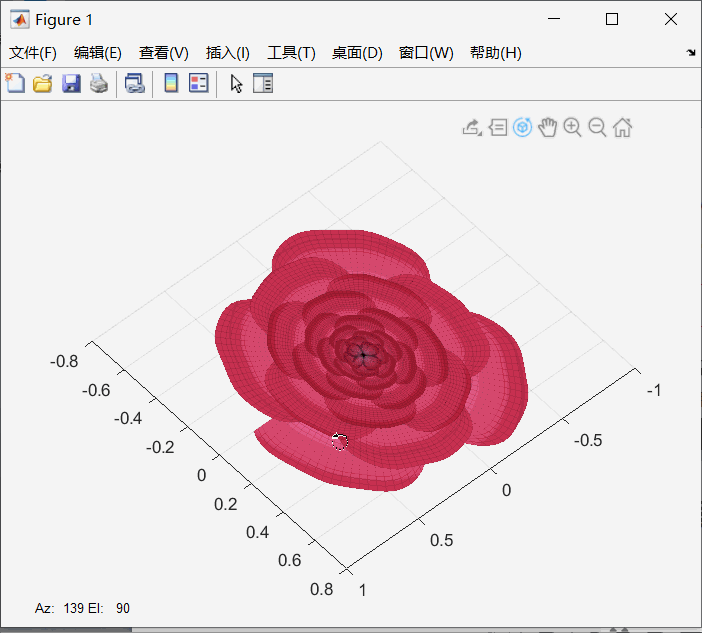

效果
java畫玫瑰線
代碼
import java.awt.Canvas;
import java.awt.Color;
import java.awt.Dimension;
import java.awt.Graphics;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.*;
public class RoseJFrame extends JFrame implements ActionListener {
private RoseCanvas canvas;
public RoseJFrame() {
super("四葉玫瑰線");
Dimension dim = getToolkit().getScreenSize();
this.setBounds(dim.width/4, dim.height/4, dim.width/2, dim.height/2);
this.setDefaultCloseOperation(EXIT_ON_CLOSE);
JPanel jpanel = new JPanel();
this.getContentPane().add(jpanel, "North");
JButton button_color = new JButton("選擇顏色");
jpanel.add(button_color);
button_color.addActionListener(this);
this.canvas = new RoseCanvas(Color.red);
this.getContentPane().add(this.canvas, "Center");
this.setVisible(true);
}
@Override
public void actionPerformed(ActionEvent e) {
Color c = JColorChooser.showDialog(this, "選擇顏色", Color.blue);
this.canvas.setColor(c);
this.canvas.repaint();
}
public static void main(String args[])
{
new RoseJFrame();
}
class RoseCanvas extends Canvas {
private Color color;
public RoseCanvas(Color color) {
this.setColor(color);
}
public void setColor(Color color) {
this.color = color;
}
public void paint(Graphics g) {
int x0 = this.getWidth() / 2;
int y0 = this.getHeight() / 2;
g.setColor(this.color);
g.drawLine(x0, 0, x0, y0 * 2);
g.drawLine(0, y0, x0*2, y0);
for (int j = 40; j < 100; j += 20)
for (int i = 0; i < 1024; i++) {
double angle = i*Math.PI/512;
double radius = j*Math.sin(8*angle);
int x = (int)Math.round(radius * Math.cos(angle) * 2);
int y = (int)Math.round(radius * Math.sin(angle));
g.fillOval(x0 + x, y0 + y*2, 2, 2);
}
}
}
}
運行效果
html動態玫瑰玫瑰
代碼
<!DOCTYPE html>
<html>
<head>
<title>flower</title>
<meta charset="utf-8">
</head>
<body>
<h1 align="center">A beautiful flower for the most beautiful person under the sun</h1>
<br>
<h1 align="center">LOVE</h1>
<p style="text-align: center;">
<canvas id="c" height="500" width="500"></canvas>
<script>
var b = document.body;
var c = document.getElementsByTagName('canvas')[0];
var a = c.getContext('2d');
document.body.clientWidth;
</script>
<script>
with(m=Math)C=cos,S=sin,P=pow,R=random;c.width=c.height=f=500;h=-250;function p(a,b,c){if(c>60)return[S(a*7)*(13+5/(.2+P(b*4,4)))-S(b)*50,b*f+50,625+C(a*7)*(13+5/(.2+P(b*4,4)))+b*400,a*1-b/2,a];A=a*2-1;B=b*2-1;if(A*A+B*B<1){if(c>37){n=(j=c&1)?6:4;o=.5/(a+.01)+C(b*125)*3-a*300;w=b*h;return[o*C(n)+w*S(n)+j*610-390,o*S(n)-w*C(n)+550-j*350,1180+C(B+A)*99-j*300,.4-a*.1+P(1-B*B,-h*6)*.15-a*b*.4+C(a+b)/5+P(C((o*(a+1)+(B>0?w:-w))/25),30)*.1*(1-B*B),o/1e3+.7-o*w*3e-6]}if(c>32){c=c*1.16-.15;o=a*45-20;w=b*b*h;z=o*S(c)+w*C(c)+620;return[o*C(c)-w*S(c),28+C(B*.5)*99-b*b*b*60-z/2-h,z,(b*b*.3+P((1-(A*A)),7)*.15+.3)*b,b*.7]}o=A*(2-b)*(80-c*2);w=99-C(A)*120-C(b)*(-h-c*4.9)+C(P(1-b,7))*50+c*2;z=o*S(c)+w*C(c)+700;return[o*C(c)-w*S(c),B*99-C(P(b, 7))*50-c/3-z/1.35+450,z,(1-b/1.2)*.9+a*.1, P((1-b),20)/4+.05]}}setInterval('for(i=0;i<1e4;i++)if(s=p(R(),R(),i%46/.74)){z=s[2];x=~~(s[0]*f/z-h);y=~~(s[1]*f/z-h);if(!m[q=y*f+x]|m[q]>z)m[q]=z,a.fillStyle="rgb("+~(s[3]*h)+","+~(s[4]*h)+","+~(s[3]*s[3]*-80)+")",a.fillRect(x,y,1,1)}',0)
</script><br>
</p>
</body>
</html>

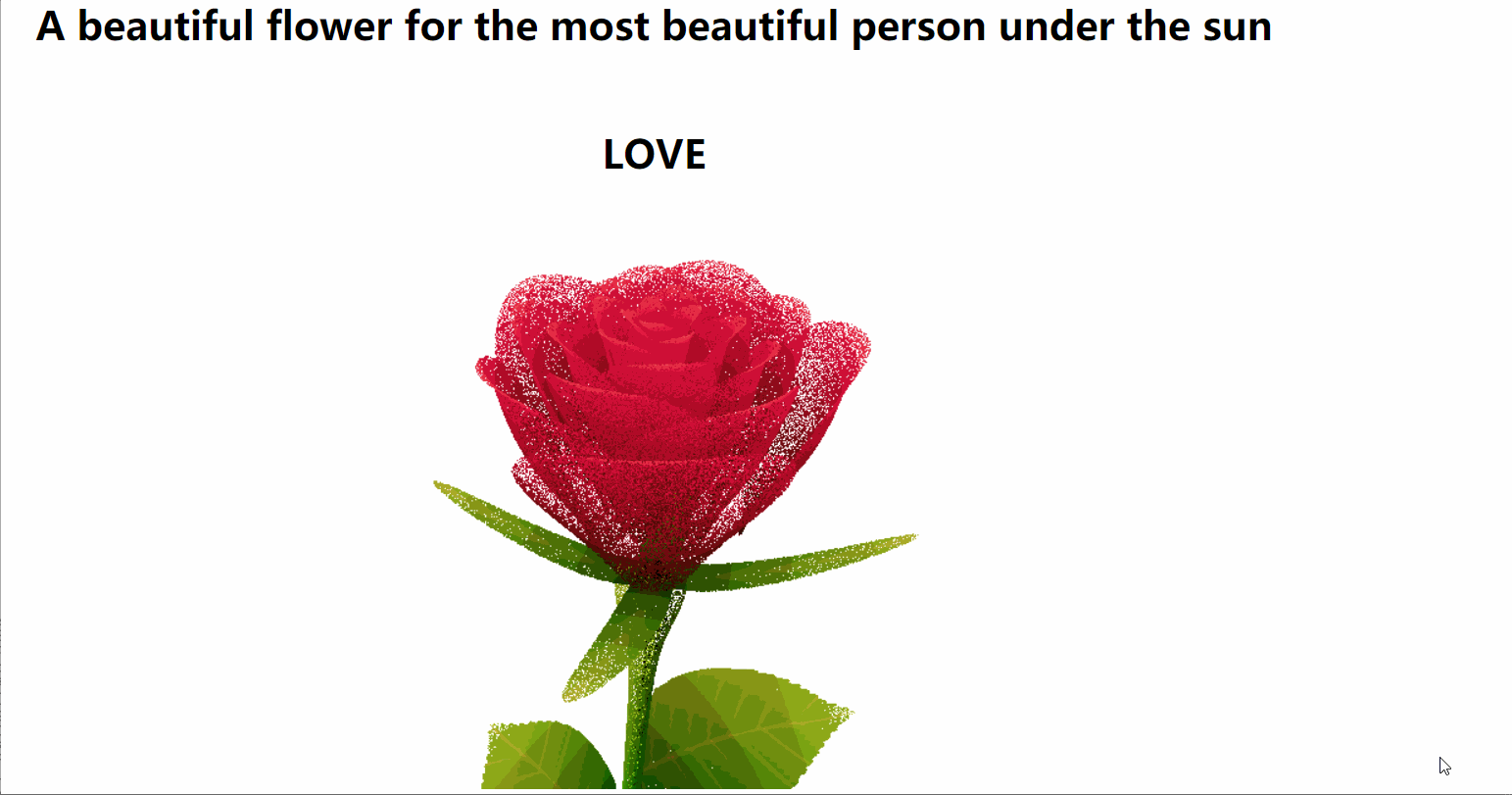

效果
#祝大家順利脫單~
