Flink CEP的概述與分類

Flink CEP的概述
CEP 即Complex Event Processing即復雜事件處理，Flink CEP是在Flink種實作復雜事件處理的庫，處理事件的規則被叫做Pattern，Flink CEP提供了Pattern API,用于對輸入資料進行復雜事件的規則定義，用來提取符合規則的事件序列，
三種Pattern API: 個體模式，組合模式，模式組
應用：實時監控惡意登錄，虛假交易，金融行業識別風險、營銷廣告等

Pattern API

Pattern分類

個體模式：個體模式包括單例模式和回圈模式，單例模式只接收一個事件，而回圈模式可以接受多個事件，
（1）量詞
(2 ) 條件 .where,.or().until() utils可作為終止條件，以便清理狀態

start.times(3).where(_.behavior.startsWirh('fav'))
start.oneOrTwo//出現1次或2次
start.timesOrMore(2).optional.greedy//匹配出現0、2或多次

組合模式

val start = Pattern.begin('start')

模式組: 將一個模式序列作為條件潛逃在一個個體里面，成為一組模式

模式序列

嚴格臨近，所有時間按照嚴格的順序出現，中間沒有任何不匹配的事件，由.next()指定
寬松臨近，允許中間出現不匹配的事件，由.followedby指定
非確定性寬松臨近，表示之前已經匹配過的事件也可以再次使用，由.followedByAny 指定
不希望出現某種臨近關系，比如.notNext()
所有模式必須以.begin()開始，模式序列不能以.notFollowedBy()結束，not型別的模式不能被optional所修飾，可以為模式指定時間約束，用來要求在多長時間內匹配有效

模式的檢測

指定要查找的模式序列后，就可以將其應用于輸入流以檢測潛在匹配，呼叫CEP.pattern(),給定輸入流和模式，就能得到一個PatternStream，PatternStream里面輸出的是每次匹配成功以后，按模式輸出的匹配流

val input：DataStream[Event] = ...
val pattern:Pattern[Event,_] = ...
val patternStream:PatternStream[Event]=CEP.pattern(input,pattern)

匹配事件的提取

創建PatternStream之后，就可以應用select或者flatSelect方法，從檢測到的事件序列中提取事件，每個匹配成功的事件序列都會呼叫它，select()以一個selectfunction 作為引數，每個成功匹配的事件序列都會呼叫它，select()以一個Map[String,Iterable[IN]] 來接收匹配到的事件序列，其中key就是每個模式的名稱，而value就是所有接收到的事件的Iterable型別，

def selectFn(pattern:Map[String,Iterable[IN]]):OUT={
     val startEvent = pattern.get("start").get.next
     val endEvent = pattern.get("end").get.next
     OUT(startEvent,endEvent)
}

package com.lagou.mycep;

import org.apache.flink.api.common.eventtime.*;
import org.apache.flink.cep.CEP;
import org.apache.flink.cep.PatternStream;
import org.apache.flink.cep.functions.PatternProcessFunction;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.cep.pattern.conditions.IterativeCondition;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.Collector;

import java.util.List;
import java.util.Map;

public class LoginDemo {
    public static void main(String[] args) throws Exception {
        /**
         * 1、資料源
         * 2、在資料源上做出watermark
         * 3、在watermark上根據id分組keyby
         * 4、做出模式pattern
         * 5、在資料流上進行模式匹配
         * 6、提取匹配成功的資料
         */
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
        env.setParallelism(1);

        DataStreamSource<LoginBean> data = env.fromElements(
                new LoginBean(1L, "fail", 1597905234000L),
                new LoginBean(1L, "success", 1597905235000L),
                new LoginBean(2L, "fail", 1597905236000L),
                new LoginBean(2L, "fail", 1597905237000L),
                new LoginBean(2L, "fail", 1597905238000L),
                new LoginBean(3L, "fail", 1597905239000L),
                new LoginBean(3L, "success", 1597905240000L)
        );

        //2、在資料源上做出watermark
        SingleOutputStreamOperator<LoginBean> watermarks = data.assignTimestampsAndWatermarks(new WatermarkStrategy<LoginBean>() {
            @Override
            public WatermarkGenerator<LoginBean> createWatermarkGenerator(WatermarkGeneratorSupplier.Context context) {
                return new WatermarkGenerator<LoginBean>() {
                    long maxTimeStamp = Long.MIN_VALUE;

                    @Override
                    public void onEvent(LoginBean event, long eventTimestamp, WatermarkOutput output) {
                        maxTimeStamp = Math.max(maxTimeStamp, event.getTs());
                    }

                    long maxOutOfOrderness = 500l;

                    @Override
                    public void onPeriodicEmit(WatermarkOutput output) {
                        output.emitWatermark(new Watermark(maxTimeStamp - maxOutOfOrderness));
                    }
                };
            }
        }.withTimestampAssigner((element, recordTimestamp) -> element.getTs()));

        //3、在watermark上根據id分組keyby
        KeyedStream<LoginBean, Long> keyed = watermarks.keyBy(value -> value.getId());

        //4、做出模式pattern
        Pattern<LoginBean, LoginBean> pattern = Pattern.<LoginBean>begin("start").where(new IterativeCondition<LoginBean>() {
            @Override
            public boolean filter(LoginBean value, Context<LoginBean> ctx) throws Exception {
                return value.getState().equals("fail");
            }
        })
                .next("next").where(new IterativeCondition<LoginBean>() {
                    @Override
                    public boolean filter(LoginBean value, Context<LoginBean> ctx) throws Exception {
                        return value.getState().equals("fail");
                    }
                })
                .within(Time.seconds(5));

        //5、在資料流上進行模式匹配
        PatternStream<LoginBean> patternStream = CEP.pattern(keyed, pattern);
        //6、提取匹配成功的資料
        SingleOutputStreamOperator<Long> result = patternStream.process(new PatternProcessFunction<LoginBean, Long>() {
            @Override
            public void processMatch(Map<String, List<LoginBean>> match, Context ctx, Collector<Long> out) throws Exception {
//                System.out.println(match);
                out.collect(match.get("start").get(0).getId());
            }
        });

        result.print();

        env.execute();


    }
}

超時事件的提取

Flink CEP開發流程：

DataSource種的資料轉換成DataStream
定義Pattern，并將DataStream和Pattern組合轉換成PatternStream
Pattern經過select,process等算子轉換成DataStream；
再次轉換的DataStream經過處理后sink到目標庫

SingleOutputStreamOperator<PayEvent> result = patternStream.select(orderTimeoutOutput,new PatternTimeoutFunction<PayEvent,PayEvent>(){
   @Override
   public PayEvent timeout(Map<String,List<PayEvent>> map,long l) throws Exception{
    return map.get("begin").get(0)
},new PatternSelectFucntion<PayEvent,PayEvent>(){
    @Override
    public PayEvent select(Map<String,List<PayEvent>> map) throws Exception{
       return map.get("pay").get(0);
    }
}

})

//獲得未匹配成功的測流輸出
DataStream<PayEvent> sideOutput = result.getSideOutput(orderTimeoutOutput);

完整代碼展示

package com.lagou.mycep;

import org.apache.flink.api.common.eventtime.*;
import org.apache.flink.cep.CEP;
import org.apache.flink.cep.PatternSelectFunction;
import org.apache.flink.cep.PatternStream;
import org.apache.flink.cep.PatternTimeoutFunction;
import org.apache.flink.cep.pattern.Pattern;
import org.apache.flink.cep.pattern.conditions.IterativeCondition;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.KeyedStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.util.OutputTag;

import java.util.List;
import java.util.Map;
import java.util.stream.Stream;

public class PayDemo {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
        env.setParallelism(1);
        DataStreamSource<PayBean> data = env.fromElements(
                new PayBean(1L, "create", 1597905234000L),
                new PayBean(1L, "pay", 1597905235000L),
                new PayBean(2L, "create", 1597905236000L),
                new PayBean(2L, "pay", 1597905237000L),
                new PayBean(3L, "create", 1597905239000L)
        );
        SingleOutputStreamOperator<PayBean> watermarks = data.assignTimestampsAndWatermarks(new WatermarkStrategy<PayBean>() {
            @Override
            public WatermarkGenerator<PayBean> createWatermarkGenerator(WatermarkGeneratorSupplier.Context context) {
                return new WatermarkGenerator<PayBean>() {
                    long maxTimeStamp = Long.MIN_VALUE;
                    long maxOutOfOrderness = 500l;

                    @Override
                    public void onEvent(PayBean event, long eventTimestamp, WatermarkOutput output) {
                        maxTimeStamp = Math.max(maxTimeStamp, event.getTs());
                    }

                    @Override
                    public void onPeriodicEmit(WatermarkOutput output) {
                        output.emitWatermark(new Watermark(maxTimeStamp - maxOutOfOrderness));
                    }
                };
            }
        }.withTimestampAssigner((element, recordTimestamp) -> element.getTs()));
        KeyedStream<PayBean, Long> keyed = watermarks.keyBy(value -> value.getId());

        //pattern
        Pattern<PayBean, PayBean> pattern = Pattern.<PayBean>begin("start").where(new IterativeCondition<PayBean>() {
            @Override
            public boolean filter(PayBean value, Context<PayBean> ctx) throws Exception {
                return value.getState().equals("create");
            }
        })
                .followedBy("next").where(new IterativeCondition<PayBean>() {
                    @Override
                    public boolean filter(PayBean value, Context<PayBean> ctx) throws Exception {
                        return value.getState().equals("pay");
                    }
                })
                .within(Time.seconds(600));

        PatternStream<PayBean> patternStream = CEP.pattern(keyed, pattern);

        //select
        OutputTag<PayBean> outoftime = new OutputTag<PayBean>("outoftime"){};
        SingleOutputStreamOperator<PayBean> result = patternStream.select(outoftime, new PatternTimeoutFunction<PayBean, PayBean>() {
            @Override
            public PayBean timeout(Map<String, List<PayBean>> pattern, long timeoutTimestamp) throws Exception {
                return pattern.get("start").get(0);
            }
        }, new PatternSelectFunction<PayBean, PayBean>() {
            @Override
            public PayBean select(Map<String, List<PayBean>> pattern) throws Exception {
                return pattern.get("start").get(0);
            }
        });

        DataStream<PayBean> sideOutput = result.getSideOutput(outoftime);
        sideOutput.print();

        env.execute();

    }
}

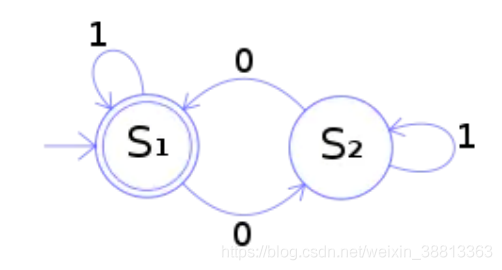

Flink CEP原理非確定有限自動機

從開始狀態，根據不同的輸入，自動繼續進行狀態轉換的程序
在這里插入圖片描述
