ensp用的S5700 做802.1x認證 test-aaa測驗，如果域賬號密碼錯誤直接顯示Info: User name or password is wrong.
填寫對了域賬號密碼，反而顯示timeout最關鍵的是，vm下新建win10系統，可以加域，但是身份認證永遠失敗！！

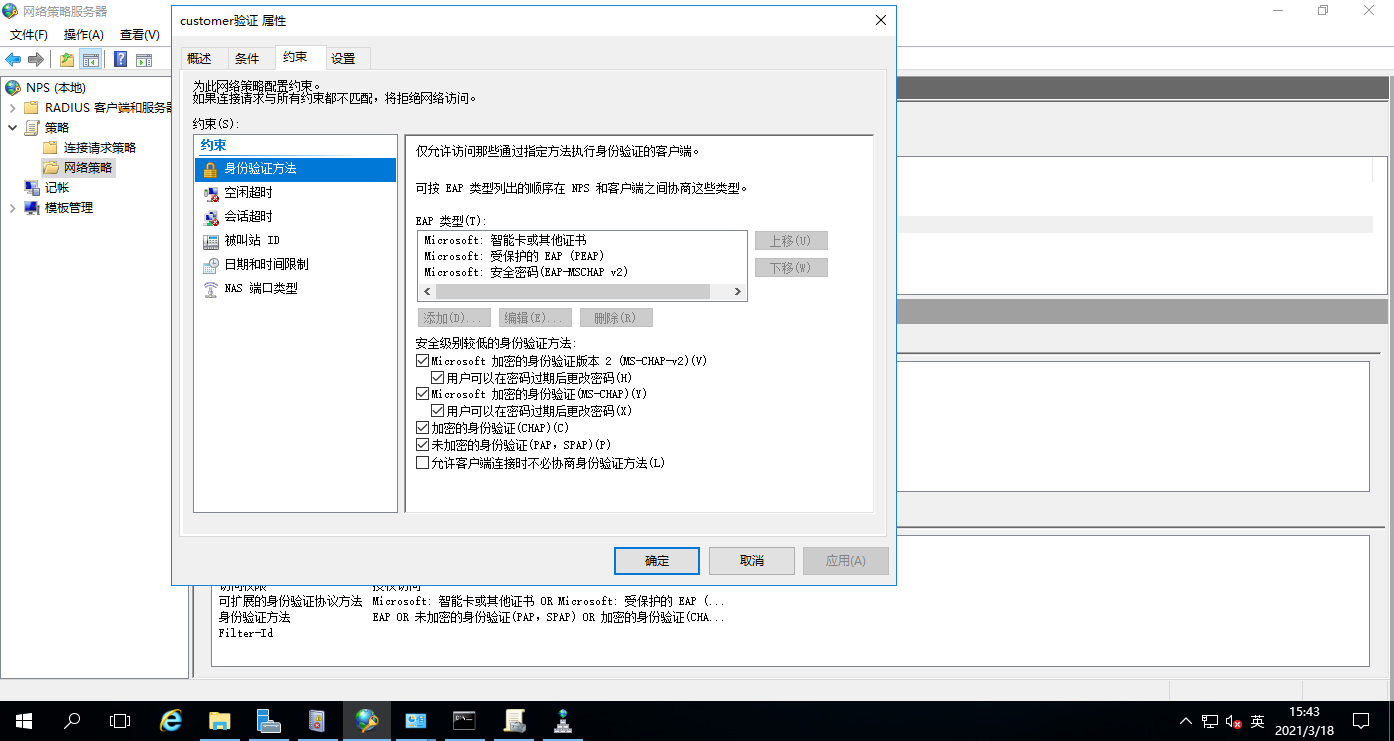

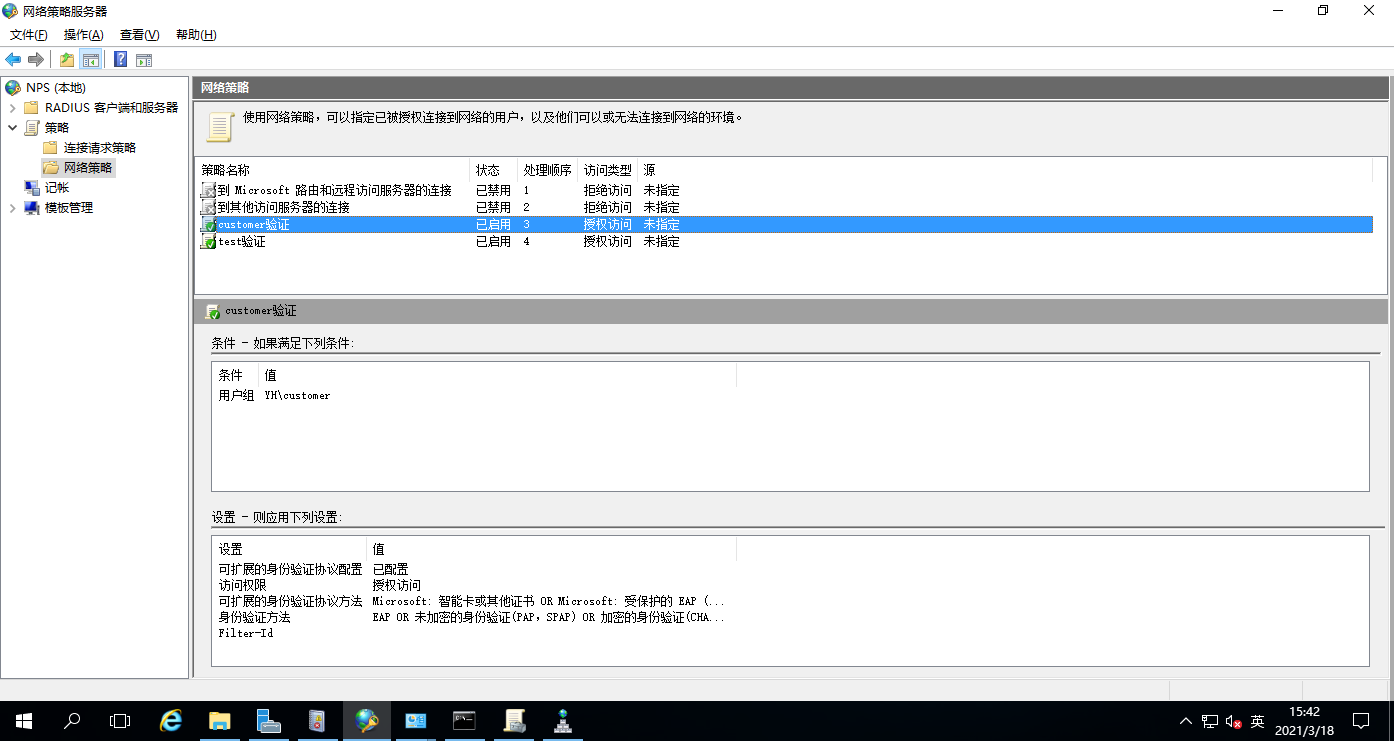

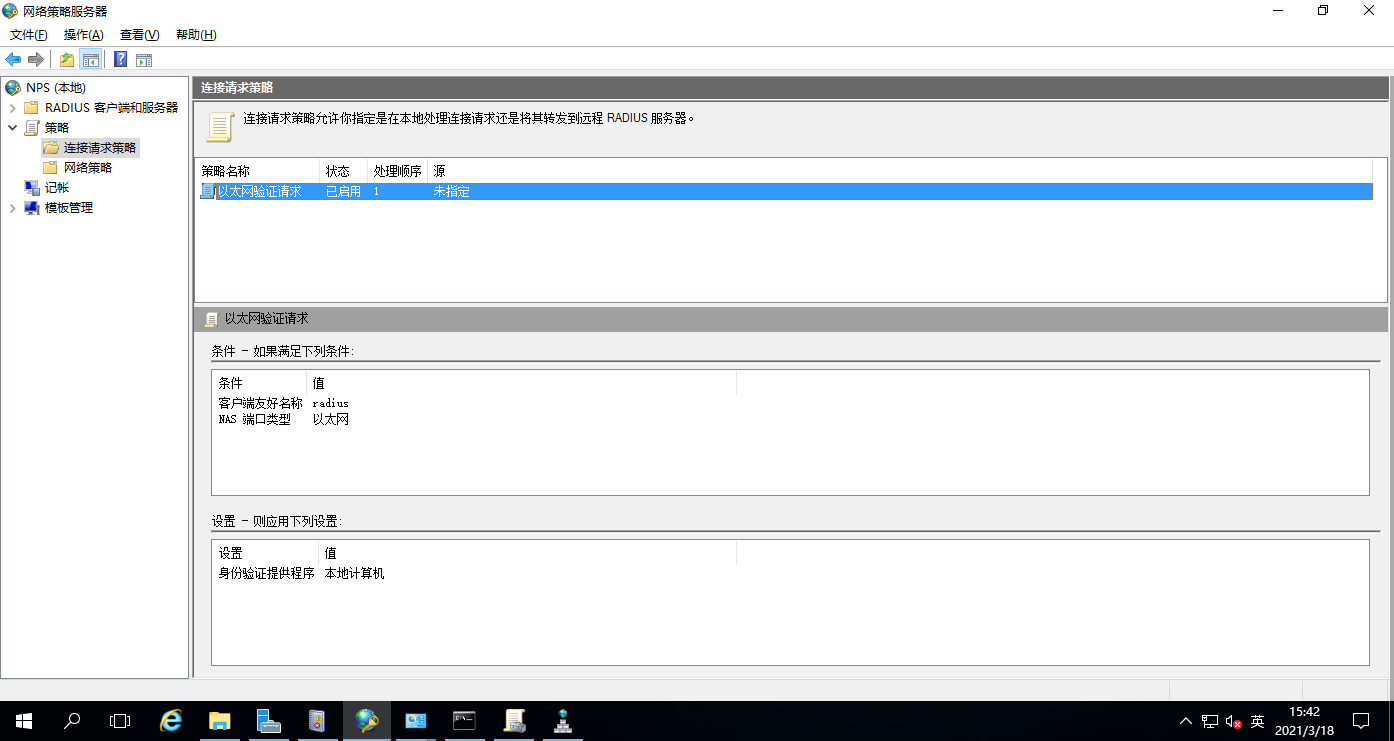

ensp配置和nps配置如下：
#
sysname Huawei
#
vlan batch 10 30 100 200 250
#
domain yh.com
#
cluster enable
ntdp enable
ndp enable
#
dot1x enable
dot1x authentication-method eap
dot1x dhcp-trigger
#
drop illegal-mac alarm
#
dhcp enable
#
diffserv domain default
#
radius-server template yh
radius-server shared-key cipher 5_U,1)ZW;(6+U".B=04%X1!!
radius-server authentication 172.16.30.100 1812
radius-server accounting 172.16.30.100 1813
radius-server template y
#
drop-profile default
#
aaa
authentication-scheme default
authentication-scheme nps
authentication-mode radius
authorization-scheme default
accounting-scheme default
accounting-scheme acc
accounting-mode radius
domain default
domain default_admin
domain yh.com
authentication-scheme nps
accounting-scheme acc
radius-server yh
local-user admin password simple admin
local-user admin service-type http
#
interface Vlanif1
#
interface Vlanif10
description Switch
ip address 172.16.10.254 255.255.255.0
#
interface Vlanif30
description fuwuqi
ip address 172.16.30.254 255.255.255.0
#
interface Vlanif100
ip address 172.16.100.254 255.255.255.0
dhcp select global
dhcp select relay
dhcp relay server-ip 172.16.30.100
#
interface Vlanif200
ip address 172.16.200.254 255.255.255.0
dhcp select global
dhcp select relay
dhcp relay server-ip 172.16.30.100
#
interface Vlanif250
ip address 172.16.250.254 255.255.255.0
dhcp select global
dhcp select relay
dhcp relay server-ip 172.16.30.100
#
interface MEth0/0/1
#
interface GigabitEthernet0/0/1
port link-type access
port default vlan 100
dot1x enable
dot1x max-user 1
authentication guest-vlan 250
dot1x port-method port
#
interface GigabitEthernet0/0/2
port link-type access
port default vlan 30
#
interface GigabitEthernet0/0/3
port hybrid pvid vlan 100
port hybrid untagged vlan 10 30 100 200
dot1x enable
authentication guest-vlan 250
#
interface GigabitEthernet0/0/4
port hybrid pvid vlan 250
port hybrid untagged vlan 10 30 100 200
dot1x enable
dot1x max-user 1
dot1x port-method port
#
interface GigabitEthernet0/0/5
#
interface GigabitEthernet0/0/6
#
interface GigabitEthernet0/0/7
#
interface GigabitEthernet0/0/8
#
interface GigabitEthernet0/0/9
#
interface GigabitEthernet0/0/10
#
interface GigabitEthernet0/0/11
#
interface GigabitEthernet0/0/12
#
interface GigabitEthernet0/0/13
#
interface GigabitEthernet0/0/14
#
interface GigabitEthernet0/0/15
#
interface GigabitEthernet0/0/16
#
interface GigabitEthernet0/0/17
#
interface GigabitEthernet0/0/18
#
interface GigabitEthernet0/0/19
#
interface GigabitEthernet0/0/20
#
interface GigabitEthernet0/0/21
#
interface GigabitEthernet0/0/22
#
interface GigabitEthernet0/0/23
#
interface GigabitEthernet0/0/24
#
interface NULL0
#
interface LoopBack0
ip address 172.16.1.254 255.255.255.0
#
user-interface con 0
user-interface vty 0 4
#
port-group hybrid
#
return
