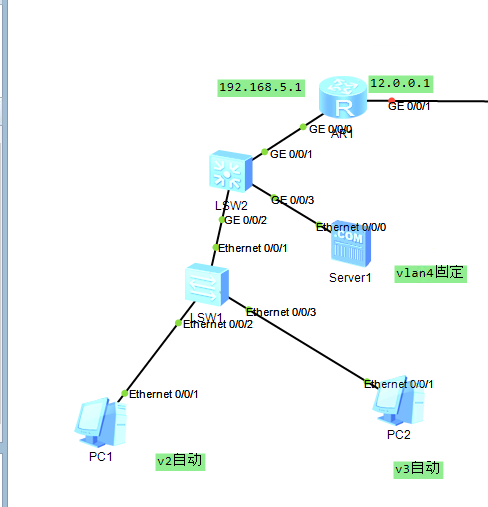

pC1\PC2都能ping通192.168.5.1 但是ping不通12.0.0.1.為什么？
AR1配置如下：
[Huawei]dis cur
[V200R003C00]
#
snmp-agent local-engineid 800007DB03000000000000
snmp-agent
#
clock timezone China-Standard-Time minus 08:00:00
#
portal local-server load portalpage.zip
#
drop illegal-mac alarm
#
set cpu-usage threshold 80 restore 75
#
aaa
authentication-scheme default
authorization-scheme default
accounting-scheme default
domain default
domain default_admin
local-user admin password cipher %$%$K8m.Nt84DZ}e#<0`8bmE3Uw}%$%$
local-user admin service-type http
#
firewall zone Local
priority 15
#
interface Ethernet0/0/0
#
interface Ethernet0/0/1
#
interface Ethernet0/0/2
#
interface Ethernet0/0/3
#
interface Ethernet0/0/4
#
interface Ethernet0/0/5
#
interface Ethernet0/0/6
#
interface Ethernet0/0/7
#
interface GigabitEthernet0/0/0
ip address 192.168.5.1 255.255.255.0
#
interface GigabitEthernet0/0/1
ip address 12.0.0.1 255.255.255.0
#
#
interface NULL0
#
interface LoopBack1
ip address 12.1.1.1 255.255.255.255
#
ospf 1 router-id 1.1.1.1
area 0.0.0.0
network 1.1.1.1 0.0.0.0
network 12.0.0.1 0.0.0.0
network 12.1.1.1 0.0.0.0
network 192.168.5.1 0.0.0.0
#
user-interface con 0
authentication-mode password
user-interface vty 0 4
user-interface vty 16 20
#
wlan ac
#
return
