　　蟻群演算法是一種啟發式優化演算法，也是一種智能演算法、進化計算，和遺傳演算法、粒子群演算法相比，蟻群演算法所優化的內容是拓撲序（或者路徑）的資訊素濃度，而遺傳演算法、粒子群演算法優化的是某一個個體（解向量），

　　例如TSP問題，30個城市之間有900個對應關系，30*15/2=435條路徑，在螞蟻經過之后，都留下了資訊素，而某一個拓撲序指的是一個解向量，旅行商的回路應是首尾相連的30條路徑，螞蟻在走路的時候會考慮到能走的路徑上的資訊素濃度，然后選擇一個拓撲序作為新解，例如任務車間調度問題，假如有8個機器和10個任務，則一共有80個對應關系，每個對應關系看作一個路徑，會有資訊素的標記，而解向量是一個長度為10的向量，螞蟻在走路的時候，會選擇每一個任務到所有機器的對應關系，考慮資訊素的濃度選擇其中一個，由此選擇10個任務各自放在哪一個機器上，作為新解，

　　蟻群演算法天生適合解決路徑問題、指派問題，效果通常比粒子群等要好，相比于模擬退火演算法，計算更穩定，相比于粒子群演算法收斂性更好，

對于任務調度問題，需要定義模型物件：

　　節點和云任務，節點VM具有節點編號id、兩種資源總量和兩種資源的已占有量，因此其剩余空間是總量capacity減去已占有量supply，

class Cloudlet:
    def __init__(self, cpu_demand: float, mem_demand: float):
        self.cpu_demand = cpu_demand
        self.mem_demand = mem_demand


class VM:
    def __init__(self, vm_id: int, cpu_supply: float, cpu_velocity: float, mem_supply: float, mem_capacity: float):
        self.id = vm_id
        self.cpu_supply = cpu_supply
        self.cpu_velocity = cpu_velocity
        self.mem_supply = mem_supply
        self.mem_capacity = mem_capacity

然后定義蟻群演算法解決任務調度問題的類，

　　初始化屬性有云任務串列，節點串列，螞蟻種群數量，迭代次數，以及人物的路徑數和最優策略記錄，

　　函式有生成新解的函式gen_topo_jobs()，評估解的負載均衡值和計算適應度evaluate_particle、calculate_fitness，更新資訊素update_topo以及蟻群演算法主流程schedulet_main，后面逐一講解

import numpy as np
from typing import List
from matplotlib import pyplot as plt


class ACScheduler:
    def __init__(self, cloudlets, vms, population_number=100, times=500):
        self.cloudlets = cloudlets
        self.vms = vms
        self.cloudlet_num = len(cloudlets)  # 任務數量也就是粒子長度
        self.machine_number = len(vms)  # 機器數量

        self.population_number = population_number  # 種群數量
        self.times = times  # 迭代代數

        # 表示任務選擇的機器的資訊素
        self.topo_phs = [[100 for _ in range(self.machine_number)] for _ in range(self.cloudlet_num)]
        # 最優策略
        self.best_topo = None

    # 生成新的解向量--根據資訊素濃度生成
    def gen_topo_jobs(self):
        pass

    # 與演算法無關的函式--評估當前解向量
    def evaluate_particle(self, topo_jobs: List[int]) -> int:
        pass

    # 與演算法無關的函式--計算適應度
    def calculate_fitness(self, topo_jobs: List[int]) -> float:
        pass

    # 更新資訊素
    def update_topo(self):
        pass

    def scheduler_main(self):
        pass


if __name__ == '__main__':
    nodes = [VM(0, 0.862, 950, 950, 1719), VM(1, 0.962, 2, 950, 1719), VM(2, 1.062, 2, 1500, 1719)]
    lets = [Cloudlet(0.15, 50), Cloudlet(0.05, 100), Cloudlet(0.2, 60),
            Cloudlet(0.01, 70), Cloudlet(0.04, 80), Cloudlet(0.07, 20),
            Cloudlet(0.14, 150), Cloudlet(0.15, 200), Cloudlet(0.03, 40), Cloudlet(0.06, 90)]
    ac = ACScheduler(lets, nodes, times=150)
    res = ac.scheduler_main()
    i = 0
    for _ in ac.best_topo:
        print("任務:", i, " 放置到機器", ac.best_topo[i], "上執行")
        i += 1

1. 生成新的解向量gen_topo_jobs(self)

　　初始化解向量為-1，然后逐個根據資訊素的濃度選擇任務的對應的機器，以此生成新的解向量回傳

    # 生成新的解向量--根據資訊素濃度生成
    def gen_topo_jobs(self):
        ans = [-1 for _ in range(self.cloudlet_num)]
        node_free = [node_id for node_id in range(self.machine_number)]
        for let in range(self.cloudlet_num):
            ph_sum = np.sum(list(map(lambda j: self.topo_phs[let][j], node_free)))
            test_val = 0
            rand_ph = np.random.uniform(0, ph_sum)
            for node_id in node_free:
                test_val += self.topo_phs[let][node_id]
                if rand_ph <= test_val:
                    ans[let] = node_id
                    break
        return ans

2. 評估解向量然后計算適應度

　　把解向量的策略利用到集群中，然后計算每個節點每個資源的利用率，然后對所有節點取標準差，各個資源的利用率標準差加和作為負載均衡度，越小越均衡，

　　由于適應度定義為越大越好，因此評估結果取倒數作為適應度，

    # 與演算法無關的函式--評估當前解向量
    def evaluate_particle(self, topo_jobs: List[int]) -> int:
        cpu_util = np.zeros(self.machine_number)
        mem_util = np.zeros(self.machine_number)
        for i in range(len(self.vms)):
            cpu_util[i] = self.vms[i].cpu_supply
            mem_util[i] = self.vms[i].mem_supply

        for i in range(self.cloudlet_num):
            cpu_util[topo_jobs[i]] += self.cloudlets[i].cpu_demand
            mem_util[topo_jobs[i]] += self.cloudlets[i].mem_demand

        for i in range(self.machine_number):
            if cpu_util[i] > self.vms[i].cpu_velocity:
                return 100
            if mem_util[i] > self.vms[i].mem_capacity:
                return 100

        for i in range(self.machine_number):
            cpu_util[i] /= self.vms[i].cpu_velocity
            mem_util[i] /= self.vms[i].mem_capacity

        return np.std(cpu_util, ddof=1) + np.std(mem_util, ddof=1)

    # 與演算法無關的函式--計算適應度
    def calculate_fitness(self, topo_jobs: List[int]) -> float:
        return 1 / self.evaluate_particle(topo_jobs)

3. 更新資訊素：有螞蟻經過的路徑資訊素加倍，否則揮發減半

     # 更新資訊素
     def update_topo(self):
        for i in range(self.cloudlet_num):
            for j in range(self.machine_number):
                if j == self.best_topo[i]:
                    self.topo_phs[i][j] *= 2
                else:
                    self.topo_phs[i][j] *= 0.5

4. 主流程：迭代求解

    def scheduler_main(self):
        results = [0 for _ in range(self.times)]
        fitness = 0

        for it in range(self.times):
            best_time = 0

            for ant_id in range(self.population_number):
                topo_jobs = self.gen_topo_jobs()
                fitness = self.calculate_fitness(topo_jobs)
                if fitness > best_time:
                    self.best_topo = topo_jobs
                    best_time = fitness
            assert self.best_topo is not None
            self.update_topo()
            results[it] = best_time
            if it % 10 == 0:
                print("ACO iter: ", it, " / ", self.times, ", 適應度: ", fitness)
        plt.plot(range(self.times), results)
        plt.xlabel("迭代次數")
        plt.ylabel("適應度")
        plt.rcParams['font.sans-serif'] = ['KaiTi']  # 指定默認字體
        plt.rcParams['axes.unicode_minus'] = False  # 解決保存影像是負號'-'顯示為方塊的問題
        plt.title("蟻群演算法求解云任務調度負載均衡問題")
        # plt.savefig('img/ACScheduler-1.1_0.9-popu100-iter200.png', dpi=300,
        #             format='png')  # bbox_inches="tight"解決X軸時間兩個字不被保存的問題
        plt.show()
        return results

測驗資料：

if __name__ == '__main__':
    # 第四組資料data9

    nodes = [
        VM(0, 0.662, 2, 620, 2223),
        VM(1, 0.662, 2, 1100, 2223),
        VM(2, 1.662, 2, 720, 2223),
        VM(3, 0.662, 2, 1100, 2223),
        VM(4, 0.662, 2, 620, 2223),
        VM(5, 0.562, 2, 650, 2223),
        VM(6, 0.562, 2, 620, 2223),
        VM(7, 0.462, 2, 440, 2223),  # 8
    ]
    lets = [
        Cloudlet(0.133364, 272.435810),
        Cloudlet(0.226357, 141.126392),
        Cloudlet(0.084122, 7.183883),
        Cloudlet(0.029290, 96.658838),
        Cloudlet(0.027560, 247.821058),
        Cloudlet(0.191912, 80.636804),
        Cloudlet(0.134658, 220.702279),
        Cloudlet(0.133052, 163.046071),
        Cloudlet(0.272010, 253.477271),
        Cloudlet(0.175000, 19.409176),
        Cloudlet(0.166933, 140.880123),
        Cloudlet(0.286495, 71.288800),
        Cloudlet(0.080714, 354.839232),
        Cloudlet(0.209842, 211.351191),
        Cloudlet(0.221753, 249.500490),
        Cloudlet(0.128952, 81.599575),
        Cloudlet(0.168469, 122.216016),
        Cloudlet(0.049628, 135.728968),
        Cloudlet(0.051167, 230.172949),
        Cloudlet(0.158938, 135.356776),
        Cloudlet(0.212047, 202.830773),
        Cloudlet(0.372328, 13.145747),
        Cloudlet(0.092549, 130.122476),
        Cloudlet(0.166031, 97.761267),
        Cloudlet(0.142820, 45.852985),
        Cloudlet(0.016367, 189.495519),
        Cloudlet(0.112156, 173.926518),
        Cloudlet(0.004466, 156.806505),
        Cloudlet(0.222208, 62.619918),
        Cloudlet(0.073526, 232.175486),
        Cloudlet(0.158527, 178.624649),
        Cloudlet(0.103075, 133.896667),
        Cloudlet(0.176026, 156.076929),
        Cloudlet(0.098275, 136.450544),
        Cloudlet(0.192065, 33.923922),
        Cloudlet(0.213519, 134.820860),

    ]

    ac = ACScheduler(lets, nodes, times=150)
    res = ac.scheduler_main()
    i = 0
    for _ in ac.best_topo:
        print("任務:", i, " 放置到機器", ac.best_topo[i], "上執行")
        i += 1

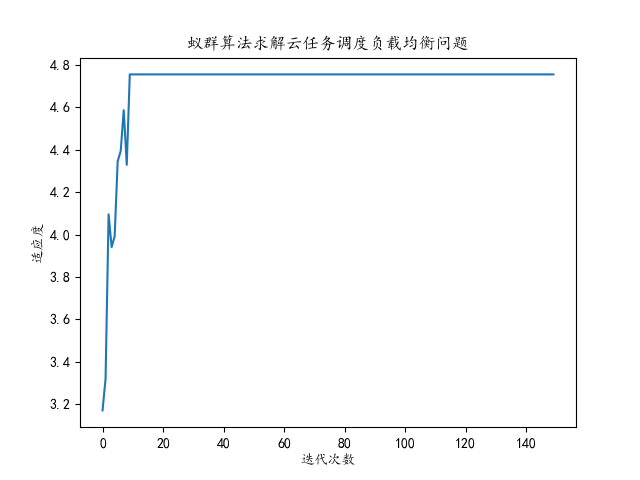

求解結果：

ACO iter: 0 / 150 , 適應度: 0.01
ACO iter: 10 / 150 , 適應度: 4.0408235554621665
ACO iter: 20 / 150 , 適應度: 4.754201711827778
ACO iter: 30 / 150 , 適應度: 4.754201711827778
ACO iter: 40 / 150 , 適應度: 4.754201711827778
ACO iter: 50 / 150 , 適應度: 4.754201711827778
ACO iter: 60 / 150 , 適應度: 4.754201711827778
ACO iter: 70 / 150 , 適應度: 4.754201711827778
ACO iter: 80 / 150 , 適應度: 4.754201711827778
ACO iter: 90 / 150 , 適應度: 4.754201711827778
ACO iter: 100 / 150 , 適應度: 4.754201711827778
ACO iter: 110 / 150 , 適應度: 4.754201711827778
ACO iter: 120 / 150 , 適應度: 4.754201711827778
ACO iter: 130 / 150 , 適應度: 4.754201711827778
ACO iter: 140 / 150 , 適應度: 4.754201711827778
