前言

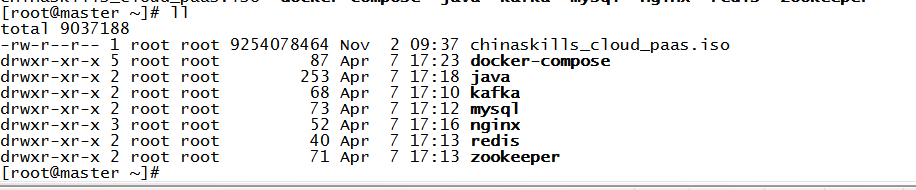

一、生成目錄

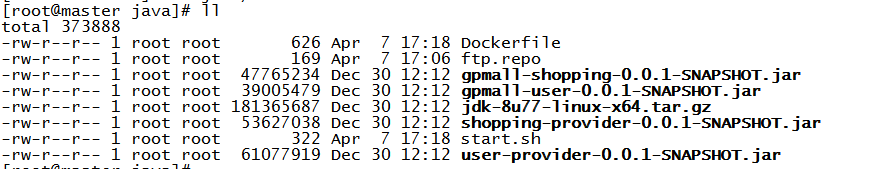

二、Java環境準備

[root@master java]# cat Dockerfile
FROM 192.168.200.4/library/centos:centos7.5.1804
MAINTAINER Chinaskill
RUN rm -rvf /etc/yum.repos.d/*
ADD ftp.repo /etc/yum.repos.d/
ADD jdk-8u77-linux-x64.tar.gz /opt
ENV JAVA_HOME=/opt/jdk1.8.0_77
ENV JRE_HOME=${JAVA_HOME}/jre
ENV CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
ENV PATH=${JAVA_HOME}/bin:$PATH
ADD gpmall-shopping-0.0.1-SNAPSHOT.jar /opt/
ADD gpmall-user-0.0.1-SNAPSHOT.jar /opt/
ADD shopping-provider-0.0.1-SNAPSHOT.jar /opt/
ADD user-provider-0.0.1-SNAPSHOT.jar /opt/
ADD start.sh /start.sh
RUN chmod +x /start.sh
EXPOSE 8081
EXPOSE 8082
EXPOSE 20880
EXPOSE 20881
EXPOSE 9090
CMD ["bash","/start.sh"]

三、Mysql環境

[root@master mysql]# ll
total 72
-rw-r--r-- 1 root root   381 Apr  7 11:21 Dockerfile
-rw-r--r-- 1 root root   169 Apr  7 11:20 ftp.repo
-rw-r--r-- 1 root root 59239 Dec 30 12:09 gpmall.sql
-rw-r--r-- 1 root root   341 Apr  7 17:12 init.sh

[root@master mysql]# cat Dockerfile
FROM 192.168.200.4/library/centos:centos7.5.1804
MAINTAINER Chinaskill
RUN rm -rvf /etc/yum.repos.d/*
ADD ftp.repo /etc/yum.repos.d/
ADD gpmall.sql /root/
RUN yum install -y mariadb-server
RUN sed -i "13cport = 8066" /etc/my.cnf.d/server.cnf
ADD init.sh /root/init.sh
RUN chmod +x /root/init.sh
RUN /root/init.sh
ENV LC_ALL en_US.UTF-8
EXPOSE 3306
EXPOSE 8066
CMD ["mysqld_safe"]

[root@master mysql]# cat ftp.repo
[k8s]
name=k8s
baseurl=ftp://192.168.200.4/ChinaskillMall/gpmall-repo
gpgcheck=0
enabled=1
[centos]
name=centos
baseurl=ftp://192.168.100.10/centos
gpgcheck=0
enabled=1

四、Redis環境

[root@master redis]# ls
Dockerfile  ftp.repo
[root@master redis]# cat Dockerfile
FROM 192.168.200.4/library/centos:centos7.5.1804
MAINTAINER Chinaskill
RUN rm -rvf /etc/yum.repos.d/*
COPY ftp.repo /etc/yum.repos.d/local.repo
RUN yum clean all
RUN yum list
RUN yum -y install redis
RUN sed -i -e 's@bind 127.0.0.1@bind 0.0.0.0@g' /etc/redis.conf
RUN sed -i -e 's@protected-mode yes@protected-mode no@g' /etc/redis.conf
RUN sed -i -e 's@daemonize yes@daemonize no@g' /etc/redis.conf
EXPOSE 6379
#ENTRYPOINT ["/usr/bin/redis-server","/etc/redis.conf"]
ENTRYPOINT redis-server /etc/redis.conf
CMD ["redis-server"]

五、Zookeeper環境

[root@master zookeeper]# ls
Dockerfile  ftp.repo  zookeeper-3.4.14.tar.gz
[root@master zookeeper]# cat Dockerfile
FROM 192.168.200.4/library/centos:centos7.5.1804
MAINTAINER Chinaskill
RUN rm -rvf /etc/yum.repos.d/*
COPY ftp.repo /etc/yum.repos.d/local.repo
RUN yum -y install java-1.8.0
ADD zookeeper-3.4.14.tar.gz /usr/local
ENV ZOOKEEPER_HOME /usr/local/zookeeper-3.4.14
ENV PATH $PATH:$JAVA_HOME/bin:$JRE_HOME/bin:$ZOOKEEPER_HOME/bin
EXPOSE 2181
EXPOSE 2888
EXPOSE 3888
CMD $ZOOKEEPER_HOME/bin/zkServer.sh start-foreground

六、Docker-compose

[root@master ~]# cd docker-compose/
[root@master docker-compose]# ll
total 4
-rw-r--r-- 1 root root 1454 Apr  7 17:23 docker-compose.yaml
drwxr-xr-x 4 root root   30 Apr  7 11:50 zookeeper1
drwxr-xr-x 4 root root   30 Apr  7 11:50 zookeeper2
drwxr-xr-x 4 root root   30 Apr  7 11:50 zookeeper3
[root@master docker-compose]# cat docker-compose.yaml
version: '2'
services:
  zk1.mall:
    image: chinaskillmall-zookeeper:v1.1
    restart: always
    expose:
        - 2181
        - 2888
        - 3888
    volumes:
      - ./zookeeper1/conf:/usr/local/zookeeper-3.4.14/conf
      - ./zookeeper1/data:/data
  zk2.mall:
    image: chinaskillmall-zookeeper:v1.1
    restart: always
    expose:
        - 2181
        - 2888
        - 3888
    volumes:
      - ./zookeeper2/conf:/usr/local/zookeeper-3.4.14/conf
      - ./zookeeper2/data:/data

  zk3.mall:
    image: chinaskillmall-zookeeper:v1.1
    restart: always
    expose:
        - 2181
        - 2888
        - 3888
    volumes:
      - ./zookeeper3/conf:/usr/local/zookeeper-3.4.14/conf
      - ./zookeeper3/data:/data


  kafka1.mall:
    image: chinaskillmall-kafka:v1.1
    restart: always
    expose:
      - 9092
    links:
    - zk1.mall
    - zk2.mall
    - zk3.mall



  redis.mall:
    image: chinaskillmall-redis:v1.1
    expose:
        - 6379

  mysql.mall:
    image: chinaskillmall-mysql:v1.2
    expose:
        - 8066

  nginx:
    image: chinaskillmall-nginx:v1.2
    restart: always
    ports:
        - "85:80"
    links:
        - jar


  jar:
    image: chinaskillmall-jar:v1.1
    links:
        - kafka1.mall
        - mysql.mall
        - redis.mall
        - zk1.mall
        - zk2.mall
        - zk3.mall
    expose:
        - 8081
        - 8082
        - 20880
        - 20881
        - 9090

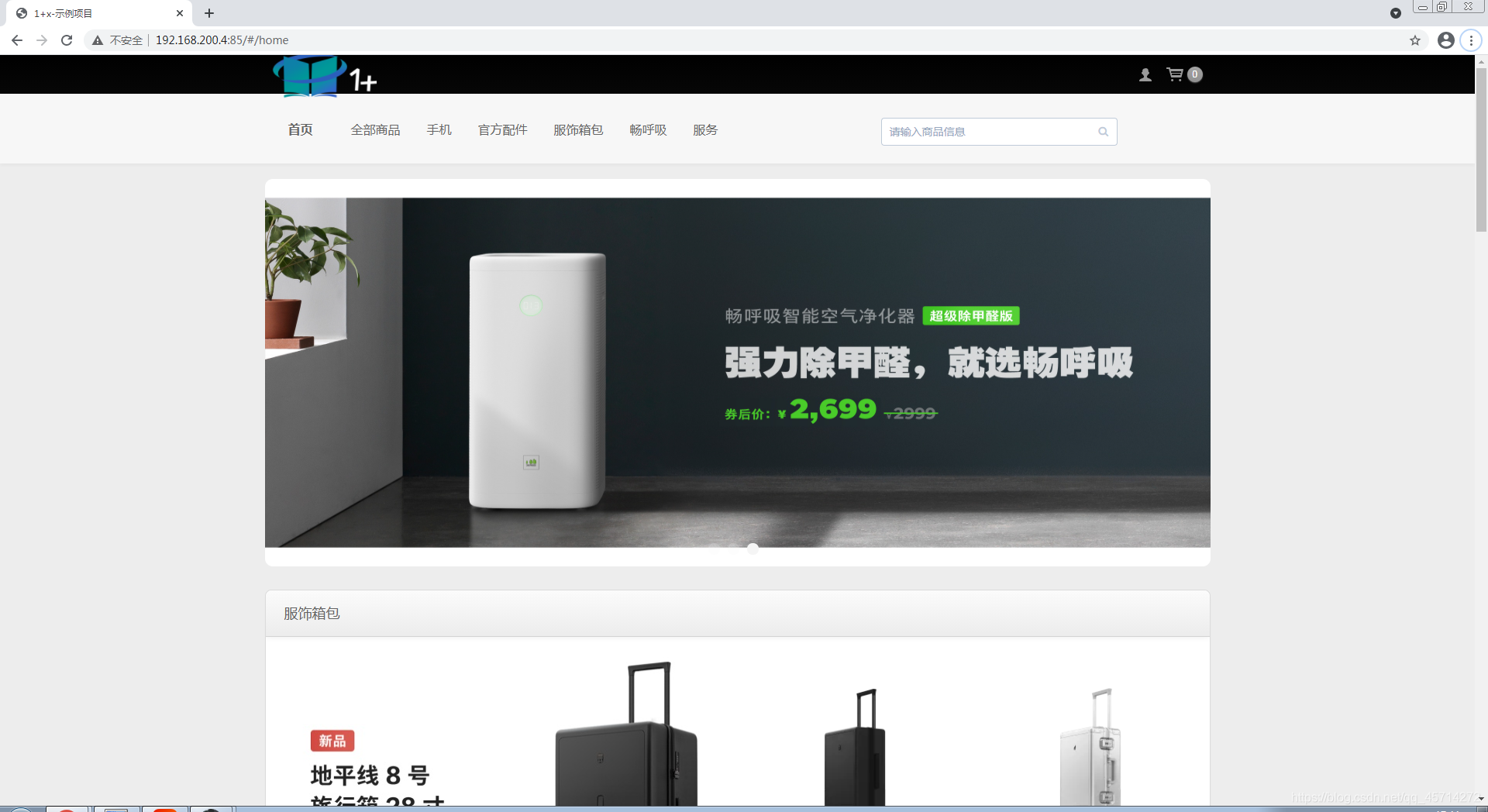

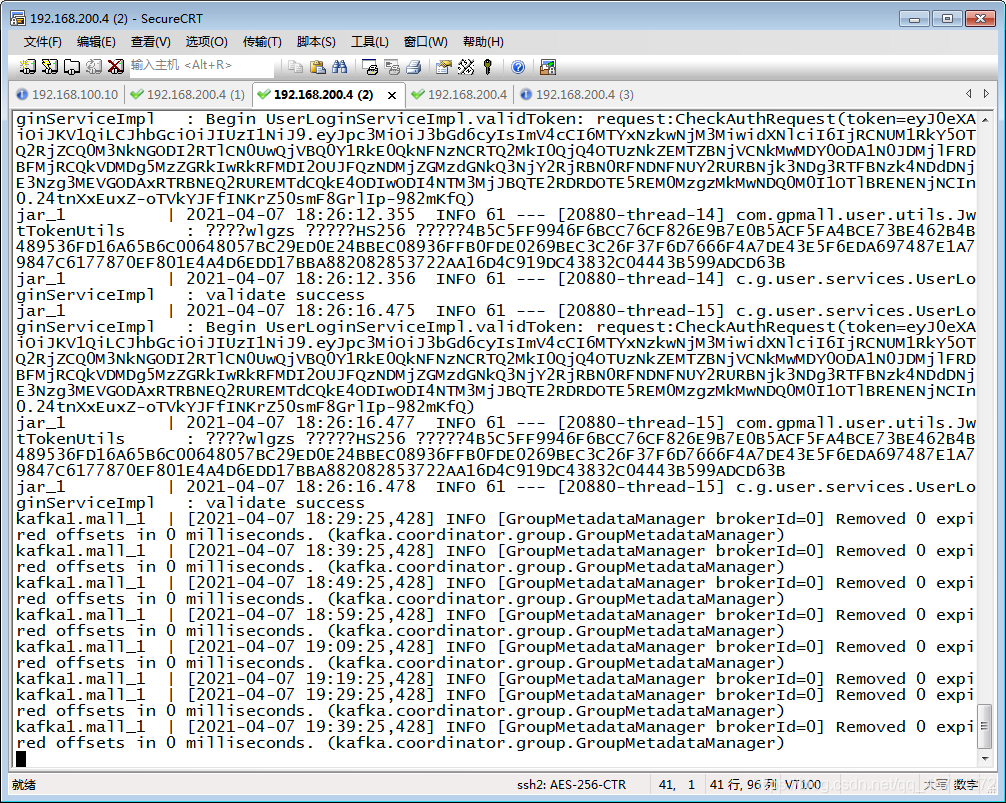

七、測驗

完成啦，祝福考試的同學運氣爆棚，省一國一！！！
