一、多mater加入之前的單節點

systemctl stop firewalld
setenforce 0

#部署master2
將master01上的kuberetes目錄拷貝至master02上
scp -r /opt/kubernetes/ root@192.168.241.5:/opt

將master01上的三個組件啟動腳本拷貝至master02上
scp /usr/lib/systemd/system/{kube-apiserver,kube-controller-manager,kube-scheduler}.service root@192.168.241.5:/usr/lib/systemd/system/

修改master02組態檔 kube-apiserver中的IP地址
cd /opt/kubernetes/cfg
vim kube-apiserver
KUBE_APISERVER_OPTS="--logtostderr=true \
--v=4 \
--etcd-servers=https://192.168.241.20:2379,https://192.168.241.3:2379,https://192.168.241.4:2379 \
--bind-address=192.168.241.5 \				#修改master2的IP地址
--secure-port=6443 \
--advertise-address=192.168.241.5 \			#修改master2的IP地址

拷貝master01上已有的etcd證書給master02使用
注意：master02一定要有etcd證書（不裝etcd也需要etcd證書，因為master02也是要與etcd互動的）
scp -r /opt/etcd/ root@192.168.241.5:/opt

#啟動master02的三個組件服務
systemctl start kube-apiserver
systemctl enable kube-apiserver
systemctl status kube-apiserver

systemctl start kube-controller-manager
systemctl enable kube-controller-manager
systemctl status kube-controller-manager

systemctl start kube-scheduler
systemctl enable kube-scheduler
systemctl status kube-scheduler

#增加環境變數
vim /etc/profile
#末尾添加
export PATH=$path:/opt/kubernetes/bin
source /etc/profile

# 查看master02是否可以檢測到node節點
kubectl get node

此時的master2無法控制node節點，只能訪問etcd

二、lvs（keepalived+nginx）

所有nginx節點都需要操作

#負載均衡部署

systemctl stop firewalld
setenforce 0

#部署nginx
vim /etc/yum.repos.d/nginx.repo
[nginx]
name=nginx repo
baseurl=http://nginx.org/packages/centos/7/$basearch/
gpgcheck=0

yum list
yum -y install nginx

#添加四層轉發(添加stream模塊)
#在events模塊和http模塊中間添加一個獨立的stream模塊
vim /etc/nginx/nginx.conf
…………省略內容
stream {

     log_format  main  '$remote_addr $upstream_addr - [$time_local] $status $upstream_bytes_sent';
      access_log  /var/log/nginx/k8s-access.log  main;        #指定日志存放目錄

      upstream k8s-apiserver {
      	  #master01的ip地址和埠
          server 192.168.241.20:6443;	#6443是apiserver的埠號
          #master02的ip地址和埠
          server 192.168.241.5:6443;
      }
      server {
                  listen 6443;
                  proxy_pass k8s-apiserver;
      }
      }
…………省略內容

# 開啟nginx服務
nginx -t 	#檢查組態檔是否有語法錯誤
systemctl start nginx		#開啟nginx服務
netstat -ntap | grep nginx	#查看nginx狀態及監聽埠6443

#部署keepalived高可用      #在2臺nginx服務器上配置
yum -y install keepalived

#修改組態檔
洗掉原有組態檔，重新定義添加
vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
   # 接收郵件地址
   notification_email {
     acassen@firewall.loc
     failover@firewall.loc
     sysadmin@firewall.loc
   }
   # 郵件發送地址
   notification_email_from Alexandre.Cassen@firewall.loc
   smtp_server 127.0.0.1
   smtp_connect_timeout 30
   router_id NGINX_MASTER
}
vrrp_script check_nginx {
    script "/etc/nginx/check_nginx.sh"  			 #監控nginx腳本的路徑，稍后會創建
}
vrrp_instance VI_1 {
    state MASTER									#lb01該節點為MASTER,lb02設為BACKUP
    interface ens33
    virtual_router_id 51
    priority 100    								 #優先級，lb01為master，優先級100，lb02為backup，優先級設90
    advert_int 1
    authentication {
        auth_type PASS
        auth_pass 1111
    }
    virtual_ipaddress {
        192.168.241.100/24   						   #VIP地址（虛擬IP）
    }
    track_script {
        check_nginx
    }
}

#創建nginx監控腳本
vim /etc/nginx/check_nginx.sh
count=$(ps -ef |grep nginx |egrep -cv "grep|$$")
if [ "$count" -eq 0 ];then
    systemctl stop keepalived
fi

chmod +x /etc/nginx/check_nginx.sh

#開啟服務
systemctl start keepalived.service
systemctl status keepalived.service

#查看漂移地址
ip a
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:91:1c:7f brd ff:ff:ff:ff:ff:ff
    inet 192.168.241.6/24 brd 192.168.241.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet 192.168.241.100/24 scope global secondary ens33			##vip已經起來了
       valid_lft forever preferred_lft forever
    inet6 fe80::38d2:d1fa:bd9c:3f26/64 scope link
       valid_lft forever preferred_lft forever

#驗證漂移地址
lb01中使用pkill nginx，再在lb02中使用ip a查看vip地址
#結束lb01上的nginx
pkill nginx

#keepalived也關閉了
systemctl status keepalived

#查看lb01地址
[root@localhost nginx]# ip a
......
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:91:1c:7f brd ff:ff:ff:ff:ff:ff
    inet 192.168.241.6/24 brd 192.168.241.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::38d2:d1fa:bd9c:3f26/64 scope link
       valid_lft forever preferred_lft forever
......

這時lb01上的漂移地址就沒有了
#查看lb02地址
[root@localhost nginx]# ip a
......
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:2a:02:b2 brd ff:ff:ff:ff:ff:ff
    inet 192.168.241.7/24 brd 192.168.241.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet 192.168.241.100/24 scope global secondary ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::fda:8925:c9d0:1438/64 scope link
       valid_lft forever preferred_lft forever
......

# 恢復操作（在lb01中先啟動給nginx服務，在啟動keepalived服務）
因為有nginx監控，如果先啟動keepalived是啟不了的，
systemctl start nginx
systemctl start keepalived

#再次使用ip a查看lb01地址
漂移地址就回到了lb01上，因為lb01是主節點，優先級高
[root@localhost nginx]# ip a
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP qlen 1000
    link/ether 00:0c:29:91:1c:7f brd ff:ff:ff:ff:ff:ff
    inet 192.168.241.6/24 brd 192.168.241.255 scope global ens33
       valid_lft forever preferred_lft forever
    inet 192.168.241.100/24 scope global secondary ens33
       valid_lft forever preferred_lft forever
    inet6 fe80::38d2:d1fa:bd9c:3f26/64 scope link
       valid_lft forever preferred_lft forever

#node節點指向VIP漂移地址
兩個node均需要操作
#修改兩個node節點組態檔（bootstrap.kubeconfig 、kubelet.kubeconfig、kube-proxy.kubeconfig），server ip統一VIP地址
vim /opt/kubernetes/cfg/bootstrap.kubeconfig
server: https://192.168.241.100:6443

vim /opt/kubernetes/cfg/kubelet.kubeconfig
server: https://192.168.241.100:6443

vim /opt/kubernetes/cfg/kube-proxy.kubeconfig
server: https://192.168.241.100:6443

#重啟服務
systemctl restart kubelet.service
systemctl restart kube-proxy.service

#替換完成后自檢
grep 100 *
bootstrap.kubeconfig:    server: https://192.168.241.100:6443
kubelet.kubeconfig:    server: https://192.168.241.100:6443
kube-proxy.kubeconfig:    server: https://192.168.241.100:6443

#在lb01上查看nginx的k8s日志
#檢查日志是否完成了訪問，建立了負載均衡
cat /var/log/nginx/k8s-access.log
192.168.241.3 192.168.241.20:6443 - [14/Apr/2021:17:33:07 +0800] 200 1119
192.168.241.3 192.168.241.5:6443 - [14/Apr/2021:17:33:07 +0800] 200 1120
192.168.241.4 192.168.241.5:6443 - [14/Apr/2021:17:33:11 +0800] 200 1120
192.168.241.4 192.168.241.5:6443 - [14/Apr/2021:17:33:11 +0800] 200 1118

##k8s集群測驗
master01操作
# 測驗創建pod
kubectl run nginx --image=nginx

#查看pod狀態
kubectl get pods

#該指令可以查看到資源具體資訊，IP及所在節點
kubectl get pods -o wide
NAME                    READY   STATUS    RESTARTS   AGE     IP            NODE            NOMINATED NODE
nginx-dbddb74b8-8qrm4   1/1     Running   0          7m18s   172.17.69.3   192.168.241.3   <none>

#查看日志問題
#查看pod資源的日志
[root@localhost ~]# kubectl logs nginx-dbddb74b8-8qrm4
Error from server (Forbidden): Forbidden (user=system:anonymous, verb=get, resource=nodes, subresource=proxy) ( pods/log nginx-dbddb74b8-8qrm4)

原因：出現 error 是由于權限不足，需要提權解決辦法（添加匿名用戶授予權限）：
kubectl create clusterrolebinding cluster-system-anonymous --clusterrole=cluster-admin --user=system:anonymous

提權后查看日志記錄是空的，因為現在這個容器并沒有被訪問

[root@localhost ~]# kubectl logs nginx-dbddb74b8-8qrm4
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Launching /docker-entrypoint.d/30-tune-worker-processes.sh
/docker-entrypoint.sh: Configuration complete; ready for start up

#訪問測驗（創建的資源是在192.168.241.3節點上的，所以在該節點進行訪問）
[root@localhost ~]# kubectl get pods -o wide
NAME                    READY   STATUS    RESTARTS   AGE     IP            NODE            NOMINATED NODE
nginx-dbddb74b8-8qrm4   1/1     Running   0          7m18s   172.17.69.3   192.168.241.3   <none>

去對應的node節點上使用curl 172.17.69.3
[root@hzh ~]# curl 172.17.69.3

#訪問后就會產生日志記錄（再次回到master01查看日志）
[root@localhost ~]# kubectl logs nginx-dbddb74b8-8qrm4
/docker-entrypoint.sh: /docker-entrypoint.d/ is not empty, will attempt to perform configuration
/docker-entrypoint.sh: Looking for shell scripts in /docker-entrypoint.d/
/docker-entrypoint.sh: Launching /docker-entrypoint.d/10-listen-on-ipv6-by-default.sh
10-listen-on-ipv6-by-default.sh: info: Getting the checksum of /etc/nginx/conf.d/default.conf
10-listen-on-ipv6-by-default.sh: info: Enabled listen on IPv6 in /etc/nginx/conf.d/default.conf
/docker-entrypoint.sh: Launching /docker-entrypoint.d/20-envsubst-on-templates.sh
/docker-entrypoint.sh: Launching /docker-entrypoint.d/30-tune-worker-processes.sh
/docker-entrypoint.sh: Configuration complete; ready for start up
172.17.69.1 - - [14/Apr/2021:09:42:34 +0000] "GET / HTTP/1.1" 200 612 "-" "curl/7.29.0" "-"
172.17.79.0 - - [14/Apr/2021:09:43:31 +0000] "GET / HTTP/1.1" 200 612 "-" "curl/7.29.0" "-"

三、dashboard

# 在master01上操作
#創建dashboard作業目錄
[root@master01 k8s]# mkdir dashboard
[root@master01 k8s]# cd dashboard
#拷貝官方的yaml檔案（此處已經提前下載好，直接拷貝至dashboard作業目錄）
官網下載地址：https://github.com/kubernetes/tree/master/cluster/addons/dashboard

1、創建rdac控制管理資源（kind：Role）

1）創建
[root@master01 dashboard]# kubectl create -f  dashboard-rbac.yaml			#-f：以檔案（yaml檔案）的形式創建資源
role.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created
rolebinding.rbac.authorization.k8s.io/kubernetes-dashboard-minimal created

2）查看yaml檔案，查看name名稱及namespace命名空間
[root@master01 dashboard]# vim dashboard-rbac.yaml
里面創建的資源kind是Role角色
3）查看Role角色資源
[root@master01 dashboard]# kubectl get Role -n kube-system				#-n：指向命名空間
NAME                                             AGE
extension-apiserver-authentication-reader        27h
kubernetes-dashboard-minimal                     91s
system::leader-locking-kube-controller-manager   27h
system::leader-locking-kube-scheduler            27h
system:controller:bootstrap-signer               27h
system:controller:cloud-provider                 27h
system:controller:token-cleaner                  27h

2、創建secret安全資源（kind：Secret）

1）創建
[root@master01 dashboard]# kubectl create -f  dashboard-secret.yaml
secret/kubernetes-dashboard-certs created
secret/kubernetes-dashboard-key-holder created

2）查看yaml檔案，查看namespace命名空間及name名稱
[root@master01 dashboard]# vim dashboard-secret.yaml
3） 查看創建的資源
[root@master01 dashboard]# kubectl get Secret -n kube-system
NAME                              TYPE                                  DATA   AGE
default-token-4vhn6               kubernetes.io/service-account-token   3      27h
kubernetes-dashboard-certs        Opaque                                0      23s
kubernetes-dashboard-key-holder   Opaque                                0      23s

3、創建configmap配置管理資源（kind：ConfigMap）

1）創建
[root@master01 dashboard]# kubectl create -f dashboard-configmap.yaml
configmap/kubernetes-dashboard-settings created

2）查看yaml檔案，查看namespace命名空間及name名稱
[root@master01 dashboard]# vim dashboard-configmap.yaml
3）查看創建的資源
[root@master01 dashboard]# kubectl get ConfigMap -n kube-system
NAME                                 DATA   AGE
extension-apiserver-authentication   1      27h
kubernetes-dashboard-settings        0      22s

4、創建控制資源（kind：ServiceAccount、Deployment）

1）創建
[root@master01 dashboard]# kubectl create -f dashboard-controller.yaml
serviceaccount/kubernetes-dashboard created
deployment.apps/kubernetes-dashboard created

創建了兩個資源（ServiceAccount服務訪問、Deployment控制器資源）
2） 查看yaml檔案，查看namespace命名空間及name名稱
[root@master01 dashboard]# vim dashboard-controller.yaml
3） 查看創建的資源
[root@master01 dashboard]# kubectl get ServiceAccount -n kube-system
NAME                   SECRETS   AGE
default                1         27h
kubernetes-dashboard   1         27s

[root@master01 dashboard]# kubectl get Deployment -n kube-system
NAME                   DESIRED   CURRENT   UP-TO-DATE   AVAILABLE   AGE
kubernetes-dashboard   1         1         1            1           59s

5、創建service資源（kind：Service）

1） 創建
[root@master01 dashboard]# kubectl create -f dashboard-service.yaml
service/kubernetes-dashboard created

2） 查看yaml檔案，查看namespace命名空間及name名稱
service資源一旦使用，則說明服務就已經提供出去并且被訪問，所以必定會提供埠
[root@master01 dashboard]# vim dashboard-service.yaml
pod提供的埠，用戶不能直接訪問
node節點埠，用戶可以訪問node節點埠，映射到pod提供的埠
3） 查看創建的資源
[root@master01 dashboard]# kubectl get Service -n kube-system
NAME                   TYPE       CLUSTER-IP   EXTERNAL-IP   PORT(S)         AGE
kubernetes-dashboard   NodePort   10.0.0.60    <none>        443:30001/TCP   18s

6、查看資源

1） 創建完成后查看指定的命名空間kube-system下的pod資源
這時資源創建完成，可以查看整個pods資源
[root@master01 dashboard]# kubectl get pods -n kube-system
NAME                                    READY   STATUS    RESTARTS   AGE
kubernetes-dashboard-65f974f565-2xl7d   1/1     Running   0          2m15s

2） 查看多個資源（可以用逗號" ，" 隔開）
[root@master01 dashboard]# kubectl get pods,service -n kube-system
NAME                                        READY   STATUS    RESTARTS   AGE
pod/kubernetes-dashboard-65f974f565-2xl7d   1/1     Running   0          2m39s

NAME                           TYPE       CLUSTER-IP   EXTERNAL-IP   PORT(S)         AGE
service/kubernetes-dashboard   NodePort   10.0.0.60    <none>        443:30001/TCP   80s

3） 查看pods資源具體創建在哪個節點
[root@master01 dashboard]# kubectl get pods -n kube-system -o wide
NAME                                    READY   STATUS    RESTARTS   AGE     IP            NODE            NOMINATED NODE
kubernetes-dashboard-65f974f565-2xl7d   1/1     Running   0          3m17s   172.17.69.4   192.168.241.3   <none>

7、訪問測驗

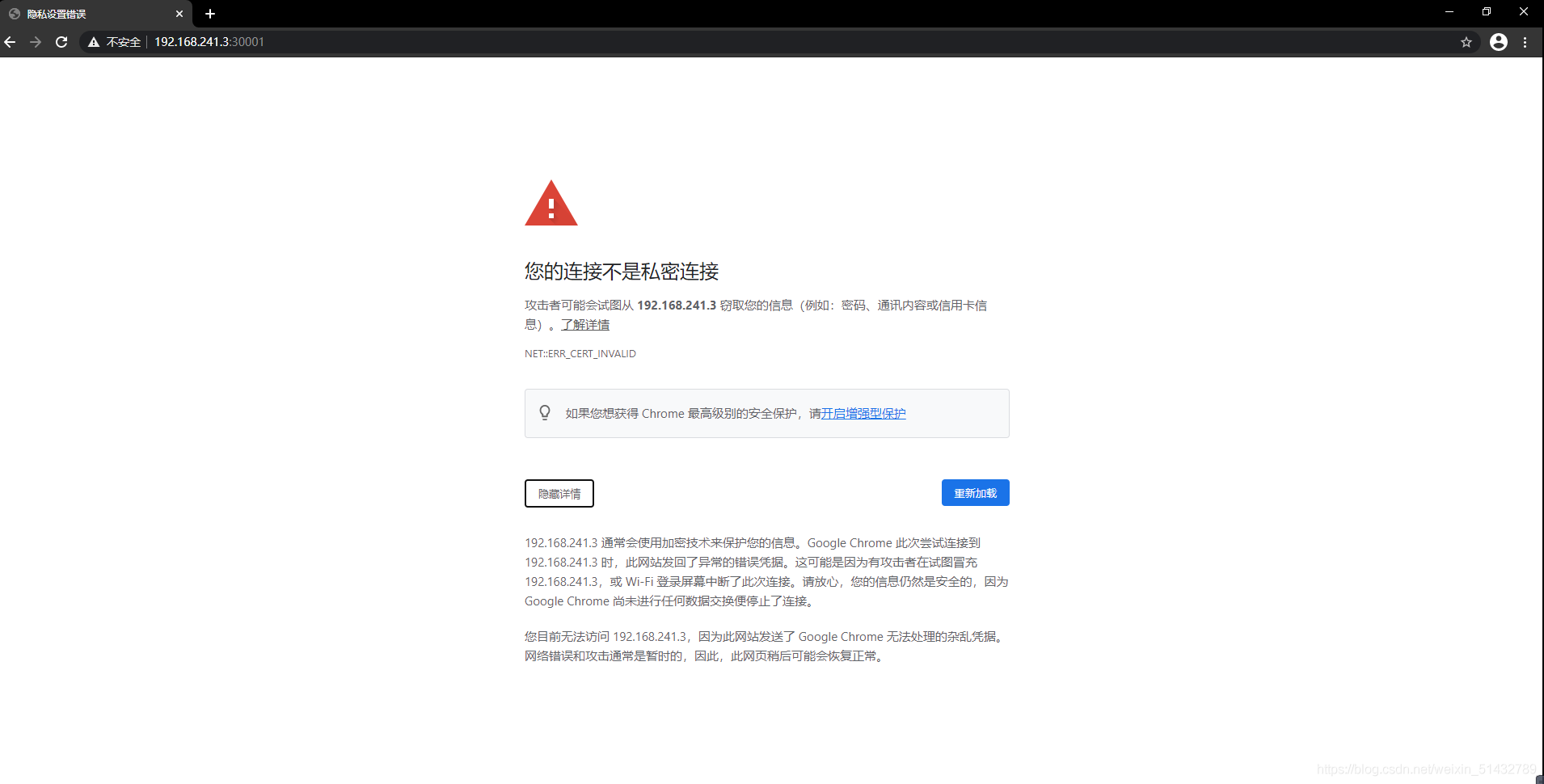

訪問nodeIP加埠號進行測驗：https://192.168.241.3:30001，如出現以下問題，屬于瀏覽器證書不被信任（谷歌瀏覽器的問題），一些老版本的瀏覽器可以進行訪問
在這里插入圖片描述

下面我們就來解決證書不被信任的問題

8、解決瀏覽器無法訪問的問題

1、創建證書
[root@master01 dashboard]# vim dashboard-cert.sh
cat > dashboard-csr.json <<EOF
{
   "CN": "Dashboard",
   "hosts": [],
   "key": {
       "algo": "rsa",
       "size": 2048
   },
   "names": [
       {
           "C": "CN",
           "L": "BeiJing",
           "ST": "BeiJing"
       }
   ]
}
EOF
#產生ca證書
K8S_CA=$1
cfssl gencert -ca=$K8S_CA/ca.pem -ca-key=$K8S_CA/ca-key.pem -config=$K8S_CA/ca-config.json -profile=kubernetes dashboard-csr.json | cfssljson -bare dashboard
#洗掉原本的證書并重新創建證書
kubectl delete secret kubernetes-dashboard-certs -n kube-system
kubectl create secret generic kubernetes-dashboard-certs --from-file=./ -n kube-system

2、生成證書到指定目錄
[root@master01 dashboard]# bash dashboard-cert.sh /root/k8s/k8s-cert/

3、更改yaml檔案指向證書位置
[root@master01 dashboard]# vim dashboard-controller.yaml
……省略內容
args:
          # PLATFORM-SPECIFIC ARGS HERE
          - --auto-generate-certificates
          - --tls-key-file=dashboard-key.pem			#添加
          - --tls-cert-file=dashboard.pem				#添加
……省略內容

4、apply重新部署
變更過的yaml檔案需要重新部署資源
[root@master01 dashboard]# kubectl apply -f dashboard-controller.yaml
注意：重新部署后，資源所在的節點有可能會變動，建議重新檢查下資源資訊及所在節點
[root@master01 dashboard]# kubectl get pods -n kube-system -o wide
NAME                                    READY   STATUS    RESTARTS   AGE   IP            NODE            NOMINATED NODE
kubernetes-dashboard-7dffbccd68-pt2st   1/1     Running   0          35s   172.17.79.3   192.168.241.4   <none>

5、訪問驗證

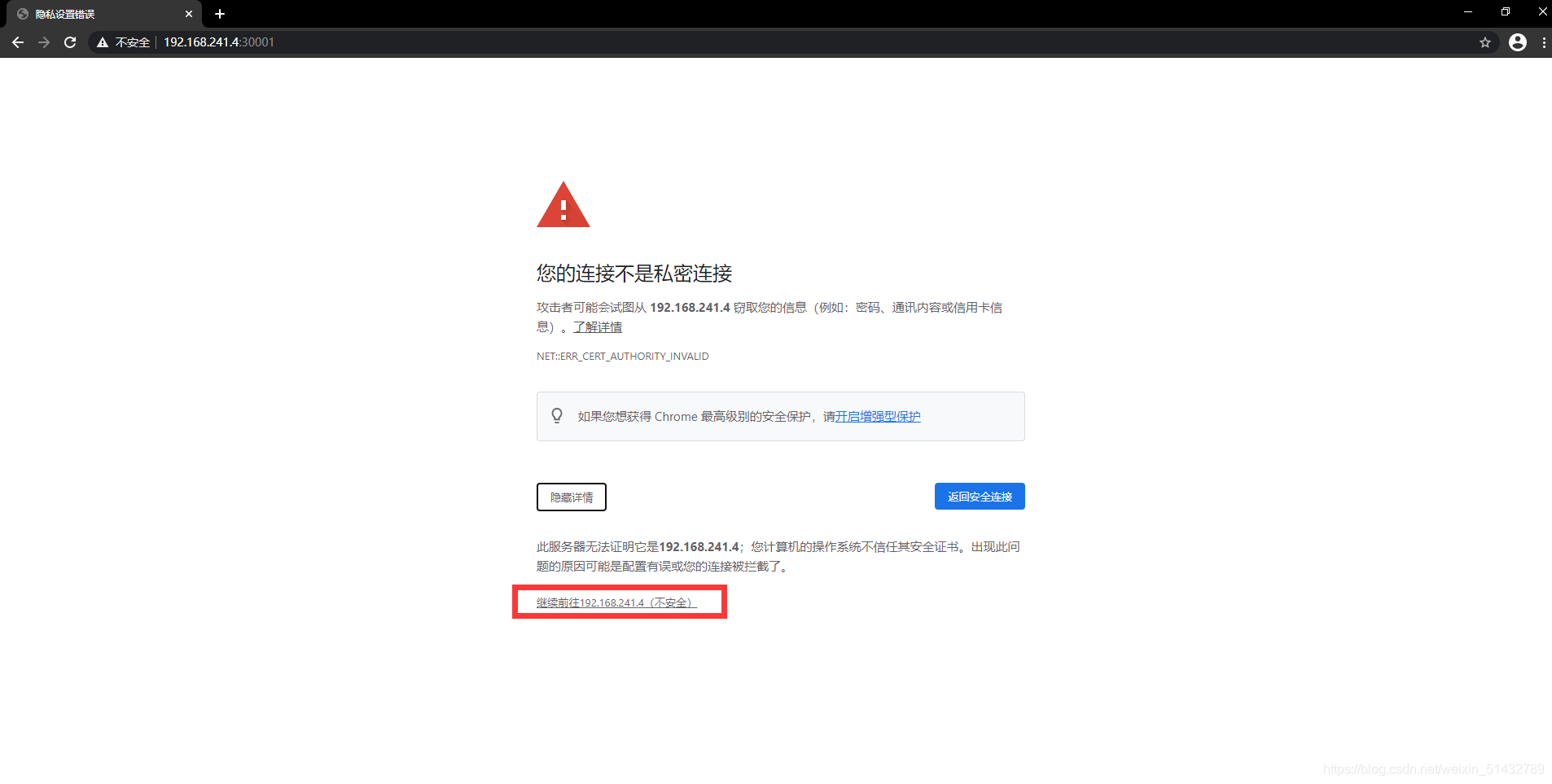

瀏覽器訪問：https://192.168.241.4:30001，這時就可以正常訪問了

在這里插入圖片描述

9、訪問web網站頁面

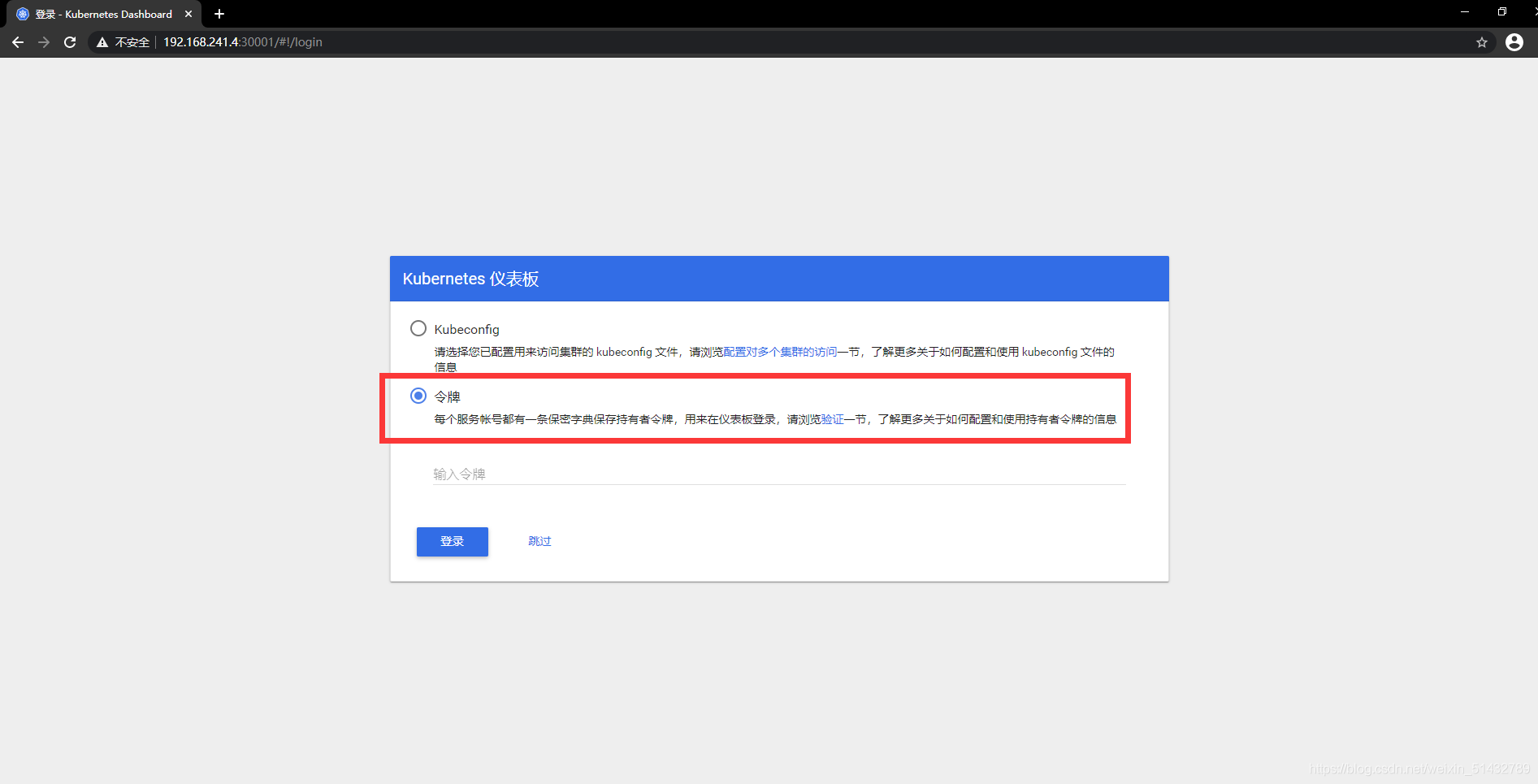

輸入nodeIP及埠訪問后，會進入登錄方式的選擇，正常生產環境會選擇令牌的方式區登錄
這里我們也選擇令牌的方式登錄
在這里插入圖片描述

1、生成令牌，創建資源
1） 創建admin賬戶角色資源，相當于管理員
[root@master01 dashboard]# kubectl create -f k8s-admin.yaml
serviceaccount/dashboard-admin created
clusterrolebinding.rbac.authorization.k8s.io/dashboard-admin created

2） 查看secret安全資源
[root@master01 dashboard]# kubectl get secret -n kube-system
NAME                               TYPE                                  DATA   AGE
dashboard-admin-token-8xp9n        kubernetes.io/service-account-token   3      15s				#生成了admin-token資源
default-token-4vhn6                kubernetes.io/service-account-token   3      27h
kubernetes-dashboard-certs         Opaque                                11     3m42s
kubernetes-dashboard-key-holder    Opaque                                2      12m
kubernetes-dashboard-token-mxlp9   kubernetes.io/service-account-token   3      9m50s

3） 查看admin-token
[root@master01 dashboard]# kubectl describe secret dashboard-admin-token-8xp9n -n kube-system
Name:         dashboard-admin-token-8xp9n
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: dashboard-admin
              kubernetes.io/service-account.uid: a502f1dd-9d0e-11eb-9757-000c297eb227

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1359 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6IiJ9.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJkYXNoYm9hcmQtYWRtaW4tdG9rZW4tOHhwOW4iLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC5uYW1lIjoiZGFzaGJvYXJkLWFkbWluIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQudWlkIjoiYTUwMmYxZGQtOWQwZS0xMWViLTk3NTctMDAwYzI5N2ViMjI3Iiwic3ViIjoic3lzdGVtOnNlcnZpY2VhY2NvdW50Omt1YmUtc3lzdGVtOmRhc2hib2FyZC1hZG1pbiJ9.gH8HMFx1lLsXEP9Lh1wq4hhG-Kq6MyCUNsUo30hNVAduVomgHYFIKNeFxC82oBrSbZX2keM2D2qfIQJk-LSImehDuHrqje67btaQxGGb0bk3RAN4-GDF4JdeFjGYQdIgXfrajbYqICYg1EsvQVWTjQEP5cJ3VJUKXOg4_8Yee3b8h6J5EsX-r7R4I68nghQeh9hiMb5FS_iVPrc2CHHGNbavekI671NwnrFJ_IkwFguHHJ8yNx3pve3UYRPRWAyhcSP16EJfoHFgUK4m7JdzLl1oEhjxjf5hE8N3LnFFmphahGrM_cjLBctLx-hkoL-gPxv5mVi-OCyW60xzJHUjPw

末尾token：后面的內容就是令牌碼，記錄下來用于web網站的登錄

2、復制令牌碼，進入web登錄頁面，登錄
在這里插入圖片描述

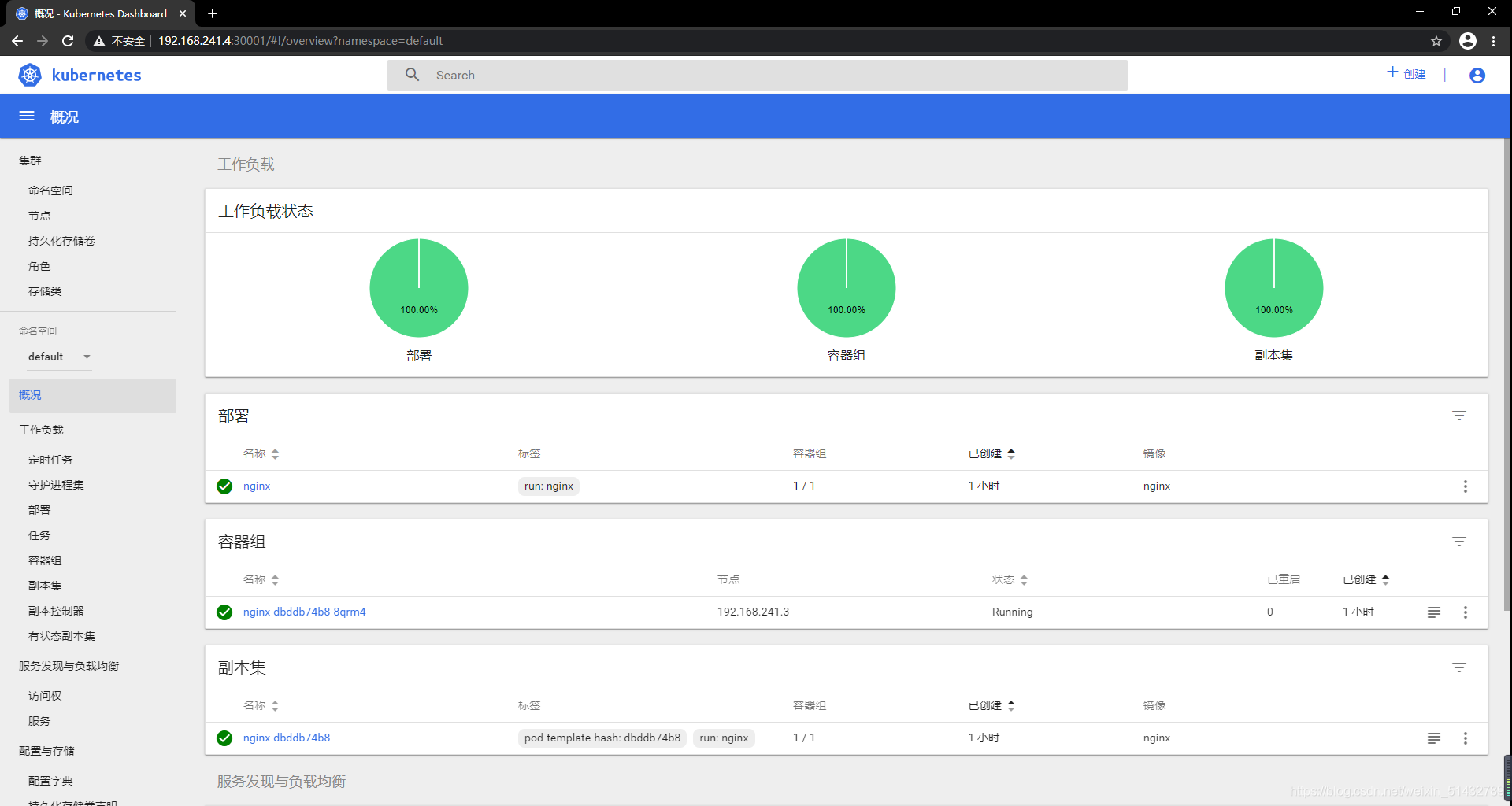

現在我們就進入到了k8s的web網站頁面，可以在里面進行相應的查看及操作，這里就不一一演示了，
至此，我們整個k8s集群的二進制部署就全部完成了，包括單master節點，多master節點以及web網站頁面的顯示

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/276737.html

標籤：其他

上一篇：Hadoop：MapReduce之倒排索引（Combiner和Partitioner的使用）

下一篇：紅帽6虛擬機中smb服務器的搭建與應用（windows）

k8s-----------------多master&lvs&dashboard

目錄
