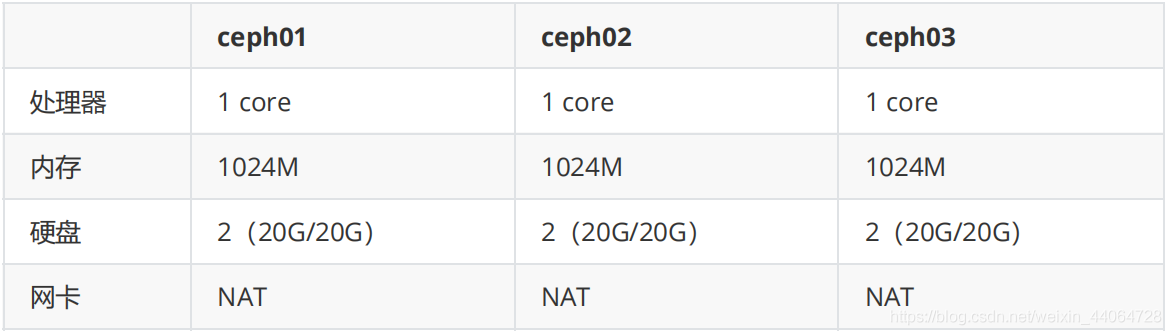

一、節點規格
ceph官網：ceph.com；部署方式：ceph-deploy
二、修改主機名
1.ceph01節點修改主機名：
[root@localhost ~]# hostnamectl set-hostname ceph01
[root@localhost ~]# su
[root@ceph01 ~]#
2.ceph02節點修改主機名：
[root@localhost ~]# hostnamectl set-hostname ceph02
[root@localhost ~]# su
[root@ceph02 ~]#
3.ceph03節點修改主機名：
[root@localhost ~]# hostnamectl set-hostname ceph03
[root@localhost ~]# su
[root@ceph03 ~]#
三、配置網路
ceph01：192.168.13.47/24
ceph02：192.168.13.48/24
ceph03：192.168.13.49/24
此處我配置的是動態ip地址，網路重啟后需要nmcli connection up ens33再次啟動一下，大家也可以配置靜態ip地址
1.ceph01配置網路：
[root@ceph01 ~]# nmcli connection show
NAME UUID TYPE DEVICE
ens33 e2d80065-81bc-42b0-8a36-730ae6da1112 ethernet ens33
[root@ceph01 ~]# nmcli connection modify ens33 ipv4.method manual
[root@ceph01 ~]# nmcli connection modify ens33 ipv4.addr 192.168.13.47/24
[root@ceph01 ~]# nmcli connection modify ens33 ipv4.gateway 192.168.13.2
[root@ceph01 ~]# nmcli connection modify ens33 ipv4.dns 114.114.114.114
[root@ceph01 ~]# nmcli connection up ens33
連接已成功激活（D-Bus 活動路徑：/org/freedesktop/NetworkManager/ActiveConnection/2）
[root@ceph01 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:37:87:2b brd ff:ff:ff:ff:ff:ff
inet 192.168.13.47/24 brd 192.168.13.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet6 fe80::b7bb:bd87:8730:25d/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@ceph01 ~]#
2.ceph02配置網路：
[root@ceph02 ~]# nmcli connection show
NAME UUID TYPE DEVICE
ens33 e2d80065-81bc-42b0-8a36-730ae6da1112 ethernet ens33
[root@ceph02 ~]# nmcli connection modify ens33 ipv4.method manual
[root@ceph02 ~]# nmcli connection modify ens33 ipv4.addr 192.168.13.47/24
[root@ceph02 ~]# nmcli connection modify ens33 ipv4.gateway 192.168.13.2
[root@ceph02 ~]# nmcli connection modify ens33 ipv4.dns 114.114.114.114
[root@ceph02 ~]# nmcli connection up ens33
連接已成功激活（D-Bus 活動路徑：/org/freedesktop/NetworkManager/ActiveConnection/2）
[root@ceph02 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group
default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:73:be:85 brd ff:ff:ff:ff:ff:ff
inet 192.168.13.48/24 brd 192.168.13.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet6 fe80::b7bb:bd87:8730:25d/64 scope link tentative noprefixroute dadfailed
valid_lft forever preferred_lft forever
inet6 fe80::b8c:bc91:3125:2e93/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@ceph02 ~]#
3.ceph03配置網路：
[root@ceph03 ~]# nmcli connection show
NAME UUID TYPE DEVICE
ens33 e2d80065-81bc-42b0-8a36-730ae6da1112 ethernet ens33
[root@ceph03 ~]# nmcli connection modify ens33 ipv4.method manual
[root@ceph03 ~]# nmcli connection modify ens33 ipv4.addr 192.168.13.47/24
[root@ceph03 ~]# nmcli connection modify ens33 ipv4.gateway 192.168.13.2
[root@ceph03 ~]# nmcli connection modify ens33 ipv4.dns 114.114.114.114
[root@ceph03 ~]# nmcli connection up ens33
連接已成功激活（D-Bus 活動路徑：/org/freedesktop/NetworkManager/ActiveConnection/2） [root@ceph03 ~]# ip a
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN group default qlen 1000
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast state UP group default qlen 1000
link/ether 00:0c:29:4f:a8:91 brd ff:ff:ff:ff:ff:ff
inet 192.168.13.49/24 brd 192.168.13.255 scope global noprefixroute ens33
valid_lft forever preferred_lft forever
inet6 fe80::b7bb:bd87:8730:25d/64 scope link tentative noprefixroute dadfailed
valid_lft forever preferred_lft forever
inet6 fe80::b8c:bc91:3125:2e93/64 scope link tentative noprefixroute dadfailed
valid_lft forever preferred_lft forever
inet6 fe80::1e35:965f:5370:e430/64 scope link noprefixroute
valid_lft forever preferred_lft forever
[root@ceph03 ~]#
四、關閉防火墻
ceph01關閉防火墻（ceph02，ceph03同理）：
[root@ceph01 ~]# systemctl stop firewalld
[root@ceph01 ~]# systemctl disable firewalld
[root@ceph01 ~]# systemctl status firewalld
● firewalld.service - firewalld - dynamic firewall daemon
Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; vendor preset: enabled)
Active: inactive (dead)
Docs: man:firewalld(1)
12月 03 18:34:25 localhost.localdomain systemd[1]: Starting firewalld - dynamic firewall daemon...
12月 03 18:34:26 localhost.localdomain systemd[1]: Started firewalld - dynamic firewall daemon.
12月 03 18:36:48 localhost.localdomain systemd[1]: Stopping firewalld - dynamic firewall daemon...
12月 03 18:36:48 localhost.localdomain systemd[1]: Stopped firewalld - dynamic firewall daemon.
[root@ceph01 ~]#
五、配置本地決議
ceph01配置（ceph02，ceph03同理）：
[root@ceph01 ~]# vi /etc/hosts
[root@ceph01 ~]# cat /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.13.47 ceph01
192.168.13.48 ceph02
192.168.13.49 ceph03
[root@ceph01 ~]#
六、配置免密登錄
ceph01配置（ceph02，ceph03同理）：
- 利用RSA演算法生成一對公私鑰：
[root@ceph01 ~]# ssh-keygen
Generating public/private rsa key pair.
Enter file in which to save the key (/root/.ssh/id_rsa):
Created directory '/root/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /root/.ssh/id_rsa.
Your public key has been saved in /root/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:pL7PSgeEzh7W2mPAKsrtpfmJ0G/MwYo4pqE6DhdqKI4 root@ceph01
The key's randomart image is:
+---[RSA 2048]----+
| |
| . |
| . . . |
| + o o |
| . O + S |
|...= O . |
|Oo+.*.B . |
|&*o.**.= |
|E*.*o+ooo |
+----[SHA256]-----+
[root@ceph01 ~]# ls .ssh/
id_rsa id_rsa.pub
[root@ceph01 ~]#
- 將公鑰傳給三節點
[root@ceph01 ~]# ssh-copy-id -i .ssh/id_rsa.pub root@ceph01
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: ".ssh/id_rsa.pub"
The authenticity of host 'ceph01 (192.168.13.47)' can't be established.
ECDSA key fingerprint is SHA256:O2UIVl6/sJEnLAljn6wNjyo+1h+92mCCet7cYbF8W8w.
ECDSA key fingerprint is MD5:0a:98:47:06:ab:aa:f8:51:74:d2:dd:30:23:f6:2c:bd.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@ceph01's password:
Number of key(s) added: 1
Now try logging into the machine, with: "ssh 'root@ceph01'" and check to make sure that only the key(s) you wanted were added.
[root@ceph01 ~]# ssh-copy-id -i .ssh/id_rsa.pub root@ceph02
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: ".ssh/id_rsa.pub" The authenticity of host 'ceph02 (192.168.13.48)' can't be established.
ECDSA key fingerprint is SHA256:O2UIVl6/sJEnLAljn6wNjyo+1h+92mCCet7cYbF8W8w.
ECDSA key fingerprint is MD5:0a:98:47:06:ab:aa:f8:51:74:d2:dd:30:23:f6:2c:bd.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@ceph02's password:
Number of key(s) added: 1
Now try logging into the machine, with: "ssh 'root@ceph02'" and check to make sure that only the key(s) you wanted were added.
[root@ceph01 ~]# ssh-copy-id -i .ssh/id_rsa.pub root@ceph03
/usr/bin/ssh-copy-id: INFO: Source of key(s) to be installed: ".ssh/id_rsa.pub" The authenticity of host 'ceph03 (192.168.13.49)' can't be established.
ECDSA key fingerprint is SHA256:O2UIVl6/sJEnLAljn6wNjyo+1h+92mCCet7cYbF8W8w.
ECDSA key fingerprint is MD5:0a:98:47:06:ab:aa:f8:51:74:d2:dd:30:23:f6:2c:bd.
Are you sure you want to continue connecting (yes/no)? yes
/usr/bin/ssh-copy-id: INFO: attempting to log in with the new key(s), to filter out any that are already installed
/usr/bin/ssh-copy-id: INFO: 1 key(s) remain to be installed -- if you are prompted now it is to install the new keys
root@ceph03's password:
Number of key(s) added: 1
Now try logging into the machine, with: "ssh 'root@ceph03'" and check to make sure that only the key(s) you wanted were added.
[root@ceph01 ~]#
七、配置源
ceph01配置（ceph02，ceph03同理）：
- 配置BASE源
[root@ceph01 ~]# mkdir /etc/yum.repos.d/bak
[root@ceph01 ~]# mv /etc/yum.repos.d/* /etc/yum.repos.d/bak/
mv: 無法將目錄"/etc/yum.repos.d/bak" 移動至自身的子目錄"/etc/yum.repos.d/bak/bak" 下
[root@ceph01 ~]# wget -O /etc/yum.repos.d/CentOS-Base.repo
https://mirrors.huaweicloud.com/repository/conf/CentOS-7-anon.repo --2020-12-03 19:25:15-- https://mirrors.huaweicloud.com/repository/conf/CentOS- 7-anon.repo
正在決議主機 mirrors.huaweicloud.com (mirrors.huaweicloud.com)... 117.78.24.34, 117.78.24.42, 117.78.24.40
正在連接 mirrors.huaweicloud.com (mirrors.huaweicloud.com)|117.78.24.34|:443... 已 連接，
已發出 HTTP 請求，正在等待回應... 200 OK
長度：未指定 [application/octet-stream]
正在保存至: “/etc/yum.repos.d/CentOS-Base.repo”
[ <=> ] 1,811
--.-K/s 用時 0s
2020-12-03 19:25:15 (233 MB/s) - “/etc/yum.repos.d/CentOS-Base.repo” 已保存 [1811]
[root@ceph01 ~]#
mv: 無法將目錄"/etc/yum.repos.d/bak" 移動至自身的子目錄"/etc/yum.repos.d/bak/bak" 下，這個報
錯可以不用管，因為實際是已經把/etc/yum.repos.d/下的yum源移到了/etc/yum.repos.d/bak下了
- 移動前
[root@ceph01 ~]# cd /etc/yum.repos.d/
[root@ceph02 yum.repos.d]# ls
bak CentOS-CR.repo CentOS-fasttrack.repo CentOS- Sources.repo
CentOS-Base.repo CentOS-Debuginfo.repo CentOS-Media.repo CentOS- Vault.repo
[root@ceph02 yum.repos.d]#
- 移動后
[root@ceph01 yum.repos.d]# ls bak
[root@ceph01 yum.repos.d]# cd bak/
[root@ceph01 bak]# ls
CentOS-Base.repo CentOS-Debuginfo.repo CentOS-Media.repo CentOS-Vault.repo
CentOS-CR.repo CentOS-fasttrack.repo CentOS-Sources.repo
[root@ceph01 bak]#
- 配置EPEL源
[root@ceph01 ~]# vi /etc/yum.repos.d/epel.repo
[root@ceph01 ~]# cat /etc/yum.repos.d/epel.repo
[epel]
name=epel_huaweicloud
baseurl=https://mirrors.huaweicloud.com/epel/7/x86_64/
gpgcheck=0
enabled=1
[root@ceph01 ~]#
- 配置CEPH源
[root@ceph01 ~]# vi /etc/yum.repos.d/ceph.repo
[root@ceph01 ~]# cat /etc/yum.repos.d/ceph.repo
[ceph]
name=ceph_huaweicloud
baseurl=https://mirrors.huaweicloud.com/ceph/rpm-15.2.4/el7/x86_64/
gpgcheck=0
enabled=1
[ceph-noarch]
name=ceph-noarch_huaweicloud
baseurl=https://mirrors.huaweicloud.com/ceph/rpm-15.2.4/el7/noarch/
gpgcheck=0
enabled=1
[root@ceph01 ~]#
[root@ceph01 ~]# yum clean all
已加載插件：fastestmirror
正在清理軟體源： base ceph ceph-noarch epel extras updates
Cleaning up list of fastest mirrors
[root@ceph01 ~]# yum makecache
已加載插件：fastestmirror Determining fastest mirrors
base
| 3.6 kB 00:00:00
ceph
~~進度程序省略~~
ceph
39/39
ceph
39/39
ceph
39/39
ceph-noarch
25/25
ceph-noarch
25/25
ceph-noarch
25/25
元資料快取已建立
[root@ceph01 ~]#
八、配置NTP
1.ceph01節點操作：
[root@ceph01 ~]# vi /etc/chrony.conf
[root@ceph01 ~]# cat /etc/chrony.conf
# Use public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
server ntp.aliyun.com iburst
# Record the rate at which the system clock gains/losses time. driftfile /var/lib/chrony/drift
# Allow the system clock to be stepped in the first three updates
# if its offset is larger than 1 second.
makestep 1.0 3
# Enable kernel synchronization of the real-time clock (RTC). rtcsync
# Enable hardware timestamping on all interfaces that support it.
#hwtimestamp *
# Increase the minimum number of selectable sources required to adjust
# the system clock.
minsources 2
# Allow NTP client access from local network.
allow 192.168.13.0/24
# Serve time even if not synchronized to a time source.
#local stratum 10
[root@ceph01 ~]# timedatectl set-timezone Asia/Shanghai
[root@ceph01 ~]# chronyc sources -v
210 Number of sources = 1
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current synced, '+' = combined , '-' = not combined,
| / '?' = unreachable, 'x' = time may be in error, '~' = time too variable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --. | | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^- 203.107.6.88 2 6 17 33 +86399s[+86399s] +/- 31ms
[root@ceph01 ~]#
2.ceph02節點操作：
[root@ceph02 ~]# vi /etc/chrony.conf
[root@ceph02 ~]# cat /etc/chrony.conf
e public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
server 192.168.13.47 iburst
# Record the rate at which the system clock gains/losses time.
driftfile /var/lib/chrony/drift
# Allow the system clock to be stepped in the first three updates
# if its offset is larger than 1 second.
makestep 1.0 3
# Enable kernel synchronization of the real-time clock (RTC). rtcsync
# Enable hardware timestamping on all interfaces that support it.
#hwtimestamp *
# Increase the minimum number of selectable sources required to adjust
# the system clock.
#minsources 2
# Allow NTP client access from local network.
#allow 192.168.0.0/16
# Serve time even if not synchronized to a time source.
#local stratum 10
# Specify file containing keys for NTP authentication.
#keyfile /etc/chrony.keys
[root@ceph02 ~]#
[root@ceph02 ~]# timedatectl set-timezone Asia/Shanghai
[root@ceph02 ~]# chronyc sources -v
210 Number of sources = 4
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current synced, '+' = combined , '-' = not combined,
| / '?' = unreachable, 'x' = time may be in error, '~' = time too variable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --.
| | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample
===============================================================================
^- electrode.felixc.at 3 6 67 31 +1823us[+1823us] +/- 141ms
^- tock.ntp.infomaniak.ch 1 6 67 31 +45ms[ +45ms] +/- 145ms
^- 203.107.6.88 2 6 37 34 +268us[ +268us] +/- 36ms
^* 119.28.183.184 2 6 37 35 +84us[-5223us] +/- 44ms
[root@ceph02 ~]#
3.ceph03節點操作：
[root@ceph03 ~]# cat /etc/chrony.conf
e public servers from the pool.ntp.org project.
# Please consider joining the pool (http://www.pool.ntp.org/join.html).
server 192.168.13.47 iburst
# Record the rate at which the system clock gains/losses time.
driftfile /var/lib/chrony/drift
# Allow the system clock to be stepped in the first three updates
# if its offset is larger than 1 second.
makestep 1.0 3
# Enable kernel synchronization of the real-time clock (RTC). rtcsync
# Enable hardware timestamping on all interfaces that support it.
#hwtimestamp *
# Increase the minimum number of selectable sources required to adjust
# the system clock.
#minsources 2
# Allow NTP client access from local network.
#allow 192.168.0.0/16
# Serve time even if not synchronized to a time source.
#local stratum 10
# Specify file containing keys for NTP authentication.
#keyfile /etc/chrony.keys
[root@ceph03 ~]#
[root@ceph03 ~]# timedatectl set-timezone Asia/Shanghai
[root@ceph03 ~]# chronyc sources -v
210 Number of sources = 4
.-- Source mode '^' = server, '=' = peer, '#' = local clock.
/ .- Source state '*' = current synced, '+' = combined , '-' = not combined,
| / '?' = unreachable, 'x' = time may be in error, '~' = time too variable.
|| .- xxxx [ yyyy ] +/- zzzz
|| Reachability register (octal) -. | xxxx = adjusted offset,
|| Log2(Polling interval) --. | | yyyy = measured offset,
|| \ | | zzzz = estimated error.
|| | | \
MS Name/IP address Stratum Poll Reach LastRx Last sample ===============================================================================
^? a.chl.la 2 6 3 12 -1593us[-1593us] +/- 136ms
^* ntp.xtom.nl 2 6 77 15 -838us[+1093us] +/- 132ms
^? ntp6.flashdance.cx 2 7 6 136 +22ms[+6903us] +/- 234ms
^- tock.ntp.infomaniak.ch 1 6 155 4 -7759us[-7759us] +/- 118ms
[root@ceph03 ~]#
九、安裝ceph
ceph01，ceph02和ceph03同理：
[root@ceph01 ~]# yum install -y ceph
已加載插件：fastestmirror
Loading mirror speeds from cached hostfile
正在解決依賴關系
--> 正在檢查事務
---> 軟體包 ceph.x86_64.2.15.2.4-0.el7 將被 安裝
--> 正在處理依賴關系 ceph-mon = 2:15.2.4-0.el7，它被軟體包 2:ceph-15.2.4-0.el7.x86_64 需要
--> 正在處理依賴關系 ceph-osd = 2:15.2.4-0.el7，它被軟體包 2:ceph-15.2.4-0.el7.x86_64 需要
--> 正在處理依賴關系 ceph-mds = 2:15.2.4-0.el7，它被軟體包 2:ceph-15.2.4-0.el7.x86_64 需要
--> 正在處理依賴關系 ceph-mgr = 2:15.2.4-0.el7，它被軟體包 2:ceph-15.2.4-0.el7.x86_64 需要
--> 正在檢查事務
—————————————————————————————————————— 省略 ——————————————————————————————————————
作為依賴被升級:
cryptsetup-libs.x86_64 0:2.0.3-6.el7
完畢！
[root@ceph01 ~]#
十、安裝ceph部署工具
只需要在ceph01節點安裝
[root@ceph01 ~]# yum install python-setuptools ceph-deploy -y
已加載插件：fastestmirror
Loading mirror speeds from cached hostfile
正在解決依賴關系
—————————————————————————————————————— 省略 ——————————————————————————————————————
已安裝:
ceph-deploy.noarch 0:2.0.1-0 python-setuptools.noarch 0:0.9.8-7.el7
作為依賴被安裝:
python-backports.x86_64 0:1.0-8.el7 python-backports- ssl_match_hostname.noarch 0:3.5.0.1-1.el7
python-ipaddress.noarch 0:1.0.16-2.el7
完畢！
[root@ceph01 ~]#
十一、部署ceph
部署一個新的Ceph集群，mon部署節點為ceph01，ceph02，ceph03（只在ceph01操作）
[root@ceph01 ~]# ceph-deploy new ceph01 ceph02 ceph03
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/bin/ceph-deploy new ceph01 ceph02 ceph03
[ceph_deploy.cli][INFO ] ceph-deploy options:
—————————————————————————————————————— 省略 ——————————————————————————————————————
[ceph_deploy.new][DEBUG ] Monitor initial members are ['ceph01', 'ceph02', 'ceph03']
[ceph_deploy.new][DEBUG ] Monitor addrs are ['192.168.13.47', '192.168.13.48', '192.168.13.49']
[ceph_deploy.new][DEBUG ] Creating a random mon key...
[ceph_deploy.new][DEBUG ] Writing monitor keyring to ceph.mon.keyring...
[ceph_deploy.new][DEBUG ] Writing initial config to ceph.conf...
[root@ceph01 ~]#
[root@ceph01 ~]# ceph-deploy mon create-initial
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/bin/ceph-deploy mon create- initial
—————————————————————————————————————— 省略 ——————————————————————————————————————
[ceph_deploy.gatherkeys][INFO ] Storing ceph.client.admin.keyring
[ceph_deploy.gatherkeys][INFO ] Storing ceph.bootstrap-mds.keyring
[ceph_deploy.gatherkeys][INFO ] Storing ceph.bootstrap-mgr.keyring
[ceph_deploy.gatherkeys][INFO ] keyring 'ceph.mon.keyring' already exists
[ceph_deploy.gatherkeys][INFO ] Storing ceph.bootstrap-osd.keyring
[ceph_deploy.gatherkeys][INFO ] Storing ceph.bootstrap-rgw.keyring
[ceph_deploy.gatherkeys][INFO ] Destroy temp directory /tmp/tmpaX3Qjj
[root@ceph01 ~]#
[root@ceph01 ~]# ceph-deploy admin ceph01 ceph02 ceph03
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/bin/ceph-deploy admin ceph01 ceph02 ceph03
[ceph_deploy.cli][INFO ] ceph-deploy options:
[ceph_deploy.cli][INFO ] username : None [ceph_deploy.cli][INFO ] verbose : False
[ceph_deploy.cli][INFO ] overwrite_conf : False
[ceph_deploy.cli][INFO ] quiet : False
[ceph_deploy.cli][INFO ] cd_conf : <ceph_deploy.conf.cephdeploy.Conf instance at 0x7fde42f704d0>
[ceph_deploy.cli][INFO ] cluster : ceph
[ceph_deploy.cli][INFO ] client : ['ceph01', 'ceph02', 'ceph03']
[ceph_deploy.cli][INFO ] func : <function admin at 0x7fde43a99230>
[ceph_deploy.cli][INFO ] ceph_conf : None
[ceph_deploy.cli][INFO ] default_release : False [ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to ceph01
[ceph01][DEBUG ] connected to host : ceph01
[ceph01][DEBUG ] detect platform information from remote host
[ceph01][DEBUG ] detect machine type
[ceph01][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to ceph02
[ceph02][DEBUG ] connected to host: ceph02
[ceph02][DEBUG ] detect platform information from remote host
[ceph02][DEBUG ] detect machine type
[ceph02][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[ceph_deploy.admin][DEBUG ] Pushing admin keys and conf to ceph03
[ceph03][DEBUG ] connected to host: ceph03
[ceph03][DEBUG ] detect platform information from remote host
[ceph03][DEBUG ] detect machine type
[ceph03][DEBUG ] write cluster configuration to /etc/ceph/{cluster}.conf
[root@ceph01 ~]#
[root@ceph01 ~]# ceph-deploy osd create --data /dev/sdb ceph01
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/bin/ceph-deploy osd create -- data /dev/sdb ceph01
—————————————————————————————————————— 省略 ——————————————————————————————————————
[ceph01][INFO ] checking OSD status...
[ceph01][DEBUG ] find the location of an executable
[ceph01][INFO ] Running command: /bin/ceph --cluster=ceph osd stat -- format=json
[ceph_deploy.osd][DEBUG ] Host ceph01 is now ready for osd use.
[root@ceph01 ~]#
[root@ceph01 ~]# ceph-deploy osd create --data /dev/sdb ceph02
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/bin/ceph-deploy osd create -- data /dev/sdb ceph02
—————————————————————————————————————— 省略 ——————————————————————————————————————
[ceph02][INFO ] checking OSD status...
[ceph02][DEBUG ] find the location of an executable
[ceph02][INFO ] Running command: /bin/ceph --cluster=ceph osd stat -- format=json
[ceph_deploy.osd][DEBUG ] Host ceph02 is now ready for osd use.
[root@ceph01 ~]#
[root@ceph01 ~]# ceph-deploy osd create --data /dev/sdb ceph03
[ceph_deploy.conf][DEBUG ] found configuration file at: /root/.cephdeploy.conf
[ceph_deploy.cli][INFO ] Invoked (2.0.1): /usr/bin/ceph-deploy osd create -- data /dev/sdb ceph03
——————————————————————————————————————— 省略 ———————————————————————————————————————
[ceph03][INFO ] checking OSD status...
[ceph03][DEBUG ] find the location of an executable
[ceph03][INFO ] Running command: /bin/ceph --cluster=ceph osd stat -- format=json
[ceph_deploy.osd][DEBUG ] Host ceph03 is now ready for osd use.
[root@ceph01 ~]#
十二、測驗（ceph健康）
[root@ceph01 ~]# ceph -s
cluster:
id: 57cdd1ff-f2a0-471f-b867-0f9356c143d5
health: HEALTH_OK
services:
mon: 3 daemons, quorum ceph01,ceph02,ceph03 (age 2m)
mgr: ceph01(active, since 81s), standbys: ceph02, ceph03
osd: 3 osds: 3 up (since 6s), 3 in (since 6s)
data:
pools: 1 pools, 1 pgs
objects: 0 objects, 0 B
usage: 3.0 GiB used, 57 GiB / 60 GiB avail
pgs: 1 active+clean
[root@ceph01 ~]#
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/277155.html
標籤：其他
下一篇：硬碟管理
