了解altas 的血緣關系的作用

在資料治理環節，需要對表進行溯源，或者對欄位進行溯源，簡單說多個表組成一個表時，可以追溯到表中的欄位來自具體的哪個表，以后資料進行變動可以通過血緣關系圖形直觀看出，如下圖在這里插入圖片描述

altas的安裝部署

本人并沒有實踐過，這點請參考網上的資料

了解官方API

鏈接: http://atlas.apache.org/api/v2/index.html.推薦
鏈接: http://atlas.apache.org/api/v2/application.wadl.

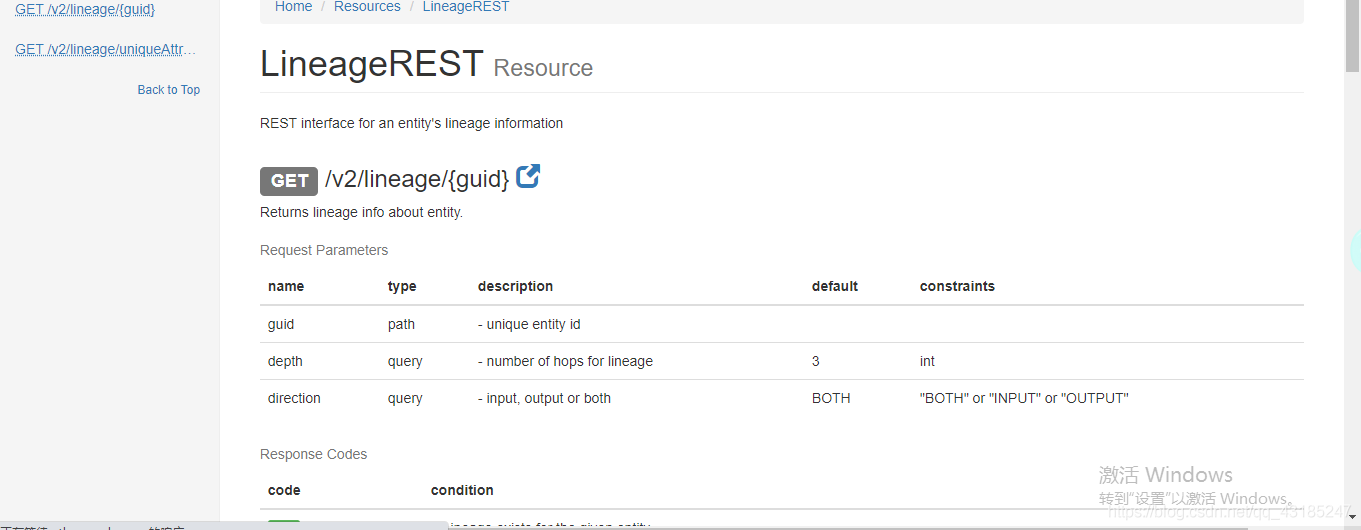

在這里插入圖片描述這里詳細講解一下 / v2 / lineage / {guid} 這個介面,
這里可以看出我們需要一個guid,那么guid怎么獲取呢？且域名埠號是什么？完整url：http://{部署的ip}:21000/api/atlas/v2/lineage/{guid}
guid是一個唯一的id,那么我想嘗試呼叫一下不需要引數的介面試試，比如：http://ip:21000/api/atlas/v2/search/basic?query=gdyinfo_new&typeName=hive_table,查詢hive_table中的gdyinfo_new 這個表的資訊，回傳得到結果：在這里插入圖片描述通過呼叫其他介面，我發現了guid,說明這個guid就是gdyinfo_new的唯一標識，然后我們再回到之前的lineage，把這個guid傳進去，這不就是說我能通過這個介面對這個表進行追溯嘛哈哈哈，
話不多說我們趕緊試一下，http://ip:21000/api/atlas/v2/lineage/6fa88134-ab3e-4db9-8907-947e4fc17b88(這里atlas會自動跳轉到登錄頁面，需要驗證才能呼叫，我是通過瀏覽器呼叫的，先登錄，java和postman方法移步至鏈接：
https://blog.csdn.net/qq_43185247/article/details/116200436?spm=1001.2014.3001.5502
確實能夠呼叫介面了，回傳了一組json資料，我把他保存了下來分析一下：

{	"baseEntityGuid":"01d12e5f-1ef5-46a8-ac13-29be71e8f78e",
	"lineageDirection":"BOTH","lineageDepth":3,
	"guidEntityMap":{
		"5a676b74-e058-4e81-bcf8-42d73f4c1729":
			{"typeName":"rdbms_table",
			"attributes":
				{"owner":"root",
				"createTime":1577687198000,
				"qualifiedName":"testdb.p_people@mysql://192.168.1.1:3306",
				"name":"p_people1",
				"description":"MySQL資料庫表：testdb.p_people"},
				"guid":"5a676b74-e058-4e81-bcf8-42d73f4c1729",
				"status":"ACTIVE",
				"displayText":"p_people",
				"classificationNames":[],
				"meaningNames":[],
				"meanings":[]},
		"2e7c70e1-5a8a-4430-859f-c46d267e33fd":
			{"typeName":"hive_table",
			"attributes":
				{"owner":"hdfs",
				"createTime":1578981817000,
				"qualifiedName":"testdb.p_people@primary",
				"name":"p_people2"},
				"guid":"2e7c70e1-5a8a-4430-859f-c46d267e33fd",
				"status":"ACTIVE",
				"displayText":"p_people",
				"classificationNames":["people"],
				"meaningNames":[],"meanings":[]},
		"2b65eb7f-596e-48f0-a94d-240e56a4da93":
			{"typeName":"Process",
			"attributes":
				{"owner":"root",
				"qualifiedName":"people@process@mysql://192.168.1.1:3306",
				"name":"peopleProcess",
				"description":"people Process"},
				"guid":"2b65eb7f-596e-48f0-a94d-240e56a4da93",
				"status":"ACTIVE",
				"displayText":"peopleProcess",
				"classificationNames":[],
				"meaningNames":[],
				"meanings":[]},
		"01d12e5f-1ef5-46a8-ac13-29be71e8f78e":
			{"typeName":"hive_process",
			"attributes":
				{"qualifiedName":
				"testdb.p_people_tmp2@primary:1588921268000",
				"name":"create table p_people_tmp2 as select peopleid,peopletype,credentialtype,credentialno,peoplename,gender,nation from p_people"},
				"guid":"01d12e5f-1ef5-46a8-ac13-29be71e8f78e",
				"status":"ACTIVE",
				"displayText":"create table p_people_tmp2 as select peopleid,peopletype,credentialtype,credentialno,peoplename,gender,nation from p_people",
				"classificationNames":["people"],
				"meaningNames":[],
				"meanings":[]},
		"a4ccceb2-a52c-46a2-b4fd-27d26b8aad3f":
				{"typeName":"hive_table",
				"attributes":
					{"owner":"hive",
					"createTime":1588921268000,
					"qualifiedName":"testdb.p_people_tmp2@primary",
					"name":"p_people_tmp2"},
					"guid":"a4ccceb2-a52c-46a2-b4fd-27d26b8aad3f",
					"status":"ACTIVE",
					"displayText":"p_people_tmp2",
					"classificationNames":["people"],
					"meaningNames":[],
					"meanings":[]}},


	    "relations":[
			{	"fromEntityId":"01d12e5f-1ef5-46a8-ac13-29be71e8f78e", 				 //create table
				"toEntityId":"a4ccceb2-a52c-46a2-b4fd-27d26b8aad3f",				 //p_people_tmp2
				"relationshipId":"148cc83d-5b67-4174-91e4-767509483e13"},

			{	"fromEntityId":"2e7c70e1-5a8a-4430-859f-c46d267e33fd",				 //p_people2
				"toEntityId":"01d12e5f-1ef5-46a8-ac13-29be71e8f78e",				 // //create table
				"relationshipId":"eb768346-d32a-40f9-bf04-d23abbcc3221"},

			{	"fromEntityId":"2b65eb7f-596e-48f0-a94d-240e56a4da93",				//peopleProcess
				"toEntityId":"2e7c70e1-5a8a-4430-859f-c46d267e33fd",				//p_people2
				"relationshipId":"bea47efd-2645-4d8a-ba6b-8f4ef9bb7316"},

			{	"fromEntityId":"5a676b74-e058-4e81-bcf8-42d73f4c1729",				//p_people1
				"toEntityId":"2b65eb7f-596e-48f0-a94d-240e56a4da93",				//peopleProcess
				"relationshipId":"517db5b7-f537-4e66-97f1-33c2863fb440"}]}

通過分析這個json,我發現了兩個重要的地方，這里結合給出的血緣圖比較直觀!

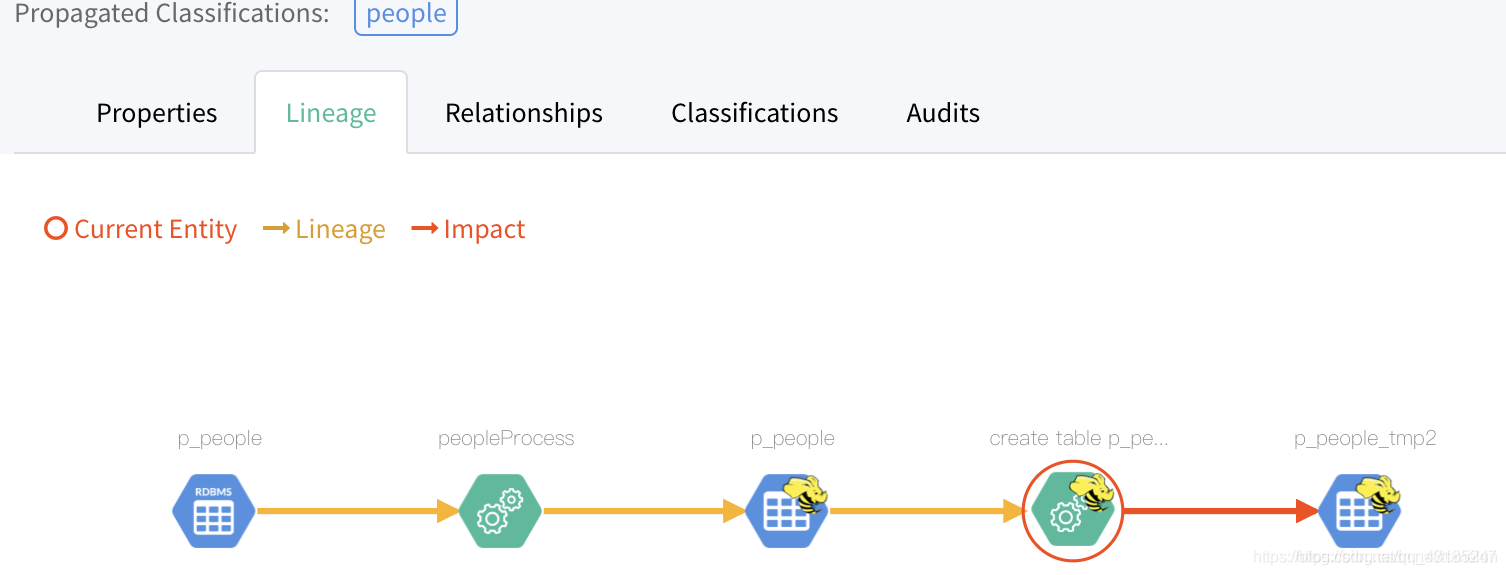

在這里插入圖片描述發現每一個guid下有一個name,對應著上圖一個步驟，ralations描述了它們之間的聯系，這不就串起來了嘛，那么我要怎么把這個關系用圖形表達出來呢？

了解apache echars

altas原始碼并不是用的這種方式，貌似是用的圖資料庫，我也在測驗這種方式是否可行，
鏈接: https://echarts.apache.org/zh/index.html.
大家可以了解一下，比較容易上手，

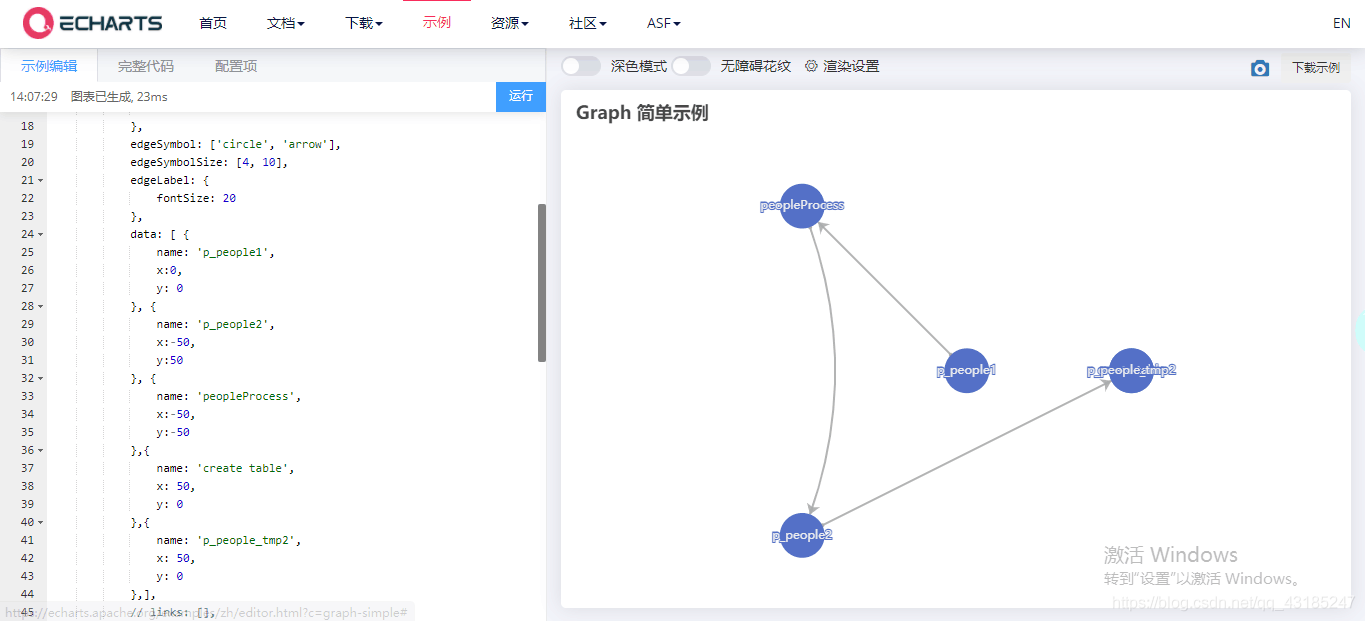

在這里插入圖片描述我在示例圖上找到了關系圖，然后對代碼進行對應調整，這是不是跟atlas的血緣關系類似了，后續再考慮其他問題，比如圖示，代碼如下，可直接貼上測驗，

option = {
    title: {
        text: 'Graph 簡單示例'
    },
    tooltip: {},
    animationDurationUpdate: 1500,
    animationEasingUpdate: 'quinticInOut',
    series: [
        {
            type: 'graph',
            layout: 'none',
            xAxisIndex : 0, //x軸坐標 有多種坐標系軸坐標選項
                    yAxisIndex : 0, //y軸坐標
            symbolSize: 50,
            roam: true,
            label: {
                show: true
            },
            edgeSymbol: ['circle', 'arrow'],
            edgeSymbolSize: [4, 10],
            edgeLabel: {
                fontSize: 20
            },
            data: [ {
                name: 'p_people1',
                x:0,
                y: 0
            }, {
                name: 'p_people2',
                x:-50,
                y:50
            }, {
                name: 'peopleProcess',
                x:-50,
                y:-50
            },{
                name: 'create table',
                x: 50,
                y: 0
            },{
                name: 'p_people_tmp2',
                x: 50,
                y: 0
            },],
            // links: [],
            links: [{
               source: 'create table',
                target: 'p_people_tmp2',

                label: {

                    // show: true
                },
                lineStyle: {

                    curveness: -0.2
                }
            }, {
                source: 'p_people2',
                target: 'create table',

                 lineStyle: {

                    curveness: 0
                }

            }, {
                source: 'peopleProcess',
                target: 'p_people2',
                 lineStyle: {

                    curveness: 0.2
                }
            }, {
                source: 'p_people1',
                target: 'peopleProcess',

                 lineStyle: {

                    curveness: 0
                }

            }],
            lineStyle: {
                opacity: 0.9,
                width: 2,

            }
        }
    ]
};

基本的雛形已經出來了，瀏覽器呼叫介面，再用echars 實作圖形化，最后再強調一次，呼叫介面需要權限，已經測驗過java代碼和postman，請參考：鏈接:
https://blog.csdn.net/qq_43185247/article/details/116200436?spm=1001.2014.3001.5502
感謝，第二次寫博客
