Flink實作訂單自動好評

???????需求

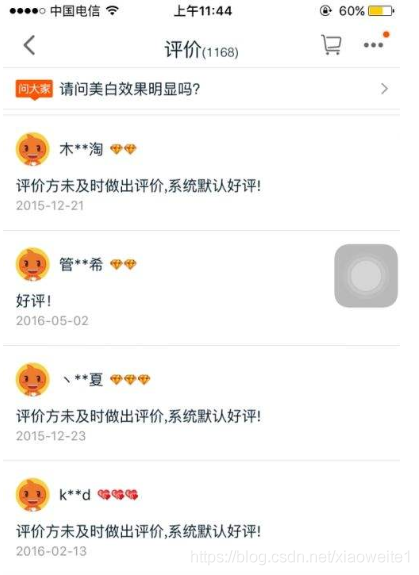

在電商領域會有這么一個場景，如果用戶買了商品，在訂單完成之后，一定時間之內沒有做出評價，系統自動給與五星好評，我們今天主要使用Flink的定時器來簡單實作這一功能，

???????資料

自定義source模擬生成一些訂單資料.
在這里，我們生了一個最簡單的二元組Tuple3,包含用戶id,訂單id和訂單完成時間三個欄位.

/**
 * 自定義source實時產生訂單資料Tuple3<用戶id,訂單id, 訂單生成時間>
 */
public static class MySource implements SourceFunction<Tuple3<String, String, Long>> {
    private boolean flag = true;
    @Override
    public void run(SourceContext<Tuple3<String, String, Long>> ctx) throws Exception {
        Random random = new Random();
        while (flag) {
            String userId = random.nextInt(5) + "";
            String orderId = UUID.randomUUID().toString();
            long currentTimeMillis = System.currentTimeMillis();
            ctx.collect(Tuple3.of(userId, orderId, currentTimeMillis));
            Thread.sleep(500);
        }
    }

    @Override
    public void cancel() {
        flag = false;
    }
}

???????編碼步驟

1.env

2.source

3.transformation

設定經過interval毫秒用戶未對訂單做出評價，自動給與好評.為了演示方便，設定5s的時間

long interval = 5000L;

分組后使用自定義KeyedProcessFunction完成定時判斷超時訂單并自動好評

dataStream.keyBy(0).process(new TimerProcessFuntion(interval));

3.1定義MapState型別的狀態，key是訂單號，value是訂單完成時間

3.2創建MapState

MapStateDescriptor<String, Long> mapStateDesc =

new MapStateDescriptor<>("mapStateDesc", String.class, Long.class);

mapState = getRuntimeContext().getMapState(mapStateDesc);

3.3注冊定時器

mapState.put(value.f0, value.f1);

ctx.timerService().registerProcessingTimeTimer(value.f1 + interval);

3.4定時器被觸發時執行并輸出結果

4.sink

5.execute

???????代碼實作

package cn.itcast.action;

import org.apache.flink.api.common.RuntimeExecutionMode;
import org.apache.flink.api.common.state.MapState;
import org.apache.flink.api.common.state.MapStateDescriptor;
import org.apache.flink.api.java.tuple.Tuple3;
import org.apache.flink.configuration.Configuration;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.KeyedProcessFunction;
import org.apache.flink.streaming.api.functions.source.SourceFunction;
import org.apache.flink.util.Collector;

import java.util.Iterator;
import java.util.Map;
import java.util.Random;
import java.util.UUID;

/**
 * Author itcast
 * Desc
 */
public class OrderAutomaticFavorableComments {
    public static void main(String[] args) throws Exception {
        //TODO 1.env
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setRuntimeMode(RuntimeExecutionMode.AUTOMATIC);
        env.setParallelism(1);

        //TODO 2.source
        //Tuple3<用戶id,訂單id,訂單生成時間>
        DataStream<Tuple3<String, String, Long>> orderDS = env.addSource(new MySource());

        //TODO 3.transformation
        //設定經過interval毫秒用戶未對訂單做出評價，自動給與好評.為了演示方便，設定5s的時間
        long interval = 5000L;//5s
        //分組后使用自定義KeyedProcessFunction完成定時判斷超時訂單并自動好評
        orderDS.keyBy(t -> t.f0)
                .process(new TimerProcessFunction(interval));

        //TODO 4.sink

        //TODO 5.execute
        env.execute();
    }

    /**
     * 自定義source實時產生訂單資料Tuple3<用戶id,訂單id, 訂單生成時間>
     */
    public static class MySource implements SourceFunction<Tuple3<String, String, Long>> {
        private boolean flag = true;

        @Override
        public void run(SourceContext<Tuple3<String, String, Long>> ctx) throws Exception {
            Random random = new Random();
            while (flag) {
                String userId = random.nextInt(5) + "";
                String orderId = UUID.randomUUID().toString();
                long currentTimeMillis = System.currentTimeMillis();
                ctx.collect(Tuple3.of(userId, orderId, currentTimeMillis));
                Thread.sleep(500);
            }
        }

        @Override
        public void cancel() {
            flag = false;
        }
    }

    /**
     * 自定義ProcessFunction完成訂單自動好評
     * 進來一條資料應該在interval時間后進行判斷該訂單是否超時是否需要自動好評
     * abstract class KeyedProcessFunction<K, I, O>
     */
    private static class TimerProcessFunction extends KeyedProcessFunction<String, Tuple3<String, String, Long>, Object> {
        private long interval;//訂單超時時間 傳進來的是5000ms/5s
        public TimerProcessFunction(long interval) {
            this.interval = interval;
        }

        //-0.準備一個State來存盤訂單id和訂單生成時間
        private MapState<String, Long> mapState = null;

        //-1.初始化
        @Override
        public void open(Configuration parameters) throws Exception {
            MapStateDescriptor<String, Long> mapStateDescriptor = new MapStateDescriptor<>("mapState", String.class, Long.class);
            mapState = getRuntimeContext().getMapState(mapStateDescriptor);
        }

        //-2.處理每一條資料并存入狀態并注冊定時器
        @Override
        public void processElement(Tuple3<String, String, Long> value, Context ctx, Collector<Object> out) throws Exception {
            //Tuple3<用戶id,訂單id, 訂單生成時間> value里面是當前進來的資料里面有訂單生成時間
            //把訂單資料保存到狀態中
            mapState.put(value.f1, value.f2);//xxx,2020-11-11 00:00:00 || xx,2020-11-11 00:00:01
            //該訂單在value.f2 + interval時過期/到期,這時如果沒有評價的話需要系統給與默認好評
            //注冊一個定時器在value.f2 + interval時檢查是否需要默認好評
            ctx.timerService().registerProcessingTimeTimer(value.f2 + interval);//2020-11-11 00:00:05  || 2020-11-11 00:00:06
        }

        //-3.執行定時任務
        @Override
        public void onTimer(long timestamp, OnTimerContext ctx, Collector<Object> out) throws Exception {
            //檢查歷史訂單資料(在狀態中存盤著)
            //遍歷取出狀態中的訂單資料
            Iterator<Map.Entry<String, Long>> iterator = mapState.iterator();
            while (iterator.hasNext()) {
                Map.Entry<String, Long> map = iterator.next();
                String orderId = map.getKey();
                Long orderTime = map.getValue();
                //先判斷是否好評--實際中應該去呼叫訂單評價系統看是否好評了,我們這里寫個方法模擬一下
                if (!isFavorable(orderId)) {//該訂單沒有給好評
                    //判斷是否超時--不用考慮進來的資料是否過期,統一判斷是否超時更保險!
                    if (System.currentTimeMillis() - orderTime >= interval) {
                        System.out.println("orderId:" + orderId + "該訂單已經超時未評價,系統自動給與好評!....");
                        //移除狀態中的資料,避免后續重復判斷
                        iterator.remove();
                        mapState.remove(orderId);
                    }
                } else {
                    System.out.println("orderId:" + orderId + "該訂單已經評價....");
                    //移除狀態中的資料,避免后續重復判斷
                    iterator.remove();
                    mapState.remove(orderId);
                }
            }
        }

        //自定義一個方法模擬訂單系統回傳該訂單是否已經好評
        public boolean isFavorable(String orderId) {
            return orderId.hashCode() % 2 == 0;
        }
    }
}

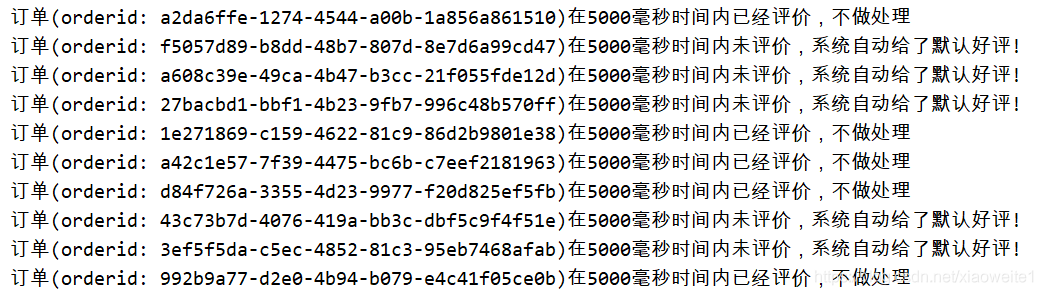

???????效果
