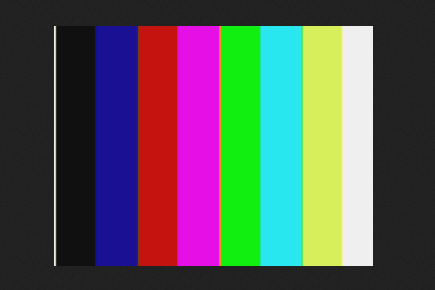

彩帶輸出正常:

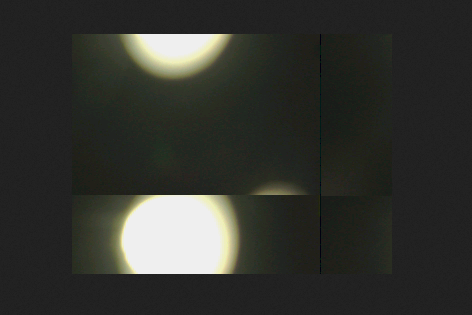

拍照輸出模糊一點也看不清,還很模糊:
這是用手機拍攝的實物圖:
猜測是解析度設定的原因,不太會配置ov7670的解析度.希望高人指點:
附上,原始碼:
13 void OV7670_Window_Set(u16 sx,u16 sy,u16 width,u16 height)
12 {
11 u16 endx;
10 u16 endy;
9 u8 temp;
8 endx=sx+width*2; //V*2
7 endy=sy+height*2;
6 if(endy>784)endy-=784;
5 temp=SCCB_RD_Reg(0X03); //讀取Vref之前的值
4 temp&=0XF0;
3 temp|=((endx&0X03)<<2)|(sx&0X03);
2
1 SCCB_WR_Reg(0X03,temp); //設定Vref的start和end的最低2位 [>/
0 SCCB_WR_Reg(0X19,sx>>2); //設定Vref的start高8位 [>/
1 SCCB_WR_Reg(0X1A,endx>>2); //設定Vref的end的高8位 [>/
2
3 temp=SCCB_RD_Reg(0X32); //讀取Href之前的值
4 temp&=0XC0;
5 temp|=((endy&0X07)<<3)|(sy&0X07);
6 SCCB_WR_Reg(0X17,sy>>3); //設定Href的start高8位 [>/
7 SCCB_WR_Reg(0X18,endy>>3); //設定Href的end的高8位
8 }
9
暫存器配置:
ov7670config.h
const u8 ov7670_init_reg_tbl[][2]=
{
{0x3a, 0x04},
{0x40, 0x10},
{0x12, 0x14},
{0x32, 0x80},
{0x17, 0x17},
{0x18, 0x05},
{0x19, 0x02},
{0x1a, 0x7b},//0x7a,
{0x03, 0x0a},//0x0a,
{0x0c, 0x0c},
{0x3e, 0x00},//
{0x70, 0x00},
{0x71, 0x01},
//{0x71, 0x80}, //0x80測驗彩條
{0x72, 0x11},
{0x73, 0x09},//
{0xa2, 0x02},
{0x11, 0x00},
{0x7a, 0x20},
{0x7b, 0x1c},
{0x7c, 0x28},
{0x7d, 0x3c},
{0x7e, 0x55},
{0x7f, 0x68},
{0x80, 0x76},
{0x81, 0x80},
{0x82, 0x88},
{0x83, 0x8f},
{0x84, 0x96},
{0x85, 0xa3},
{0x86, 0xaf},
{0x87, 0xc4},
{0x88, 0xd7},
{0x89, 0xe8},
{0x13, 0xe0},
{0x00, 0x00},
{0x10, 0x00},
{0x0d, 0x00},
{0x14, 0x38},
{0xa5, 0x05},
{0xab, 0x07},
{0x24, 0x75},
{0x25, 0x63},
{0x26, 0xA5},
{0x9f, 0x78},
{0xa0, 0x68},
{0xa1, 0x03},//0x0b,
{0xa6, 0xdf},//0xd8,
{0xa7, 0xdf},//0xd8,
{0xa8, 0xf0},
{0xa9, 0x90},
{0xaa, 0x94},
{0x13, 0xe5},
{0x0e, 0x61},
{0x0f, 0x4b},
{0x16, 0x02},
{0x1e, 0x27},//0x07,
{0x21, 0x02},
{0x22, 0x91},
{0x29, 0x07},
{0x33, 0x0b},
{0x35, 0x0b},
{0x37, 0x1d},
{0x38, 0x71},
{0x39, 0x2a},
{0x3c, 0x78},
{0x4d, 0x40},
{0x4e, 0x20},
{0x69, 0x5d},
{0x6b, 0x40},//PLL
{0x74, 0x19},
{0x8d, 0x4f},
{0x8e, 0x00},
{0x8f, 0x00},
{0x90, 0x00},
{0x91, 0x00},
{0x92, 0x00},//0x19,//0x66
{0x96, 0x00},
{0x9a, 0x80},
{0xb0, 0x84},
{0xb1, 0x0c},
{0xb2, 0x0e},
{0xb3, 0x82},
{0xb8, 0x0a},
{0x43, 0x14},
{0x44, 0xf0},
{0x45, 0x34},
{0x46, 0x58},
{0x47, 0x28},
{0x48, 0x3a},
{0x59, 0x88},
{0x5a, 0x88},
{0x5b, 0x44},
{0x5c, 0x67},
{0x5d, 0x49},
{0x5e, 0x0e},
{0x64, 0x04},
{0x65, 0x20},
{0x66, 0x05},
{0x94, 0x04},
{0x95, 0x08},
{0x6c, 0x0a},
{0x6d, 0x55},
{0x6e, 0x11},
{0x6f, 0x9f},
{0x6a, 0x40},
//{0x01, 0x60},
//{0x02, 0x60},
{0x13, 0xe7},
{0x15, 0x00},
{0x4f, 0x80},
{0x50, 0x80},
{0x51, 0x00},
{0x52, 0x22},
{0x53, 0x5e},
{0x54, 0x80},
{0x55, 0x00},//亮度
{0x56, 0x60},//對比度
{0x57, 0x90},
{0x58, 0x9e},
{0x41, 0x08},
{0x3f, 0x05},//邊緣增強調整
{0x75, 0x05},
{0x76, 0xe1},
{0x4c, 0x0F},//噪聲抑制強度
{0x77, 0x0a},
{0x3d, 0xc2}, //0xc0,
{0x4b, 0x09},
{0xc9, 0xc8},
{0x41, 0x38},
{0x34, 0x11},
{0x3b, 0x02},//0x00,//0x02,
{0xa4, 0x89},//0x88,
{0x96, 0x00},
{0x97, 0x30},
{0x98, 0x20},
{0x99, 0x30},
{0x9a, 0x84},
{0x9b, 0x29},
{0x9c, 0x03},
{0x9d, 0x4c},
{0x9e, 0x3f},
{0x78, 0x04},
{0x79, 0x01},
{0xc8, 0xf0},
{0x79, 0x0f},
{0xc8, 0x00},
{0x79, 0x10},
{0xc8, 0x7e},
{0x79, 0x0a},
{0xc8, 0x80},
{0x79, 0x0b},
{0xc8, 0x01},
{0x79, 0x0c},
{0xc8, 0x0f},
{0x79, 0x0d},
{0xc8, 0x20},
{0x79, 0x09},
{0xc8, 0x80},
{0x79, 0x02},
{0xc8, 0xc0},
{0x79, 0x03},
{0xc8, 0x40},
{0x79, 0x05},
{0xc8, 0x30},
{0x69, 0xaa},//
{0x09, 0x00},
{0x3b, 0x42},
{0x2d, 0x01},
};
