配置zabbix倉庫

[root@server1 salt]# pwd
/srv/salt
[root@server1 salt]# mkdir zabbix-server
[root@server1 salt]# cd zabbix-server/
[root@server1 zabbix-server]# vim init.sls
zabbix-server:
  pkgrepo.managed:
    - name: zabbix
    - humanname: zabbix 4.0
    - baseurl: http://172.25.14.250/zabbix/4.0
    - gpgcheck: 0

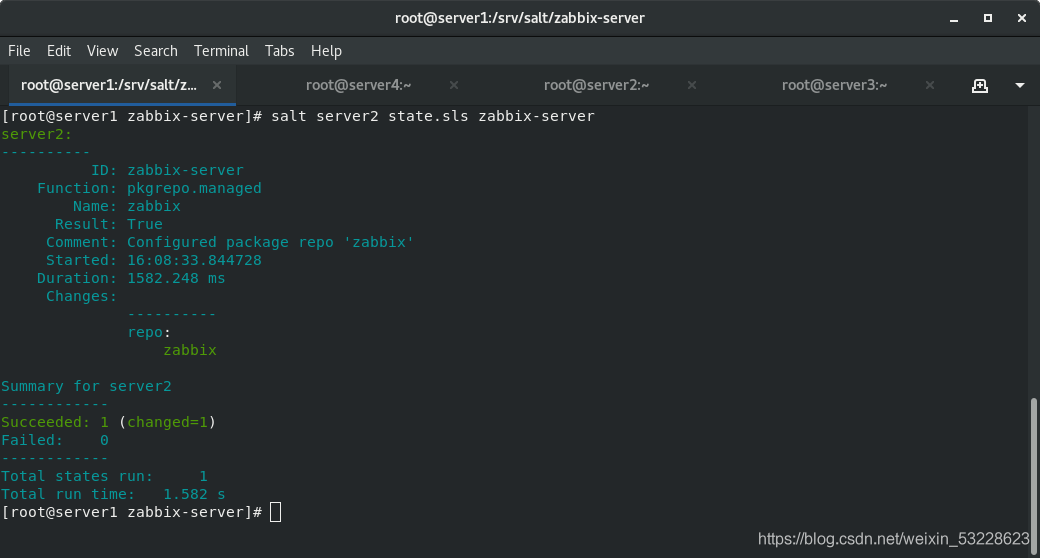

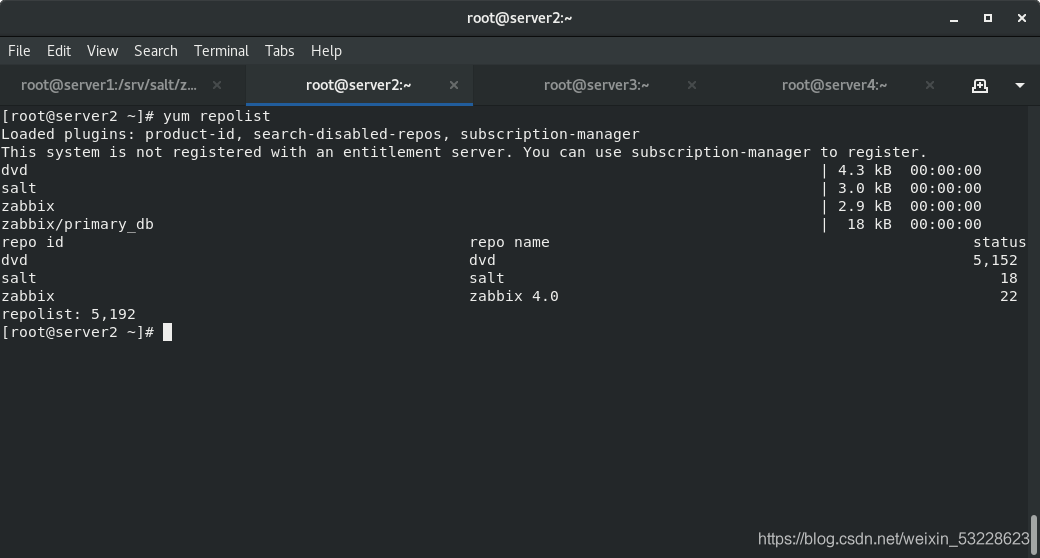

[root@server1 zabbix-server]# salt server2 state.sls zabbix-server   #回應

安裝mysql

安裝

[root@server1 salt]# mkdir mysql
[root@server1 mysql]# vim init.sls
mysql-install:
  pkg.installed:
    - pkgs:
      - mariadb-server
      - MySQL-python

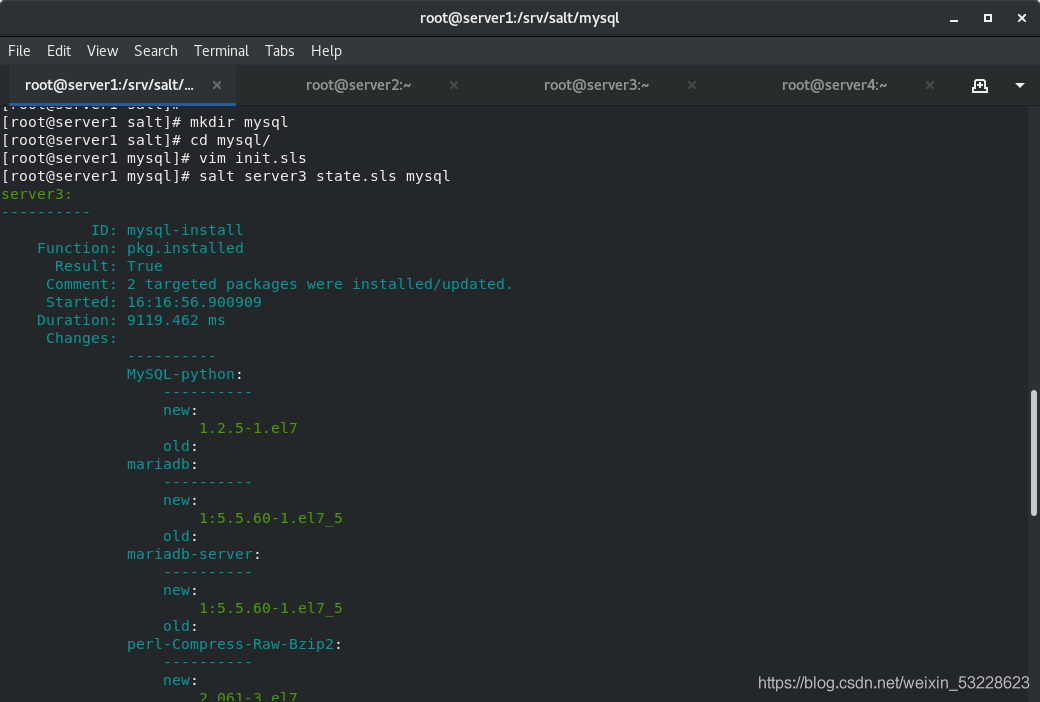

[root@server1 mysql]# salt server3 state.sls mysql

[root@server1 mysql]# mkdir files
[root@server1 mysql]# cd files/
[root@server1 files]# scp server3:/etc/my.cnf .
root@server3's password:
my.cnf                                                                          100%  570   394.8KB/s   00:00
[root@server1 files]# vim my.cnf
添加下列倆行
log-bin=mysql-bin
character-set-server=utf8

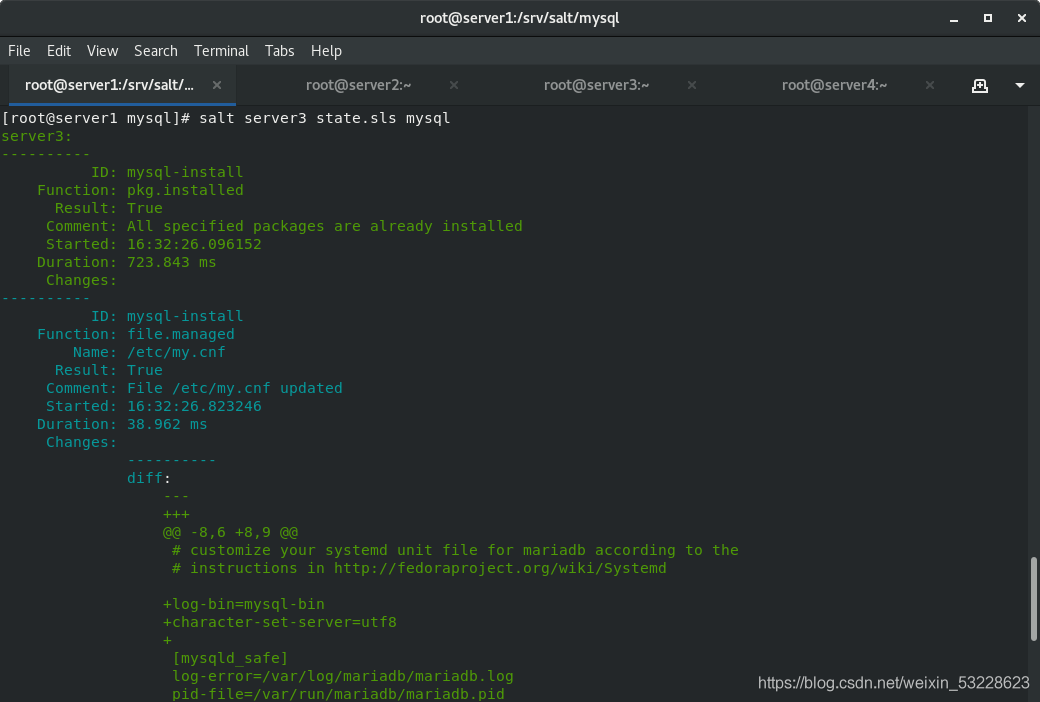

[root@server1 mysql]# salt server3 state.sls mysql

server3

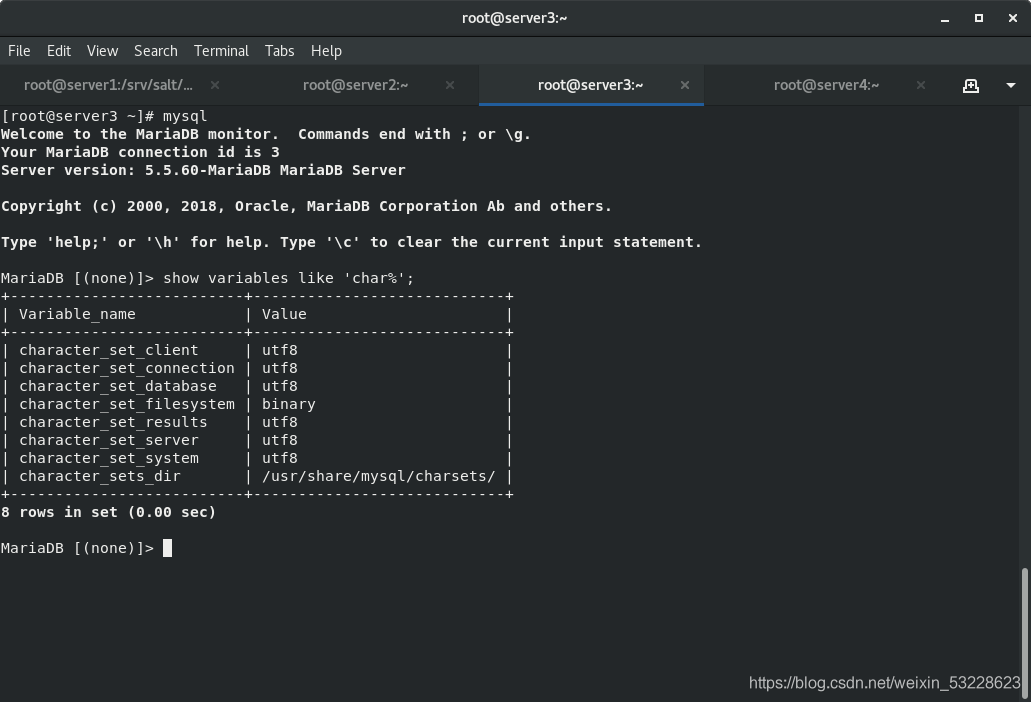

[root@server3 ~]# mysql
MariaDB [(none)]> show variables like 'char%';

創建用戶

[root@server1 mysql]# vim init.sls    #追加末尾
mysql-config:
  mysql_database.present:
    - name: zabbix
  mysql_user.present:
    - name: zabbix
    - host: localhost
    - password: "westos"

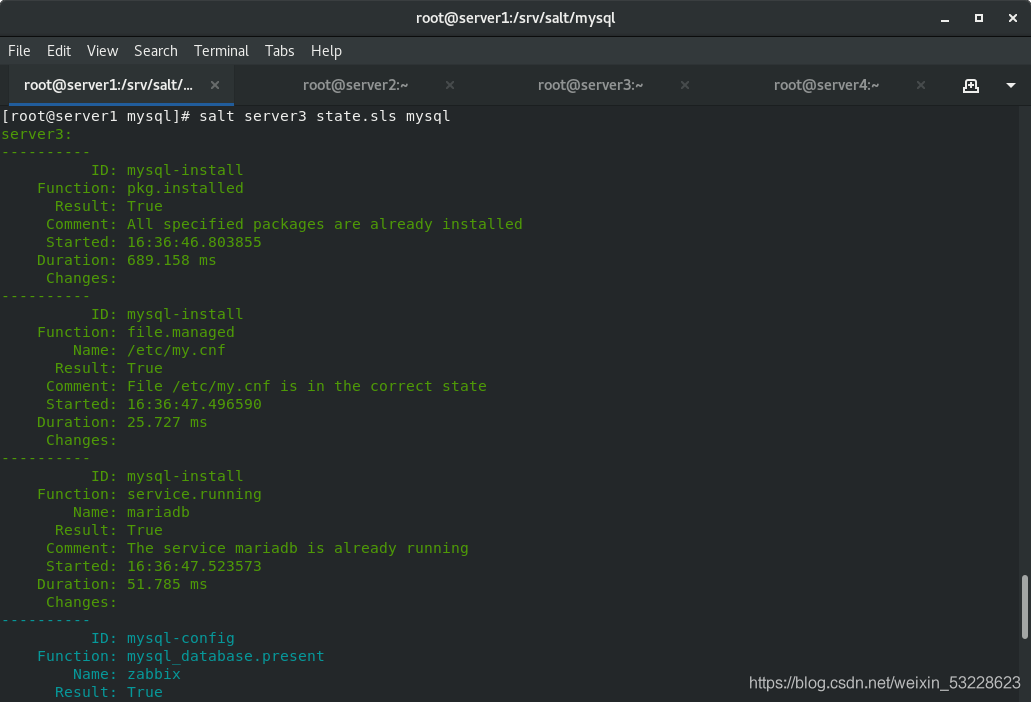

[root@server1 mysql]# salt server3 state.sls mysql #回應

[root@server3 ~]# mysql
MariaDB [(none)]> show variables like 'char%';

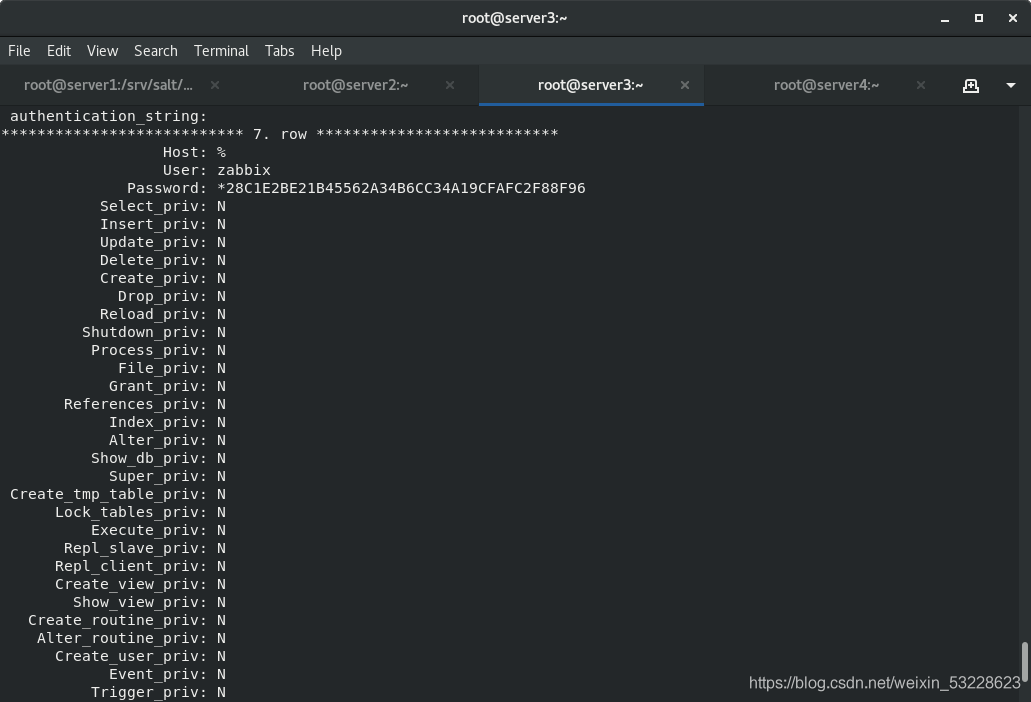

MariaDB [(none)]> select * from mysql.user\G;   #查看

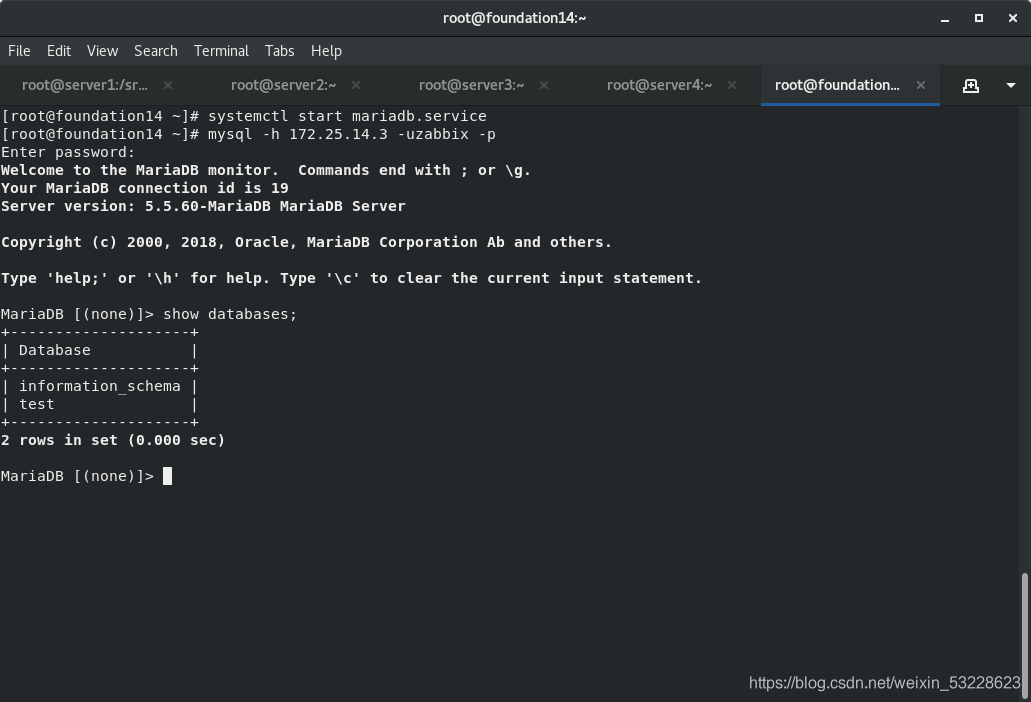

真機遠程連接server3的資料庫成功

缺少相應檔案，在server2上安裝zabbix-server-mysql并將所需檔案傳給server1的/srv/salt/mysql/files/

[root@server2 ~]# yum install -y zabbix-server-mysql.x86_64
[root@server2 yum.repos.d]# cd /usr/share/doc/zabbix-server-mysql-4.0.5/
[root@server2 zabbix-server-mysql-4.0.5]# scp create.sql.gz server1:/srv/salt/mysql/files/

授權

[root@server1 files]# gunzip create.sql.gz
[root@server1 files]# ls
create.sql  my.cnf

[root@server1 mysql]# vim init.sls #添加行
  mysql_grants.present:
    - grant: all privileges
    - database: zabbix.*
    - user: zabbix
    - host: localhost              #授予本地用戶
  file.managed:
    - name: /mnt/create.sql
    - source: salt://mysql/files/create.sql
  cmd.run:
    - name: mysql zabbix < /mnt/create.sql && touch /mnt/zabbix.lock
    - creates: /mnt/zabbix.lock

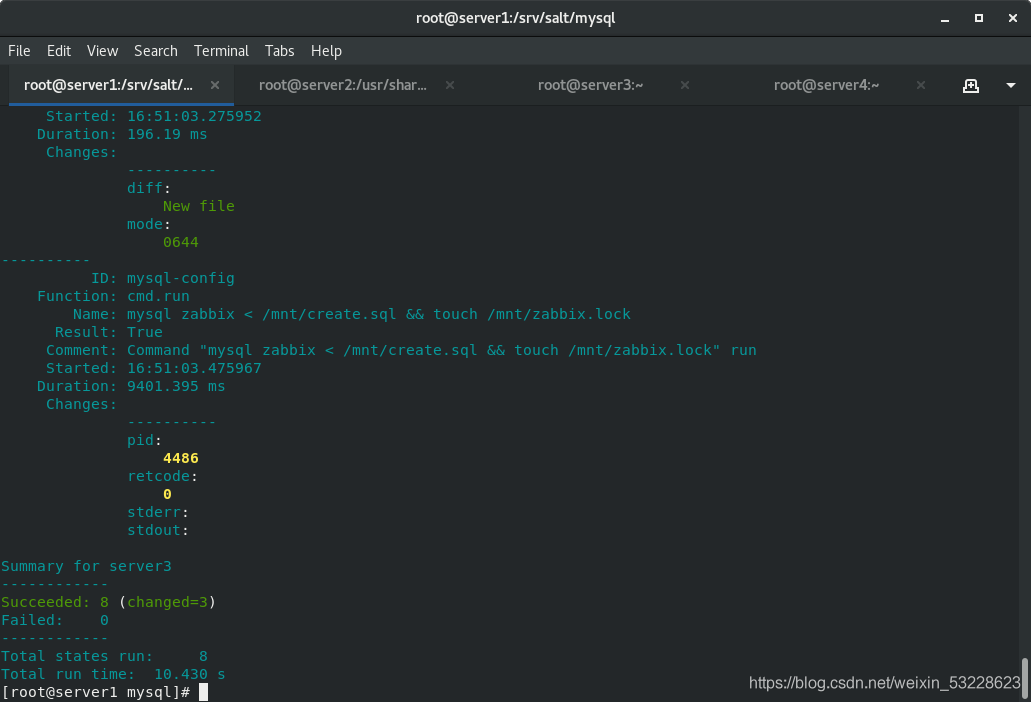

[root@server1 mysql]# salt server3 state.sls mysql   #回應

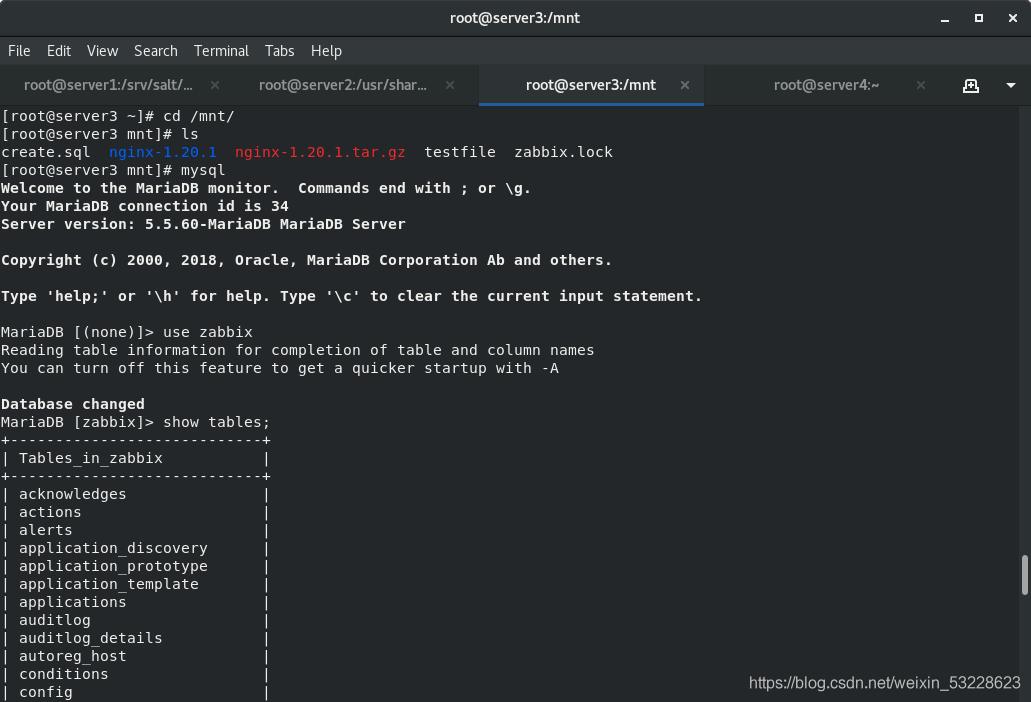

[root@server3 ~]# cd /mnt
[root@server3 mnt]# ls
create.sql  zabbix.lock
[root@server3 ~]# mysql
MariaDB [(none)]> use zabbix
MariaDB [zabbix]> show tables;

zabbix部署

[root@server1 zabbix-server]# mkdir files
[root@server1 zabbix-server]# cd files/
[root@server1 files]# scp server2:/etc/zabbix/zabbix_server.conf .
[root@server1 files]# vim zabbix_server.conf
91 DBHost=172.25.14.3         #資料庫主機為172.25.14.3
124 DBPassword=westos    	  #資料庫密碼為westos

[root@server1 zabbix-server]# vim init.sls
zabbix-server:
  pkgrepo.managed:
    - name: zabbix
    - humanname: zabbix 4.0
    - baseurl: http://172.25.14.250/zabbix/4.0
    - gpgcheck: 0
  pkg.installed:
    - pkgs:                                 #所安裝的軟體
      - zabbix-server-mysql
      - zabbix-agent
      - zabbix-web-mysql
  file.managed:
    - name: /etc/zabbix/zabbix_server.conf
    - source: salt://zabbix-server/files/zabbix_server.conf
  service.running:
    - name: zabbix-server
    - enable: true
    - watch:
      - file: zabbix-server

zabbix-agent:
  service.running

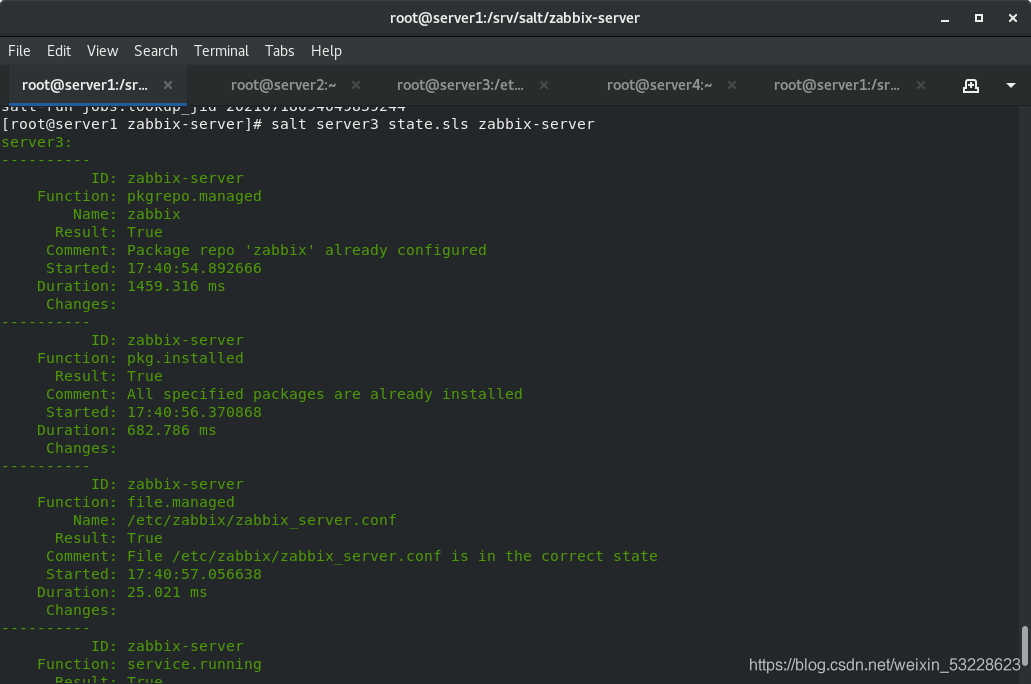

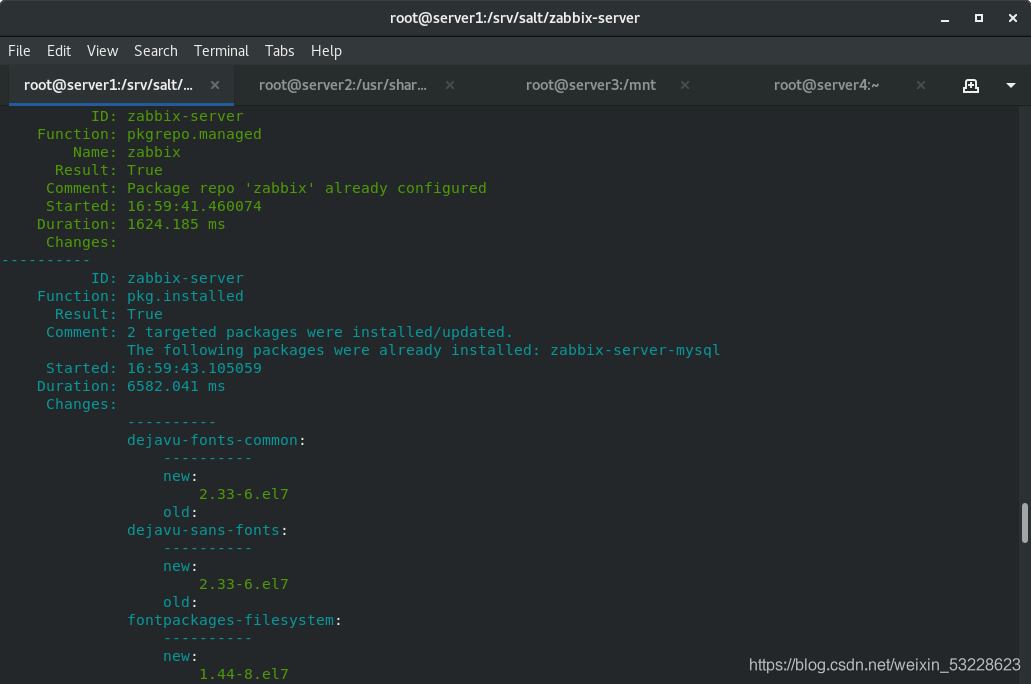

[root@server1 zabbix-server]# salt server3 state.sls zabbix-server# 回應

[root@server2 ~]# yum install -y mariadb

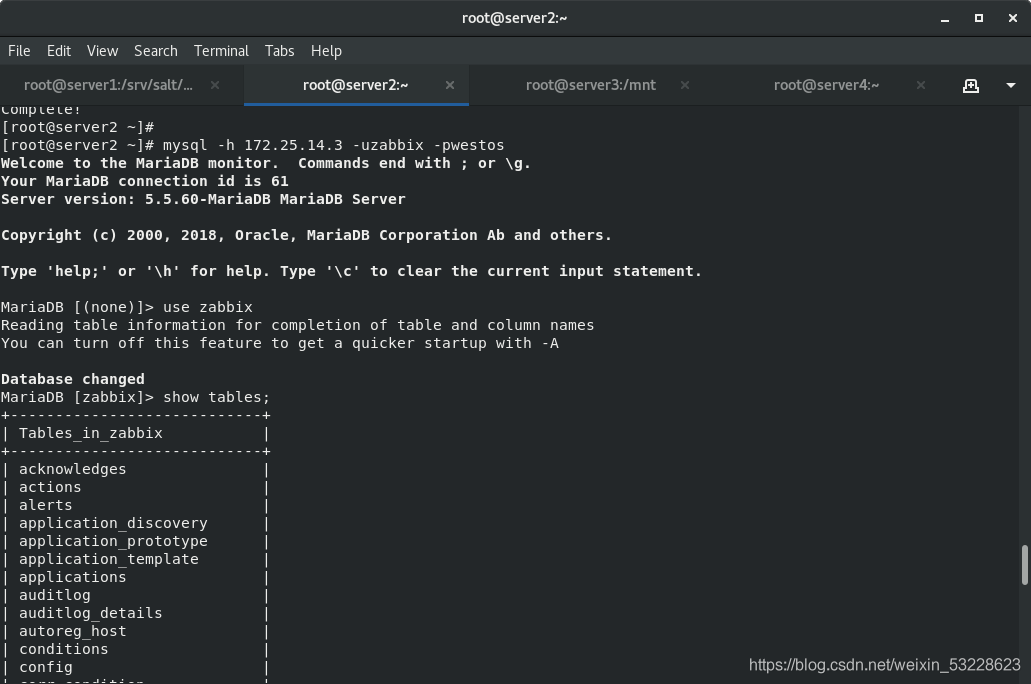

[root@server2 zabbix]# mysql -h 172.25.14.3 -u zabbix -p
MariaDB [(none)]> use zabbix
MariaDB [zabbix]> show tables;

訪問web前端

[root@server2 zabbix]# cd /etc/httpd/conf.d/
[root@server2 conf.d]# scp zabbix.conf server1:/srv/salt/zabbix-server/files

[root@server1 files]# vim zabbix.conf
       php_value date.timezone Asia/Shanghai

[root@server1 zabbix-server]# vim init.sls  ##添加行
zabbix-web:
  file.managed:
    - name: /etc/httpd/conf.d/zabbix.conf
    - source: salt://zabbix-server/files/zabbix.conf
  service.running:
    - name: httpd
    - enable: true
    - watch:
      - file: zabbix-web

[root@server1 zabbix-server]# salt server3 state.sls zabbix-server

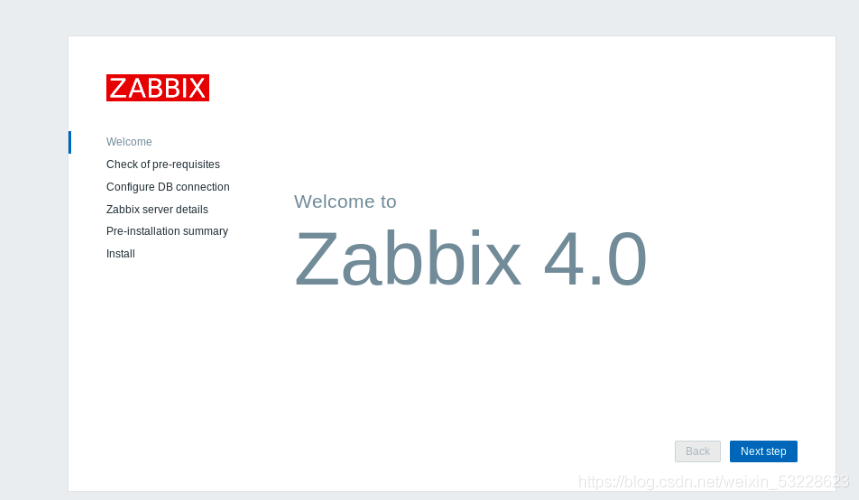

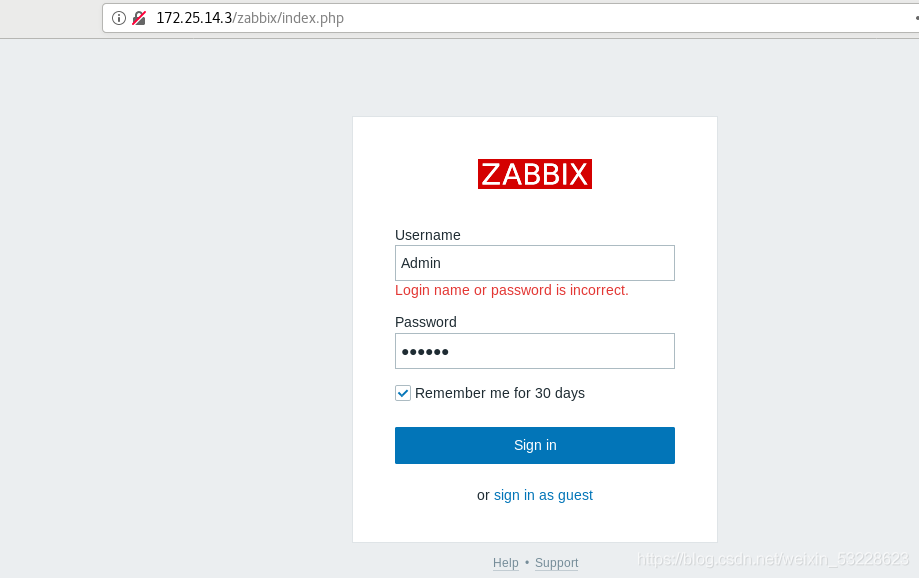

瀏覽器訪問172.25.14.3/zabbix

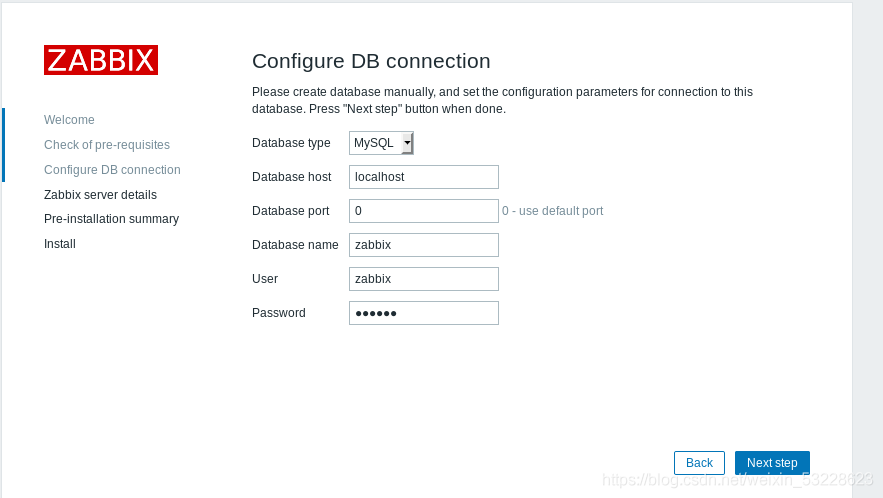

User：zabbix #資料庫用戶及密碼
Password：westos

Username：Admin #默認用戶和密碼
Password: zabbix

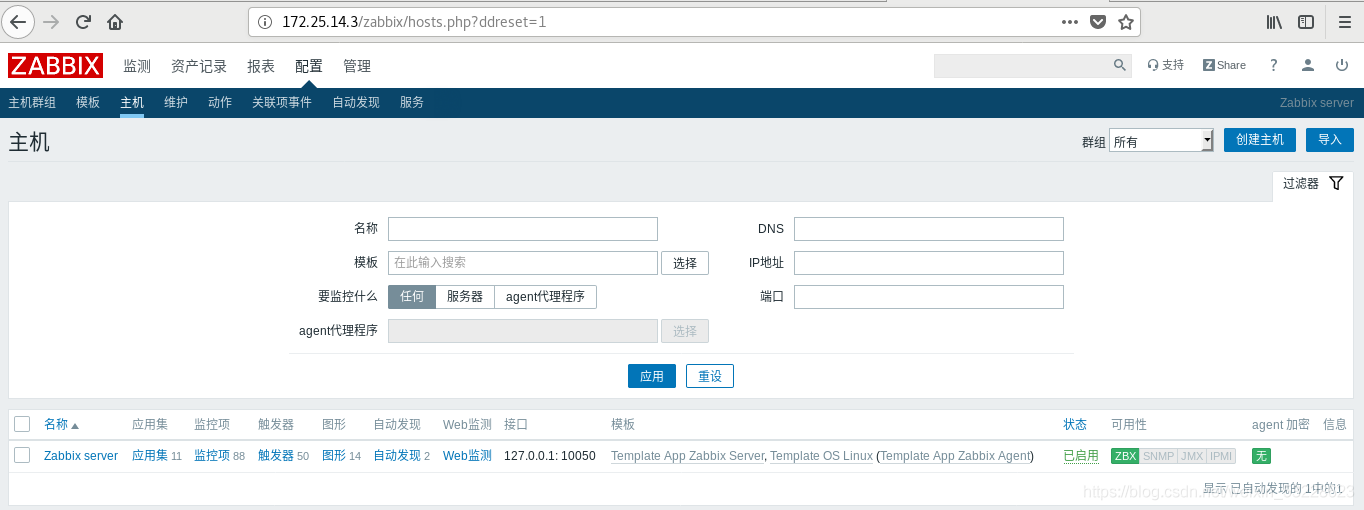

登錄成功
