本文為針對CIFAR-10資料集的基于簡單神經網路LeNet分類實作（pytorch實作）

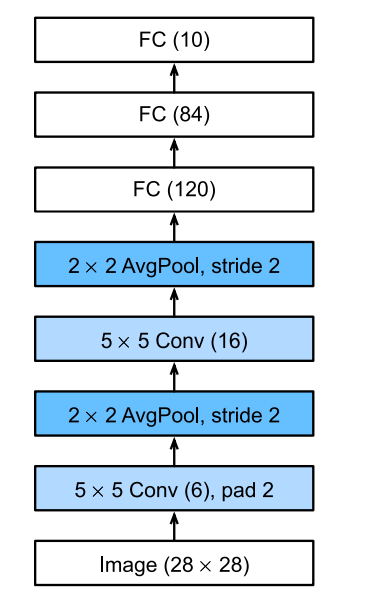

LeNet 網路模型

Tip：（以上為原始LeNet）為了更好的效果，我在模型實作時此處將池化層換為Max

CIFAR-10 資料集

CIFAR-10資料集由60000張32x32的彩色影像組成，分為10類，每類有6000張影像，有50000張訓練影像和10000張測驗影像，

該資料集被分為五個訓練批和一個測驗批，每個批有10000張影像，測驗批包含從每個類中隨機選擇的1000張影像，訓練批包含其余的隨機順序的影像，但有些訓練批可能包含一個類別的影像多于另一個，在它們之間，訓練批次恰好包含了每個類別的5000張影像，

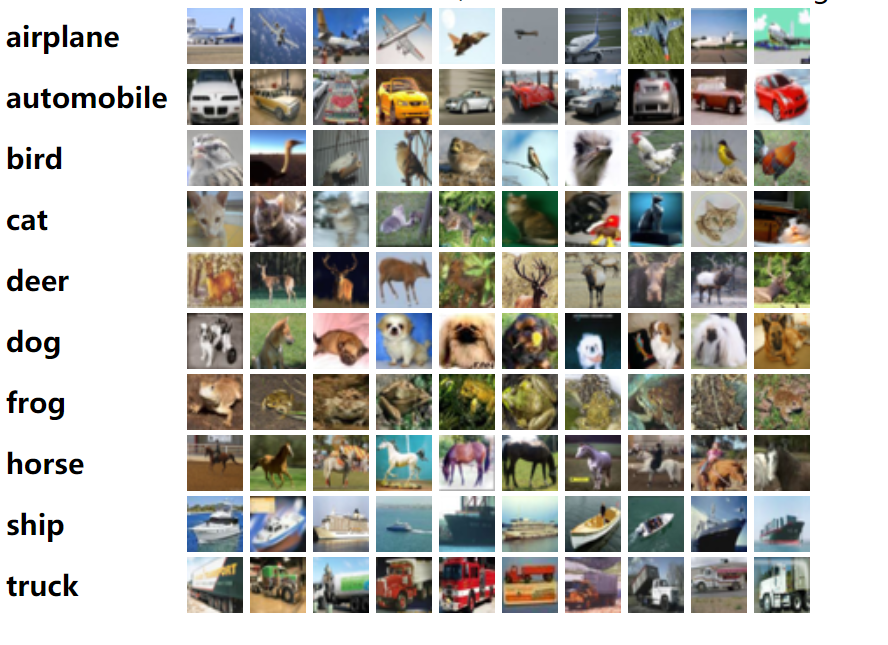

下面是資料集中的類別，以及每個類別的10張隨機影像，

關于資料集更多詳情請見：CIFAR-10資料集官方說明

Pytorch 實作代碼

import torch
from torch import  nn
import torch.nn.functional as F
import torchvision
import torch.utils.data as data
import torchvision.transforms as transforms


class Lenet5(nn.Module):

    def __init__(self,input_channels):
        super().__init__()
        #第1個卷積層
        self.conv1 = nn.Conv2d(input_channels , 6 , kernel_size = 5 , padding = 2)
        #第1個池化層
        self.pooling1 = nn.MaxPool2d(kernel_size = 2, stride = 2)
        #第2個卷積層
        self.conv2= nn.Conv2d(6 , 16 , kernel_size=5)
        #第2個池化層
        self.pooling2 = nn.MaxPool2d(kernel_size = 2, stride=2)
        ##最后的三個FC
        self.Flatten = nn.Flatten()
        # 計算得出的當前的前面處理過后的shape，當然也可print出來以后再確定
        self.Linear1 = nn.Linear(16*6*6,120)
        self.Linear2 = nn.Linear(120,84)
        self.Linear3 = nn.Linear(84,10)

    def forward(self,X):
    ''' 前向推導 '''
        X = self.pooling1(F.relu(self.conv1(X)))
        X = self.pooling2(F.relu(self.conv2(X)))
        X = X.view(X.size()[0],-1)
        X = F.relu(self.Linear1(X))
        X = F.relu(self.Linear2(X))
        X = F.relu(self.Linear3(X))

        return X


def load_CIFAR10(batch_size, resize=None):
    """ 加載資料集到記憶體 """
    trans = [transforms.ToTensor(),transforms.Normalize((0.5, 0.5, 0.5), (0.5, 0.5, 0.5))]
    if resize:
        trans.insert(0, transforms.Resize(resize))

    trans = transforms.Compose(trans)
    mnist_train = torchvision.datasets.CIFAR10(root="dataset",
                                                    train=True,
                                                    transform=trans,
                                                    download=True)
    mnist_test = torchvision.datasets.CIFAR10(root="dataset",
                                                   train=False,
                                                   transform=trans,
                                                   download=True)
    return (data.DataLoader(mnist_train, batch_size, shuffle=True,
                            num_workers=2),
                data.DataLoader(mnist_test, batch_size, shuffle=False,
                            num_workers=2))



def get_labels(labels):
    '''    標簽轉換  '''
    text_labels = ['plane', 'car', 'bird', 'cat', 'deer', 'dog', 'frog', 'horse', 'ship', 'truck']
    return [text_labels[int(i)] for i in labels]




def train(loss,updater,train_iter,net,epoches):
    '''  訓練模型  '''
    for epoch in range(epoches):
        run_loss = 0
        for step,(X,y) in enumerate(train_iter):
            if torch.cuda.is_available():
                X = X.cuda()
                y = y.cuda()
            y_hat = net.forward(X)  #前向推導
            ls = loss(y_hat,y).sum() #計算誤差
            updater.zero_grad() #梯度清零
            ls.backward() #計算新的梯度
            run_loss += ls.item()
            updater.step() #更新權值
        print( f'true:{y} preds:{y_hat.argmax(axis=1)} epoch:{epoch:02d}\t epoch_loss {run_loss/5000}\t ')
    print('finished training\n')

def predict(net,test_iter,n=6):
    '''   測驗集預測 '''
    for X, y in test_iter:
        if torch.cuda.is_available():
            X = X.cuda()
            y = y.cuda()
        trues = get_labels(y)
        preds = get_labels(net(X).argmax(axis=1))
        titles = ['groundTruth :'+true + ' ' +'preds: '+ pred for true, pred in zip(trues, preds)]
        print(titles[0:n])



if __name__ == '__main__':
    #設定超引數
    batch_size,  learning_rate,  epoches = 10, 0.05, 1
    #加載資料
    trainSet,testSet = load_CIFAR10(batch_size)
    #加載模型
    net = Lenet5(3)
    if torch.cuda.is_available():
        net.cuda()

     # 選擇損失函式
    loss = nn.CrossEntropyLoss()
    # 優化器
    updater = torch.optim.SGD(net.parameters(), lr=learning_rate)
    #訓練
    train(loss,updater,trainSet,net,batch_size,epoches,learning_rate)
    #測驗集預測
    predict(net,testSet)
