文章目錄

阿里云三臺ECS使用kubeadm快速部署最新版本K8sv1.21.3
- 環境準備
- 環境初始化
- 開始安裝
- - 安裝docker
  - 添加kubernetes的yum軟體源
  - 安裝kubeadm,kubelet和kubectl
  - 部署Kubernetes Master
  - 安裝網路插件
  - 節點加入集群
  - 查看結果
  - 測驗Kubernetes集群
  - 在從節點上也可以使用kubectl

阿里云三臺ECS使用kubeadm快速部署最新版本K8sv1.21.3

我只能說虛擬機太難用，經常掛掉，一氣之下，怒租三臺ECS，肉痛，不過倒是省心很多，不需要經常去維護環境拉，

環境準備

三臺阿里云Centos7.2

最低配置要求：2C/4G/20G

彈性網卡也買了吧，還要用公網ip進行xshell連接，不然管理起來太麻煩，

一定要同一個賬戶下購買同一個地域的ECS，這樣能夠保證三臺機器在同一個內網中，否則不在一個內網中很難組集群（我已經嘗試過，公網ip很難組成功），

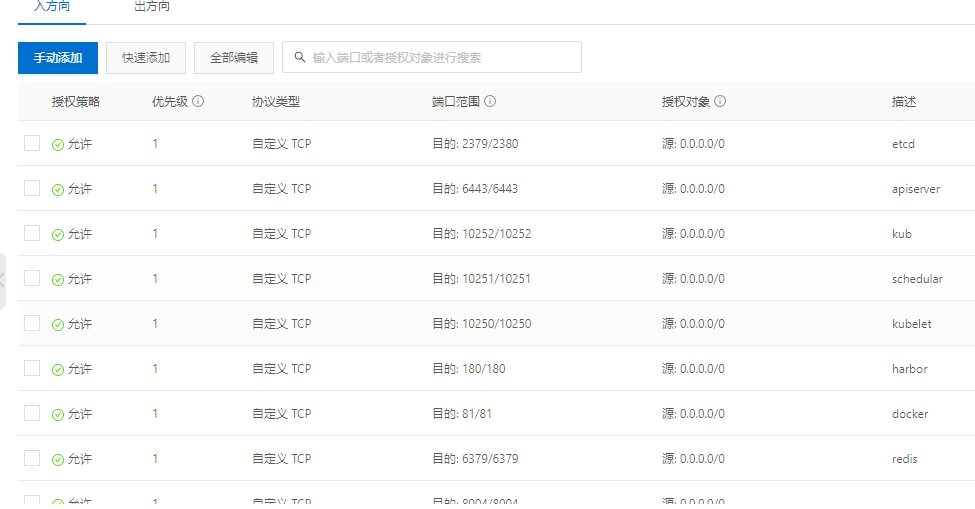

該開的埠還是開一下吧，不開好像也沒問題，常用的還是打開吧，

80 8080 肯定要開的

環境初始化

Centos7.2初始化環境

三臺機器全部執行，后續所有ip全部為內網ip，切記不要用公網ip.

內網ip 用 ip add查看 eth0的ipv4就是

~]# setenforce 0
~]# getenforce
Disabled

# 設定主機名
~]# hostnamectl set-hostname k8s-master
~]# hostnamectl set-hostname k8s-node1
~]# hostnamectl set-hostname k8s-node2
# 關閉swap磁區
~]# swapoff -a # 臨時
~]# sed -i '/ swap / s/^\(.*\)$/#\1/g' /etc/fstab #永久
# 三臺機器上執行
~]# vi /etc/hosts
master內網ip k8s-master
node01內網ip k8s-node01
node02內網ip k8s-node02
~]# systemctl stop firewalld
~]# wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-8.repo
~]# yum clean all
~]# yum makecache
~]# yum install wget net-tools telnet tree nmap sysstat lrzsz dos2unix bind-utils -y
# 橋接ipv4
cat > /etc/sysctl.d/k8s.conf << EOF net.bridge.bridge-nf-call-ip6tables = 1 net.bridge.bridge-nf-call-iptables = 1 EOF
sysctl --system

開始安裝

安裝docker

wget https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo -O /etc/yum.repos.d/docker-ce.repo
yum install docker-ce -y
daemon.json
{
	"graph": "/data/docker",
	"storage-driver": "overlay2",
	"insecure-registries": ["registry.access.redhat.com", "quay.io"],
	"registry-mirrors": ["https://q2gr04ke.mirror.aliyuncs.com/"],
    "bip": "10.244.10.1/24",  # 后邊分配的ip要對應，這個ip設定最好中間兩段取本機ip的最后兩段
	"exec-opts": ["native.cgroupdriver=systemd"],
	"live-restore":true
}

systemctl start docker
systemctl enable docker


# 卸載docker，備用
yum remove docker-ce.x86_64 ddocker-ce-cli.x86_64 -y
rm -rf /var/lib/docker

添加kubernetes的yum軟體源

cat <<EOF > /etc/yum.repos.d/kubernetes.repo
[kubernetes]
name=Kubernetes
baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/
enabled=1
gpgcheck=1
repo_gpgcheck=1
gpgkey=https://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg https://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpg
EOF

安裝kubeadm,kubelet和kubectl

三臺機器上執行，這里指定了版本v1.15.0

yum install -y kubelet kubeadm kubectl
systemctl enable kubelet && systemctl start kubelet

部署Kubernetes Master

選擇國內的源先docker拉取，然后打上對應的標簽，因為默認谷歌鏡像根本拉不到的

kubeadm config images list   # 查看鏡像的標簽版本
[root@k8s-master ~]# kubeadm config images list
k8s.gcr.io/kube-apiserver:v1.21.3
k8s.gcr.io/kube-controller-manager:v1.21.3
k8s.gcr.io/kube-scheduler:v1.21.3
k8s.gcr.io/kube-proxy:v1.21.3
k8s.gcr.io/pause:3.4.1
k8s.gcr.io/etcd:3.4.13-0
k8s.gcr.io/coredns/coredns:v1.8.0

# 拉去國內相應的版本  和kubeadm config查看的標簽要一致
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.21.3
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.21.3
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.21.3
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.21.3
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.4.1
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.13-0
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.8.0

# 打標簽，和kubeadm config查看的標簽要一致
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-apiserver:v1.21.3 k8s.gcr.io/kube-apiserver:v1.21.3
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-controller-manager:v1.21.3 k8s.gcr.io/kube-controller-manager:v1.21.3
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-scheduler:v1.21.3 k8s.gcr.io/kube-scheduler:v1.21.3
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.21.3 k8s.gcr.io/kube-proxy:v1.21.3
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.4.1 k8s.gcr.io/pause:3.4.1
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/etcd:3.4.13-0 k8s.gcr.io/etcd:3.4.13-0
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/coredns:1.8.0 k8s.gcr.io/coredns/coredns:v1.8.0

在Master 節點執行，這里的apiserve需要修改成自己的master地址

kubeadm init \
--apiserver-advertise-address=master節點內網ip \
--service-cidr=10.10.0.0/16 \
--pod-network-cidr=10.244.0.0/16

To start using your cluster, you need to run the following as a regular user:

  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

You should now deploy a pod network to the cluster.
Run "kubectl apply -f [podnetwork].yaml" with one of the options listed at:
  https://kubernetes.io/docs/concepts/cluster-administration/addons/

Then you can join any number of worker nodes by running the following on each as root:

kubeadm join 192.168.12.10:6443 --token p6hvb3.5sln5g4k32wcrvn2 \
    --discovery-token-ca-cert-hash sha256:4d96240030c015b2e146c5ee2e4db4a40b2ff5bd55040b2768388a052d6c3613


# 下邊按照提示執行即可
  mkdir -p $HOME/.kube
  sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config
  sudo chown $(id -u):$(id -g) $HOME/.kube/config

安裝網路插件

flannel的鏡像也拉的挺慢的，不過好在可以拉到，嫌慢的可以自己做個加速，這里不再做了，

安裝網路插件：

kubectl apply -f https://raw.githubusercontent.com/coreos/flannel/master/Documentation/kube-flannel.yml

沒有安裝cni插件時node的狀態時NotReady，coredns-bccdc95cf-cgj2m這倆pod是pending狀態，裝上就會ready和running

節點加入集群

在兩臺node上執行

[root@k8s-node01 ~]# kubeadm join 192.168.12.10:6443 --token p6hvb3.5sln5g4k32wcrvn2 \
    --discovery-token-ca-cert-hash sha256:4d96240030c015b2e146c5ee2e4db4a40b2ff5bd55040b2768388a052d6c3613

加入集群后兩臺節點也要拉一下鏡像，不然也起不來，谷歌的鏡像你懂的，

只拉kube-proxy和pause即可

docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.21.3
docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.4.1


docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/kube-proxy:v1.21.3 k8s.gcr.io/kube-proxy:v1.21.3
docker tag registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.4.1 k8s.gcr.io/pause:3.4.1

查看結果

[root@k8s-master ~]# kubectl get node
NAME         STATUS   ROLES                  AGE     VERSION
k8s-master   Ready    control-plane,master   48m     v1.21.3
k8s-node01   Ready    <none>                 4m17s   v1.21.3
k8s-node02   Ready    <none>                 46m     v1.21.3

[root@k8s-master ~]# kubectl get pod -n kube-system
NAME                                 READY   STATUS    RESTARTS   AGE
coredns-558bd4d5db-blx27             1/1     Running   0          62m
coredns-558bd4d5db-md5dq             1/1     Running   0          62m
etcd-k8s-master                      1/1     Running   0          62m
kube-apiserver-k8s-master            1/1     Running   0          62m
kube-controller-manager-k8s-master   1/1     Running   0          62m
kube-flannel-ds-69djm                1/1     Running   0          18m
kube-flannel-ds-7nv8s                1/1     Running   0          42m
kube-flannel-ds-nttn4                1/1     Running   0          42m
kube-proxy-mkdwg                     1/1     Running   0          18m
kube-proxy-pxfvw                     1/1     Running   0          62m
kube-proxy-x49br                     1/1     Running   0          60m
kube-scheduler-k8s-master            1/1     Running   0          62m

測驗Kubernetes集群

在Kubernetes集群中創建一個pod，然后暴露埠，驗證是否正常訪問：

[root@k8s-master ~]# kubectl create deployment nginx --image=nginx
deployment.apps/nginx created

[root@k8s-master ~]# kubectl get pod
NAME                     READY   STATUS    RESTARTS   AGE
nginx-554b9c67f9-jbch5   1/1     Running   0          2m26s
# 如果出問題可以查看詳情或者日志
kubectl describe pod nginx-554b9c67f9-jbch5  # 詳情
kubectl logs nginx-554b9c67f9-jbch5 -n namespace  # default可以不寫后邊的-n

[root@k8s-master ~]# kubectl expose deployment nginx --port=80 --type=NodePort
service/nginx exposed

kubectl expose deployment polaris-dashboard --port=80 --type=NodePort
[root@k8s-master ~]# kubectl get pods,svc
NAME                         READY   STATUS    RESTARTS   AGE
pod/nginx-554b9c67f9-jbch5   1/1     Running   0          14m

NAME                 TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)        AGE
service/kubernetes   ClusterIP   10.1.0.1      <none>        443/TCP        52m
service/nginx        NodePort    10.1.132.56   <none>        80:30824/TCP   9m48s

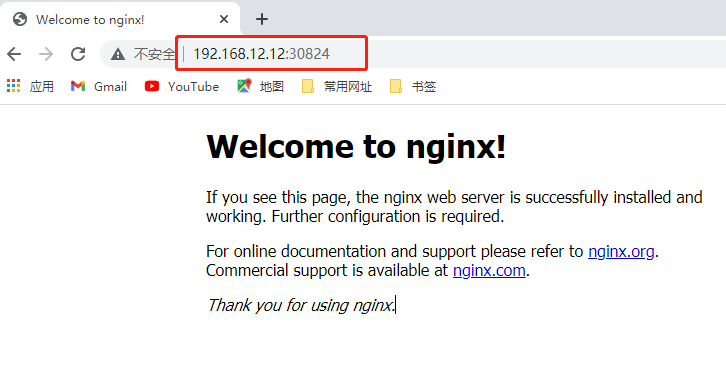

http://192.168.12.12:30824
# 如果瀏覽器不能訪問，執行下邊這句話（三臺機器），這是因為新版的docker對iptables做了改動
iptables -P FORWARD ACCEPT

[root@k8s-master ~]# kubectl get pod -o wide
NAME                     READY   STATUS    RESTARTS   AGE   IP           NODE         NOMINATED NODE   READINESS GATES
nginx-554b9c67f9-jbch5   1/1     Running   0          28m   172.12.1.2   k8s-node02   <none>           <none>
# 直接curl集群內部地址也能看到nginx
curl 172.12.1.2

訪問地址：http://NodeIP:Port ,此例就是

http://192.168.12.10:30824 http://192.168.12.11:30824 http://192.168.12.12:30824 任何一個都能訪問到

在從節點上也可以使用kubectl

在從節點上使用kubectl：

[root@k8s-node01 ~]# kubectl get pod
The connection to the server localhost:8080 was refused - did you specify the right host or port?

解決：

將master節點上的/etc/kubernetes/admin.conf復制到從節點相同目錄下

[root@k8s-node01 kubernetes]# scp k8s-master:/etc/kubernetes/admin.conf .

然后配置環境變數：

[root@k8s-node01 ~]# echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >> ~/.bash_profile
[root@k8s-node01 kubernetes]# source ~/.bash_profile
[root@k8s-node01 kubernetes]# kubectl get pod
NAME                     READY   STATUS    RESTARTS   AGE
nginx-554b9c67f9-2w6bf   1/1     Running   0          4d19h
