【C語言開源庫】在CLion上使用一個輕量的適合嵌入式系統的環形緩沖庫ring buffer 和C語言Unity單元測驗框架

專案地址：ring buffer

documentation：LwRB latest-develop documentation

Features

• Written in ANSI C99, compatible with size_t for size data types
• Platform independent, no architecture specific code
• FIFO (First In First Out) buffer implementation
• No dynamic memory allocation, data is static array
• Uses optimized memory copy instead of loops to read/write data from/to memory
• Thread safe when used as pipe with single write and single read entries
• Interrupt safe when used as pipe with single write and single read entries
• Suitable for DMA transfers from and to memory with zero-copy overhead between buffer and application memory
• Supports data peek, skip for read and advance for write
• Implements support for event notifications
• User friendly MIT license

該庫其實只依賴兩個檔案：lwrb.c 和 lwrb.h (之前檔案名是ringbuff.c和ringbuff.h，不知道為什么又改了檔案名和函式名)

我們只需要將這兩個檔案添加到我們的專案中即可，不過注意要改一下lwrb.c中的頭檔案包含

#include "lwrb/lwrb.h"  改成 #include "lwrb.h"

因為CLion使用cmake來管理的，我們還要在CMakeLists.txt中添加lwrb.c

cmake_minimum_required(VERSION 3.21)
project(ringbuffer_clion C)

set(CMAKE_C_STANDARD 99)

add_executable(ringbuffer_clion main.c  lwrb.c)

專案檔案目錄如下

實體代碼

首先我們用幫助檔案中的Example code來測驗一下是否可以正常使用，修改main.c

#include <stdio.h>
#include "lwrb.h"

int main() {
    /* Declare rb instance & raw data */
    lwrb_t buff;
    uint8_t buff_data[8];

    /* Application variables */
    uint8_t data[2];
    size_t len;

    /* Application code ... */
    lwrb_init(&buff, buff_data, sizeof(buff_data)); /* Initialize buffer */

    /* Write 4 bytes of data */
    lwrb_write(&buff, "0123", 4);

    /* Try to read buffer */
    /* len holds number of bytes read */
    /* Read until len == 0, when buffer is empty */
    while ((len = lwrb_read(&buff, data, sizeof(data))) > 0) {
            printf("Successfully read %d bytes\r\n", (int)len);
        }
}

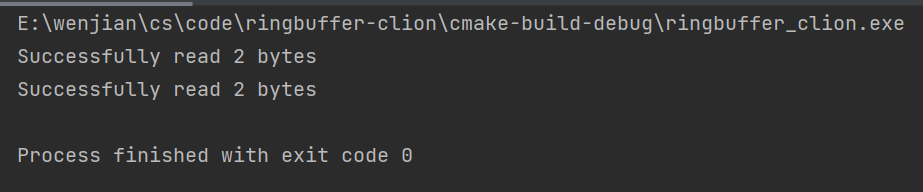

發現是可以正常編譯運行的，說明我們可以使用這個開源庫了，

在這個環形緩沖庫中存在一個單元測驗模塊，單元測驗使用的是Unity測驗框架，

Unity測驗框架GitHub地址：Unity

Unity學習教程：Unity單元測驗框架、C單元測驗Unity

Unity是一個單元測驗框架，Unity設計者團隊的目標是讓它保持小型化和功能性，核心的Unity測驗框架只有三個檔案：單個C檔案和兩個頭檔案，Unity提供了函式和宏，使得單元測驗更加容易，

Unity被設計成跨平臺，它努力堅持C標準，同時仍然支持許多違法規則的嵌入式C編譯器，Unity可以在許多編譯器環境中使用，比如GCC,IAR,Clang,Green Hills,Microchip, MS Visual Studio，適配Unity在一個新的目標平臺協同作業并不需要很多作業量，

我們將Unity單元測驗框架的三個檔案加入到我們的專案中

將main.c函式修改成test.c中的內容

/**
 * @file test.c
 *
 * Unit tests for the lwrb library
 *
 * @author Tofik Sonono (tofik@sonono.me)
 *
 */

/*======= Includes ==========================================================*/

#include <stdint.h>
#include <stdlib.h>
#include "unity.h"
#include "lwrb.h"

/*======= Local Macro Definitions ===========================================*/
/*======= Local function prototypes =========================================*/

void basic_read_and_write(lwrb_t *buff, uint8_t *data_to_write, size_t data_size);

/*======= Local variable declarations =======================================*/
/*======= Global function implementations ===================================*/

/* Requires a definition for Unity to compile */

void setUp(void) { }

void tearDown(void) { }

/*======= Tests ==============================================================*/

void testNullInputToInit_should_fail(void) {
    uint8_t ret;
    lwrb_t buff = { 0 };
    uint8_t buff_data[1];

    ret = lwrb_init(NULL, buff_data, sizeof(buff_data));
    TEST_ASSERT_EQUAL(0, ret);

    ret = lwrb_init(&buff, NULL, sizeof(buff_data));
    TEST_ASSERT_EQUAL(0, ret);

    ret = lwrb_init(&buff, buff_data, 0);
    TEST_ASSERT_EQUAL(0, ret);

    ret = lwrb_is_ready(&buff);
    TEST_ASSERT_EQUAL(0, ret);
}

void testNormalInputToInit_should_succeed(void) {
    uint8_t ret;
    lwrb_t buff = { 0 };
    uint8_t buff_data[1];

    ret = lwrb_init(&buff, buff_data, sizeof(buff_data));
    TEST_ASSERT_EQUAL(1, ret);

    ret = lwrb_is_ready(&buff);
    TEST_ASSERT_EQUAL(1, ret);
}

void testAddElementsToQueueAndRead_should_succeed(void) {
    uint8_t data_to_write[] = {0, 1, 2, 3, 4, 5, 6, 7};
    lwrb_t buff = { 0 };
    basic_read_and_write(&buff, data_to_write, sizeof(data_to_write));
}

void testAddElementsToQueueAndReadAndVerifyEmpty_should_succeed(void) {
    uint8_t data_to_write[] = {0, 1, 2, 3, 4, 5, 6, 7};
    lwrb_t buff = { 0 };
    basic_read_and_write(&buff, data_to_write, sizeof(data_to_write));

    size_t n_free_bytes = lwrb_get_free(&buff);
    TEST_ASSERT_EQUAL(sizeof(data_to_write), n_free_bytes);
}

void testAddElementsToQueueAndReadTooSmallBuffer_should_fail(void) {
    uint8_t data_to_write[] = {0, 1, 2, 3, 4, 5, 6, 7};
    lwrb_t buff = { 0 };

    uint8_t ret;
    uint8_t buff_data[sizeof(data_to_write)];

    ret = lwrb_init(&buff, buff_data, sizeof(buff_data));
    TEST_ASSERT_EQUAL(1, ret);

    ret = lwrb_is_ready(&buff);
    TEST_ASSERT_EQUAL(1, ret);

    size_t  n_written = lwrb_write(&buff, data_to_write, sizeof(data_to_write));
    TEST_ASSERT_EQUAL(sizeof(data_to_write) - 1, n_written);
}

/*======= Main ===============================================================*/

int main (void) {
    UNITY_BEGIN();
    RUN_TEST(testNullInputToInit_should_fail);
    RUN_TEST(testNormalInputToInit_should_succeed);
    RUN_TEST(testAddElementsToQueueAndRead_should_succeed);
    RUN_TEST(testAddElementsToQueueAndReadAndVerifyEmpty_should_succeed);
    RUN_TEST(testAddElementsToQueueAndReadTooSmallBuffer_should_fail);
    return UNITY_END();
}

/*======= Local function implementations =====================================*/

void basic_read_and_write(lwrb_t *buff, uint8_t *data_to_write, size_t data_size) {
    uint8_t ret;
    size_t buffer_size = (sizeof(uint8_t) * data_size) + 1;
    uint8_t *buff_data = malloc(buffer_size);

    ret = lwrb_init(buff, buff_data, buffer_size);
    TEST_ASSERT_EQUAL(1, ret);

    ret = lwrb_is_ready(buff);
    TEST_ASSERT_EQUAL(1, ret);

    size_t  n_written = lwrb_write(buff, data_to_write, sizeof(data_to_write));
    TEST_ASSERT_EQUAL(sizeof(data_to_write), n_written);

    size_t n_bytes_in_queue = lwrb_get_full(buff);
    TEST_ASSERT_EQUAL(n_written, n_bytes_in_queue);

    uint8_t read_buffer[sizeof(data_to_write)];
    size_t n_read = lwrb_read(buff, read_buffer, n_bytes_in_queue);
    TEST_ASSERT_EQUAL(n_bytes_in_queue, n_read);

    TEST_ASSERT_EQUAL_UINT8_ARRAY(data_to_write, read_buffer, sizeof(data_to_write));

    free(buff_data);
}

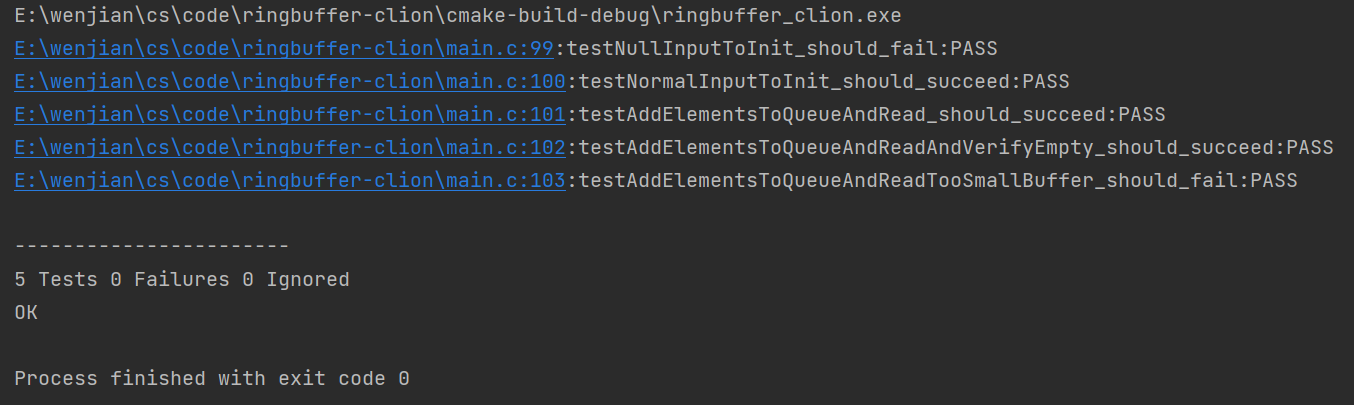

運行之后

可以看到，我們測驗的函式都通過了，
