第一次作業操作

大家好，我是【豆干花生】，這次我帶來了大資料的第一次實踐作業~
可以說十分具體了，包含了具體操作、代碼指令、各個步驟截圖，

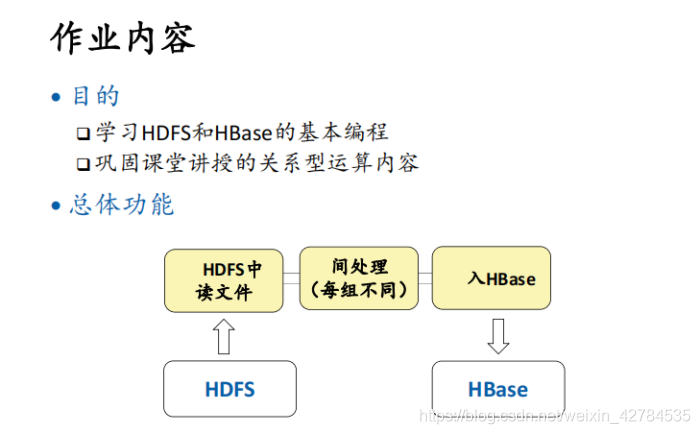

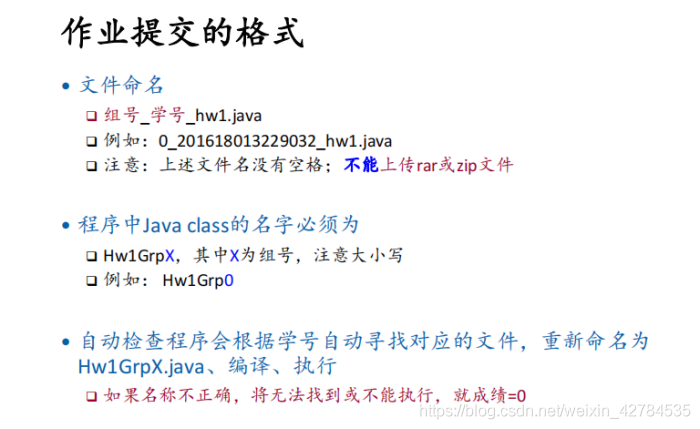

一.作業內容

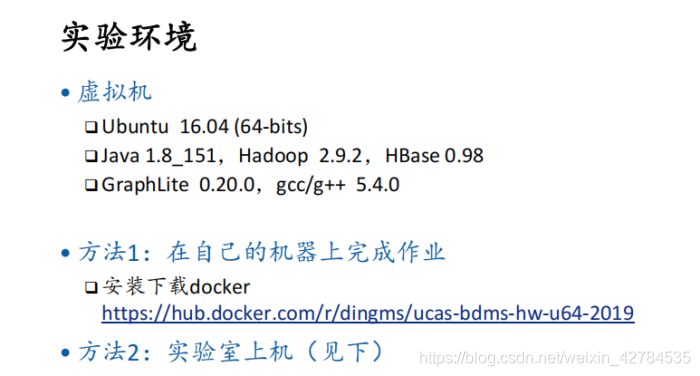

這里選擇docker來配置環境

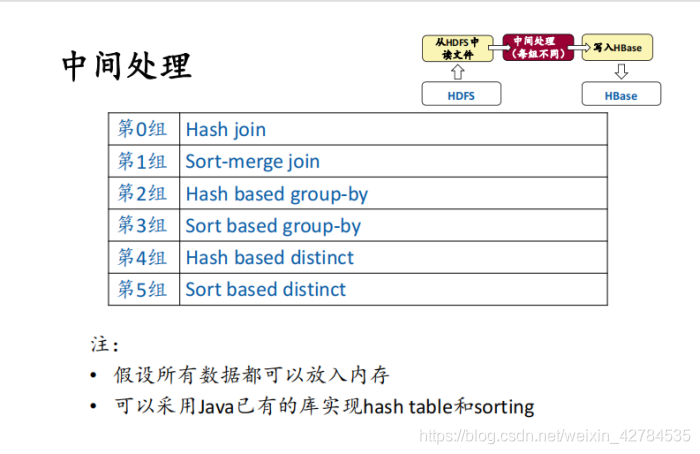

這里采用第0組的中間處理

二.準備作業

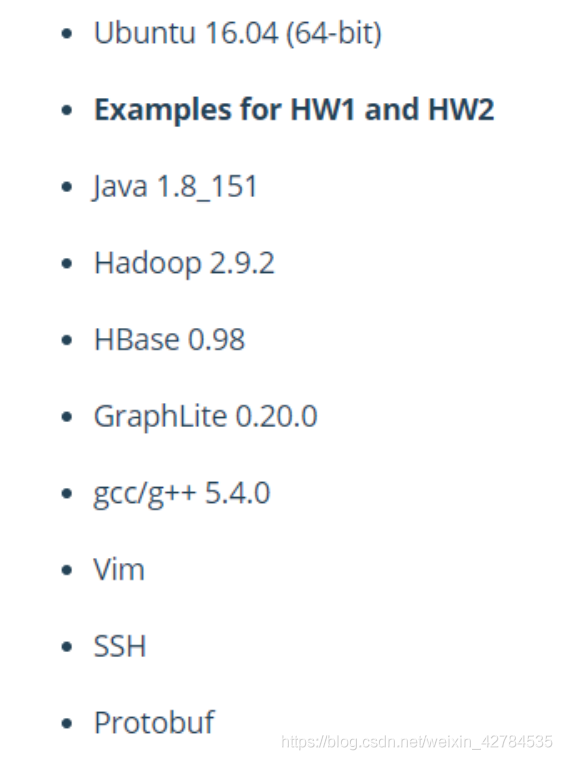

docker里已經配置好的環境：

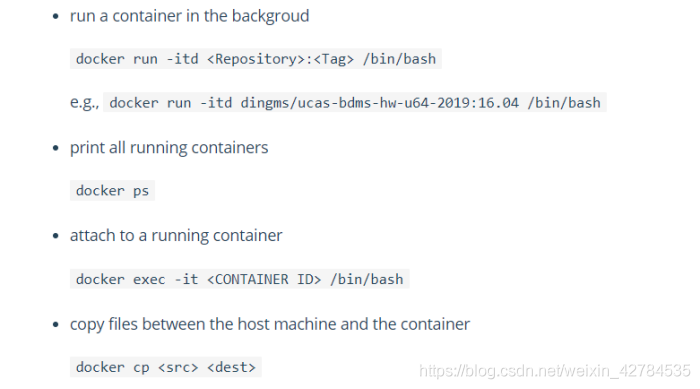

1.進入容器

docker run -itd dingms/ucas-bdms-hw-u64-2019:16.04 /bin/bash
docker ps
docker exec -it <CONTAINER ID> /bin/bash

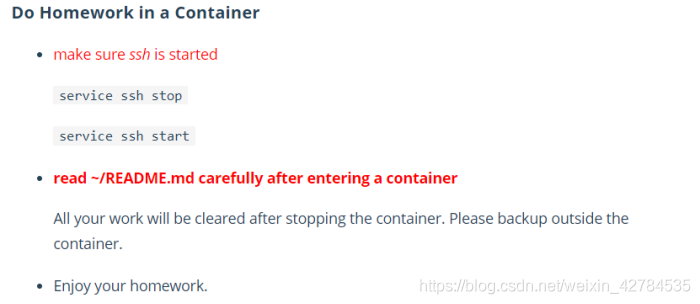

2.開啟ssh（hdfs和hbase好像是通過ssh來連接的）

service ssh start（每次重啟容器，似乎都要重新開啟ssh）

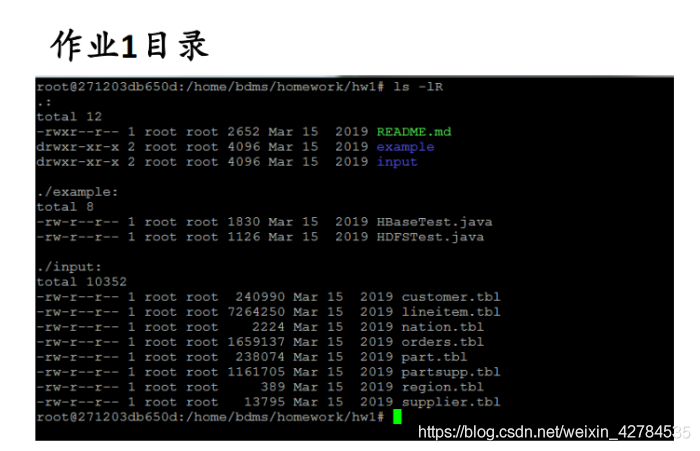

3.可以閱讀說明檔案（關于hdfs和hbase的操作）

--------------------------------------------------------------------------------
  2                 README
  3 --------------------------------------------------------------------------------
  4
  5 PLEASE save your code and data to your drive!
  6 WARNING: this VM will be cleaned without notice after you log out.
  7          Your code and data on the VM will be lost!!!
  8
  9 ## Directory Layout
 10
 11    * example:  example codes for HDFS and HBase
 12    * input:    input test data for homework 1
 13
 14
 15
 16 Please enter example, in order to follow the guide.
 17
 18    $ cd example
 19
 20
 21 ## HDFS Usage:
 22
 23 ### Start and Stop
 24
 25    $ start-dfs.sh
 26
 27    then, run 'jps' to check whether following processes have been started:
 28
 29     * NameNode
 30     * DataNode
 31     * SecondaryNameNode
 32
 33
 34    To stop HDFS, run
 35
 36    $ start-dfs.sh
 37
 38
 39 ### HDFS Command List
 40
 41    $ hadoop fs
 42
 43    hdfs directory layout:
 44
 45    $ hadoop fs -ls /
 46
47
 48 ###. Run Example
 49 Description:
 50   put a file into HDFS by HDFS commands, and then write a Java program to
 51 read the file from HDFS
 52
 53 1. put file to HDFS
 54
 55    $ hadoop fs -mkdir /hw1-input
 56    $ hadoop fs -put README.md /hw1-input
 57    $ hadoop fs -ls -R /hw1-input
 58
 59 2. write a Java program  @see ./HDFSTest.java
 60
 61 3. compile and run Java program
 62
 63    $ javac HDFSTest.java
 64
 65    $ java HDFSTest hdfs://localhost:9000/hw1-input/README.md
 66
 67
 68
 69 ## HBase Usage:
 70
 71 ### Start and Stop
 72
 73 Start HDFS at first, then HBase.
 74    $ start-dfs.sh
 75    $ start-hbase.sh
 76
 77    then, run 'jps' to check whether following processes have been started:
 78
 79    * NameNode
 80    * DataNode
 81    * SecondaryNameNode
 82    * HMaster
 83    * HRegionServer
 84    * HQuorumPeer
 85
 86    To stop HDFS, run
 87
 88    $ stop-hbase.sh
 89    $ start-dfs.sh
 90
 91
 92 ###. Run Example
 93 Description:
 94    put records into HBase
 95
 96 1. write a Java program  @see ./HBaseTest.java
 97
 98 2. compile and run Java program
 99
100    $ javac HBaseTest.java
101
102    $ java HBaseTest
103
104 3. check
105
106     $ hbase shell
107
108     hbase(main):001:0> scan 'mytable'
109     ROW                                                  COLUMN+CELL
110      abc                                                 column=mycf:a, timestamp=1428459927307, value=789
111     1 row(s) in 1.8950 seconds
112
113     hbase(main):002:0> disable 'mytable'
114     0 row(s) in 1.9050 seconds
115
116     hbase(main):003:0> drop 'mytable'
117     0 row(s) in 1.2320 seconds
118
119     hbase(main):004:0> exit
120
121 --------------------------------------------------------------------------------
122 version: 2019-spring

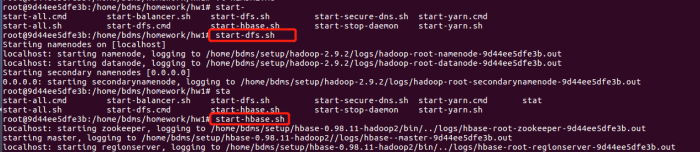

4.開啟hdfs和hbase

5.可以進一步查閱示例檔案，參考如何撰寫hbase和hdfs

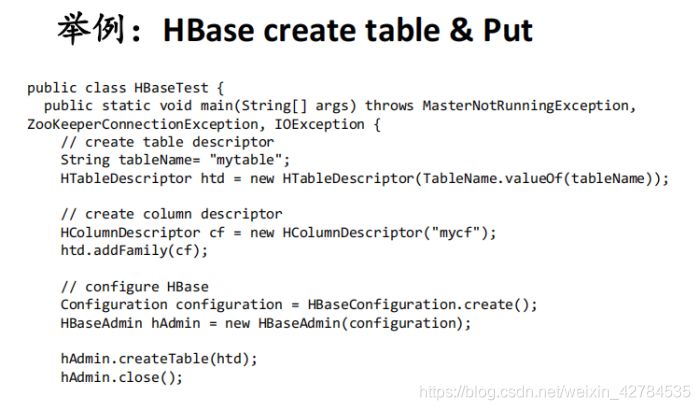

HBaseTest.java

/*
  2  * Make sure that the classpath contains all the hbase libraries
  3  *
  4  * Compile:
  5  *  javac HBaseTest.java
  6  *
  7  * Run:
  8  *  java HBaseTest
  9  */
 10
 11 import java.io.IOException;
 12
 13 import org.apache.hadoop.conf.Configuration;
 14 import org.apache.hadoop.hbase.HBaseConfiguration;
 15 import org.apache.hadoop.hbase.HColumnDescriptor;
 16 import org.apache.hadoop.hbase.HTableDescriptor;
 17 import org.apache.hadoop.hbase.MasterNotRunningException;
 18 import org.apache.hadoop.hbase.TableName;
 19 import org.apache.hadoop.hbase.ZooKeeperConnectionException;
 20 import org.apache.hadoop.hbase.client.HBaseAdmin;
 21 import org.apache.hadoop.hbase.client.HTable;
 22 import org.apache.hadoop.hbase.client.Put;
 23
 24 import org.apache.log4j.*;
 25
 26 public class HBaseTest {
 27
 28   public static void main(String[] args) throws MasterNotRunningException, ZooKeeperConnectionException, IOException {
 29
 30     Logger.getRootLogger().setLevel(Level.WARN);
 31
 32     // create table descriptor
 33     String tableName= "mytable";
 34     HTableDescriptor htd = new HTableDescriptor(TableName.valueOf(tableName));
 35
 36     // create column descriptor
 37     HColumnDescriptor cf = new HColumnDescriptor("mycf");
 38     htd.addFamily(cf);
 39
 40     // configure HBase
 41     Configuration configuration = HBaseConfiguration.create();
 42     HBaseAdmin hAdmin = new HBaseAdmin(configuration);
 43
 44     if (hAdmin.tableExists(tableName)) {
 45         System.out.println("Table already exists");
 46     }
 47     else {
48         hAdmin.createTable(htd);
 49         System.out.println("table "+tableName+ " created successfully");
 50     }
 51     hAdmin.close();
 52
 53     // put "mytable","abc","mycf:a","789"
 54
 55     HTable table = new HTable(configuration,tableName);
 56     Put put = new Put("abc".getBytes());
 57     put.add("mycf".getBytes(),"a".getBytes(),"789".getBytes());
 58     table.put(put);
 59     table.close();
 60     System.out.println("put successfully");
 61   }
 62 }

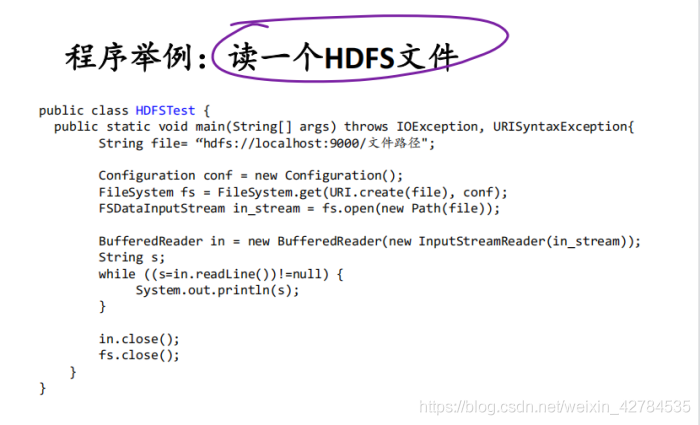

HBaseTest.java

HDFSTest.java

1 import java.io.*;
  2 import java.net.URI;
  3 import java.net.URISyntaxException;
  4
  5 import org.apache.hadoop.conf.Configuration;
  6 import org.apache.hadoop.fs.FSDataInputStream;
  7 import org.apache.hadoop.fs.FSDataOutputStream;
  8 import org.apache.hadoop.fs.FileSystem;
  9 import org.apache.hadoop.fs.Path;
 10 import org.apache.hadoop.io.IOUtils;
 11
 12 /**
 13  *complie HDFSTest.java
 14  *
 15  * javac HDFSTest.java
 16  *
 17  *execute HDFSTest.java
 18  *
 19  * java HDFSTest
 20  *
 21  */
 22
 23 public class HDFSTest {
 24
 25     public static void main(String[] args) throws IOException, URISyntaxException{
 26         if (args.length <= 0) {
 27             System.out.println("Usage: HDFSTest <hdfs-file-path>");
 28             System.exit(1);
 29         }
 30
 31         String file = args[0];
 32
 33         Configuration conf = new Configuration();
 34         FileSystem fs = FileSystem.get(URI.create(file), conf);
 35         Path path = new Path(file);
 36         FSDataInputStream in_stream = fs.open(path);
 37
 38         BufferedReader in = new BufferedReader(new InputStreamReader(in_stream));
 39         String s;
 40         while ((s=in.readLine())!=null) {
 41              System.out.println(s);
 42         }
 43
 44         in.close();
 45
 46         fs.close();
 47     }
 48 }
HDFSTest.java

三.撰寫程式

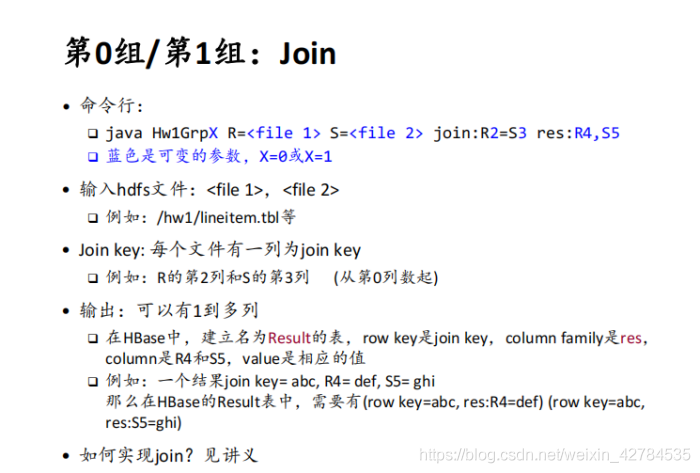

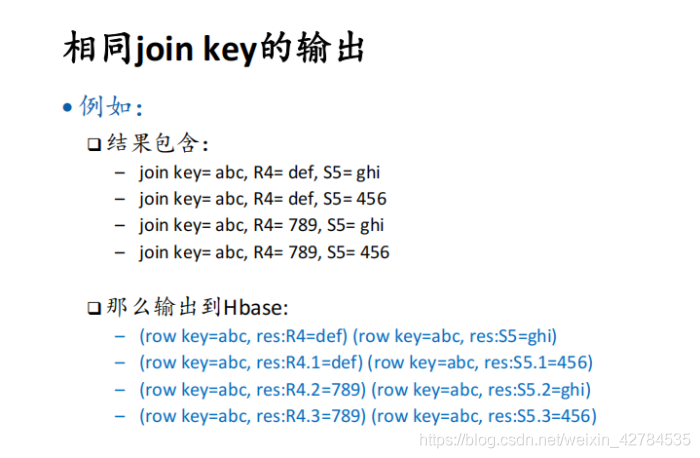

作業要求如下：

[外鏈圖片轉存失敗,源站可能有防盜鏈機制,建議將圖片保存下來直接上傳(img-fipdBfWE-1628670451218)(C:\Users\YUANMU\AppData\Roaming\Typora\typora-user-images\image-20210420195312210.png)]

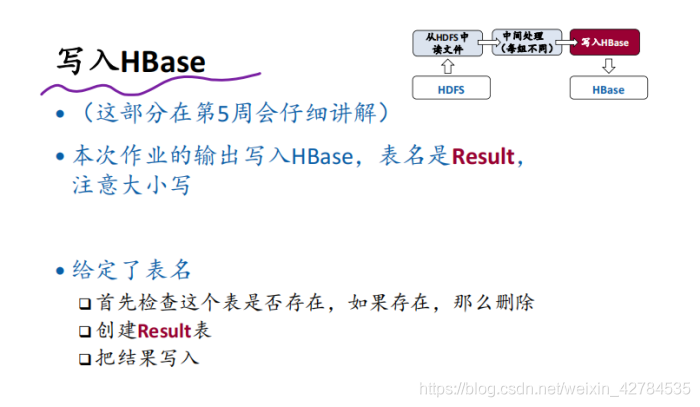

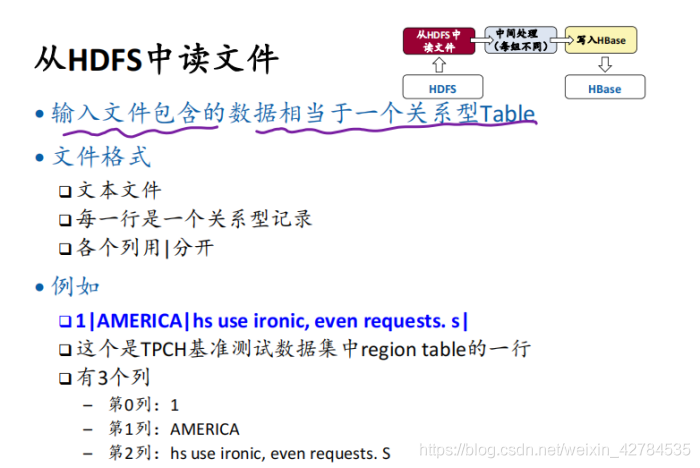

需要實作三部分：從hdfs中讀取檔案，根據自己的要求處理檔案，將處理好后的檔案寫入hbase

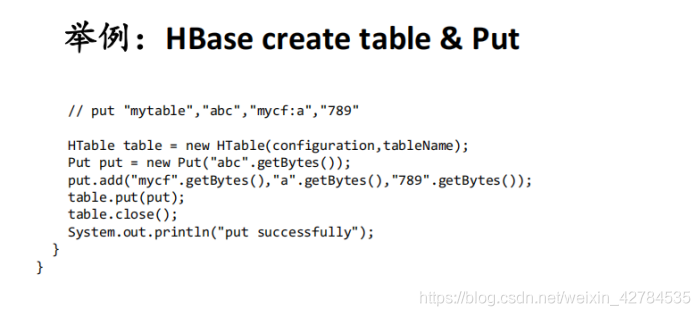

根據之前的兩個example檔案和課件上的程式，進行撰寫程式：

//引入對應的包
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.fs.FSDataInputStream;
import org.apache.hadoop.fs.FSDataOutputStream;
import org.apache.hadoop.fs.FileSystem;
import org.apache.hadoop.fs.Path;
import org.apache.hadoop.io.IOUtils;
import java.io.*;
import java.net.URI;
import java.net.URISyntaxException;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.LinkedList;
import java.util.Map.Entry;
import java.util.AbstractMap.SimpleEntry;

import org.apache.hadoop.hbase.HBaseConfiguration;
import org.apache.hadoop.hbase.HColumnDescriptor;
import org.apache.hadoop.hbase.HTableDescriptor;
import org.apache.hadoop.hbase.MasterNotRunningException;
import org.apache.hadoop.hbase.TableName;
import org.apache.hadoop.hbase.ZooKeeperConnectionException;
import org.apache.hadoop.hbase.client.HBaseAdmin;
import org.apache.hadoop.hbase.client.HTable;
import org.apache.hadoop.hbase.client.Put;
import org.apache.log4j.*;



//建立public類
public class Hw1Grp0 {

    private static String fileR;    //File R name
    private static String fileS;
    private static int joinR;       // R join key
    private static int joinS;

    private static ArrayList<Integer> resRs = new ArrayList<> (); //R result column number array
    private static ArrayList<Integer> resSs = new ArrayList<> ();
    private static ArrayList<String> resRStrs = new ArrayList<> ();//R column family string array
    private static ArrayList<String> resSStrs = new ArrayList<> ();

    private static boolean isREmpty = true; //Does res contain R's column
    private static boolean isSEmpty = true;

    /**
     * hashmap used for join
     * the String type key is the join key
     * the Entry's key is the LinkedList of R's columns that in the res
     * the Entry's value is the LinkedList of S's columns that in the res
     */
    //使用Java內置的hashmap生成哈希表
    private static HashMap<String, Entry<LinkedList<LinkedList<String>>,LinkedList<LinkedList<String>>>> joinMap = new HashMap<> ();


    private static HTable table;
    /**
     * process the arguments
     * retracts the file name, join key, and res column from the args into the member variable.
     * @param input-arguments
     * @return void
     */

    //進行join連接
    private static void processArgs(String[] args)
    {
        int index = 0;
        String resStr;

        if(args.length!=4)
        {
        	//進行join連接
            System.out.println("Usage: Hw1Grp0 R=<file-1> S=<file-2> join:R*=S* res=R*,S*");
            System.exit(1);
        }
        //打開檔案
        fileR = args[0].substring(2);
        fileS = args[1].substring(2);
        index = args[2].indexOf('=');
        joinR = Integer.valueOf(args[2].substring(6,index));
        joinS = Integer.valueOf(args[2].substring(index+2));
        index = args[3].indexOf(',');
        resStr = args[3].substring(4);
        String[] resStrs = resStr.split(",");
        for(String s : resStrs)
        {
            System.out.println(s);
            if(s.startsWith("R"))
            {
                resRs.add(Integer.valueOf(s.substring(1)));
                resRStrs.add(s);
                isREmpty = false;
            }
            else
            {
                resSs.add(Integer.valueOf(s.substring(1)));
                resSStrs.add(s);
                isSEmpty = false;
            }
        }
    }


    /**
     * Read File R and File S from HDFS line by line and Map them into the joinMap.
     * @param void
     * @return void
     */
    private static void readFileFromHDFS() throws IOException, URISyntaxException
    {
        Configuration conf = new Configuration();
        FileSystem fs = FileSystem.get(conf);
        Path pathR = new Path(fileR);
        Path pathS = new Path(fileS);
        FSDataInputStream in_streamR = fs.open(pathR);
        FSDataInputStream in_streamS = fs.open(pathS);
        BufferedReader inR = new BufferedReader(new InputStreamReader(in_streamR));
        BufferedReader inS = new BufferedReader(new InputStreamReader(in_streamS));
        String r, s;

        while((r=inR.readLine())!=null)
        {

            String[] tmp = r.split("\\|");
            String joinKey = tmp[joinR];
            LinkedList<String> joinValues = new LinkedList<String> ();
            if(joinMap.containsKey(joinKey))
            {
                for(int i : resRs)
                {
                    joinValues.add(tmp[i]);
                }
                if(isREmpty)
                {
                    joinValues.add("");
                }
                joinMap.get(joinKey).getKey().add(joinValues);
            }
            else
            {
                for(int i : resRs)
                {
                    joinValues.add(tmp[i]);
                }
                if(isREmpty)
                {
                    joinValues.add("");
                }
                LinkedList<LinkedList<String>> rValues = new LinkedList<> ();
                LinkedList<LinkedList<String>> sValues = new LinkedList<> ();
                rValues.add(joinValues);
                Entry<LinkedList<LinkedList<String>>, LinkedList<LinkedList<String>>> pair = new SimpleEntry<>(rValues, sValues);
                joinMap.put(joinKey, pair);
            }

        }
        while((s=inS.readLine())!=null)
        {
            String[] tmp = s.split("\\|");
            String joinKey = tmp[joinS];
            LinkedList<String> joinValues = new LinkedList<String> ();

            if(joinMap.containsKey(joinKey))
            {
                for(int i : resSs)
                {
                    joinValues.add(tmp[i]);
                }
                if(isSEmpty)
                    joinValues.add("");
                joinMap.get(joinKey).getValue().add(joinValues);
            }
        }
        inR.close();
        inS.close();
        fs.close();

    }


    /**
     * create Result table in HBase
     * @param: void
     * @return: void
     */
    private static void createHBaseTable() throws IOException, URISyntaxException
    {
        Logger.getRootLogger().setLevel(Level.WARN);
        // create table descriptor
        String tableName= "Result";
        HTableDescriptor htd = new HTableDescriptor(TableName.valueOf(tableName));
        // create column descriptor
        HColumnDescriptor cf = new HColumnDescriptor("res");
        htd.addFamily(cf);
        // configure HBase
        Configuration configuration = HBaseConfiguration.create();
        HBaseAdmin hAdmin = new HBaseAdmin(configuration);
        if (hAdmin.tableExists(tableName)) {
            System.out.println("Table already exists");
            hAdmin.disableTable(tableName);
            hAdmin.deleteTable(tableName);
            System.out.println("Table has been deleted");
        }
        hAdmin.createTable(htd);
        System.out.println("table "+tableName+ " created successfully");

        hAdmin.close();
        table = new HTable(configuration,tableName);
        table.setAutoFlush(false);
        table.setWriteBufferSize(64*1024*1024);
    }


    /**
     *  Use the joinMap to decide which record to put into the Result table.
     * @param: void
     * @return: void
     */
    private static void hashJoin() throws IOException, URISyntaxException
    {
        for(String joinKey : joinMap.keySet())
        {
            int count = 0;
            Entry<LinkedList<LinkedList<String>>, LinkedList<LinkedList<String>>> entry = joinMap.get(joinKey);
            LinkedList<LinkedList<String>> rValues = entry.getKey();
            LinkedList<LinkedList<String>> sValues = entry.getValue();
            if(sValues.size()==0)
                continue;
            for(LinkedList<String> rValue : rValues)
            {

                for(LinkedList<String> sValue : sValues)
                {
                    String countStr = "";
                    if(count != 0)
                    {
                        countStr = "." + Integer.toString(count);
                    }
                    if(!isREmpty)
                    {
                        for(int i = 0; i < rValue.size(); i++ )
                        {
                            Put put = new Put(joinKey.getBytes());

                            put.add("res".getBytes(), (resRStrs.get(i) + countStr).getBytes(), rValue.get(i).getBytes());
                            table.put(put);
                        }
                    }
                    if(!isSEmpty)
                    {
                        for(int i = 0; i < sValue.size(); i++ )
                        {
                            Put put = new Put(joinKey.getBytes());

                            put.add("res".getBytes(), (resSStrs.get(i) + countStr).getBytes(), sValue.get(i).getBytes());
                            table.put(put);
                        }
                    }
                    count++ ;
                }
            }
        }
        table.flushCommits();
        table.close();
    }
    public static void main (String[] args) throws IOException, URISyntaxException
    {
    	//進行join的方法
        processArgs(args);
        //從hbase中讀取的方法
        readFileFromHDFS();
        //創建哈希表
        createHBaseTable();
        //進行 連接
        hashJoin();
        return;
    }

}

四.運行程式

這里要使用老師上傳的檔案：

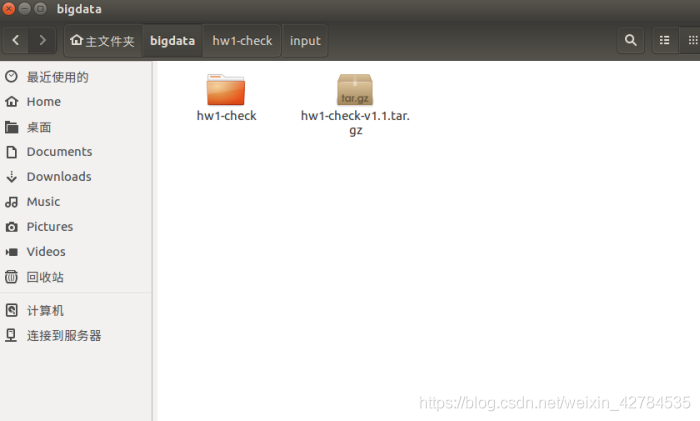

先將check檔案夾傳入ubuntu：

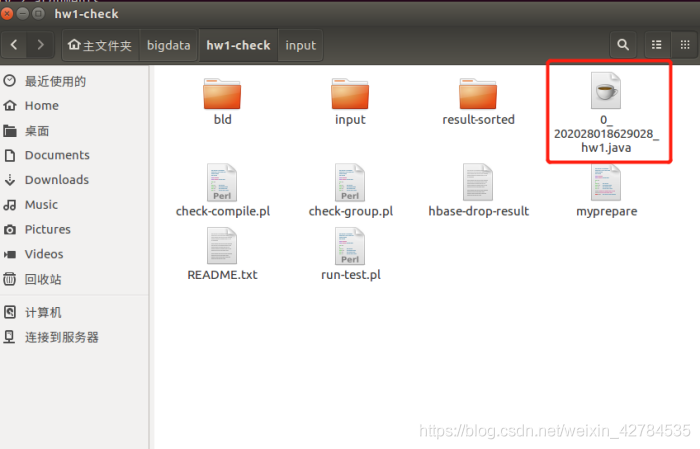

對應的Java程式也拖入其中：

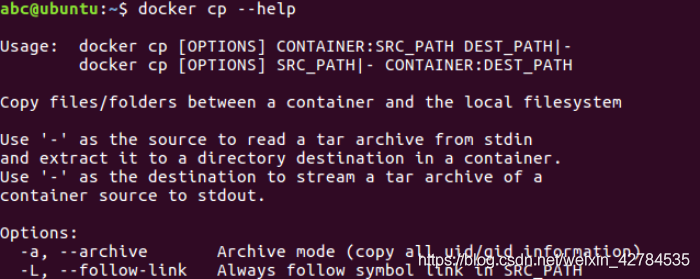

使用cp指令將檔案傳入docker中：

sudo docker cp /home/abc/bigdata/hw1-check/0_202028018629028_hw1.java 9d44ee5dfe3b:/home/bdms

sudo docker cp /home/abc/bigdata/hw1-check-v1.1.tar.gz 9d44:/home/bdms/homework/hw1
注意：這里的容器名稱只寫前幾位就行

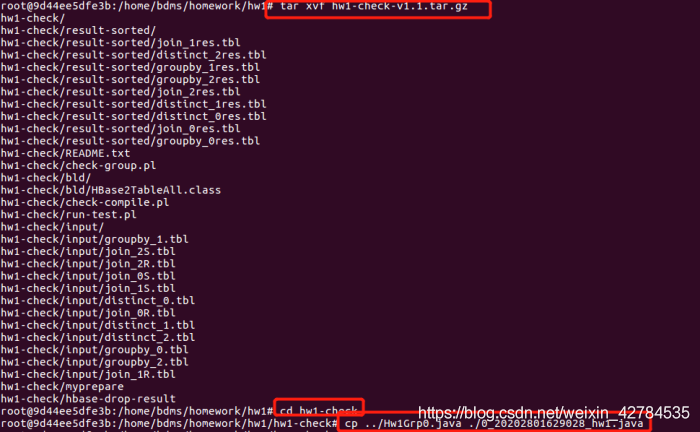

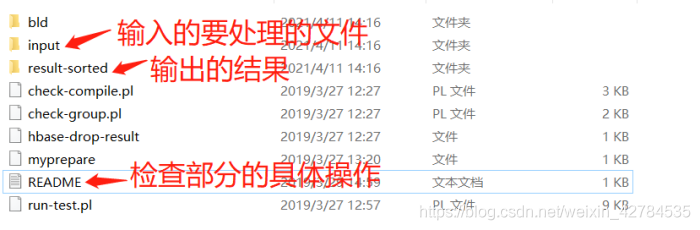

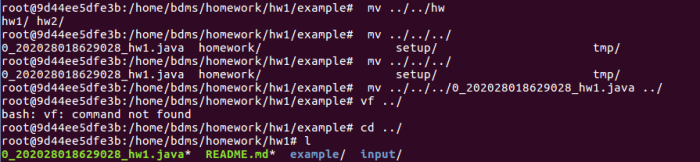

在容器中，可以找到對應的java檔案和check檔案夾：

按照check檔案里的readme.md的指示，進行操作：

//readme.md

0. set language to POSIX
   $ export LC_ALL="POSIX"

1. make sure ssh is running
   $ service ssh status

   if not, then run sshd (note that this is necessary in a docker container)
   $ service ssh start

2. make sure HDFS and HBase are successfully started
   $ start-dfs.sh
   $ start-hbase.sh

   check if hadoop and hbase are running correctly
   $ jps

   5824 Jps
   5029 HMaster
   5190 HRegionServer
   4950 HQuorumPeer
   4507 SecondaryNameNode
   4173 NameNode
   4317 DataNode

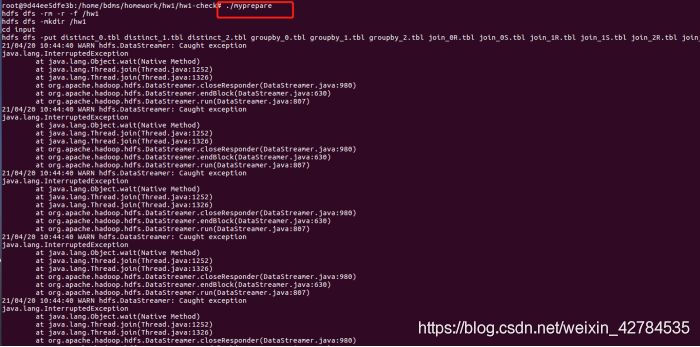

3. put input files into HDFS

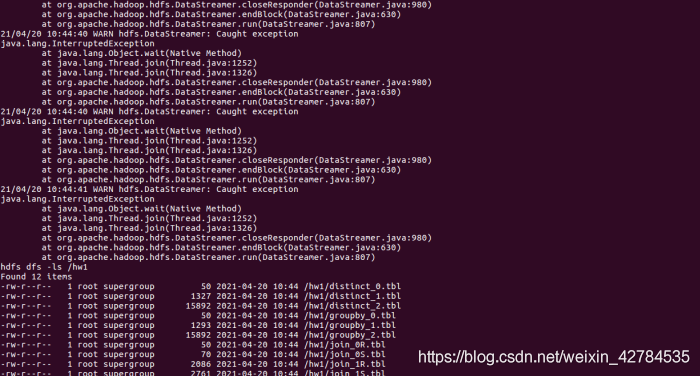

   $ ./myprepare

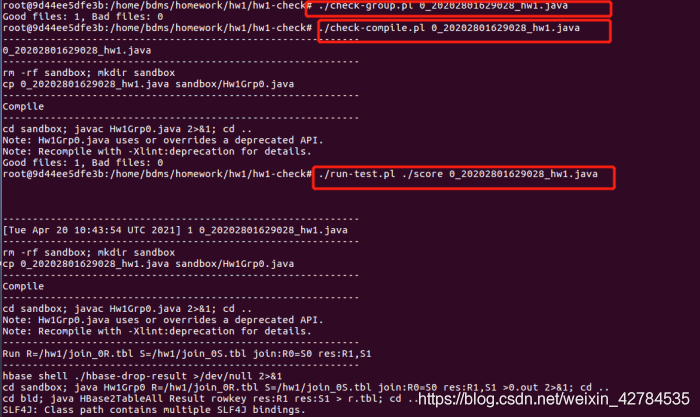

4. check file name format

   $ ./check-group.pl <your-java-file>

5. check if the file can be compiled

   $ ./check-compile.pl <your-java-file>

6. run test

   $ ./run-test.pl ./score <your-java-file>

Your score will be in ./score.  The run-test.pl tests 3 input cases, you will
get one score for each case.  So the output full score is 3.

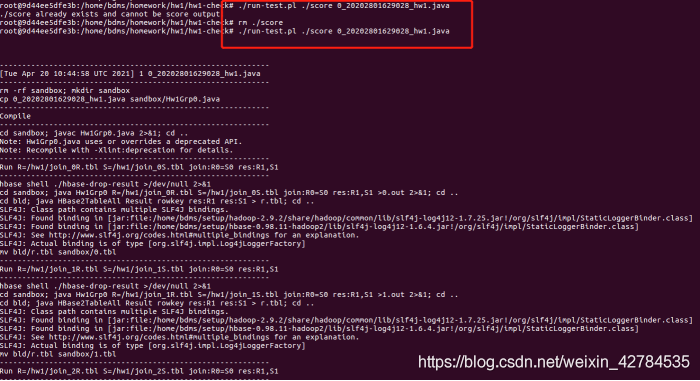

To run the test again, you need to first remove ./score

   $ rm ./score
   $ ./run-test.pl ./score <your-java-file>

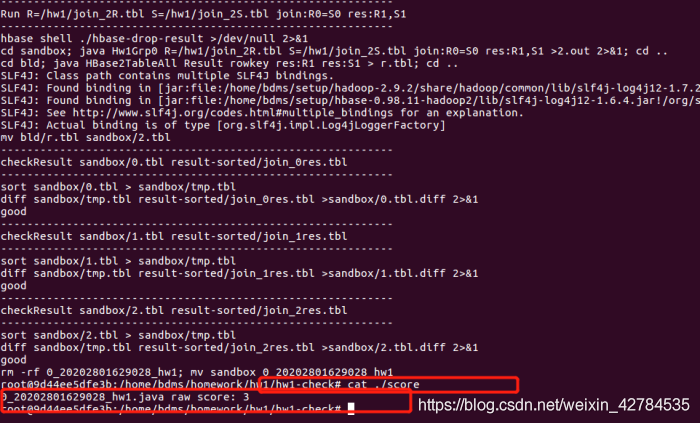

最后結果輸出為3，說明三個測驗都通過所以完成，

但是這個測驗結果不輸出中間結果，只保存最后的結果，

五.保存

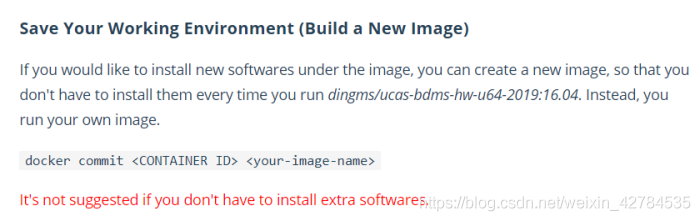

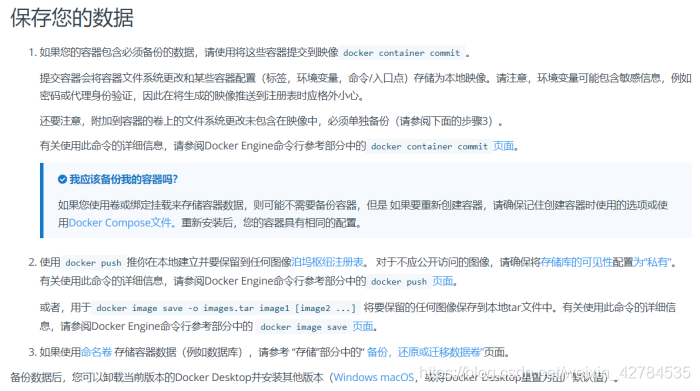

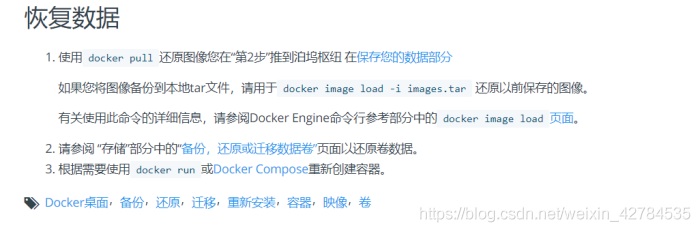

由于容器中的操作結果不被自動保存

https://docs.docker.com/desktop/backup-and-restore/

碼字不易，都看到這里了不如點個贊哦~
我是【豆干花生】，你的點贊+收藏+關注，就是我堅持下去的最大動力~

親愛的朋友，這里是我新成立的公眾號，歡迎關注！
公眾號內容包括但不限于人工智能、影像處理、信號處理等等~

之后還將推出更多優秀博文，敬請期待！ 關注起來，讓我們一起成長！
