Linux C的MQTT測驗代碼撰寫

做完在同一個主機下的MQTT客戶端實驗后，做億點點改變，我們使用移植好的MQTT介面在Ubuntu下寫一個MQTT的客戶端，然后和windows下的MQTT.fx工具通信，

1. 代碼

   #include <stdio.h>
   #include <stdlib.h>
   #include <string.h>
   #include "MQTTClient.h"  //需要在系統中提前安裝好MQTT，可以參考
   #define ADDRESS "tcp://192.168.50.81:1883" //根據 MQTT 實際主機地址調整
   #define CLIENTID_PUB "ExampleClientPub"
   #define CLIENTID_SUB "ExampleClientSub"
   #define QOS 1
   #define TIMEOUT 10000L
   #define PUB_TOPIC "ScratchToSoftWare"
   #define SUB_TOPIC "SoftWareToScratch"
   #define NUM_THREADS 2    		  //執行緒個數，一個用于發布，一個用于訂閱
   #define FAN_OFF "{'fan':false}"   //表示風扇關閉的json字串
   #define FAN_ON "{'fan':true}"     //表示風扇打開的json字串
   int fan_state = 0;
   volatile MQTTClient_deliveryToken deliveredtoken;


   //傳遞給MQTTClient_setCallbacks的回呼函式，訊息發送成功后，呼叫此回呼函式
   void delivered(void *context, MQTTClient_deliveryToken dt)
   {
   	printf("Message with token value %d delivery confirmed\n", dt);
   	deliveredtoken = dt;
   }

   //傳遞給MQTTClient_setCallbacks的回呼函式 訊息到達后，呼叫此回呼函式
   int msgarrvd(void *context, char *topicName, int topicLen, MQTTClient_message *message)
   {
   	printf("Message arrived\n");
   	printf(" topic: %s\n", topicName);
   	printf(" message: %.*s\n", message->payloadlen, (char*)message->payload);
   	MQTTClient_freeMessage(&message);
   	MQTTClient_free(topicName);
   	return 1;
   }

   //傳遞給MQTTClient_setCallbacks的回呼函式 連接例外斷開后呼叫此回呼函式
   void connlost(void *context, char *cause)
   {
   	printf("\nConnection lost\n");
   	printf(" cause: %s\n", cause);
   }

   //實作MQTT的訂閱
   void *mqtt_subscribe()
   {
   	MQTTClient client;  //定義一個MQTT客戶端client
   	MQTTClient_connectOptions conn_opts = MQTTClient_connectOptions_initializer;
   	int rc;
   	//初始化client，設定MQTT服務器的地址"tcp://192.168.50.81:1883" 并訂閱"ExampleClientSub"
   	if ((rc = MQTTClient_create(&client, ADDRESS, CLIENTID_SUB,
   					MQTTCLIENT_PERSISTENCE_NONE, NULL)) != MQTTCLIENT_SUCCESS)
   	{
   		printf("Failed to create client, return code %d\n", rc);
   		rc = EXIT_FAILURE;
   		goto exit;
   	}
   	//設定回呼函式，
   	if ((rc = MQTTClient_setCallbacks(client, NULL, connlost, msgarrvd,
   					delivered)) != MQTTCLIENT_SUCCESS)
   	{
   		printf("Failed to set callbacks, return code %d\n", rc);
   		rc = EXIT_FAILURE;
   		goto destroy_exit;
   	}
   	conn_opts.keepAliveInterval = 20;
   	conn_opts.cleansession = 1;
   	//連接服務器
   	if ((rc = MQTTClient_connect(client, &conn_opts)) != MQTTCLIENT_SUCCESS)
   	{
   		printf("Failed to connect, return code %d\n", rc);
   		rc = EXIT_FAILURE;
   		goto destroy_exit;
   	}
   	printf("Subscribing to topic %s\nfor client %s using QoS%d\n\n"
   			"Press Q<Enter> to quit\n\n", SUB_TOPIC, CLIENTID_SUB, QOS);

   	//訂閱主題
   	if ((rc = MQTTClient_subscribe(client, SUB_TOPIC, QOS)) != MQTTCLIENT_SUCCESS)
   	{
   		printf("Failed to subscribe, return code %d\n", rc);
   		rc = EXIT_FAILURE;
   	}
   	else
   	{
   		int ch;
   		do
   		{
   			ch = getchar();
   		} while (ch!='Q' && ch != 'q');  //等待輸入字符 'Q'或'q'
   		if ((rc = MQTTClient_unsubscribe(client, SUB_TOPIC)) != MQTTCLIENT_SUCCESS)  	//取消訂閱
   		{
   			printf("Failed to unsubscribe, return code %d\n", rc);
   			rc = EXIT_FAILURE;
   		} }
   	if ((rc = MQTTClient_disconnect(client, 10000)) != MQTTCLIENT_SUCCESS)  //斷開和服務器的連接
   	{
   		printf("Failed to disconnect, return code %d\n", rc);
   		rc = EXIT_FAILURE;
   	}
   destroy_exit:
   	MQTTClient_destroy(&client); //釋放客戶端的資源
   exit:
   	return NULL;
   }

   //實作MQTT的發布
   void *mqtt_publish()
   {
   	MQTTClient client;  //定義一個MQTT客戶端
   	MQTTClient_connectOptions conn_opts = MQTTClient_connectOptions_initializer;
   	MQTTClient_message pubmsg = MQTTClient_message_initializer;
   	MQTTClient_deliveryToken token;
   	char data[1024];
   	int rc;
   	//初始化MQTT客戶端
   	if ((rc = MQTTClient_create(&client, ADDRESS, CLIENTID_PUB,
   					MQTTCLIENT_PERSISTENCE_NONE, NULL)) != MQTTCLIENT_SUCCESS)
   	{
   		printf("Failed to create client, return code %d\n", rc);
   		exit(EXIT_FAILURE);
   	}
   	conn_opts.keepAliveInterval = 20;
   	conn_opts.cleansession = 1;
   	//連接MQTT服務器
   	if ((rc = MQTTClient_connect(client, &conn_opts)) != MQTTCLIENT_SUCCESS)
   	{
   		printf("Failed to connect, return code %d\n", rc);
   		exit(EXIT_FAILURE);
   	}
   	pubmsg.qos = QOS;
   	pubmsg.retained = 0;
   	while(1) {
   		//判斷風扇標志位的值，封裝發送的訊息
   		if (fan_state == 0) {
   			pubmsg.payload = FAN_ON;
   			pubmsg.payloadlen = strlen(FAN_ON);
   			fan_state = 1; } else {
   				pubmsg.payload = FAN_OFF;
   				pubmsg.payloadlen = strlen(FAN_OFF);
   				fan_state = 0; }
   		//回圈發送訊息，在"ScratchToSoftWare" 這個主題下發布訊息
   		if ((rc = MQTTClient_publishMessage(client, PUB_TOPIC,
   						&pubmsg, &token)) != MQTTCLIENT_SUCCESS)
   		{
   			printf("Failed to publish message, return code %d\n", rc);
   			exit(EXIT_FAILURE);
   		}
   		printf("Waiting for up to %d seconds for publication of %s\n"
   				"on topic %s for client with ClientID: %s\n", (int)(TIMEOUT/1000), data, PUB_TOPIC, CLIENTID_PUB);
   		rc = MQTTClient_waitForCompletion(client, token, TIMEOUT);
   		printf("Message with delivery token %d delivered\n", token);
   		usleep(5000000);
   	}
   	if ((rc = MQTTClient_disconnect(client, 10000)) != MQTTCLIENT_SUCCESS)
   		printf("Failed to disconnect, return code %d\n", rc);
   	MQTTClient_destroy(&client);
   	return NULL;
   }


   int main(int argc, char **argv)
   {
   	pthread_t threads[NUM_THREADS];
   	pthread_create(&threads[0], 0, mqtt_subscribe, NULL);
   	pthread_create(&threads[1], 0, mqtt_publish, NULL);
   	pause();
   	return 0;
   }



2. 編譯命令

   $gcc main.c -lpthread -lpaho-mqtt3c

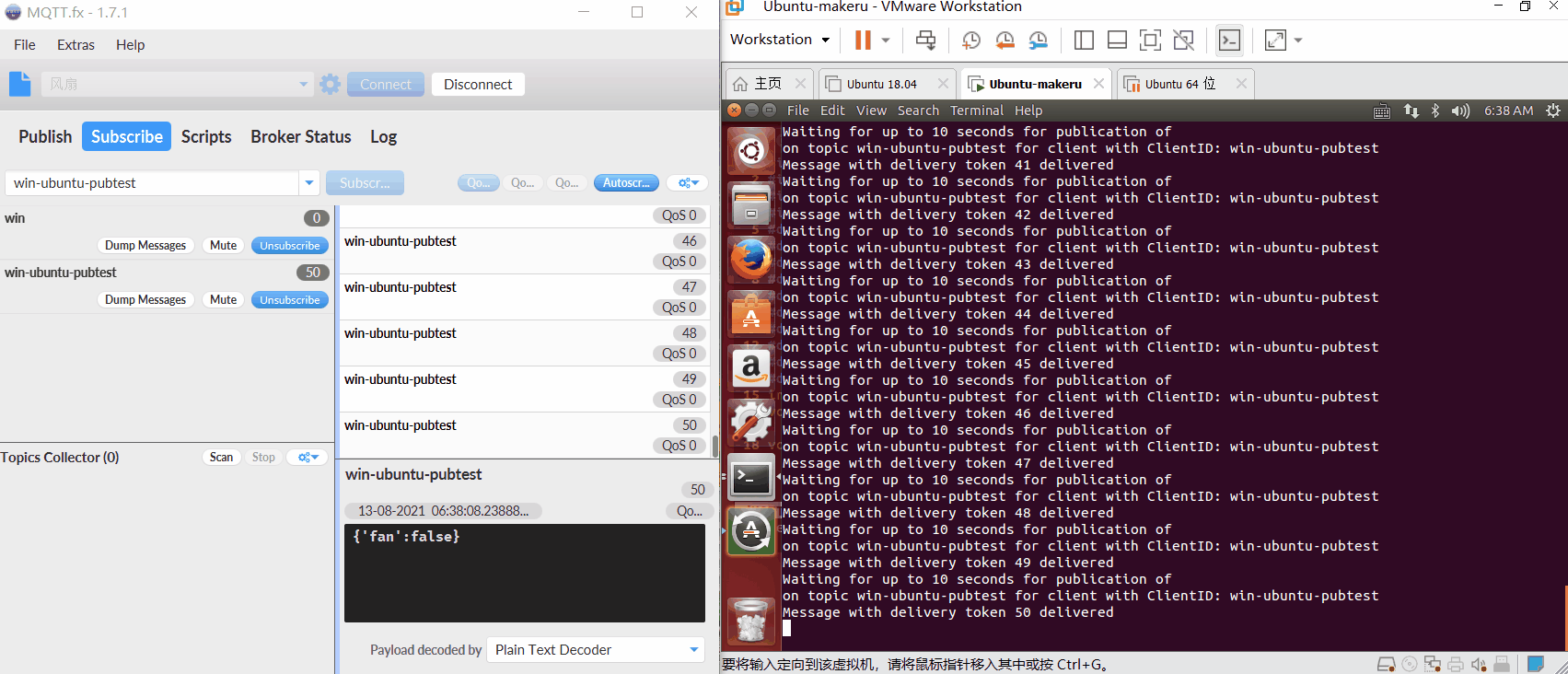

3. 效果展示
