專案總覽

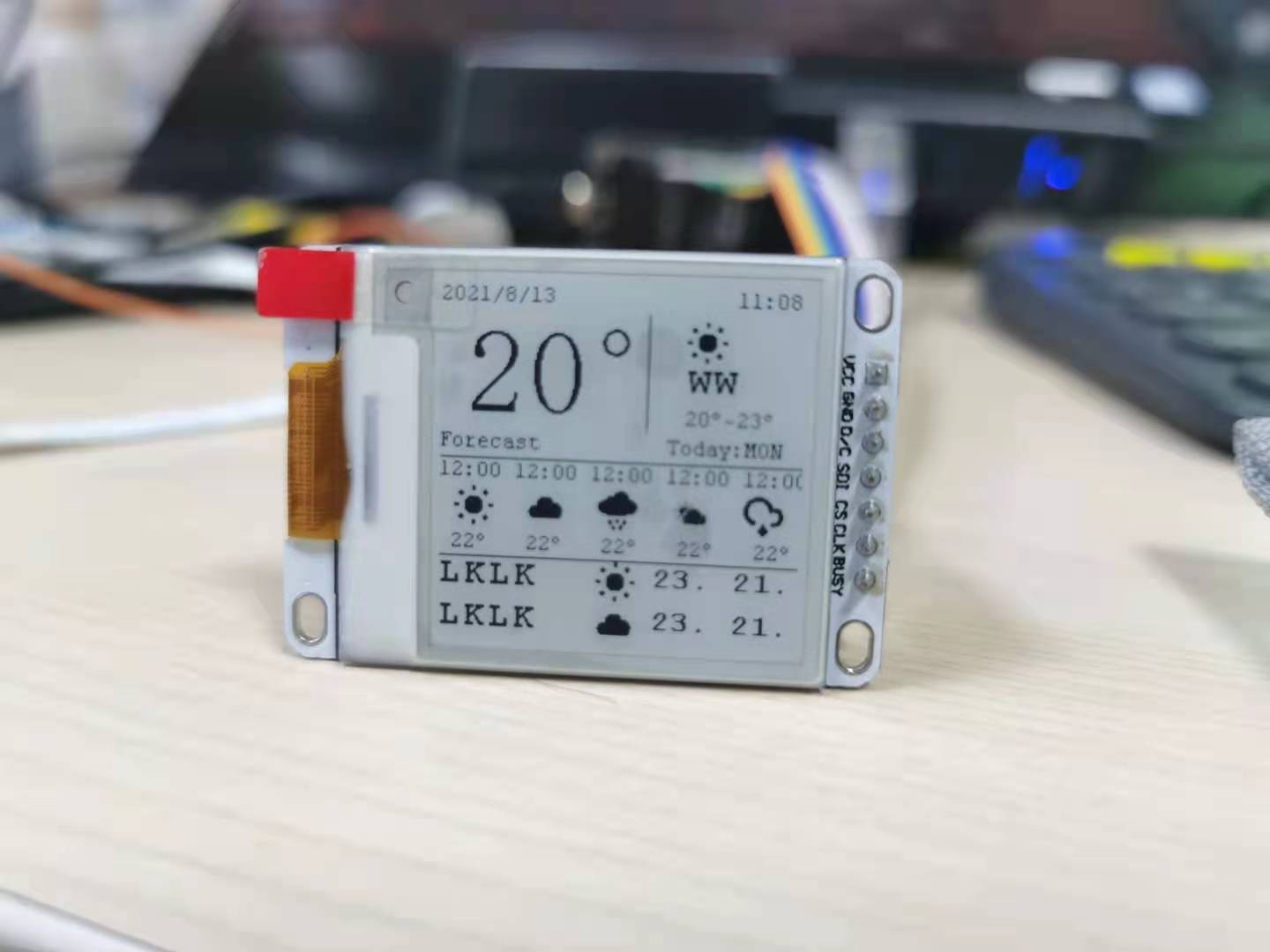

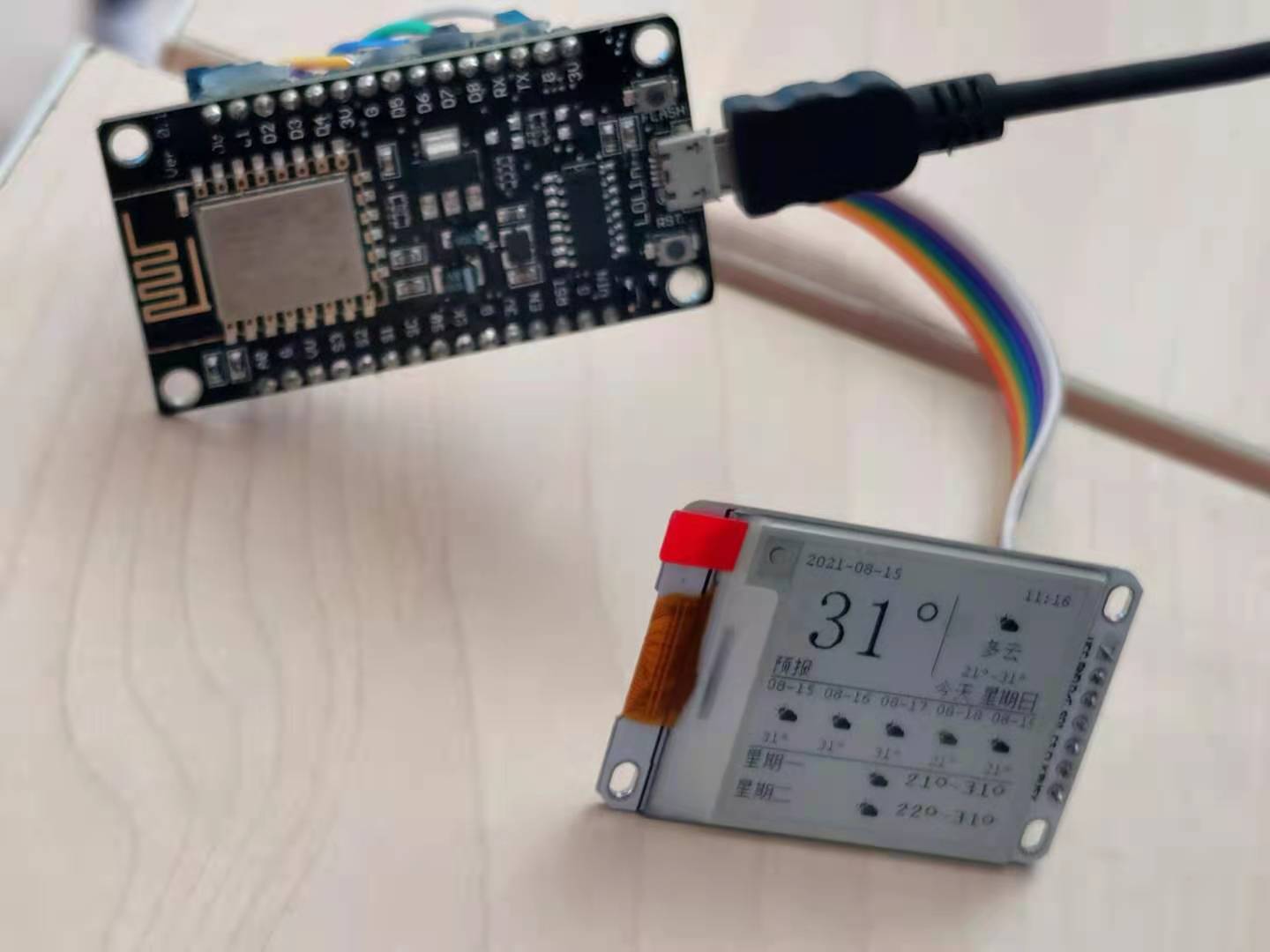

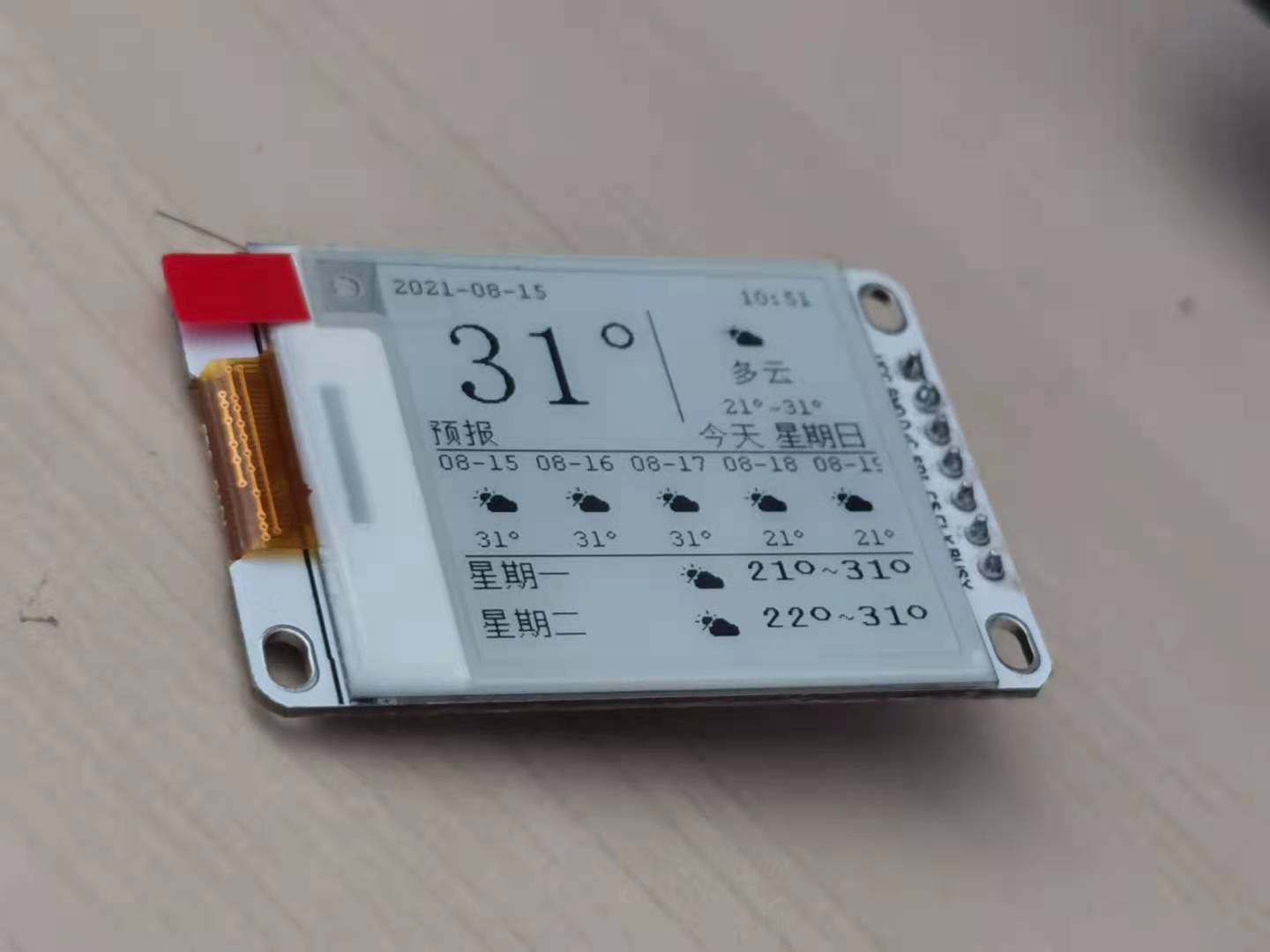

先上圖，看效果！
該專案主要是通過esp8266-12e連接wifi獲取心知天氣資料和蘇寧時間api，通過決議json代碼得到資料，然后通過e-paper墨水屏顯示出來，本專案基于墨水屏例程，添加了部分中文字體以及天氣圖示，通過文字取模軟體對圖示和文字進行了編碼與取模，
元器件清單
- 主控板：esp8266-12e nodemcu
- 顯示屏：heltec1.54inch e-link display的高亮樣式** 進行展示；
- 杜邦線，usb線；
接線方式
- D/C–>D2
- SDI–>D7
- CS–>D8
- CLK–>D5
- BUSY–>D1
- VCC–>D0(一定要保證3.3v)
- GND–>GND
用到的網站與API
- 心知天氣：https://www.seniverse.com/
- 天氣決議獲取三天天氣地址：
http://api.seniverse.com/v3/weather/daily.json?key=YOUR EY&location=jinan&language=zh-Hans&unit=c - 記得修改標記位置，分別是心知天氣私鑰和城市代碼
- 私鑰獲取方式>>官網注冊>>購買免費版>>控制臺>>添加私鑰
獲取到的json代碼塊示例
{
"results": [
{
"location": {
"id": "WWE0TGW4PX6N",
"name": "濟南",
"country": "CN",
"path": "濟南,濟南,山東,中國",
"timezone": "Asia/Shanghai",
"timezone_offset": "+08:00"
},
"daily": [
{
"date": "2021-08-14",
"text_day": "晴",
"code_day": "0",
"text_night": "晴",
"code_night": "1",
"high": "30",
"low": "21",
"rainfall": "1.2",
"precip": "0.34",
"wind_direction": "東",
"wind_direction_degree": "90",
"wind_speed": "23.4",
"wind_scale": "4",
"humidity": "66"
},
{
"date": "2021-08-15",
"text_day": "多云",
"code_day": "4",
"text_night": "多云",
"code_night": "4",
"high": "31",
"low": "21",
"rainfall": "1.2",
"precip": "0.34",
"wind_direction": "東北",
"wind_direction_degree": "45",
"wind_speed": "8.4",
"wind_scale": "2",
"humidity": "66"
},
{
"date": "2021-08-16",
"text_day": "多云",
"code_day": "4",
"text_night": "多云",
"code_night": "4",
"high": "31",
"low": "21",
"rainfall": "1.2",
"precip": "0.35",
"wind_direction": "無持續風向",
"wind_direction_degree": "",
"wind_speed": "3.0",
"wind_scale": "1",
"humidity": "71"
}
],
"last_update": "2021-08-14T08:00:00+08:00"
}
]
}
- 蘇寧時間api：http://quan.suning.com/getSysTime.do
- 獲取到的代碼塊示例
{
"sysTime2": "2021-08-15 11:34:54",
"sysTime1": "20210815113454"
}
- arduinojson：https://arduinojson.org/assistant/
- 主要是用來esp8266決議獲取到的網頁資料
- 注意選擇v5版本
- 示例：需要決議的資料
{
"sysTime2": "2021-08-15 11:34:54",
"sysTime1": "20210815113454"
}
- 決議后的代碼
const size_t capacity = JSON_OBJECT_SIZE(2) + 60;
DynamicJsonBuffer jsonBuffer(capacity);
const char* json = "{\"sysTime2\":\"2021-08-15 11:34:54\",\"sysTime1\":\"20210815113454\"}";
JsonObject& root = jsonBuffer.parseObject(json);
const char* sysTime2 = root["sysTime2"]; // "2021-08-15 11:34:54"
const char* sysTime1 = root["sysTime1"]; // "20210815113454"
只需要將const char* json = 注釋掉，然后將json改為通過http獲取到的字串就可以了，
顯示屏部分
螢屏檔案介紹
https://heltec.org/project/154-e-ink/
通信協議：
- 三線spi：CLK+SDI+CS
- DC引腳+BUSY引腳
供電電壓：
- 3.3v （高電壓或低電壓都會造成亂碼顯示）
螢屏解析度（1.54英寸黑白墨水屏）：
- 200像素*200像素
螢屏文字影像取模
取模軟體：PCtoLCD2002完美版
取模方式

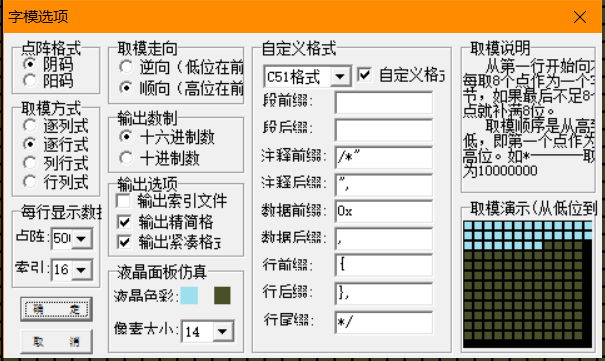

- 取模選項
- 取模示例：
如何理解：
每一行代表了像素點的位置，14號字體，寬度14像素，高度14像素，一共14行，每一行是兩個8為16進制數，最大可以表示16號字，
若需要表示更大的字，值需要在每一行加一個16進制數即可，依然是每一行表示對應的像素點位置，
{
0x02,0x00,
0x02,0x00,
0x05,0x00,
0x08,0x80,
0x14,0x40,
0x22,0x20,
0xC2,0x18,
0x00,0x00,
0x3F,0xC0,
0x00,0x40,
0x00,0x80,
0x00,0x80,
0x01,0x00,
0x02,0x00},/*"今",0*/
- 對應程式中的函式：
paint.DrawCharAt(120, 0, ’ '+9, &Fontzh14, COLORED);//今
第一、二個引數是列印位置x，y
第三個引數代表‘ ’字符加上第幾個元素，因為函式是從‘ ’開始檢索的
第四個引數用來選擇字號，需要用對應的font.c檔案，還需要再font.h檔案中進行結構體宣告
第五個引數用來選擇列印顏色，colored即為前景色，黑色
此函式與列印ascii碼的函式通用，需要顯示中文只需要改動對應字庫即可
添加字庫方法（中文英文通用）
-

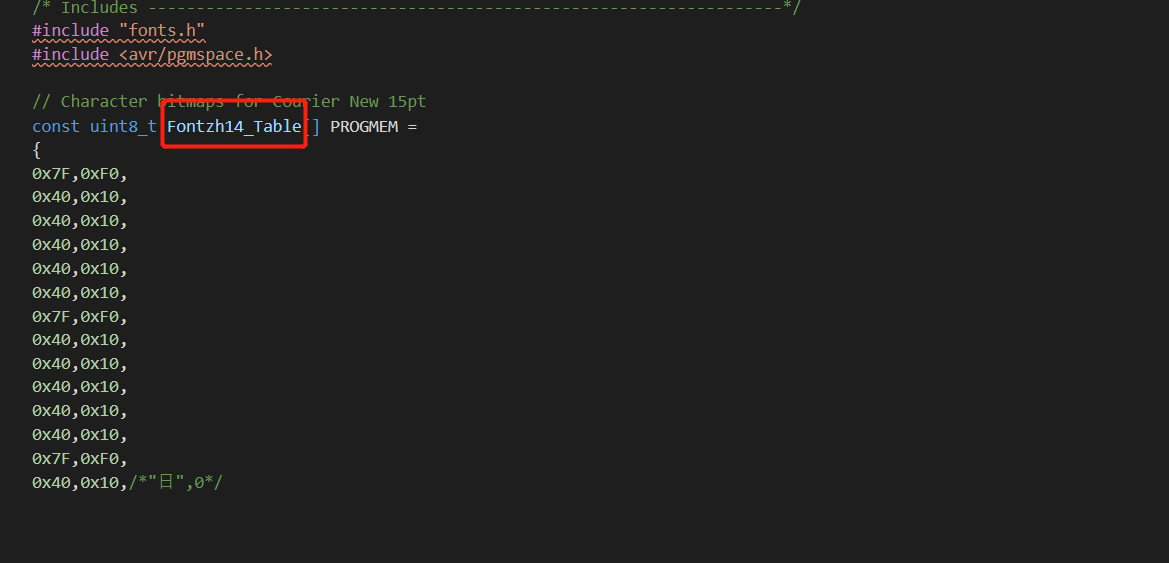

首線復制一份font.c檔案并重新命名
-

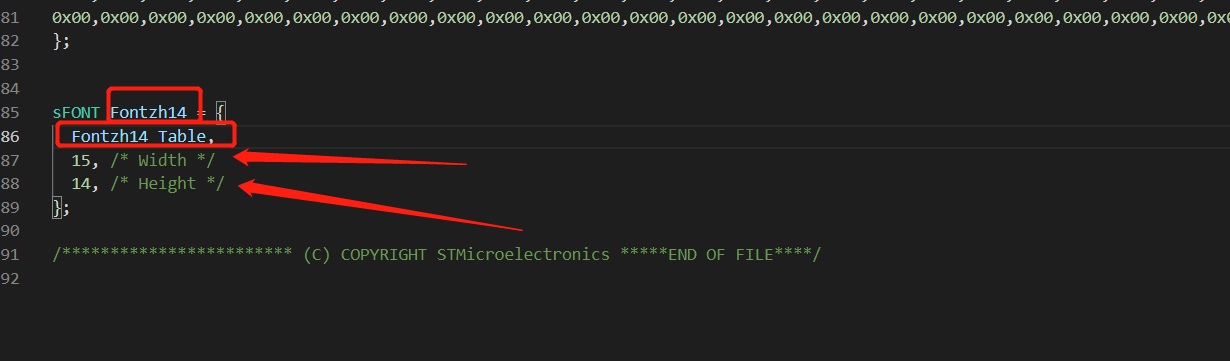

然后在檔案中修改對應變數名，根據字號修改字符寬度和高度
-

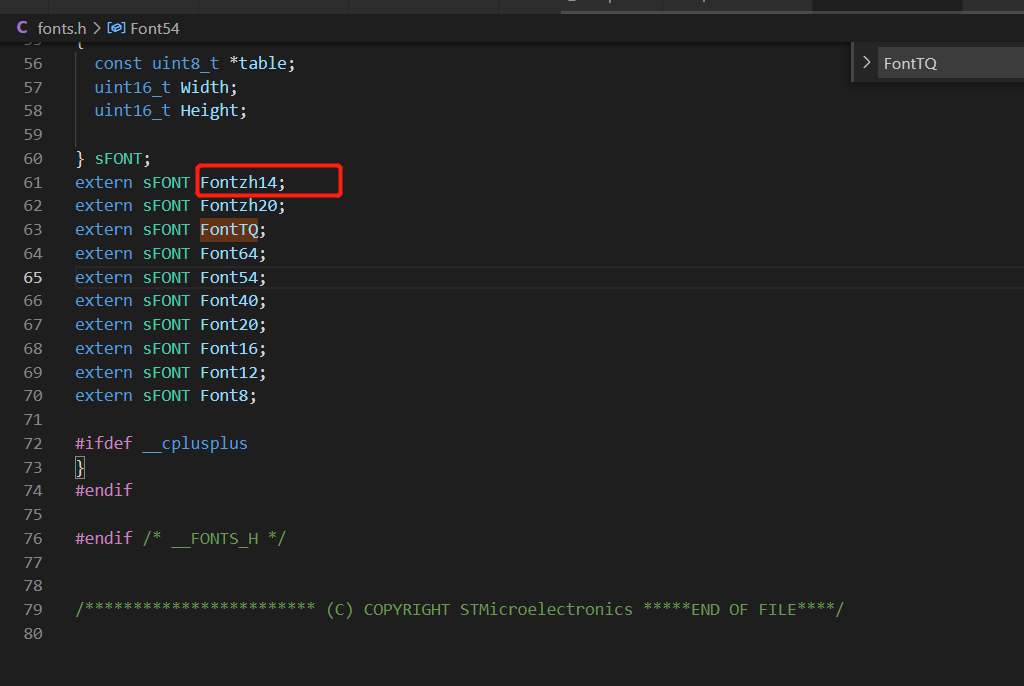

在font.h檔案重新宣告變數

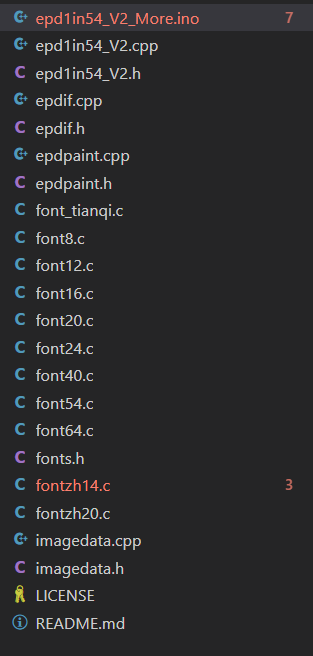

程式總覽
- 程式頭檔案
#include"stdio.h"
#include"stdlib.h"
#include"string.h"
#include <SPI.h>
#include "epd1in54_V2.h"
#include "epdpaint.h"
#include "imagedata.h"
#include <ESP8266WiFi.h>
#include <ESP8266HTTPClient.h>
#include <ArduinoJson.h> //版本為V5版本，最新的版本不適用下面的代碼
- 程式變數常量定義
#define COLORED 0
#define UNCOLORED 1
int today_tianqi[5][2]={18,20,/*晴*/
17,29,/*陰*/
19,14,/*大雨*/
15,16,/*多云*/
13,14/*小雨*/};
int yearn,monthn,dayn;
int tianqinum[5]={0,0,0,0,0};
int getxingqi(int years,int months,int day);
String now_address="",now_weather="",now_temperature="",now_temperature_low="",now_day="",now_time="";//用來存盤報文得到的字串
String now_address_1="",now_weather_1="",now_temperature_1="",now_temperature_1_low="",now_day_1="";//用來存盤報文得到的字串
String now_address_2="",now_weather_2="",now_temperature_2="",now_temperature_2_low="",now_day_2="",now_weather_3="",now_weather_4="";//用來存盤報文得到的字串
String GetUrl;
String response;
char* strCat = "";
const char* ssid = "PandoraBox-2.4G-923A97"; // 你的WiFi賬號
const char* password = "790338372"; // 你的WIFI密碼
unsigned char image[1024];
unsigned long time_start_ms;
unsigned long time_now_s;
int today_day=0;
int tianqi_now=0;
HTTPClient http; //開始登陸 獲取天氣
HTTPClient https; //開始登陸 獲取時間
Paint paint(image, 0, 0);
Epd epd;
- 初始化函式
void setup() {
get_WIFI();
get_WIFI();
SPI.pins(CLK_PIN,MISO,SDI_PIN,CS_PIN);
SPI.begin();
Serial.begin(115200);
if (epd.Init() != 0)
{
Serial.print("e-Paper init failed");
return;
}
epd.ClearFrameMemory(0xFF); // bit set = white, bit reset = black
epd.DisplayFrameFull();
Serial.println("e-Paper SetFrameMemory");
time_start_ms = millis();
}
- 主回圈
void loop() {
get_weather();
Serial.println("tianqi:");
Serial.println(tianqinum[0]);
Serial.println(tianqinum[1]);
Serial.println(tianqinum[2]);
Serial.println("now_address:");
Serial.println(now_address);
Serial.println("天氣:");
Serial.println(now_weather);
Serial.println("溫度:");
Serial.println(now_temperature);
setscreen();
delay(10000);
}
- wifi鏈接
void get_WIFI()
{
Serial.begin(115200);
WiFi.begin(ssid, password);
while (WiFi.status() != WL_CONNECTED)
{ //等待wifi連接
delay(500);
Serial.print(".."); //重復列印 "Connecting.."，直到連接成功
}
Serial.println(" ");
Serial.println("Connected to ");
Serial.println(ssid);
Serial.println("IP address: ");
Serial.println(WiFi.localIP());
}
- 獲取網路天氣與時間資料
void get_weather()
{
if (WiFi.status() == WL_CONNECTED) { //如果 Wi-Fi 連接成功
//此處往下是取得實況天氣的程式
//心知API的網址，記得修改自己的密碼！！！！！！！
//心知API的網址，記得修改自己的城市！！！！！！！
//心知API獲取未來三天的天氣情況
http.begin("http://api.seniverse.com/v3/weather/daily.json?key=SCZyJ9BUkrn8BfPpD&location=jinan&language=zh-Hans&unit=c");
int httpget_now = http.GET(); //賦值
Serial.println("httpget_now:");
Serial.println(httpget_now);
if (httpget_now == HTTP_CODE_OK)
{
//檢查一下是否為0，應該是去檢查快取區是否為空
Serial.println("that is ok");
String respone = http.getString();
Serial.println(respone);
/*資料決議:使用 https://arduinojson.org/assistant/ 一個工具可以直接生成程式，挑有用的復制就行*/
/*記得選v5版本*/
const size_t capacity = JSON_ARRAY_SIZE(1) + JSON_ARRAY_SIZE(3) + JSON_OBJECT_SIZE(1) + JSON_OBJECT_SIZE(3) + JSON_OBJECT_SIZE(6) + 3*JSON_OBJECT_SIZE(14) + 820;
DynamicJsonBuffer jsonBuffer(capacity);
JsonObject& root = jsonBuffer.parseObject(respone);
JsonObject& results_0 = root["results"][0];
JsonObject& results_0_location = results_0["location"];
const char* results_0_location_id = results_0_location["id"]; // "WX4FBXXFKE4F"
const char* results_0_location_name = results_0_location["name"]; // "北京"
const char* results_0_location_country = results_0_location["country"]; // "CN"
const char* results_0_location_path = results_0_location["path"]; // "北京,北京,中國"
const char* results_0_location_timezone = results_0_location["timezone"]; // "Asia/Shanghai"
const char* results_0_location_timezone_offset = results_0_location["timezone_offset"]; // "+08:00"
JsonArray& results_0_daily = results_0["daily"];
JsonObject& results_0_daily_0 = results_0_daily[0];
const char* results_0_daily_0_date = results_0_daily_0["date"]; // "2021-08-14"
const char* results_0_daily_0_text_day = results_0_daily_0["text_day"]; // "陰"
const char* results_0_daily_0_code_day = results_0_daily_0["code_day"]; // "9"
const char* results_0_daily_0_text_night = results_0_daily_0["text_night"]; // "雷陣雨"
const char* results_0_daily_0_code_night = results_0_daily_0["code_night"]; // "11"
const char* results_0_daily_0_high = results_0_daily_0["high"]; // "28"
const char* results_0_daily_0_low = results_0_daily_0["low"]; // "22"
const char* results_0_daily_0_rainfall = results_0_daily_0["rainfall"]; // "1.87"
const char* results_0_daily_0_precip = results_0_daily_0["precip"]; // "0.4"
const char* results_0_daily_0_wind_direction = results_0_daily_0["wind_direction"]; // "南"
const char* results_0_daily_0_wind_direction_degree = results_0_daily_0["wind_direction_degree"]; // "180"
const char* results_0_daily_0_wind_speed = results_0_daily_0["wind_speed"]; // "8.4"
const char* results_0_daily_0_wind_scale = results_0_daily_0["wind_scale"]; // "2"
const char* results_0_daily_0_humidity = results_0_daily_0["humidity"]; // "89"
JsonObject& results_0_daily_1 = results_0_daily[1];
const char* results_0_daily_1_date = results_0_daily_1["date"]; // "2021-08-15"
const char* results_0_daily_1_text_day = results_0_daily_1["text_day"]; // "雷陣雨"
const char* results_0_daily_1_code_day = results_0_daily_1["code_day"]; // "11"
const char* results_0_daily_1_text_night = results_0_daily_1["text_night"]; // "雷陣雨"
const char* results_0_daily_1_code_night = results_0_daily_1["code_night"]; // "11"
const char* results_0_daily_1_high = results_0_daily_1["high"]; // "28"
const char* results_0_daily_1_low = results_0_daily_1["low"]; // "22"
const char* results_0_daily_1_rainfall = results_0_daily_1["rainfall"]; // "7.22"
const char* results_0_daily_1_precip = results_0_daily_1["precip"]; // "0.92"
const char* results_0_daily_1_wind_direction = results_0_daily_1["wind_direction"]; // "東"
const char* results_0_daily_1_wind_direction_degree = results_0_daily_1["wind_direction_degree"]; // "90"
const char* results_0_daily_1_wind_speed = results_0_daily_1["wind_speed"]; // "8.4"
const char* results_0_daily_1_wind_scale = results_0_daily_1["wind_scale"]; // "2"
const char* results_0_daily_1_humidity = results_0_daily_1["humidity"]; // "92"
JsonObject& results_0_daily_2 = results_0_daily[2];
const char* results_0_daily_2_date = results_0_daily_2["date"]; // "2021-08-16"
const char* results_0_daily_2_text_day = results_0_daily_2["text_day"]; // "多云"
const char* results_0_daily_2_code_day = results_0_daily_2["code_day"]; // "4"
const char* results_0_daily_2_text_night = results_0_daily_2["text_night"]; // "多云"
const char* results_0_daily_2_code_night = results_0_daily_2["code_night"]; // "4"
const char* results_0_daily_2_high = results_0_daily_2["high"]; // "28"
const char* results_0_daily_2_low = results_0_daily_2["low"]; // "21"
const char* results_0_daily_2_rainfall = results_0_daily_2["rainfall"]; // "5.94"
const char* results_0_daily_2_precip = results_0_daily_2["precip"]; // "0.84"
const char* results_0_daily_2_wind_direction = results_0_daily_2["wind_direction"]; // "東南"
const char* results_0_daily_2_wind_direction_degree = results_0_daily_2["wind_direction_degree"]; // "135"
const char* results_0_daily_2_wind_speed = results_0_daily_2["wind_speed"]; // "3.0"
const char* results_0_daily_2_wind_scale = results_0_daily_2["wind_scale"]; // "1"
const char* results_0_daily_2_humidity = results_0_daily_2["humidity"]; // "87"
const char* results_0_last_update = results_0["last_update"]; // "2021-08-14T08:00:00+08:00"
//賦值，因為現在這些變數是在快取區，一會將被清空
now_day=results_0_daily_0_date;
now_address=results_0_location_name; //北京
now_weather=results_0_daily_0_text_day; //晴
now_temperature=results_0_daily_0_high; //19
now_temperature_low=results_0_daily_0_low;
now_day_1=results_0_daily_1_date;
now_address_1=results_0_location_name; //北京
now_weather_1=results_0_daily_1_text_day; //晴
now_temperature_1=results_0_daily_1_high; //19
now_temperature_1_low=results_0_daily_1_low;
now_day_2=results_0_daily_2_date;
now_address_2=results_0_location_name; //北京
now_weather_2=results_0_daily_2_text_night; //晴
now_temperature_2=results_0_daily_2_high; //19
now_temperature_2_low=results_0_daily_2_low;
now_weather_3=results_0_daily_2_text_day; //晴
now_weather_4=results_0_daily_2_text_night; //晴
String str0 = "晴";
String str1 = "陰";
String str2 = "大雨";
String str3 = "多云";
String str4 = "小雨";
if(str0==now_weather)
{
tianqinum[0]=0;
}
else if (str1==now_weather)
{
tianqinum[0]=1;
}
else if (str2==now_weather)
{
tianqinum[0]=2;
}
else if (str3==now_weather)
{
tianqinum[0]=3;
}
else
{
tianqinum[0]=4;
}
if(str0==now_weather_1)
{
tianqinum[1]=0;
}
else if (str1==now_weather_1)
{
tianqinum[1]=1;
}
else if (str2==now_weather_1)
{
tianqinum[1]=2;
}
else if (str3==now_weather_1)
{
tianqinum[1]=3;
}
else
{
tianqinum[1]=4;
}
if(str0==now_weather_2)
{
tianqinum[2]=0;
}
else if (str1==now_weather_2)
{
tianqinum[2]=1;
}
else if (str2==now_weather_2)
{
tianqinum[2]=2;
}
else if (str3==now_weather_2)
{
tianqinum[2]=3;
}
else
{
tianqinum[2]=4;
}
if(str0==now_weather_3)
{
tianqinum[3]=0;
}
else if (str1==now_weather_3)
{
tianqinum[3]=1;
}
else if (str2==now_weather_3)
{
tianqinum[3]=2;
}
else if (str3==now_weather_3)
{
tianqinum[3]=3;
}
else
{
tianqinum[3]=4;
}
if(str0==now_weather_4)
{
tianqinum[4]=0;
}
else if (str1==now_weather_4)
{
tianqinum[4]=1;
}
else if (str2==now_weather_4)
{
tianqinum[4]=2;
}
else if (str3==now_weather_4)
{
tianqinum[4]=3;
}
else
{
tianqinum[4]=4;
}
yearn=(now_day[0]-'0')*1000+(now_day[1]-'0')*100+(now_day[2]-'0')*10+(now_day[3]-'0')*1;
monthn=(now_day[5]-'0')*10+(now_day[6]-'0');
dayn=(now_day[8]-'0')*10+(now_day[9]-'0');
today_day=getxingqi(yearn,monthn,dayn);
http.end();
delay(100);
}
http.end();
https.begin("http://quan.suning.com/getSysTime.do");
// 從時間網站獲得網頁內容
int httpCode = https.GET();
if (httpCode > 0)
{
Serial.printf("[HTTP] GET... code: %d\n", httpCode);
if (httpCode == HTTP_CODE_OK)
{
//讀取回應內容
response = https.getString();
Serial.println(response);
const size_t capacitys = JSON_OBJECT_SIZE(2) + 60;
DynamicJsonBuffer jsonBuffers(capacitys);
JsonObject& roots = jsonBuffers.parseObject(response);
const char* sysTime2 = roots["sysTime2"]; // "2021-08-15 10:21:34"
const char* sysTime1 = roots["sysTime1"]; // "20210815102134"
now_time=sysTime1;
https.end();
delay(100);
}
}
else
{
Serial.printf("[HTTP] GET... failed, error: %s\n", http.errorToString(httpCode).c_str());
}
https.end();
}
}
- 日期轉換為星期
int getxingqi(int years,int months,int day)
{
int yd, md; // 定義年份和月份代碼
int dh; // 定義dh為代碼和
int xin;
int yushu1,yushu2;
yd = ((years%100)/4 + (years%100))%7;
yushu1 = years%4;
yushu2 = years%100;
if(yushu1 = 0 && yushu2 != 0) // 能被4整除不能被100整除是閏年
{
if(months == 1)
{
md = 5;
}
if(months == 2)
{
md = 1;
}
if(months == 3)
{
md = 2;
}
if(months == 4)
{
md = 5;
}
if(months == 5)
{
md = 0;
}
if(months == 6)
{
md = 3;
}
if(months == 7)
{
md = 5;
}
if(months == 8)
{
md = 1;
}
if(months == 9)
{
md = 4;
}
if(months == 10)
{
md = 6;
}
if(months == 11)
{
md = 2;
}
if(months == 12)
{
md = 4;
}
xin = (day+md+yd)%7;
switch(xin)
{
case 1:return(1);
break;
case 2:return(2);
break;
case 3:return(3);
break;
case 4:return(4);
break;
case 5:return(5);
break;
case 6:return(6);
break;
case 7:return(0);
break;
}
}
else
{
if(months == 1)
{
md = 6;
}
if(months == 2)
{
md = 2;
}
if(months == 3)
{
md = 2;
}
if(months == 4)
{
md = 5;
}
if(months == 5)
{
md = 0;
}
if(months == 6)
{
md = 3;
}
if(months == 7)
{
md = 5;
}
if(months == 8)
{
md = 1;
}
if(months == 9)
{
md = 4;
}
if(months == 10)
{
md = 6;
}
if(months == 11)
{
md = 2;
}
if(months == 12)
{
md = 4;
}
xin = (day+md+yd) % 7;
switch(xin)
{
case 1:return(1);
break;
case 2:return(2);
break;
case 3:return(3);
break;
case 4:return(4);
break;
case 5:return(5);
break;
case 6:return(6);
break;
case 7:return(0);
break;
}
}
return 0;
}
- 螢屏重繪
void setscreen()
{
epd.ClearFrameMemory(0xFF); // bit set = white, bit reset = black
epd.DisplayFrameFull();
Serial.println("e-Paper SetFrameMemory");
paint.SetRotate(ROTATE_270);
paint.SetWidth(15);
paint.SetHeight(200);
paint.Clear(UNCOLORED);
strCat="";
sprintf(strCat,"%s %c%c:%c%c",const_cast<char*>(now_day.c_str()),now_time[8],now_time[9],now_time[10],now_time[11]);
paint.DrawStringAt(0, 2, strCat, &Font12, COLORED);
epd.SetFrameMemory(paint.GetImage(), 0, 0, paint.GetWidth(), paint.GetHeight());
paint.Clear(UNCOLORED);
strCat="";
paint.DrawFilledRectangle(0, 0, 200, 0, COLORED);
sprintf(strCat,"%c%c-%c%c %c%c-%c%c %c%c-%c%c %c%c-%c%c%c%c-%c%c"
,monthn/10+'0',monthn%10+'0',dayn/10+'0',dayn%10+'0'
,monthn/10+'0',monthn%10+'0',(dayn+1)/10+'0',(dayn+1)%10+'0'
,monthn/10+'0',monthn%10+'0',(dayn+2)/10+'0',(dayn+2)%10+'0'
,monthn/10+'0',monthn%10+'0',(dayn+3)/10+'0',(dayn+3)%10+'0'
,monthn/10+'0',monthn%10+'0',(dayn+4)/10+'0',(dayn+4)%10+'0');
paint.DrawStringAt(0, 2, strCat, &Font12, COLORED);
epd.SetFrameMemory(paint.GetImage(), 102, 0, paint.GetWidth(), paint.GetHeight());
paint.Clear(UNCOLORED);
strCat="";
paint.DrawFilledRectangle(0, 15, 200, 15, COLORED);
sprintf(strCat," %s. %s. %s. %s. %s. ",
const_cast<char*>(now_temperature.c_str()),
const_cast<char*>(now_temperature_1.c_str()),
const_cast<char*>(now_temperature_2.c_str()),
const_cast<char*>(now_temperature_1_low.c_str()),
const_cast<char*>(now_temperature_low.c_str()));
paint.DrawStringAt(0, 2, strCat, &Font12, COLORED);
epd.SetFrameMemory(paint.GetImage(), 141, 0, paint.GetWidth(), paint.GetHeight());
paint.SetWidth(15);
paint.SetHeight(200);
paint.Clear(UNCOLORED);
paint.DrawCharAt(0, 0, ' '+11, &Fontzh14, COLORED);//預
paint.DrawCharAt(15, 0, ' '+12, &Fontzh14, COLORED);//報
paint.DrawCharAt(120, 0, ' '+9, &Fontzh14, COLORED);//今
paint.DrawCharAt(135, 0, ' '+10, &Fontzh14, COLORED);//天
paint.DrawCharAt(155, 0, ' '+7, &Fontzh14, COLORED);//星
paint.DrawCharAt(169, 0, ' '+8, &Fontzh14, COLORED);//期
paint.DrawCharAt(184, 0, ' '+today_day, &Fontzh14, COLORED);//
epd.SetFrameMemory(paint.GetImage(), 81, 0, paint.GetWidth(), paint.GetHeight());
paint.SetWidth(22);
paint.SetHeight(200);
paint.Clear(UNCOLORED);
paint.DrawCharAt(9, 0, ' '+tianqinum[0], &FontTQ, COLORED);
paint.DrawCharAt(49, 0, ' '+tianqinum[1], &FontTQ, COLORED);
paint.DrawCharAt(89, 0, ' '+tianqinum[2], &FontTQ, COLORED);
paint.DrawCharAt(129, 0, ' '+tianqinum[3], &FontTQ, COLORED);
paint.DrawCharAt(169, 0, ' '+tianqinum[4], &FontTQ, COLORED);
epd.SetFrameMemory(paint.GetImage(), 118, 0, paint.GetWidth(), paint.GetHeight());
paint.Clear(UNCOLORED);
paint.DrawCharAt(0, 2, ' '+7, &Fontzh14, COLORED);//星
paint.DrawCharAt(15, 2, ' '+8, &Fontzh14, COLORED);//期
paint.DrawCharAt(30, 2, ' '+((today_day+1)%7), &Fontzh14, COLORED);//
paint.DrawCharAt(89, 0, ' '+tianqinum[1], &FontTQ, COLORED);
strCat="";
sprintf(strCat,"%s.~%s.",const_cast<char*>(now_temperature_1_low.c_str()),const_cast<char*>(now_temperature_1.c_str()));
paint.DrawStringAt(120, 2, strCat, &Font16, COLORED);
epd.SetFrameMemory(paint.GetImage(), 157, 0, paint.GetWidth(), paint.GetHeight());
paint.Clear(UNCOLORED);
paint.DrawCharAt(0, 2, ' '+7, &Fontzh14, COLORED);//星
paint.DrawCharAt(15, 2, ' '+8, &Fontzh14, COLORED);//期
paint.DrawCharAt(30, 2, ' '+((today_day+2)%7), &Fontzh14, COLORED);///
paint.DrawCharAt(89, 0, ' '+tianqinum[2], &FontTQ, COLORED);
strCat="";
sprintf(strCat,"%s.~%s.",const_cast<char*>(now_temperature_2_low.c_str()),const_cast<char*>(now_temperature_2.c_str()));
paint.DrawStringAt(120, 2, strCat, &Font16, COLORED);
epd.SetFrameMemory(paint.GetImage(), 178, 0, paint.GetWidth(), paint.GetHeight());
paint.SetWidth(64);
paint.SetHeight(100);
paint.Clear(UNCOLORED);
paint.DrawCharAt(0, 0, now_temperature[0]+' '-'0', &Font64, COLORED);
paint.DrawCharAt(34, 0, now_temperature[1]+' '-'0', &Font64, COLORED);
paint.DrawCharAt(66, 0, ' '+10, &Font64, COLORED);
paint.DrawFilledRectangle(99, 0, 99, 64, COLORED);
epd.SetFrameMemory(paint.GetImage(), 18, 85, paint.GetWidth(), paint.GetHeight());
paint.SetWidth(64);
paint.SetHeight(80);
paint.Clear(UNCOLORED);
paint.DrawCharAt(25, 3, ' '+tianqinum[0], &FontTQ, COLORED);
paint.DrawCharAt(25, 28, ' '+today_tianqi[tianqinum[0]][0], &Fontzh14, COLORED);//天氣
paint.DrawCharAt(40, 28, ' '+today_tianqi[tianqinum[0]][1], &Fontzh14, COLORED);//天氣
strCat="";
sprintf(strCat,"%s.~%s.",const_cast<char*>(now_temperature_low.c_str()),const_cast<char*>(now_temperature.c_str()));
paint.DrawStringAt(15, 50, strCat, &Font12, COLORED);
epd.SetFrameMemory(paint.GetImage(), 18, 0, paint.GetWidth(), paint.GetHeight());
epd.DisplayFrameFull();
}
void setup() {
get_WIFI();
get_WIFI();
SPI.pins(CLK_PIN,MISO,SDI_PIN,CS_PIN);
SPI.begin();
Serial.begin(115200);
if (epd.Init() != 0)
{
Serial.print("e-Paper init failed");
return;
}
epd.ClearFrameMemory(0xFF); // bit set = white, bit reset = black
epd.DisplayFrameFull();
Serial.println("e-Paper SetFrameMemory");
time_start_ms = millis();
}
完整工程下載地址
https://download.csdn.net/download/qq_39541326/21090151?spm=1001.2014.3001.5503
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/294298.html
標籤：其他
上一篇：IOTOS驅動Thales800對接從0到1詳細程序
下一篇：2021-08-15
