1、RPC 通信原理決議

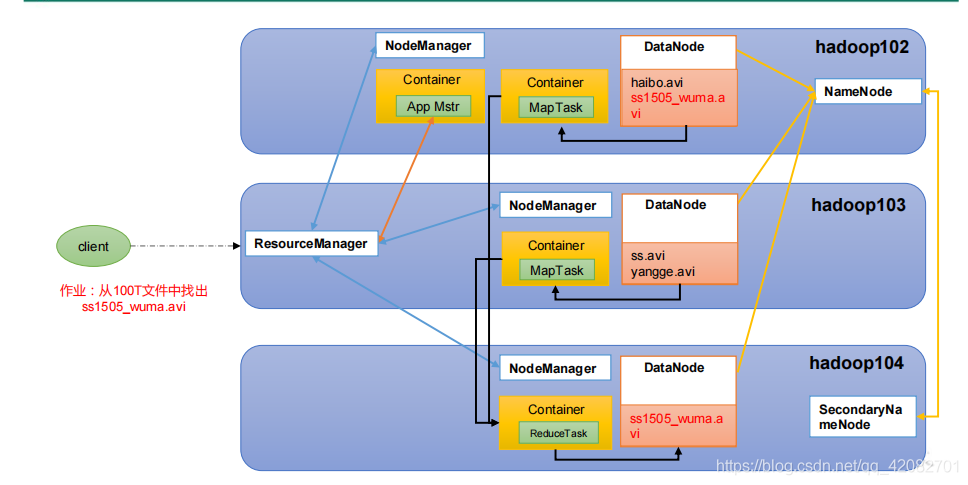

1、回顧（HDFS、YARN、MapReduce三者關系）

2、需求

模擬 RPC 的客戶端、服務端、通信協議三者如何作業的

3、代碼撰寫

（1）在 HDFSClient 專案基礎上創建包名 com.hadoop.rpc
（2）創建 RPC 協議

package com.atguigu.rpc;
public interface RPCProtocol {
 long versionID = 666;
  void mkdirs(String path);
}

（3）創建 RPC 服務端

package com.atguigu.rpc;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.ipc.RPC;
import org.apache.hadoop.ipc.Server;
import java.io.IOException;
public class NNServer implements RPCProtocol{
 @Override
 public void mkdirs(String path) {
 System.out.println("服務端，創建路徑" + path);
 }
 public static void main(String[] args) throws IOException {
 Server server = new RPC.Builder(new Configuration())
 .setBindAddress("localhost")
 .setPort(8888)
 .setProtocol(RPCProtocol.class)
 .setInstance(new NNServer())
 .build();
 System.out.println("服務器開始作業");
 server.start();
 } }

（4）創建 RPC 客戶端

package com.atguigu.rpc;
import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.ipc.RPC;
import java.io.IOException;
import java.net.InetSocketAddress;
public class HDFSClient {
 public static void main(String[] args) throws IOException {
 RPCProtocol client = RPC.getProxy(
 RPCProtocol.class,
 RPCProtocol.versionID,
 new InetSocketAddress("localhost", 8888),
 new Configuration());
 System.out.println("我是客戶端");
 client.mkdirs("/input");
 }
 }

3）測驗

（1）啟動服務端
觀察控制臺列印：服務器開始作業
在控制臺 Terminal 視窗輸入，jps，查看到 NNServer 服務
（2）啟動客戶端
觀察客戶端控制臺列印：我是客戶端
觀察服務端控制臺列印：服務端，創建路徑/input

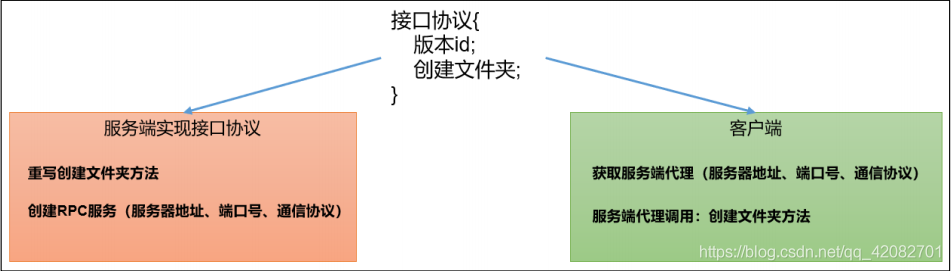

4）總結
RPC 的客戶端呼叫通信協議方法，方法的執行在服務端；
通信協議就是介面規范，

2、NameNode 啟動原始碼決議

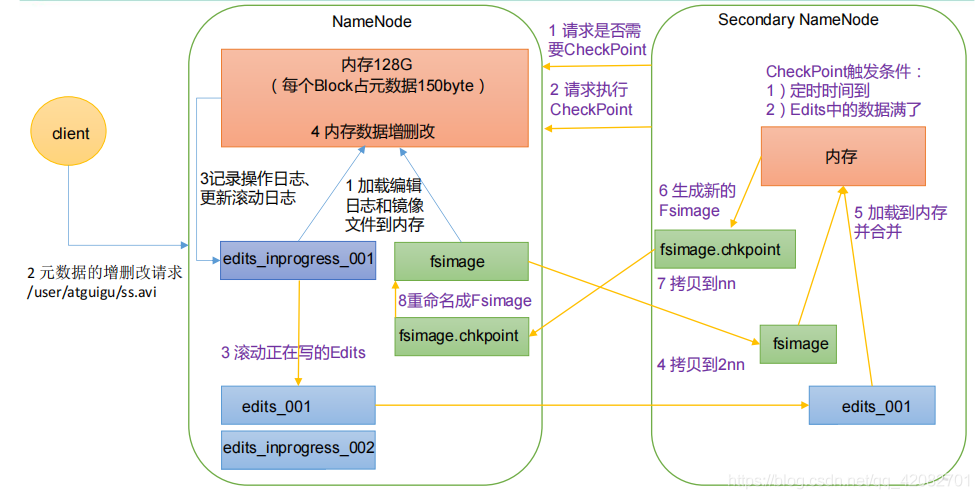

1、NameNode作業機制

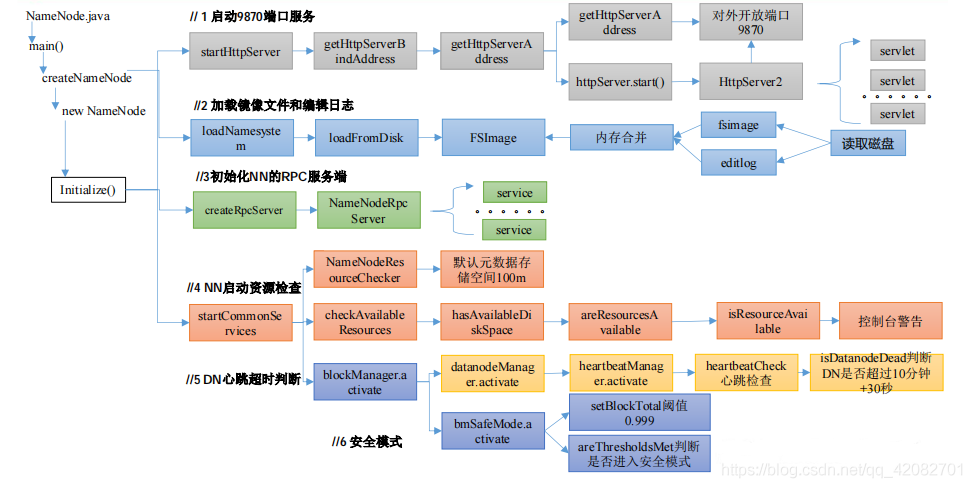

2、NameNode啟動原始碼決議

0）在 pom.xml 中增加如下依賴

<dependencies>
 <dependency>
   <groupId>org.apache.hadoop</groupId>
   <artifactId>hadoop-client</artifactId>
   <version>3.1.3</version>
 </dependency>
 <dependency>
   <groupId>org.apache.hadoop</groupId>
   <artifactId>hadoop-hdfs</artifactId>
   <version>3.1.3</version>
 </dependency>
 <dependency>
   <groupId>org.apache.hadoop</groupId>
   <artifactId>hadoop-hdfs-client</artifactId>
   <version>3.1.3</version>
   <scope>provided</scope>
 </dependency>
</dependencies>

1）ctrl + n 全域查找 namenode，進入 NameNode.java

NameNode 官方說明

NameNode serves as both directory namespace manager and “inode table” for the Hadoop DFS.
There is a single NameNode running in any DFS deployment. (Well, except when there is a
second backup/failover NameNode, or when using federated NameNodes.) The NameNode
controls two critical tables: 1) filename->blocksequence (namespace) 2) block->machinelist
(“inodes”) The first table is stored on disk and is very precious. The second table is rebuilt
every time the NameNode comes up. ‘NameNode’ refers to both this class as well as the
‘NameNode server’. The ‘FSNamesystem’ class actually performs most of the filesystem
management. The majority of the ‘NameNode’ class itself is concerned with exposing the IPC
interface and the HTTP server to the outside world, plus some configuration management.
NameNode implements the ClientProtocol interface, which allows clients to ask for DFS
services. ClientProtocol is not designed for direct use by authors of DFS client code. End-usersshould instead use the FileSystem class. NameNode also implements the DatanodeProtocol
interface, used by DataNodes that actually store DFS data blocks. These methods are invoked
repeatedly and automatically by all the DataNodes in a DFS deployment. NameNode also
implements the NamenodeProtocol interface, used by secondary namenodes or rebalancing
processes to get partial NameNode state, for example partial blocksMap etc.

2）ctrl + f，查找 main 方法

NameNode.java

public static void main(String argv[]) throws Exception {
if (DFSUtil.parseHelpArgument(argv, NameNode.USAGE, System.out, true)) {
     System.exit(0);
}
try {
StringUtils.startupShutdownMessage(NameNode.class, argv, LOG);
// 創建 NameNode
NameNode namenode = createNameNode(argv, null);
if (namenode != null) {
     namenode.join();
}
} catch (Throwable e) {
LOG.error("Failed to start namenode.", e);
terminate(1, e);
} }

點擊 createNameNode

public static NameNode createNameNode(String argv[], Configuration conf)
 throws IOException {
 … …
 StartupOption startOpt = parseArguments(argv);
  if (startOpt == null) {
   printUsage(System.err);
 return null;
 }
  setStartupOption(conf, startOpt);
  boolean aborted = false;
  switch (startOpt) {
  case FORMAT:
  aborted = format(conf, startOpt.getForceFormat(),
  startOpt.getInteractiveFormat());
   terminate(aborted ? 1 : 0);
  return null; // avoid javac warning
  case GENCLUSTERID:
 … …
  default:
  DefaultMetricsSystem.initialize("NameNode");
// 創建 NameNode 物件
 return new NameNode(conf);
 } }

點擊 NameNode

public NameNode(Configuration conf) throws IOException {
  this(conf, NamenodeRole.NAMENODE);
 }
protected NameNode(Configuration conf, NamenodeRole role)
  throws IOException {
  ... ...
 try {
  initializeGenericKeys(conf, nsId, namenodeId);
  initialize(getConf());
 ... ...
 } catch (IOException e) {
  this.stopAtException(e);
  throw e;
 } catch (HadoopIllegalArgumentException e) {
  this.stopAtException(e);
   throw e;
 }
  this.started.set(true);
}

點擊 initialize

protected void initialize(Configuration conf) throws IOException {
 ... ...
 if (NamenodeRole.NAMENODE == role) {
// 啟動 HTTP 服務端（9870）
 startHttpServer(conf);
 }
 // 加載鏡像檔案和編輯日志到記憶體
 loadNamesystem(conf);
 startAliasMapServerIfNecessary(conf);
 // 創建 NN 的 RPC 服務端
 rpcServer = createRpcServer(conf);
 initReconfigurableBackoffKey();
 if (clientNamenodeAddress == null) {
 // This is expected for MiniDFSCluster. Set it now using
 // the RPC server's bind address.
 clientNamenodeAddress =
 NetUtils.getHostPortString(getNameNodeAddress());
 LOG.info("Clients are to use " + clientNamenodeAddress + " to access"
 + " this namenode/service.");
 }
 if (NamenodeRole.NAMENODE == role) {
 httpServer.setNameNodeAddress(getNameNodeAddress());
 httpServer.setFSImage(getFSImage());
 }
 // NN 啟動資源檢查
 startCommonServices(conf);
 startMetricsLogger(conf);
}

3、啟動 9870 埠服務

1）點擊 startHttpServer
NameNode.java

private void startHttpServer(final Configuration conf) throws IOException {
httpServer = new NameNodeHttpServer(conf, this, getHttpServerBindAddress(conf));
httpServer.start();
httpServer.setStartupProgress(startupProgress); }
protected InetSocketAddress getHttpServerBindAddress(Configuration conf) {
 InetSocketAddress bindAddress = getHttpServerAddress(conf);
 ... ...
 return bindAddress;
}
protected InetSocketAddress getHttpServerAddress(Configuration conf) {
 return getHttpAddress(conf);
}
public static InetSocketAddress getHttpAddress(Configuration conf) {
return NetUtils.createSocketAddr(
 conf.getTrimmed(DFS_NAMENODE_HTTP_ADDRESS_KEY,
DFS_NAMENODE_HTTP_ADDRESS_DEFAULT));
}
public static final String DFS_NAMENODE_HTTP_ADDRESS_DEFAULT = "0.0.0.0:" +
DFS_NAMENODE_HTTP_PORT_DEFAULT;
public static final int DFS_NAMENODE_HTTP_PORT_DEFAULT =
HdfsClientConfigKeys.DFS_NAMENODE_HTTP_PORT_DEFAULT;
int DFS_NAMENODE_HTTP_PORT_DEFAULT = 9870;

2）點擊 startHttpServer 方法中的 httpServer.start();

NameNodeHttpServer.java

void start() throws IOException {
 ... ...
 // Hadoop 自己封裝了 HttpServer，形成自己的 HttpServer2
 HttpServer2.Builder builder = DFSUtil.httpServerTemplateForNNAndJN(conf,
 httpAddr, httpsAddr, "hdfs",

DFSConfigKeys.DFS_NAMENODE_KERBEROS_INTERNAL_SPNEGO_PRINCIPAL_K
EY,
 DFSConfigKeys.DFS_NAMENODE_KEYTAB_FILE_KEY);
 ... ...
 httpServer = builder.build();
 ... ...
 httpServer.setAttribute(NAMENODE_ATTRIBUTE_KEY, nn);
 httpServer.setAttribute(JspHelper.CURRENT_CONF, conf);
 setupServlets(httpServer, conf);
 httpServer.start();
 ... ...
}

點擊 setupServlets

private static void setupServlets(HttpServer2 httpServer, Configuration conf) {
httpServer.addInternalServlet("startupProgress",
StartupProgressServlet.PATH_SPEC, StartupProgressServlet.class);
httpServer.addInternalServlet("fsck", "/fsck", FsckServlet.class,
true);
httpServer.addInternalServlet("imagetransfer", ImageServlet.PATH_SPEC,
 ImageServlet.class, true);
}

4、加載鏡像檔案和編輯日志

1）點擊 loadNamesystem
NameNode.java

protected void loadNamesystem(Configuration conf) throws IOException {
this.namesystem = FSNamesystem.loadFromDisk(conf);
}
static FSNamesystem loadFromDisk(Configuration conf) throws IOException {
 checkConfiguration(conf);
 FSImage fsImage = new FSImage(conf,
 FSNamesystem.getNamespaceDirs(conf),
 FSNamesystem.getNamespaceEditsDirs(conf));
 FSNamesystem namesystem = new FSNamesystem(conf, fsImage, false);
 StartupOption startOpt = NameNode.getStartupOption(conf);
 if (startOpt == StartupOption.RECOVER) {
 namesystem.setSafeMode(SafeModeAction.SAFEMODE_ENTER);
 }
 long loadStart = monotonicNow();
 try {
 namesystem.loadFSImage(startOpt);
 } catch (IOException ioe) {
 LOG.warn("Encountered exception loading fsimage", ioe);
 fsImage.close();
 throw ioe;
 }
 long timeTakenToLoadFSImage = monotonicNow() - loadStart;
 LOG.info("Finished loading FSImage in " + timeTakenToLoadFSImage + " msecs");
 NameNodeMetrics nnMetrics = NameNode.getNameNodeMetrics();
 if (nnMetrics != null) {
 nnMetrics.setFsImageLoadTime((int) timeTakenToLoadFSImage);
 }
 namesystem.getFSDirectory().createReservedStatuses(namesystem.getCTime());
 return namesystem;
 }

5、初始化 NN 的 RPC 服務端

1）點擊 createRpcServer
NameNode.java

protected NameNodeRpcServer createRpcServer(Configuration conf)
 throws IOException {
 return new NameNodeRpcServer(conf, this);
}

NameNodeRpcServer.java

public NameNodeRpcServer(Configuration conf, NameNode nn)
 throws IOException {
... ....
 serviceRpcServer = new RPC.Builder(conf)
 .setProtocol(
 org.apache.hadoop.hdfs.protocolPB.ClientNamenodeProtocolPB.class)
 .setInstance(clientNNPbService)
 .setBindAddress(bindHost)
 .setPort(serviceRpcAddr.getPort())
 .setNumHandlers(serviceHandlerCount)
 .setVerbose(false)
 .setSecretManager(namesystem.getDelegationTokenSecretManager())
 .build();
... ....
}

6、NN 啟動資源檢查

1）點擊 startCommonServices
NameNode.java

private void startCommonServices(Configuration conf) throws IOException {
 namesystem.startCommonServices(conf, haContext);
 registerNNSMXBean();
 if (NamenodeRole.NAMENODE != role) {
 startHttpServer(conf);
 httpServer.setNameNodeAddress(getNameNodeAddress());
 httpServer.setFSImage(getFSImage());
 }
 rpcServer.start();
 try {
 plugins = conf.getInstances(DFS_NAMENODE_PLUGINS_KEY,
 ServicePlugin.class);
 } catch (RuntimeException e) {
 String pluginsValue = conf.get(DFS_NAMENODE_PLUGINS_KEY);
 LOG.error("Unable to load NameNode plugins. Specified list of plugins: " +
 pluginsValue, e);
 throw e;
 }
 … …
}

2）點擊 startCommonServices
FSNamesystem.java

void startCommonServices(Configuration conf, HAContext haContext) throws IOException {
 this.registerMBean(); // register the MBean for the FSNamesystemState
 writeLock();
 this.haContext = haContext;
 try {
 nnResourceChecker = new NameNodeResourceChecker(conf);
 // 檢查是否有足夠的磁盤存盤元資料（fsimage（默認 100m）editLog（默認 100m））
 checkAvailableResources();
 assert !blockManager.isPopulatingReplQueues();
 StartupProgress prog = NameNode.getStartupProgress();
 prog.beginPhase(Phase.SAFEMODE);
long completeBlocksTotal = getCompleteBlocksTotal();
 // 安全模式
 prog.setTotal(Phase.SAFEMODE, STEP_AWAITING_REPORTED_BLOCKS,
 completeBlocksTotal);
 // 啟動塊服務
 blockManager.activate(conf, completeBlocksTotal);
 } finally {
 writeUnlock("startCommonServices");
 }

 registerMXBean();
 DefaultMetricsSystem.instance().register(this);
 if (inodeAttributeProvider != null) {
 inodeAttributeProvider.start();
 dir.setINodeAttributeProvider(inodeAttributeProvider);
 }
 snapshotManager.registerMXBean();
 InetSocketAddress serviceAddress = NameNode.getServiceAddress(conf, true);
 this.nameNodeHostName = (serviceAddress != null) ?
 serviceAddress.getHostName() : "";
}

點擊 NameNodeResourceChecker
NameNodeResourceChecker.java

public NameNodeResourceChecker(Configuration conf) throws IOException {
 this.conf = conf;
 volumes = new HashMap<String, CheckedVolume>();

 // dfs.namenode.resource.du.reserved 默認值 1024 * 1024 * 100 =》100m
 duReserved = conf.getLong(DFSConfigKeys.DFS_NAMENODE_DU_RESERVED_KEY,
 DFSConfigKeys.DFS_NAMENODE_DU_RESERVED_DEFAULT);

 Collection<URI> extraCheckedVolumes = Util.stringCollectionAsURIs(conf
 .getTrimmedStringCollection(DFSConfigKeys.DFS_NAMENODE_CHECKED_VO
LUMES_KEY));

 Collection<URI> localEditDirs = Collections2.filter(
 FSNamesystem.getNamespaceEditsDirs(conf),
 new Predicate<URI>() {
 @Override
 public boolean apply(URI input) {
 if (input.getScheme().equals(NNStorage.LOCAL_URI_SCHEME)) {
 return true;
 }
 return false;
 }
 });
 // 對所有路徑進行資源檢查
 for (URI editsDirToCheck : localEditDirs) {
 addDirToCheck(editsDirToCheck,
 FSNamesystem.getRequiredNamespaceEditsDirs(conf).contains(
 editsDirToCheck));
 }
 // All extra checked volumes are marked "required"
 for (URI extraDirToCheck : extraCheckedVolumes) {
 addDirToCheck(extraDirToCheck, true);
 }

 minimumRedundantVolumes = conf.getInt(
 DFSConfigKeys.DFS_NAMENODE_CHECKED_VOLUMES_MINIMUM_KEY,

DFSConfigKeys.DFS_NAMENODE_CHECKED_VOLUMES_MINIMUM_DEFAULT);
}

點擊 checkAvailableResources
FNNamesystem.java

void checkAvailableResources() {
long resourceCheckTime = monotonicNow();
Preconditions.checkState(nnResourceChecker != null,
"nnResourceChecker not initialized");
// 判斷資源是否足夠，不夠回傳 false
hasResourcesAvailable = nnResourceChecker.hasAvailableDiskSpace();
resourceCheckTime = monotonicNow() - resourceCheckTime;
NameNode.getNameNodeMetrics().addResourceCheckTime(resourceCheckTime);
}

NameNodeResourceChecker.java

public boolean hasAvailableDiskSpace() {
return NameNodeResourcePolicy.areResourcesAvailable(volumes.values(),
 minimumRedundantVolumes);
}

NameNodeResourcePolicy.java

 Collection<? extends CheckableNameNodeResource> resources,
 int minimumRedundantResources) {
 // TODO: workaround:
 // - during startup, if there are no edits dirs on disk, then there is
 // a call to areResourcesAvailable() with no dirs at all, which was
 // previously causing the NN to enter safemode
 if (resources.isEmpty()) {
 return true;
 }

 int requiredResourceCount = 0;
 int redundantResourceCount = 0;
 int disabledRedundantResourceCount = 0;
 // 判斷資源是否充足
 for (CheckableNameNodeResource resource : resources) {
 if (!resource.isRequired()) {
 redundantResourceCount++;
 if (!resource.isResourceAvailable()) {
 disabledRedundantResourceCount++;
 }
 } else {
 requiredResourceCount++;
 if (!resource.isResourceAvailable()) {
 // Short circuit - a required resource is not available. 不充足回傳 false
 return false;
 }
 }
 }

 if (redundantResourceCount == 0) {
 // If there are no redundant resources, return true if there are any
 // required resources available.
 return requiredResourceCount > 0;
 } else {
 return redundantResourceCount - disabledRedundantResourceCount >=
 minimumRedundantResources;
 } }
interface CheckableNameNodeResource {

 public boolean isResourceAvailable();

 public boolean isRequired();
}

ctrl + h，查找實作類 CheckedVolume
NameNodeResourceChecker.java

public boolean isResourceAvailable() {
 // 獲取當前目錄的空間大小
 long availableSpace = df.getAvailable();
 if (LOG.isDebugEnabled()) {
 LOG.debug("Space available on volume '" + volume + "' is "
 + availableSpace);
 }
 // 如果當前空間大小，小于 100m，回傳 false
 if (availableSpace < duReserved) {
 LOG.warn("Space available on volume '" + volume + "' is "
 + availableSpace +
 ", which is below the configured reserved amount " + duReserved);
 return false;
 } else {
 return true;
 } }

7、 NN 對心跳超時判斷

Ctrl + n 搜索 namenode，ctrl + f 搜索 startCommonServices
點擊 namesystem.startCommonServices(conf, haContext);
點擊 blockManager.activate(conf, completeBlocksTotal);
點擊 datanodeManager.activate(conf);

DatanodeManager.java

void activate(final Configuration conf) {
 datanodeAdminManager.activate(conf);
 heartbeatManager.activate();
}

DatanodeManager.java

void activate() {
 // 啟動的執行緒，搜索 run 方法
 heartbeatThread.start();
}
public void run() {
 while(namesystem.isRunning()) {
 restartHeartbeatStopWatch();
 try {
 final long now = Time.monotonicNow();
 if (lastHeartbeatCheck + heartbeatRecheckInterval < now) {
// 心跳檢查
 heartbeatCheck();
 lastHeartbeatCheck = now;
 }
 if (blockManager.shouldUpdateBlockKey(now - lastBlockKeyUpdate)) {
 synchronized(HeartbeatManager.this) {
 for(DatanodeDescriptor d : datanodes) {
 d.setNeedKeyUpdate(true);
 }
 }
 lastBlockKeyUpdate = now;
 }
 } catch (Exception e) {
 LOG.error("Exception while checking heartbeat", e);
 }
 try {
 Thread.sleep(5000); // 5 seconds
 } catch (InterruptedException ignored) {
 }
 // avoid declaring nodes dead for another cycle if a GC pause lasts
 // longer than the node recheck interval
 if (shouldAbortHeartbeatCheck(-5000)) {
 LOG.warn("Skipping next heartbeat scan due to excessive pause");
 lastHeartbeatCheck = Time.monotonicNow();
 }
 } }
void heartbeatCheck() {
 final DatanodeManager dm = blockManager.getDatanodeManager();
 boolean allAlive = false;
 while (!allAlive) {
 // locate the first dead node.
 DatanodeDescriptor dead = null;
 // locate the first failed storage that isn't on a dead node.
 DatanodeStorageInfo failedStorage = null;
 // check the number of stale nodes
 int numOfStaleNodes = 0;
 int numOfStaleStorages = 0;
 synchronized(this) {
 for (DatanodeDescriptor d : datanodes) {
 // check if an excessive GC pause has occurred
 if (shouldAbortHeartbeatCheck(0)) {
 return;
 }
// 判斷 DN 節點是否掛斷
 if (dead == null && dm.isDatanodeDead(d)) {
 stats.incrExpiredHeartbeats();
 dead = d;
 }
 if (d.isStale(dm.getStaleInterval())) {
 numOfStaleNodes++;
 }
 DatanodeStorageInfo[] storageInfos = d.getStorageInfos();
 for(DatanodeStorageInfo storageInfo : storageInfos) {
 if (storageInfo.areBlockContentsStale()) {
 numOfStaleStorages++;
 }
 if (failedStorage == null &&
 storageInfo.areBlocksOnFailedStorage() &&
 d != dead) {
 failedStorage = storageInfo;
 }
 }
 }

 // Set the number of stale nodes in the DatanodeManager
 dm.setNumStaleNodes(numOfStaleNodes);
 dm.setNumStaleStorages(numOfStaleStorages);
 }
 } }
boolean isDatanodeDead(DatanodeDescriptor node) {
 return (node.getLastUpdateMonotonic() <
 (monotonicNow() - heartbeatExpireInterval));
}
private long heartbeatExpireInterval;
// 10 分鐘 + 30 秒
this.heartbeatExpireInterval = 2 * heartbeatRecheckInterval + 10 * 1000 *
heartbeatIntervalSeconds;
private volatile int heartbeatRecheckInterval;
heartbeatRecheckInterval = conf.getInt(

DFSConfigKeys.DFS_NAMENODE_HEARTBEAT_RECHECK_INTERVAL_KEY,

DFSConfigKeys.DFS_NAMENODE_HEARTBEAT_RECHECK_INTERVAL_DEFAULT);
// 5 minutes
private volatile long heartbeatIntervalSeconds;
heartbeatIntervalSeconds = conf.getTimeDuration(
 DFSConfigKeys.DFS_HEARTBEAT_INTERVAL_KEY,
 DFSConfigKeys.DFS_HEARTBEAT_INTERVAL_DEFAULT,
TimeUnit.SECONDS);
public static final long DFS_HEARTBEAT_INTERVAL_DEFAULT = 3;
 ... ...

8、 安全模式

FSNamesystem.java

void startCommonServices(Configuration conf, HAContext haContext) throws IOException {
 this.registerMBean(); // register the MBean for the FSNamesystemState
 writeLock();
 this.haContext = haContext;
 try {
 nnResourceChecker = new NameNodeResourceChecker(conf);
 // 檢查是否有足夠的磁盤存盤元資料（fsimage（默認 100m）editLog（默認 100m））
 checkAvailableResources();
 assert !blockManager.isPopulatingReplQueues();
 StartupProgress prog = NameNode.getStartupProgress();
 // 開始進入安全模式
 prog.beginPhase(Phase.SAFEMODE);
 // 獲取所有可以正常使用的 block
long completeBlocksTotal = getCompleteBlocksTotal();
 prog.setTotal(Phase.SAFEMODE, STEP_AWAITING_REPORTED_BLOCKS,
 completeBlocksTotal);
 // 啟動塊服務
 blockManager.activate(conf, completeBlocksTotal);
 } finally {
 writeUnlock("startCommonServices");
 }

 registerMXBean();
 DefaultMetricsSystem.instance().register(this);
 if (inodeAttributeProvider != null) {
 inodeAttributeProvider.start();
 dir.setINodeAttributeProvider(inodeAttributeProvider);
 }
 snapshotManager.registerMXBean();
 InetSocketAddress serviceAddress = NameNode.getServiceAddress(conf, true);
 this.nameNodeHostName = (serviceAddress != null) ?
 serviceAddress.getHostName() : "";
}

點擊 getCompleteBlocksTotal

public long getCompleteBlocksTotal() {
 // Calculate number of blocks under construction
 long numUCBlocks = 0;
 readLock();
 try {
 // 獲取正在構建的 block
 numUCBlocks = leaseManager.getNumUnderConstructionBlocks();
// 獲取所有的塊 - 正在構建的 block = 可以正常使用的 block
 return getBlocksTotal() - numUCBlocks;
 } finally {
 readUnlock("getCompleteBlocksTotal");
 } }

點擊 activate

public void activate(Configuration conf, long blockTotal) {
  pendingReconstruction.start();
  datanodeManager.activate(conf);
  this.redundancyThread.setName("RedundancyMonitor");
  this.redundancyThread.start();
  storageInfoDefragmenterThread.setName("StorageInfoMonitor");
  storageInfoDefragmenterThread.start();
  this.blockReportThread.start();
  mxBeanName = MBeans.register("NameNode", "BlockStats", this);
  bmSafeMode.activate(blockTotal);
}

點擊 activate

 assert namesystem.hasWriteLock();
 assert status == BMSafeModeStatus.OFF;
 startTime = monotonicNow();
 // 計算是否滿足塊個數的閾值
 setBlockTotal(total);
  // 判斷 DataNode 節點和塊資訊是否達到退出安全模式標準
 if (areThresholdsMet()) {
 boolean exitResult = leaveSafeMode(false);
 Preconditions.checkState(exitResult, "Failed to leave safe mode.");
 } else {
 // enter safe mode
status = BMSafeModeStatus.PENDING_THRESHOLD;
initializeReplQueuesIfNecessary();
 reportStatus("STATE* Safe mode ON.", true);
 lastStatusReport = monotonicNow();
 } }

點擊 setBlockTotal

void setBlockTotal(long total) {
 assert namesystem.hasWriteLock();
 synchronized (this) {
 this.blockTotal = total;
// 計算閾值：例如：1000 個正常的塊 * 0.999 = 999
 this.blockThreshold = (long) (total * threshold);
 }

 this.blockReplQueueThreshold = (long) (total * replQueueThreshold);
}
this.threshold = conf.getFloat(DFS_NAMENODE_SAFEMODE_THRESHOLD_PCT_KEY,
 DFS_NAMENODE_SAFEMODE_THRESHOLD_PCT_DEFAULT);
public static final float
DFS_NAMENODE_SAFEMODE_THRESHOLD_PCT_DEFAULT = 0.999f;

點擊 areThresholdsMet

private boolean areThresholdsMet() {
 assert namesystem.hasWriteLock();
 // Calculating the number of live datanodes is time-consuming
 // in large clusters. Skip it when datanodeThreshold is zero.
 int datanodeNum = 0;
 if (datanodeThreshold > 0) {
 datanodeNum = blockManager.getDatanodeManager().getNumLiveDataNodes();
 }
 synchronized (this) {
 // 已經正常注冊的塊數 》= 塊的最小閾值 》=最小可用 DataNode
 return blockSafe >= blockThreshold && datanodeNum >= datanodeThreshold;
 } }

3、DataNode 啟動原始碼決議

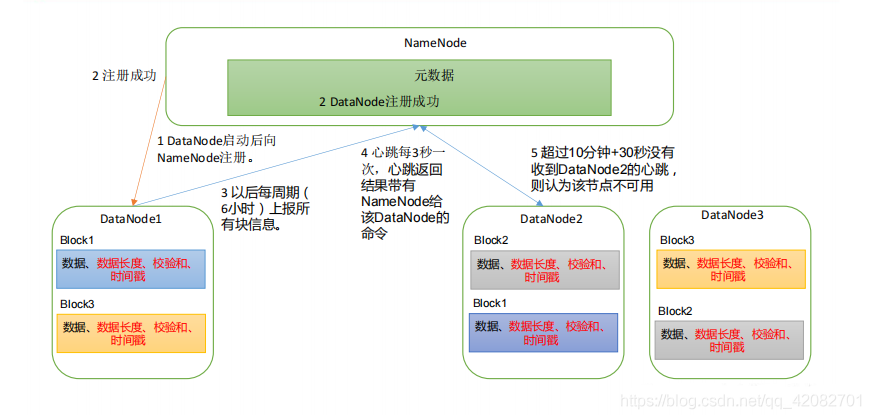

1、DataNode作業機制

2、DataNode啟動原始碼決議

0）在 pom.xml 中增加如下依賴

<dependencies>
<dependency>
   <groupId>org.apache.hadoop</groupId>
   <artifactId>hadoop-client</artifactId>
   <version>3.1.3</version>
</dependency>
<dependency>
   <groupId>org.apache.hadoop</groupId>
   <artifactId>hadoop-hdfs</artifactId>
   <version>3.1.3</version>
</dependency>
<dependency>
   <groupId>org.apache.hadoop</groupId>
   <artifactId>hadoop-hdfs-client</artifactId>
   <version>3.1.3</version>
   <scope>provided</scope>
</dependency>
</dependencies>

1）ctrl + n 全域查找 datanode，進入 DataNode.java

DataNode 官方說明

DataNode is a class (and program) that stores a set of blocks for a DFS deployment. A single
deployment can have one or many DataNodes. Each DataNode communicates regularly with
a single NameNode. It also communicates with client code and other DataNodes from time to
time. DataNodes store a series of named blocks. The DataNode allows client code to read these
blocks, or to write new block data. The DataNode may also, in response to instructions from
its NameNode, delete blocks or copy blocks to/from other DataNodes. The DataNode
maintains just one critical table: block-> stream of bytes (of BLOCK_SIZE or less) This info
is stored on a local disk. The DataNode reports the table's contents to the NameNode upon
startup and every so often afterwards. DataNodes spend their lives in an endless loop of asking
the NameNode for something to do. A NameNode cannot connect to a DataNode directly; a
NameNode simply returns values from functions invoked by a DataNode. DataNodes maintain
an open server socket so that client code or other DataNodes can read/write data. The host/port
for this server is reported to the NameNode, which then sends that information to clients or
other DataNodes that might be interested.

2）ctrl + f，查找 main 方法
DataNode.java

public static void main(String args[]) {
 if (DFSUtil.parseHelpArgument(args, DataNode.USAGE, System.out, true)) {
 System.exit(0);
 }
 secureMain(args, null);
}
public static void secureMain(String args[], SecureResources resources) {
 int errorCode = 0;
 try {
 StringUtils.startupShutdownMessage(DataNode.class, args, LOG);
 DataNode datanode = createDataNode(args, null, resources);
 … …
 } catch (Throwable e) {
 LOG.error("Exception in secureMain", e);
 terminate(1, e);
 } finally {
 LOG.warn("Exiting Datanode");
 terminate(errorCode);
 } }
public static DataNode createDataNode(String args[], Configuration conf,
 SecureResources resources) throws IOException {
 // 初始化 DN
  DataNode dn = instantiateDataNode(args, conf, resources);
 if (dn != null) {
 // 啟動 DN 行程
 dn.runDatanodeDaemon();
 }
 return dn;
}
public static DataNode instantiateDataNode(String args [], Configuration conf,
 SecureResources resources) throws IOException {
 ... ...

 return makeInstance(dataLocations, conf, resources);
}
static DataNode makeInstance(Collection<StorageLocation> dataDirs,
 Configuration conf, SecureResources resources) throws IOException {
 ... ...
 return new DataNode(conf, locations, storageLocationChecker, resources);
}
DataNode(final Configuration conf,
 final List<StorageLocation> dataDirs,
 final StorageLocationChecker storageLocationChecker,
 final SecureResources resources) throws IOException {
 super(conf);
 ... ...
 try {
 hostName = getHostName(conf);
 LOG.info("Configured hostname is {}", hostName);
// 啟動 DN
 startDataNode(dataDirs, resources);
 } catch (IOException ie) {
 shutdown();
 throw ie;
 }
 ... ...
}
void startDataNode(List<StorageLocation> dataDirectories,
 SecureResources resources
 ) throws IOException {
 ... ...
 // 創建資料存盤物件
 storage = new DataStorage();

 // global DN settings
 registerMXBean();
 // 初始化 DataXceiver
 initDataXceiver();

 // 啟動 HttpServer
 startInfoServer();
 pauseMonitor = new JvmPauseMonitor();
 pauseMonitor.init(getConf());
 pauseMonitor.start();
 // BlockPoolTokenSecretManager is required to create ipc server.
 this.blockPoolTokenSecretManager = new BlockPoolTokenSecretManager();
 // Login is done by now. Set the DN user name.
 dnUserName = UserGroupInformation.getCurrentUser().getUserName();
 LOG.info("dnUserName = {}", dnUserName);
 LOG.info("supergroup = {}", supergroup);

 // 初始化 RPC 服務
 initIpcServer();
 metrics = DataNodeMetrics.create(getConf(), getDisplayName());
 peerMetrics = dnConf.peerStatsEnabled ?
 DataNodePeerMetrics.create(getDisplayName(), getConf()) : null;
 metrics.getJvmMetrics().setPauseMonitor(pauseMonitor);
 ecWorker = new ErasureCodingWorker(getConf(), this);
 blockRecoveryWorker = new BlockRecoveryWorker(this);

 // 創建 BlockPoolManager
 blockPoolManager = new BlockPoolManager(this);
 // 心跳管理
 blockPoolManager.refreshNamenodes(getConf());
 // Create the ReadaheadPool from the DataNode context so we can
 // exit without having to explicitly shutdown its thread pool.
 readaheadPool = ReadaheadPool.getInstance();
 saslClient = new SaslDataTransferClient(dnConf.getConf(),
 dnConf.saslPropsResolver, dnConf.trustedChannelResolver);
 saslServer = new SaslDataTransferServer(dnConf, blockPoolTokenSecretManager);
 startMetricsLogger();
 if (dnConf.diskStatsEnabled) {
 diskMetrics = new DataNodeDiskMetrics(this,
 dnConf.outliersReportIntervalMs);
 } }

2）初始化 DataXceiverServer

點擊 initDataXceiver

private void initDataXceiver() throws IOException {
// dataXceiverServer 是一個服務，DN 用來接收客戶端和其他 DN 發送過來的資料服務
 this.dataXceiverServer = new Daemon(threadGroup, xserver);
 this.threadGroup.setDaemon(true); // auto destroy when empty
 ... ...
}

3）初始化 HTTP 服務

點擊 startInfoServer();
DataNode.java

private void startInfoServer()
 throws IOException {
 // SecureDataNodeStarter will bind the privileged port to the channel if
 // the DN is started by JSVC, pass it along.
 ServerSocketChannel httpServerChannel = secureResources != null ?
 secureResources.getHttpServerChannel() : null;
 httpServer = new DatanodeHttpServer(getConf(), this, httpServerChannel);
 httpServer.start();
 if (httpServer.getHttpAddress() != null) {
 infoPort = httpServer.getHttpAddress().getPort();
 }
 if (httpServer.getHttpsAddress() != null) {
 infoSecurePort = httpServer.getHttpsAddress().getPort();
 } }

DatanodeHttpServer.java

public DatanodeHttpServer(final Configuration conf,
 final DataNode datanode,
 final ServerSocketChannel externalHttpChannel)
 throws IOException {

 ... ...
 HttpServer2.Builder builder = new HttpServer2.Builder()
 .setName("datanode")
 .setConf(confForInfoServer)
 .setACL(new AccessControlList(conf.get(DFS_ADMIN, " ")))
 .hostName(getHostnameForSpnegoPrincipal(confForInfoServer))
 .addEndpoint(URI.create("http://localhost:" + proxyPort))
 .setFindPort(true);
 ... ...
}

4）初始化 DN 的 RPC 服務端

點擊 initIpcServer

DataNode.java

private void initIpcServer() throws IOException {
 InetSocketAddress ipcAddr = NetUtils.createSocketAddr(
 getConf().getTrimmed(DFS_DATANODE_IPC_ADDRESS_KEY));

 ... ...
 ipcServer = new RPC.Builder(getConf())
 .setProtocol(ClientDatanodeProtocolPB.class)
 .setInstance(service)
 .setBindAddress(ipcAddr.getHostName())
 .setPort(ipcAddr.getPort())
 .setNumHandlers(
 getConf().getInt(DFS_DATANODE_HANDLER_COUNT_KEY,
 DFS_DATANODE_HANDLER_COUNT_DEFAULT)).setVerbose(false)
 .setSecretManager(blockPoolTokenSecretManager).build();
... ...
}

5）DN 向 NN 注冊

點擊 refreshNamenodes

BlockPoolManager.java

void refreshNamenodes(Configuration conf)
 throws IOException {
 ... ...
 synchronized (refreshNamenodesLock) {
 doRefreshNamenodes(newAddressMap, newLifelineAddressMap);
 } }
private void doRefreshNamenodes(
 Map<String, Map<String, InetSocketAddress>> addrMap,
 Map<String, Map<String, InetSocketAddress>> lifelineAddrMap)
 throws IOException {
 … ….

 synchronized (this) {
 … …
 // Step 3. Start new nameservices
 if (!toAdd.isEmpty()) {
 for (String nsToAdd : toAdd) {
 … …
 BPOfferService bpos = createBPOS(nsToAdd, addrs, lifelineAddrs);
 bpByNameserviceId.put(nsToAdd, bpos);
 offerServices.add(bpos);
 }
 }
 startAll();
 }
 … …
}
protected BPOfferService createBPOS(
 final String nameserviceId,
 List<InetSocketAddress> nnAddrs,
 List<InetSocketAddress> lifelineNnAddrs) {
 // 根據 NameNode 個數創建對應的服務
 return new BPOfferService(nameserviceId, nnAddrs, lifelineNnAddrs, dn);
}

點擊 startAll()

 try {
 UserGroupInformation.getLoginUser().doAs(
 new PrivilegedExceptionAction<Object>() {
 @Override
 public Object run() throws Exception {
 for (BPOfferService bpos : offerServices) {
 // 啟動服務
 bpos.start();
 }
 return null;
 }
 });
 } catch (InterruptedException ex) {
 ... ...
 } }

點擊 start ()
BPOfferService.java

void start() {
 for (BPServiceActor actor : bpServices) {
 actor.start();
 } }

點擊 start ()
BPServiceActor.java

void start() {
… …
bpThread = new Thread(this);
bpThread.setDaemon(true); // needed for JUnit testing
// 表示開啟一個執行緒，所有查找該執行緒的 run 方法
bpThread.start();
if (lifelineSender != null) {
lifelineSender.start();
} }

ctrl + f 搜索 run 方法

public void run() {
 LOG.info(this + " starting to offer service");
 try {
 while (true) {
 // init stuff
 try {
 // setup storage
// 向 NN 注冊
 connectToNNAndHandshake();
 break;
 } catch (IOException ioe) {
 // Initial handshake, storage recovery or registration failed
 runningState = RunningState.INIT_FAILED;
 if (shouldRetryInit()) {
 // Retry until all namenode's of BPOS failed initialization
 LOG.error("Initialization failed for " + this + " "
 + ioe.getLocalizedMessage());
 // 注冊失敗，5s 后重試
 sleepAndLogInterrupts(5000, "initializing");
 } else {
 runningState = RunningState.FAILED;
 LOG.error("Initialization failed for " + this + ". Exiting. ", ioe);
 return;
 }
 }
 }
 … …
 while (shouldRun()) {
 try {
 // 發送心跳
 offerService();
 } catch (Exception ex) {
 ... ...
 }
 } }
private void connectToNNAndHandshake() throws IOException {
 // get NN proxy 獲取 NN 的 RPC 客戶端物件
 bpNamenode = dn.connectToNN(nnAddr);
 // First phase of the handshake with NN - get the namespace
 // info.
 NamespaceInfo nsInfo = retrieveNamespaceInfo();
 // Verify that this matches the other NN in this HA pair.
 // This also initializes our block pool in the DN if we are
 // the first NN connection for this BP.
 bpos.verifyAndSetNamespaceInfo(this, nsInfo);
 /* set thread name again to include NamespaceInfo when it's available. */
 this.bpThread.setName(formatThreadName("heartbeating", nnAddr));
 // 注冊
 register(nsInfo);
}
DatanodeProtocolClientSideTranslatorPB connectToNN(
 InetSocketAddress nnAddr) throws IOException {
 return new DatanodeProtocolClientSideTranslatorPB(nnAddr, getConf());
}

DatanodeProtocolClientSideTranslatorPB.java

public DatanodeProtocolClientSideTranslatorPB(InetSocketAddress nameNodeAddr,
 Configuration conf) throws IOException {
RPC.setProtocolEngine(conf, DatanodeProtocolPB.class,
 ProtobufRpcEngine.class);
 UserGroupInformation ugi = UserGroupInformation.getCurrentUser();
 rpcProxy = createNamenode(nameNodeAddr, conf, ugi);
}
private static DatanodeProtocolPB createNamenode(
 InetSocketAddress nameNodeAddr, Configuration conf,
 UserGroupInformation ugi) throws IOException {
  return RPC.getProxy(DatanodeProtocolPB.class,
 RPC.getProtocolVersion(DatanodeProtocolPB.class), nameNodeAddr, ugi,
 conf, NetUtils.getSocketFactory(conf, DatanodeProtocolPB.class));
}

點擊 register

BPServiceActor.java

void register(NamespaceInfo nsInfo) throws IOException {
 // 創建注冊資訊
 DatanodeRegistration newBpRegistration = bpos.createRegistration();
 LOG.info(this + " beginning handshake with NN");
 while (shouldRun()) {
 try {
 // Use returned registration from namenode with updated fields
 // 把注冊資訊發送給 NN（DN 呼叫介面方法，執行在 NN）
 newBpRegistration = bpNamenode.registerDatanode(newBpRegistration);
 newBpRegistration.setNamespaceInfo(nsInfo);
 bpRegistration = newBpRegistration;
 break;
 } catch(EOFException e) { // namenode might have just restarted
 LOG.info("Problem connecting to server: " + nnAddr + " :"
 + e.getLocalizedMessage());
 sleepAndLogInterrupts(1000, "connecting to server");
 } catch(SocketTimeoutException e) { // namenode is busy
 LOG.info("Problem connecting to server: " + nnAddr);
 sleepAndLogInterrupts(1000, "connecting to server");
 }
 }
 … …
}

ctrl + n 搜索 NameNodeRpcServer
NameNodeRpcServer.java

ctrl + f 在 NameNodeRpcServer.java 中搜索 registerDatanode

public DatanodeRegistration registerDatanode(DatanodeRegistration nodeReg)
 throws IOException {
 checkNNStartup();
 verifySoftwareVersion(nodeReg);
 // 注冊 DN
 namesystem.registerDatanode(nodeReg);
 return nodeReg;
}

FSNamesystem.java

void registerDatanode(DatanodeRegistration nodeReg) throws IOException {
 writeLock();
 try {
 blockManager.registerDatanode(nodeReg);
 } finally {
 writeUnlock("registerDatanode");
 }
 }

BlockManager.java

public void registerDatanode(DatanodeRegistration nodeReg)
 throws IOException {
 assert namesystem.hasWriteLock();
 datanodeManager.registerDatanode(nodeReg);
 bmSafeMode.checkSafeMode();
}
public void registerDatanode(DatanodeRegistration nodeReg)
 throws DisallowedDatanodeException, UnresolvedTopologyException {
... ...
// register new datanode 注冊 DN
 addDatanode(nodeDescr);
 blockManager.getBlockReportLeaseManager().register(nodeDescr);
 // also treat the registration message as a heartbeat
 // no need to update its timestamp
 // because its is done when the descriptor is created
// 將 DN 添加到心跳管理
 heartbeatManager.addDatanode(nodeDescr);
 heartbeatManager.updateDnStat(nodeDescr);
 incrementVersionCount(nodeReg.getSoftwareVersion());
 startAdminOperationIfNecessary(nodeDescr);
 success = true;
... ...
}
void addDatanode(final DatanodeDescriptor node) {
 // To keep host2DatanodeMap consistent with datanodeMap,
 // remove from host2DatanodeMap the datanodeDescriptor removed
 // from datanodeMap before adding node to host2DatanodeMap.
 synchronized(this) {
 host2DatanodeMap.remove(datanodeMap.put(node.getDatanodeUuid(), node));
 }
 networktopology.add(node); // may throw InvalidTopologyException
host2DatanodeMap.add(node);
checkIfClusterIsNowMultiRack(node);
 resolveUpgradeDomain(node);
 … …
}

6）向 NN 發送心跳

點擊 BPServiceActor.java 中的 run 方法中的 offerService 方法
BPServiceActor.java

private void offerService() throws Exception {
while (shouldRun()) {
 ... ...
 HeartbeatResponse resp = null;
 if (sendHeartbeat) {
 boolean requestBlockReportLease = (fullBlockReportLeaseId == 0) &&
 scheduler.isBlockReportDue(startTime);
 if (!dn.areHeartbeatsDisabledForTests()) {
 // 發送心跳資訊
 resp = sendHeartBeat(requestBlockReportLease);
 assert resp != null;
 if (resp.getFullBlockReportLeaseId() != 0) {
 if (fullBlockReportLeaseId != 0) {
... ...
 }
 fullBlockReportLeaseId = resp.getFullBlockReportLeaseId();
 }
 ... ...
 }
 }
... ...
} }
HeartbeatResponse sendHeartBeat(boolean requestBlockReportLease)
 throws IOException {
... ...
// 通過 NN 的 RPC 客戶端發送給 NN
HeartbeatResponse response = bpNamenode.sendHeartbeat(bpRegistration,
 reports,
 dn.getFSDataset().getCacheCapacity(),
 dn.getFSDataset().getCacheUsed(),
 dn.getXmitsInProgress(),
 dn.getXceiverCount(),
 numFailedVolumes,
 volumeFailureSummary,
 requestBlockReportLease,
 slowPeers,
 slowDisks);
... ...
}

ctrl + n 搜索 NameNodeRpcServer
NameNodeRpcServer.java

ctrl + f 在 NameNodeRpcServer.java 中搜索 sendHeartbeat

public HeartbeatResponse sendHeartbeat(DatanodeRegistration nodeReg,
 StorageReport[] report, long dnCacheCapacity, long dnCacheUsed,
 int xmitsInProgress, int xceiverCount,
 int failedVolumes, VolumeFailureSummary volumeFailureSummary,
 boolean requestFullBlockReportLease,
 @Nonnull SlowPeerReports slowPeers,
@Nonnull SlowDiskReports slowDisks) throws IOException {
 checkNNStartup();
 verifyRequest(nodeReg);
 // 處理 DN 發送的心跳
 return namesystem.handleHeartbeat(nodeReg, report,
 dnCacheCapacity, dnCacheUsed, xceiverCount, xmitsInProgress,
 failedVolumes, volumeFailureSummary, requestFullBlockReportLease,
 slowPeers, slowDisks);
}
HeartbeatResponse handleHeartbeat(DatanodeRegistration nodeReg,
 StorageReport[] reports, long cacheCapacity, long cacheUsed,
 int xceiverCount, int xmitsInProgress, int failedVolumes,
 VolumeFailureSummary volumeFailureSummary,
 boolean requestFullBlockReportLease,
 @Nonnull SlowPeerReports slowPeers,
 @Nonnull SlowDiskReports slowDisks) throws IOException {
 readLock();
 try {
 //get datanode commands
 final int maxTransfer = blockManager.getMaxReplicationStreams()
 - xmitsInProgress;
// 處理 DN 發送過來的心跳
 DatanodeCommand[] cmds = blockManager.getDatanodeManager().handleHeartbeat(
 nodeReg, reports, getBlockPoolId(), cacheCapacity, cacheUsed,
 xceiverCount, maxTransfer, failedVolumes, volumeFailureSummary,
 slowPeers, slowDisks);
 long blockReportLeaseId = 0;
 if (requestFullBlockReportLease) {
 blockReportLeaseId = blockManager.requestBlockReportLeaseId(nodeReg);
 }
 //create ha status
 final NNHAStatusHeartbeat haState = new NNHAStatusHeartbeat(
 haContext.getState().getServiceState(),
 getFSImage().getCorrectLastAppliedOrWrittenTxId());
// 回應 DN 的心跳
 return new HeartbeatResponse(cmds, haState, rollingUpgradeInfo,
 blockReportLeaseId);
 } finally {
 readUnlock("handleHeartbeat");
 } }

點擊 handleHeartbeat
DatanodeManager.java

public DatanodeCommand[] handleHeartbeat(DatanodeRegistration nodeReg,
 StorageReport[] reports, final String blockPoolId,
 long cacheCapacity, long cacheUsed, int xceiverCount,
 int maxTransfers, int failedVolumes,
 VolumeFailureSummary volumeFailureSummary,
 @Nonnull SlowPeerReports slowPeers,
 @Nonnull SlowDiskReports slowDisks) throws IOException {
 ... ...
 heartbeatManager.updateHeartbeat(nodeinfo, reports, cacheCapacity,
 cacheUsed, xceiverCount, failedVolumes, volumeFailureSummary);
 ... ...
}

HeartbeatManager.java

synchronized void updateHeartbeat(final DatanodeDescriptor node,
 StorageReport[] reports, long cacheCapacity, long cacheUsed,
 int xceiverCount, int failedVolumes,
 VolumeFailureSummary volumeFailureSummary) {
 stats.subtract(node);
 blockManager.updateHeartbeat(node, reports, cacheCapacity, cacheUsed,
 xceiverCount, failedVolumes, volumeFailureSummary);
 stats.add(node);
}

BlockManager.java

void updateHeartbeat(DatanodeDescriptor node, StorageReport[] reports,
 long cacheCapacity, long cacheUsed, int xceiverCount, int failedVolumes,
 VolumeFailureSummary volumeFailureSummary) {
 for (StorageReport report: reports) {
 providedStorageMap.updateStorage(node, report.getStorage());
 }
 node.updateHeartbeat(reports, cacheCapacity, cacheUsed, xceiverCount,
 failedVolumes, volumeFailureSummary);
}

DatanodeDescriptor.java

void updateHeartbeat(StorageReport[] reports, long cacheCapacity,
 long cacheUsed, int xceiverCount, int volFailures,
 VolumeFailureSummary volumeFailureSummary) {
 updateHeartbeatState(reports, cacheCapacity, cacheUsed, xceiverCount,
 volFailures, volumeFailureSummary);
 heartbeatedSinceRegistration = true;
}
void updateHeartbeatState(StorageReport[] reports, long cacheCapacity,
 long cacheUsed, int xceiverCount, int volFailures,
 VolumeFailureSummary volumeFailureSummary) {
 // 更新存盤
 updateStorageStats(reports, cacheCapacity, cacheUsed, xceiverCount,
 volFailures, volumeFailureSummary);
 // 更新心跳時間
 setLastUpdate(Time.now());
 setLastUpdateMonotonic(Time.monotonicNow());
 rollBlocksScheduled(getLastUpdateMonotonic());
}
private void updateStorageStats(StorageReport[] reports, long cacheCapacity,
 long cacheUsed, int xceiverCount, int volFailures,
 VolumeFailureSummary volumeFailureSummary) {
 long totalCapacity = 0;
 long totalRemaining = 0;
 long totalBlockPoolUsed = 0;
 long totalDfsUsed = 0;
 long totalNonDfsUsed = 0;
 … …
 setCacheCapacity(cacheCapacity);
 setCacheUsed(cacheUsed);
 setXceiverCount(xceiverCount);
 this.volumeFailures = volFailures;
 this.volumeFailureSummary = volumeFailureSummary;
 for (StorageReport report : reports) {
 DatanodeStorageInfo storage =
 storageMap.get(report.getStorage().getStorageID());
 if (checkFailedStorages) {
 failedStorageInfos.remove(storage);
 }
 storage.receivedHeartbeat(report);
 // skip accounting for capacity of PROVIDED storages!
 if (StorageType.PROVIDED.equals(storage.getStorageType())) {
 continue;
 }
 totalCapacity += report.getCapacity();
 totalRemaining += report.getRemaining();
 totalBlockPoolUsed += report.getBlockPoolUsed();
 totalDfsUsed += report.getDfsUsed();
 totalNonDfsUsed += report.getNonDfsUsed();
 }
 // Update total metrics for the node.
 // 更新存盤相關資訊
 setCapacity(totalCapacity);
 setRemaining(totalRemaining);
 setBlockPoolUsed(totalBlockPoolUsed);
 setDfsUsed(totalDfsUsed);
 setNonDfsUsed(totalNonDfsUsed);
 if (checkFailedStorages) {
 updateFailedStorage(failedStorageInfos);
 }
 long storageMapSize;
 synchronized (storageMap) {
 storageMapSize = storageMap.size();
 }
 if (storageMapSize != reports.length) {
 pruneStorageMap(reports);
 } }

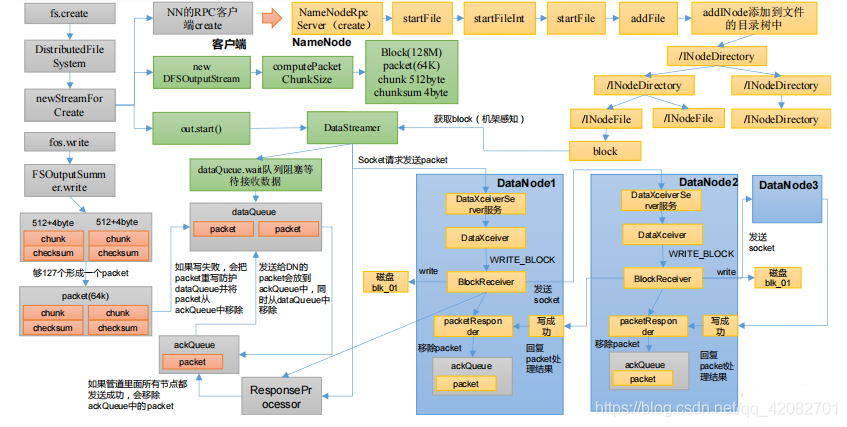

4、HDFS上傳原始碼決議

5、 Yarn 原始碼決議

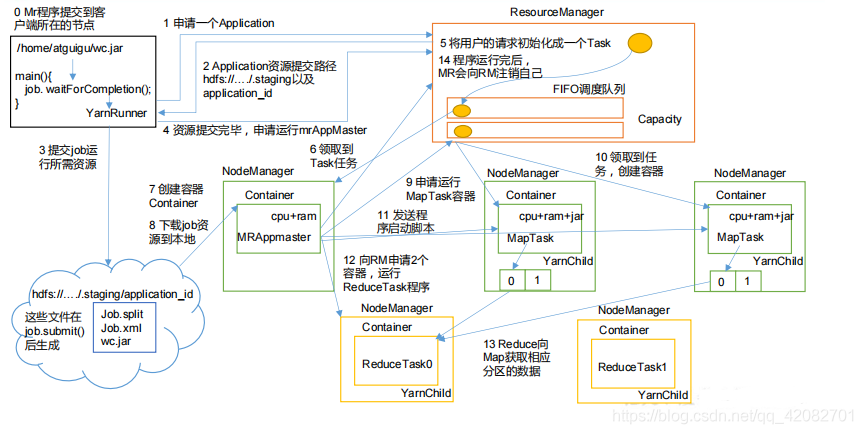

1、YARN作業機制

2、YARN原始碼決議

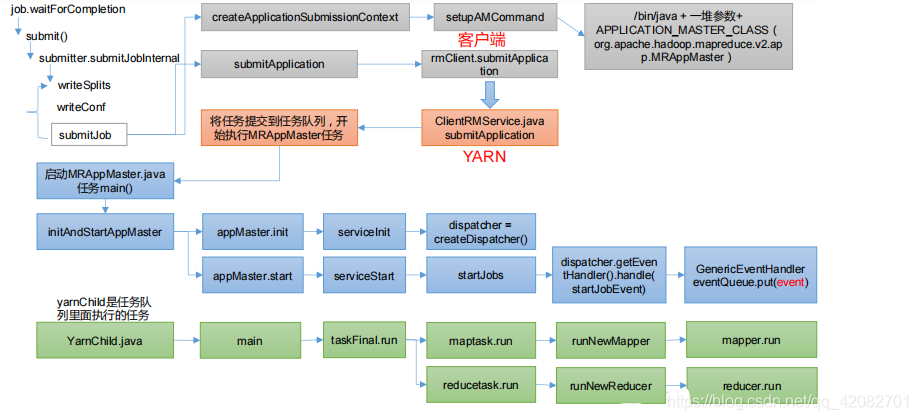

6、MapReduce 原始碼決議
