Unity 基于UGUI的UI框架 (UIFramework)

原始碼下載地址：https://download.csdn.net/download/f402455894/21356757?spm=1001.2014.3001.5501

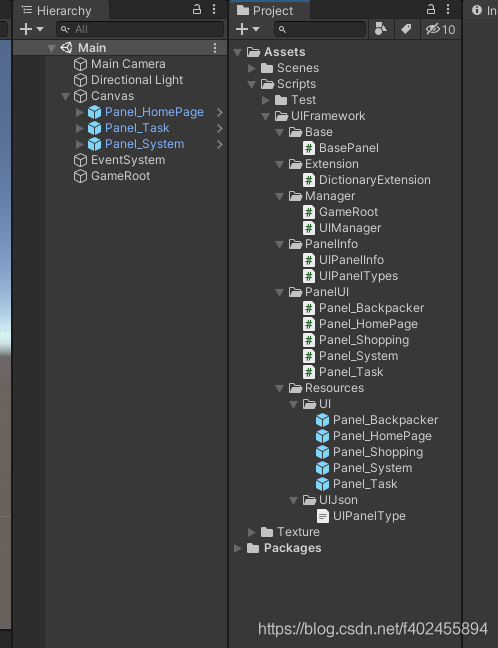

檔案結構

PanelInfo

using System;
using System.Collections.Generic;

[Serializable]
public class UIPanelInfo
{

    public string panelTypeString;
    public string path;


}
[Serializable]
public class UIPanelTypeJson
{
    public List<UIPanelInfo> infoList;
}

UIPanelType和Json根據專案情況撰寫（切記：panelTypeString 和UIPanelType中的字串還有相對應的UI預制體的名稱要一致）

public class UIPanelType
{
    public const string Backpacker = "Panel_Backpacker";
    public const string HomePage = "Panel_HomePage";
    public const string Shopping = "Panel_Shopping";
    public const string System = "Panel_System";
    public const string Task = "Panel_Task";

}

{
  "infoList":
  [
    {
      "panelTypeString": "Panel_Backpacker",
      "path": "UI/Panel_Backpacker"
    },
    {
      "panelTypeString": "Panel_HomePage",
      "path": "UI/Panel_HomePage"
    },
    {
      "panelTypeString": "Panel_Shopping",
      "path": "UI/Panel_Shopping"
    },
    {
      "panelTypeString": "Panel_System",
      "path": "UI/Panel_System"
    },
    {
      "panelTypeString": "Panel_Task",
      "path": "UI/Panel_Task"
    }
  ]
}

Manager

using System.Collections.Generic;
using UnityEngine;

public class UIManager
{

    private static UIManager _instance;
    public static UIManager Instance
    {
        get
        {
            if (_instance == null)
                _instance = new UIManager();
            return _instance;
        }
    }
    private UIManager()
    {
        ParseUIPanelTypeJson();
        GetScenesPanel();
    }
    private Dictionary<string, string> panelPathDict;
    private Dictionary<string, BasePanel> panelDict;

    private Stack<BasePanel> panelStack;
    private Transform canvesTransform;
    private BasePanel[] basePanels;
    private Transform CanvesTransform
    {
        get
        {
            if (canvesTransform == null)
            {
                canvesTransform = GameObject.Find("Canvas").transform;
            }
            return canvesTransform;
        }
    }
    /// <summary>
    /// 顯示UI
    /// </summary>
    /// <param name="panelType">UI名字</param>
    public void PushPanel(string panelType)
    {
        if (panelStack == null)
            panelStack = new Stack<BasePanel>();

        if (panelStack.Count > 0)
        {
            //取當前堆疊頂元素
            BasePanel topPanel = panelStack.Peek();
            topPanel.OnPause();
        }
        BasePanel basePanel = GetPanel(panelType);
        //保證加載出來的東西都在UI畫布的最上層
        basePanel.transform.SetSiblingIndex(CanvesTransform.childCount-1);
        basePanel.OnEnter();
        //將要顯示的UI推入堆疊里
        panelStack.Push(basePanel);
    }

    /// <summary>
    /// 隱藏UI
    /// </summary>
    public void PopPanel()
    {
        if (panelStack == null)
            panelStack = new Stack<BasePanel>();
        if (panelStack.Count <= 0)
        {
            return;
        }
        //將要隱藏的UI彈出堆疊
        BasePanel basePanel_1 = panelStack.Pop();
        basePanel_1.OnExit();
        if (panelStack.Count <= 0)
        {
            return;
        }
        //如果堆疊里還有元素，獲取到當前的UI，讓這個UI變成活躍的狀態
        BasePanel basePanel_2 = panelStack.Peek();
        basePanel_2.OnResume();
    }


    /// <summary>
    /// 獲得UI
    /// </summary>
    /// <param name="panelType">UI的名字</param>
    /// <returns></returns>
    private BasePanel GetPanel(string panelType)
    {
        if (panelDict == null)
        {
            panelDict = new Dictionary<string, BasePanel>();
        }
        //取得字典中的value(dictionary擴展方法)
        BasePanel panel = panelDict.TryGet(panelType);

        //BasePanel panel;
        //panelDict.TryGetValue(panelType, out panel);

        if (panel == null)
        {

            string path = panelPathDict.TryGet(panelType);
            GameObject instPanel = GameObject.Instantiate(Resources.Load(path), CanvesTransform, false) as GameObject;
            instPanel.name = panelType;
            if (panelDict.ContainsKey(panelType))
                Debug.LogError("Key值已經存在");
            else
                panelDict.Add(panelType, instPanel.GetComponent<BasePanel>());
            return instPanel.GetComponent<BasePanel>();
        }
        else
        {
            return panel;
        }
    }
    /// <summary>
    /// 決議Json，將UI的名稱和路徑存入字典中，
    /// </summary>
    private void ParseUIPanelTypeJson()
    {
        panelPathDict = new Dictionary<string, string>();
        TextAsset ta = Resources.Load<TextAsset>("UIJson/UIPanelType");

        UIPanelTypeJson jsonObject = JsonUtility.FromJson<UIPanelTypeJson>(ta.text);

        foreach (UIPanelInfo info in jsonObject.infoList)
        {
            if (panelPathDict.ContainsKey(info.panelTypeString))
                Debug.LogError("Key值重復");
            else
                panelPathDict.Add(info.panelTypeString, info.path);
        }

        basePanels = CanvesTransform.GetComponentsInChildren<BasePanel>();


    }
    /// <summary>
    /// 獲取到場景中掛載的UI，防止再次從Resources里加載
    /// </summary>
    private void GetScenesPanel()
    {
        if (panelDict == null)
        {
            panelDict = new Dictionary<string, BasePanel>();
        }
        foreach (BasePanel panel in basePanels)
        {
            if (panelDict.ContainsKey(panel.name))
                Debug.LogError("Key值已經存在");
            else
                panelDict.Add(panel.name, panel);
        }
    }


}

將這個腳本掛場景上，場景里建一個Canves

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class GameRoot : MonoBehaviour
{
    // Start is called before the first frame update
    void Start()
    {
        UIManager.Instance.PushPanel(UIPanelType.HomePage);

    }

}

Base

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

[RequireComponent(typeof(CanvasGroup))]
public class BasePanel : MonoBehaviour
{
    public virtual void Start()
    {

    }
    /// <summary>
    /// UI每次顯示
    /// </summary>
    public virtual void OnEnter()
    {

    }
    /// <summary>
    /// UI進入失活狀態
    /// </summary>
    public virtual void OnPause()
    {

    }
    /// <summary>
    /// UI被激活
    /// </summary>
    public virtual void OnResume()
    {

    }
    /// <summary>
    /// UI關閉
    /// </summary>
    public virtual void OnExit()
    {

    }
}

Extension

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public static class DictionaryExtension
{
    /// <summary>
    /// Dictionary擴展方法，獲取對應Key的Value值
    /// </summary>
    /// <typeparam name="Tkey"></typeparam>
    /// <typeparam name="Tvalue"></typeparam>
    /// <param name="dict"></param>
    /// <param name="tkey"></param>
    /// <returns></returns>
    public static Tvalue TryGet<Tkey,Tvalue>(this Dictionary<Tkey, Tvalue> dict,Tkey tkey)
    {
        Tvalue tvalue;
        dict.TryGetValue(tkey, out tvalue);
        return tvalue;
    }
}

PanelUI 實體

根據具體專案情況撰寫

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Panel_System : BasePanel
{
    public CanvasGroup canvasGroup;

    public override void OnEnter()
    {
        canvasGroup.alpha = 1;
        canvasGroup.blocksRaycasts = true;
    }
    public override void OnExit()
    {
        canvasGroup.alpha = 0;
        canvasGroup.blocksRaycasts = false;
    }

    public void OnClosePanel()
    {
        UIManager.Instance.PopPanel();
    }
}

using System.Collections;
using System.Collections.Generic;
using UnityEngine;

public class Panel_HomePage : BasePanel
{
    public CanvasGroup canvasGroup;
    public override void OnPause()
    {
        canvasGroup.blocksRaycasts = false;
    }
    public override void OnResume()
    {
        canvasGroup.blocksRaycasts = true;
    }
    public void OnPushPanel(string str)
    {

        UIManager.Instance.PushPanel(str);
    }
}
