目錄
- 一、Faster-RCNN目標檢測演算法的介紹
- 二、效果展示
- 三、環境配置
- 四、圖片資料集準備
- 五、代碼具體實作
一、Faster-RCNN目標檢測演算法的介紹
Faster-RCNN 演算法由于其較高的檢測準確率成為主流的目標檢測演算法之一，相比較 YOLO系列演算法，Faster-RCNN 速度方面略顯不足，平均檢測精度（mAP）很高，它將 region proposal提取和 Fast-RCNN 部分融合進了一個網路模型 (區域生成網路 RPN 層)，

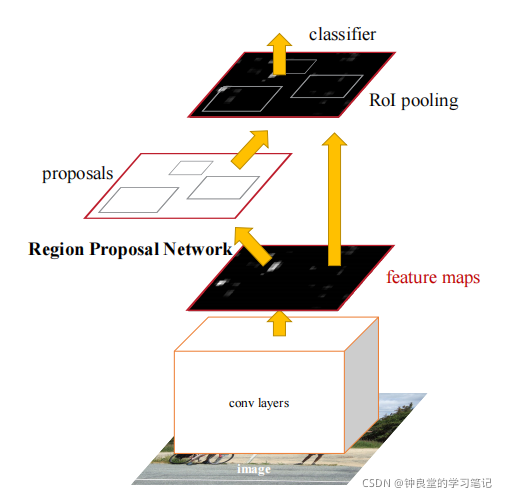

演算法大概可以分為特征提取層，區域建議層（RPN），ROIpooling（池化）層，分類與回歸四個部分，具體執行步驟如下：
(1)首先利用特征提取網路對輸入進行特征提取：特征提取網路通常由卷積層、池化層，激活層組成，可以使用訓練好的網路，有不同的網路架構如（VGG、Resnet、Inception）等，
(2)將產生的 feature map傳入 RPN網路產生建議框，然后進行是否含有目標的二分類，同時 feature map 傳入 ROIpooling 層進行池化操作，產生固定大小的候選區域特征圖，
(3)對產生的候選區域特征圖進行分類和回歸，得到物體種類和位置，
Faster-RCNN 相較以往演算法有幾點重大改進：其核心是提出了 RPN（Region Proposal Network）網路，它的出現代替了傳統產生候選區域的方法，實作了端到端的訓練，并且將整個物體檢測的流程統一到同一個神經網路中去，使得 RPN 和 Fast RCNN 實作了共享卷積特征，減少了訓練時間；采用 ROI Pooling 使用最大值池化將特征圖上 ROI 固定為特定大小的特征圖；采用 NMS（非極大值抑制，Non-maximum suppression）技術，篩選候選框數量，
Faster-RCNN目標檢測演算法執行思路可參考以下這篇文章：
https://blog.csdn.net/ELSA001/article/details/119983070?spm=1001.2014.3001.5501

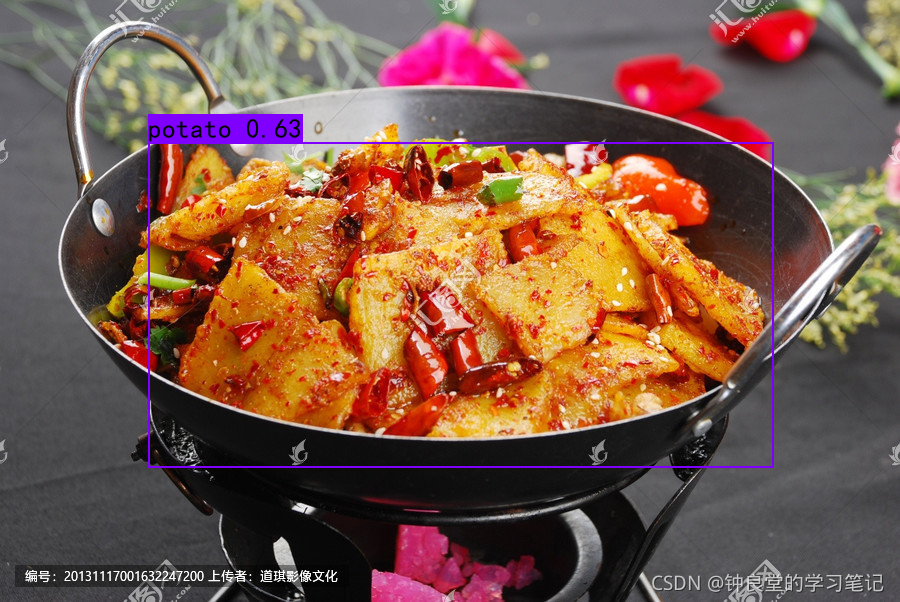

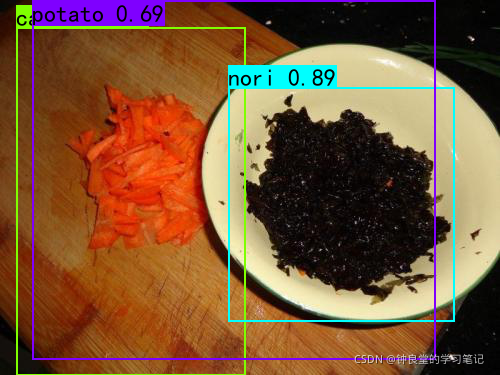

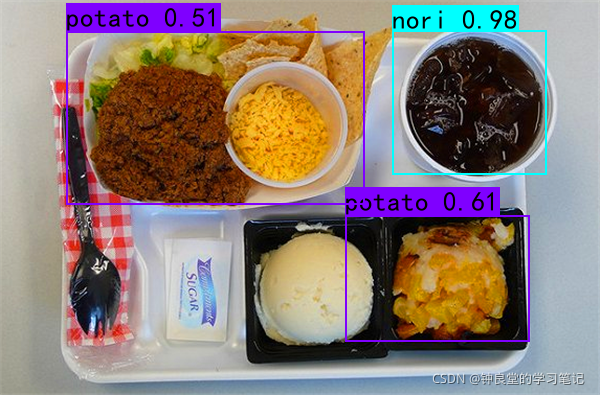

二、效果展示
由于資料集過少（每一類只有120張圖片）加上訓練只有90代，因此預測精度不高，

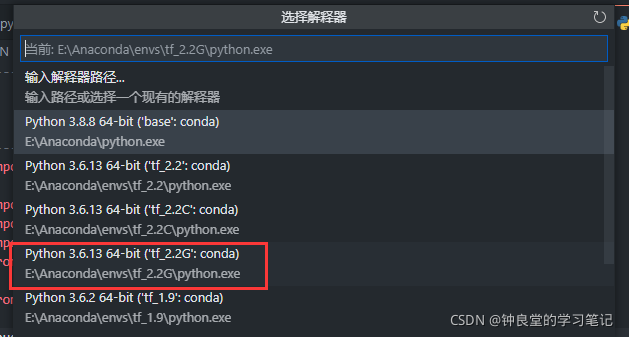

三、環境配置
Anaconda：4.10.3
Python：3.6.13
tensorflow-gpu：2.2.0
四、圖片資料集準備
Faster-RCNN目標檢測演算法的圖片資料集采用VOC格式進行訓練，使用labelimg制作VOC格式資料集使用方法可以參考以下文章：
https://blog.csdn.net/ELSA001/article/details/119987024?spm=1001.2014.3001.5501
也可以參考以下教學視頻：
https://www.bilibili.com/video/BV1kV411k7D8
https://www.bilibili.com/video/BV1db411U7BB
圖片打完標簽之后，即可運行voc2faster-rcnn.py檔案來生成這些訓練相關的txt檔案：
voc2faster-rcnn.py
#----------------------------------------------------------------------#
# 驗證集的劃分在train.py代碼里面進行
# test.txt和val.txt里面沒有內容是正常的，訓練不會使用到，
#----------------------------------------------------------------------#
'''
#--------------------------------注意----------------------------------#
如果在pycharm中運行時提示：
FileNotFoundError: [WinError 3] 系統找不到指定的路徑，: './VOCdevkit/VOC2007/Annotations'
這是pycharm運行目錄的問題，最簡單的方法是將該檔案復制到根目錄后運行，
可以查詢一下相對目錄和根目錄的概念，在VSCODE中沒有這個問題，
#--------------------------------注意----------------------------------#
'''
import os
import random
random.seed(0)
xmlfilepath=r'E:\python-run-env\Faster-RCNN\VOCdevkit\VOC2007\Annotations'
saveBasePath=r"E:\python-run-env\Faster-RCNN\VOCdevkit\VOC2007\ImageSets\Main"
#----------------------------------------------------------------------#
# 想要增加測驗集修改trainval_percent
# train_percent不需要修改
#----------------------------------------------------------------------#
trainval_percent=1
train_percent=1
temp_xml = os.listdir(xmlfilepath)
total_xml = []
for xml in temp_xml:
if xml.endswith(".xml"):
total_xml.append(xml)
num=len(total_xml)
list=range(num)
tv=int(num*trainval_percent)
tr=int(tv*train_percent)
trainval= random.sample(list,tv)
train=random.sample(trainval,tr)
print("train and val size",tv)
print("traub suze",tr)
ftrainval = open(os.path.join(saveBasePath,'trainval.txt'), 'w')
ftest = open(os.path.join(saveBasePath,'test.txt'), 'w')
ftrain = open(os.path.join(saveBasePath,'train.txt'), 'w')
fval = open(os.path.join(saveBasePath,'val.txt'), 'w')
for i in list:
name=total_xml[i][:-4]+'\n'
if i in trainval:
ftrainval.write(name)
if i in train:
ftrain.write(name)
else:
fval.write(name)
else:
ftest.write(name)
ftrainval.close()
ftrain.close()
fval.close()
ftest .close()
接著運行voc_annotation.py檔案來生成2007_train.txt檔案：
voc_annotation.py
#---------------------------------------------#
# 運行前一定要修改classes
# 如果生成的2007_train.txt里面沒有目標資訊
# 那么就是因為classes沒有設定正確
#---------------------------------------------#
import xml.etree.ElementTree as ET
from os import getcwd
sets=[('2007', 'train'), ('2007', 'val'), ('2007', 'test')]
#-----------------------------------------------------#
# 這里設定的classes順序要和model_data里的txt一樣
#-----------------------------------------------------#
# classes = ["aeroplane", "bicycle", "bird", "boat", "bottle", "bus", "car", "cat", "chair", "cow", "diningtable", "dog", "horse", "motorbike", "person", "pottedplant", "sheep", "sofa", "train", "tvmonitor"]
classes = ["cabbage", "carrot", "nori", "potato"]
# E:\python-run-env\Faster-RCNN\VOCdevkit\VOC2007\ImageSets\Main\train.txt
def convert_annotation(year, image_id, list_file):
in_file = open('E:/python-run-env/Faster-RCNN/VOCdevkit/VOC%s/Annotations/%s.xml'%(year, image_id), encoding='utf-8')
tree=ET.parse(in_file)
root = tree.getroot()
for obj in root.iter('object'):
difficult = 0
if obj.find('difficult')!=None:
difficult = obj.find('difficult').text
cls = obj.find('name').text
if cls not in classes or int(difficult)==1:
continue
cls_id = classes.index(cls)
xmlbox = obj.find('bndbox')
b = (int(float(xmlbox.find('xmin').text)), int(float(xmlbox.find('ymin').text)), int(float(xmlbox.find('xmax').text)), int(float(xmlbox.find('ymax').text)))
list_file.write(" " + ",".join([str(a) for a in b]) + ',' + str(cls_id))
wd = getcwd()
for year, image_set in sets:
image_ids = open('E:/python-run-env/Faster-RCNN/VOCdevkit/VOC%s/ImageSets/Main/%s.txt'%(year, image_set), encoding='utf-8').read().strip().split()
list_file = open('%s_%s.txt'%(year, image_set), 'w', encoding='utf-8')
for image_id in image_ids:
list_file.write('%s/VOCdevkit/VOC%s/JPEGImages/%s.jpg'%(wd, year, image_id))
convert_annotation(year, image_id, list_file)
list_file.write('\n')
list_file.close()
五、代碼具體實作
由于我的電腦顯卡配置有限（但其實我的環境可以訓練和預測），因此我的圖片資料集都在kaggle上面訓練（https://www.kaggle.com/），每周可以免費使用GPU訓練42小時，預測的代碼在我自己的電腦上面執行，在這篇文章里，我將會展示我在kaggle的notebook里面的訓練代碼，
在kaggle上面訓練模型時，需要注意以下幾點：

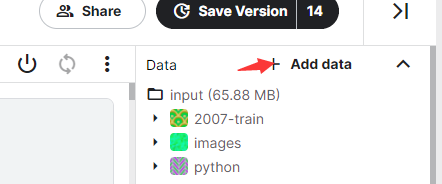

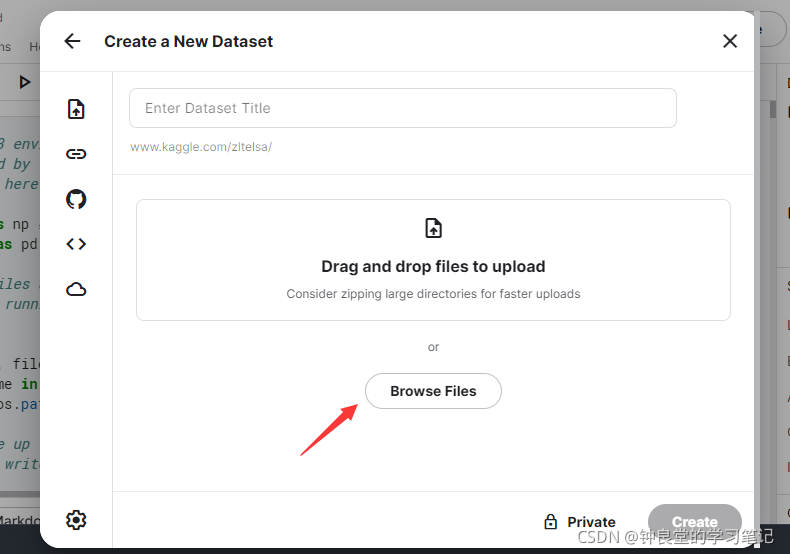

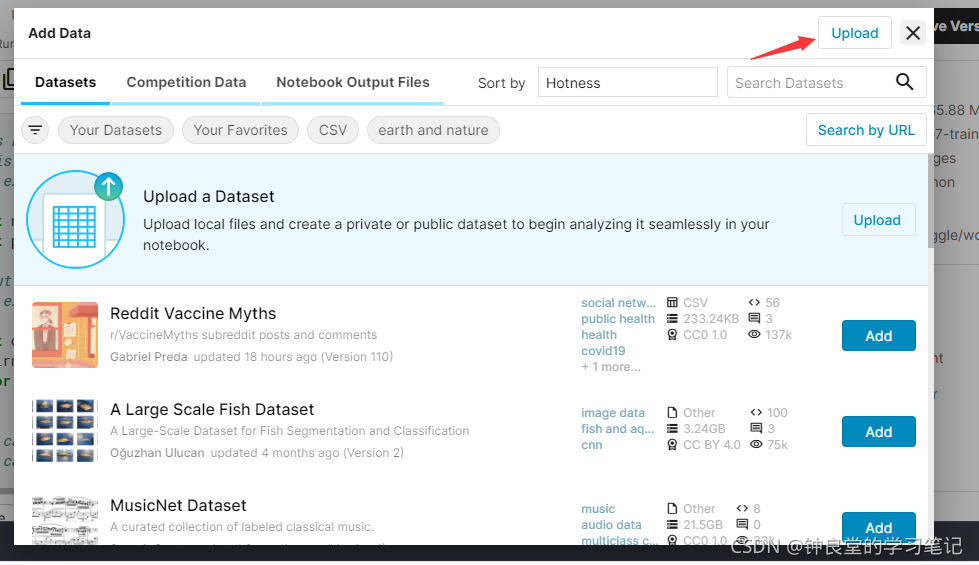

1、訓練時需要在kaggle上面上傳2007_train.txt和自己的圖片資料，如果有預訓練權重檔案的話也要上傳上去，

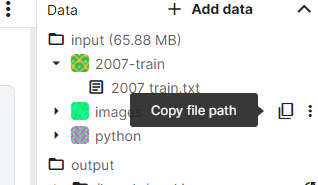

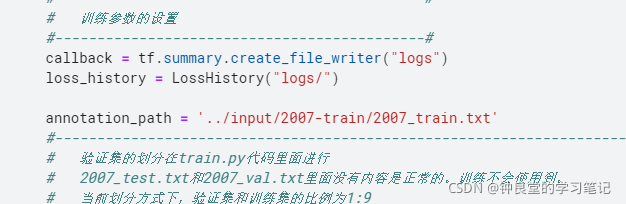

上傳后在訓練檔案（train.py）修改自己的2007_train.txt路徑：

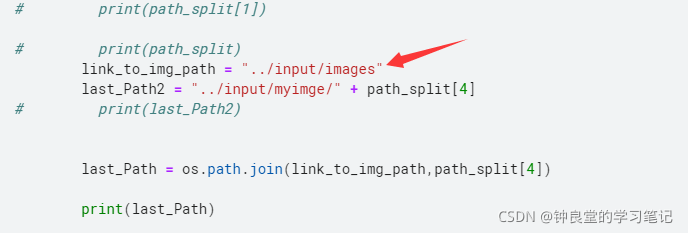

在frcnn_training3.py檔案修改自己的圖片資料位置：
2、由于notebook上面無法像正常編譯器一樣呼叫其他python檔案，因此在每一個notebook上面都需要添加這樣的一行代碼：%%writefile filename.py，然后點擊運行這個notebook，訓練檔案的notebook才可以正常呼叫，
教程如下：
https://www.tqwba.com/x_d/jishu/350998.html
3、訓練程序中最好把滑鼠點擊一個notebook里面的代碼，這樣系統以為你就是在編輯代碼的狀態，不會判定你離開，如果系統判定你離開了，訓練好的模型就都沒有了，必須重新開始，
（1）預測代碼（自己電腦上面預測）
預測代碼（predict.py）：
#----------------------------------------------------#
# 對視頻中的predict.py進行了修改，
# 將單張圖片預測、攝像頭檢測和FPS測驗功能
# 整合到了一個py檔案中，通過指定mode進行模式的修改，
#----------------------------------------------------#
import time
import cv2
import numpy as np
import tensorflow as tf
from PIL import Image
from frcnn import FRCNN
gpus = tf.config.experimental.list_physical_devices(device_type='GPU')
for gpu in gpus:
tf.config.experimental.set_memory_growth(gpu, True)
if __name__ == "__main__":
frcnn = FRCNN()
#-------------------------------------------------------------------------#
# mode用于指定測驗的模式：
# 'predict'表示單張圖片預測
# 'video'表示視頻檢測
# 'fps'表示測驗fps
#-------------------------------------------------------------------------#
mode = "predict"
#-------------------------------------------------------------------------#
# video_path用于指定視頻的路徑，當video_path=0時表示檢測攝像頭
# video_save_path表示視頻保存的路徑，當video_save_path=""時表示不保存
# video_fps用于保存的視頻的fps
# video_path、video_save_path和video_fps僅在mode='video'時有效
# 保存視頻時需要ctrl+c退出才會完成完整的保存步驟，不可直接結束程式，
#-------------------------------------------------------------------------#
# video_path = r"E:/python-run-env/Faster RCNN/img/12.mp4"
video_path = 0
video_save_path = r"C:/Users/asus/Desktop/Test/12.mp4"
video_fps = 25.0
if mode == "predict":
'''
1、該代碼無法直接進行批量預測，如果想要批量預測，可以利用os.listdir()遍歷檔案夾，利用Image.open打開圖片檔案進行預測，
具體流程可以參考get_dr_txt.py，在get_dr_txt.py即實作了遍歷還實作了目標資訊的保存，
2、如果想要進行檢測完的圖片的保存，利用r_image.save("img.jpg")即可保存，直接在predict.py里進行修改即可，
3、如果想要獲得預測框的坐標，可以進入frcnn.detect_image函式，在繪圖部分讀取top，left，bottom，right這四個值，
4、如果想要利用預測框截取下目標，可以進入frcnn.detect_image函式，在繪圖部分利用獲取到的top，left，bottom，right這四個值
在原圖上利用矩陣的方式進行截取，
5、如果想要在預測圖上寫額外的字，比如檢測到的特定目標的數量，可以進入frcnn.detect_image函式，在繪圖部分對predicted_class進行判斷，
比如判斷if predicted_class == 'car': 即可判斷當前目標是否為車，然后記錄數量即可，利用draw.text即可寫字，
'''
while True:
img = input('Input image filename:')
try:
image = Image.open(img)
except:
print('Open Error! Try again!')
continue
else:
r_image = frcnn.detect_image(image)
r_image.show()
elif mode == "video":
capture=cv2.VideoCapture(video_path)
if video_save_path!="":
fourcc = cv2.VideoWriter_fourcc(*'XVID')
size = (int(capture.get(cv2.CAP_PROP_FRAME_WIDTH)), int(capture.get(cv2.CAP_PROP_FRAME_HEIGHT)))
out = cv2.VideoWriter(video_save_path, fourcc, video_fps, size)
fps = 0.0
while(True):
t1 = time.time()
# 讀取某一幀
ref,frame=capture.read()
# 格式轉變，BGRtoRGB
frame = cv2.cvtColor(frame,cv2.COLOR_BGR2RGB)
# 轉變成Image
frame = Image.fromarray(np.uint8(frame))
# 進行檢測
frame = np.array(frcnn.detect_image(frame))
# RGBtoBGR滿足opencv顯示格式
frame = cv2.cvtColor(frame,cv2.COLOR_RGB2BGR)
fps = ( fps + (1./(time.time()-t1)) ) / 2
print("fps= %.2f"%(fps))
frame = cv2.putText(frame, "fps= %.2f"%(fps), (0, 40), cv2.FONT_HERSHEY_SIMPLEX, 1, (0, 255, 0), 2)
cv2.imshow("video",frame)
c= cv2.waitKey(1) & 0xff
if video_save_path!="":
out.write(frame)
if c==27:
capture.release()
break
capture.release()
out.release()
cv2.destroyAllWindows()
elif mode == "fps":
test_interval = 100
img = Image.open('img/street.jpg')
tact_time = frcnn.get_FPS(img, test_interval)
print(str(tact_time) + ' seconds, ' + str(1/tact_time) + 'FPS, @batch_size 1')
else:
raise AssertionError("Please specify the correct mode: 'predict', 'video' or 'fps'.")
frcnn.py
import colorsys
import copy
import os
import time
import numpy as np
import tensorflow as tf
from PIL import Image, ImageDraw, ImageFont
from tensorflow.keras.applications.imagenet_utils import preprocess_input
import nets.frcnn as frcnn
from nets.frcnn_training import get_new_img_size
from utils.anchors import get_anchors
from utils.config import Config
from utils.utils import BBoxUtility
#--------------------------------------------#
# 使用自己訓練好的模型預測需要修改2個引數
# model_path和classes_path都需要修改！
# 如果出現shape不匹配
# 一定要注意訓練時的NUM_CLASSES、
# model_path和classes_path引數的修改
#--------------------------------------------#
# E:\python-run-env\Faster-RCNN\model_data\voc_classes.txt
class FRCNN(object):
_defaults = {
# E:\python-run-env\Faster-RCNN\model_data\voc_weight.h5
"model_path" : r'E:\python-run-env\Faster-RCNN\model_data\Epoch90-Total_Loss0.5199-Val_Loss0.5419.h5',
"classes_path" : r'E:\python-run-env\Faster-RCNN\model_data\classes.txt',
"confidence" : 0.5,
"iou" : 0.3
}
@classmethod
def get_defaults(cls, n):
if n in cls._defaults:
return cls._defaults[n]
else:
return "Unrecognized attribute name '" + n + "'"
#---------------------------------------------------#
# 初始化faster RCNN
#---------------------------------------------------#
def __init__(self, **kwargs):
self.__dict__.update(self._defaults)
self.class_names = self._get_class()
self.config = Config()
self.generate()
self.bbox_util = BBoxUtility()
#---------------------------------------------------#
# 獲得所有的分類
#---------------------------------------------------#
def _get_class(self):
classes_path = os.path.expanduser(self.classes_path)
with open(classes_path) as f:
class_names = f.readlines()
class_names = [c.strip() for c in class_names]
return class_names
#---------------------------------------------------#
# 獲得所有的分類
#---------------------------------------------------#
def generate(self):
model_path = os.path.expanduser(self.model_path)
assert model_path.endswith('.h5'), 'Keras model or weights must be a .h5 file.'
#-------------------------------#
# 計算總的類的數量
#-------------------------------#
self.num_classes = len(self.class_names)+1
#-------------------------------#
# 載入模型與權值
#-------------------------------#
self.model_rpn, self.model_classifier = frcnn.get_predict_model(self.config, self.num_classes)
self.model_rpn.load_weights(self.model_path, by_name=True)
self.model_classifier.load_weights(self.model_path, by_name=True)
print('{} model, anchors, and classes loaded.'.format(model_path))
# 畫框設定不同的顏色
hsv_tuples = [(x / len(self.class_names), 1., 1.)
for x in range(len(self.class_names))]
self.colors = list(map(lambda x: colorsys.hsv_to_rgb(*x), hsv_tuples))
self.colors = list(
map(lambda x: (int(x[0] * 255), int(x[1] * 255), int(x[2] * 255)),
self.colors))
#---------------------------------------------------#
# 用于計算共享特征層的大小
#---------------------------------------------------#
def get_img_output_length(self, width, height):
def get_output_length(input_length):
# input_length += 6
filter_sizes = [7, 3, 1, 1]
padding = [3,1,0,0]
stride = 2
for i in range(4):
# input_length = (input_length - filter_size + stride) // stride
input_length = (input_length+2*padding[i]-filter_sizes[i]) // stride + 1
return input_length
return get_output_length(width), get_output_length(height)
@tf.function(experimental_relax_shapes=True)
def model_rpn_get_pred(self, photo):
preds = self.model_rpn(photo, training=False)
return preds
@tf.function(experimental_relax_shapes=True)
def model_classifier_get_pred(self, photo):
preds = self.model_classifier(photo, training=False)
return preds
#---------------------------------------------------#
# 檢測圖片
#---------------------------------------------------#
def detect_image(self, image):
#-------------------------------------#
# 轉換成RGB圖片，可以用于灰度圖預測，
#-------------------------------------#
image = image.convert("RGB")
image_shape = np.array(np.shape(image)[0:2])
old_width, old_height = image_shape[1], image_shape[0]
old_image = copy.deepcopy(image)
#---------------------------------------------------------#
# 給原影像進行resize，resize到短邊為600的大小上
#---------------------------------------------------------#
width, height = get_new_img_size(old_width, old_height)
image = image.resize([width,height], Image.BICUBIC)
photo = np.array(image,dtype = np.float64)
#-----------------------------------------------------------#
# 圖片預處理，歸一化，
#-----------------------------------------------------------#
photo = preprocess_input(np.expand_dims(photo,0))
rpn_pred = self.model_rpn_get_pred(photo)
rpn_pred = [x.numpy() for x in rpn_pred]
#-----------------------------------------------------------#
# 將建議框網路的預測結果進行解碼
#-----------------------------------------------------------#
base_feature_width, base_feature_height = self.get_img_output_length(width, height)
anchors = get_anchors([base_feature_width, base_feature_height], width, height)
rpn_results = self.bbox_util.detection_out_rpn(rpn_pred, anchors)
#-------------------------------------------------------------#
# 在獲得建議框和共享特征層后，將二者傳入classifier中進行預測
#-------------------------------------------------------------#
base_layer = rpn_pred[2]
proposal_box = np.array(rpn_results)[:, :, 1:]
temp_ROIs = np.zeros_like(proposal_box)
temp_ROIs[:, :, [0, 1, 2, 3]] = proposal_box[:, :, [1, 0, 3, 2]]
classifier_pred = self.model_classifier_get_pred([base_layer, temp_ROIs])
classifier_pred = [x.numpy() for x in classifier_pred]
#-------------------------------------------------------------#
# 利用classifier的預測結果對建議框進行解碼，獲得預測框
#-------------------------------------------------------------#
results = self.bbox_util.detection_out_classifier(classifier_pred, proposal_box, self.config, self.confidence)
if len(results[0])==0:
return old_image
results = np.array(results[0])
boxes = results[:, :4]
top_conf = results[:, 4]
top_label_indices = results[:, 5]
boxes[:, [0, 2]] = boxes[:, [0, 2]] * old_width
boxes[:, [1, 3]] = boxes[:, [1, 3]] * old_height
font = ImageFont.truetype(font='model_data/simhei.ttf',size=np.floor(3e-2 * np.shape(image)[1] + 0.5).astype('int32'))
thickness = max((np.shape(old_image)[0] + np.shape(old_image)[1]) // old_width * 2, 1)
image = old_image
for i, c in enumerate(top_label_indices):
predicted_class = self.class_names[int(c)]
score = top_conf[i]
left, top, right, bottom = boxes[i]
top = top - 5
left = left - 5
bottom = bottom + 5
right = right + 5
top = max(0, np.floor(top + 0.5).astype('int32'))
left = max(0, np.floor(left + 0.5).astype('int32'))
bottom = min(np.shape(image)[0], np.floor(bottom + 0.5).astype('int32'))
right = min(np.shape(image)[1], np.floor(right + 0.5).astype('int32'))
# 畫框框
label = '{} {:.2f}'.format(predicted_class, score)
draw = ImageDraw.Draw(image)
label_size = draw.textsize(label, font)
label = label.encode('utf-8')
print(label, top, left, bottom, right)
if top - label_size[1] >= 0:
text_origin = np.array([left, top - label_size[1]])
else:
text_origin = np.array([left, top + 1])
for i in range(thickness):
draw.rectangle(
[left + i, top + i, right - i, bottom - i],
outline=self.colors[int(c)])
draw.rectangle(
[tuple(text_origin), tuple(text_origin + label_size)],
fill=self.colors[int(c)])
draw.text(text_origin, str(label,'UTF-8'), fill=(0, 0, 0), font=font)
del draw
return image
def get_FPS(self, image, test_interval):
#-------------------------------------#
# 轉換成RGB圖片，可以用于灰度圖預測，
#-------------------------------------#
image = image.convert("RGB")
image_shape = np.array(np.shape(image)[0:2])
old_width, old_height = image_shape[1], image_shape[0]
#---------------------------------------------------------#
# 給原影像進行resize，resize到短邊為600的大小上
#---------------------------------------------------------#
width, height = get_new_img_size(old_width, old_height)
image = image.resize([width,height], Image.BICUBIC)
photo = np.array(image,dtype = np.float64)
#-----------------------------------------------------------#
# 圖片預處理，歸一化，
#-----------------------------------------------------------#
photo = preprocess_input(np.expand_dims(photo,0))
rpn_pred = self.model_rpn.predict(photo)
#-----------------------------------------------------------#
# 將建議框網路的預測結果進行解碼
#-----------------------------------------------------------#
base_feature_width, base_feature_height = self.get_img_output_length(width, height)
anchors = get_anchors([base_feature_width, base_feature_height], width, height)
rpn_results = self.bbox_util.detection_out_rpn(rpn_pred, anchors)
#-------------------------------------------------------------#
# 在獲得建議框和共享特征層后，將二者傳入classifier中進行預測
#-------------------------------------------------------------#
base_layer = rpn_pred[2]
proposal_box = np.array(rpn_results)[:, :, 1:]
temp_ROIs = np.zeros_like(proposal_box)
temp_ROIs[:, :, [0, 1, 2, 3]] = proposal_box[:, :, [1, 0, 3, 2]]
classifier_pred = self.model_classifier.predict([base_layer, temp_ROIs])
#-------------------------------------------------------------#
# 利用classifier的預測結果對建議框進行解碼，獲得預測框
#-------------------------------------------------------------#
results = self.bbox_util.detection_out_classifier(classifier_pred, proposal_box, self.config, self.confidence)
if len(results[0])>0:
results = np.array(results[0])
boxes = results[:, :4]
top_conf = results[:, 4]
top_label_indices = results[:, 5]
boxes[:, [0, 2]] = boxes[:, [0, 2]] * old_width
boxes[:, [1, 3]] = boxes[:, [1, 3]] * old_height
t1 = time.time()
for _ in range(test_interval):
rpn_pred = self.model_rpn.predict(photo)
#-----------------------------------------------------------#
# 將建議框網路的預測結果進行解碼
#-----------------------------------------------------------#
base_feature_width, base_feature_height = self.get_img_output_length(width, height)
anchors = get_anchors([base_feature_width, base_feature_height], width, height)
rpn_results = self.bbox_util.detection_out_rpn(rpn_pred, anchors)
#-------------------------------------------------------------#
# 在獲得建議框和共享特征層后，將二者傳入classifier中進行預測
#-------------------------------------------------------------#
base_layer = rpn_pred[2]
proposal_box = np.array(rpn_results)[:, :, 1:]
temp_ROIs = np.zeros_like(proposal_box)
temp_ROIs[:, :, [0, 1, 2, 3]] = proposal_box[:, :, [1, 0, 3, 2]]
classifier_pred = self.model_classifier.predict([base_layer, temp_ROIs])
#-------------------------------------------------------------#
# 利用classifier的預測結果對建議框進行解碼，獲得預測框
#-------------------------------------------------------------#
results = self.bbox_util.detection_out_classifier(classifier_pred, proposal_box, self.config, self.confidence)
if len(results[0])>0:
results = np.array(results[0])
boxes = results[:, :4]
top_conf = results[:, 4]
top_label_indices = results[:, 5]
boxes[:, [0, 2]] = boxes[:, [0, 2]] * old_width
boxes[:, [1, 3]] = boxes[:, [1, 3]] * old_height
t2 = time.time()
tact_time = (t2 - t1) / test_interval
return tact_time
（2）訓練代碼（kaggle環境下的訓練代碼）：
anchors.py
%%writefile anchors.py
import numpy as np
from tensorflow import keras
from config import Config
config = Config()
def generate_anchors(sizes=None, ratios=None):
if sizes is None:
sizes = config.anchor_box_scales
if ratios is None:
ratios = config.anchor_box_ratios
num_anchors = len(sizes) * len(ratios)
anchors = np.zeros((num_anchors, 4))
anchors[:, 2:] = np.tile(sizes, (2, len(ratios))).T
for i in range(len(ratios)):
anchors[3*i:3*i+3, 2] = anchors[3*i:3*i+3, 2]*ratios[i][0]
anchors[3*i:3*i+3, 3] = anchors[3*i:3*i+3, 3]*ratios[i][1]
anchors[:, 0::2] -= np.tile(anchors[:, 2] * 0.5, (2, 1)).T
anchors[:, 1::2] -= np.tile(anchors[:, 3] * 0.5, (2, 1)).T
return anchors
def shift(shape, anchors, stride=config.rpn_stride):
shift_x = (np.arange(0, shape[0], dtype=keras.backend.floatx()) + 0.5) * stride
shift_y = (np.arange(0, shape[1], dtype=keras.backend.floatx()) + 0.5) * stride
shift_x, shift_y = np.meshgrid(shift_x, shift_y)
shift_x = np.reshape(shift_x, [-1])
shift_y = np.reshape(shift_y, [-1])
shifts = np.stack([
shift_x,
shift_y,
shift_x,
shift_y
], axis=0)
shifts = np.transpose(shifts)
number_of_anchors = np.shape(anchors)[0]
k = np.shape(shifts)[0]
shifted_anchors = np.reshape(anchors, [1, number_of_anchors, 4]) + np.array(np.reshape(shifts, [k, 1, 4]), keras.backend.floatx())
shifted_anchors = np.reshape(shifted_anchors, [k * number_of_anchors, 4])
return shifted_anchors
def get_anchors(shape,width,height):
anchors = generate_anchors()
network_anchors = shift(shape,anchors)
network_anchors[:,0] = network_anchors[:,0]/width
network_anchors[:,1] = network_anchors[:,1]/height
network_anchors[:,2] = network_anchors[:,2]/width
network_anchors[:,3] = network_anchors[:,3]/height
network_anchors = np.clip(network_anchors,0,1)
return network_anchors
config.py
%%writefile config.py
class Config:
def __init__(self):
self.anchor_box_scales = [128, 256, 512]
self.anchor_box_ratios = [[1, 1], [1, 2], [2, 1]]
self.rpn_stride = 16
#------------------------------------------------------#
# 視頻中rois的值為32，修改成128效果更好
#------------------------------------------------------#
self.num_rois = 128
#------------------------------------------------------#
# 用于預測和用于訓練的建議框的數量
#------------------------------------------------------#
self.num_RPN_predict_pre = 300
self.num_RPN_train_pre = 600
self.rpn_min_overlap = 0.3
self.rpn_max_overlap = 0.7
#-------------------------------------------------------------------------------------#
# 與真實框的iou在classifier_min_overlap到classifier_max_overlap之間的為負樣本
# 與真實框的iou大于classifier_max_overlap之間的為正樣本
# 由于添加了多batch訓練，如果將classifier_min_overlap設定成0.1可能存在無負樣本的情況
# 將classifier_min_overlap下調為0，從而實作多batch訓練
#-------------------------------------------------------------------------------------#
self.classifier_min_overlap = 0
self.classifier_max_overlap = 0.5
self.classifier_regr_std = [8.0, 8.0, 4.0, 4.0]
self.pooling_regions = 14
helpers.py
%%writefile roi_helpers.py
import numpy as np
def bbox_iou(bbox_a, bbox_b):
if bbox_a.shape[1] != 4 or bbox_b.shape[1] != 4:
print(bbox_a, bbox_b)
raise IndexError
tl = np.maximum(bbox_a[:, None, :2], bbox_b[:, :2])
br = np.minimum(bbox_a[:, None, 2:], bbox_b[:, 2:])
area_i = np.prod(br - tl, axis=2) * (tl < br).all(axis=2)
area_a = np.prod(bbox_a[:, 2:] - bbox_a[:, :2], axis=1)
area_b = np.prod(bbox_b[:, 2:] - bbox_b[:, :2], axis=1)
return area_i / (area_a[:, None] + area_b - area_i)
def bbox2loc(src_bbox, dst_bbox):
width = src_bbox[:, 2] - src_bbox[:, 0]
height = src_bbox[:, 3] - src_bbox[:, 1]
ctr_x = src_bbox[:, 0] + 0.5 * width
ctr_y = src_bbox[:, 1] + 0.5 * height
base_width = dst_bbox[:, 2] - dst_bbox[:, 0]
base_height = dst_bbox[:, 3] - dst_bbox[:, 1]
base_ctr_x = dst_bbox[:, 0] + 0.5 * base_width
base_ctr_y = dst_bbox[:, 1] + 0.5 * base_height
eps = np.finfo(height.dtype).eps
width = np.maximum(width, eps)
height = np.maximum(height, eps)
dx = (base_ctr_x - ctr_x) / width
dy = (base_ctr_y - ctr_y) / height
dw = np.log(base_width / width)
dh = np.log(base_height / height)
loc = np.vstack((dx, dy, dw, dh)).transpose()
return loc
def calc_iou(R, config, all_boxes, num_classes):
bboxes = all_boxes[:, :4]
label = all_boxes[:, 4]
R = np.concatenate([R, bboxes], axis=0)
# ----------------------------------------------------- #
# 計算建議框和真實框的重合程度
# ----------------------------------------------------- #
iou = bbox_iou(R, bboxes)
if len(bboxes)==0:
gt_assignment = np.zeros(len(R), np.int32)
max_iou = np.zeros(len(R))
gt_roi_label = np.zeros(len(R))
else:
#---------------------------------------------------------#
# 獲得每一個建議框最對應的真實框的iou [num_roi, ]
#---------------------------------------------------------#
max_iou = iou.max(axis=1)
#---------------------------------------------------------#
# 獲得每一個建議框最對應的真實框 [num_roi, ]
#---------------------------------------------------------#
gt_assignment = iou.argmax(axis=1)
#---------------------------------------------------------#
# 真實框的標簽
#---------------------------------------------------------#
gt_roi_label = label[gt_assignment]
#----------------------------------------------------------------#
# 滿足建議框和真實框重合程度大于neg_iou_thresh_high的作為負樣本
# 將正樣本的數量限制在self.pos_roi_per_image以內
#----------------------------------------------------------------#
pos_index = np.where(max_iou >= config.classifier_max_overlap)[0]
pos_roi_per_this_image = int(min(config.num_rois//2, pos_index.size))
if pos_index.size > 0:
pos_index = np.random.choice(pos_index, size=pos_roi_per_this_image, replace=False)
#-----------------------------------------------------------------------------------------------------#
# 滿足建議框和真實框重合程度小于neg_iou_thresh_high大于neg_iou_thresh_low作為負樣本
# 將正樣本的數量和負樣本的數量的總和固定成self.n_sample
#-----------------------------------------------------------------------------------------------------#
neg_index = np.where((max_iou < config.classifier_max_overlap) & (max_iou >= config.classifier_min_overlap))[0]
neg_roi_per_this_image = config.num_rois - pos_roi_per_this_image
if neg_roi_per_this_image > neg_index.size:
neg_index = np.random.choice(neg_index, size=neg_roi_per_this_image, replace=True)
else:
neg_index = np.random.choice(neg_index, size=neg_roi_per_this_image, replace=False)
#---------------------------------------------------------#
# sample_roi [n_sample, ]
# gt_roi_loc [n_sample, 4]
# gt_roi_label [n_sample, ]
#---------------------------------------------------------#
keep_index = np.append(pos_index, neg_index)
sample_roi = R[keep_index]
if len(bboxes)!=0:
gt_roi_loc = bbox2loc(sample_roi, bboxes[gt_assignment[keep_index]])
gt_roi_loc = gt_roi_loc * np.array(config.classifier_regr_std)
else:
gt_roi_loc = np.zeros_like(sample_roi)
gt_roi_label = gt_roi_label[keep_index]
gt_roi_label[pos_roi_per_this_image:] = num_classes - 1
#---------------------------------------------------------#
# X [n_sample, 4]
# Y1 [n_sample, num_classes]
# Y2 [n_sample, (num_clssees-1)*8]
#---------------------------------------------------------#
X = np.zeros_like(sample_roi)
X[:, [0, 1, 2, 3]] = sample_roi[:, [1, 0, 3, 2]]
Y1 = np.eye(num_classes)[np.array(gt_roi_label,np.int32)]
y_class_regr_label = np.zeros([np.shape(gt_roi_loc)[0], num_classes-1, 4])
y_class_regr_coords = np.zeros([np.shape(gt_roi_loc)[0], num_classes-1, 4])
y_class_regr_label[np.arange(np.shape(gt_roi_loc)[0])[:pos_roi_per_this_image], np.array(gt_roi_label[:pos_roi_per_this_image], np.int32)] = 1
y_class_regr_coords[np.arange(np.shape(gt_roi_loc)[0])[:pos_roi_per_this_image], np.array(gt_roi_label[:pos_roi_per_this_image], np.int32)] = \
gt_roi_loc[:pos_roi_per_this_image]
y_class_regr_label = np.reshape(y_class_regr_label, [np.shape(gt_roi_loc)[0], -1])
y_class_regr_coords = np.reshape(y_class_regr_coords, [np.shape(gt_roi_loc)[0], -1])
Y2 = np.concatenate([np.array(y_class_regr_label), np.array(y_class_regr_coords)],axis=1)
return X, Y1, Y2
utils.py
%%writefile utils.py
import math
import numpy as np
import tensorflow as tf
from PIL import Image
class BBoxUtility(object):
def __init__(self, overlap_threshold=0.7, ignore_threshold=0.3, rpn_pre_boxes=12000, rpn_nms=0.7, classifier_nms=0.3, top_k=300):
self.overlap_threshold = overlap_threshold
self.ignore_threshold = ignore_threshold
self.rpn_pre_boxes = rpn_pre_boxes
self.rpn_nms = rpn_nms
self.classifier_nms = classifier_nms
self.top_k = top_k
def iou(self, box):
# 計算出每個真實框與所有的先驗框的iou
# 判斷真實框與先驗框的重合情況
inter_upleft = np.maximum(self.priors[:, :2], box[:2])
inter_botright = np.minimum(self.priors[:, 2:4], box[2:])
inter_wh = inter_botright - inter_upleft
inter_wh = np.maximum(inter_wh, 0)
inter = inter_wh[:, 0] * inter_wh[:, 1]
# 真實框的面積
area_true = (box[2] - box[0]) * (box[3] - box[1])
# 先驗框的面積
area_gt = (self.priors[:, 2] - self.priors[:, 0])*(self.priors[:, 3] - self.priors[:, 1])
# 計算iou
union = area_true + area_gt - inter
iou = inter / union
return iou
def encode_ignore_box(self, box, return_iou=True):
iou = self.iou(box)
ignored_box = np.zeros((self.num_priors, 1))
#---------------------------------------------------#
# 找到處于忽略門限值范圍內的先驗框
#---------------------------------------------------#
assign_mask_ignore = (iou > self.ignore_threshold) & (iou < self.overlap_threshold)
ignored_box[:, 0][assign_mask_ignore] = iou[assign_mask_ignore]
encoded_box = np.zeros((self.num_priors, 4 + return_iou))
#---------------------------------------------------#
# 找到每一個真實框，重合程度較高的先驗框
#---------------------------------------------------#
assign_mask = iou > self.overlap_threshold
if not assign_mask.any():
assign_mask[iou.argmax()] = True
if return_iou:
encoded_box[:, -1][assign_mask] = iou[assign_mask]
assigned_priors = self.priors[assign_mask]
#---------------------------------------------#
# 逆向編碼，將真實框轉化為FRCNN預測結果的格式
# 先計算真實框的中心與長寬
#---------------------------------------------#
box_center = 0.5 * (box[:2] + box[2:])
box_wh = box[2:] - box[:2]
#---------------------------------------------#
# 再計算重合度較高的先驗框的中心與長寬
#---------------------------------------------#
assigned_priors_center = 0.5 * (assigned_priors[:, :2] +
assigned_priors[:, 2:4])
assigned_priors_wh = (assigned_priors[:, 2:4] -
assigned_priors[:, :2])
#------------------------------------------------#
# 逆向求取efficientdet應該有的預測結果
# 先求取中心的預測結果，再求取寬高的預測結果
#------------------------------------------------#
encoded_box[:, :2][assign_mask] = box_center - assigned_priors_center
encoded_box[:, :2][assign_mask] /= assigned_priors_wh
encoded_box[:, 2:4][assign_mask] = np.log(box_wh / assigned_priors_wh)
return encoded_box.ravel(), ignored_box.ravel()
def assign_boxes(self, boxes, anchors):
self.num_priors = len(anchors)
self.priors = anchors
#---------------------------------------------------#
# assignment分為2個部分
# :4 的內容為網路應該有的回歸預測結果
# 4 的內容為先驗框是否包含物體，默認為背景
#---------------------------------------------------#
assignment = np.zeros((self.num_priors, 4 + 1))
assignment[:, 4] = 0.0
if len(boxes) == 0:
return assignment
#---------------------------------------------------#
# 對每一個真實框都進行iou計算
#---------------------------------------------------#
apply_along_axis_boxes = np.apply_along_axis(self.encode_ignore_box, 1, boxes[:, :4])
encoded_boxes = np.array([apply_along_axis_boxes[i, 0] for i in range(len(apply_along_axis_boxes))])
ingored_boxes = np.array([apply_along_axis_boxes[i, 1] for i in range(len(apply_along_axis_boxes))])
#---------------------------------------------------#
# 在reshape后，獲得的ingnored_boxes的shape為：
# [num_true_box, num_priors, 1] 其中1為iou
#---------------------------------------------------#
ingored_boxes = ingored_boxes.reshape(-1, self.num_priors, 1)
ignore_iou = ingored_boxes[:, :, 0].max(axis=0)
ignore_iou_mask = ignore_iou > 0
assignment[:, 4][ignore_iou_mask] = -1
#---------------------------------------------------#
# 在reshape后，獲得的encoded_boxes的shape為：
# [num_true_box, num_priors, 4+1]
# 4是編碼后的結果，1為iou
#---------------------------------------------------#
encoded_boxes = encoded_boxes.reshape(-1, self.num_priors, 5)
#---------------------------------------------------#
# [num_priors]求取每一個先驗框重合度最大的真實框
#---------------------------------------------------#
best_iou = encoded_boxes[:, :, -1].max(axis=0)
best_iou_idx = encoded_boxes[:, :, -1].argmax(axis=0)
best_iou_mask = best_iou > 0
best_iou_idx = best_iou_idx[best_iou_mask]
#---------------------------------------------------#
# 計算一共有多少先驗框滿足需求
#---------------------------------------------------#
assign_num = len(best_iou_idx)
# 將編碼后的真實框取出
encoded_boxes = encoded_boxes[:, best_iou_mask, :]
assignment[:, :4][best_iou_mask] = encoded_boxes[best_iou_idx,np.arange(assign_num),:4]
#----------------------------------------------------------#
# 4代表為當前先驗框是否包含目標
#----------------------------------------------------------#
assignment[:, 4][best_iou_mask] = 1
return assignment
def decode_boxes(self, mbox_loc, mbox_priorbox):
# 獲得先驗框的寬與高
prior_width = mbox_priorbox[:, 2] - mbox_priorbox[:, 0]
prior_height = mbox_priorbox[:, 3] - mbox_priorbox[:, 1]
# 獲得先驗框的中心點
prior_center_x = 0.5 * (mbox_priorbox[:, 2] + mbox_priorbox[:, 0])
prior_center_y = 0.5 * (mbox_priorbox[:, 3] + mbox_priorbox[:, 1])
# 真實框距離先驗框中心的xy軸偏移情況
decode_bbox_center_x = mbox_loc[:, 0] * prior_width / 4
decode_bbox_center_x += prior_center_x
decode_bbox_center_y = mbox_loc[:, 1] * prior_height / 4
decode_bbox_center_y += prior_center_y
# 真實框的寬與高的求取
decode_bbox_width = np.exp(mbox_loc[:, 2] / 4)
decode_bbox_width *= prior_width
decode_bbox_height = np.exp(mbox_loc[:, 3] / 4)
decode_bbox_height *= prior_height
# 獲取真實框的左上角與右下角
decode_bbox_xmin = decode_bbox_center_x - 0.5 * decode_bbox_width
decode_bbox_ymin = decode_bbox_center_y - 0.5 * decode_bbox_height
decode_bbox_xmax = decode_bbox_center_x + 0.5 * decode_bbox_width
decode_bbox_ymax = decode_bbox_center_y + 0.5 * decode_bbox_height
# 真實框的左上角與右下角進行堆疊
decode_bbox = np.concatenate((decode_bbox_xmin[:, None],
decode_bbox_ymin[:, None],
decode_bbox_xmax[:, None],
decode_bbox_ymax[:, None]), axis=-1)
# 防止超出0與1
decode_bbox = np.minimum(np.maximum(decode_bbox, 0.0), 1.0)
return decode_bbox
def detection_out_rpn(self, predictions, mbox_priorbox):
#---------------------------------------------------#
# 獲得種類的置信度
#---------------------------------------------------#
mbox_conf = predictions[0]
#---------------------------------------------------#
# mbox_loc是回歸預測結果
#---------------------------------------------------#
mbox_loc = predictions[1]
#---------------------------------------------------#
# 獲得網路的先驗框
#---------------------------------------------------#
mbox_priorbox = mbox_priorbox
results = []
# 對每一張圖片進行處理，由于在predict.py的時候，我們只輸入一張圖片，所以for i in range(len(mbox_loc))只進行一次
for i in range(len(mbox_loc)):
#--------------------------------#
# 利用回歸結果對先驗框進行解碼
#--------------------------------#
decode_bbox = self.decode_boxes(mbox_loc[i], mbox_priorbox)
#--------------------------------#
# 取出先驗框內包含物體的概率
#--------------------------------#
c_confs = mbox_conf[i, :, 0]
argsort_index = np.argsort(c_confs)[::-1]
c_confs = c_confs[argsort_index[:self.rpn_pre_boxes]]
decode_bbox = decode_bbox[argsort_index[:self.rpn_pre_boxes], :]
# 進行iou的非極大抑制
idx = tf.image.non_max_suppression(decode_bbox, c_confs, self.top_k, iou_threshold=self.rpn_nms).numpy()
# 取出在非極大抑制中效果較好的內容
good_boxes = decode_bbox[idx]
confs = c_confs[idx][:, None]
c_pred = np.concatenate((confs, good_boxes), axis=1)
argsort = np.argsort(c_pred[:, 0])[::-1]
c_pred = c_pred[argsort]
results.append(c_pred)
return np.array(results)
def detection_out_classifier(self, predictions, proposal_box, config, confidence):
#---------------------------------------------------#
# 獲得種類的置信度
#---------------------------------------------------#
proposal_conf = predictions[0]
#---------------------------------------------------#
# proposal_loc是回歸預測結果
#---------------------------------------------------#
proposal_loc = predictions[1]
results = []
# 對每一張圖片進行處理，由于在predict.py的時候，我們只輸入一張圖片，所以for i in range(len(mbox_loc))只進行一次
for i in range(len(proposal_conf)):
proposal_pred = []
proposal_box[i, :, 2] = proposal_box[i, :, 2] - proposal_box[i, :, 0]
proposal_box[i, :, 3] = proposal_box[i, :, 3] - proposal_box[i, :, 1]
for j in range(proposal_conf[i].shape[0]):
if np.max(proposal_conf[i][j, :-1]) < confidence:
continue
label = np.argmax(proposal_conf[i][j, :-1])
score = np.max(proposal_conf[i][j, :-1])
(x, y, w, h) = proposal_box[i, j, :]
(tx, ty, tw, th) = proposal_loc[i][j, 4*label: 4*(label+1)]
tx /= config.classifier_regr_std[0]
ty /= config.classifier_regr_std[1]
tw /= config.classifier_regr_std[2]
th /= config.classifier_regr_std[3]
cx = x + w/2.
cy = y + h/2.
cx1 = tx * w + cx
cy1 = ty * h + cy
w1 = math.exp(tw) * w
h1 = math.exp(th) * h
x1 = cx1 - w1/2.
y1 = cy1 - h1/2.
x2 = cx1 + w1/2
y2 = cy1 + h1/2
proposal_pred.append([x1,y1,x2,y2,score,label])
num_classes = np.shape(proposal_conf)[-1]
proposal_pred = np.array(proposal_pred)
good_boxes = []
if len(proposal_pred)!=0:
for c in range(num_classes):
mask = proposal_pred[:, -1] == c
if len(proposal_pred[mask]) > 0:
boxes_to_process = proposal_pred[:, :4][mask]
confs_to_process = proposal_pred[:, 4][mask]
idx = tf.image.non_max_suppression(boxes_to_process, confs_to_process, self.top_k, iou_threshold=self.classifier_nms).numpy()
# 取出在非極大抑制中效果較好的內容
good_boxes.extend(proposal_pred[mask][idx])
results.append(good_boxes)
return results
frcnn_training3.py
%%writefile frcnn_training3.py
import os
import random
from random import shuffle
import cv2
import numpy as np
import scipy.signal
import tensorflow as tf
from matplotlib import pyplot as plt
from PIL import Image
from tensorflow import keras
from tensorflow.keras import backend as K
from tensorflow.keras.applications.imagenet_utils import preprocess_input
from anchors import get_anchors
def rand(a=0, b=1):
return np.random.rand()*(b-a) + a
def cls_loss(ratio=3):
def _cls_loss(y_true, y_pred):
#---------------------------------------------------#
# y_true [batch_size, num_anchor, 1]
# y_pred [batch_size, num_anchor, 1]
#---------------------------------------------------#
labels = y_true
#---------------------------------------------------#
# -1 是需要忽略的, 0 是背景, 1 是存在目標
#---------------------------------------------------#
anchor_state = y_true
classification = y_pred
#---------------------------------------------------#
# 獲得無需忽略的所有樣本
#---------------------------------------------------#
indices_for_no_ignore = tf.where(keras.backend.not_equal(anchor_state, -1))
labels_for_no_ignore = tf.gather_nd(labels, indices_for_no_ignore)
classification_for_no_ignore = tf.gather_nd(classification, indices_for_no_ignore)
cls_loss_for_no_ignore = keras.backend.binary_crossentropy(labels_for_no_ignore, classification_for_no_ignore)
cls_loss_for_no_ignore = keras.backend.sum(cls_loss_for_no_ignore)
#---------------------------------------------------#
# 進行標準化
#---------------------------------------------------#
normalizer_no_ignore = tf.where(keras.backend.not_equal(anchor_state, -1))
normalizer_no_ignore = keras.backend.cast(keras.backend.shape(normalizer_no_ignore)[0], keras.backend.floatx())
normalizer_no_ignore = keras.backend.maximum(keras.backend.cast_to_floatx(1.0), normalizer_no_ignore)
# 總的loss
loss = cls_loss_for_no_ignore / normalizer_no_ignore
return loss
return _cls_loss
def smooth_l1(sigma=1.0):
sigma_squared = sigma ** 2
def _smooth_l1(y_true, y_pred):
#---------------------------------------------------#
# y_true [batch_size, num_anchor, 4+1]
# y_pred [batch_size, num_anchor, 4]
#---------------------------------------------------#
regression = y_pred
regression_target = y_true[:, :, :-1]
anchor_state = y_true[:, :, -1]
# 找到正樣本
indices = tf.where(keras.backend.equal(anchor_state, 1))
regression = tf.gather_nd(regression, indices)
regression_target = tf.gather_nd(regression_target, indices)
# 計算smooth L1損失
regression_diff = regression - regression_target
regression_diff = keras.backend.abs(regression_diff)
regression_loss = tf.where(
keras.backend.less(regression_diff, 1.0 / sigma_squared),
0.5 * sigma_squared * keras.backend.pow(regression_diff, 2),
regression_diff - 0.5 / sigma_squared
)
# 將所獲得的loss除上正樣本的數量
normalizer = keras.backend.maximum(1, keras.backend.shape(indices)[0])
normalizer = keras.backend.cast(normalizer, dtype=keras.backend.floatx())
regression_loss = keras.backend.sum(regression_loss) / normalizer
return regression_loss
return _smooth_l1
def class_loss_regr(num_classes):
epsilon = 1e-4
def class_loss_regr_fixed_num(y_true, y_pred):
x = y_true[:, :, 4*num_classes:] - y_pred
x_abs = K.abs(x)
x_bool = K.cast(K.less_equal(x_abs, 1.0), 'float32')
loss = 4 * K.sum(y_true[:, :, :4*num_classes] * (x_bool * (0.5 * x * x) + (1 - x_bool) * (x_abs - 0.5))) / K.sum(epsilon + y_true[:, :, :4*num_classes])
return loss
return class_loss_regr_fixed_num
def class_loss_cls(y_true, y_pred):
loss = K.mean(K.categorical_crossentropy(y_true, y_pred))
return loss
def get_new_img_size(width, height, img_min_side=600):
if width <= height:
f = float(img_min_side) / width
resized_height = int(f * height)
resized_width = int(img_min_side)
else:
f = float(img_min_side) / height
resized_width = int(f * width)
resized_height = int(img_min_side)
return resized_width, resized_height
def get_img_output_length(width, height):
def get_output_length(input_length):
# input_length += 6
filter_sizes = [7, 3, 1, 1]
padding = [3,1,0,0]
stride = 2
for i in range(4):
# input_length = (input_length - filter_size + stride) // stride
input_length = (input_length+2*padding[i]-filter_sizes[i]) // stride + 1
return input_length
return get_output_length(width), get_output_length(height)
class Generator(object):
def __init__(self, bbox_util, train_lines, num_classes, Batch_size, input_shape = [600,600], num_regions=256):
self.bbox_util = bbox_util
self.train_lines = train_lines
self.train_batches = len(train_lines)
self.num_classes = num_classes
self.Batch_size = Batch_size
self.input_shape = input_shape
self.num_regions = num_regions
def get_random_data(self, annotation_line, jitter=.3, hue=.1, sat=1.5, val=1.5, random=True):
'''r實時資料增強的隨機預處理'''
line = annotation_line.split()
# print(type(line[0]))
# print(line[0])
# print(line[0][3])
path_split = line[0].split('/')
# print(path_split)
# print(path_split[0])
# print(path_split[1])
# print(path_split)
link_to_img_path = "../input/images"
last_Path2 = "../input/myimge/" + path_split[4]
# print(last_Path2)
last_Path = os.path.join(link_to_img_path,path_split[4])
print(last_Path)
image = Image.open(last_Path)
iw, ih = image.size
w, h = self.input_shape
box = np.array([np.array(list(map(int,box.split(',')))) for box in line[1:]])
if not random:
# resize image
scale = min(w/iw, h/ih)
nw = int(iw*scale)
nh = int(ih*scale)
dx = (w-nw)//2
dy = (h-nh)//2
image = image.resize((nw,nh), Image.BICUBIC)
new_image = Image.new('RGB', (w,h), (128,128,128))
new_image.paste(image, (dx, dy))
image_data = np.array(new_image, np.float32)
# correct boxes
box_data = np.zeros((len(box),5))
if len(box)>0:
np.random.shuffle(box)
box[:, [0,2]] = box[:, [0,2]]*nw/iw + dx
box[:, [1,3]] = box[:, [1,3]]*nh/ih + dy
box[:, 0:2][box[:, 0:2]<0] = 0
box[:, 2][box[:, 2]>w] = w
box[:, 3][box[:, 3]>h] = h
box_w = box[:, 2] - box[:, 0]
box_h = box[:, 3] - box[:, 1]
box = box[np.logical_and(box_w>1, box_h>1)]
box_data = np.zeros((len(box),5))
box_data[:len(box)] = box
return image_data, box_data
# resize image
new_ar = w/h * rand(1-jitter,1+jitter)/rand(1-jitter,1+jitter)
scale = rand(.25, 2)
if new_ar < 1:
nh = int(scale*h)
nw = int(nh*new_ar)
else:
nw = int(scale*w)
nh = int(nw/new_ar)
image = image.resize((nw,nh), Image.BICUBIC)
# place image
dx = int(rand(0, w-nw))
dy = int(rand(0, h-nh))
new_image = Image.new('RGB', (w,h), (128,128,128))
new_image.paste(image, (dx, dy))
image = new_image
# flip image or not
flip = rand()<.5
if flip: image = image.transpose(Image.FLIP_LEFT_RIGHT)
# distort image
hue = rand(-hue, hue)
sat = rand(1, sat) if rand()<.5 else 1/rand(1, sat)
val = rand(1, val) if rand()<.5 else 1/rand(1, val)
x = cv2.cvtColor(np.array(image,np.float32)/255, cv2.COLOR_RGB2HSV)
x[..., 0] += hue*360
x[..., 0][x[..., 0]>1] -= 1
x[..., 0][x[..., 0]<0] += 1
x[..., 1] *= sat
x[..., 2] *= val
x[x[:,:, 0]>360, 0] = 360
x[:, :, 1:][x[:, :, 1:]>1] = 1
x[x<0] = 0
image_data = cv2.cvtColor(x, cv2.COLOR_HSV2RGB)*255
box_data = np.zeros((len(box),5))
if len(box)>0:
np.random.shuffle(box)
box[:, [0,2]] = box[:, [0,2]]*nw/iw + dx
box[:, [1,3]] = box[:, [1,3]]*nh/ih + dy
if flip: box[:, [0,2]] = w - box[:, [2,0]]
box[:, 0:2][box[:, 0:2]<0] = 0
box[:, 2][box[:, 2]>w] = w
box[:, 3][box[:, 3]>h] = h
box_w = box[:, 2] - box[:, 0]
box_h = box[:, 3] - box[:, 1]
box = box[np.logical_and(box_w>1, box_h>1)] # discard invalid box
box_data = np.zeros((len(box),5))
box_data[:len(box)] = box
return image_data, box_data
def generate(self):
while True:
shuffle(self.train_lines)
lines = self.train_lines
inputs = []
target0 = []
target1 = []
target2 = []
for annotation_line in lines:
img, y = self.get_random_data(annotation_line)
height, width, _ = np.shape(img)
if len(y)>0:
boxes = np.array(y[:,:4],dtype=np.float32)
boxes[:,0] = boxes[:,0] / width
boxes[:,1] = boxes[:,1] / height
boxes[:,2] = boxes[:,2] / width
boxes[:,3] = boxes[:,3] / height
y[:,:4] = boxes[:,:4]
anchors = get_anchors(get_img_output_length(width, height), width, height)
#---------------------------------------------------#
# assignment分為2個部分，它的shape為 :, 5
# :, :4 的內容為網路應該有的回歸預測結果
# :, 4 的內容為先驗框是否包含物體，默認為背景
#---------------------------------------------------#
assignment = self.bbox_util.assign_boxes(y,anchors)
classification = assignment[:, 4]
regression = assignment[:, :]
#---------------------------------------------------#
# 對正樣本與負樣本進行篩選，訓練樣本總和為256
#---------------------------------------------------#
mask_pos = classification[:]>0
num_pos = len(classification[mask_pos])
if num_pos > self.num_regions/2:
val_locs = random.sample(range(num_pos), int(num_pos - self.num_regions/2))
temp_classification = classification[mask_pos]
temp_regression = regression[mask_pos]
temp_classification[val_locs] = -1
temp_regression[val_locs,-1] = -1
classification[mask_pos] = temp_classification
regression[mask_pos] = temp_regression
mask_neg = classification[:]==0
num_neg = len(classification[mask_neg])
mask_pos = classification[:]>0
num_pos = len(classification[mask_pos])
if len(classification[mask_neg]) + num_pos > self.num_regions:
val_locs = random.sample(range(num_neg), int(num_neg + num_pos - self.num_regions))
temp_classification = classification[mask_neg]
temp_classification[val_locs] = -1
classification[mask_neg] = temp_classification
inputs.append(np.array(img))
target0.append(np.reshape(classification,[-1,1]))
target1.append(np.reshape(regression,[-1,5]))
target2.append(y)
if len(inputs) == self.Batch_size:
tmp_inp = np.array(inputs)
tmp_targets = [np.array(target0, np.float32), np.array(target1, np.float32)]
tmp_y = target2
yield preprocess_input(tmp_inp), tmp_targets, tmp_y
inputs = []
target0 = []
target1 = []
target2 = []
class LossHistory():
def __init__(self, log_dir):
import datetime
curr_time = datetime.datetime.now()
time_str = datetime.datetime.strftime(curr_time,'%Y_%m_%d_%H_%M_%S')
self.log_dir = log_dir
self.time_str = time_str
self.save_path = os.path.join(self.log_dir, "loss_" + str(self.time_str))
self.losses = []
self.val_loss = []
os.makedirs(self.save_path)
def append_loss(self, loss, val_loss):
self.losses.append(loss)
self.val_loss.append(val_loss)
with open(os.path.join(self.save_path, "epoch_loss_" + str(self.time_str) + ".txt"), 'a') as f:
f.write(str(loss))
f.write("\n")
with open(os.path.join(self.save_path, "epoch_val_loss_" + str(self.time_str) + ".txt"), 'a') as f:
f.write(str(val_loss))
f.write("\n")
self.loss_plot()
def loss_plot(self):
iters = range(len(self.losses))
plt.figure()
plt.plot(iters, self.losses, 'red', linewidth = 2, label='train loss')
plt.plot(iters, self.val_loss, 'coral', linewidth = 2, label='val loss')
try:
if len(self.losses) < 25:
num = 5
else:
num = 15
plt.plot(iters, scipy.signal.savgol_filter(self.losses, num, 3), 'green', linestyle = '--', linewidth = 2, label='smooth train loss')
plt.plot(iters, scipy.signal.savgol_filter(self.val_loss, num, 3), '#8B4513', linestyle = '--', linewidth = 2, label='smooth val loss')
except:
pass
plt.grid(True)
plt.xlabel('Epoch')
plt.ylabel('Loss')
plt.legend(loc="upper right")
plt.savefig(os.path.join(self.save_path, "epoch_loss_" + str(self.time_str) + ".png"))
RoiPoolingConv.py
%%writefile RoiPoolingConv.py
import tensorflow as tf
import tensorflow.keras.backend as K
from tensorflow.keras.layers import Layer
class RoiPoolingConv(Layer):
def __init__(self, pool_size, **kwargs):
self.pool_size = pool_size
super(RoiPoolingConv, self).__init__(**kwargs)
def build(self, input_shape):
self.nb_channels = input_shape[0][3]
def compute_output_shape(self, input_shape):
input_shape2 = input_shape[1]
return None, input_shape2[1], self.pool_size, self.pool_size, self.nb_channels
def call(self, x, mask=None):
assert(len(x) == 2)
img = x[0]
rois = x[1]
num_rois = tf.shape(rois)[1]
batch_size = tf.shape(rois)[0]
box_index = tf.expand_dims(tf.range(0, batch_size), 1)
box_index = tf.tile(box_index, (1, num_rois))
box_index = tf.reshape(box_index, [-1])
rs = tf.image.crop_and_resize(img, tf.reshape(rois, [-1,4]), box_index, (self.pool_size, self.pool_size))
final_output = K.reshape(rs, (batch_size, num_rois, self.pool_size, self.pool_size, self.nb_channels))
return final_output
resnet.py
%%writefile resnet.py
#-------------------------------------------------------------#
# ResNet50的網路部分
#-------------------------------------------------------------#
from __future__ import print_function
from tensorflow.keras import layers
from tensorflow.keras.initializers import RandomNormal
from tensorflow.keras.layers import (Activation, Add, AveragePooling2D, Conv2D, BatchNormalization,
MaxPooling2D, TimeDistributed,
ZeroPadding2D)
def identity_block(input_tensor, kernel_size, filters, stage, block):
filters1, filters2, filters3 = filters
conv_name_base = 'res' + str(stage) + block + '_branch'
bn_name_base = 'bn' + str(stage) + block + '_branch'
x = Conv2D(filters1, (1, 1), kernel_initializer=RandomNormal(stddev=0.02), name=conv_name_base + '2a')(input_tensor)
x = BatchNormalization(trainable=False, name=bn_name_base + '2a')(x)
x = Activation('relu')(x)
x = Conv2D(filters2, kernel_size, padding='same', kernel_initializer=RandomNormal(stddev=0.02), name=conv_name_base + '2b')(x)
x = BatchNormalization(trainable=False, name=bn_name_base + '2b')(x)
x = Activation('relu')(x)
x = Conv2D(filters3, (1, 1), kernel_initializer=RandomNormal(stddev=0.02), name=conv_name_base + '2c')(x)
x = BatchNormalization(trainable=False, name=bn_name_base + '2c')(x)
x = layers.add([x, input_tensor])
x = Activation('relu')(x)
return x
def conv_block(input_tensor, kernel_size, filters, stage, block, strides=(2, 2)):
filters1, filters2, filters3 = filters
conv_name_base = 'res' + str(stage) + block + '_branch'
bn_name_base = 'bn' + str(stage) + block + '_branch'
x = Conv2D(filters1, (1, 1), strides=strides, kernel_initializer=RandomNormal(stddev=0.02),
name=conv_name_base + '2a')(input_tensor)
x = BatchNormalization(trainable=False, name=bn_name_base + '2a')(x)
x = Activation('relu')(x)
x = Conv2D(filters2, kernel_size, padding='same', kernel_initializer=RandomNormal(stddev=0.02),
name=conv_name_base + '2b')(x)
x = BatchNormalization(trainable=False, name=bn_name_base + '2b')(x)
x = Activation('relu')(x)
x = Conv2D(filters3, (1, 1), kernel_initializer=RandomNormal(stddev=0.02), name=conv_name_base + '2c')(x)
x = BatchNormalization(trainable=False, name=bn_name_base + '2c')(x)
shortcut = Conv2D(filters3, (1, 1), strides=strides, kernel_initializer=RandomNormal(stddev=0.02),
name=conv_name_base + '1')(input_tensor)
shortcut = BatchNormalization(trainable=False, name=bn_name_base + '1')(shortcut)
x = layers.add([x, shortcut])
x = Activation('relu')(x)
return x
def ResNet50(inputs):
#-----------------------------------#
# 假設輸入進來的圖片是600,600,3
#-----------------------------------#
img_input = inputs
# 600,600,3 -> 300,300,64
x = ZeroPadding2D((3, 3))(img_input)
x = Conv2D(64, (7, 7), strides=(2, 2), name='conv1')(x)
x = BatchNormalization(trainable=False, name='bn_conv1')(x)
x = Activation('relu')(x)
# 300,300,64 -> 150,150,64
x = MaxPooling2D((3, 3), strides=(2, 2), padding="same")(x)
# 150,150,64 -> 150,150,256
x = conv_block(x, 3, [64, 64, 256], stage=2, block='a', strides=(1, 1))
x = identity_block(x, 3, [64, 64, 256], stage=2, block='b')
x = identity_block(x, 3, [64, 64, 256], stage=2, block='c')
# 150,150,256 -> 75,75,512
x = conv_block(x, 3, [128, 128, 512], stage=3, block='a')
x = identity_block(x, 3, [128, 128, 512], stage=3, block='b')
x = identity_block(x, 3, [128, 128, 512], stage=3, block='c')
x = identity_block(x, 3, [128, 128, 512], stage=3, block='d')
# 75,75,512 -> 38,38,1024
x = conv_block(x, 3, [256, 256, 1024], stage=4, block='a')
x = identity_block(x, 3, [256, 256, 1024], stage=4, block='b')
x = identity_block(x, 3, [256, 256, 1024], stage=4, block='c')
x = identity_block(x, 3, [256, 256, 1024], stage=4, block='d')
x = identity_block(x, 3, [256, 256, 1024], stage=4, block='e')
x = identity_block(x, 3, [256, 256, 1024], stage=4, block='f')
# 最侄訓得一個38,38,1024的共享特征層
return x
def identity_block_td(input_tensor, kernel_size, filters, stage, block):
nb_filter1, nb_filter2, nb_filter3 = filters
conv_name_base = 'res' + str(stage) + block + '_branch'
bn_name_base = 'bn' + str(stage) + block + '_branch'
x = TimeDistributed(Conv2D(nb_filter1, (1, 1), kernel_initializer='normal'), name=conv_name_base + '2a')(input_tensor)
x = TimeDistributed(BatchNormalization(trainable=False), name=bn_name_base + '2a')(x)
x = Activation('relu')(x)
x = TimeDistributed(Conv2D(nb_filter2, (kernel_size, kernel_size), kernel_initializer='normal',padding='same'), name=conv_name_base + '2b')(x)
x = TimeDistributed(BatchNormalization(trainable=False), name=bn_name_base + '2b')(x)
x = Activation('relu')(x)
x = TimeDistributed(Conv2D(nb_filter3, (1, 1), kernel_initializer='normal'), name=conv_name_base + '2c')(x)
x = TimeDistributed(BatchNormalization(trainable=False), name=bn_name_base + '2c')(x)
x = Add()([x, input_tensor])
x = Activation('relu')(x)
return x
def conv_block_td(input_tensor, kernel_size, filters, stage, block, strides=(2, 2)):
nb_filter1, nb_filter2, nb_filter3 = filters
conv_name_base = 'res' + str(stage) + block + '_branch'
bn_name_base = 'bn' + str(stage) + block + '_branch'
x = TimeDistributed(Conv2D(nb_filter1, (1, 1), strides=strides, kernel_initializer='normal'), name=conv_name_base + '2a')(input_tensor)
x = TimeDistributed(BatchNormalization(trainable=False), name=bn_name_base + '2a')(x)
x = Activation('relu')(x)
x = TimeDistributed(Conv2D(nb_filter2, (kernel_size, kernel_size), padding='same', kernel_initializer='normal'), name=conv_name_base + '2b')(x)
x = TimeDistributed(BatchNormalization(trainable=False), name=bn_name_base + '2b')(x)
x = Activation('relu')(x)
x = TimeDistributed(Conv2D(nb_filter3, (1, 1), kernel_initializer='normal'), name=conv_name_base + '2c')(x)
x = TimeDistributed(BatchNormalization(trainable=False), name=bn_name_base + '2c')(x)
shortcut = TimeDistributed(Conv2D(nb_filter3, (1, 1), strides=strides, kernel_initializer='normal'), name=conv_name_base + '1')(input_tensor)
shortcut = TimeDistributed(BatchNormalization(trainable=False), name=bn_name_base + '1')(shortcut)
x = Add()([x, shortcut])
x = Activation('relu')(x)
return x
def classifier_layers(x):
# num_rois, 14, 14, 1024 -> num_rois, 7, 7, 2048
x = conv_block_td(x, 3, [512, 512, 2048], stage=5, block='a', strides=(2, 2))
# num_rois, 7, 7, 2048 -> num_rois, 7, 7, 2048
x = identity_block_td(x, 3, [512, 512, 2048], stage=5, block='b')
# num_rois, 7, 7, 2048 -> num_rois, 7, 7, 2048
x = identity_block_td(x, 3, [512, 512, 2048], stage=5, block='c')
# num_rois, 7, 7, 2048 -> num_rois, 1, 1, 2048
x = TimeDistributed(AveragePooling2D((7, 7)), name='avg_pool')(x)
return x
frcnn.py
%%writefile frcnn.py
from tensorflow.keras.layers import (Conv2D, Dense, Flatten, Input, Reshape,
TimeDistributed)
from tensorflow.keras.models import Model
from tensorflow.keras.initializers import RandomNormal
from resnet import ResNet50, classifier_layers
from RoiPoolingConv import RoiPoolingConv
#----------------------------------------------------#
# 創建建議框網路
# 該網路結果會對先驗框進行調整獲得建議框
#----------------------------------------------------#
def get_rpn(base_layers, num_anchors):
#----------------------------------------------------#
# 利用一個512通道的3x3卷積進行特征整合
#----------------------------------------------------#
x = Conv2D(512, (3, 3), padding='same', activation='relu', kernel_initializer=RandomNormal(stddev=0.02), name='rpn_conv1')(base_layers)
#----------------------------------------------------#
# 利用一個1x1卷積調整通道數，獲得預測結果
#----------------------------------------------------#
x_class = Conv2D(num_anchors, (1, 1), activation='sigmoid', kernel_initializer=RandomNormal(stddev=0.02), name='rpn_out_class')(x)
x_regr = Conv2D(num_anchors * 4, (1, 1), activation='linear', kernel_initializer=RandomNormal(stddev=0.02), name='rpn_out_regress')(x)
x_class = Reshape((-1,1),name="classification")(x_class)
x_regr = Reshape((-1,4),name="regression")(x_regr)
return [x_class, x_regr]
#----------------------------------------------------#
# 將共享特征層和建議框傳入classifier網路
# 該網路結果會對建議框進行調整獲得預測框
#----------------------------------------------------#
def get_classifier(base_layers, input_rois, nb_classes=21, pooling_regions = 14):
# num_rois, 38, 38, 1024 -> num_rois, 14, 14, 2048
out_roi_pool = RoiPoolingConv(pooling_regions)([base_layers, input_rois])
# num_rois, 14, 14, 1024 -> num_rois, 1, 1, 2048
out = classifier_layers(out_roi_pool)
# num_rois, 1, 1, 1024 -> num_rois, 2048
out = TimeDistributed(Flatten())(out)
# num_rois, 1, 1, 1024 -> num_rois, nb_classes
out_class = TimeDistributed(Dense(nb_classes, activation='softmax', kernel_initializer=RandomNormal(stddev=0.02)), name='dense_class_{}'.format(nb_classes))(out)
# num_rois, 1, 1, 1024 -> num_rois, 4 * (nb_classes-1)
out_regr = TimeDistributed(Dense(4 * (nb_classes-1), activation='linear', kernel_initializer=RandomNormal(stddev=0.02)), name='dense_regress_{}'.format(nb_classes))(out)
return [out_class, out_regr]
def get_model(config, num_classes):
inputs = Input(shape=(None, None, 3))
roi_input = Input(shape=(None, 4))
#----------------------------------------------------#
# 假設輸入為600,600,3
# 獲得一個38,38,1024的共享特征層base_layers
#----------------------------------------------------#
base_layers = ResNet50(inputs)
#----------------------------------------------------#
# 每個特征點9個先驗框
#----------------------------------------------------#
num_anchors = len(config.anchor_box_scales) * len(config.anchor_box_ratios)
#----------------------------------------------------#
# 將共享特征層傳入建議框網路
# 該網路結果會對先驗框進行調整獲得建議框
#----------------------------------------------------#
rpn = get_rpn(base_layers, num_anchors)
model_rpn = Model(inputs, rpn)
#----------------------------------------------------#
# 將共享特征層和建議框傳入classifier網路
# 該網路結果會對建議框進行調整獲得預測框
#----------------------------------------------------#
classifier = get_classifier(base_layers, roi_input, num_classes, config.pooling_regions)
model_all = Model([inputs, roi_input], rpn + classifier)
return model_rpn, model_all
def get_predict_model(config, num_classes):
inputs = Input(shape=(None, None, 3))
roi_input = Input(shape=(None, 4))
feature_map_input = Input(shape=(None,None,1024))
#----------------------------------------------------#
# 假設輸入為600,600,3
# 獲得一個38,38,1024的共享特征層base_layers
#----------------------------------------------------#
base_layers = ResNet50(inputs)
#----------------------------------------------------#
# 每個特征點9個先驗框
#----------------------------------------------------#
num_anchors = len(config.anchor_box_scales) * len(config.anchor_box_ratios)
#----------------------------------------------------#
# 將共享特征層傳入建議框網路
# 該網路結果會對先驗框進行調整獲得建議框
#----------------------------------------------------#
rpn = get_rpn(base_layers, num_anchors)
model_rpn = Model(inputs, rpn + [base_layers])
#----------------------------------------------------#
# 將共享特征層和建議框傳入classifier網路
# 該網路結果會對建議框進行調整獲得預測框
#----------------------------------------------------#
classifier = get_classifier(feature_map_input, roi_input, num_classes, config.pooling_regions)
model_classifier_only = Model([feature_map_input, roi_input], classifier)
return model_rpn, model_classifier_only
train.py（訓練代碼）
訓練時，我們只需要點擊運行這個代碼即可進行訓練：
# 訓練檔案
import numpy as np
import tensorflow as tf
import tensorflow.keras.backend as K
from tensorflow import keras
from tqdm import tqdm
import os
from frcnn import get_model
from frcnn_training3 import (Generator, LossHistory, class_loss_cls,
class_loss_regr, cls_loss,
get_img_output_length, smooth_l1)
from anchors import get_anchors
from config import Config
from roi_helpers import calc_iou
from utils import BBoxUtility
gpus = tf.config.experimental.list_physical_devices(device_type='GPU')
for gpu in gpus:
tf.config.experimental.set_memory_growth(gpu, True)
def write_log(callback, names, logs, batch_no):
with callback.as_default():
for name, value in zip(names, logs):
tf.summary.scalar(name,value,step=batch_no)
callback.flush()
def fit_one_epoch(model_rpn,model_all,epoch,epoch_size,epoch_size_val,gen,genval,Epoch,callback):
total_loss = 0
rpn_loc_loss = 0
rpn_cls_loss = 0
roi_loc_loss = 0
roi_cls_loss = 0
val_toal_loss = 0
with tqdm(total=epoch_size,desc=f'Epoch {epoch + 1}/{Epoch}',postfix=dict,mininterval=0.3) as pbar:
for iteration, batch in enumerate(gen):
if iteration >= epoch_size:
break
X, Y, boxes = batch[0], batch[1], batch[2]
P_rpn = model_rpn.predict_on_batch(X)
height, width, _ = np.shape(X[0])
base_feature_width, base_feature_height = get_img_output_length(width, height)
anchors = get_anchors([base_feature_width, base_feature_height], width, height)
results = bbox_util.detection_out_rpn(P_rpn, anchors)
roi_inputs = []
out_classes = []
out_regrs = []
for i in range(len(X)):
R = results[i][:, 1:]
X2, Y1, Y2 = calc_iou(R, config, boxes[i], NUM_CLASSES)
roi_inputs.append(X2)
out_classes.append(Y1)
out_regrs.append(Y2)
loss_class = model_all.train_on_batch([X, np.array(roi_inputs)], [Y[0], Y[1], np.array(out_classes), np.array(out_regrs)])
write_log(callback, ['total_loss','rpn_cls_loss', 'rpn_reg_loss', 'detection_cls_loss', 'detection_reg_loss'], loss_class, iteration)
rpn_cls_loss += loss_class[1]
rpn_loc_loss += loss_class[2]
roi_cls_loss += loss_class[3]
roi_loc_loss += loss_class[4]
total_loss = rpn_loc_loss + rpn_cls_loss + roi_loc_loss + roi_cls_loss
pbar.set_postfix(**{'total' : total_loss / (iteration + 1),
'rpn_cls' : rpn_cls_loss / (iteration + 1),
'rpn_loc' : rpn_loc_loss / (iteration + 1),
'roi_cls' : roi_cls_loss / (iteration + 1),
'roi_loc' : roi_loc_loss / (iteration + 1),
'lr' : K.get_value(model_rpn.optimizer.lr)})
pbar.update(1)
print('Start Validation')
with tqdm(total=epoch_size_val, desc=f'Epoch {epoch + 1}/{Epoch}',postfix=dict,mininterval=0.3) as pbar:
for iteration, batch in enumerate(genval):
if iteration >= epoch_size_val:
break
X, Y, boxes = batch[0], batch[1], batch[2]
P_rpn = model_rpn.predict_on_batch(X)
height, width, _ = np.shape(X[0])
base_feature_width, base_feature_height = get_img_output_length(width, height)
anchors = get_anchors([base_feature_width, base_feature_height], width, height)
results = bbox_util.detection_out_rpn(P_rpn, anchors)
roi_inputs = []
out_classes = []
out_regrs = []
for i in range(len(X)):
R = results[i][:, 1:]
X2, Y1, Y2 = calc_iou(R, config, boxes[i], NUM_CLASSES)
roi_inputs.append(X2)
out_classes.append(Y1)
out_regrs.append(Y2)
loss_class = model_all.test_on_batch([X, np.array(roi_inputs)], [Y[0], Y[1], np.array(out_classes), np.array(out_regrs)])
val_toal_loss += loss_class[0]
pbar.set_postfix(**{'total' : val_toal_loss / (iteration + 1)})
pbar.update(1)
loss_history.append_loss(total_loss/(epoch_size+1), val_toal_loss/(epoch_size_val+1))
print('Finish Validation')
print('Epoch:'+ str(epoch+1) + '/' + str(Epoch))
print('Total Loss: %.4f || Val Loss: %.4f ' % (total_loss/(epoch_size+1),val_toal_loss/(epoch_size_val+1)))
print('Saving state, iter:', str(epoch+1))
# E:\python-run-env\Faster-RCNN\logs ./
if((epoch+1)%10 == 0):
model_all.save_weights('./Epoch%d-Total_Loss%.4f-Val_Loss%.4f.h5'%((epoch+1),total_loss/(epoch_size+1),val_toal_loss/(epoch_size_val+1)))
return
#----------------------------------------------------#
# 檢測精度mAP和pr曲線計算參考視頻
# https://www.bilibili.com/video/BV1zE411u7Vw
#----------------------------------------------------#
if __name__ == "__main__":
config = Config()
#----------------------------------------------------#
# 訓練之前一定要修改NUM_CLASSES
# 修改成所需要區分的類的個數+1，
#----------------------------------------------------#
NUM_CLASSES = 5
# os.environ["CUDA_DEVICE_ORDER"] = "PCI_BUS_ID"
# os.environ["CUDA_VISIBLE_DEVICES"] = "-1"
# os.environ["CUDA_VISIBLE_DEVICES"]="-1"
# gpus = tf.config.experimental.list_physical_devices('GPU')
# if gpus:
# tf.config.experimental.set_virtual_device_configuration(gpus[0],[tf.config.experimental.VirtualDeviceConfiguration(memory_limit=1024)])
# tf.config.experimental.set_memory_growth(gpus[0],True)
# tf.config.experimental.set_virtual_device_configuration(
# gpus[0],
# [tf.config.experimental.VirtualDeviceConfiguration(memory_limit=1024)]
# )
gpus = tf.config.experimental.list_physical_devices(device_type='GPU')
for gpu in gpus:
tf.config.experimental.set_memory_growth(gpu, True)
# gpus = tf.config.experimental.list_physical_devices(device_type='GPU')
# cpus = tf.config.experimental.list_physical_devices(device_type='CPU')
# print(gpus, cpus)
# os.environ['CUDA_VISIBLE_DEVICES'] = "-1"
# tf.config.experimental.set_visible_devices(devices=cpus[0], device_type='CPU')
#-----------------------------------------------------#
# input_shape是輸入圖片的大小，默認為800,800,3
# 隨著輸入圖片的增大，占用顯存會增大
# 視頻上為600,600,3，多次訓練測驗后發現800,800,3更優
#-----------------------------------------------------#
input_shape = [800, 800, 3]
model_rpn, model_all = get_model(config, NUM_CLASSES)
#------------------------------------------------------#
# 權值檔案請看README，百度網盤下載
# 訓練自己的資料集時提示維度不匹配正常
# 預測的東西都不一樣了自然維度不匹配
#------------------------------------------------------#
# base_net_weights = r"E:\python-run-env\Faster-RCNN\model_data\voc_weights.h5"
# model_rpn.load_weights(base_net_weights, by_name=True)
# model_all.load_weights(base_net_weights, by_name=True)
bbox_util = BBoxUtility(overlap_threshold=config.rpn_max_overlap,ignore_threshold=config.rpn_min_overlap,top_k=config.num_RPN_train_pre)
#--------------------------------------------#
# 訓練引數的設定
#--------------------------------------------#
callback = tf.summary.create_file_writer("logs")
loss_history = LossHistory("logs/")
annotation_path = '../input/2007-train/2007_train.txt'
#----------------------------------------------------------------------#
# 驗證集的劃分在train.py代碼里面進行
# 2007_test.txt和2007_val.txt里面沒有內容是正常的，訓練不會使用到，
# 當前劃分方式下，驗證集和訓練集的比例為1:9
#----------------------------------------------------------------------#
val_split = 0.1
with open(annotation_path) as f:
lines = f.readlines()
np.random.seed(10101)
np.random.shuffle(lines)
np.random.seed(None)
num_val = int(len(lines)*val_split)
num_train = len(lines) - num_val
#------------------------------------------------------#
# 主干特征提取網路特征通用，使用預訓練權重可以加快訓練
# Init_Epoch為起始世代
# Interval_Epoch為中間訓練的世代
# Epoch總訓練世代
# 提示OOM或者顯存不足請調小Batch_size
#------------------------------------------------------#
if True:
lr = 1e-4
Batch_size = 5
Init_Epoch = 0
Interval_Epoch = 100
model_rpn.compile(
loss = {
'classification': cls_loss(),
'regression' : smooth_l1()
}, optimizer=keras.optimizers.Adam(lr=lr)
)
model_all.compile(
loss = {
'classification' : cls_loss(),
'regression' : smooth_l1(),
'dense_class_{}'.format(NUM_CLASSES) : class_loss_cls,
'dense_regress_{}'.format(NUM_CLASSES) : class_loss_regr(NUM_CLASSES-1)
}, optimizer=keras.optimizers.Adam(lr=lr)
)
gen = Generator(bbox_util, lines[:num_train], NUM_CLASSES, Batch_size, input_shape=[input_shape[0], input_shape[1]]).generate()
gen_val = Generator(bbox_util, lines[num_train:], NUM_CLASSES, Batch_size, input_shape=[input_shape[0], input_shape[1]]).generate()
epoch_size = num_train // Batch_size
epoch_size_val = num_val // Batch_size
if epoch_size == 0 or epoch_size_val == 0:
raise ValueError("資料集過小，無法進行訓練，請擴充資料集，")
for epoch in range(Init_Epoch, Interval_Epoch):
# E:\python-run-env\Faster-RCNN\VOCdevkit\VOC2007\JPEGImages\023.jpg
fit_one_epoch(model_rpn, model_all, epoch, epoch_size, epoch_size_val, gen, gen_val, Interval_Epoch, callback)
lr = lr*0.92
K.set_value(model_rpn.optimizer.lr, lr)
K.set_value(model_all.optimizer.lr, lr)
if True:
lr = 1e-5
Batch_size = 5
Interval_Epoch = 100
Epoch = 200
model_rpn.compile(
loss = {
'classification': cls_loss(),
'regression' : smooth_l1()
}, optimizer=keras.optimizers.Adam(lr=lr)
)
model_all.compile(
loss = {
'classification' : cls_loss(),
'regression' : smooth_l1(),
'dense_class_{}'.format(NUM_CLASSES) : class_loss_cls,
'dense_regress_{}'.format(NUM_CLASSES) : class_loss_regr(NUM_CLASSES-1)
}, optimizer=keras.optimizers.Adam(lr=lr)
)
gen = Generator(bbox_util, lines[:num_train], NUM_CLASSES, Batch_size, input_shape=[input_shape[0], input_shape[1]]).generate()
gen_val = Generator(bbox_util, lines[num_train:], NUM_CLASSES, Batch_size, input_shape=[input_shape[0], input_shape[1]]).generate()
epoch_size = num_train // Batch_size
epoch_size_val = num_val // Batch_size
if epoch_size == 0 or epoch_size_val == 0:
raise ValueError("資料集過小，無法進行訓練，請擴充資料集，")
for epoch in range(Interval_Epoch, Epoch):
fit_one_epoch(model_rpn, model_all, epoch, epoch_size, epoch_size_val, gen, gen_val, Epoch, callback)
lr = lr*0.92
K.set_value(model_rpn.optimizer.lr, lr)
K.set_value(model_all.optimizer.lr, lr)
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/296692.html
標籤：其他
