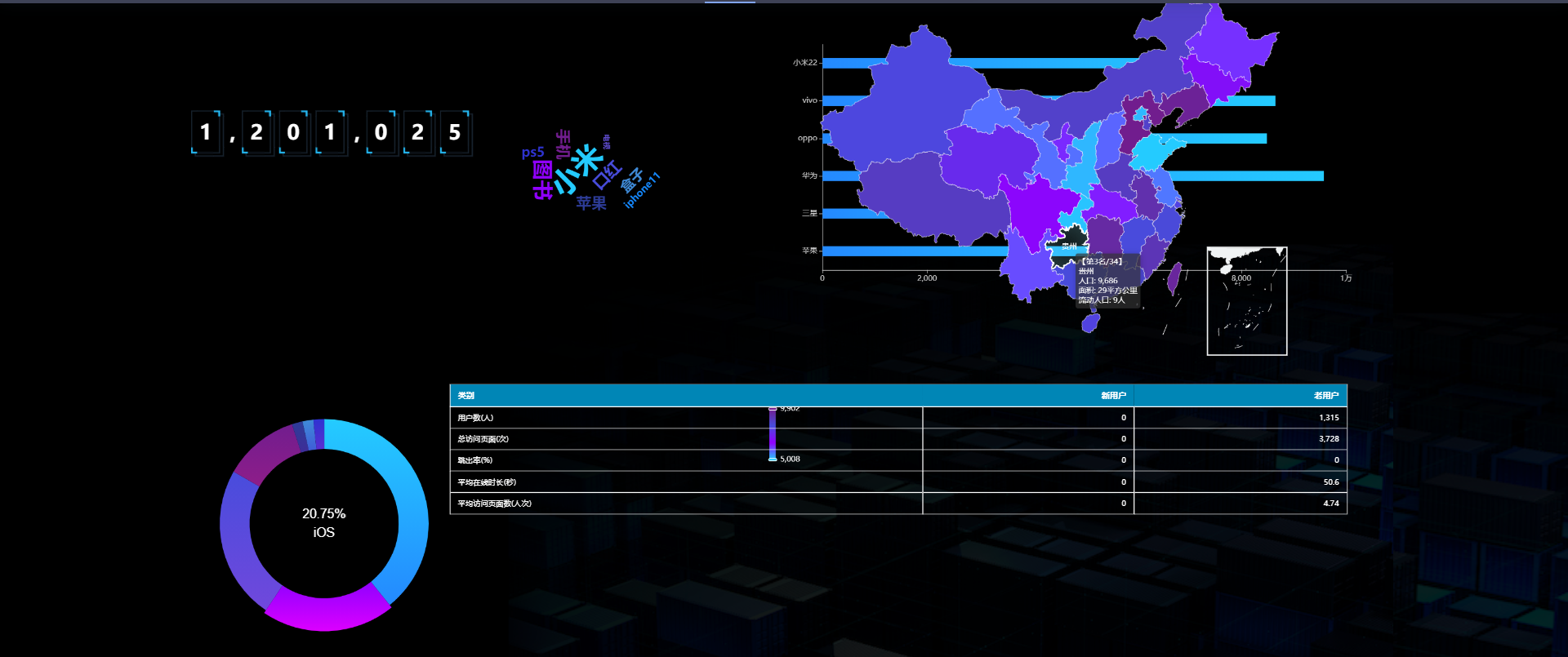

- 最終效果

訪客主題寬表

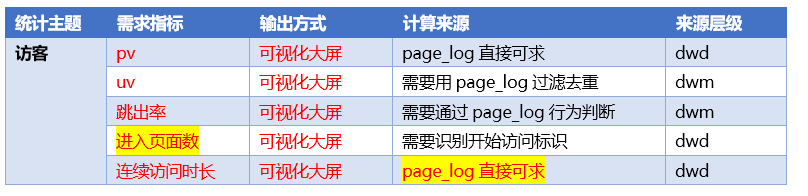

設計一張DWS層的表其實就兩件事：維度和度量(事實資料)

度量包括PV、UV、跳出次數、進入頁面數(session_count)、連續訪問時長

維度包括在分析中比較重要的幾個欄位：渠道、地區、版本、新老用戶進行聚合

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONObject;
import com.atguigu.bean.VisitorStats;
import com.atguigu.utils.ClickHouseUtil;
import com.atguigu.utils.MyKafkaUtil;
import org.apache.flink.api.common.eventtime.SerializableTimestampAssigner;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.functions.ReduceFunction;
import org.apache.flink.api.java.functions.KeySelector;
import org.apache.flink.api.java.tuple.Tuple4;
import org.apache.flink.streaming.api.datastream.*;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.ProcessFunction;
import org.apache.flink.streaming.api.functions.windowing.WindowFunction;
import org.apache.flink.streaming.api.windowing.assigners.TumblingEventTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.streaming.api.windowing.windows.TimeWindow;
import org.apache.flink.util.Collector;

import java.text.SimpleDateFormat;
import java.time.Duration;

/**
 * mock->nginx->logger->kafka(ods_base_log)->flinkApp(logBaseApp)->
 * kafka(dwd_page_log,dwm_unique_visit)->
 * flinkApp(UvApp UserJumpApp)->
 * kafka(dwm_user_jump_detail)->
 * VisitorStatsApp
 */
public class VisitorStatsApp {
    public static void main(String[] args) throws Exception {
        //1.獲取執行環境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
//        env.setStateBackend(new FsStateBackend("hdfs://hadoop102:9000/gmall/dwm_log/ck"));
//        System.setProperty("HADOOP_USER_NAME", "root");
//        env.enableCheckpointing(1000L, CheckpointingMode.EXACTLY_ONCE);
//        env.getCheckpointConfig().setCheckpointTimeout(6000L);

        //2.讀取kafka主題的資料
        // dwd_page_log(pv,訪問時長，進入頁面數)
        // dwm_unique_visitor(uv)
        // dwm_user_jump(uj)
        String groupId = "visitor_stats_app";
        String pageViewSourceTopic = "dwd_page_log";
        String uniqueVisitSourceTopic = "dwm_unique_visit";
        String userJumpDetailSourceTopic = "dwm_user_jump_detail";

        DataStreamSource<String> pageLogDS = env.addSource(MyKafkaUtil.getKafkaSource(pageViewSourceTopic, groupId));
        DataStreamSource<String> uvDS = env.addSource(MyKafkaUtil.getKafkaSource(uniqueVisitSourceTopic, groupId));
        DataStreamSource<String> userJumpDS = env.addSource(MyKafkaUtil.getKafkaSource(userJumpDetailSourceTopic, groupId));

        //測驗
//        pageLogDS.print("page>>>>>>>>>>");
//        uvDS.print("uv>>>>>>>");
//        userJumpDS.print("userJump>>>>>>>");

        //3.格式化流資料，使其欄位統一（JavaBean）
        //3.1將頁面資料流格式化為visitorStats,PV during-time
        SingleOutputStreamOperator<VisitorStats> pvAndDtDS = pageLogDS.map(jsonStr -> {
            //將資料轉換成JSON物件
            JSONObject jsonObject = JSON.parseObject(jsonStr);
            JSONObject commonObj = jsonObject.getJSONObject("common");
            return new VisitorStats("", "",
                    commonObj.getString("vc"),
                    commonObj.getString("ch"),
                    commonObj.getString("ar"),
                    commonObj.getString("is_new"),
                    0L,
                    1L,
                    0L,
                    0L,
                    jsonObject.getJSONObject("page").getLong("during_time"),
                    jsonObject.getLong("ts"));
        });

        //3.2 將頁面資料流先過濾后格式化為visitorStats sv_ct
        SingleOutputStreamOperator<VisitorStats> svCountDS = pageLogDS.process(new ProcessFunction<String, VisitorStats>() {
            @Override
            public void processElement(String value, Context ctx, Collector<VisitorStats> out) throws Exception {
                //將資料轉換成JSON物件
                JSONObject jsonObject = JSON.parseObject(value);
                //獲取上一條頁面資料
                String lastPage = jsonObject.getJSONObject("page").getString("last_page_id");
                if (lastPage == null || lastPage.length() <= 0) {
                    JSONObject commonObj = jsonObject.getJSONObject("common");
                    out.collect(new VisitorStats("", "",
                            commonObj.getString("vc"),
                            commonObj.getString("ch"),
                            commonObj.getString("ar"),
                            commonObj.getString("is_new"),
                            0L,
                            0L,
                            1L,
                            0L,
                            0L,
                            jsonObject.getLong("ts"))
                    );
                }

            }
        });
        //3.3 將uvDS格式化為VisitorStats uv
        SingleOutputStreamOperator<VisitorStats> uvCountDS = uvDS.map(jsonStr -> {
            JSONObject jsonObject = JSON.parseObject(jsonStr);
            JSONObject commonObj = jsonObject.getJSONObject("common");
            return new VisitorStats("", "",
                    commonObj.getString("vc"),
                    commonObj.getString("ch"),
                    commonObj.getString("ar"),
                    commonObj.getString("is_new"),
                    1L,
                    0L,
                    0L,
                    0L,
                    0L,
                    jsonObject.getLong("ts")
            );

        });
        //3.4 將userJumpDS格式化為VisitorStats uj_Ct
        SingleOutputStreamOperator<VisitorStats> ujCountDS = userJumpDS.map(jsonStr -> {
            JSONObject jsonObject = JSON.parseObject(jsonStr);
            JSONObject commonObj = jsonObject.getJSONObject("common");
            return new VisitorStats("", "",
                    commonObj.getString("vc"),
                    commonObj.getString("ch"),
                    commonObj.getString("ar"),
                    commonObj.getString("is_new"),
                    0L,
                    0L,
                    0L,
                    1L,
                    0L,
                    jsonObject.getLong("ts"));
        });
        //4.將多個流的資料進行union
        DataStream<VisitorStats> unionDS = pvAndDtDS.union(svCountDS, uvCountDS, ujCountDS);

        SingleOutputStreamOperator<VisitorStats> visitorStatsSingleOutputStreamOperator = unionDS.assignTimestampsAndWatermarks(WatermarkStrategy
                .<VisitorStats>forBoundedOutOfOrderness(Duration.ofSeconds(10))
                .withTimestampAssigner(new SerializableTimestampAssigner<VisitorStats>() {
                    @Override
                    public long extractTimestamp(VisitorStats element, long recordTimestamp) {
                        return element.getTs();
                    }
                }));

        //5.分組，聚合計算
        KeyedStream<VisitorStats, Tuple4<String, String, String, String>> keyedStream = visitorStatsSingleOutputStreamOperator
                .keyBy(new KeySelector<VisitorStats, Tuple4<String, String, String, String>>() {
                    @Override
                    public Tuple4<String, String, String, String> getKey(VisitorStats value) throws Exception {
                        return Tuple4.of(value.getVc(), value.getCh(), value.getAr(), value.getIs_new());
                    }
                });

        //開窗
        WindowedStream<VisitorStats, Tuple4<String, String, String, String>, TimeWindow> windowedStream =
                keyedStream.window(TumblingEventTimeWindows.of(Time.seconds(10)));
        //聚合操作
        SingleOutputStreamOperator<Object> result = windowedStream.reduce(
                new ReduceFunction<VisitorStats>() {
                    @Override
                    public VisitorStats reduce(VisitorStats value1, VisitorStats value2) throws Exception {
                        return new VisitorStats("", "",
                                value1.getVc(),
                                value1.getCh(),
                                value1.getAr(),
                                value1.getIs_new(),
                                value1.getUv_ct() + value2.getUv_ct(),
                                value1.getPv_ct() + value2.getPv_ct(),
                                value1.getSv_ct() + value2.getSv_ct(),
                                value1.getUj_ct() + value2.getUj_ct(),
                                value1.getDur_sum() + value2.getDur_sum(),
                                System.currentTimeMillis());
                    }
                },
                new WindowFunction<VisitorStats, Object, Tuple4<String, String, String, String>, TimeWindow>() {
                    @Override
                    public void apply(Tuple4<String, String, String, String> stringStringStringStringTuple4, TimeWindow window, Iterable<VisitorStats> input, Collector<Object> out) throws Exception {
                        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
                        //取出資料
                        VisitorStats visitorStats = input.iterator().next();
                        //取出視窗的開始及結束時間
                        long start = window.getStart();
                        long end = window.getEnd();

                        String stt = sdf.format(start);
                        String edt = sdf.format(end);

                        //設定時間
                        visitorStats.setStt(stt);
                        visitorStats.setEdt(edt);

                        //將資料寫出
                        out.collect(visitorStats);
                    }
                });
        result.print(">>>>>>>>>");
        //6.將聚合之后的資料寫入clickHouse
        result.addSink(ClickHouseUtil.getSink("insert into visitor_stats values(?,?,?,?,?,?,?,?,?,?,?,?)"));

        //7.執行任務
        env.execute();
    }
}

clickhouseUtil

import com.atguigu.bean.TransientSink;
import com.atguigu.common.GmallConfig;
import org.apache.flink.connector.jdbc.JdbcConnectionOptions;
import org.apache.flink.connector.jdbc.JdbcExecutionOptions;
import org.apache.flink.connector.jdbc.JdbcSink;
import org.apache.flink.connector.jdbc.JdbcStatementBuilder;
import org.apache.flink.streaming.api.functions.sink.SinkFunction;

import java.beans.Transient;
import java.lang.reflect.Field;
import java.sql.PreparedStatement;
import java.sql.SQLException;

public class ClickHouseUtil {
    public static <T> SinkFunction getSink(String sql) {

        return JdbcSink.sink(sql, new JdbcStatementBuilder<T>() {
                    @Override
                    public void accept(PreparedStatement preparedStatement, T obj) throws SQLException {

                        //反射的方式獲取所有的屬性名
                        Field[] fields = obj.getClass().getDeclaredFields();
                        //定義跳過的屬性
                        int offset = 0;
                        for (int i = 0; i < fields.length; i++) {
                            //獲取欄位名
                            Field field = fields[i];
                            //獲取欄位上的注解
                            TransientSink transientSink = field.getAnnotation(TransientSink.class);
                            if (transientSink != null) {
                                offset++;
                                continue;
                            }
                            //設定可訪問私有屬性的值
                            field.setAccessible(true);
                            try {
                                Object o = field.get(obj);
                                //給占位符賦值
                                preparedStatement.setObject(i + 1 - offset, o);
                            } catch (IllegalAccessException e) {
                                e.printStackTrace();
                            }
                        }

                    }
                },
                JdbcExecutionOptions.builder()
                        .withBatchSize(5)
                        .build(),
                new JdbcConnectionOptions.JdbcConnectionOptionsBuilder()
                        .withDriverName(GmallConfig.CLICKHOUSE_DRIVER)
                        .withUrl(GmallConfig.CLICKHOUSE_URL)
                        .build());
    }
}

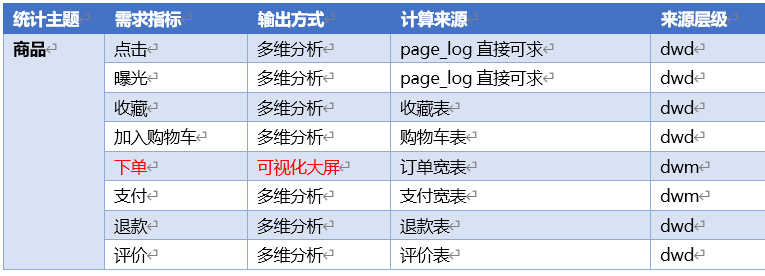

商品主題（ProductStatsApp）

package com.atguigu.app.dws;

import com.alibaba.fastjson.JSON;
import com.alibaba.fastjson.JSONArray;
import com.alibaba.fastjson.JSONObject;
import com.atguigu.app.func.DimAsyncFunction;
import com.atguigu.bean.OrderWide;
import com.atguigu.bean.PaymentWide;
import com.atguigu.bean.ProductStats;

import com.atguigu.utils.ClickHouseUtil;
import com.atguigu.utils.DateTimeUtil;
import com.atguigu.utils.GmallConstant;
import com.atguigu.utils.MyKafkaUtil;
import org.apache.flink.api.common.eventtime.SerializableTimestampAssigner;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.functions.ReduceFunction;
import org.apache.flink.streaming.api.datastream.AsyncDataStream;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.ProcessFunction;
import org.apache.flink.streaming.api.functions.windowing.WindowFunction;
import org.apache.flink.streaming.api.windowing.assigners.TumblingEventTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.streaming.api.windowing.windows.TimeWindow;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.util.Collector;

import java.math.BigDecimal;
import java.text.SimpleDateFormat;
import java.time.Duration;
import java.util.Collections;
import java.util.HashSet;
import java.util.concurrent.TimeUnit;

/**
 * mockLog -> Nginx -> Logger -> Kafka(ods_base_log) -> FlinkApp(BaseLogApp) -> Kafka(dwd_page_log)
 * mockDB -> MySQL -> Maxwell -> Kafka(ods_base_db_m) -> FlinkApp(BaseDBApp) -> Kafka(HBase) ->
 * FlinkApp(OrderWideApp,PaymentWideApp,Redis,Phoenix) -> Kafka(dwm_order_wide,dwm_payment_wide)
 */
public class ProductStatsApp {

    public static void main(String[] args) throws Exception {

        //1.獲取執行環境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
        //1.1 設定狀態后端
        //env.setStateBackend(new FsStateBackend("hdfs://hadoop102:8020/gmall/dwd_log/ck"));
        //1.2 開啟CK
        //env.enableCheckpointing(10000L, CheckpointingMode.EXACTLY_ONCE);
        //env.getCheckpointConfig().setCheckpointTimeout(60000L);

        //2.讀取Kafka資料  7個主題
        String groupId = "product_stats_app1";

        String pageViewSourceTopic = "dwd_page_log";
        String favorInfoSourceTopic = "dwd_favor_info";
        String cartInfoSourceTopic = "dwd_cart_info";
        String orderWideSourceTopic = "dwm_order_wide";
        String paymentWideSourceTopic = "dwm_payment_wide";
        String refundInfoSourceTopic = "dwd_order_refund_info";
        String commentInfoSourceTopic = "dwd_comment_info";

        FlinkKafkaConsumer<String> pageViewSource = MyKafkaUtil.getKafkaSource(pageViewSourceTopic, groupId);
        DataStreamSource<String> pageViewDStream = env.addSource(pageViewSource);

        FlinkKafkaConsumer<String> favorInfoSourceSource = MyKafkaUtil.getKafkaSource(favorInfoSourceTopic, groupId);
        DataStreamSource<String> favorInfoDStream = env.addSource(favorInfoSourceSource);

        FlinkKafkaConsumer<String> cartInfoSource = MyKafkaUtil.getKafkaSource(cartInfoSourceTopic, groupId);
        DataStreamSource<String> cartInfoDStream = env.addSource(cartInfoSource);

        FlinkKafkaConsumer<String> orderWideSource = MyKafkaUtil.getKafkaSource(orderWideSourceTopic, groupId);
        DataStreamSource<String> orderWideDStream = env.addSource(orderWideSource);

        FlinkKafkaConsumer<String> paymentWideSource = MyKafkaUtil.getKafkaSource(paymentWideSourceTopic, groupId);
        DataStreamSource<String> paymentWideDStream = env.addSource(paymentWideSource);

        FlinkKafkaConsumer<String> refundInfoSource = MyKafkaUtil.getKafkaSource(refundInfoSourceTopic, groupId);
        DataStreamSource<String> refundInfoDStream = env.addSource(refundInfoSource);

        FlinkKafkaConsumer<String> commentInfoSource = MyKafkaUtil.getKafkaSource(commentInfoSourceTopic, groupId);
        DataStreamSource<String> commentInfoDStream = env.addSource(commentInfoSource);

        //3.將7個流轉換為統一資料格式
        //3.1 處理點擊和曝光資料
        SingleOutputStreamOperator<ProductStats> clickAndDisplayDS = pageViewDStream.process(new ProcessFunction<String, ProductStats>() {
            @Override
            public void processElement(String pageLog, Context ctx, Collector<ProductStats> out) throws Exception {
                //轉換為JSON物件
                JSONObject jsonObject = JSON.parseObject(pageLog);

                //獲取PageId
                JSONObject pageObj = jsonObject.getJSONObject("page");
                String page_id = pageObj.getString("page_id");

                //獲取時間戳欄位
                Long ts = jsonObject.getLong("ts");

                //判斷是good_detail頁面,則為點擊資料
                if ("good_detail".equals(page_id)) {
                    ProductStats productStats = ProductStats
                            .builder()
                            .sku_id(pageObj.getLong("item"))
                            .click_ct(1L)
                            .ts(ts)
                            .build();
                    out.collect(productStats);
                }

                //取出曝光資料
                JSONArray displays = jsonObject.getJSONArray("displays");
                if (displays != null && displays.size() > 0) {

                    for (int i = 0; i < displays.size(); i++) {
                        JSONObject displayObj = displays.getJSONObject(i);

                        if ("sku_id".equals(displayObj.getString("item_type"))) {
                            ProductStats productStats = ProductStats.builder()
                                    .sku_id(displayObj.getLong("item"))
                                    .display_ct(1L)
                                    .ts(ts)
                                    .build();
                            out.collect(productStats);
                        }
                    }
                }
            }
        });

        //3.2 處理收藏資料
        SingleOutputStreamOperator<ProductStats> favorStatsDS = favorInfoDStream.map(
                json -> {
                    JSONObject favorInfo = JSON.parseObject(json);
                    Long ts = DateTimeUtil.toTs(favorInfo.getString("create_time"));
                    return ProductStats.builder()
                            .sku_id(favorInfo.getLong("sku_id"))
                            .favor_ct(1L)
                            .ts(ts)
                            .build();
                });

        //3.3 處理加購資料
        SingleOutputStreamOperator<ProductStats> cartStatsDS = cartInfoDStream.map(
                json -> {
                    JSONObject cartInfo = JSON.parseObject(json);

                    Long ts = DateTimeUtil.toTs(cartInfo.getString("create_time"));

                    return ProductStats.builder()
                            .sku_id(cartInfo.getLong("sku_id"))
                            .cart_ct(1L)
                            .ts(ts)
                            .build();
                });


        //3.4 處理下單資料
        SingleOutputStreamOperator<ProductStats> orderDS = orderWideDStream.map(new MapFunction<String, ProductStats>() {
            @Override
            public ProductStats map(String value) throws Exception {
                //轉換為OrderWide物件
                OrderWide orderWide = JSON.parseObject(value, OrderWide.class);

                //獲取時間戳欄位
                Long ts = DateTimeUtil.toTs(orderWide.getCreate_time());

                return ProductStats.builder()
                        .sku_id(orderWide.getSku_id())
                        .order_amount(orderWide.getTotal_amount())
                        .order_sku_num(orderWide.getSku_num())
                        .orderIdSet(new HashSet<>(Collections.singleton(orderWide.getOrder_id())))
                        .ts(ts)
                        .build();
            }
        });

        //3.5 處理支付資料
        SingleOutputStreamOperator<ProductStats> paymentStatsDS = paymentWideDStream.map(
                json -> {
                    PaymentWide paymentWide = JSON.parseObject(json, PaymentWide.class);

                    Long ts = DateTimeUtil.toTs(paymentWide.getPayment_create_time());

                    return ProductStats.builder()
                            .sku_id(paymentWide.getSku_id())
                            .payment_amount(paymentWide.getSplit_total_amount())
                            .paidOrderIdSet(new HashSet<>(Collections.singleton(paymentWide.getOrder_id())))
                            .ts(ts).build();
                });

        //3.6 處理退單資料
        SingleOutputStreamOperator<ProductStats> refundStatsDS = refundInfoDStream.map(
                json -> {
                    JSONObject refundJsonObj = JSON.parseObject(json);
                    Long ts = DateTimeUtil.toTs(refundJsonObj.getString("create_time"));
                    return ProductStats.builder()
                            .sku_id(refundJsonObj.getLong("sku_id"))
                            .refund_amount(refundJsonObj.getBigDecimal("refund_amount"))
                            .refundOrderIdSet(new HashSet<>(Collections.singleton(refundJsonObj.getLong("order_id"))))
                            .ts(ts)
                            .build();
                });

        //3.7 處理評價資料
        SingleOutputStreamOperator<ProductStats> appraiseDS = commentInfoDStream.map(new MapFunction<String, ProductStats>() {
            @Override
            public ProductStats map(String value) throws Exception {

                //將資料轉換為JSON物件
                JSONObject jsonObject = JSON.parseObject(value);

                Long ts = DateTimeUtil.toTs(jsonObject.getString("create_time"));

                //處理好評數
                Long goodCommentCt = 0L;
                if (GmallConstant.APPRAISE_GOOD.equals(jsonObject.getString("appraise"))) {
                    goodCommentCt = 1L;
                }

                return ProductStats.builder()
                        .sku_id(jsonObject.getLong("sku_id"))
                        .comment_ct(1L)
                        .good_comment_ct(goodCommentCt)
                        .ts(ts)
                        .build();
            }
        });

        //4.Union
        DataStream<ProductStats> unionDS = clickAndDisplayDS.union(favorStatsDS,
                cartStatsDS,
                orderDS,
                paymentStatsDS,
                refundStatsDS,
                appraiseDS);

        //5.設定Watermark
        SingleOutputStreamOperator<ProductStats> productStatsWithWaterMarkDS = unionDS.assignTimestampsAndWatermarks(WatermarkStrategy.<ProductStats>forBoundedOutOfOrderness(Duration.ofSeconds(10L)).withTimestampAssigner(new SerializableTimestampAssigner<ProductStats>() {
            @Override
            public long extractTimestamp(ProductStats element, long recordTimestamp) {
                return element.getTs();
            }
        }));

        //6.分組、開窗、聚合
        SingleOutputStreamOperator<ProductStats> reduceDS = productStatsWithWaterMarkDS.keyBy(ProductStats::getSku_id)
                .window(TumblingEventTimeWindows.of(Time.seconds(2)))
                .reduce(new ReduceFunction<ProductStats>() {
                    @Override
                    public ProductStats reduce(ProductStats stats1, ProductStats stats2) throws Exception {

                        stats1.setDisplay_ct(stats1.getDisplay_ct() + stats2.getDisplay_ct());
                        stats1.setClick_ct(stats1.getClick_ct() + stats2.getClick_ct());
                        stats1.setCart_ct(stats1.getCart_ct() + stats2.getCart_ct());
                        stats1.setFavor_ct(stats1.getFavor_ct() + stats2.getFavor_ct());
                        stats1.setOrder_sku_num(stats1.getOrder_sku_num() + stats2.getOrder_sku_num());
                        stats1.setOrder_amount(stats1.getOrder_amount().add(stats2.getOrder_amount()));

                        stats1.getOrderIdSet().addAll(stats2.getOrderIdSet());
                        stats1.setOrder_ct((long) stats1.getOrderIdSet().size());

                        stats1.setPayment_amount(stats1.getPayment_amount().add(stats2.getPayment_amount()));
                        stats1.getPaidOrderIdSet().addAll(stats2.getPaidOrderIdSet());

                        stats1.getRefundOrderIdSet().addAll(stats2.getRefundOrderIdSet());

                        stats1.setRefund_order_ct((long) stats1.getRefundOrderIdSet().size());
                        stats1.setRefund_amount(stats1.getRefund_amount().add(stats2.getRefund_amount()));
                        stats1.setPaid_order_ct((long) stats1.getPaidOrderIdSet().size());

                        stats1.setComment_ct(stats1.getComment_ct() + stats2.getComment_ct());
                        stats1.setGood_comment_ct(stats1.getGood_comment_ct() + stats2.getGood_comment_ct());

                        return stats1;
                    }
                }, new WindowFunction<ProductStats, ProductStats, Long, TimeWindow>() {
                    @Override
                    public void apply(Long aLong, TimeWindow window, Iterable<ProductStats> input, Collector<ProductStats> out) throws Exception {

                        SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");

                        long start = window.getStart();
                        long end = window.getEnd();

                        String stt = sdf.format(start);
                        String edt = sdf.format(end);

                        //取出聚合以后的資料
                        ProductStats productStats = input.iterator().next();

                        //設定視窗時間
                        productStats.setStt(stt);
                        productStats.setEdt(edt);

                        out.collect(productStats);
                    }
                });

        //7.關聯維度資訊

        //7.1 關聯SKU資訊
        SingleOutputStreamOperator<ProductStats> productStatsWithSkuDS = AsyncDataStream.unorderedWait(reduceDS, new DimAsyncFunction<ProductStats>("DIM_SKU_INFO") {
            @Override
            public String getKey(ProductStats productStats) {
                return productStats.getSku_id().toString();
            }

            @Override
            public void join(ProductStats productStats, JSONObject dimInfo) throws Exception {

                //獲取維度中的資訊
                String sku_name = dimInfo.getString("SKU_NAME");
                BigDecimal price = dimInfo.getBigDecimal("PRICE");
                Long spu_id = dimInfo.getLong("SPU_ID");
                Long tm_id = dimInfo.getLong("TM_ID");
                Long category3_id = dimInfo.getLong("CATEGORY3_ID");

                //關聯SKU維度資訊
                productStats.setSku_name(sku_name);
                productStats.setSku_price(price);
                productStats.setSpu_id(spu_id);
                productStats.setTm_id(tm_id);
                productStats.setCategory3_id(category3_id);

            }
        }, 300, TimeUnit.SECONDS);

        //7.2 補充SPU維度
        SingleOutputStreamOperator<ProductStats> productStatsWithSpuDS =
                AsyncDataStream.unorderedWait(productStatsWithSkuDS,
                        new DimAsyncFunction<ProductStats>("DIM_SPU_INFO") {
                            @Override
                            public void join(ProductStats productStats, JSONObject jsonObject) throws Exception {
                                productStats.setSpu_name(jsonObject.getString("SPU_NAME"));
                            }

                            @Override
                            public String getKey(ProductStats productStats) {
                                return String.valueOf(productStats.getSpu_id());
                            }
                        }, 60, TimeUnit.SECONDS);

        //7.3 補充品類維度
        SingleOutputStreamOperator<ProductStats> productStatsWithCategory3DS =
                AsyncDataStream.unorderedWait(productStatsWithSpuDS,
                        new DimAsyncFunction<ProductStats>("DIM_BASE_CATEGORY3") {
                            @Override
                            public void join(ProductStats productStats, JSONObject jsonObject) throws Exception {
                                productStats.setCategory3_name(jsonObject.getString("NAME"));
                            }

                            @Override
                            public String getKey(ProductStats productStats) {
                                return String.valueOf(productStats.getCategory3_id());
                            }
                        }, 60, TimeUnit.SECONDS);

        //7.4 補充品牌維度
        SingleOutputStreamOperator<ProductStats> productStatsWithTmDS =
                AsyncDataStream.unorderedWait(productStatsWithCategory3DS,
                        new DimAsyncFunction<ProductStats>("DIM_BASE_TRADEMARK") {
                            @Override
                            public void join(ProductStats productStats, JSONObject jsonObject) throws Exception {
                                productStats.setTm_name(jsonObject.getString("TM_NAME"));
                            }

                            @Override
                            public String getKey(ProductStats productStats) {
                                return String.valueOf(productStats.getTm_id());
                            }
                        }, 60, TimeUnit.SECONDS);


        //列印測驗
        productStatsWithTmDS.print();

        //8.寫入ClickHouse
        productStatsWithTmDS.addSink(ClickHouseUtil.<ProductStats>getSink("insert into product_stats_200821 values(?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?,?)"));

        //9.執行任務
        env.execute();

    }

}

地區主題ProvinceStatsApp

package com.atguigu.app.dws;

import com.atguigu.bean.ProvinceStats;
import com.atguigu.utils.ClickHouseUtil;
import com.atguigu.utils.MyKafkaUtil;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;

public class ProvinceStatsApp {
    public static void main(String[] args) throws Exception {
        //1.獲取執行環境(流、表)
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
//        env.setStateBackend(new FsStateBackend("hdfs://hadoop102:9000/gmall/dwm_log/ck"));
//        System.setProperty("HADOOP_USER_NAME", "root");
//        env.enableCheckpointing(1000L, CheckpointingMode.EXACTLY_ONCE);
//        env.getCheckpointConfig().setCheckpointTimeout(6000L);
        //獲取表的執行環境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .inStreamingMode()
                .useBlinkPlanner()
                .build();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);

        //2.讀取kafka資料創建動態表
        String sourceTopic = "dwm_order_wide";
        String groupId = "province_stats_app";

        tableEnv.executeSql("CREATE TABLE ORDER_WIDE (province_id BIGINT, " +
                "province_name STRING," +
                "province_area_code STRING," +
                "province_iso_code STRING," +
                "province_3166_2_code STRING," +
                "order_id STRING, " +
                "split_total_amount DOUBLE," +
                "create_time STRING," +
                "rowtime AS TO_TIMESTAMP(create_time)," +
                "WATERMARK FOR  rowtime  AS rowtime)" +
                " WITH (" + MyKafkaUtil.getKafkaDDL(sourceTopic, groupId) + ")");

        //3.分組、開窗、聚合
        Table reduceTable = tableEnv.sqlQuery("select " +
                "TUMBLE_START(rowtime,INTERVAL '10' SECOND) as stt,"+
                "TUMBLE_END(rowtime,INTERVAL '10' SECOND) as edt"+
                "province_id," +
                "province_name," +
                "province_area_code," +
                "province_iso_code," +
                "province_3166_2_code ," +
                "sum(split_total_amount) order_amount," +
                "count(*)order_count,"+
                "UNIX_TIMESTAMP()*1000 ts " +
                "from  ORDER_WIDE " +
                "group by province_id,province_name,province_area_code,province_iso_code,province_3166_2_code,TUMBLE(rowtime INTERVAL '10' SECOND)");

        //4.將動態表轉為追加流
        DataStream<ProvinceStats> rowDataStream = tableEnv.toAppendStream(reduceTable, ProvinceStats.class);
        rowDataStream.print();
        //5.寫入clickhouse
        rowDataStream.addSink(ClickHouseUtil.<ProvinceStats>getSink("insert into  province_stats_2021  values(?,?,?,?,?,?,?,?,?,?)"));

        //6.執行任務
        env.execute();
    }
}

關鍵詞主題KeywordApp

從Kafka主題中獲得資料流

把Json字串資料流轉換為統一資料物件的資料流

把統一的資料結構流合并為一個流

設定事件時間與水位線

分組、開窗、聚合

寫入ClickHousea

package com.atguigu.app.dws;

import com.atguigu.app.func.KeyWordUDTF;
import com.atguigu.bean.KeywordStats;
import com.atguigu.utils.ClickHouseUtil;
import com.atguigu.utils.GmallConstant;
import com.atguigu.utils.KeyWordUtil;
import com.atguigu.utils.MyKafkaUtil;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.table.api.EnvironmentSettings;
import org.apache.flink.table.api.Table;
import org.apache.flink.table.api.bridge.java.StreamTableEnvironment;
import org.reflections.vfs.SystemFile;

public class KeyWordStatsApp {

    private static SystemFile systemFile;

    public static void main(String[] args) throws Exception {
        //1、獲取執行環境
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);
//        env.setStateBackend(new FsStateBackend("hdfs://hadoop102:9000/gmall/dwm_log/ck"));
//        System.setProperty("HADOOP_USER_NAME", "root");
//        env.enableCheckpointing(1000L, CheckpointingMode.EXACTLY_ONCE);
//        env.getCheckpointConfig().setCheckpointTimeout(6000L);
        //獲取表的執行環境
        EnvironmentSettings settings = EnvironmentSettings
                .newInstance()
                .inStreamingMode()
                .useBlinkPlanner()
                .build();
        StreamTableEnvironment tableEnv = StreamTableEnvironment.create(env, settings);

        //2、讀取kafka主題資料創建動態表 dwd_page_log
        String sourceTopic = "dwd_page_log";
        String groupId = "keyword_stats_app";
        tableEnv.executeSql("create table page_view(" +
                " common MAP<STRING,STRING>," +
                " page MAP<STRING,STRING>," +
                " ts BIGINT," +
                " rowtime AS TO_TIMESTAMP(FROM_UNIXTIME(ts/1000,'yyyy-MM-dd HH:mm:ss'))," +
                " WATERMARK FOR rowtime AS rowtime - INTERVAL '2' SECOND)" +
                " WITH (" + MyKafkaUtil.getKafkaDDL(sourceTopic, groupId) + ")");

        //3、過濾資料，只需要搜索的資料，搜索的關鍵詞不能為空
        Table filterTable = tableEnv.sqlQuery("select page['item'] fullWord,rowtime" +
                " from page_view" +
                " where page['item_type']='keyword' and page['item'] IS NOT NULL");

        //4、使用udtf函式進行切詞處理 函式注冊
        tableEnv.createTemporarySystemFunction("ik_analyze", KeyWordUDTF.class);
        Table analyzeWordTable = tableEnv.sqlQuery("SELECT" +
                " keyword," +
                " rowtime " +
                " from " + filterTable +
                " ,LATERAL TABLE(ik_analyze(fullWord)) AS T(keyword)");
        //5、分組、開窗、聚合
        Table resultTable = tableEnv.sqlQuery("select keyword," +
                "count(*) ct, '"
                + GmallConstant.KEYWORD_SEARCH + "' source ," +
                "DATE_FORMAT(TUMBLE_START(rowtime, INTERVAL '10' SECOND),'yyyy-MM-dd HH:mm:ss') stt," +
                "DATE_FORMAT(TUMBLE_END(rowtime, INTERVAL '10' SECOND),'yyyy-MM-dd HH:mm:ss') edt," +
                "UNIX_TIMESTAMP()*1000 ts from " + analyzeWordTable
                + " GROUP BY TUMBLE(rowtime, INTERVAL '10' SECOND ),keyword");

        DataStream<KeywordStats> keywordStatsDataStream = tableEnv.toAppendStream(resultTable, KeywordStats.class);
        keywordStatsDataStream.print();
        //6、將資料寫入clickhouse
        keywordStatsDataStream.addSink(
                ClickHouseUtil.<KeywordStats>getSink(
                        "insert into keyword_stats_200821(keyword,ct,source,stt,edt,ts)  " +
                                " values(?,?,?,?,?,?)")
        );

        //7、執行任務
        env.execute();
    }

}

資料可視化

組件

組件名稱	組件	查詢指標	對應的資料表
總成交金額	數字翻牌	訂單總金額	product_stats
省市熱力圖查詢	熱力圖	省市分組訂單金額	province_stats
分時流量	折線圖	UV分時數 PV分時數新用戶分時數	visitor_stats
品牌TopN	水平柱狀圖	按品牌分組訂單金額	product_stats
品類分布	餅狀圖	按品類分組訂單金額	product_stats
熱詞字符云	字符云	關鍵詞分組計數	keyword_stats
流量表格	交叉透視表	UV數(新老用戶) PV數(新老用戶) 跳出率(新老用戶) 平均訪問時長 (新老用戶) 平均訪問頁面數(新老用戶)	visitor_stats
熱門商品	輪播表格	按SPU分組訂單金額	product_stats

代碼結構

分層	類	處理內容
controller 控制層	SugarController	查詢交易額介面及回傳引數處理
service 服務層	ProductStatsService ProductStatsServiceImpl	查詢商品統計資料
mapper 資料映射層	ProductStatsMapper	撰寫SQL查詢商品統計表

需要的依賴

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.4.2</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>
    <groupId>com.atguigu.gmall</groupId>
    <artifactId>gmall2021-publisher</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>gmall2021-publisher</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-jdbc</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.1.3</version>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
            <exclusions>
                <exclusion>
                    <groupId>org.junit.vintage</groupId>
                    <artifactId>junit-vintage-engine</artifactId>
                </exclusion>
            </exclusions>
        </dependency>

        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
            <version>3.11</version>
        </dependency>

        <dependency>
            <groupId>ru.yandex.clickhouse</groupId>
            <artifactId>clickhouse-jdbc</artifactId>
            <version>0.1.55</version>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

mapper

注代碼都放一起了，沒有細分

package com.example.gmallpublisher.mapper;

import com.example.gmallpublisher.bean.ProductStats;
import com.example.gmallpublisher.bean.ProvinceStats;
import com.example.gmallpublisher.bean.VisitorStats;
import org.apache.ibatis.annotations.Param;
import org.apache.ibatis.annotations.Select;

import java.math.BigDecimal;
import java.util.List;

public interface ProductMapper {

    //1、查詢GMV總數
    @Select("select sum(order_amount) order_amount from product_stats_200821 where toYYYYMMDD(stt)=#{date}")
    BigDecimal getSumAmount(int date);

    //統計某天不同SPU商品交易額排名
    @Select("select spu_id,spu_name,sum(order_amount) order_amount," +
            "sum(order_ct) order_ct from product_stats_200821 " +
            "where toYYYYMMDD(stt)=#{date} group by spu_id,spu_name " +
            "having order_amount>0 order by order_amount desc limit #{limit} ")
    List<ProductStats> getProductStatsGroupBySpu(@Param("date") int date, @Param("limit") int limit);

    //統計某天不同類別商品交易額排名
    @Select("select category3_id,category3_name,sum(order_amount) order_amount " +
            "from product_stats_200821 " +
            "where toYYYYMMDD(stt)=#{date} group by category3_id,category3_name " +
            "having order_amount>0  order by  order_amount desc limit #{limit}")
    List<ProductStats> getProductStatsGroupByCategory3(@Param("date")int date , @Param("limit") int limit);

    //統計某天不同品牌商品交易額排名
    @Select("select tm_id,tm_name,sum(order_amount) order_amount " +
            "from product_stats_200821 " +
            "where toYYYYMMDD(stt)=#{date} group by tm_id,tm_name " +
            "having order_amount=0  order by  order_amount  desc limit #{limit} ")
    List<ProductStats> getProductStatsByTrademark(@Param("date")int date,  @Param("limit") int limit);

    //按地區查詢交易額
    @Select("select province_name,sum(order_amount) order_amount " +
            "from province_stats_200821 where toYYYYMMDD(stt)=#{date} " +
            "group by province_id ,province_name")
     List<ProvinceStats> selectProvinceStats(int date);

    //新老訪客流量統計
    @Select("select is_new,sum(uv_ct) uv_ct,sum(pv_ct) pv_ct," +
            "sum(sv_ct) sv_ct, sum(uj_ct) uj_ct,sum(dur_sum) dur_sum " +
            "from visitor_stats where toYYYYMMDD(stt)=#{date} group by  is_new")
    List<VisitorStats> selectVisitorStatsByNewFlag(int date);

    //分時流量統計
    @Select("select sum(if(is_new='1', visitor_stats.uv_ct,0)) new_uv,toHour(stt) hr," +
            "sum(visitor_stats.uv_ct) uv_ct, sum(pv_ct) pv_ct, sum(uj_ct) uj_ct  " +
            "from visitor_stats where toYYYYMMDD(stt)=#{date} group by toHour(stt)")
   List<VisitorStats> selectVisitorStatsByHour(int date);

    @Select("select count(pv_ct) pv_ct from visitor_stats " +
            "where toYYYYMMDD(stt)=#{date}  ")
    Long selectPv(int date);

    @Select("select count(uv_ct) uv_ct from visitor_stats " +
            "where toYYYYMMDD(stt)=#{date}  ")
    Long selectUv(int date);


}

service

package com.example.gmallpublisher.service;

import com.example.gmallpublisher.bean.ProductStats;
import com.example.gmallpublisher.bean.ProvinceStats;
import com.example.gmallpublisher.bean.VisitorStats;

import javax.websocket.RemoteEndpoint;
import java.math.BigDecimal;
import java.util.List;

public interface ProductService {
    BigDecimal getSumAmount(int date);

    //統計某天不同SPU商品交易額排名
    List<ProductStats> getProductStatsGroupBySpu(int date, int limit);

    //統計某天不同類別商品交易額排名
    List<ProductStats> getProductStatsGroupByCategory3(int date,int limit);

    //統計某天不同品牌商品交易額排名
    List<ProductStats> getProductStatsByTrademark(int date,int limit);

    /**
     * Desc: 地區維度統計介面
     */
    List<ProvinceStats> getProvinceStats(int date);

    List<VisitorStats> getVisitorStatsByNewFlag(int date);

    List<VisitorStats> getVisitorStatsByHour(int date);

    Long getPv(int date);

    Long getUv(int date);

}

service.impl

package com.example.gmallpublisher.service.impl;

import com.example.gmallpublisher.bean.ProductStats;
import com.example.gmallpublisher.bean.ProvinceStats;
import com.example.gmallpublisher.bean.VisitorStats;
import com.example.gmallpublisher.mapper.ProductMapper;
import com.example.gmallpublisher.service.ProductService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import java.math.BigDecimal;
import java.util.List;

@Service
public class ProductServiceImpl implements ProductService {
    @Autowired
    ProductMapper productMapper;

    @Override
    public BigDecimal getSumAmount(int date) {
        return productMapper.getSumAmount(date);
    }

    @Override
    public List<ProductStats> getProductStatsGroupBySpu(int date, int limit) {
        return productMapper.getProductStatsGroupBySpu(date, limit);
    }

    @Override
    public List<ProductStats> getProductStatsGroupByCategory3(int date, int limit) {
        return productMapper.getProductStatsGroupByCategory3(date, limit);
    }

    @Override
    public List<ProductStats> getProductStatsByTrademark(int date, int limit) {
        return productMapper.getProductStatsByTrademark(date, limit);

    }


    @Override
    public List<ProvinceStats> getProvinceStats(int date) {
        return productMapper.selectProvinceStats(date);
    }

    @Override
    public List<VisitorStats> getVisitorStatsByNewFlag(int date) {
        return productMapper.selectVisitorStatsByNewFlag(date);
    }

    @Override
    public List<VisitorStats> getVisitorStatsByHour(int date) {
        return productMapper.selectVisitorStatsByHour(date);
    }

    @Override
    public Long getPv(int date) {
        return productMapper.selectPv(date);
    }

    @Override
    public Long getUv(int date) {
        return productMapper.selectUv(date);
    }
}

controller

package com.example.gmallpublisher.controller;

import com.example.gmallpublisher.bean.KeywordStats;
import com.example.gmallpublisher.bean.ProductStats;
import com.example.gmallpublisher.bean.ProvinceStats;
import com.example.gmallpublisher.bean.VisitorStats;
import com.example.gmallpublisher.service.KeywordService;
import com.example.gmallpublisher.service.ProductService;
import org.apache.commons.lang3.StringUtils;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

import java.math.BigDecimal;
import java.text.SimpleDateFormat;
import java.util.ArrayList;
import java.util.Date;
import java.util.List;

//@Controller  回傳頁面
@RestController // =@Controller + @ResponseBody
@RequestMapping("/api/sugar")
public class SugarController {
//@RequestMapping("/gmv")
    /**
     * {
     * "stats":0,
     * "msg":"",
     * "data":1201083.4767158988
     * }
     */

    @Autowired
    ProductService productService;

    @RequestMapping("/gmv")
    public String getGmv(@RequestParam(value = "date", defaultValue = "0") int date) {

        if (date == 0) {
            date = now();
        }
        return "{" +
                "\"status\": 0," +
                "\"msg\":\"\"," +
                "\"data\":" + productService.getSumAmount(date) +
                "}";
    }


    private int now() {
        SimpleDateFormat sdf = new SimpleDateFormat("yyyyMMdd");
        return Integer.parseInt(sdf.format(new Date().getTime()));
    }

    @RequestMapping("/test")
    public String test1() {
        return "hello";
    }

    //商品串列介面方法
    @RequestMapping("/spu")
    public String getProductStatsGroupBySpu(
            @RequestParam(value = "date", defaultValue = "0") Integer date,
            @RequestParam(value = "limit", defaultValue = "10") int limit) {
        if (date == 0) date = now();
        List<ProductStats> statsList
                = productService.getProductStatsGroupBySpu(date, limit);
        //設定表頭
        StringBuilder jsonBuilder =
                new StringBuilder(" " +
                        "{\"status\":0,\"data\":{\"columns\":[" +
                        "{\"name\":\"商品名稱\",\"id\":\"spu_name\"}," +
                        "{\"name\":\"交易額\",\"id\":\"order_amount\"}," +
                        "{\"name\":\"訂單數\",\"id\":\"order_ct\"}]," +
                        "\"rows\":[");
        //回圈拼接表體
        for (int i = 0; i < statsList.size(); i++) {
            ProductStats productStats = statsList.get(i);
            if (i >= 1) {
                jsonBuilder.append(",");
            }
            jsonBuilder.append("{\"spu_name\":\"" + productStats.getSpu_name() + "\"," +
                    "\"order_amount\":" + productStats.getOrder_amount() + "," +
                    "\"order_ct\":" + productStats.getOrder_ct() + "}");

        }
        jsonBuilder.append("]}}");
        return jsonBuilder.toString();
    }

    //品類介面方法
    @RequestMapping("/category3")
    public String getProductStatsGroupByCategory3(
            @RequestParam(value = "date", defaultValue = "0") Integer date,
            @RequestParam(value = "limit", defaultValue = "4") int limit) {
        if (date == 0) {
            date = now();
        }
        List<ProductStats> statsList
                = productService.getProductStatsGroupByCategory3(date, limit);

        StringBuilder dataJson = new StringBuilder("{  \"status\": 0, \"data\": [");
        int i = 0;
        for (ProductStats productStats : statsList) {
            if (i++ > 0) {
                dataJson.append(",");
            }
            ;
            dataJson.append("{\"name\":\"")
                    .append(productStats.getCategory3_name()).append("\",");
            dataJson.append("\"value\":")
                    .append(productStats.getOrder_amount()).append("}");
        }
        dataJson.append("]}");
        return dataJson.toString();
    }

    //品牌介面方法
    @RequestMapping("/trademark")
    public String getProductStatsByTrademark(
            @RequestParam(value = "date", defaultValue = "0") Integer date,
            @RequestParam(value = "limit", defaultValue = "10") int limit) {
        if (date == 0) {
            date = now();
        }
        List<ProductStats> productStatsByTrademarkList
                = productService.getProductStatsByTrademark(date, limit);
        List<String> tradeMarkList = new ArrayList<>();
        List<BigDecimal> amountList = new ArrayList<>();
        for (ProductStats productStats : productStatsByTrademarkList) {
            tradeMarkList.add(productStats.getTm_name());
            amountList.add(productStats.getOrder_amount());
        }
        String json = "{\"status\":0,\"data\":{" + "\"categories\":" +
                "[\"" + StringUtils.join(tradeMarkList, "\",\"") + "\"],\"series\":[" +
                "{\"data\":[" + StringUtils.join(amountList, ",") + "]}]}}";
        return json;
    }

    @RequestMapping("/province")
    public String getProvinceStats(@RequestParam(value = "date", defaultValue = "0") Integer date) {
        if (date == 0) {
            date = now();
        }

        StringBuilder jsonBuilder = new StringBuilder("{\"status\":0,\"data\":{\"mapData\":[");
        List<ProvinceStats> provinceStatsList = productService.getProvinceStats(date);
        if (provinceStatsList.size() == 0) {
            //    jsonBuilder.append(  "{\"name\":\"北京\",\"value\":0.00}");
        }
        for (int i = 0; i < provinceStatsList.size(); i++) {
            if (i >= 1) {
                jsonBuilder.append(",");
            }
            ProvinceStats provinceStats = provinceStatsList.get(i);
            jsonBuilder.append("{\"name\":\"" + provinceStats.getProvince_name() + "\",\"value\":" + provinceStats.getOrder_amount() + " }");

        }
        jsonBuilder.append("]}}");
        return jsonBuilder.toString();
    }

    @RequestMapping("/visitor")
    public String getVisitorStatsByNewFlag(@RequestParam(value = "date", defaultValue = "0") Integer date) {
        if (date == 0) date = now();
        List<VisitorStats> visitorStatsByNewFlag = productService.getVisitorStatsByNewFlag(date);
        VisitorStats newVisitorStats = new VisitorStats();
        VisitorStats oldVisitorStats = new VisitorStats();
        //回圈把資料賦給新訪客統計物件和老訪客統計物件
        for (VisitorStats visitorStats : visitorStatsByNewFlag) {
            if (visitorStats.getIs_new().equals("1")) {
                newVisitorStats = visitorStats;
            } else {
                oldVisitorStats = visitorStats;
            }
        }
        //把資料拼接入字串
        String json = "{\"status\":0,\"data\":{\"combineNum\":1,\"columns\":" +
                "[{\"name\":\"類別\",\"id\":\"type\"}," +
                "{\"name\":\"新用戶\",\"id\":\"new\"}," +
                "{\"name\":\"老用戶\",\"id\":\"old\"}]," +
                "\"rows\":" +
                "[{\"type\":\"用戶數(人)\"," +
                "\"new\": " + newVisitorStats.getUv_ct() + "," +
                "\"old\":" + oldVisitorStats.getUv_ct() + "}," +
                "{\"type\":\"總訪問頁面(次)\"," +
                "\"new\":" + newVisitorStats.getPv_ct() + "," +
                "\"old\":" + oldVisitorStats.getPv_ct() + "}," +
                "{\"type\":\"跳出率(%)\"," +
                "\"new\":" + newVisitorStats.getUjRate() + "," +
                "\"old\":" + oldVisitorStats.getUjRate() + "}," +
                "{\"type\":\"平均在線時長(秒)\"," +
                "\"new\":" + newVisitorStats.getDurPerSv() + "," +
                "\"old\":" + oldVisitorStats.getDurPerSv() + "}," +
                "{\"type\":\"平均訪問頁面數(人次)\"," +
                "\"new\":" + newVisitorStats.getPvPerSv() + "," +
                "\"old\":" + oldVisitorStats.getPvPerSv()
                + "}]}}";
        return json;
    }

    @Autowired
    KeywordService keywordService;
    @RequestMapping("/keyword")
    public String getKeywordStats(@RequestParam(value = "date",defaultValue = "0") Integer date,
                                  @RequestParam(value = "limit",defaultValue = "20") int limit){
        if(date==0){
            date=now();
        }
        //查詢資料
        List<KeywordStats> keywordStatsList
                = keywordService.getKeywordStats(date, limit);
        StringBuilder jsonSb=new StringBuilder( "{\"status\":0,\"msg\":\"\",\"data\":[" );
        //回圈拼接字串
        for (int i = 0; i < keywordStatsList.size(); i++) {
            KeywordStats keywordStats =  keywordStatsList.get(i);
            if(i>=1){
                jsonSb.append(",");
            }
            jsonSb.append(  "{\"name\":\"" + keywordStats.getKeyword() + "\"," +
                    "\"value\":"+keywordStats.getCt()+"}");
        }
        jsonSb.append(  "]}");
        return  jsonSb.toString();
    }


}

bean

keywordStats

package com.example.gmallpublisher.bean;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

/**
 * Desc: 關鍵詞統計物體類
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class KeywordStats {
    private String keyword;
    private Long ct;
    private String source;
    private String stt;
    private String edt;
    private Long ts;
}

ProductStats

package com.example.gmallpublisher.bean;


import lombok.AllArgsConstructor;
import lombok.Builder;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.math.BigDecimal;
/**
 * Desc: 商品交易額統計物體類
 */
@Data
@Builder
@NoArgsConstructor
@AllArgsConstructor
public class ProductStats {
    String stt;
    String edt;
    Long sku_id;
    String sku_name;
    BigDecimal sku_price;
    Long spu_id;
    String spu_name;
    Long tm_id ;
    String tm_name;
    Long category3_id ;
    String category3_name ;
    @Builder.Default
    Long  display_ct=0L;
    @Builder.Default
    Long  click_ct=0L;
    @Builder.Default
    Long  cart_ct=0L;
    @Builder.Default
    Long  order_sku_num=0L;
    @Builder.Default
    BigDecimal order_amount=BigDecimal.ZERO;
    @Builder.Default
    Long  order_ct=0L;
    @Builder.Default
    BigDecimal  payment_amount=BigDecimal.ZERO;
    @Builder.Default
    Long  refund_ct=0L;
    @Builder.Default
    BigDecimal  refund_amount=BigDecimal.ZERO;
    @Builder.Default
    Long  comment_ct=0L;
    @Builder.Default
    Long  good_comment_ct=0L ;
    Long ts;
}

ProvinceStats

package com.example.gmallpublisher.bean;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

import java.math.BigDecimal;

/**
 * Desc: 地區交易額統計物體類
 */
@AllArgsConstructor
@Data
@NoArgsConstructor
public class ProvinceStats {
    private String stt;
    private String edt;
    private String province_id;
    private String province_name;
    private BigDecimal order_amount;
    private String ts;
}

VisitorStats

package com.example.gmallpublisher.bean;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;
import java.math.BigDecimal;
import java.math.RoundingMode;

/**
 * Desc: 訪客流量統計物體類
 */
@Data
@AllArgsConstructor
@NoArgsConstructor
public class VisitorStats {


    private String stt;
    private String edt;
    private String vc;
    private String ch;
    private String ar;
    private String is_new;
    private Long uv_ct = 0L;
    private Long pv_ct = 0L;
    private Long sv_ct = 0L;
    private Long uj_ct = 0L;
    private Long dur_sum = 0L;
    private Long new_uv = 0L;
    private Long ts;
    private int hr;

    //計算跳出率  = 跳出次數*100/訪問次數
    public BigDecimal getUjRate() {
        if (uv_ct != 0L) {
            return BigDecimal.valueOf(uj_ct)
                    .multiply(BigDecimal.valueOf(100))
                    .divide(BigDecimal.valueOf(sv_ct), 2, RoundingMode.HALF_UP);
        } else {
            return BigDecimal.ZERO;
        }
    }

    //計算每次訪問停留時間(秒)  = 當日總停留時間（毫秒)/當日訪問次數/1000
    public BigDecimal getDurPerSv() {
        if (uv_ct != 0L) {
            return BigDecimal.valueOf(dur_sum)
                    .divide(BigDecimal.valueOf(sv_ct), 0, RoundingMode.HALF_UP)
                    .divide(BigDecimal.valueOf(1000), 1, RoundingMode.HALF_UP);
        } else {
            return BigDecimal.ZERO;
        }
    }

    //計算每次訪問停留頁面數 = 當日總訪問頁面數/當日訪問次數
    public BigDecimal getPvPerSv() {
        if (uv_ct != 0L) {
            return BigDecimal.valueOf(pv_ct)
                    .divide(BigDecimal.valueOf(sv_ct), 2, RoundingMode.HALF_UP);
        } else {
            return BigDecimal.ZERO;
        }
    }
}

最終效果

轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/296764.html

標籤：其他

上一篇：2021-08-29 兩數相加

下一篇：二叉樹展開為鏈表 C語言

實時（三）

實時
