貧訓:

【Unity】實作拖拽功能并制作一個拼圖游戲

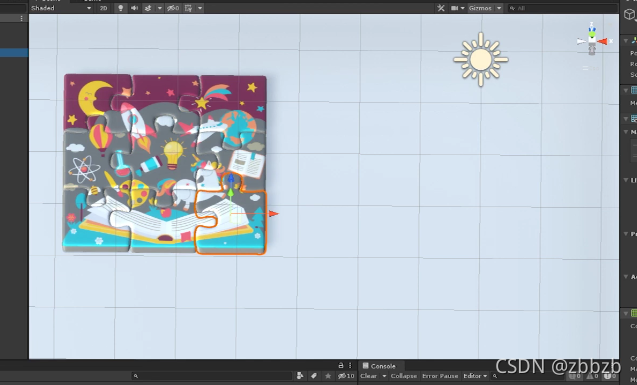

在這里插入圖片描述

當我看到這個視頻里的素材, 很饞, 但是原作者也沒有發素材檔案, 只能自己弄素材了, 3D就直接pass了, 不熟和學習成本過高, 那就2D的來, 目的是腳本檔案可以批量把照片分隔成拼圖塊

分解需求

最簡易的矩形ROI分割（剪裁），其本質是多維陣列（矩陣）的切片

1. 分隔成n*m個方塊
2. 拿出一個方塊, 獲取左右方塊之間的中心圓心坐標, 還有上下方塊之間的中心圓心坐標, 然后補滿這個圓就可以獲得拼圖的凸出, 消減這個圓可以獲得拼圖的凹入
請添加圖片描述

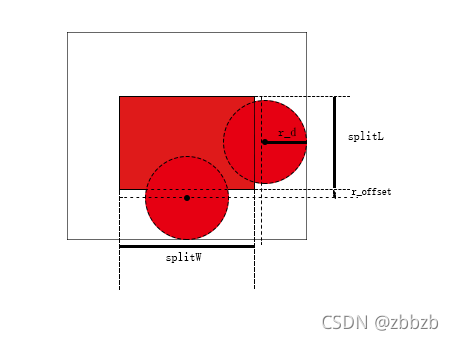

3. 增加圓心偏移
也就是讓凸出和凹進更加好看點
請添加圖片描述

4. 隨機凹凸

先了解下怎么切圓

python3切割圓形圖片
看完這篇文章可知如何生成圓形圖片
新建一個影像b, 然后把a中符合這個圓的點復制b中, 輸出影像b, 就生成了圓形影像
如何符合圓, 要用到初中的知識點, 點到圓心的距離 <= 半徑

分隔成n*m個方塊

import os
from PIL import Image

# 分割幾行幾列, 二維陣列保存
def SplitImages(img_path, row, col):
    path_name = os.path.dirname(img_path)
    img = Image.open(img_path).convert("RGBA")
    imgSize = img.size

    splitW = int(imgSize[0]/col)
    splitL = int(imgSize[1]/row)

    pimg = img.load()

    imbList = []
    for i in range(row):
        rowList = []
        l = (i + 1) * splitL
        for j in range(col):
            w = (j + 1) * splitW
            imb = Image.new('RGBA', (splitW, splitL),(255,255,255,0))
            pimb = imb.load()

            for k in range(j * splitW, w):
                for z in range(i * splitL, l):
                    pimb[k - splitW * j, z - i * splitL] = pimg[k,z]
            dirPath = path_name + "/" + str(i*10 + j) + ".png"
            # imb.save(dirPath)
            rowList.append(imb)
        imbList.append(rowList)

    return imbList

簡單版

不考慮隨機凹凸, 不考慮圓心偏移, 凹凸都是固定的, 從第一個開始向右凸出, 向下凸出

def SplitCircle(imbList, imgPath):
    path_name = os.path.dirname(imgPath)
    img = Image.open(imgPath).convert("RGBA")
    imgSize = img.size

    col = len(imbList[0])
    row = len(imbList)

    if col == 1 and row == 1:
        return

    splitW = int(imgSize[0]/col)
    splitL = int(imgSize[1]/row)

    minV = min(splitW, splitL)
    r_d = int(minV / 4) # 要計算 兩個不能比 l 長 并且加上 offset 也不能超過 l
    #r_offset = int(minV / 8)

    #pSplitW = splitW + (r_d + r_offset) * 2
    #pSplitL = splitL + (r_d + r_offset) * 2

    pimg = img.load()

    pointList = []
    for i in range(row):
        colPointList = []
        for j in range(col):
            colPoint = []
            rowPoint = []
            if j != col - 1:
                colPoint = [splitW * (j + 1), int(splitL/2) + i * splitL]
            if i != row - 1:
                rowPoint = [int(splitW / 2) + j * splitW, splitL * (i + 1)]
            colPointList.append({'colPoint': colPoint, 'rowPoint': rowPoint})
        pointList.append(colPointList)

    for i in range(row):
        for j in range(col):
            imbImg = imbList[i][j]
            new_img = imbImg

            if j != col - 1 and i != row - 1:
                l = imbImg.size[1]
                w = imbImg.size[0]

                l = l + r_d
                w = w + r_d

                new_img = Resize(imbImg, w, l)
            elif j == col - 1 and i != row - 1:
                new_img = Resize(imbImg, splitW, splitL + r_d)
            elif j != col - 1 and i == row - 1:
                new_img = Resize(imbImg, splitW + r_d, splitL)

            new_img_imb = new_img.load()

            if j != col - 1:
                    new_next_img = imbList[i][j + 1]
                    new_next_img_imb = new_next_img.load()
                    # 左右
                    for k in range((j + 1) * splitW, (j + 1) * splitW + r_d):
                        for z in range(i * splitL, (i + 1) * splitL):
                            r_w = pointList[i][j]['colPoint'][0]
                            r_l = pointList[i][j]['colPoint'][1]
                            r = ((pow(abs(k - r_w),2) + pow(abs(z - r_l),2))) ** 0.5
                            if r < r_d:
                                new_img_imb[k - j * splitW , z - i * splitL] = pimg[k, z]
                                new_next_img_imb[k - (j + 1) * splitW, z - i * splitL] = (255,255,255,0)

                    imbList[i][j + 1] = new_next_img

            if i!= row - 1:
                    new_down_img = imbList[i + 1][j]
                    new_down_img_imb = new_down_img.load()
                    # 上下
                    for k in range(j * splitW, (j + 1) * splitW):
                        for z in range((i + 1) * splitL, (i + 1) * splitL + r_d):
                            r_w = pointList[i][j]['rowPoint'][0]
                            r_l = pointList[i][j]['rowPoint'][1]
                            r = ((pow(abs(k - r_w),2) + pow(abs(z - r_l),2))) ** 0.5
                            if r < r_d:
                                new_img_imb[k - j * splitW, z - i * splitL] = pimg[k, z]
                                new_down_img_imb[k - j * splitW, z - (i + 1) * splitL] = (255,255,255,0)

                    imbList[i + 1][j] = new_down_img
            imbList[i][j] = new_img


    for i in range(row):
        for j in range(col):
            dirPath = path_name + "/" + str(i*10 + j) + ".png"
            imbList[i][j].save(dirPath)

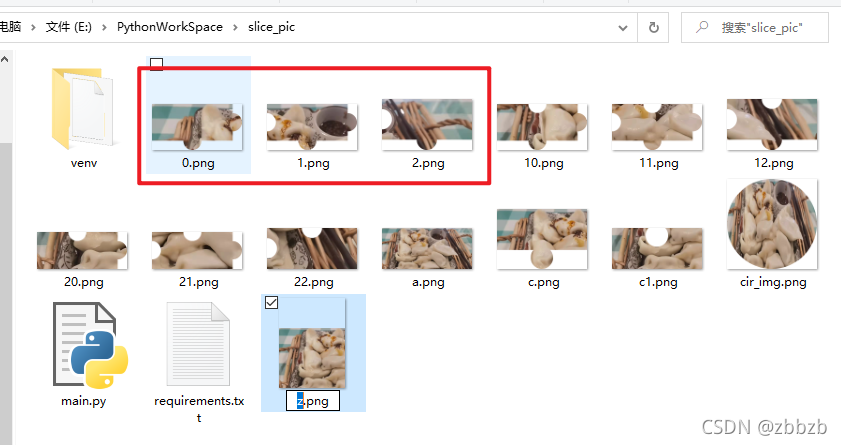

在這里插入圖片描述

最終版

隨機凹凸, 考慮圓心偏移

import os
from PIL import Image
import random

# 分割幾行幾列, 二維陣列保存
def SplitImages(img_path, row, col):
    path_name = os.path.dirname(img_path)
    img = Image.open(img_path).convert("RGBA")
    imgSize = img.size

    splitW = int(imgSize[0]/col)
    splitL = int(imgSize[1]/row)

    pimg = img.load()

    imbList = []
    for i in range(row):
        rowList = []
        l = (i + 1) * splitL
        for j in range(col):
            w = (j + 1) * splitW
            imb = Image.new('RGBA', (splitW, splitL),(255,255,255,0))
            pimb = imb.load()

            for k in range(j * splitW, w):
                for z in range(i * splitL, l):
                    pimb[k - splitW * j, z - i * splitL] = pimg[k,z]
            dirPath = path_name + "/" + str(i*10 + j) + ".png"
            # imb.save(dirPath)
            rowList.append(imb)
        imbList.append(rowList)

    return imbList

def Resize(img, rizeW, rizel, pastePoint=None):
    if pastePoint is None:
        pastePoint = [0, 0]

    new_im = Image.new('RGBA', [rizeW, rizel],(255,255,255,0))
    new_im.paste(img, pastePoint)

    return new_im

def SplitCircle(imbList, imgPath):
    path_name = os.path.dirname(imgPath)
    img = Image.open(imgPath).convert("RGBA")
    imgSize = img.size

    col = len(imbList[0])
    row = len(imbList)

    if col == 1 and row == 1:
        return

    splitW = int(imgSize[0]/col)
    splitL = int(imgSize[1]/row)

    minV = min(splitW, splitL)
    r_d = int(minV / 4) # 要計算 兩個不能比 l 長 并且加上 offset 也不能超過 l
    r_offset = int(minV / 8)

    pSplitW = splitW + (r_d + r_offset) * 2
    pSplitL = splitL + (r_d + r_offset) * 2

    pimg = img.load()

	# 存(row - 1) * (col - 1) 個中心點
    pointList = []
    for i in range(row):
        colPointList = []
        for j in range(col):
            colPoint = []
            rowPoint = []
            if j != col - 1:
                colPoint = [splitW * (j + 1), int(splitL/2) + i * splitL]
            if i != row - 1:
                rowPoint = [int(splitW / 2) + j * splitW, splitL * (i + 1)]
            colPointList.append({'colPoint': colPoint, 'rowPoint': rowPoint})

            imbList[i][j] = Resize(imbList[i][j], pSplitW, pSplitL, [r_d + r_offset, r_d + r_offset])
            dirPath = path_name + "/" + str(i*10 + j) + ".png"
            # imbList[i][j].save(dirPath)
        pointList.append(colPointList)

    for i in range(row):
        for j in range(col):
            imbImg = imbList[i][j]
            new_img = imbImg

            # 圓心靠左 靠右, 默認靠右
            lrandNum = random.randint(0, 999999)
            drandNum = random.randint(0, 999999)
            lrRight = True
            drRight = True

            if lrandNum < 500000:
                lrRight = False
            if drandNum < 500000:
                drRight = False

            new_img_imb = new_img.load()

            if j != col - 1:

                if lrRight :
                    new_next_img = imbList[i][j + 1]
                    new_next_img_imb = new_next_img.load()
                    # 左右
                    for k in range((j + 1) * splitW, (j + 1) * splitW + r_d + r_offset):
                        for z in range(i * splitL, (i + 1) * splitL):
                            r_w = pointList[i][j]['colPoint'][0] + r_offset
                            r_l = pointList[i][j]['colPoint'][1]
                            r = ((pow(abs(k - r_w),2) + pow(abs(z - r_l),2))) ** 0.5
                            if r < r_d:
                                new_img_imb[k - j * splitW + r_d + r_offset, z - i * splitL + r_d + r_offset] = pimg[k, z]
                                new_next_img_imb[k - (j + 1) * splitW + r_d + r_offset, z - i * splitL + r_d + r_offset] = (255,255,255,0)

                    imbList[i][j + 1] = new_next_img
                else:
                    new_next_img = imbList[i][j + 1]
                    new_next_img_imb = new_next_img.load()
                    # 左右
                    for k in range((j + 1) * splitW - r_d - r_offset, (j + 1) * splitW):
                        for z in range(i * splitL, (i + 1) * splitL):
                            r_w = pointList[i][j]['colPoint'][0] - r_offset
                            r_l = pointList[i][j]['colPoint'][1]
                            r = ((pow(abs(k - r_w),2) + pow(abs(z - r_l),2))) ** 0.5
                            if r < r_d:
                                new_next_img_imb[k - (j + 1) * splitW + r_d + r_offset, z - i * splitL + r_d + r_offset] = pimg[k, z]
                                new_img_imb[k - j * splitW  + r_d + r_offset, z - i * splitL + r_d + r_offset] = (255,255,255,0)

                    imbList[i][j + 1] = new_next_img

            if i!= row - 1:

                if drRight:
                    new_down_img = imbList[i + 1][j]
                    new_down_img_imb = new_down_img.load()
                    # 上下
                    for k in range(j * splitW, (j + 1) * splitW):
                        for z in range((i + 1) * splitL, (i + 1) * splitL + r_d + r_offset):
                            r_w = pointList[i][j]['rowPoint'][0]
                            r_l = pointList[i][j]['rowPoint'][1] + r_offset
                            r = ((pow(abs(k - r_w),2) + pow(abs(z - r_l),2))) ** 0.5
                            if r < r_d:
                                new_img_imb[k - j * splitW + r_d + r_offset, z - i * splitL + r_d + r_offset] = pimg[k, z]
                                new_down_img_imb[k - j * splitW + r_d + r_offset, z - (i + 1) * splitL + r_d + r_offset] = (255,255,255,0)

                    imbList[i + 1][j] = new_down_img
                else:
                    new_down_img = imbList[i + 1][j]

                    new_down_img_imb = new_down_img.load()
                    # 上下
                    for k in range(j * splitW, (j + 1) * splitW):
                        for z in range((i + 1) * splitL - r_d - r_offset, (i + 1) * splitL):
                            r_w = pointList[i][j]['rowPoint'][0]
                            r_l = pointList[i][j]['rowPoint'][1] - r_offset
                            r = ((pow(abs(k - r_w),2) + pow(abs(z - r_l),2))) ** 0.5
                            if r < r_d:
                                new_down_img_imb[k - j * splitW + r_d + r_offset, z - (i + 1) * splitL + r_d + r_offset] = pimg[k, z]
                                new_img_imb[k - j * splitW + r_d + r_offset, z - i * splitL + r_d + r_offset] = (255,255,255,0)

                    imbList[i + 1][j] = new_down_img

            imbList[i][j] = new_img

    for i in range(row):
        for j in range(col):
            dirPath = path_name + "/" + str(i*10 + j) + ".png"
            imbList[i][j].save(dirPath)


if __name__ == '__main__':
    dirPath = "E:/PythonWorkSpace/slice_pic/"
    SplitCircle(SplitImages(dirPath + "a.png", 6, 4) , dirPath + "a.png")

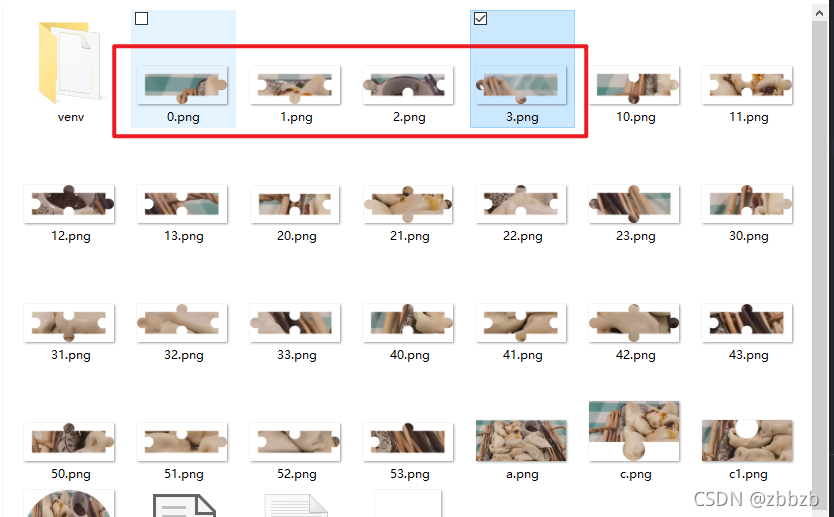

在這里插入圖片描述
完整專案地址
