一、 設計要求
通過對時間定時控制器和溫度設定器進行設定，然后當達到時間定時控制器設定的開啟值時，離子風機和抽風機啟動，然后對設備主體內部進行散熱和除塵作用，通過離子風機吹出的離子風可以對內部進行防靜電處理，然后通過抽風機使內部的灰塵吸走，當達到設定的關閉值時，離子風機和抽風機關閉，當溫度感應器感應到設備主體內部的溫度高于設定值時，此時溫度設定器會控制風機進行啟動，對內部進行散熱處理，低于設定值時停止，（設定的時間間隔,溫度閾值，當前溫度由OLED顯示，LED表示作業狀態，）

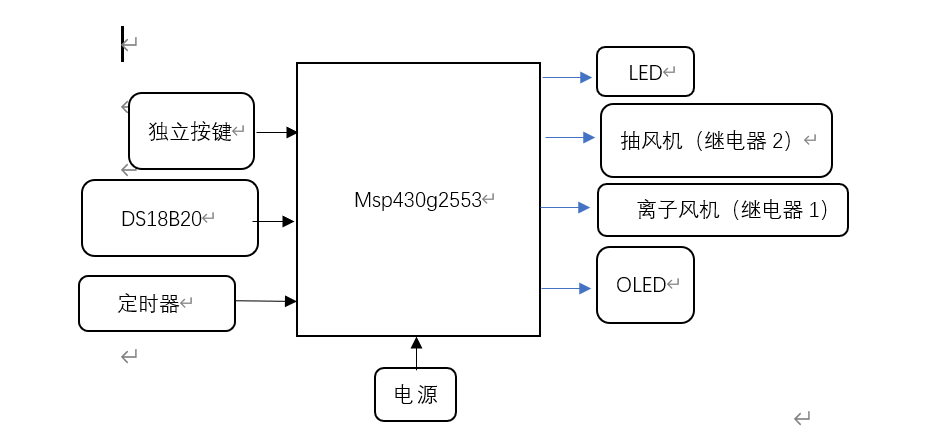

二、 總體設計和系統框圖
三、設計方案
1. DS18B20：溫度檢測采用 DS18B20 溫度傳感器資料經過單片機處理后，與用戶設定（鍵盤能修改）的溫度上限（Tmax）
當前溫度＞Tmax： 控制風機進行啟動
2. 定時器：時間到開啟值（開啟時長），離子風機（繼電器1閉合）和抽風機啟動（繼電器2閉合）時間到關閉值（關閉時長）離子風機（繼電器1打開）和抽風機啟動（繼電器2打開）
3.獨立按鍵
S1：選擇按鍵
S2:為“加”功能鍵
S3:為“減”功能鍵，
4.OLED
(1) 完成設定，顯示當前溫度，開啟時長，關閉時長，溫度上限
(2) 溫度上限設定顯示
(3) 時間間隔設定（開啟時長設定，關閉時長設定）
(4) 顯示作業模式（手動、自動）
5.LED
(1)LED4表示是否超溫
(2) LED3表示離子風機
(3) LED2表示抽風機
6.電源
(1) 3V3為單片機提供電源，
(2) 5V為繼電器，OLED，LED，DS18B20供電，

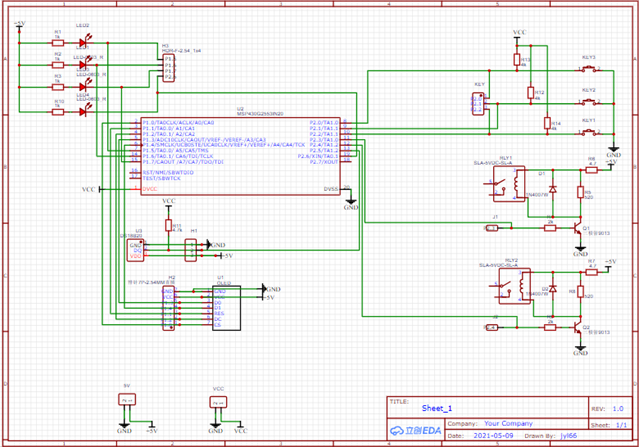

四、電路原理總圖
五、軟體設計主程式及子程式
#include <io430.h>
#include "oled.h"
#include "jidianqi.h"
#include "led.h"
#include "ds18b20.h"
void P2_IODect();
void P20_Onclick();
void P21_Onclick();
void P22_Onclick();
void GPIO_init();
void WDT_init();
void xianshi();
unsigned int wendu;
unsigned char m=0,s=0,n=0,h=0,t=0,i=0,j=0,jiange=2;
unsigned char chixushijian=2,moshi=4,flaglizi=0,flagchoufenji=0;//moshi=0當前溫度moshi=1設定上限 moshi=2設定開啟時長單位分鐘 moshi=3設定關閉時長單位小時moshi=4定時、手動模式
unsigned char wendumax=30;
int main( void )
{
WDTCTL = WDTPW + WDTHOLD;
GPIO_init(); //IO初始化
__enable_interrupt(); //使能總中斷
WDT_init(); //開總中斷
OLED_Init(); //初始化OLED
choufenledoff();
liziledoff();
while(1)
{
if(moshi!= 4)
{
if(wendu>wendumax){chaowenledon();lizion();choufenon();}
else {chaowenledoff();lizioff();choufenoff();}}
if(j==0){j++;xianshi();}
wendu=get_one_temperature();
}
}
void WDT_init()
{
//-----設定WDT為1000ms中斷-----
WDTCTL=WDT_ADLY_1000;
//-----WDT中斷使能-----
IE1|=WDTIE;
}
#pragma vector=WDT_VECTOR
__interrupt void WDT_ISR(void)
{
if(moshi==0){ OLED_ShowNum(70,0,wendu,3,16);}
s++;if(s==7){s=0;m++;t--;}
if(m==60){m=0;h++;}
if(moshi==4)
{ if((h==jiange)&&(i==0))
{
i++;
lizion();
choufenon();
t=chixushijian+2;
}
if(t==2){choufenoff();lizioff();h=0;i=0;t=0;}}
if(h==255){h=0;t=0;}
}
/******************************************************************************************************
* 名 稱：GPIO_Init()
* 功 能：設定按鍵和LED控制IO的方向，啟用按鍵IO的上拉電阻
* 入口引數：無
* 出口引數：無
* 說 明：無
* 范 例：無
******************************************************************************************************/
void GPIO_init()
{
//-----配置中斷引數-----
P2DIR &= ~(BIT0+BIT1+BIT2); // 設為輸入(可省略)
P2IES |= (BIT0+BIT1+BIT2); // 設為下降沿中斷
P2IE |= (BIT0+BIT1+BIT2); // 允許中斷
}
/******************************************************************************************************
* 名 稱：PORT2_ISR()
* 功 能：回應P2口的外部中斷服務
* 入口引數：無
* 出口引數：無
* 說 明：P2.0~P2.8共用了PORT1中斷，所以在PORT2_ISR()中必須查詢標志位P2IFG才能知道
* 具體是哪個IO引發了外部中斷，P1IFG必須手動清除，否則將持續引發PORT2中斷，
* 范 例：無
******************************************************************************************************/
#pragma vector = PORT2_VECTOR
__interrupt void PORT2_ISR(void)
{
P2_IODect(); //檢測通過，則會呼叫事件處理函式
P2IFG=0; //退出中斷前必須手動清除IO口中斷標志
}
/******************************************************************************************************
* 名 稱：P2_IODect()
* 功 能：判斷具體引發中斷的IO，并呼叫相應IO的中斷事件處理函式
* 入口引數：無
* 出口引數：無
* 說 明：該函式兼容所有8個IO的檢測，請根據實際輸入IO激活“檢測代碼”，
*
* 范 例：無
******************************************************************************************************/
void P2_IODect()
{
unsigned int Push_Key=0;
//-----排除輸出IO的干擾后，鎖定唯一被觸發的中斷標志位-----
Push_Key=P2IFG&(0x07);
//-----延時一段時間，避開機械抖動區域-----
__delay_cycles(10000); //消抖延時
//----判斷按鍵狀態是否與延時前一致-----
if((P2IN&Push_Key)==0) //如果該次按鍵確實有效
{
//----判斷具體哪個IO被按下，呼叫該IO的事件處理函式-----
switch(Push_Key){
case BIT0: P20_Onclick(); break;
case BIT1: P21_Onclick(); break;
case BIT2: P22_Onclick(); break;
default: break; //任何情況下均加上default
}
}
}
/******************************************************************************************************
* 名 稱：P_Onclick()
* 功 能：P1.3的中斷事件處理函式，即當鍵被按下后，下一步干什么
* 入口引數：無
* 出口引數：無
* 說 明：使用事件處理函式的形式，可以增強代碼的移植性和可讀性
* 范 例：無
******************************************************************************************************/
void P20_Onclick()//模式轉換moshi=0當前溫度moshi=1設定上限 moshi=2設定開啟時長單位分鐘 moshi=3設定關閉時長單位小時KEY3
{
if(moshi==4){moshi=0;OLED_Clear();xianshi();}
else if(moshi==0){moshi=1;OLED_Clear();xianshi();}
else if(moshi==1){moshi=2;OLED_Clear();xianshi();}
else if(moshi==2){moshi=3;OLED_Clear();xianshi();}
else if(moshi==3){moshi=4;OLED_Clear();xianshi();}
else if(moshi==4){moshi=0;OLED_Clear();xianshi();}
}
void P21_Onclick()//數值++KEY1
{
if(moshi==4){Set_Bit(P2DIR,BIT3);P2OUT ^= BIT3; Set_Bit(P1DIR,BIT5);P1OUT ^= BIT5;}
else if(moshi==1)
{
wendumax++;
if(wendumax==255)wendumax=0;
OLED_ShowNum(70,4,wendumax,3,16);
}
else if(moshi==2)
{
chixushijian++;
if(chixushijian==255)chixushijian=0;
OLED_ShowNum(70,4,chixushijian,3,16);
}
else if(moshi==3)
{
jiange++;
if(jiange==255)jiange=0;
OLED_ShowNum(70,4,jiange,3,16);
}
}
void P22_Onclick()//數值--KEY2
{
if(moshi==4){Set_Bit(P2DIR,BIT4);P2OUT ^= BIT4; Set_Bit(P1DIR,BIT7);P1OUT ^= BIT7;}
else if(moshi==1)
{
if(wendumax==0)wendumax=1;
wendumax--;
OLED_ShowNum(70,4,wendumax,3,16);
}
else if(moshi==2)
{
if(chixushijian==0)chixushijian=1;
chixushijian--;
OLED_ShowNum(70,4,chixushijian,3,16);
}
else if(moshi==3)
{
if(jiange==0)jiange=1;
jiange--;
OLED_ShowNum(70,4,jiange,3,16);
}
}
void xianshi()
{
if(moshi==4)
{
OLED_ShowChinese(18,0,39,16);//歡迎使用
OLED_ShowChinese(36,0,40,16);//
OLED_ShowChinese(54,0,41,16);//
OLED_ShowChinese(70,0,42,16);//
OLED_ShowChinese(0,4,45,16);//當前模式為
OLED_ShowChinese(18,4,46,16);//
OLED_ShowChinese(36,4,52,16);//
OLED_ShowChinese(54,4,53,16);//
OLED_ShowChinese(70,4,47,16);//
OLED_ShowChinese(0,6,48,16);//手動/定時
OLED_ShowChinese(18,6,49,16);
OLED_ShowChar(36,6,'/',16);
OLED_ShowChinese(54,6,50,16);
OLED_ShowChinese(70,6,51,16);
}
if(moshi==0)
{
OLED_ShowChinese(0,0,7,16);//當
OLED_ShowChinese(18,0,8,16);//前
OLED_ShowChinese(36,0,9,16);//溫
OLED_ShowChinese(54,0,10,16);//度
OLED_ShowChinese(0,2,12,16);//上
OLED_ShowChinese(18,2,13,16);//限
OLED_ShowChinese(36,2,9,16);//溫
OLED_ShowChinese(54,2,10,16);//度
OLED_ShowNum(70,2,wendumax,3,16);
OLED_ShowChinese(0,4,34,16);//打開時長
OLED_ShowChinese(18,4,35,16);//開
OLED_ShowChinese(36,4,28,16);//時
OLED_ShowChinese(54,4,36,16);//長
OLED_ShowNum(70,4,chixushijian,3,16);
OLED_ShowChinese(0,6,37,16);//關閉時長
OLED_ShowChinese(18,6,38,16);//關閉
OLED_ShowChinese(36,6,28,16);//時
OLED_ShowChinese(54,6,36,16);//長
OLED_ShowNum(70,6,jiange,3,16);}
else if(moshi==1)//moshi=0當前溫度moshi=1設定上限 moshi=2設定開啟時長單位分鐘 moshi=3設定關閉時長單位小時
{
OLED_ShowChinese(0,0,15,16);//設
OLED_ShowChinese(18,0,16,16);//置
OLED_ShowChinese(36,0,43,16);//單位
OLED_ShowChinese(54,0,44,16);//
OLED_ShowChinese(70,0,11,16);//
OLED_ShowChar(80,0,'C',16);
OLED_ShowChinese(0,4,9,16);//溫
OLED_ShowChinese(18,4,10,16);//度
OLED_ShowChinese(36,4,12,16);//上
OLED_ShowChinese(54,4,13,16);//限
OLED_ShowNum(70,4,wendumax,3,16);}
else if(moshi==2)
{
OLED_ShowChinese(0,0,15,16);//設
OLED_ShowChinese(18,0,16,16);//置
OLED_ShowChinese(36,0,43,16);//單位
OLED_ShowChinese(54,0,44,16);//
OLED_ShowChar(80,0,'m',16);
OLED_ShowChinese(0,4,34,16);//打開時長
OLED_ShowChinese(18,4,35,16);//開
OLED_ShowChinese(36,4,28,16);//時
OLED_ShowChinese(54,4,36,16);//長
OLED_ShowNum(70,4,chixushijian,3,16);}
else if(moshi==3)
{
OLED_ShowChinese(38,0,15,16);//設
OLED_ShowChinese(56,0,16,16);//置
OLED_ShowChinese(36,0,43,16);//單位
OLED_ShowChinese(54,0,44,16);//
OLED_ShowChar(80,0,'h',16);
OLED_ShowChinese(0,4,37,16);//關閉時長
OLED_ShowChinese(18,4,38,16);//關閉
OLED_ShowChinese(36,4,28,16);//時
OLED_ShowChinese(54,4,36,16);//長
OLED_ShowNum(70,4,jiange,3,16);}
}注意：開發環境為IAR,大家想用各個模塊添加頭檔案和函式檔案即可
