1 資料準備

很多例子做影像分類的時候都喜歡用手寫數字作為例子來講解影像分類，這是一個及其不負責任的教學，我個人認為做深度學習有時候是要在資料集上下功夫的，而且因為很多框架都內置了手寫數字資料集，并且已經給我們處理好了，直接可以匯入到神經網路中用了，因此整個實驗下來，我們連資料是什么樣子都不知道，更別提學完之后去訓練自己的資料集了，

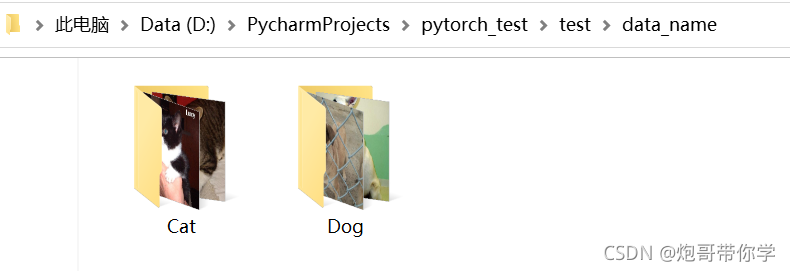

這里我用的是貓狗分類的資料集，如下圖所示：

利用如下腳本將資料集劃分為訓練集和驗證集

import os
from shutil import copy
import random


def mkfile(file):
    if not os.path.exists(file):
        os.makedirs(file)


# 獲取data檔案夾下所有檔案夾名（即需要分類的類名）
file_path = 'D:/PycharmProjects/pytorch_test/test/data_name'
flower_class = [cla for cla in os.listdir(file_path)]

# 創建 訓練集train 檔案夾，并由類名在其目錄下創建5個子目錄
mkfile('data/train')
for cla in flower_class:
    mkfile('data/train/' + cla)

# 創建 驗證集val 檔案夾，并由類名在其目錄下創建子目錄
mkfile('data/val')
for cla in flower_class:
    mkfile('data/val/' + cla)

# 劃分比例，訓練集 : 驗證集 = 9 : 1
split_rate = 0.1

# 遍歷所有類別的全部影像并按比例分成訓練集和驗證集
for cla in flower_class:
    cla_path = file_path + '/' + cla + '/'  # 某一類別的子目錄
    images = os.listdir(cla_path)  # iamges 串列存盤了該目錄下所有影像的名稱
    num = len(images)
    eval_index = random.sample(images, k=int(num * split_rate))  # 從images串列中隨機抽取 k 個影像名稱
    for index, image in enumerate(images):
        # eval_index 中保存驗證集val的影像名稱
        if image in eval_index:
            image_path = cla_path + image
            new_path = 'data/val/' + cla
            copy(image_path, new_path)  # 將選中的影像復制到新路徑

        # 其余的影像保存在訓練集train中
        else:
            image_path = cla_path + image
            new_path = 'data/train/' + cla
            copy(image_path, new_path)
        print("\r[{}] processing [{}/{}]".format(cla, index + 1, num), end="")  # processing bar
    print()

print("processing done!")

劃分后的資料集如下圖所示，訓練集中和驗證集中都有一定比例的貓和狗的照片，

2 利用pytorch搭建AlexNet網路模型

import torch
from torch import nn
import torch.nn.functional as F


class MyAlexNet(nn.Module):
    def __init__(self):
        super(MyAlexNet, self).__init__()
        self.c1 = nn.Conv2d(in_channels=3, out_channels=48, kernel_size=11, stride=4, padding=2)
        self.ReLU = nn.ReLU()
        self.c2 = nn.Conv2d(in_channels=48, out_channels=128, kernel_size=5, stride=1, padding=2)
        self.s2 = nn.MaxPool2d(2)
        self.c3 = nn.Conv2d(in_channels=128, out_channels=192, kernel_size=3, stride=1, padding=1)
        self.s3 = nn.MaxPool2d(2)
        self.c4 = nn.Conv2d(in_channels=192, out_channels=192, kernel_size=3, stride=1, padding=1)
        self.c5 = nn.Conv2d(in_channels=192, out_channels=128, kernel_size=3, stride=1, padding=1)
        self.s5 = nn.MaxPool2d(kernel_size=3, stride=2)
        self.flatten = nn.Flatten()
        self.f6 = nn.Linear(4608, 2048)
        self.f7 = nn.Linear(2048, 2048)
        self.f8 = nn.Linear(2048, 1000)

        self.f9 = nn.Linear(1000, 2)

    def forward(self, x):
        x = self.ReLU(self.c1(x))
        x = self.ReLU(self.c2(x))
        x = self.s2(x)
        x = self.ReLU(self.c3(x))
        x = self.s3(x)
        x = self.ReLU(self.c4(x))
        x = self.ReLU(self.c5(x))
        x = self.s5(x)
        x = self.flatten(x)
        x = self.f6(x)
        x = F.dropout(x, p=0.5)
        x = self.f7(x)
        x = F.dropout(x, p=0.5)
        x = self.f8(x)
        x = F.dropout(x, p=0.5)

        x = self.f9(x)
        x = F.dropout(x, p=0.5)
        return x

if __name__ =="__mian__":
    x = torch.rand([1, 3, 224, 224])
    model = MyAlexNet()
    y = model(x)

3 訓練網路模型代碼

import torch
from torch import nn
from net import MyAlexNet
import numpy as np

from torch.optim import lr_scheduler
import os

from torchvision import transforms
from torchvision.datasets import ImageFolder
from torch.utils.data import DataLoader

import matplotlib.pyplot as plt

# 解決中文顯示問題
plt.rcParams['font.sans-serif'] = ['SimHei']
plt.rcParams['axes.unicode_minus'] = False

ROOT_TRAIN = r'D:/PycharmProjects/pytorch_test/test/data/train'
ROOT_TEST = r'D:/PycharmProjects/pytorch_test/test/data/val'


# 將影像RGB三個通道的像素值分別減去0.5,再除以0.5.從而將所有的像素值固定在[-1,1]范圍內
normalize = transforms.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5])
train_transform = transforms.Compose([
    transforms.Resize((224, 224)), # 裁剪為224*224
    transforms.RandomVerticalFlip(), # 隨機垂直旋轉
    transforms.ToTensor(), # 將0-255范圍內的像素轉為0-1范圍內的tensor
    normalize])

val_transform = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    normalize])

train_dataset = ImageFolder(ROOT_TRAIN, transform=train_transform)
val_dataset = ImageFolder(ROOT_TEST, transform=val_transform)

train_dataloader = DataLoader(train_dataset, batch_size=32, shuffle=True)
val_dataloader = DataLoader(val_dataset, batch_size=32, shuffle=True)

# 如果顯卡可用，則用顯卡進行訓練
device = 'cuda' if  torch.cuda.is_available() else 'cpu'

# 呼叫net里面的定義的網路模型， 如果GPU可用則將模型轉到GPU
model = MyAlexNet().to(device)

# 定義損失函式（交叉熵損失）
loss_fn = nn.CrossEntropyLoss()

# 定義優化器（SGD）
optimizer = torch.optim.SGD(model.parameters(), lr=0.01, momentum=0.9)

# 學習率每隔10epoch變為原來的0.1
lr_scheduler = lr_scheduler.StepLR(optimizer, step_size=10, gamma=0.5)

# 定義訓練函式
def train(dataloader, model, loss_fn, optimizer):
    loss, current, n = 0.0, 0.0, 0
    for batch, (x, y) in enumerate(dataloader):

        # 前向傳播
        image, y = x.to(device), y.to(device)
        output = model(image)
        cur_loss = loss_fn(output, y)
        _, pred = torch.max(output, axis=1)
        cur_acc = torch.sum(y==pred)/output.shape[0]

        # 反向傳播
        optimizer.zero_grad()
        cur_loss.backward()
        optimizer.step()
        loss += cur_loss.item()
        current += cur_acc.item()
        n = n+1

    train_loss = loss / n
    tran_acc = current /n
    print('train_loss:' + str(train_loss))
    print('train_acc:' + str(tran_acc))
    return train_loss, tran_acc

# 定義測驗函式
def val(dataloader, model, loss_fn):
    # 將模型轉為驗證模型
    model.eval()
    loss, current, n = 0.0, 0.0, 0
    with torch.no_grad():
        for batch, (x, y) in enumerate(dataloader):
            image, y = x.to(device), y.to(device)
            output = model(image)
            cur_loss = loss_fn(output, y)
            _, pred = torch.max(output, axis=1)
            cur_acc = torch.sum(y == pred) / output.shape[0]
            loss += cur_loss.item()
            current += cur_acc.item()
            n = n+1

        val_loss = loss / n
        val_acc = current / n
        print('val_loss:' + str(val_loss))
        print('val_acc:' + str(val_acc))
        return val_loss, val_acc

# 畫圖函式
def matplot_loss(train_loss, val_loss):
    plt.plot(train_loss, label='train_loss')
    plt.plot(val_loss, label='val_loss')
    plt.legend(loc='best')
    plt.ylabel('loss', fontsize=12)
    plt.xlabel('epoch', fontsize=12)
    plt.title("訓練集和驗證集loss值對比圖")
    plt.show()

def matplot_acc(train_acc, val_acc):
    plt.plot(train_acc, label='train_acc')
    plt.plot(val_acc, label='val_acc')
    plt.legend(loc='best')
    plt.ylabel('acc', fontsize=12)
    plt.xlabel('epoch', fontsize=12)
    plt.title("訓練集和驗證集精確度值對比圖")
    plt.show()



# 開始訓練
loss_train = []
acc_train = []
loss_val = []
acc_val = []

epoch = 100
min_acc = 0
for t in range(epoch):
    lr_scheduler.step()
    print(f"epoch{t+1}\n--------------")
    train_loss, train_acc = train(train_dataloader, model, loss_fn, optimizer)
    val_loss, val_acc = val(val_dataloader, model, loss_fn)

    loss_train.append(train_loss)
    acc_train.append(train_acc)
    loss_val.append(val_loss)
    acc_val.append(val_acc)

    # 保存最好的模型權重檔案
    if val_acc > min_acc:
        folder = 'save_model'
        if not os.path.exists(folder):
            os.mkdir('save_model')
        min_acc = val_acc
        print(f'save best model,第{t+1}輪')
        torch.save(model.state_dict(), 'save_model/best_model.pth')
    # 保存最后的權重模型檔案
    if t == epoch - 1:
        torch.save(model.state_dict(), 'save_model/last_model.pth')
print('Done！')

matplot_loss(loss_train, loss_val)
matplot_acc(acc_train, acc_val)

4 測驗代碼

import torch
from net import MyAlexNet
import numpy as np
from torch.autograd import Variable
from torchvision import datasets, transforms
from torchvision.transforms import ToPILImage
from torchvision.datasets import ImageFolder
from torch.utils.data import DataLoader

ROOT_TRAIN = r'D:/PycharmProjects/pytorch_test/test/data/train'
ROOT_TEST = r'D:/PycharmProjects/pytorch_test/test/data/val'

# 將影像RGB三個通道的像素值分別減去0.5,再除以0.5.從而將所有的像素值固定在[-1,1]范圍內
normalize = transforms.Normalize([0.5, 0.5, 0.5], [0.5, 0.5, 0.5])

train_transform = transforms.Compose([
    transforms.Resize((224, 224)), # 裁剪為224*224
    transforms.RandomVerticalFlip(), # 隨機垂直旋轉
    transforms.ToTensor(), # 將0-255范圍內的像素轉為0-1范圍內的tensor
    normalize])

val_transform = transforms.Compose([
    transforms.Resize((224, 224)),
    transforms.ToTensor(),
    normalize])

train_dataset = ImageFolder(ROOT_TRAIN, transform=train_transform)
val_dataset = ImageFolder(ROOT_TEST, transform=val_transform)

train_dataloader = DataLoader(train_dataset, batch_size=32, shuffle=True)
val_dataloader = DataLoader(val_dataset, batch_size=32, shuffle=True)


# 如果顯卡可用，則用顯卡進行訓練
device = 'cuda' if  torch.cuda.is_available() else 'cpu'

# 呼叫net里面的定義的網路模型， 如果GPU可用則將模型轉到GPU
model = MyAlexNet().to(device)

# 加載模型train.py里面訓練的模型
model.load_state_dict(torch.load('D:/PycharmProjects/pytorch_test/test/save_model/best_model.pth'))

# 獲取預測結果
classes = [
    'cat',
    'dag',
]

# 把tensor轉成Image,方便可視化
show = ToPILImage()

# 進入驗證階段
model.eval()

# 對val_dataset里面的照片進行推理驗證
for i in range(50):
    x, y = val_dataset[i][0], val_dataset[i][1]
    show(x).show()
    x = Variable(torch.unsqueeze(x, dim=0).float(), requires_grad=False).to(device)
    x = torch.tensor(x).to(device)
    with torch.no_grad():
        pred = model(x)
        predicted, actual = classes[torch.argmax(pred[0])], classes[y]
        print(f'Predicted: "{predicted}", Actual: "{actual}"')
