什么是oauth2

OAuth 2.0 是一個授權協議，它允許軟體應用代表（而不是充當）資源擁有者去訪問資源擁有者的資源，應用向資源擁有者請求授權，然后取得令牌（token），并用它來訪問資源，并且資源擁有者不用向應用提供用戶名和密碼等敏感資料，
當前有一個開放介面該介面
會被非常多的商戶端來呼叫
管理商戶端
開放介面平臺設計

第三方支付介面或者第三方知名平臺介面
微信支付寶等，

流程

1.申請一個appid 和秘鑰
Appid=QQ賬戶—終生無法變化
Apppwd改===QQ密碼
2.appid 和密碼獲取token
3.需要使用該token呼叫介面
4.Token 臨時且唯一 2個小時 8個小時
Token 失效----重繪token

Oauth角色劃分

1、Resource Server:被授權訪問的資源
2、Authotization Server：OAUTH2認證授權中心
3、Resource Owner：用戶
4、Client：使用API的合作伙伴

整合代碼

1. Authotization Server：OAUTH2認證授權中心模塊

  <dependencies>
        <!-- SpringBoot整合Web組件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!-- springboot整合freemarker -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-freemarker</artifactId>
        </dependency>

        <!-->spring-boot 整合security -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

        <!-- Spring Security OAuth2 -->
        <dependency>
            <groupId>org.springframework.security.oauth</groupId>
            <artifactId>spring-security-oauth2</artifactId>
            <version>2.2.1.RELEASE</version>
        </dependency>


        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.6.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.62</version>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
    </dependencies>

security認證里面認證用戶名和密碼

@Component
@EnableWebSecurity
public class SecurityConfig extends WebSecurityConfigurerAdapter {
    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    /**
     * 需要填寫 認證賬戶  mayikt
     *
     * @param auth
     * @throws Exception
     */
    @Override
    protected void configure(AuthenticationManagerBuilder auth) throws Exception {
        auth.inMemoryAuthentication()
                .withUser("mayikt")
                .password(passwordEncoder().encode("mayikt"))
                .authorities("/*");

    }

    @Override
    protected void configure(HttpSecurity http) throws Exception {
        http.authorizeRequests()
                .anyRequest().authenticated() //所有請求都需要通過認證
                .and()
                .httpBasic() //Basic登錄
                .and()
                .csrf().disable(); //關跨域保護
    }
}

認證授權Server端需提供appId，密鑰，回呼地址，資源Id

/**
 * 認證授權Server端
 */
@Component
@EnableAuthorizationServer
public class AuthorizationConfig extends AuthorizationServerConfigurerAdapter {
    @Autowired
    private PasswordEncoder passwordEncoder;

    @Override
    public void configure(AuthorizationServerSecurityConfigurer security) throws Exception {
        //允許表單提交
        security.allowFormAuthenticationForClients()
                .checkTokenAccess("permitAll()");
    }

    /**
     * appid mayikt secret= 123456
     *
     * @param clients
     * @throws Exception
     */
    @Override
    public void configure(ClientDetailsServiceConfigurer clients) throws Exception {
        clients.inMemory()
                // appid 表里取 這里寫死
                .withClient("appId")
                // 密鑰  表里取 這里寫死
                .secret(passwordEncoder.encode("123456"))
                // 授權碼
                .authorizedGrantTypes("authorization_code")
                // 作用域
                .scopes("all")
                // 資源的id  表里取 這里寫死
                .resourceIds("mayikt_resource")
                // 回呼地址  表里取 這里寫死
                .redirectUris("http://www.mayikt.com/callback");


    }
}

獲取access_token步驟

1. 獲取授權碼
http://localhost:8080/oauth/authorize?client_id=appId&response_type=code
通過訪問這個地址獲取授權碼，client_id值為
在這里插入圖片描述

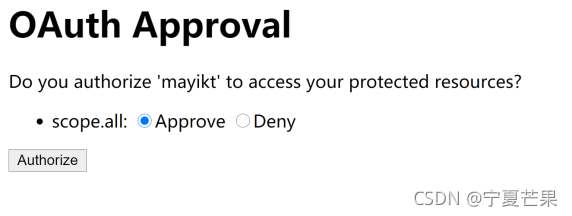

訪問介面填寫賬戶和密碼
在這里插入圖片描述

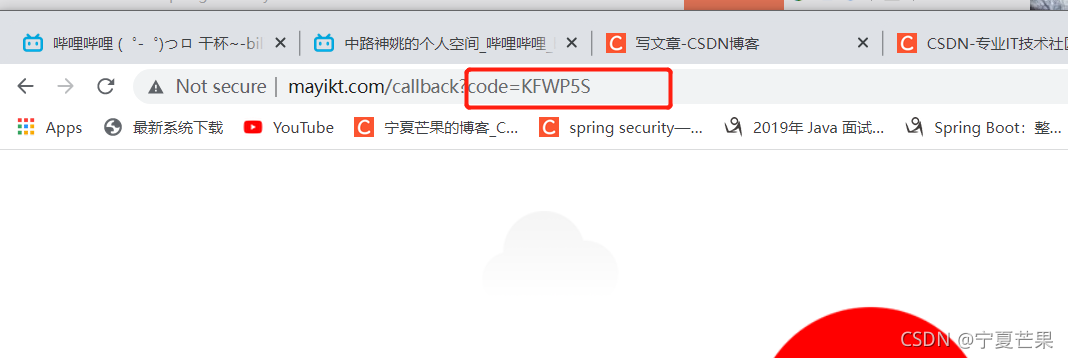

訪問成功后通過回呼地址獲取授權碼

2.根據授權碼獲取accessToken
http://localhost:8080/oauth/token?code=6s9qUj&grant_type=authorization_code&redirect_uri=http://www.mayikt.com/callback&scope=all

redirect_uri:回呼地址
code：授權碼

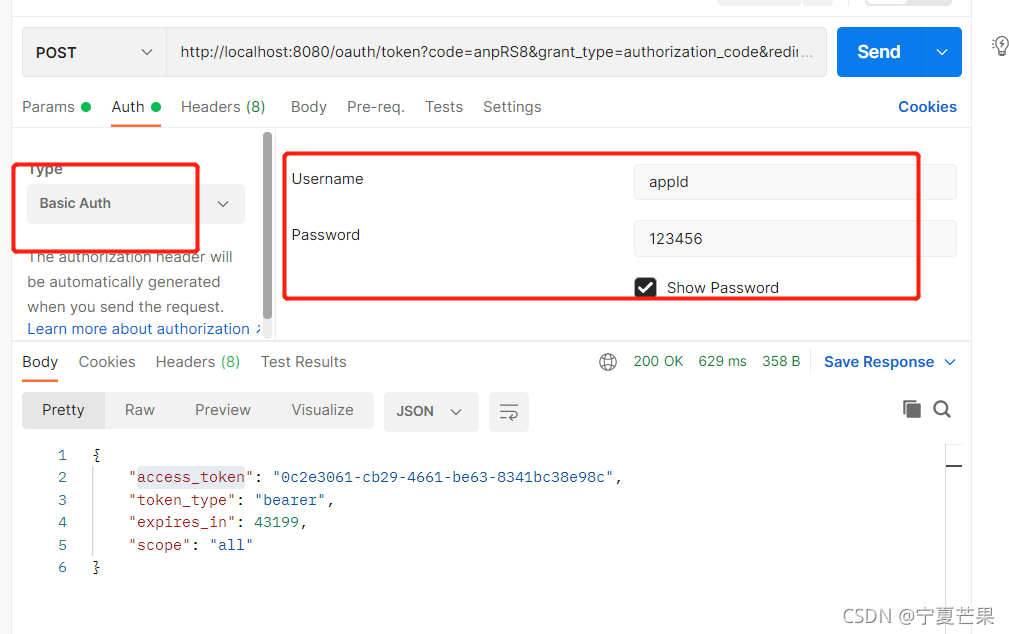

通過postman post請求填寫appid和密鑰就可以獲取token

在這里插入圖片描述

2. Resource Server:被授權訪問的資源

 <dependencies>
        <!-- SpringBoot整合Web組件 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <!-- springboot整合freemarker -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-freemarker</artifactId>
        </dependency>

        <!-->spring-boot 整合security -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-security</artifactId>
        </dependency>

        <!-- Spring Security OAuth2 -->
        <dependency>
            <groupId>org.springframework.security.oauth</groupId>
            <artifactId>spring-security-oauth2</artifactId>
            <version>2.2.1.RELEASE</version>
        </dependency>


        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt</artifactId>
            <version>0.6.0</version>
        </dependency>
        <dependency>
            <groupId>com.alibaba</groupId>
            <artifactId>fastjson</artifactId>
            <version>1.2.62</version>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
    </dependencies>

資源Server端

/**
 * 資源Server端
 */
@Configuration
@EnableResourceServer
public class ResourceConfig extends ResourceServerConfigurerAdapter {

     //appID
    private String mayiktAppId ="appId";
     //密鑰
    private String mayiktAppSecret ="123456";

    @Bean
    public PasswordEncoder passwordEncoder() {
        return new BCryptPasswordEncoder();
    }

    @Primary
    @Bean
    public RemoteTokenServices remoteTokenServices() {
        final RemoteTokenServices tokenServices = new RemoteTokenServices();
        //設定授權服務器check_token端點完整地址
        tokenServices.setCheckTokenEndpointUrl("http://localhost:8080/oauth/check_token");
        //設定客戶端id與secret，注意：client_secret值不能使用passwordEncoder加密！
        tokenServices.setClientId(mayiktAppId);
        tokenServices.setClientSecret(mayiktAppSecret);
        return tokenServices;
    }

    @Override
    public void configure(HttpSecurity http) throws Exception {
        //設定創建session策略
        http.sessionManagement().sessionCreationPolicy(SessionCreationPolicy.IF_REQUIRED);
        //@formatter:off
        //所有請求必須授權
        http.authorizeRequests().anyRequest().authenticated();
        //@formatter:on
    }

    @Override
    public void configure(ResourceServerSecurityConfigurer resources) {
        resources.resourceId("mayikt_resource").stateless(true);
    }
}

@RestController
public class MemberService {
    @GetMapping("/getMember")
    public String getMember() {
        return "我是會員服務介面";
    }
}

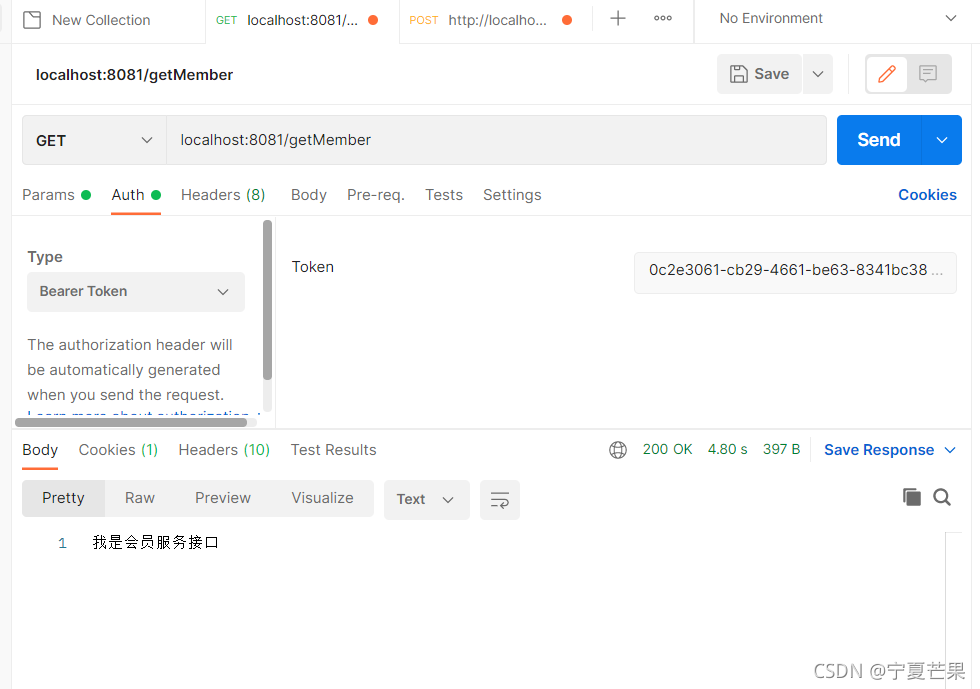

帶上token訪問成功
在這里插入圖片描述
