前 言
Prometheus是一個用于監控和告警的開源系統，一開始由Soundcloud開發，后來在2016年，它遷移到CNCF并且稱為Kubernetes之后最流行的專案之一，從整個Linux服務器到stand-alone web服務器、資料庫服務或一個單獨的行程，它都能監控，在Prometheus術語中，它所監控的事物稱為目標（Target），每個目標單元被稱為指標（metric），它以設定好的時間間隔通過http抓取目標，以收集指標并將資料放置在其時序資料庫（Time Series Database）中，你可以使用PromQL查詢語言查詢相關target的指標，
本文中，我們將一步一步展示如何：
-
安裝Prometheus（使用prometheus-operator Helm chart）以基于自定義事件進行監控/告警
-
創建和配置自定義告警規則，它將會在滿足條件時發出告警
-
集成Alertmanager以處理由客戶端應用程式（在本例中為Prometheus server）發送的告警
-

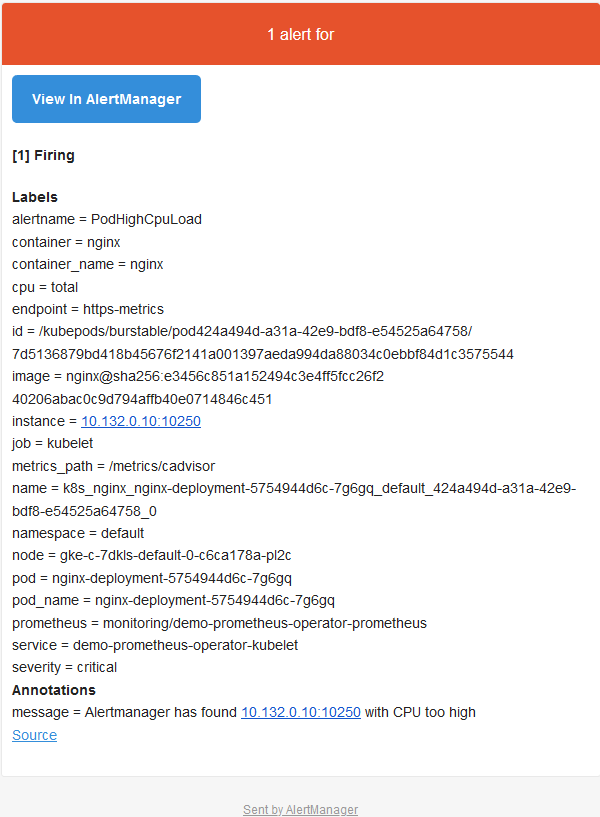

將Alertmanager與發送告警通知的郵件賬戶集成，
理解Prometheus及其抽象概念

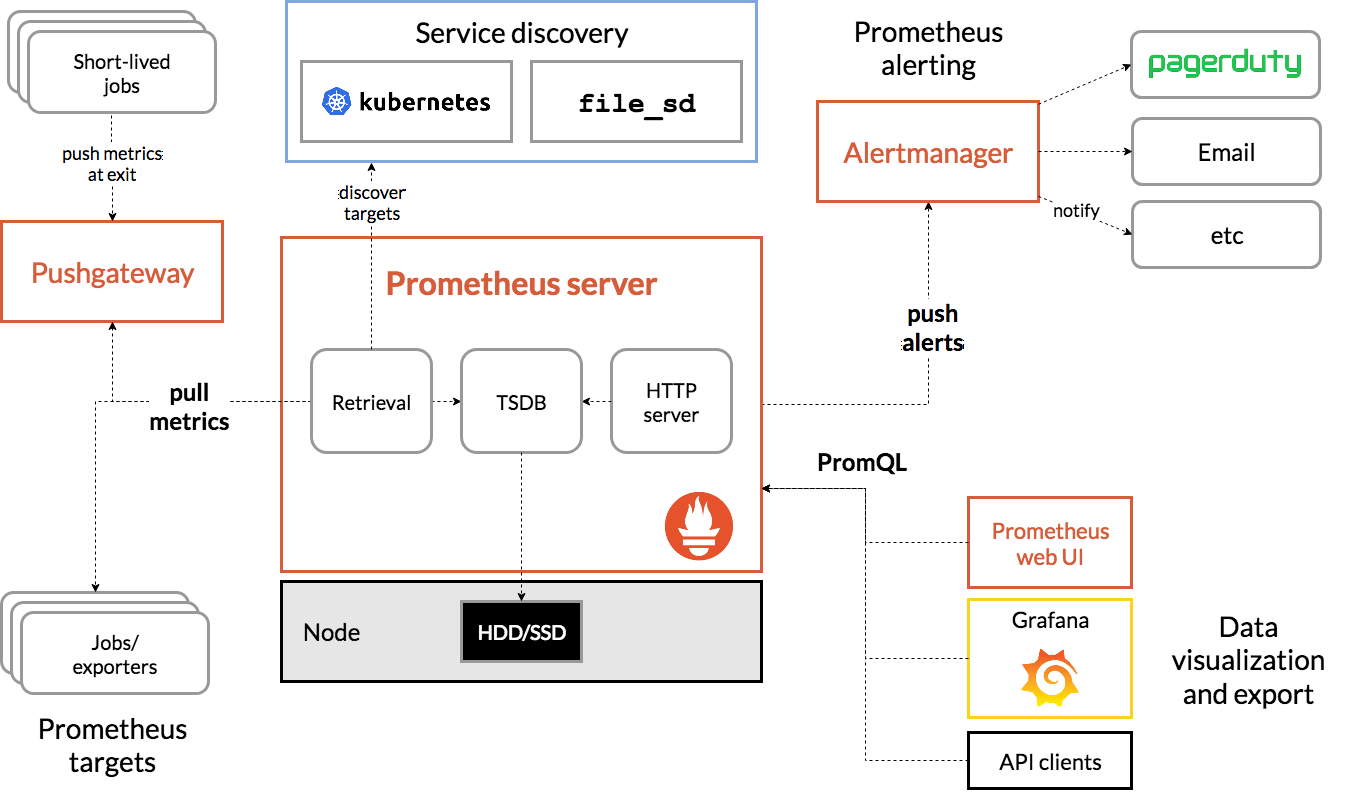

從下圖我們將看到所有組成Prometheus生態的組件：
以下是與本文相關的術語，大家可以快速了解：
-
Prometheus Server：在時序資料庫中抓取和存盤指標的主要組件
抓取：一種拉取方法以獲取指標，它通常以10-60秒的時間間隔抓取，
Target：檢索資料的server客戶端
-
服務發現：啟用Prometheus，使其能夠識別它需要監控的應用程式并在動態環境中拉取指標
-
Alert Manager：負責處理警報的組件（包括silencing、inhibition、聚合告警資訊，并通過郵件、PagerDuty、Slack等方式發送告警通知），
-
資料可視化：抓取的資料存盤在本地存盤中，并使用PromQL直接查詢，或通過Grafana dashboard查看，
理解Prometheus Operator
根據Prometheus Operator的專案所有者CoreOS稱，Prometheus Operator可以配置原生Kubernetes并且可以管理和操作Prometheus和Alertmanager集群，
該Operator引入了以下Kubernetes自定義資源定義（CRDs）：Prometheus、ServiceMonitor、PrometheusRule和Alertmanager，如果你想了解更多內容可以訪問鏈接：
https://github.com/coreos/prometheus-operator/blob/master/Documentation/design.md
在我們的演示中，我們將使用PrometheusRule來定義自定義規則，
首先，我們需要使用 stable/prometheus-operator Helm chart來安裝Prometheus Operator，下載鏈接：
https://github.com/helm/charts/tree/master/stable/prometheus-operator
默認安裝程式將會部署以下組件：prometheus-operator、prometheus、alertmanager、node-exporter、kube-state-metrics以及grafana，默認狀態下，Prometheus將會抓取Kubernetes的主要組件：kube-apiserver、kube-controller-manager以及etcd，
安裝Prometheus軟體
前期準備
要順利執行此次demo，你需要準備以下內容：
-
一個Google Cloud Platform賬號（免費套餐即可），其他任意云也可以
-
Rancher v2.3.5（發布文章時的最新版本）
-
運行在GKE（版本1.15.9-gke.12.）上的Kubernetes集群（使用EKS或AKS也可以）
-
在計算機上安裝好Helm binary
啟動一個Rancher實體
直接按照這一直觀的入門指南進行操作即可：
https://rancher.com/quick-start
使用Rancher部署一個GKE集群
使用Rancher來設定和配置你的Kubernetes集群：
https://rancher.com/docs/rancher/v2.x/en/cluster-provisioning/hosted-kubernetes-clusters/gke/
部署完成后，并且為kubeconfig檔案配置了適當的credential和端點資訊，就可以使用kubectl指向該特定集群，
部署Prometheus 軟體
首先，檢查一下我們所運行的Helm版本
$ helm version
version.BuildInfo{Version:"v3.1.2", GitCommit:"d878d4d45863e42fd5cff6743294a11d28a9abce", GitTreeState:"clean", GoVersion:"go1.13.8"}
當我們使用Helm 3時，我們需要添加一個stable 鏡像倉庫，因為默認狀態下不會設定該倉庫，
$ helm repo add stable https://kubernetes-charts.storage.googleapis.com
"stable" has been added to your repositories
$ helm repo update
Hang tight while we grab the latest from your chart repositories...
...Successfully got an update from the "stable" chart repository
Update Complete. ? Happy Helming!?
$ helm repo list
NAME URL
stable https://kubernetes-charts.storage.googleapis.com
Helm配置完成后，我們可以開始安裝prometheus-operator
$ kubectl create namespace monitoring
namespace/monitoring created
$ helm install --namespace monitoring demo stable/prometheus-operator
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
manifest_sorter.go:192: info: skipping unknown hook: "crd-install"
NAME: demo
LAST DEPLOYED: Sat Mar 14 09:40:35 2020
NAMESPACE: monitoring
STATUS: deployed
REVISION: 1
NOTES:
The Prometheus Operator has been installed. Check its status by running:
kubectl --namespace monitoring get pods -l "release=demo"
Visit https://github.com/coreos/prometheus-operator for instructions on how
to create & configure Alertmanager and Prometheus instances using the Operator.
規 則
除了監控之外，Prometheus還讓我們創建觸發告警的規則，這些規則基于Prometheus的運算式語言，只要滿足條件，就會觸發告警并將其發送到Alertmanager，之后，我們會看到規則的具體形式，
我們回到demo，Helm完成部署之后，我們可以檢查已經創建了什么pod：
$ kubectl -n monitoring get pods
NAME READY STATUS RESTARTS AGE
alertmanager-demo-prometheus-operator-alertmanager-0 2/2 Running 0 61s
demo-grafana-5576fbf669-9l57b 3/3 Running 0 72s
demo-kube-state-metrics-67bf64b7f4-4786k 1/1 Running 0 72s
demo-prometheus-node-exporter-ll8zx 1/1 Running 0 72s
demo-prometheus-node-exporter-nqnr6 1/1 Running 0 72s
demo-prometheus-node-exporter-sdndf 1/1 Running 0 72s
demo-prometheus-operator-operator-b9c9b5457-db9dj 2/2 Running 0 72s
prometheus-demo-prometheus-operator-prometheus-0 3/3 Running 1 50s

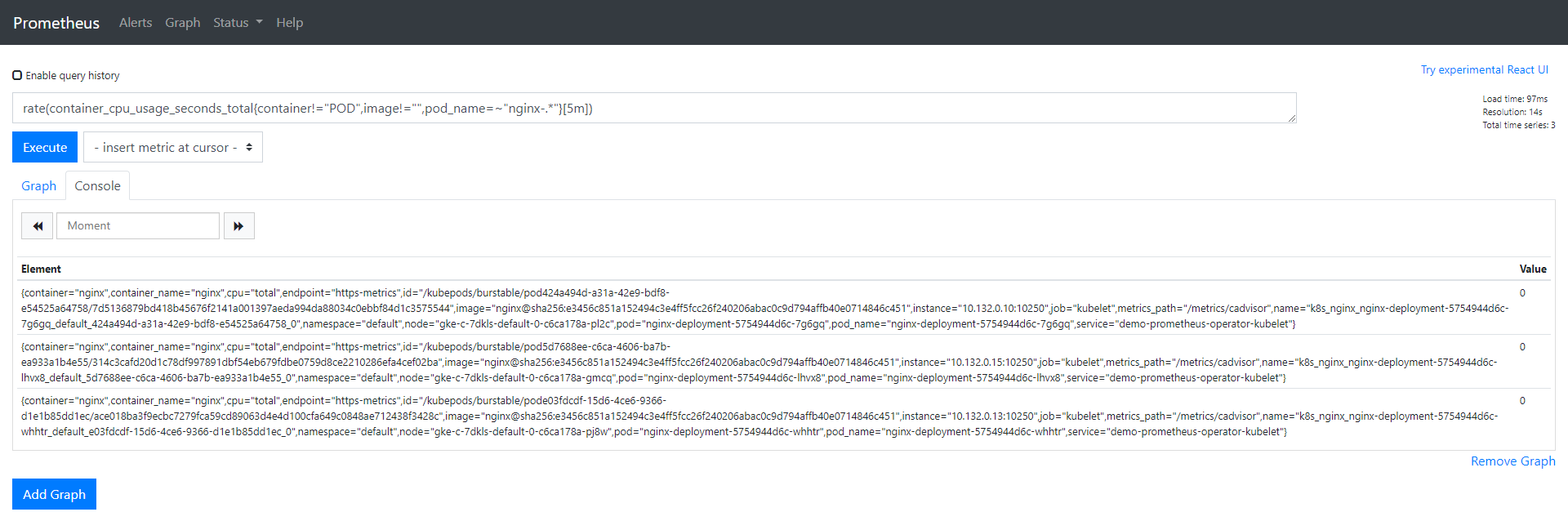

為了從web瀏覽器中訪問Prometheus和Alertmanager，我們需要使用port轉發，
由于本例中使用的是GCP實體，并且所有的kubectl命令都從該實體運行，因此我們使用實體的外部IP地址訪問資源，
$ kubectl port-forward --address 0.0.0.0 -n monitoring prometheus-demo-prometheus-operator-prometheus-0 9090 >/dev/null 2>&1 &

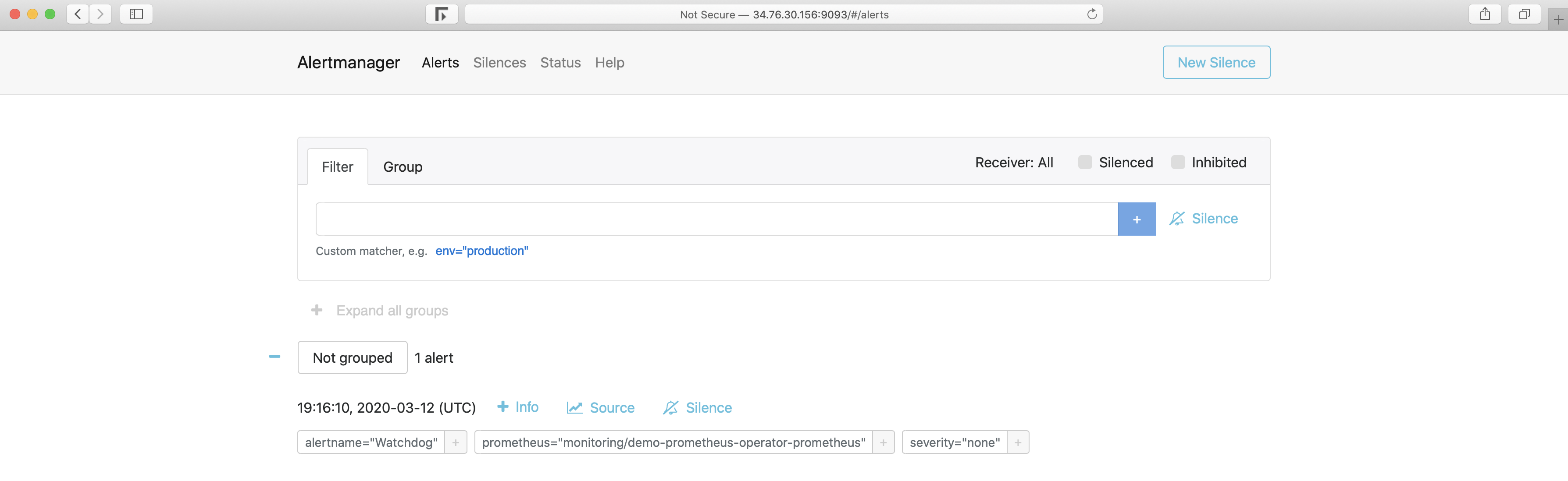

$ kubectl port-forward --address 0.0.0.0 -n monitoring alertmanager-demo-prometheus-operator-alertmanager-0 9093 >/dev/null 2>&1 &

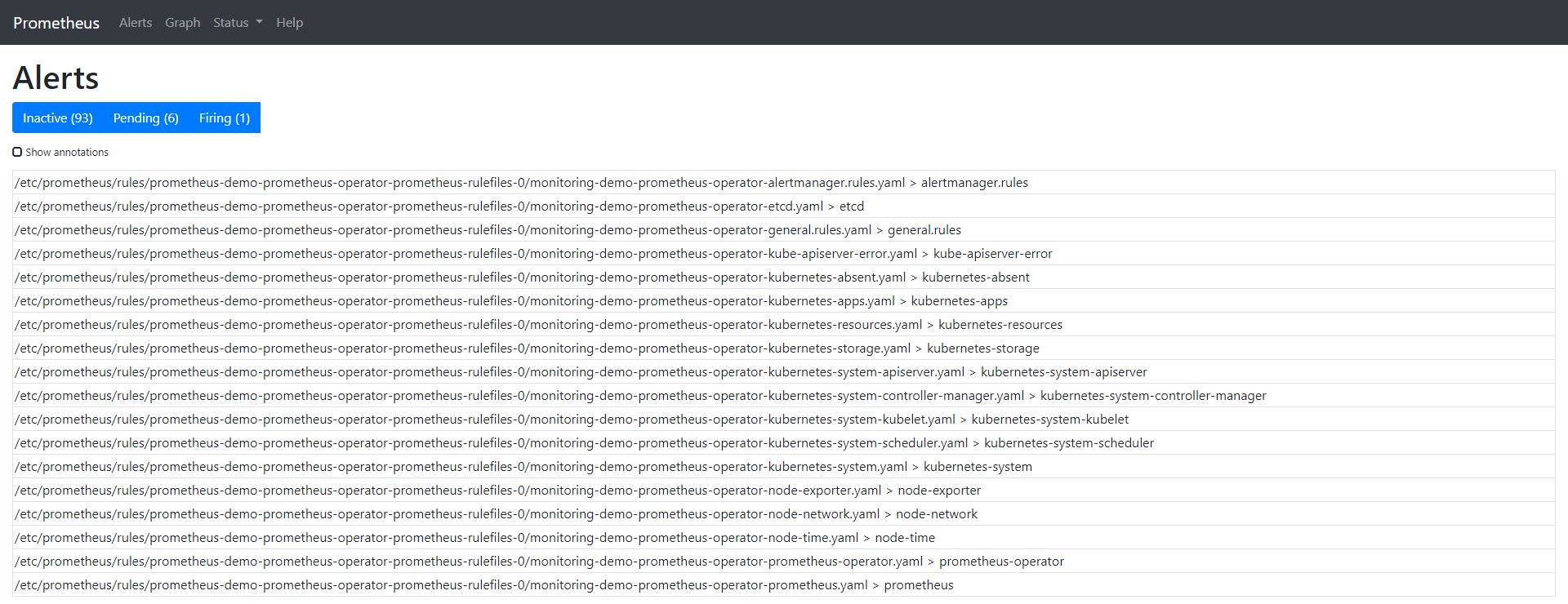

“Alert”選項卡向我們展示了所有當前正在運行/已配置的告警，也可以通過查詢名稱為prometheusrules的CRD從CLI進行檢查：
$ kubectl -n monitoring get prometheusrules
NAME AGE
demo-prometheus-operator-alertmanager.rules 3m21s
demo-prometheus-operator-etcd 3m21s
demo-prometheus-operator-general.rules 3m21s
demo-prometheus-operator-k8s.rules 3m21s
demo-prometheus-operator-kube-apiserver-error 3m21s
demo-prometheus-operator-kube-apiserver.rules 3m21s
demo-prometheus-operator-kube-prometheus-node-recording.rules 3m21s
demo-prometheus-operator-kube-scheduler.rules 3m21s
demo-prometheus-operator-kubernetes-absent 3m21s
demo-prometheus-operator-kubernetes-apps 3m21s
demo-prometheus-operator-kubernetes-resources 3m21s
demo-prometheus-operator-kubernetes-storage 3m21s
demo-prometheus-operator-kubernetes-system 3m21s
demo-prometheus-operator-kubernetes-system-apiserver 3m21s
demo-prometheus-operator-kubernetes-system-controller-manager 3m21s
demo-prometheus-operator-kubernetes-system-kubelet 3m21s
demo-prometheus-operator-kubernetes-system-scheduler 3m21s
demo-prometheus-operator-node-exporter 3m21s
demo-prometheus-operator-node-exporter.rules 3m21s
demo-prometheus-operator-node-network 3m21s
demo-prometheus-operator-node-time 3m21s
demo-prometheus-operator-node.rules 3m21s
demo-prometheus-operator-prometheus 3m21s
demo-prometheus-operator-prometheus-operator 3m21s
我們也可以檢查位于prometheus容器中prometheus-operator Pod中的物理檔案，
$ kubectl -n monitoring exec -it prometheus-demo-prometheus-operator-prometheus-0 -- /bin/sh
Defaulting container name to prometheus.
Use 'kubectl describe pod/prometheus-demo-prometheus-operator-prometheus-0 -n monitoring' to see all of the containers in this pod.
在容器中，我們可以檢查規則的存盤路徑：
/prometheus $ ls /etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0/
monitoring-demo-prometheus-operator-alertmanager.rules.yaml monitoring-demo-prometheus-operator-kubernetes-system-apiserver.yaml
monitoring-demo-prometheus-operator-etcd.yaml monitoring-demo-prometheus-operator-kubernetes-system-controller-manager.yaml
monitoring-demo-prometheus-operator-general.rules.yaml monitoring-demo-prometheus-operator-kubernetes-system-kubelet.yaml
monitoring-demo-prometheus-operator-k8s.rules.yaml monitoring-demo-prometheus-operator-kubernetes-system-scheduler.yaml
monitoring-demo-prometheus-operator-kube-apiserver-error.yaml monitoring-demo-prometheus-operator-kubernetes-system.yaml
monitoring-demo-prometheus-operator-kube-apiserver.rules.yaml monitoring-demo-prometheus-operator-node-exporter.rules.yaml
monitoring-demo-prometheus-operator-kube-prometheus-node-recording.rules.yaml monitoring-demo-prometheus-operator-node-exporter.yaml
monitoring-demo-prometheus-operator-kube-scheduler.rules.yaml monitoring-demo-prometheus-operator-node-network.yaml
monitoring-demo-prometheus-operator-kubernetes-absent.yaml monitoring-demo-prometheus-operator-node-time.yaml
monitoring-demo-prometheus-operator-kubernetes-apps.yaml monitoring-demo-prometheus-operator-node.rules.yaml
monitoring-demo-prometheus-operator-kubernetes-resources.yaml monitoring-demo-prometheus-operator-prometheus-operator.yaml
monitoring-demo-prometheus-operator-kubernetes-storage.yaml monitoring-demo-prometheus-operator-prometheus.yaml
為了詳細了解如何將這些規則加載到Prometheus中，請檢查Pod的詳細資訊，我們可以看到用于prometheus容器的組態檔是etc/prometheus/config_out/prometheus.env.yaml，該組態檔向我們展示了檔案的位置或重新檢查yaml的頻率設定，
$ kubectl -n monitoring describe pod prometheus-demo-prometheus-operator-prometheus-0
完整命令輸出如下：
Name: prometheus-demo-prometheus-operator-prometheus-0
Namespace: monitoring
Priority: 0
Node: gke-c-7dkls-default-0-c6ca178a-gmcq/10.132.0.15
Start Time: Wed, 11 Mar 2020 18:06:47 +0000
Labels: app=prometheus
controller-revision-hash=prometheus-demo-prometheus-operator-prometheus-5ccbbd8578
prometheus=demo-prometheus-operator-prometheus
statefulset.kubernetes.io/pod-name=prometheus-demo-prometheus-operator-prometheus-0
Annotations: <none>
Status: Running
IP: 10.40.0.7
IPs: <none>
Controlled By: StatefulSet/prometheus-demo-prometheus-operator-prometheus
Containers:
prometheus:
Container ID: docker://360db8a9f1cce8d72edd81fcdf8c03fe75992e6c2c59198b89807aa0ce03454c
Image: quay.io/prometheus/prometheus:v2.15.2
Image ID: docker-pullable://quay.io/prometheus/prometheus@sha256:914525123cf76a15a6aaeac069fcb445ce8fb125113d1bc5b15854bc1e8b6353
Port: 9090/TCP
Host Port: 0/TCP
Args:
--web.console.templates=/etc/prometheus/consoles
--web.console.libraries=/etc/prometheus/console_libraries
--config.file=/etc/prometheus/config_out/prometheus.env.yaml
--storage.tsdb.path=/prometheus
--storage.tsdb.retention.time=10d
--web.enable-lifecycle
--storage.tsdb.no-lockfile
--web.external-url=http://demo-prometheus-operator-prometheus.monitoring:9090
--web.route-prefix=/
State: Running
Started: Wed, 11 Mar 2020 18:07:07 +0000
Last State: Terminated
Reason: Error
Message: caller=main.go:648 msg="Starting TSDB ..."
level=info ts=2020-03-11T18:07:02.185Z caller=web.go:506 component=web msg="Start listening for connections" address=0.0.0.0:9090
level=info ts=2020-03-11T18:07:02.192Z caller=head.go:584 component=tsdb msg="replaying WAL, this may take awhile"
level=info ts=2020-03-11T18:07:02.192Z caller=head.go:632 component=tsdb msg="WAL segment loaded" segment=0 maxSegment=0
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:663 fs_type=EXT4_SUPER_MAGIC
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:664 msg="TSDB started"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:734 msg="Loading configuration file" filename=/etc/prometheus/config_out/prometheus.env.yaml
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:517 msg="Stopping scrape discovery manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:531 msg="Stopping notify discovery manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:553 msg="Stopping scrape manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=manager.go:814 component="rule manager" msg="Stopping rule manager..."
level=info ts=2020-03-11T18:07:02.194Z caller=manager.go:820 component="rule manager" msg="Rule manager stopped"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:513 msg="Scrape discovery manager stopped"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:527 msg="Notify discovery manager stopped"
level=info ts=2020-03-11T18:07:02.194Z caller=main.go:547 msg="Scrape manager stopped"
level=info ts=2020-03-11T18:07:02.197Z caller=notifier.go:598 component=notifier msg="Stopping notification manager..."
level=info ts=2020-03-11T18:07:02.197Z caller=main.go:718 msg="Notifier manager stopped"
level=error ts=2020-03-11T18:07:02.197Z caller=main.go:727 err="error loading config from \"/etc/prometheus/config_out/prometheus.env.yaml\": couldn't load configuration (--config.file=\"/etc/prometheus/config_out/prometheus.env.yaml\"): open /etc/prometheus/config_out/prometheus.env.yaml: no such file or directory"
Exit Code: 1
Started: Wed, 11 Mar 2020 18:07:02 +0000
Finished: Wed, 11 Mar 2020 18:07:02 +0000
Ready: True
Restart Count: 1
Liveness: http-get http://:web/-/healthy delay=0s timeout=3s period=5s #success=1 #failure=6
Readiness: http-get http://:web/-/ready delay=0s timeout=3s period=5s #success=1 #failure=120
Environment: <none>
Mounts:
/etc/prometheus/certs from tls-assets (ro)
/etc/prometheus/config_out from config-out (ro)
/etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0 from prometheus-demo-prometheus-operator-prometheus-rulefiles-0 (rw)
/prometheus from prometheus-demo-prometheus-operator-prometheus-db (rw)
/var/run/secrets/kubernetes.io/serviceaccount from demo-prometheus-operator-prometheus-token-jvbrr (ro)
prometheus-config-reloader:
Container ID: docker://de27cdad7067ebd5154c61b918401b2544299c161850daf3e317311d2d17af3d
Image: quay.io/coreos/prometheus-config-reloader:v0.37.0
Image ID: docker-pullable://quay.io/coreos/prometheus-config-reloader@sha256:5e870e7a99d55a5ccf086063efd3263445a63732bc4c04b05cf8b664f4d0246e
Port: <none>
Host Port: <none>
Command:
/bin/prometheus-config-reloader
Args:
--log-format=logfmt
--reload-url=http://127.0.0.1:9090/-/reload
--config-file=/etc/prometheus/config/prometheus.yaml.gz
--config-envsubst-file=/etc/prometheus/config_out/prometheus.env.yaml
State: Running
Started: Wed, 11 Mar 2020 18:07:04 +0000
Ready: True
Restart Count: 0
Limits:
cpu: 100m
memory: 25Mi
Requests:
cpu: 100m
memory: 25Mi
Environment:
POD_NAME: prometheus-demo-prometheus-operator-prometheus-0 (v1:metadata.name)
Mounts:
/etc/prometheus/config from config (rw)
/etc/prometheus/config_out from config-out (rw)
/var/run/secrets/kubernetes.io/serviceaccount from demo-prometheus-operator-prometheus-token-jvbrr (ro)
rules-configmap-reloader:
Container ID: docker://5804e45380ed1b5374a4c2c9ee4c9c4e365bee93b9ccd8b5a21f50886ea81a91
Image: quay.io/coreos/configmap-reload:v0.0.1
Image ID: docker-pullable://quay.io/coreos/configmap-reload@sha256:e2fd60ff0ae4500a75b80ebaa30e0e7deba9ad107833e8ca53f0047c42c5a057
Port: <none>
Host Port: <none>
Args:
--webhook-url=http://127.0.0.1:9090/-/reload
--volume-dir=/etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0
State: Running
Started: Wed, 11 Mar 2020 18:07:06 +0000
Ready: True
Restart Count: 0
Limits:
cpu: 100m
memory: 25Mi
Requests:
cpu: 100m
memory: 25Mi
Environment: <none>
Mounts:
/etc/prometheus/rules/prometheus-demo-prometheus-operator-prometheus-rulefiles-0 from prometheus-demo-prometheus-operator-prometheus-rulefiles-0 (rw)
/var/run/secrets/kubernetes.io/serviceaccount from demo-prometheus-operator-prometheus-token-jvbrr (ro)
Conditions:
Type Status
Initialized True
Ready True
ContainersReady True
PodScheduled True
Volumes:
config:
Type: Secret (a volume populated by a Secret)
SecretName: prometheus-demo-prometheus-operator-prometheus
Optional: false
tls-assets:
Type: Secret (a volume populated by a Secret)
SecretName: prometheus-demo-prometheus-operator-prometheus-tls-assets
Optional: false
config-out:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
SizeLimit: <unset>
prometheus-demo-prometheus-operator-prometheus-rulefiles-0:
Type: ConfigMap (a volume populated by a ConfigMap)
Name: prometheus-demo-prometheus-operator-prometheus-rulefiles-0
Optional: false
prometheus-demo-prometheus-operator-prometheus-db:
Type: EmptyDir (a temporary directory that shares a pod's lifetime)
Medium:
SizeLimit: <unset>
demo-prometheus-operator-prometheus-token-jvbrr:
Type: Secret (a volume populated by a Secret)
SecretName: demo-prometheus-operator-prometheus-token-jvbrr
Optional: false
QoS Class: Burstable
Node-Selectors: <none>
Tolerations: node.kubernetes.io/not-ready:NoExecute for 300s
node.kubernetes.io/unreachable:NoExecute for 300s
Events:
Type Reason Age From Message
---- ------ ---- ---- -------
Normal Scheduled 4m51s default-scheduler Successfully assigned monitoring/prometheus-demo-prometheus-operator-prometheus-0 to gke-c-7dkls-default-0-c6ca178a-gmcq
Normal Pulling 4m45s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Pulling image "quay.io/prometheus/prometheus:v2.15.2"
Normal Pulled 4m39s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Successfully pulled image "quay.io/prometheus/prometheus:v2.15.2"
Normal Pulling 4m36s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Pulling image "quay.io/coreos/prometheus-config-reloader:v0.37.0"
Normal Pulled 4m35s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Successfully pulled image "quay.io/coreos/prometheus-config-reloader:v0.37.0"
Normal Pulling 4m34s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Pulling image "quay.io/coreos/configmap-reload:v0.0.1"
Normal Started 4m34s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Started container prometheus-config-reloader
Normal Created 4m34s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Created container prometheus-config-reloader
Normal Pulled 4m33s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Successfully pulled image "quay.io/coreos/configmap-reload:v0.0.1"
Normal Created 4m32s (x2 over 4m36s) kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Created container prometheus
Normal Created 4m32s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Created container rules-configmap-reloader
Normal Started 4m32s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Started container rules-configmap-reloader
Normal Pulled 4m32s kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Container image "quay.io/prometheus/prometheus:v2.15.2" already present on machine
Normal Started 4m31s (x2 over 4m36s) kubelet, gke-c-7dkls-default-0-c6ca178a-gmcq Started container prometheus
讓我們清理默認規則，使得我們可以更好地觀察我們將要創建的那個規則，以下命令將洗掉所有規則，但會留下monitoring-demo-prometheus-operator-alertmanager.rules，
$ kubectl -n monitoring delete prometheusrules $(kubectl -n monitoring get prometheusrules | grep -v alert)
$ kubectl -n monitoring get prometheusrules
NAME AGE
demo-prometheus-operator-alertmanager.rules 8m53s
請注意：我們只保留一條規則是為了讓demo更容易，但是有一條規則，你絕對不能洗掉，它位于monitoring-demo-prometheus-operator-general.rules.yaml中，被稱為看門狗，該告警總是處于觸發狀態，其目的是確保整個告警流水線正常運轉，

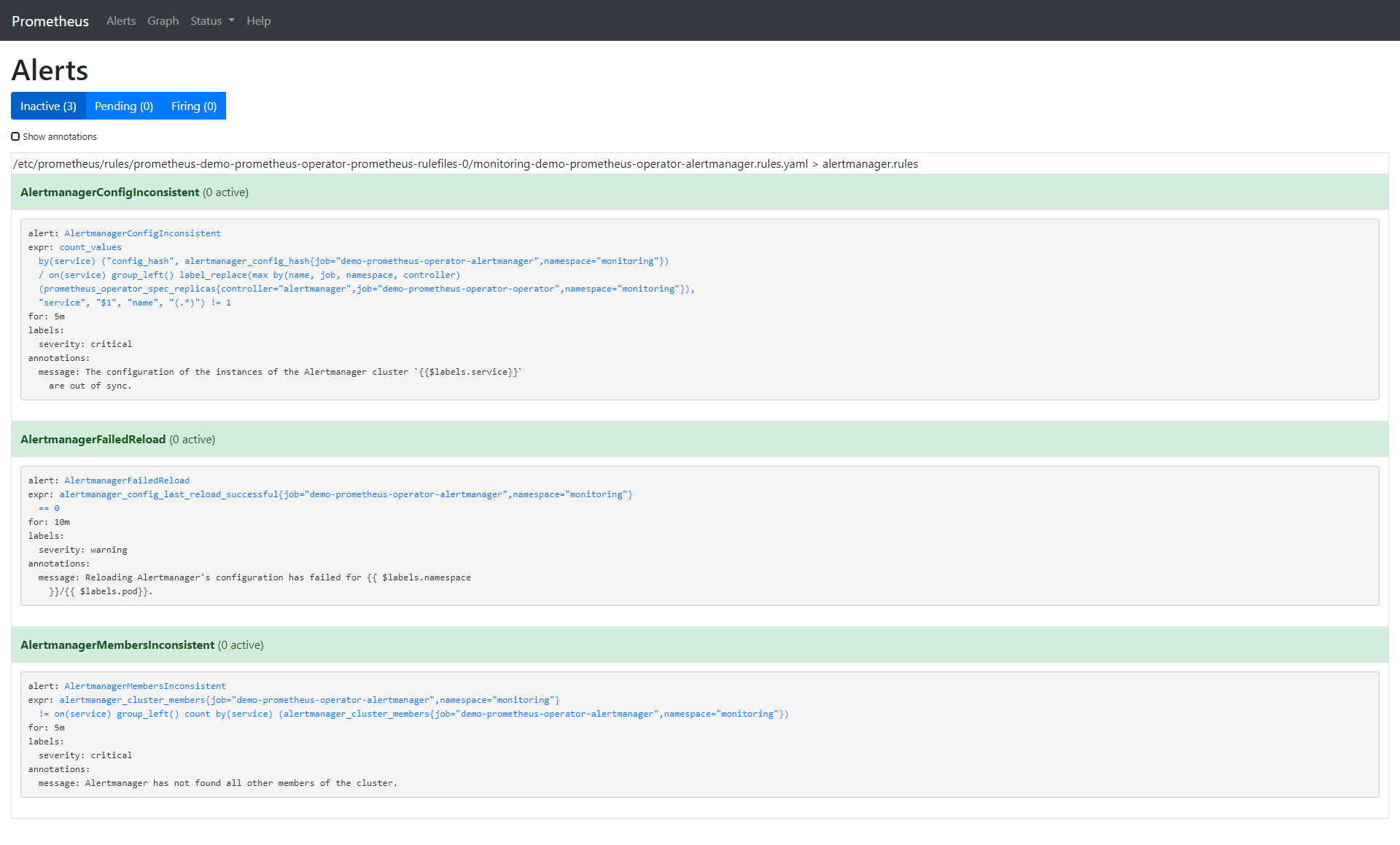

讓我們從CLI中檢查我們留下的規則并將其與我們將在瀏覽器中看到的進行比較，
$ kubectl -n monitoring describe prometheusrule demo-prometheus-operator-alertmanager.rules
Name: demo-prometheus-operator-alertmanager.rules
Namespace: monitoring
Labels: app=prometheus-operator
chart=prometheus-operator-8.12.1
heritage=Tiller
release=demo
Annotations: prometheus-operator-validated: true
API Version: monitoring.coreos.com/v1
Kind: PrometheusRule
Metadata:
Creation Timestamp: 2020-03-11T18:06:25Z
Generation: 1
Resource Version: 4871
Self Link: /apis/monitoring.coreos.com/v1/namespaces/monitoring/prometheusrules/demo-prometheus-operator-alertmanager.rules
UID: 6a84dbb0-feba-4f17-b3dc-4b6486818bc0
Spec:
Groups:
Name: alertmanager.rules
Rules:
Alert: AlertmanagerConfigInconsistent
Annotations:
Message: The configuration of the instances of the Alertmanager cluster `{{$labels.service}}` are out of sync.
Expr: count_values("config_hash", alertmanager_config_hash{job="demo-prometheus-operator-alertmanager",namespace="monitoring"}) BY (service) / ON(service) GROUP_LEFT() label_replace(max(prometheus_operator_spec_replicas{job="demo-prometheus-operator-operator",namespace="monitoring",controller="alertmanager"}) by (name, job, namespace, controller), "service", "$1", "name", "(.*)") != 1
For: 5m
Labels:
Severity: critical
Alert: AlertmanagerFailedReload
Annotations:
Message: Reloading Alertmanager's configuration has failed for {{ $labels.namespace }}/{{ $labels.pod}}.
Expr: alertmanager_config_last_reload_successful{job="demo-prometheus-operator-alertmanager",namespace="monitoring"} == 0
For: 10m
Labels:
Severity: warning
Alert: AlertmanagerMembersInconsistent
Annotations:
Message: Alertmanager has not found all other members of the cluster.
Expr: alertmanager_cluster_members{job="demo-prometheus-operator-alertmanager",namespace="monitoring"}
!= on (service) GROUP_LEFT()
count by (service) (alertmanager_cluster_members{job="demo-prometheus-operator-alertmanager",namespace="monitoring"})
For: 5m
Labels:
Severity: critical
Events: <none>
讓我們移除所有默認告警并創建一個我們自己的告警：
$ kubectl -n monitoring edit prometheusrules demo-prometheus-operator-alertmanager.rules
prometheusrule.monitoring.coreos.com/demo-prometheus-operator-alertmanager.rules edited
我們的自定義告警如下所示：
$ kubectl -n monitoring describe prometheusrule demo-prometheus-operator-alertmanager.rules
Name: demo-prometheus-operator-alertmanager.rules
Namespace: monitoring
Labels: app=prometheus-operator
chart=prometheus-operator-8.12.1
heritage=Tiller
release=demo
Annotations: prometheus-operator-validated: true
API Version: monitoring.coreos.com/v1
Kind: PrometheusRule
Metadata:
Creation Timestamp: 2020-03-11T18:06:25Z
Generation: 3
Resource Version: 18180
Self Link: /apis/monitoring.coreos.com/v1/namespaces/monitoring/prometheusrules/demo-prometheus-operator-alertmanager.rules
UID: 6a84dbb0-feba-4f17-b3dc-4b6486818bc0
Spec:
Groups:
Name: alertmanager.rules
Rules:
Alert: PodHighCpuLoad
Annotations:
Message: Alertmanager has found {{ $labels.instance }} with CPU too high
Expr: rate (container_cpu_usage_seconds_total{pod_name=~"nginx-.*", image!="", container!="POD"}[5m]) > 0.04
For: 1m
Labels:
Severity: critical
Events: <none>
以下是我們創建的告警的選項：
-
annotation：描述告警的資訊標簽集，
-
expr：由PromQL寫的運算式
-
for：可選引數，設定了之后會告訴Prometheus在定義的時間段內告警是否處于active狀態，僅在此定義時間后才會觸發告警，
-
label：可以附加到告警的額外標簽，如果你想了解更多關于告警的資訊，可以訪問：
https://prometheus.io/docs/prometheus/latest/configuration/alerting_rules/
現在我們已經完成了Prometheus告警的設定，讓我們配置Alertmanager，使得我們能夠通過電子郵件獲得告警通知，Alertmanager的配置位于Kubernetes secret物件中，
$ kubectl get secrets -n monitoring
NAME TYPE DATA AGE
alertmanager-demo-prometheus-operator-alertmanager Opaque 1 32m
default-token-x4rgq kubernetes.io/service-account-token 3 37m
demo-grafana Opaque 3 32m
demo-grafana-test-token-p6qnk kubernetes.io/service-account-token 3 32m
demo-grafana-token-ff6nl kubernetes.io/service-account-token 3 32m
demo-kube-state-metrics-token-vmvbr kubernetes.io/service-account-token 3 32m
demo-prometheus-node-exporter-token-wlnk9 kubernetes.io/service-account-token 3 32m
demo-prometheus-operator-admission Opaque 3 32m
demo-prometheus-operator-alertmanager-token-rrx4k kubernetes.io/service-account-token 3 32m
demo-prometheus-operator-operator-token-q9744 kubernetes.io/service-account-token 3 32m
demo-prometheus-operator-prometheus-token-jvbrr kubernetes.io/service-account-token 3 32m
prometheus-demo-prometheus-operator-prometheus Opaque 1 31m
prometheus-demo-prometheus-operator-prometheus-tls-assets Opaque 0 31m
我們只對alertmanager-demo-prometheus-operator-alertmanager感興趣，讓我們看一下：
kubectl -n monitoring get secret alertmanager-demo-prometheus-operator-alertmanager -o yaml
apiVersion: v1
data:
alertmanager.yaml: Z2xvYmFsOgogIHJlc29sdmVfdGltZW91dDogNW0KcmVjZWl2ZXJzOgotIG5hbWU6ICJudWxsIgpyb3V0ZToKICBncm91cF9ieToKICAtIGpvYgogIGdyb3VwX2ludGVydmFsOiA1bQogIGdyb3VwX3dhaXQ6IDMwcwogIHJlY2VpdmVyOiAibnVsbCIKICByZXBlYXRfaW50ZXJ2YWw6IDEyaAogIHJvdXRlczoKICAtIG1hdGNoOgogICAgICBhbGVydG5hbWU6IFdhdGNoZG9nCiAgICByZWNlaXZlcjogIm51bGwiCg==
kind: Secret
metadata:
creationTimestamp: "2020-03-11T18:06:24Z"
labels:
app: prometheus-operator-alertmanager
chart: prometheus-operator-8.12.1
heritage: Tiller
release: demo
name: alertmanager-demo-prometheus-operator-alertmanager
namespace: monitoring
resourceVersion: "3018"
selfLink: /api/v1/namespaces/monitoring/secrets/alertmanager-demo-prometheus-operator-alertmanager
uid: 6baf6883-f690-47a1-bb49-491935956c22
type: Opaque
alertmanager.yaml欄位是由base64編碼的，讓我們看看：
$ echo 'Z2xvYmFsOgogIHJlc29sdmVfdGltZW91dDogNW0KcmVjZWl2ZXJzOgotIG5hbWU6ICJudWxsIgpyb3V0ZToKICBncm91cF9ieToKICAtIGpvYgogIGdyb3VwX2ludGVydmFsOiA1bQogIGdyb3VwX3dhaXQ6IDMwcwogIHJlY2VpdmVyOiAibnVsbCIKICByZXBlYXRfaW50ZXJ2YWw6IDEyaAogIHJvdXRlczoKICAtIG1hdGNoOgogICAgICBhbGVydG5hbWU6IFdhdGNoZG9nCiAgICByZWNlaXZlcjogIm51bGwiCg==' | base64 --decode
global:
resolve_timeout: 5m
receivers:
- name: "null"
route:
group_by:
- job
group_interval: 5m
group_wait: 30s
receiver: "null"
repeat_interval: 12h
routes:
- match:
alertname: Watchdog
receiver: "null"

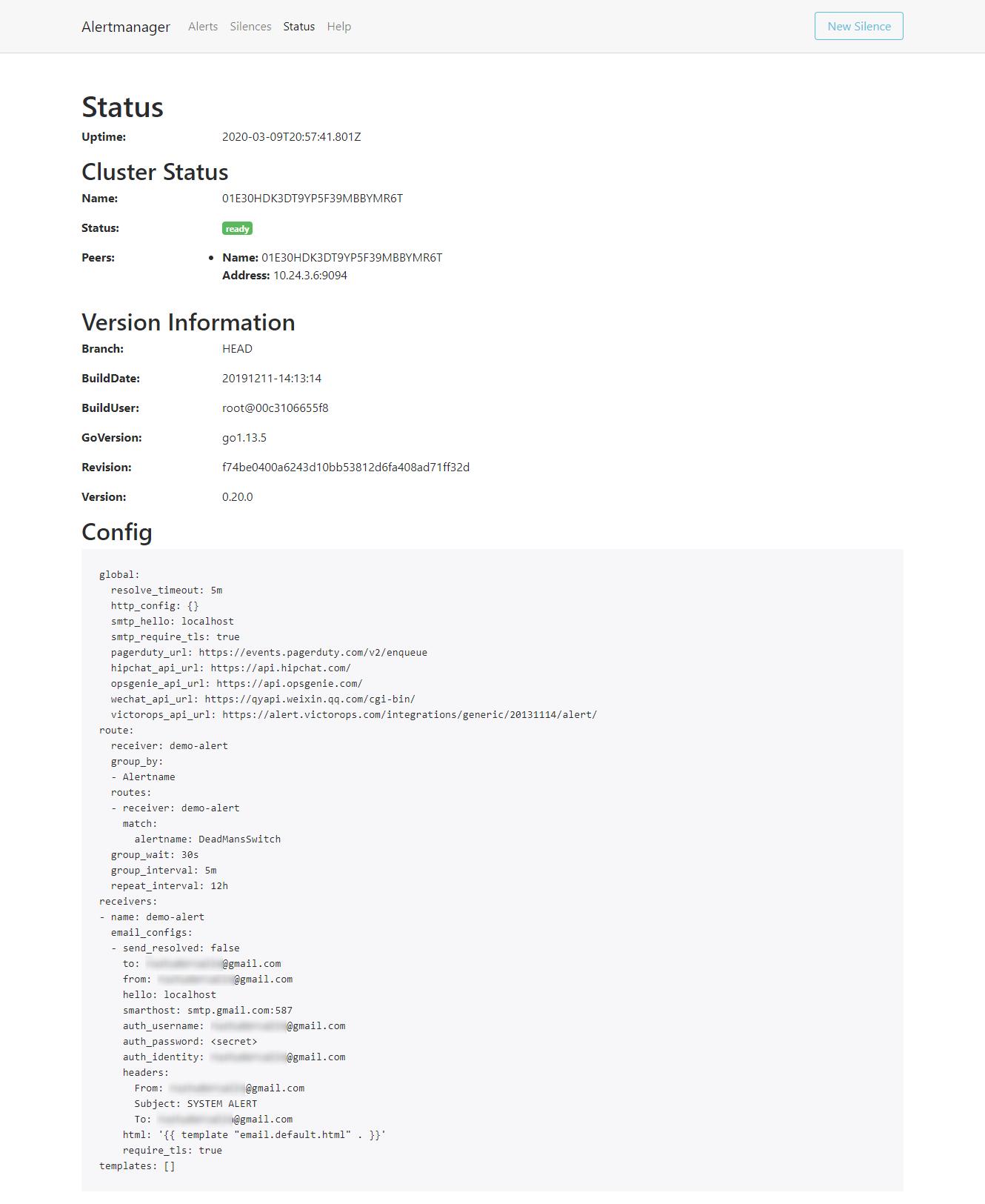

正如我們所看到的，這是默認的Alertmanager配置，你也可以在Alertmanager UI的Status選項卡中查看此配置，接下來，我們來對它進行一些更改——在本例中為發送郵件：
$ cat alertmanager.yaml
global:
resolve_timeout: 5m
route:
group_by: [Alertname]
# Send all notifications to me.
receiver: demo-alert
group_wait: 30s
group_interval: 5m
repeat_interval: 12h
routes:
- match:
alertname: DemoAlertName
receiver: 'demo-alert'
receivers:
- name: demo-alert
email_configs:
- to: [email protected]
from: [email protected]
# Your smtp server address
smarthost: smtp.gmail.com:587
auth_username: [email protected]
auth_identity: [email protected]
auth_password: 16letter_generated token # you can use gmail account password, but better create a dedicated token for this
headers:
From: [email protected]
Subject: 'Demo ALERT'
首先，我們需要對此進行編碼：
$ cat alertmanager.yaml | base64 -w0
我們獲得編碼輸出后，我們需要在我們將要應用的yaml檔案中填寫它：
cat alertmanager-secret-k8s.yaml
apiVersion: v1
data:
alertmanager.yaml: <paste here de encoded content of alertmanager.yaml>
kind: Secret
metadata:
name: alertmanager-demo-prometheus-operator-alertmanager
namespace: monitoring
type: Opaque
$ kubectl apply -f alertmanager-secret-k8s.yaml
Warning: kubectl apply should be used on resource created by either kubectl create --save-config or kubectl apply
secret/alertmanager-demo-prometheus-operator-alertmanager configured
該配置將會自動重新加載并在UI中顯示更改，
接下來，我們部署一些東西來對其進行監控，對于本例而言，一個簡單的nginx deployment已經足夠：
$ cat nginx-deployment.yaml
apiVersion: apps/v1 # for versions before 1.9.0 use apps/v1beta2
kind: Deployment
metadata:
name: nginx-deployment
spec:
selector:
matchLabels:
app: nginx
replicas: 3 # tells deployment to run 2 pods matching the template
template:
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:1.7.9
ports:
- containerPort: 80
$ kubectl apply -f nginx-deployment.yaml
deployment.apps/nginx-deployment created
根據配置yaml，我們有3個副本：
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
nginx-deployment-5754944d6c-7g6gq 1/1 Running 0 67s
nginx-deployment-5754944d6c-lhvx8 1/1 Running 0 67s
nginx-deployment-5754944d6c-whhtr 1/1 Running 0 67s
在Prometheus UI中，使用我們為告警配置的相同運算式：
rate (container_cpu_usage_seconds_total{pod_name=~"nginx-.*", image!="", container!="POD"}[5m])
我們可以為這些Pod檢查資料，所有Pod的值應該為0，
讓我們在其中一個pod中添加一些負載，然后來看看值的變化，當值大于0.04時，我們應該接收到告警：
$ kubectl exec -it nginx-deployment-5754944d6c-7g6gq -- /bin/sh
# yes > /dev/null
該告警有3個階段：
-
Inactive：不滿足告警觸發條件
-
Pending：條件已滿足
-
Firing：觸發告警

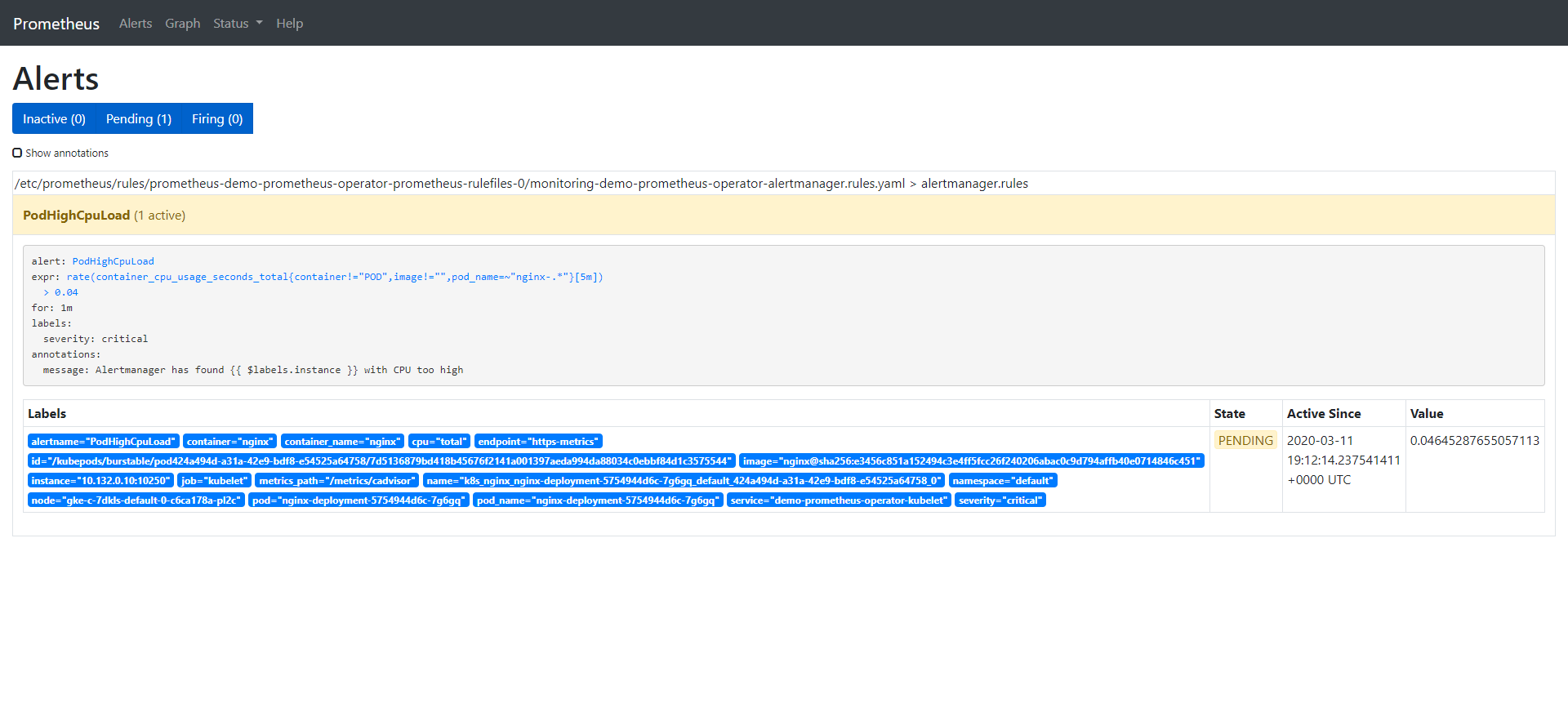

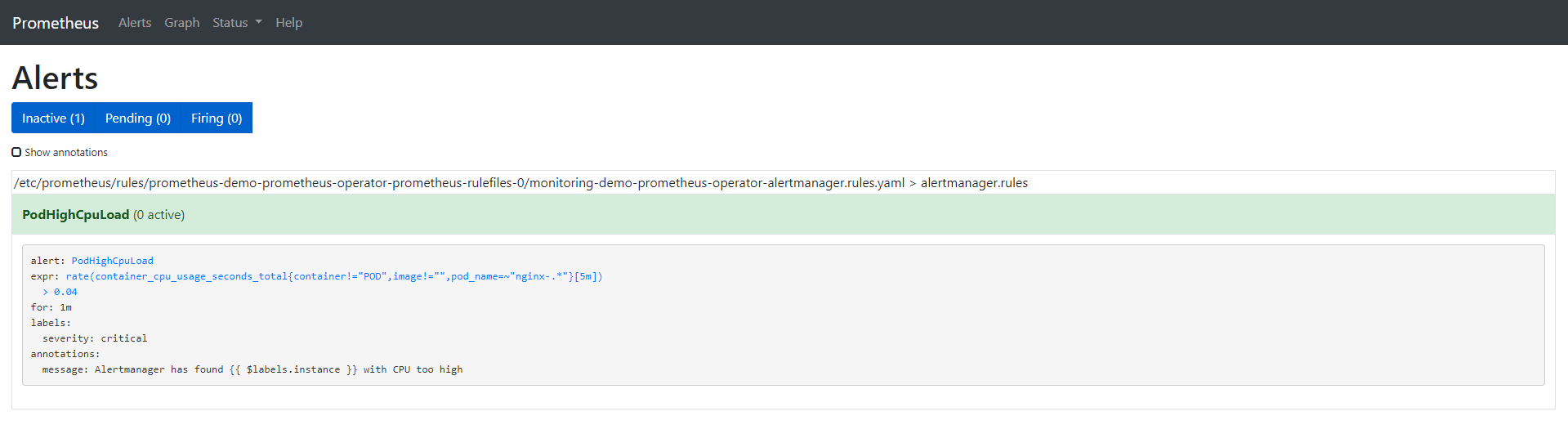

我們已經看到告警處于inactive狀態，所以在CPU上添加一些負載，以觀察到剩余兩種狀態：
告警一旦觸發，將會在Alertmanager中顯示：
Alertmanger配置為當我們收到告警時發送郵件，所以此時，如果我們檢查收件箱，會看到類似以下內容：
總 結
我們知道監控的重要性，但是如果沒有告警，它將是不完整的，發生問題時，告警可以立即通知我們，讓我們立即了解到系統出現了問題，而Prometheus涵蓋了這兩個方面：既有監控解決方案又通過Alertmanager組件發出告警，本文中，我們看到了如何在Prometheus配置中定義告警以及告警在觸發時如何到達Alertmanager，然后根據Alertmanager的定義/集成，我們收到了一封電子郵件，其中包含觸發的告警的詳細資訊（也可以通過Slack或PagerDuty發送），
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/33933.html
標籤：其他
上一篇：PicoVR
