IOS技術分享| ARCall視頻通話重構

ARCall 簡介

ARCall 是anyRTC開源的呼叫的示例專案，演示了如何通過 anyRTC云服務，并配合 anyRTC RTC SDK、anyRTC RTM SDK，快速實作呼叫邀請通話的場景，

• 一對一視頻呼叫，
• 一對一音頻呼叫，
• 多人音視頻通話，最大支持50人同時通話，
• 可運用自采集模塊，加載第三方美顏庫，實作美顏貼圖功能，
• 可對接第三方推送實作推送功能，

重構內容

九月份我們對ARCall iOS端專案進行了重構，開發語言由 Objective-C 變為 Swift，通話界面和邏輯處理進行深度優化，希望能給有需要的開發者帶來幫助，

下載體驗 & 原始碼下載

ARCall 開源專案支持多個平臺，包含Android、iOS、Web、uniapp

• 原始碼下載
• Demo下載體驗

開發環境

• 開發工具：Xcode12 真機運行

• 開發語言：Swift

• 實作：音視頻通話，

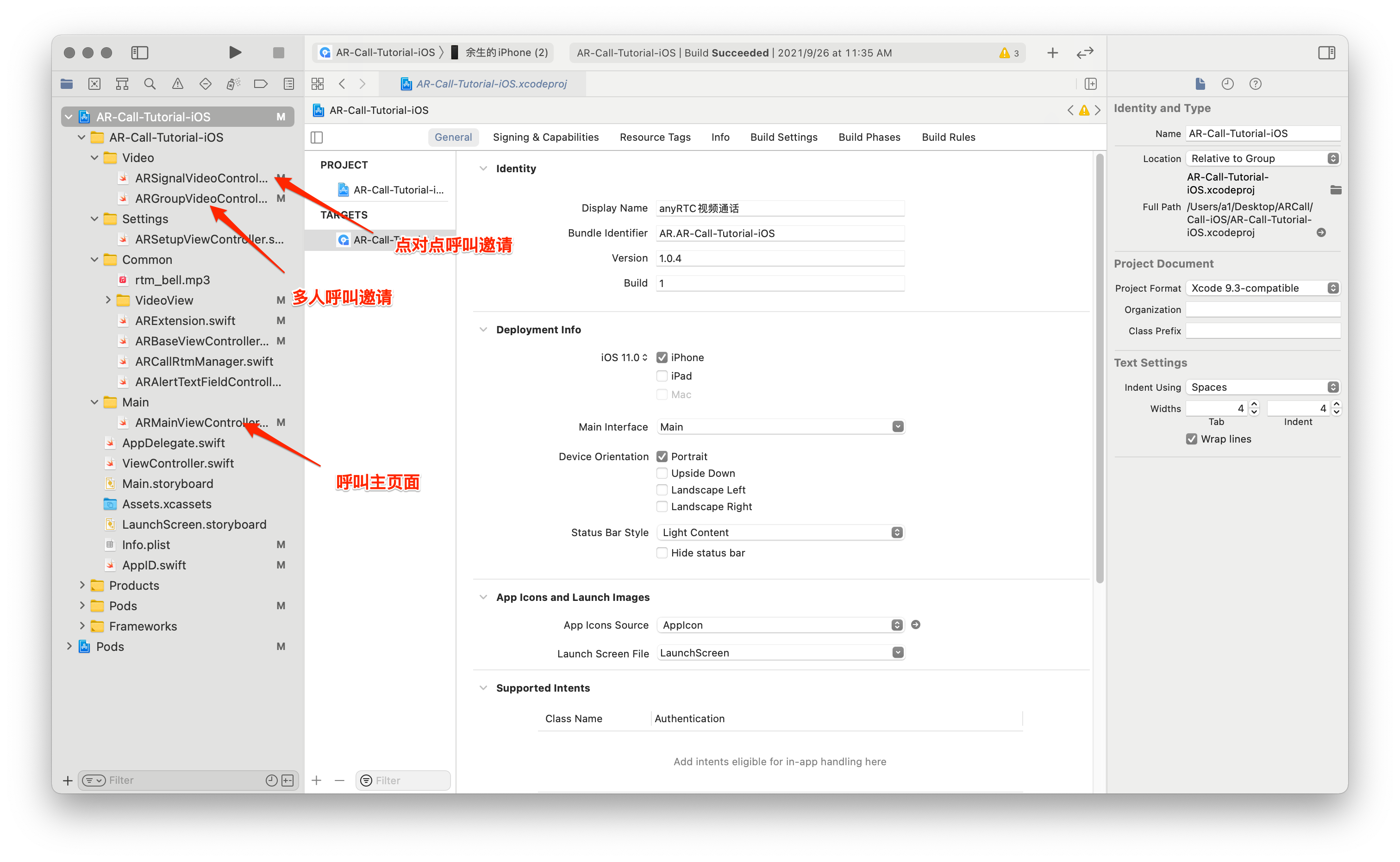

專案結構

ARCall 實作了點對點呼叫、多人呼叫邀請，功能包含視頻通話、語音通話、多人通話、sip呼叫、手表呼叫、呼叫中邀請、大小屏切換、懸浮窗、AI降噪、斷網重連等等功能，

示例代碼

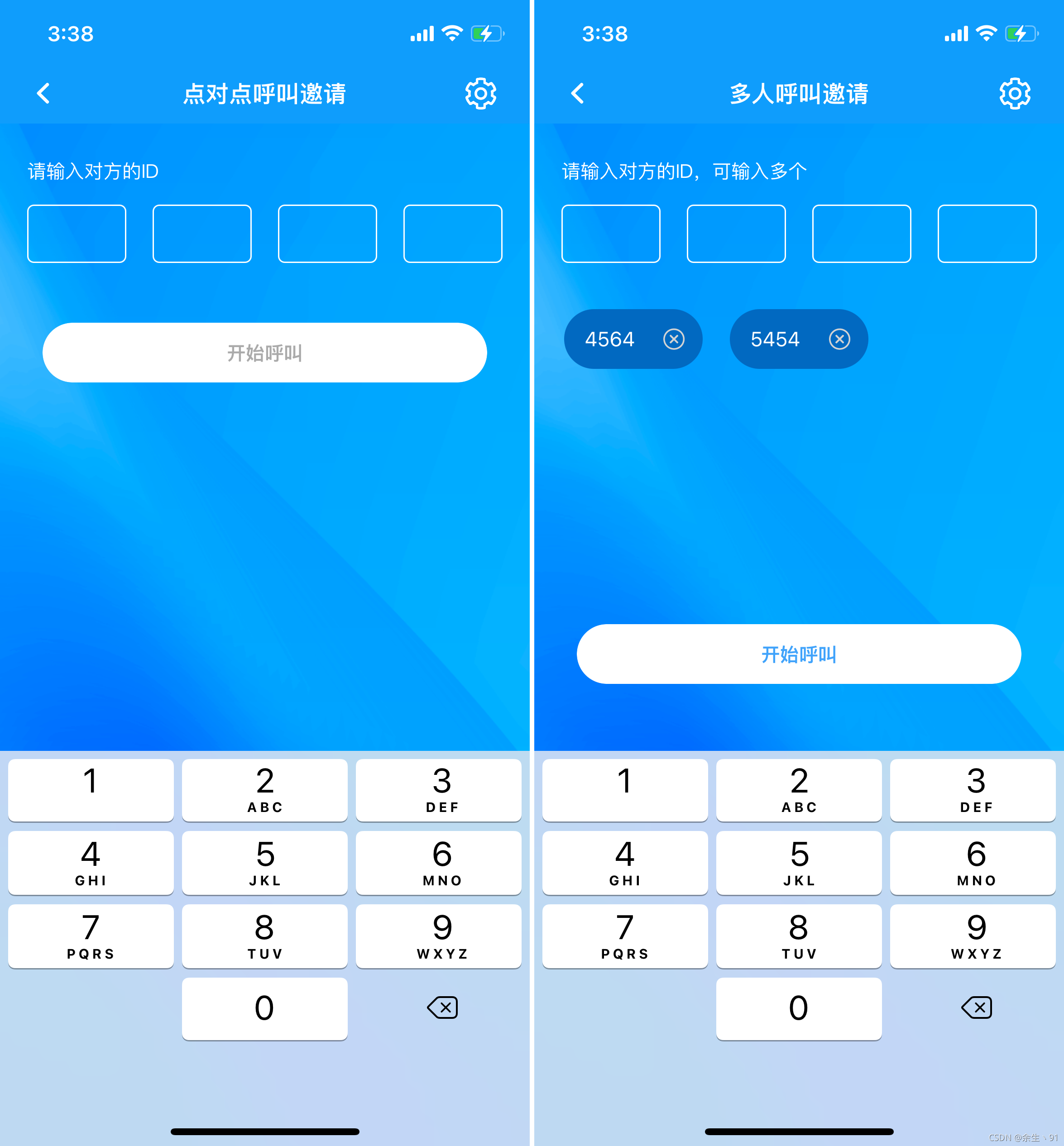

效果展示

代碼實作

    func initializeUI() {
        self.navigationItem.leftBarButtonItem = createBarButtonItem(title: "", image: "icon_return_w")
        calleeIdLabel.text = "您的呼叫ID：\(localUid)"

        let setupButton = UIButton(type: .custom)
        setupButton.setImage(UIImage(named: "icon_set"), for: .normal)
        setupButton.frame = CGRect.init(x: 0, y: 0, width: 40, height: 40)
        setupButton.addTarget(self, action: #selector(setup), for: .touchUpInside)
        self.navigationItem.rightBarButtonItem = UIBarButtonItem(customView: setupButton)

        if callWay == .single {
            self.title = "點對點呼叫邀請"
            mainCollectionView.removeFromSuperview()
        } else {
            self.title = "多人呼叫邀請"
            titleLabel.text = "請輸入對方的ID，可輸入多個"
        }

        for objc in stackView.subviews {
            let button = objc as? UIButton
            button?.addTarget(self, action: #selector(didClickTextField), for: .touchUpInside)
        }

        self.view.addSubview(calleeIdTextField)
        mainCollectionView.collectionViewLayout = flowLayout
    }

    @objc func didClickTextField() {
        calleeIdTextField.becomeFirstResponder()
    }

    @objc func limitTextField() {

        if calleeIdTextField.text?.count ?? 0 > 4 {
            calleeIdTextField.text = String((calleeIdTextField.text?.prefix(4))!)
        }
        let calleeId = calleeIdTextField.text

        let arr = stringToArr(str: calleeId)
        for index in 0...3 {
            var text = ""
            (index < arr.count) ? (text = String(arr[index])) : nil
            let button: UIButton = stackView.subviews[index] as! UIButton
            button.setTitle(text, for: .normal)
        }

        if callWay == .single {
            // 點對點呼叫
            callButton.isEnabled = (calleeId?.count == 4)
            callButton.isEnabled ? (callButton.setTitleColor(UIColor(hexString: "#40A3FB"), for: .normal)) : (callButton.setTitleColor(UIColor.lightGray, for: .normal))
        } else {
            // 多人呼叫
            if calleeIdArr.count < 6 {
                if calleeId?.count == 4 {
                    if calleeIdArr.contains(calleeId!) == false {
                        calleeIdArr.append(calleeId!)
                        calleeIdTextField.text = ""
                        if mainCollectionView.isHidden {
                            mainCollectionView.isHidden = false
                            changeConstraint(exist: true)
                        }
                        mainCollectionView.reloadData()
                        callButton.isEnabled = true
                        callButton.setTitleColor(UIColor(hexString: "#40A3FB"), for: .normal)

                        for index in 0...3 {
                            let button: UIButton = stackView.subviews[index] as! UIButton
                            button.setTitle("", for: .normal)
                        }
                    } else {
                        showToast(text: "當前ID已存在，請重新輸入", image: "icon_warning")
                    }
                }
            }
        }
    }

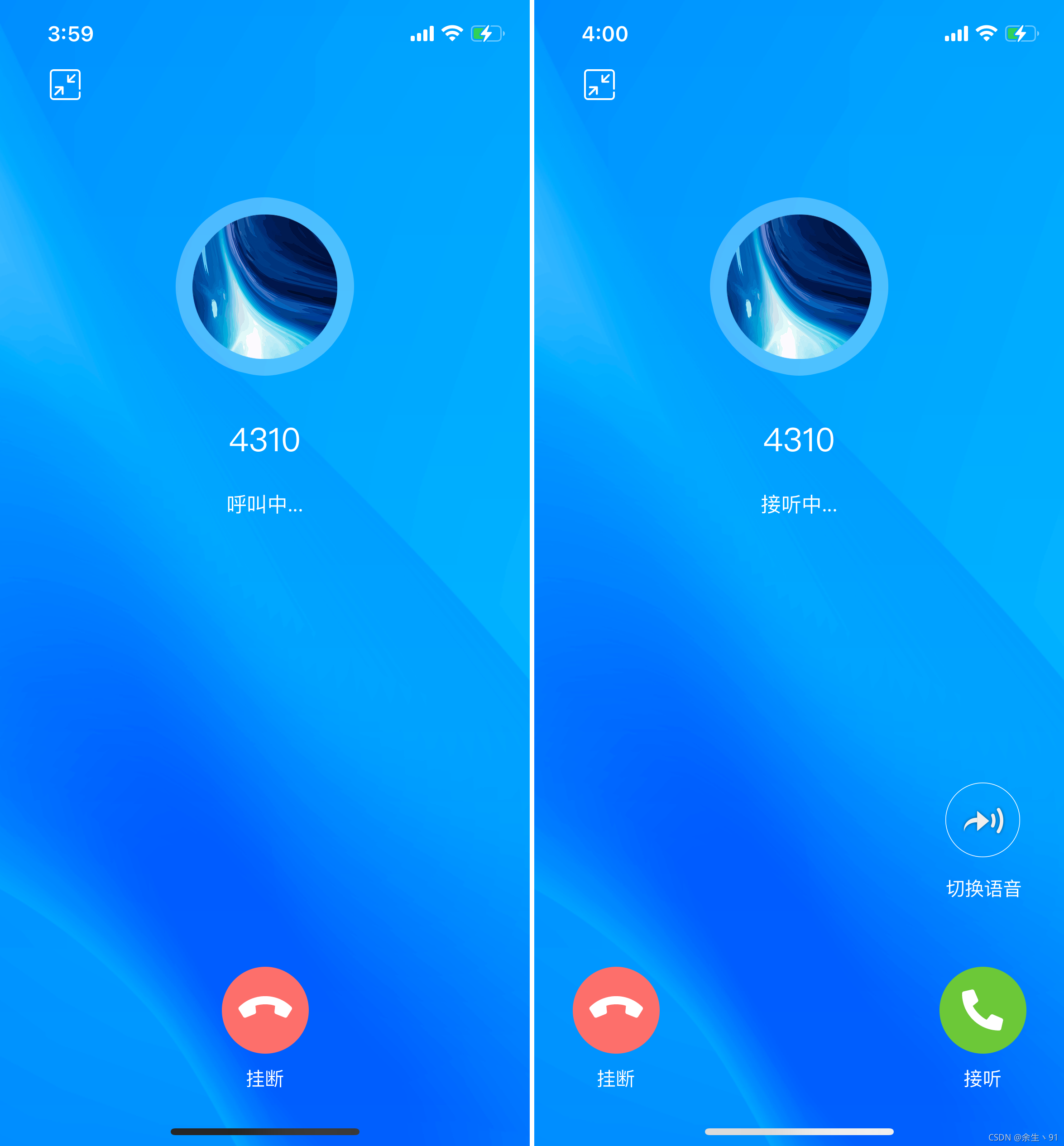

效果展示

代碼實作

    private func acceptCallInvitation() {
        // 接受呼叫邀請
        if infoModel.callMode == .video {
            view.insertSubview(remoteVideo, belowSubview: calledView)
            view.insertSubview(localVideo, belowSubview: calledView)

            setVideoEncoderConfiguration()
            let videoCanvas = ARtcVideoCanvas()
            videoCanvas.view = localVideo.renderView
            view.insertSubview(localVideo, belowSubview: calledView)
            rtcKit.setupLocalVideo(videoCanvas)
        }
    }

    private func acceptedInvitation(callMode: CallMode) {
        // 對方已同意呼叫
        if !isCallSucess {
            callStateLabel.text = "接聽中..."
            playCallBell(isOpen: false)
            isCallSucess.toggle()
            selectCallMode(mode: callMode)
            infoModel.callMode = callMode
            acceptCallInvitation()
            rtcKit.setClientRole(.broadcaster)

            // 兼容例外問題
            leaveReason = .drop
            dealWithException(time: 10)
        }
    }

    private func switchAudioMode() {
        // 切換音頻呼叫
        windowStatus = .audio
        infoModel.callMode = .audio
        selectCallMode(mode: .audio)
        localVideo.removeFromSuperview()
        remoteVideo.removeFromSuperview()

        rtcKit.disableVideo()
    }

    private func selectCallMode(mode: CallMode) {
        // 選擇呼叫模式
        calledView.isHidden = false
        callingView.isHidden = true
        hangupButton.isHidden = false

        let isHidden = (mode == .video)
        backView.isHidden = isHidden
        switchAudioButton.isHidden = !isHidden
        switchCameraButton.isHidden = !isHidden
        audioButton.isHidden = isHidden
        speakerButton.isHidden = isHidden
    }

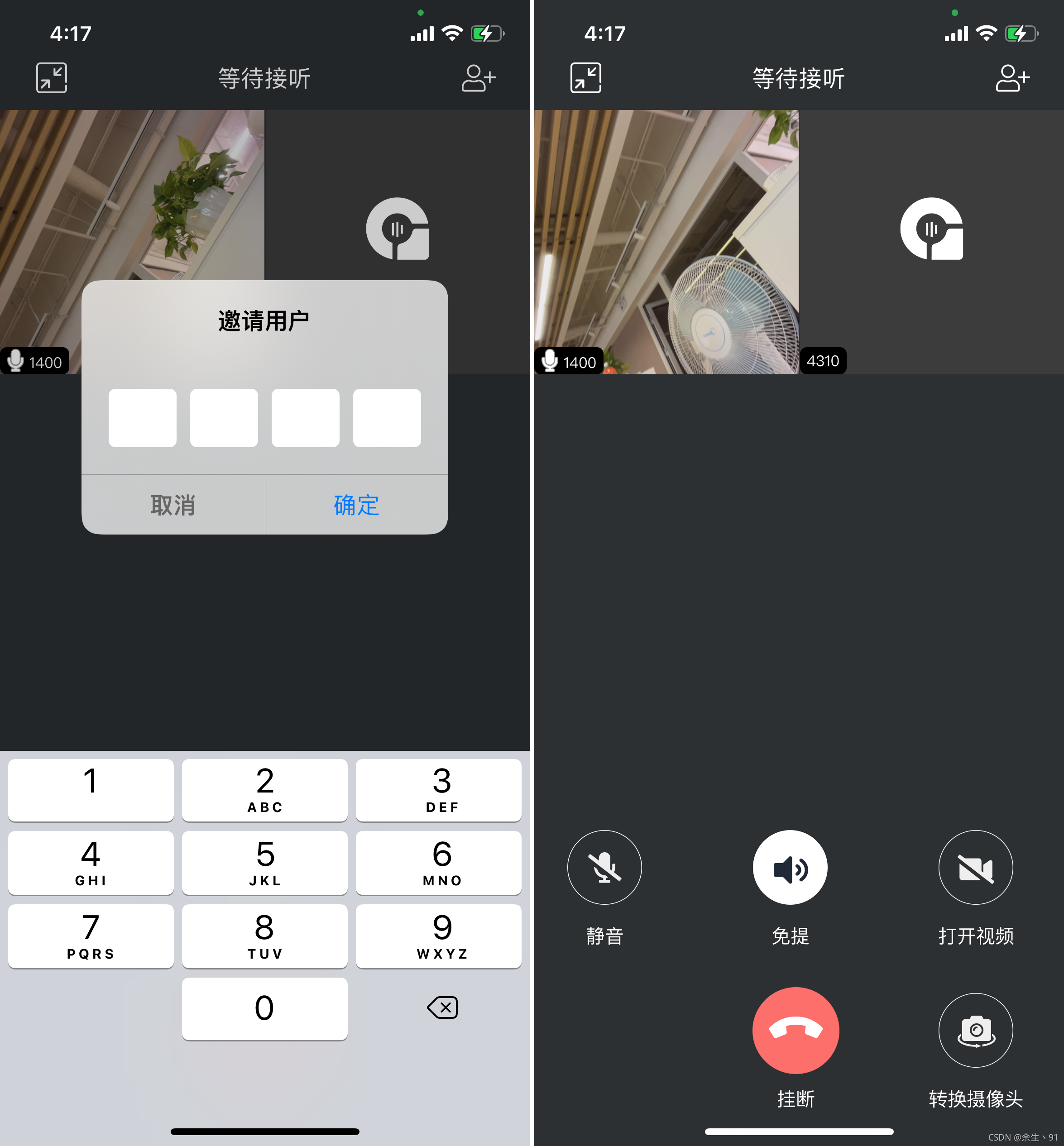

效果展示

代碼實作

    private func initializeEngine() {
        // init ARtcEngineKit
        rtcKit = ARtcEngineKit.sharedEngine(withAppId: AppID, delegate: self)
        rtcKit.setChannelProfile(.liveBroadcasting)

        switchAINoise()
    }

    private func joinChannel() {
        rtcKit.joinChannel(byToken: nil, channelId: infoModel.channelId, uid: UserDefaults.string(forKey: .uid)) { (channel, uid, elapsed) in
            print("joinChannel sucess")
        }
    }

    @objc func switchAINoise() {
        // AI 降噪
        let dic = ["Cmd": "SetAudioAiNoise", "Enable": Default.bool(forKey: "noise") ? 1: 0] as [String : Any]
        rtcKit.setParameters(getJSONStringFromDictionary(dictionary: dic as NSDictionary))
    }

    private func switchVideoSize() {
        // 大小屏切換
        if isCallSucess {
            let frame = localVideo.frame
            localVideo.frame = remoteVideo.frame
            remoteVideo.frame = frame

            if localVideo.frame.width == ARScreenWidth {
                view.insertSubview(localVideo, belowSubview: calledView)
                view.insertSubview(remoteVideo, belowSubview: calledView)
            } else {
                view.insertSubview(remoteVideo, belowSubview: calledView)
                view.insertSubview(localVideo, belowSubview: calledView)
            }
        }
    }

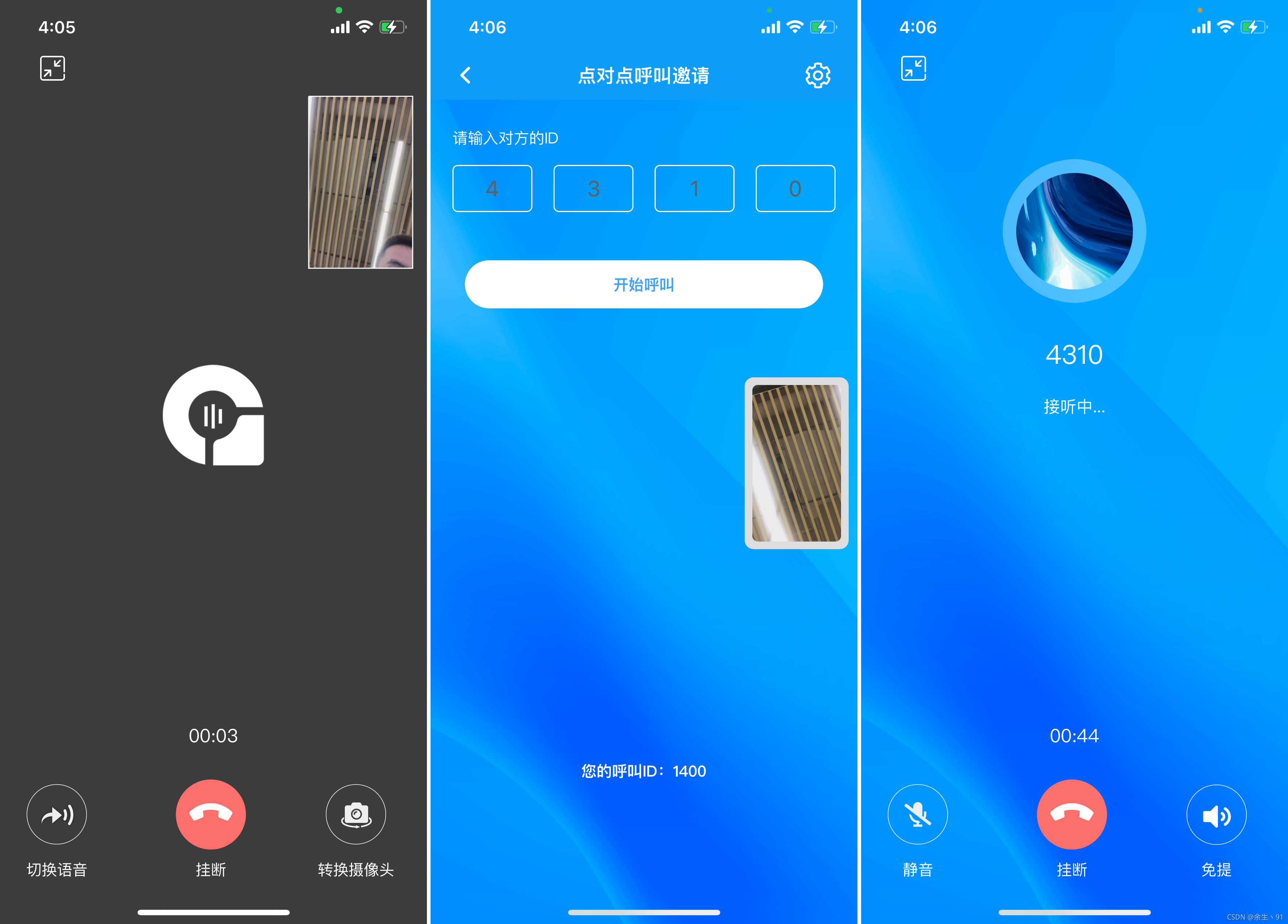

效果展示

代碼實作

// MARK - videoLayout

extension ARGroupVideoController {
    func videoLayout() {
        videoArr.count <= 1 ? destroyGroupVc() : nil

        let count = videoArr.count
        let padding: CGFloat = 1.0
        var warpCount: CGFloat = 2.0
        let rate: CGFloat = 1.0
        if count > 4 {
            if count <= 9 {
                warpCount = 3.0
            } else if count <= 16 {
                warpCount = 4.0
            } else {
                warpCount = 5.0
            }
        }

        let itemWidth: CGFloat = (ARScreenWidth - padding * (warpCount - 1))/warpCount
        let itemHeight: CGFloat = itemWidth * rate
        let index = ceil(CGFloat(videoArr.count)/warpCount)
        containerConstraint.constant = itemHeight * index + (index - 1) * padding

        var lastView: UIView!
        for (index, object) in videoArr.enumerated() {
            let video = object as UIView
            containerView.insertSubview(video, at: 0)

            let rowCount: NSInteger = videoArr.count % NSInteger(warpCount) == 0 ? videoArr.count / NSInteger(warpCount) : videoArr.count / NSInteger(warpCount) + 1

            let currentRow: NSInteger = index / NSInteger(warpCount)
            let currentColumn: NSInteger = index % NSInteger(warpCount)

            video.snp.remakeConstraints({ (make) in
                make.width.equalTo(itemWidth)
                make.height.equalTo(itemHeight)

                if (currentRow == 0) {
                    make.top.equalTo(containerView)
                }

                if (currentRow == rowCount - 1) {
                    make.bottom.equalTo(containerView)
                }

                if currentRow != 0 && (currentRow != rowCount - 1) {
                    if currentColumn == 0 {
                        make.top.equalTo(lastView.snp_bottom).offset(padding)
                    } else {
                        make.bottom.equalTo(lastView.snp_bottom).offset(padding)
                    }
                }

                if (currentColumn == 0) {
                    make.left.equalTo(containerView);
                }

                if (currentColumn == Int(warpCount) - 1) {
                    make.right.equalTo(containerView)
                }

                if currentColumn != 0 && (currentColumn != Int(warpCount) - 1) {
                    make.left.equalTo(lastView.snp_right).offset(padding)
                }
            })
            lastView = video
        }
    }
}

結束語

針對本次 ARCall-iOS的重構，因時間有限專案中還存在一些bug和待完善的功能點，僅供參考，歡迎大家fork，有不足之處歡迎大家指出issues，

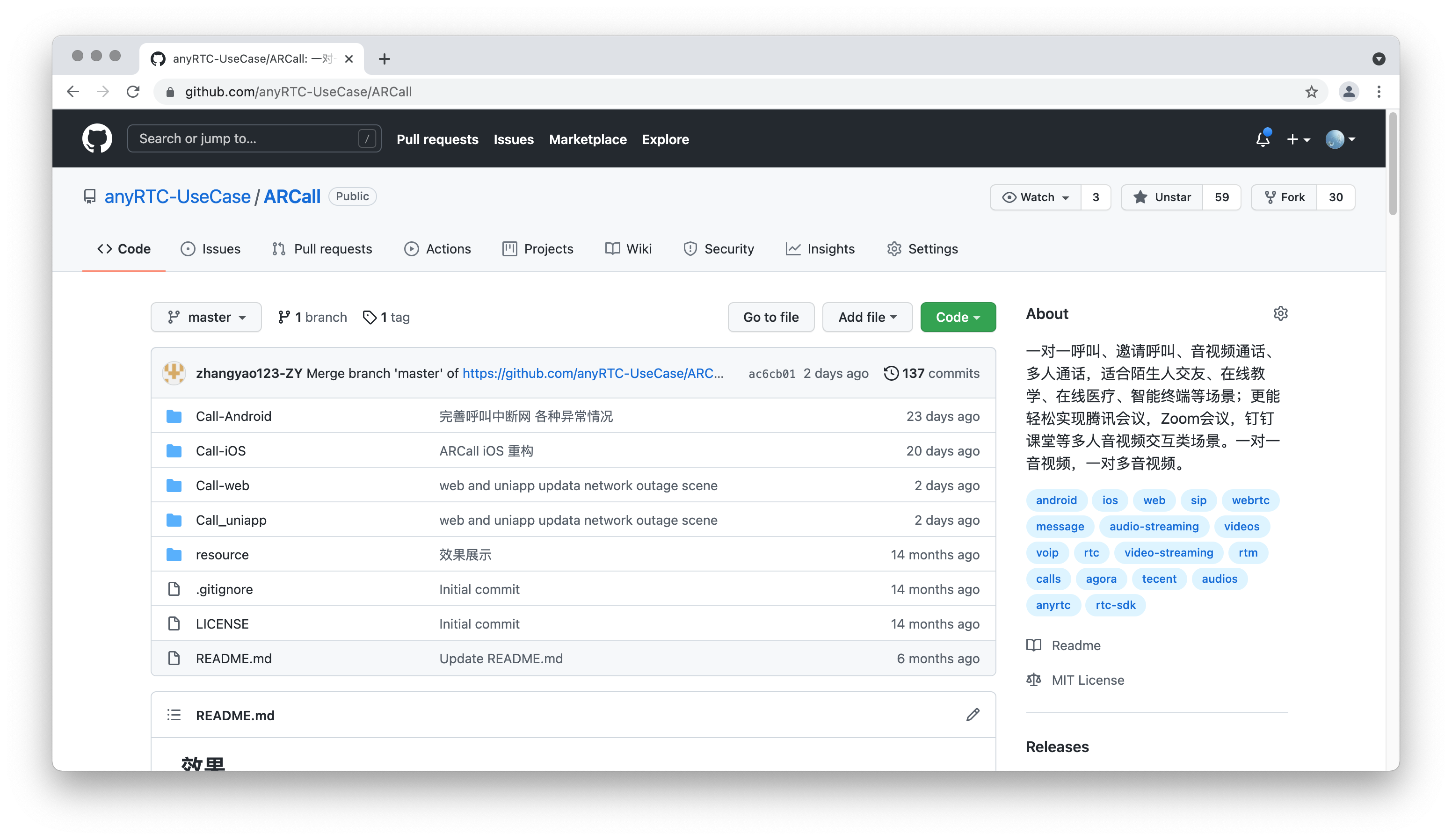

最后再貼一下 Github開源下載地址，

如果覺得不錯，希望點個star~
