springboot結合mqtt服務器構建訊息生產與消費示例

mqtt服務，是一個訊息中間件，目前在物聯網領域使用非常廣泛，

mqtt服務器的搭建，也有很多方式，最直接的就是使用docker啟動emqx鏡像，

docker run -d --name emqx -p 18083:18083 -p 1883:1883 emqx

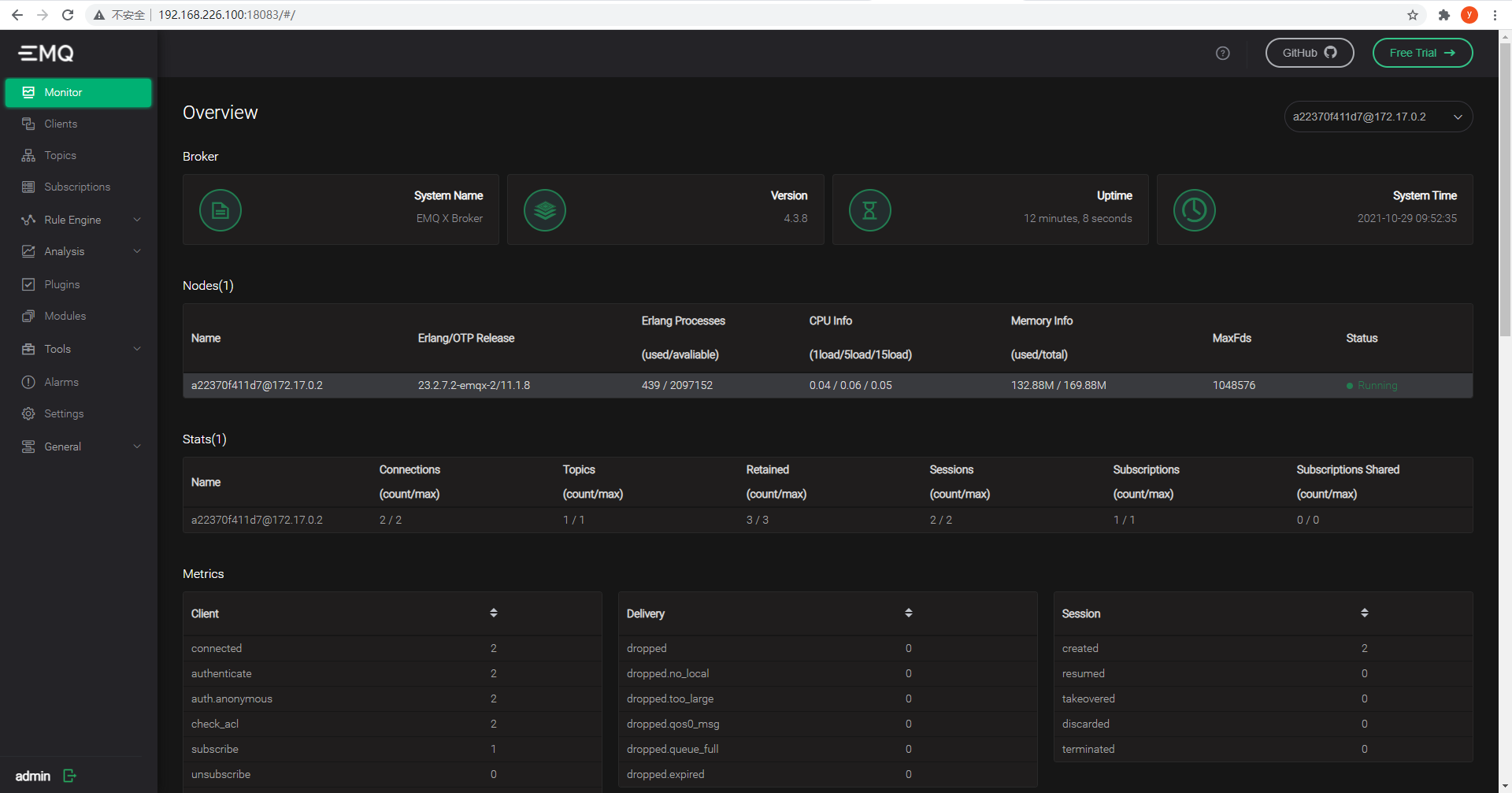

通過url訪問webui，http://192.168.56.100:18303 用戶名密碼：admin/public

mqtt與springboot結合

引入maven依賴

<parent>
  	<groupId>org.springframework.boot</groupId>
  	<artifactId>spring-boot-starter-parent</artifactId>
  	<version>2.4.3</version>
  </parent>

  <dependencies>
    <dependency>
      <groupId>junit</groupId>
      <artifactId>junit</artifactId>
      <scope>test</scope>
    </dependency>

    <dependency>
    	<groupId>org.springframework.boot</groupId>
    	<artifactId>spring-boot-starter-web</artifactId>
    </dependency>

    <dependency>
    	<groupId>org.springframework.boot</groupId>
    	<artifactId>spring-boot-starter-integration</artifactId>
    </dependency>

    <dependency>
    	<groupId>org.springframework.integration</groupId>
    	<artifactId>spring-integration-stream</artifactId>
    </dependency>

    <dependency>
    	<groupId>org.springframework.integration</groupId>
    	<artifactId>spring-integration-mqtt</artifactId>
    </dependency>

    <dependency>
    	<groupId>org.eclipse.paho</groupId>
    	<artifactId>org.eclipse.paho.client.mqttv3</artifactId>
    	<version>1.2.5</version>
    </dependency>

  </dependencies>

設定組態檔application.yml

mqtt:
  serverURIs: tcp://192.168.226.100:1883
  username: admin
  password: public
  client:
    id: ${random.value}
  topic: topic_default

設定配置類 MqttConfig.java

package com.xxx.mqttapp.config;
import java.util.Objects;
import javax.annotation.PostConstruct;
import org.eclipse.paho.client.mqttv3.MqttConnectOptions;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.integration.annotation.IntegrationComponentScan;
import org.springframework.integration.annotation.ServiceActivator;
import org.springframework.integration.channel.DirectChannel;
import org.springframework.integration.core.MessageProducer;
import org.springframework.integration.mqtt.core.DefaultMqttPahoClientFactory;
import org.springframework.integration.mqtt.core.MqttPahoClientFactory;
import org.springframework.integration.mqtt.inbound.MqttPahoMessageDrivenChannelAdapter;
import org.springframework.integration.mqtt.outbound.MqttPahoMessageHandler;
import org.springframework.integration.mqtt.support.DefaultPahoMessageConverter;
import org.springframework.messaging.MessageChannel;
import org.springframework.messaging.MessageHandler;
@IntegrationComponentScan
@Configuration
public class MqttConfig {
	public static final Logger log = LoggerFactory.getLogger(MqttConfig.class);
	public static final String OUTBOUND_CHANNEL = "mqttOutboundChannel";

    public static final String INPUT_CHANNEL = "mqttInputChannel";

    @Value("${mqtt.username}")
    private String username;

    @Value("${mqtt.password}")
    private String password;

    @Value("${mqtt.serverURIs}")
    private String hostUrl;

    @Value("${mqtt.client.id}")
    private String clientId;

    @Value("${mqtt.topic}")
    private String defaultTopic;

    @PostConstruct
    public void init() {
        log.debug("username:{} password:{} hostUrl:{} clientId :{} ",
                this.username, this.password, this.hostUrl, this.clientId, this.defaultTopic);
    }

    @Bean
    public MqttPahoClientFactory clientFactory() {

        final MqttConnectOptions options = new MqttConnectOptions();
        options.setServerURIs(new String[]{hostUrl});
        options.setUserName(username);
        options.setPassword(password.toCharArray());
        final DefaultMqttPahoClientFactory factory = new DefaultMqttPahoClientFactory();
        factory.setConnectionOptions(options);
        return factory;
    }

    @Bean(value = OUTBOUND_CHANNEL)
    public MessageChannel mqttOutboundChannel() {
        return new DirectChannel();
    }

    @Bean
    @ServiceActivator(inputChannel = OUTBOUND_CHANNEL)
    public MessageHandler mqttOutbound() {

        final MqttPahoMessageHandler handler = new MqttPahoMessageHandler(clientId, clientFactory());
        handler.setDefaultQos(1);
        handler.setDefaultRetained(false);
        handler.setDefaultTopic(defaultTopic);
        handler.setAsync(false);
        handler.setAsyncEvents(false);
        return handler;
    }

    @Bean
    public MessageChannel mqttInputChannel() {
        return new DirectChannel();
    }

    @Bean
    public MessageProducer inbound() {
        MqttPahoMessageDrivenChannelAdapter adapter =
                new MqttPahoMessageDrivenChannelAdapter(
                        clientId + "_inbound", clientFactory(), defaultTopic);
        adapter.setCompletionTimeout(3000);
        adapter.setConverter(new DefaultPahoMessageConverter());
        adapter.setQos(1);
        adapter.setOutputChannel(mqttInputChannel());
        return adapter;
    }

    @Bean
    @ServiceActivator(inputChannel = INPUT_CHANNEL)
    public MessageHandler handler() {
        return message -> {
            String topic = Objects.requireNonNull(message.getHeaders().get("mqtt_receivedTopic")).toString();
            log.info("topic: {},payload : {}", topic,message.getPayload().toString());
        };
    }
}

添加發送介面MqttGateway.java

package com.xxx.mqttapp.service;

import org.springframework.integration.annotation.MessagingGateway;
import org.springframework.integration.mqtt.support.MqttHeaders;
import org.springframework.messaging.handler.annotation.Header;

import com.xxx.mqttapp.config.MqttConfig;

@MessagingGateway(defaultRequestChannel = MqttConfig.OUTBOUND_CHANNEL)
public interface MqttGateway {
	public void sendToMqtt(@Header(MqttHeaders.TOPIC)String topic,String payload);
}

定義發送控制器

package com.xxx.mqttapp.web;
import java.util.HashMap;
import java.util.Map;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import com.xxx.mqttapp.service.MqttGateway;
@RequestMapping("/test")
@RestController
public class TestController {
	@Autowired
	private MqttGateway mqttGateway;

	@PostMapping("/sendMessage")
	public Map<String, Object> sendMessage(String topic,String payload){
		Map<String, Object> result = new HashMap<String, Object>();
		mqttGateway.sendToMqtt(topic, payload);
		result.put("topic", topic);
		result.put("payload", payload);
		return result;
	}

}

springboot啟動類

package com.xxx.mqttapp;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
@SpringBootApplication
public class App {
    public static void main( String[] args ){
    	SpringApplication.run(App.class, args);
    }
}

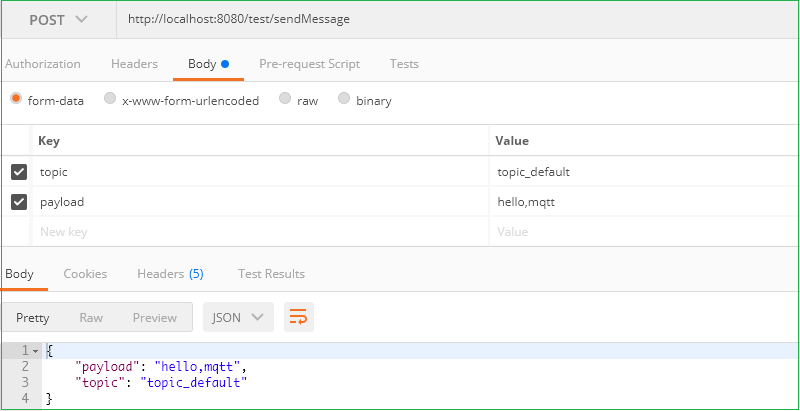

啟動springboot應用，測驗：

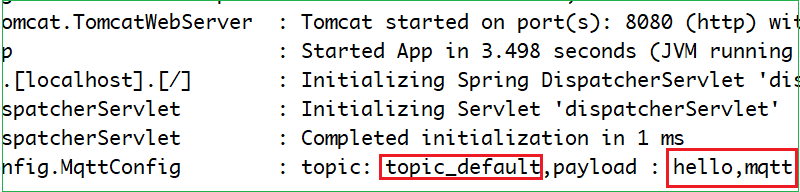

訊息發送成功，控制臺列印訊息如下：

這個測驗，不是直接發送訊息到mqtt服務器，而是借助web介面，發送http請求，后臺接收，然后呼叫生產者發送方法，

消費者直接配置了一個MqttPahoMessageDrivenChannelAdapter，并訂閱defaultTopic主題，他需要設定一個channel和一個handler，所以，生產者一發送訊息過來，消費者立馬就消費掉了，
