從以下dataframedf：
df <- data.frame(Date=1:5,
Cat1=c(1,0,1,0,0),
Cat2=c(1,1,1,0,0),
Cat3=c(0,1,1,0,1),
Cat4=c(0,0,1,1,0),
Mask=c(0,1,1,0,0))
df <- tidyr::pivot_longer(df, -1)
平鋪圖繪制如下：
ggplot(df%>%filter(name!="Mask"),
aes(x = Date, y = factor(name, levels = rev(unique(name))),
fill = as.factor(value)))
geom_tile(color = "black")
scale_fill_manual(values = c("white", "grey50"))
theme_void()
theme(legend.position = "none",
axis.text = element_text(size = 15),
axis.title.x = element_text(size = 15),
plot.margin = margin(20, 20, 20, 20))

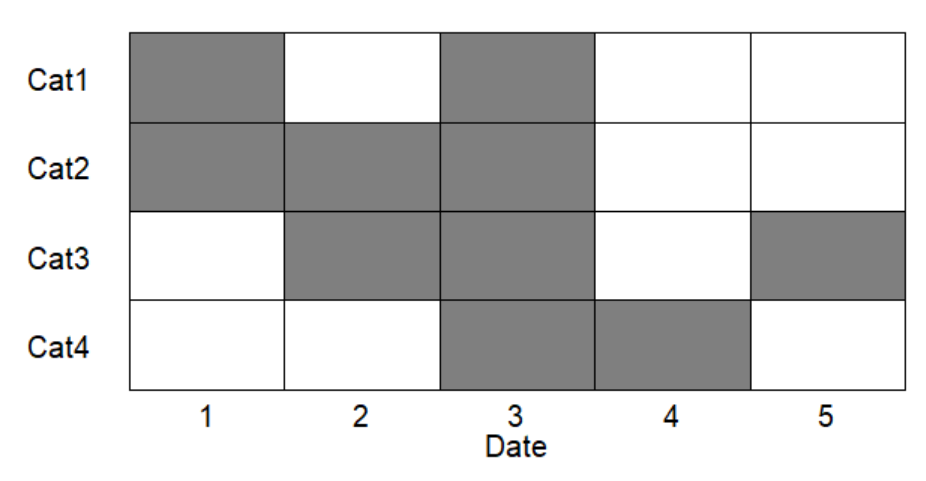

具有以下輸出：

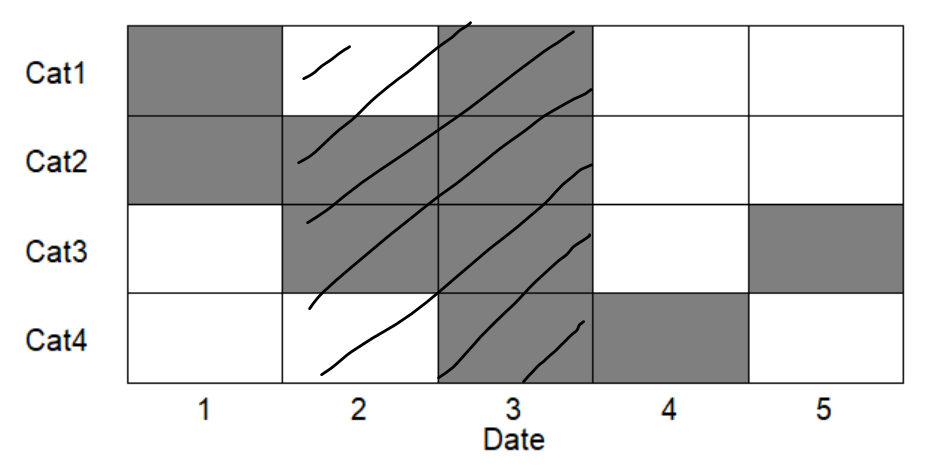

在ggplot，如何通過使用列Mask==1來填充紋理來實作紋理Date？

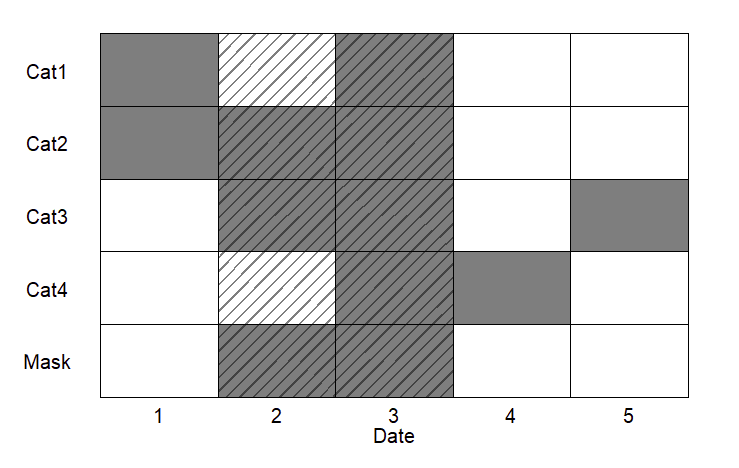

uj5u.com熱心網友回復：
嘗試（不在 CRAN 上）ggpattern-package
library(ggplot2)
#remotes::install_github("coolbutuseless/ggpattern")
library(ggpattern)
# set what cells need to be hatched
df <- df %>%
mutate(hatch = ifelse(Date %in% c(2,3), "yes", "no"))
ggplot(df%>%filter(name!="True"),
aes(x = Date, y = factor(name, levels = rev(unique(name))),
fill = as.factor(value), pattern = hatch))
geom_tile_pattern(pattern_color = "black",
pattern_fill = "black",
pattern_angle = 45,
pattern_density = 0.1,
pattern_spacing = 0.025,
pattern_key_scale_factor = 0.5)
geom_tile(color = "black", alpha = 0.5)
scale_pattern_manual(values = c(yes = "stripe", no = "none"))
scale_fill_manual(values = c("white", "grey50"))
theme_void()
theme(legend.position = "none",
axis.text = element_text(size = 15),
axis.title.x = element_text(size = 15),
plot.margin = margin(20, 20, 20, 20))
