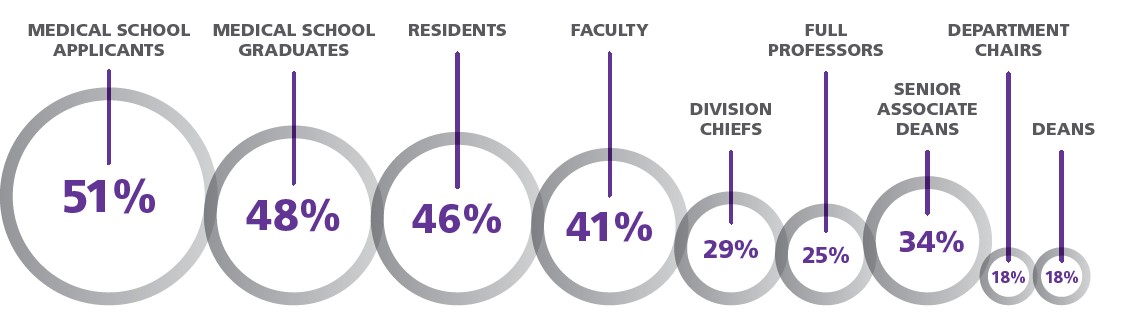

請問有沒有可以畫下圖的R包？
我有百分比形式的資料，但不知道如何繪制這樣的圖表。
謝謝！
uj5u.com熱心網友回復：
我想如果你把你的資料變成這種格式：
df <- data.frame(percents = c(51, 48, 46, 41, 29, 25, 34, 18, 18),
label = c("MEDICAL\nSCHOOL\nAPPLICANTS",
"MEDICAL\nSCHOOL\nGRADUATES",
"RESIDENTS",
"FACULTY",
"DIVISION\nCHIEFS",
"FULL\nPROFESSORS",
"SENIOR\nASSOCIATE\nDEANS",
"DEPARTMENT\nCHAIRS", "DEANS"))
df
#> percents label
#> 1 51 MEDICAL\nSCHOOL\nAPPLICANTS
#> 2 48 MEDICAL\nSCHOOL\nGRADUATES
#> 3 46 RESIDENTS
#> 4 41 FACULTY
#> 5 29 DIVISION\nCHIEFS
#> 6 25 FULL\nPROFESSORS
#> 7 34 SENIOR\nASSOCIATE\nDEANS
#> 8 18 DEPARTMENT\nCHAIRS
#> 9 18 DEANS

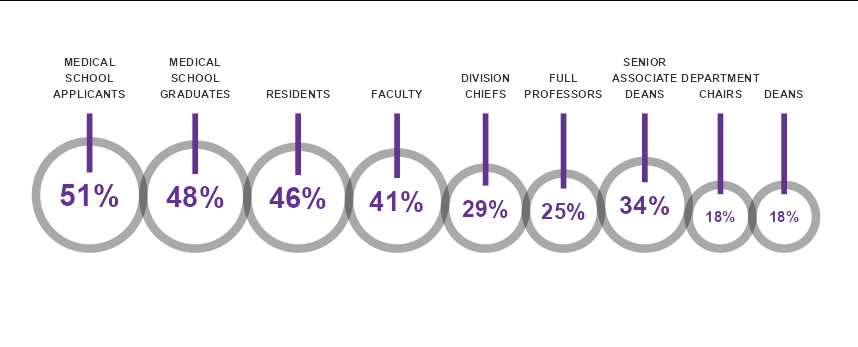

然后你可以做這樣的事情：
library(ggplot2)
library(ggforce)
library(dplyr)
df %>% mutate(r = sqrt(percents), x = r cumsum(lag(2 * r, default = 0))) %>%
ggplot()
geom_circle(aes(x0 = x, r = r, y0 = r), size = 3, color = "#0A0A0A5A")
geom_text(aes(x = x, y = r, label = paste0(percents, "%"), size = percents),
fontface = "bold", color = "#643291")
geom_text(aes(x = x, y = 20, label = label), vjust = 0,
fontface = "bold", color = "gray20", size = 3)
geom_segment(aes(x = x, xend = x, y = r 3, yend = 18),
color = "#643291", size = 2)
coord_equal()
scale_y_continuous(limits =c(-5, 25))
scale_size_continuous(range = c(4, 8))
theme_void()
theme(legend.position = "none")
請注意，百分比與圓圈的面積成正比，這是在此類圖中表示資料的更誠實的方式。
