【影像轉換】基于matlab灰度影像轉換彩色影像【含Matlab 1233期】

一、獲取代碼方式

獲取代碼方式1：
完整代碼已上傳我的資源：【影像轉換】基于matlab灰度影像轉換彩色影像【含Matlab 1233期】

獲取代碼方式2：
通過紫極神光博客主頁開通CSDN年度會員，憑支付憑證，私信博主，可獲得此代碼，

獲取代碼方式3：
通過訂閱紫極神光博客付費專欄，憑支付憑證，私信博主，可獲得此代碼，

備注：開通CSDN年度會員，僅只能免費獲得1份代碼（有效期為開通日起，三天內有效）；
訂閱紫極神光博客付費專欄，可免費獲得1份代碼（有效期為訂閱日起，三天內有效）；

二、部分源代碼

tic
rslt = gray2rgb('test1_destination.jpg','test1_source.jpg');
gray = imread('test1_destination.jpg');
color = imread('test1_source.jpg');

figure
subplot(1,3,1); imshow(uint8(gray)); title('gray image');
subplot(1,3,2); imshow(uint8(color)); title('color source image');
subplot(1,3,3); imshow(uint8(rslt)); title('colored image');
toc
function R=gray2rgb(dest,src)
%gray2rgb converts a gray image to RGB based on the colors of the  source
%image
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
% This function converts a gray image to RGB based on the colors of the
% source image.
%
% R = gray2rgb(dest, src)
% dest - destination or target (grayscale) image that you want to color
% src - source (color image) that you want to use as a color pallet
%
% You can use the attached test images. Use the following combinations:
% gray2rgb('test1_destination.jpg', 'test1_source.jpg')
% gray2rgb('nature_desitnation.jpg', 'nature_source.jpg')
%
% This code was originally inspired by the code gray2rgb by Jeny Rajan and
% Chandrashekar P.S. The code was optimized and rewritten to more closely
% achieve what was described in the paper "Transfering Color to Grayscale
% Images" by Welsh, Ashikhmin and Mueller. Identical results to Rajan's
% code are achieved much more quickly, especially for large images.
%
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%

imt = imread(dest); % read target image
ims = imread(src); % read source image
[tx, ty, tz] = size(imt); % get size of target image
[~, ~, sz] = size(ims); % get 3rd dim of source
if tz ~= 1 % convert the destination image to grayscale if not already
    imt = rgb2gray(imt);
end
if sz ~= 3 % check to see that the source image is RGB
    disp ('img2 must be a color image (not indexed)');
else
    imt(:, :, 2) = imt(:, :, 1); % add green channel to grayscale img
    imt(:, :, 3) = imt(:, :, 1); % add blue channel to grayscale img

% Converting to ycbcr color space
    % ycbcr, y: luminance, cb: blue difference chroma, cr: red difference chroma
    % s - source, t - target
    nspace1 = rgb2ycbcr(ims); % convert source img to ycbcr color space
    nspace2 = rgb2ycbcr(imt); % convert target img to ycbcr color space

    % Get unique values of the luminance
    [ms, ics, ~] = unique(double(nspace1(:, :, 1))); % luminance of src img
    mt = unique(double(nspace2(:, :, 1))); % luminance of target img
    % Establish values for the cb and cr content from the source
    % image
    cbs = nspace1(:, :, 2);
    cbs = cbs(ics);
    crs = nspace1(:, :, 3);
    crs = crs(ics);

    % get max and min luminance of src and target
    m1 =max(ms);
    m2 = min(ms);
    m3 = max(mt);
    m4 = min(mt);
    d1 = m1 - m2; % get difference between max and min luminance
    d2 = m3 - m4;
    % Normalization
    dx1 = ms;
    dx2 = mt;
    dx1 = (dx1 * 255) / (255 - d1); % normalize source
    dx2 = (dx2 * 255) / (255 - d2); % normalize target
    [mx, ~] = size(dx2);
    % luminance and normalization of target image
    nimage_norm = double(nspace2(:, :, 1));
    nimage_norm =(nimage_norm * 255) / (255 - d2);

    % Luminance Comparison
    nimage = nspace2;


    % reshape cb and cr channels to be column vector
    nimage_cb = reshape(nimage_cb, numel(nimage_cb), 1);
    nimage_cr = reshape(nimage_cr, numel(nimage_cr), 1);

    % CHANGE: Loop through dx2 luminance values and find location of
    % corresponding luminance values in nimage_norm. Assign cb and cr
    % values to nimage's cb and cr channels for matching values

    for i = 1:mx
        iy = dx2(i);
        tmp = abs(dx1 - iy); % calculate absolute difference between
        % specific normalized target luminance value and normalized
        % source luminance values

        % finds min value of absolute diff. between specific
        % normalized target luminance value and normalized source
        % luminance values
        r = find(tmp == ck); % finds row and column where tmp = ck

        mtch = find(nimage_norm == iy); % find linear indicies of matching
        % luminance values
        nimage_cb(mtch) = cb(1); % set cb values based on matching lum vals
        nimage_cr(mtch) = cr(1); % set cr values based on matching lum vals
    end

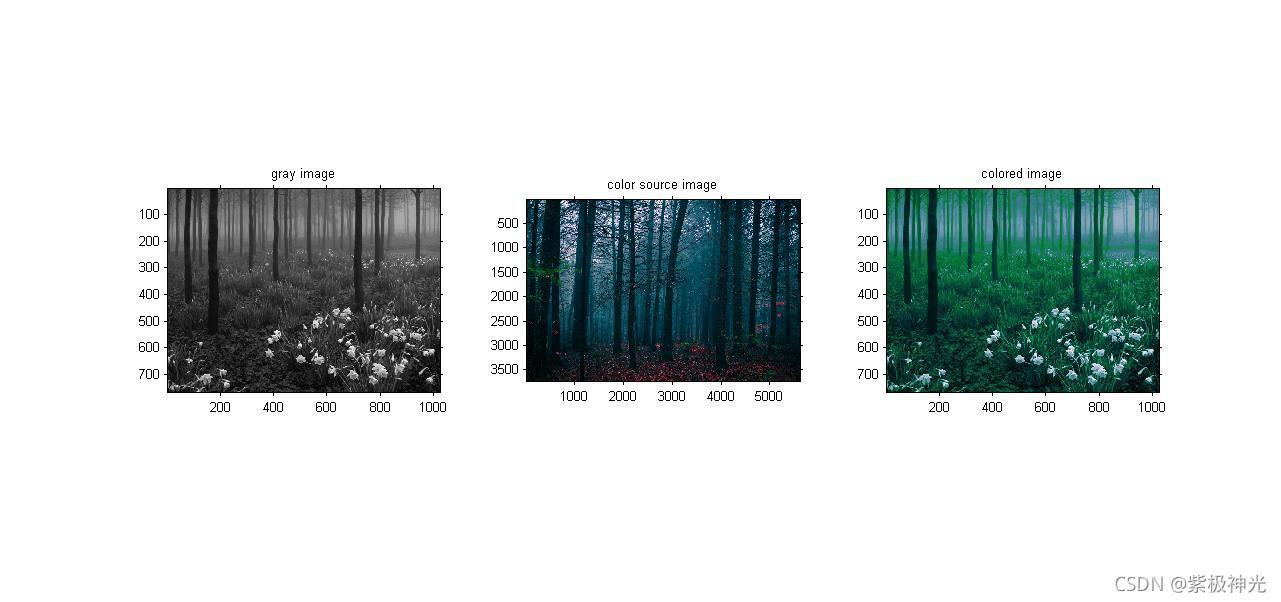

三、運行結果

四、matlab版本及參考文獻

1 matlab版本
2014a

2 參考文獻
[1] 蔡利梅.MATLAB影像處理——理論、演算法與實體分析[M].清華大學出版社，2020.
[2]楊丹,趙海濱,龍哲.MATLAB影像處理實體詳解[M].清華大學出版社，2013.
[3]周品.MATLAB影像處理與圖形用戶界面設計[M].清華大學出版社，2013.
[4]劉成龍.精通MATLAB影像處理[M].清華大學出版社，2015.
[5]梁東云,吳曉云,劉萌.基于MATLAB的數字影像加密研究[J].系統仿真技術. 2020,16(04)
