如何設定圖例元素標題？-有解無憂

我正在使用這篇 biostars 帖子中的代碼讓自己更加熟悉在 ggplot 中創建繪圖。雖然我在設定圖例變數上有點卡住了

有沒有辦法設定顏色并控制圖例中的中斷/點數（在numDEInCat下）

term <-c("snoRNA binding", "preprophase band", "kinesin complex", "microtubule motor activity", "DNA replication")
fc <-runif(5, 1.00, 5.00)
padj_BH <-runif(5, 0.001, 0.05)
numDEInCat <-runif(5, 30, 300)

ggdata <- data.frame(term,fc,padj_BH,  numDEInCat)

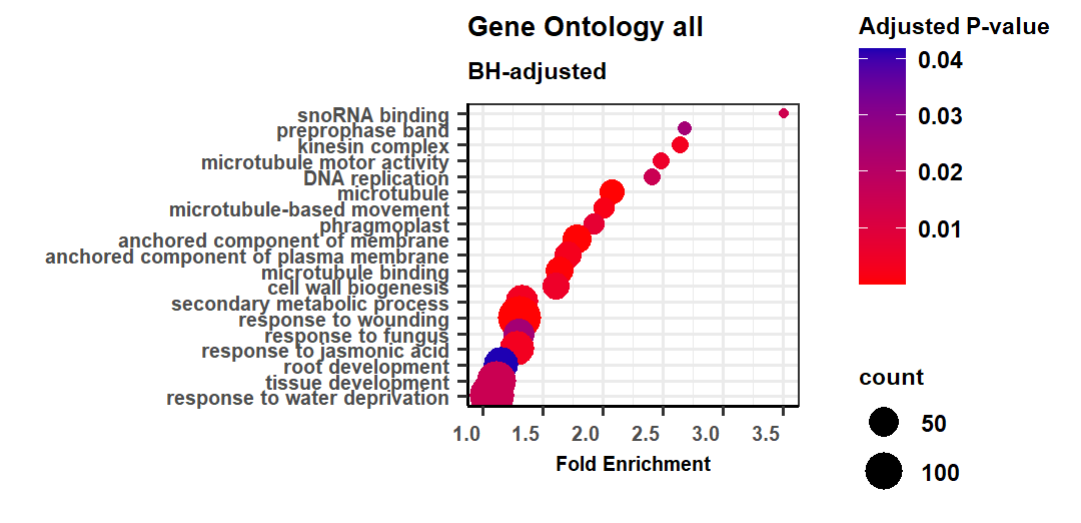

gg1 <- ggplot(ggdata,
  aes(x = term, y = fc, size = numDEInCat, color = padj_BH))

  expand_limits(y = 1)
  geom_point(shape = 16,inherit.aes = T)
  scale_size(range = c(2.5,12.5))
  scale_color_gradient(low= "#ff0303",
                       high="#1e00b3")   #colour for p value


  xlab('')   ylab('Fold Enrichment')   #lavel fold enrichment axis
  labs(
    title = "Gene Ontology all",
    subtitle = 'BH-adjusted',
    caption = '',
    color="Adjusted P-value", #label the aacolor
    size="count")    #label dot size



  theme_bw(base_size = 24)
  theme(
    legend.position = 'right',
    legend.background = element_rect(),
    plot.title = element_text(angle = 0, size = 16, face = 'bold', vjust = 1),
    plot.subtitle = element_text(angle = 0, size = 14, face = 'bold', vjust = 1),
    plot.caption = element_text(angle = 0, size = 12, face = 'bold', vjust = 1),

    axis.text.x = element_text(angle = 0, size = 12, face = 'bold', hjust = 1.10),
    axis.text.y = element_text(angle = 0, size = 12, face = 'bold', vjust = 0.5),
    axis.title = element_text(size = 12, face = 'bold'),
    axis.title.x = element_text(size = 12, face = 'bold'),
    axis.title.y = element_text(size = 12, face = 'bold'),
    axis.line = element_line(colour = 'black'),

    #Legend
    legend.key = element_blank(), # removes the border
    legend.key.size = unit(1, "cm"), # Sets overall area/size of the legend
    legend.text = element_text(size = 14, face = "bold"), # Text size
    title = element_text(size = 14, face = "bold"))

  coord_flip()

gg1

如何設定圖例元素標題？

uj5u.com熱心網友回復：

我想，你要尋找的是guides(size = guide_legend(override.aes(BLABLA)))與scale_size(breaks = c(BLABLA))

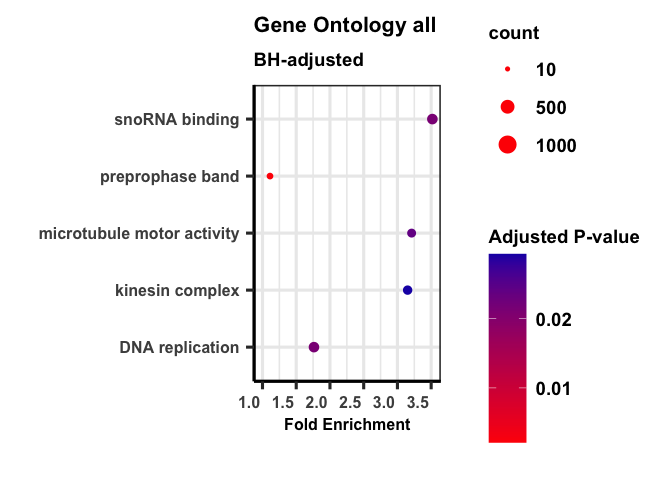

gg1
  guides(size = guide_legend(override.aes = list(colour = "red")))
  scale_size(limits = c(1, 1000), breaks = c(10, 500, 1000))

如何設定圖例元素標題？

^{由reprex 包(v2.0.1)于 2021 年 11 月 18 日創建}
