Zabbix 5.0下如何應用Template DB MySQL來監控MySQL資料庫呢？下面簡單整理一下如何配置、應用Zabbix下自帶的模板Template DB MySQL，其實非常簡單，

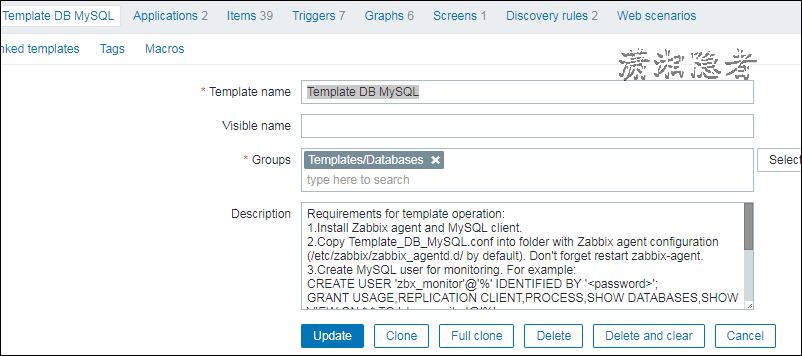

Template DB MySQL可以在Zabbix 5.0的模板下面查看，也有簡單的安裝相關說明，如下所示：
Requirements for template operation:
1.Install Zabbix agent and MySQL client.
2.Copy Template_DB_MySQL.conf into folder with Zabbix agent configuration (/etc/zabbix/zabbix_agentd.d/ by default). Don't forget restart zabbix-agent.
3.Create MySQL user for monitoring. For example:
CREATE USER 'zbx_monitor'@'%' IDENTIFIED BY '<password>';
GRANT USAGE,REPLICATION CLIENT,PROCESS,SHOW DATABASES,SHOW VIEW ON *.* TO 'zbx_monitor'@'%';
For more information read the MYSQL documentation https://dev.mysql.com/doc/refman/8.0/en/grant.html , please.
4.Create .my.cnf in home directory of Zabbix agent for Linux (/var/lib/zabbix by default ) or my.cnf in c:\ for Windows. For example:
[client]
user=zbx_monitor
password=<password>
在GitHub上https://git.zabbix.com/projects/ZBX/repos/zabbix/browse/templates/db/mysql_agent上,你可以看到更詳細的資訊
Overview
For Zabbix version: 5.0
The template is developed for monitoring DBMS MySQL and its forks.
This template was tested on:
· MySQL, version 5.7, 8.0
· Percona, version 8.0
· MariaDB, version 10.4
· Zabbix, version 4.2.1
Setup
See Zabbix template operation for basic instructions.
1. Install Zabbix agent and MySQL client. If necessary, add the path to the mysql and mysqladmin utilities to the global environment variable PATH.
2. Copy template_db_mysql.conf into folder with Zabbix agent configuration (/etc/zabbix/zabbix_agentd.d/ by default). Don't forget to restart zabbix-agent
3. Create MySQL user for monitoring (<password> at your discretion):
CREATE USER 'zbx_monitor'@'%' IDENTIFIED BY '<password>';
GRANT USAGE,REPLICATION CLIENT,PROCESS,SHOW DATABASES,SHOW VIEW ON *.* TO 'zbx_monitor'@'%';
For more information please read the MYSQL documentation https://dev.mysql.com/doc/refman/8.0/en/grant.html
4. Create .my.cnf in home directory of Zabbix agent for Linux (/var/lib/zabbix by default ) or my.cnf in c:\ for Windows. The file must have three strings:
[client]
user='zbx_monitor'
password='<password>'
NOTE: Use systemd to start the Zabbix agent on Linux OS. For example in Centos use "systemctl edit zabbix-agent.service" to set the required user to start the Zabbix agent.
Add the rule to the SELinux policy (example for Centos):
# cat <<EOF > zabbix_home.te
module zabbix_home 1.0;
require {
type zabbix_agent_t;
type zabbix_var_lib_t;
type mysqld_etc_t;
type mysqld_port_t;
type mysqld_var_run_t;
class file { open read };
class tcp_socket name_connect;
class sock_file write;
}
#============= zabbix_agent_t ==============
allow zabbix_agent_t zabbix_var_lib_t:file read;
allow zabbix_agent_t zabbix_var_lib_t:file open;
allow zabbix_agent_t mysqld_etc_t:file read;
allow zabbix_agent_t mysqld_port_t:tcp_socket name_connect;
allow zabbix_agent_t mysqld_var_run_t:sock_file write;
EOF
# checkmodule -M -m -o zabbix_home.mod zabbix_home.te
# semodule_package -o zabbix_home.pp -m zabbix_home.mod
# semodule -i zabbix_home.pp
# restorecon -R /var/lib/zabbix
下面用中文簡單總結概括一下
1：在被監控的主機上安裝Zabbix Agent和 MySQL Client，如有必要，將mysql和mysqladmin應用程式的路徑添加到全域環境變數PATH中，
2：將Template_DB_MySQL.conf檔案拷貝到Zabbix Agent的配置目錄（默認為etc/zabbix/zabbix_agentd.d/），不要忘記重啟Zabbix Agent，
注意，Template_DB_MySQL.conf檔案在哪里呢？相信有些人會懵逼，這個檔案在https://git.zabbix.com/projects/ZBX/repos/zabbix/browse/templates/db/mysql_agent下
我將zabbix原始碼download下面，此檔案位于zabbix-master@18cf3730036\templates\db\mysql_agent下，
3：在被監控的資料庫上創建資料庫賬號
CREATE USER 'zbx_monitor'@'%' IDENTIFIED BY 'xxxxx';
GRANT USAGE,REPLICATION CLIENT,PROCESS,SHOW DATABASES,SHOW VIEW ON *.* TO 'zbx_monitor'@'%';
個人觀點：出于安全考慮，賬號限定只能本機訪問，不要設定為任意IP可以訪問，
CREATE USER 'zbx_monitor'@'localhost' IDENTIFIED BY 'xxxxx';
GRANT USAGE,REPLICATION CLIENT,PROCESS,SHOW DATABASES,SHOW VIEW ON *.* TO 'zbx_monitor'@'localhost';
4：找不到這個目錄/var/lib/zabbix，那么新建此目錄，然后創建.my.cnf
# rpm -ql zabbix-agent /etc/logrotate.d/zabbix-agent
/etc/zabbix/zabbix_agentd.conf
/etc/zabbix/zabbix_agentd.d
/usr/lib/systemd/system/zabbix-agent.service
/usr/lib/tmpfiles.d/zabbix-agent.conf
/usr/sbin/zabbix_agentd
/usr/share/doc/zabbix-agent-5.0.1
/usr/share/doc/zabbix-agent-5.0.1/AUTHORS
/usr/share/doc/zabbix-agent-5.0.1/COPYING
/usr/share/doc/zabbix-agent-5.0.1/ChangeLog
/usr/share/doc/zabbix-agent-5.0.1/NEWS
/usr/share/doc/zabbix-agent-5.0.1/README
/usr/share/doc/zabbix-agent-5.0.1/userparameter_mysql.conf
/usr/share/man/man8/zabbix_agentd.8.gz
/var/log/zabbix
/var/run/zabbix
新建目錄/var/lib/zabbix
# mkdir /var/lib/zabbix
添加訪問資料庫的賬號資訊，
[client]
user='zbx_monitor'
password='<password>'
關于Template DB MySQL的Discovery rules、Items 、Triggers、Macros，下面參考資料中已有詳細介紹，在此略過，
參考資料：
https://www.zabbix.com/integrations/mysql
https://git.zabbix.com/projects/ZBX/repos/zabbix/browse/templates/db/mysql_agent
