0 了解本機基本資訊
0 參考檔案
主要整體是這篇
1.安裝cuda和cudnn
2.安裝cuda和cudnn
3.安裝cuda和cudnn
4.安裝cuda和cudnn
1.安裝nvidia-docker2
2.安裝nvidia-docker2
利用deepo做深度學習環境-官方英文
利用deepo做深度學習環境-中文翻譯

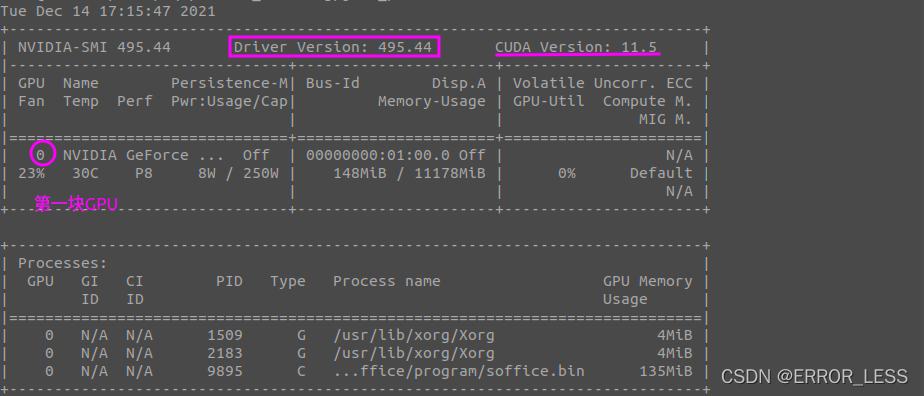

1 顯卡資訊
nvidia-smi
root@master:/home/hqc# ubuntu-drivers devices
== /sys/devices/pci0000:00/0000:00:01.0/0000:01:00.0 ==
modalias : pci:v000010DEd00001B06sv000010DEsd0000120Fbc03sc00i00
vendor : NVIDIA Corporation
model : GP102 [GeForce GTX 1080 Ti]
driver : nvidia-driver-460-server - distro non-free
driver : nvidia-driver-450-server - distro non-free
driver : nvidia-driver-390 - distro non-free
driver : nvidia-driver-418-server - distro non-free
driver : nvidia-driver-470 - distro non-free
driver : nvidia-driver-470-server - distro non-free
driver : nvidia-driver-460 - distro non-free
driver : nvidia-driver-495 - distro non-free recommended
driver : xserver-xorg-video-nouveau - distro free builtin
提示資訊recommend495版本，因此無需重新安裝，
2 查看是否安裝了cuda/cudnn
root@master:/home/hqc# cat /usr/local/cuda/version.txt
cat: /usr/local/cuda/version.txt: 沒有那個檔案或目錄
root@master:/home/hqc# nvcc -V
Command 'nvcc' not found, but can be installed with:
apt install nvidia-cuda-toolkit
都沒有，參考這篇博客
3 關于cuda和cudnn的說明
deepo這個鏡像中已經封裝了cuda和cudnn，同時直接配置好了絕大多數深度學習的環境，
那為啥還要在本機上安裝cuda和cudnn呢？
因為本地開發需要，或者拿到一個現成的深度學習程式需要本地先測驗一下是否可運行，
1 安裝cuda

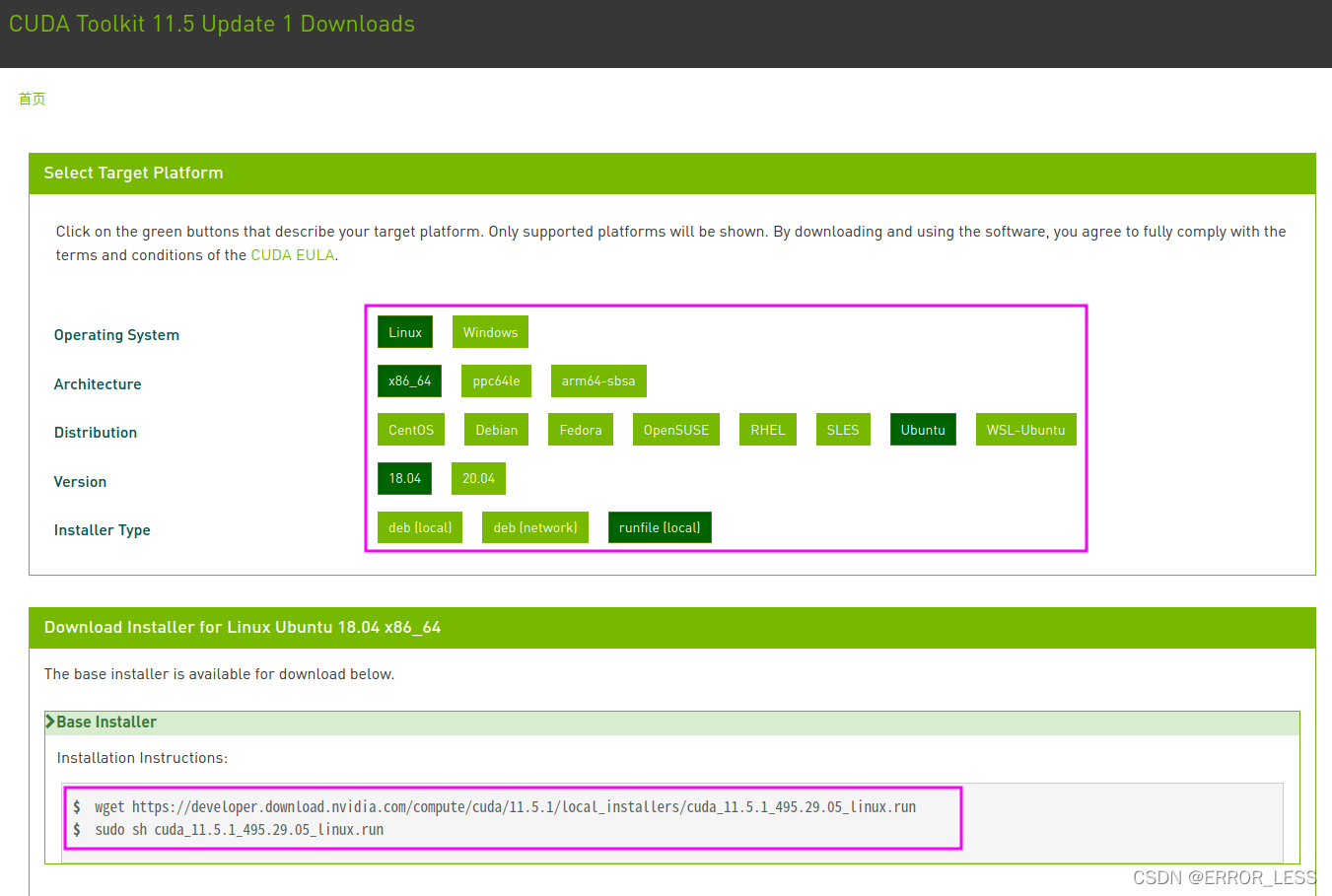

nvidia官網下載
別的版本cuda下載
1 下載

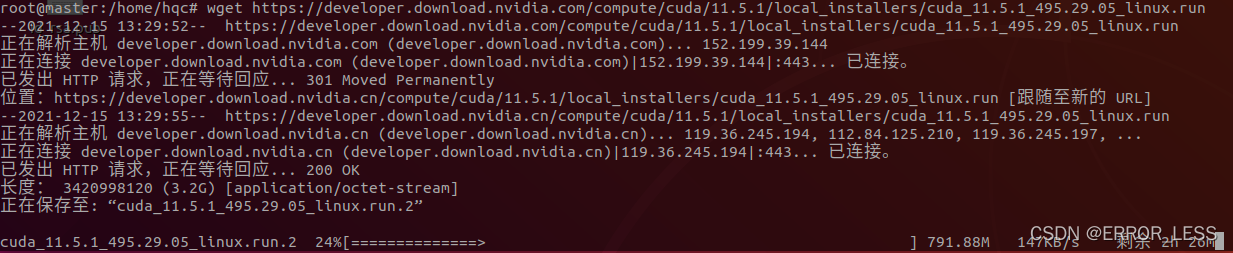

root@master:/home/hqc# wget https://developer.download.nvidia.com/compute/cuda/11.5.1/local_installers/cuda_11.5.1_495.29.05_linux.run
下載速度也太慢了🤪
2 執行
root@master:/home/hqc# sudo sh cuda_11.5.1_495.29.05_linux.run

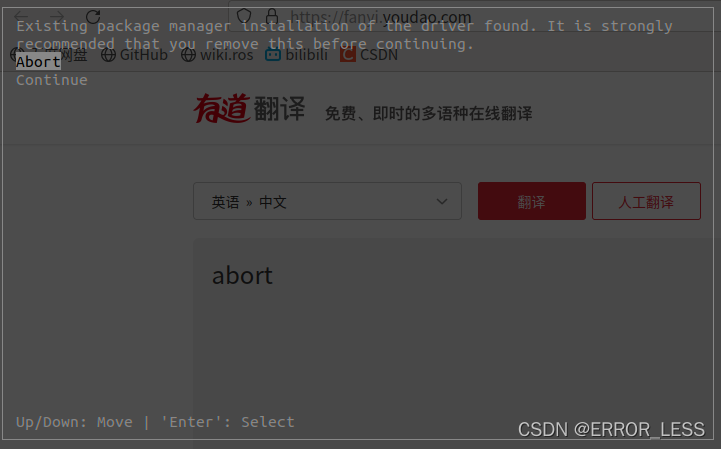

選擇continue
出現原因：可能是驗證nivdia-docker2時拉取了一個11.0版本的cuda

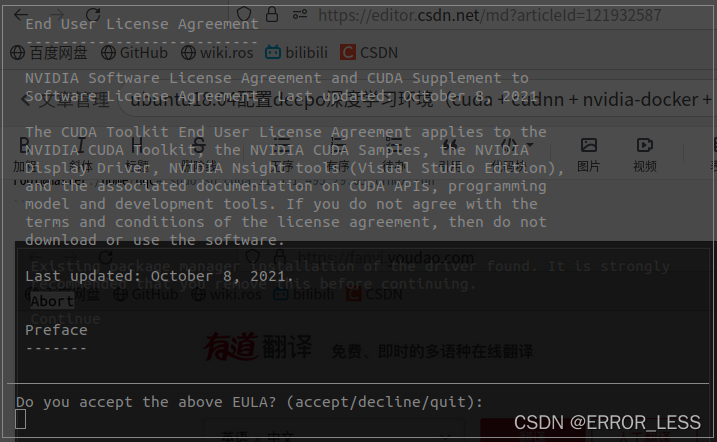

輸入accept

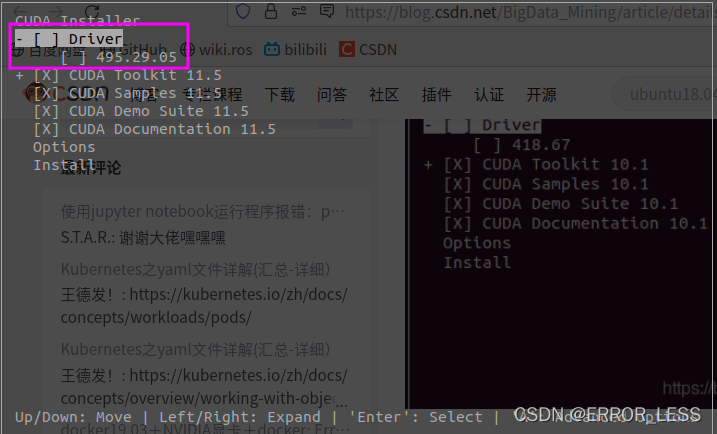

注：一定不能再次安裝driver
操作：移到driver項，按enter鍵即去掉勾選，然后install，
3 成功
root@master:/home/hqc# sudo sh cuda_11.5.1_495.29.05_linux.run
===========
= Summary =
===========
Driver: Not Selected
Toolkit: Installed in /usr/local/cuda-11.5/
Samples: Installed in /root/, but missing recommended libraries
Please make sure that
- PATH includes /usr/local/cuda-11.5/bin
- LD_LIBRARY_PATH includes /usr/local/cuda-11.5/lib64, or, add /usr/local/cuda-11.5/lib64 to /etc/ld.so.conf and run ldconfig as root
To uninstall the CUDA Toolkit, run cuda-uninstaller in /usr/local/cuda-11.5/bin
***WARNING: Incomplete installation! This installation did not install the CUDA Driver. A driver of version at least 495.00 is required for CUDA 11.5 functionality to work.
To install the driver using this installer, run the following command, replacing <CudaInstaller> with the name of this run file:
sudo <CudaInstaller>.run --silent --driver
Logfile is /var/log/cuda-installer.log
出現此輸出時便代表安裝成功
4 配置

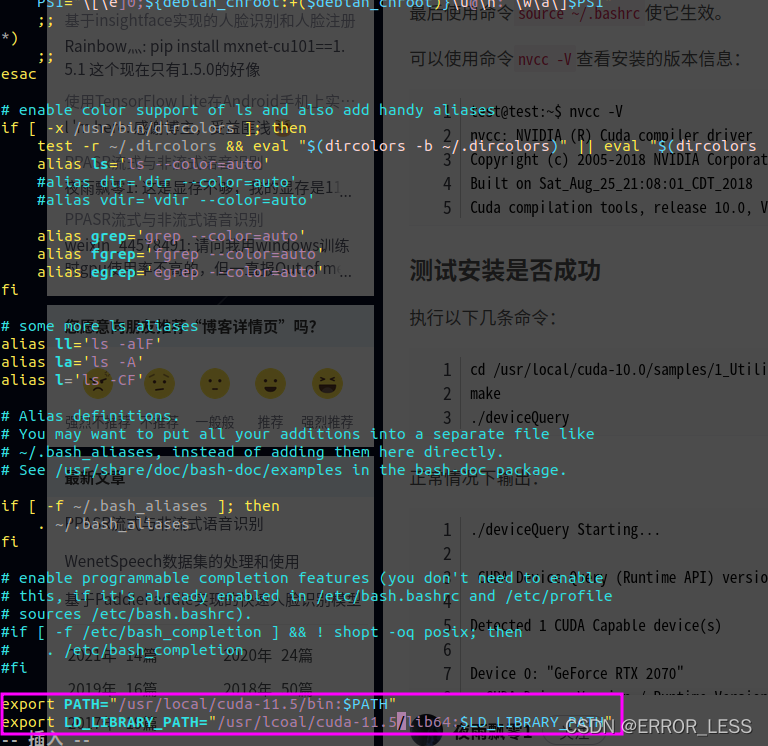

root@master:/home/hqc# vi ~/.bashrc
# 在檔案結尾添上這兩句指令
export PATH="/usr/local/cuda-11.5/bin:$PATH"
export LD_LIBRARY_PATH="/usr/local/cuda-11.5/lib64:$LD_LIBRARY_PATH"
# source一下使之生效
root@master:/home/hqc# source ~/.bashrc
5 驗證
root@master:/home/hqc# cd /usr/local/cuda-11.5/samples/1_Utilities/deviceQuery
root@master:/usr/local/cuda-11.5/samples/1_Utilities/deviceQuery# sudo make
/usr/local/cuda/bin/nvcc -ccbin g++ -I../../common/inc -m64 --threads 0 --std=c++11 -gencode arch=compute_35,code=sm_35 -gencode arch=compute_37,code=sm_37 -gencode arch=compute_50,code=sm_50 -gencode arch=compute_52,code=sm_52 -gencode arch=compute_60,code=sm_60 -gencode arch=compute_61,code=sm_61 -gencode arch=compute_70,code=sm_70 -gencode arch=compute_75,code=sm_75 -gencode arch=compute_80,code=sm_80 -gencode arch=compute_86,code=sm_86 -gencode arch=compute_86,code=compute_86 -o deviceQuery.o -c deviceQuery.cpp
nvcc warning : The 'compute_35', 'compute_37', 'compute_50', 'sm_35', 'sm_37' and 'sm_50' architectures are deprecated, and may be removed in a future release (Use -Wno-deprecated-gpu-targets to suppress warning).
/usr/local/cuda/bin/nvcc -ccbin g++ -m64 -gencode arch=compute_35,code=sm_35 -gencode arch=compute_37,code=sm_37 -gencode arch=compute_50,code=sm_50 -gencode arch=compute_52,code=sm_52 -gencode arch=compute_60,code=sm_60 -gencode arch=compute_61,code=sm_61 -gencode arch=compute_70,code=sm_70 -gencode arch=compute_75,code=sm_75 -gencode arch=compute_80,code=sm_80 -gencode arch=compute_86,code=sm_86 -gencode arch=compute_86,code=compute_86 -o deviceQuery deviceQuery.o
nvcc warning : The 'compute_35', 'compute_37', 'compute_50', 'sm_35', 'sm_37' and 'sm_50' architectures are deprecated, and may be removed in a future release (Use -Wno-deprecated-gpu-targets to suppress warning).
mkdir -p ../../bin/x86_64/linux/release
cp deviceQuery ../../bin/x86_64/linux/release
root@master:/usr/local/cuda-11.5/samples/1_Utilities/deviceQuery# ./deviceQuery
./deviceQuery Starting...
CUDA Device Query (Runtime API) version (CUDART static linking)
Detected 1 CUDA Capable device(s)
Device 0: "NVIDIA GeForce GTX 1080 Ti"
CUDA Driver Version / Runtime Version 11.5 / 11.5
CUDA Capability Major/Minor version number: 6.1
Total amount of global memory: 11178 MBytes (11721506816 bytes)
(028) Multiprocessors, (128) CUDA Cores/MP: 3584 CUDA Cores
GPU Max Clock rate: 1582 MHz (1.58 GHz)
Memory Clock rate: 5505 Mhz
Memory Bus Width: 352-bit
L2 Cache Size: 2883584 bytes
Maximum Texture Dimension Size (x,y,z) 1D=(131072), 2D=(131072, 65536), 3D=(16384, 16384, 16384)
Maximum Layered 1D Texture Size, (num) layers 1D=(32768), 2048 layers
Maximum Layered 2D Texture Size, (num) layers 2D=(32768, 32768), 2048 layers
Total amount of constant memory: 65536 bytes
Total amount of shared memory per block: 49152 bytes
Total shared memory per multiprocessor: 98304 bytes
Total number of registers available per block: 65536
Warp size: 32
Maximum number of threads per multiprocessor: 2048
Maximum number of threads per block: 1024
Max dimension size of a thread block (x,y,z): (1024, 1024, 64)
Max dimension size of a grid size (x,y,z): (2147483647, 65535, 65535)
Maximum memory pitch: 2147483647 bytes
Texture alignment: 512 bytes
Concurrent copy and kernel execution: Yes with 2 copy engine(s)
Run time limit on kernels: Yes
Integrated GPU sharing Host Memory: No
Support host page-locked memory mapping: Yes
Alignment requirement for Surfaces: Yes
Device has ECC support: Disabled
Device supports Unified Addressing (UVA): Yes
Device supports Managed Memory: Yes
Device supports Compute Preemption: Yes
Supports Cooperative Kernel Launch: Yes
Supports MultiDevice Co-op Kernel Launch: Yes
Device PCI Domain ID / Bus ID / location ID: 0 / 1 / 0
Compute Mode:
< Default (multiple host threads can use ::cudaSetDevice() with device simultaneously) >
deviceQuery, CUDA Driver = CUDART, CUDA Driver Version = 11.5, CUDA Runtime Version = 11.5, NumDevs = 1
Result = PASS
最后出現Result = PASS，才最終說明安裝成功，
6 查看
root@master:/usr/local/cuda-11.5/samples/1_Utilities/deviceQuery# nvcc -V
nvcc: NVIDIA (R) Cuda compiler driver
Copyright (c) 2005-2021 NVIDIA Corporation
Built on Thu_Nov_18_09:45:30_PST_2021
Cuda compilation tools, release 11.5, V11.5.119
Build cuda_11.5.r11.5/compiler.30672275_0
Build cuda_11.5.r11.5/compiler.30672275_0
2 安裝cudnn
官網下載
登錄之前需要注冊會員，可能會報一些錯誤，注冊好了登錄還需要填一些東西，麻煩，隨便填好了，網速也慢，
1 下載

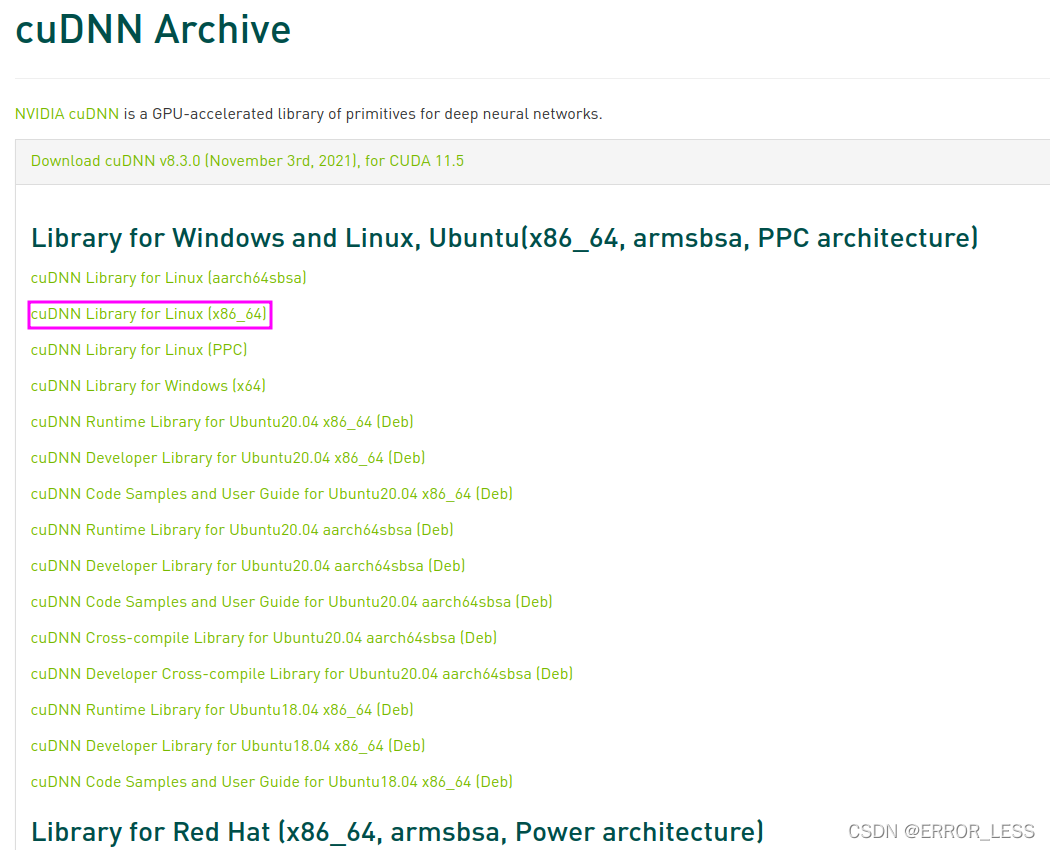

下載cuDNN Library for Linux即可,安裝cuDNN v8.3.0版本

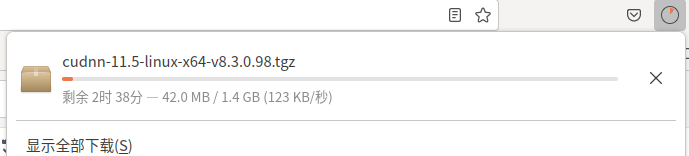

下載速度好慢阿，等待吧，
2 安裝
# 進入下載安裝包的目錄進行查看
root@master:/home/hqc# cd 下載
root@master:/home/hqc/下載# ls
Anaconda3-5.3.1-Linux-x86_64.sh iwlwifi-cc-46.3cfab8da.0
cudnn-11.5-linux-x64-v8.3.0.98.tgz iwlwifi-cc-46.3cfab8da.0.tgz
# 解壓縮
root@master:/home/hqc/下載# tar -zxvf cudnn-11.5-linux-x64-v8.3.0.98.tgz
cuda/include/cudnn.h
cuda/include/cudnn_adv_infer.h
cuda/include/cudnn_adv_infer_v8.h
cuda/include/cudnn_adv_train.h
cuda/include/cudnn_adv_train_v8.h
cuda/include/cudnn_backend.h
cuda/include/cudnn_backend_v8.h
cuda/include/cudnn_cnn_infer.h
cuda/include/cudnn_cnn_infer_v8.h
...
# 復制解壓出的cuda檔案到用戶檔案夾中
root@master:/home/hqc/下載# cp cuda/lib64/* /usr/local/cuda-11.5/lib64/
root@master:/home/hqc/下載# cp cuda/include/* /usr/local/cuda-11.5/include/
root@master:/home/hqc/下載# cat /usr/local/cuda/include/cudnn.h | grep CUDNN_MAJOR -A 2
# 沒有任何輸出
# 更改一種方法仍然沒有輸出
root@master:/home/hqc/下載# sudo cp cuda/include/cudnn.h /usr/local/cuda/include/
root@master:/home/hqc/下載# sudo cp cuda/lib64/libcudnn* /usr/local/cuda/lib64/
root@master:/home/hqc/下載# sudo chmod a+r /usr/local/cuda/include/cudnn.h
root@master:/home/hqc/下載# sudo chmod a+r /usr/local/cuda/lib64/libcudnn*
root@master:/home/hqc/下載# cat /usr/local/cuda/include/cudnn.h | grep CUDNN_MAJOR -A 2
查看cudnn資訊不輸出問題-參考評論
目前還沒解決，----已解決
3 驗證
root@master:/home/hqc/下載# cat /usr/local/cuda/include/cudnn_version.h | grep CUDNN_MAJOR -A 2
#define CUDNN_MAJOR 8
#define CUDNN_MINOR 3
#define CUDNN_PATCHLEVEL 0
--
#define CUDNN_VERSION (CUDNN_MAJOR * 1000 + CUDNN_MINOR * 100 + CUDNN_PATCHLEVEL)
#endif /* CUDNN_VERSION_H */
# 代表版本為cudnn8.3.0
更改為cudnn_version.h即可，因為最新的版本資訊在cudnn_version.h里了，不在cudnn.h里，
3 安裝nivdia-docker2
按官網安裝教程操作

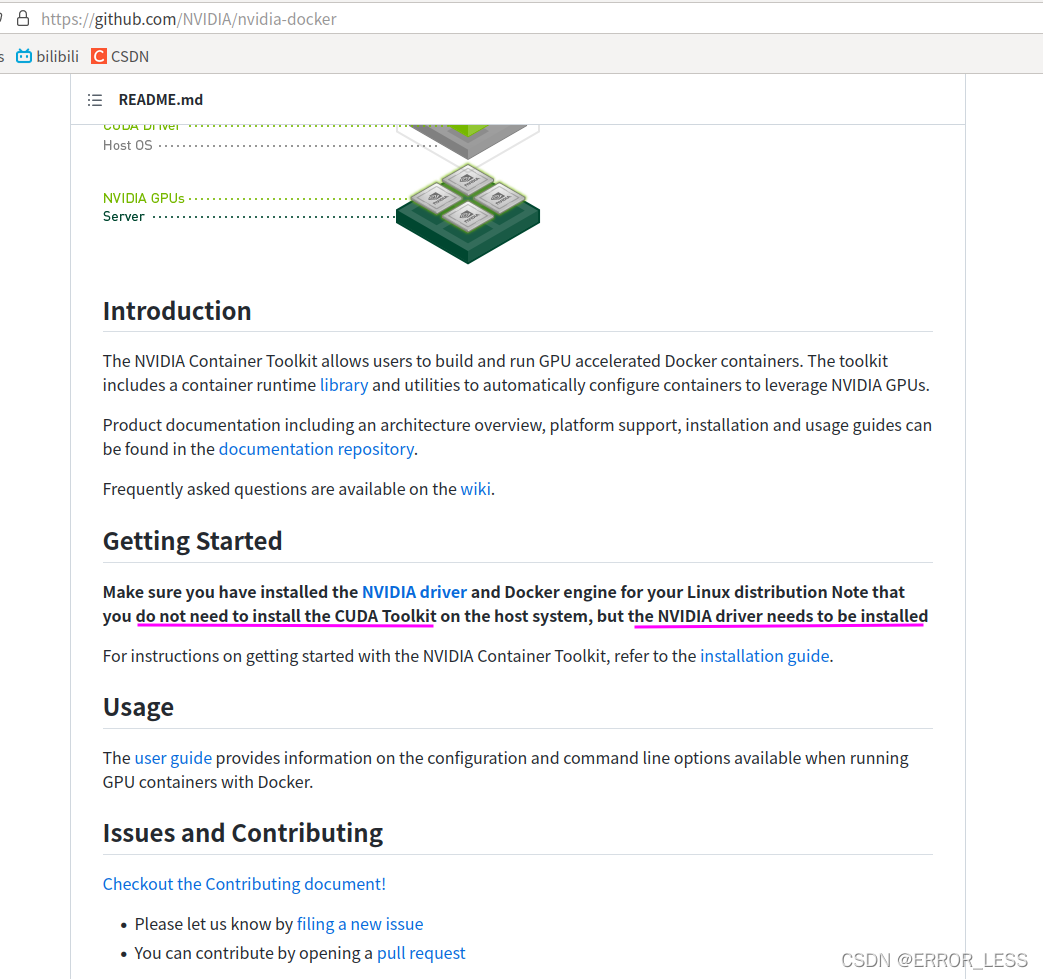

查看官網發現：不需要在本機上安裝CUDA，只需要有驅動即可
因此決定，在下載cuda和cudnn的同時安裝一下nivdia-docker，
具體指令安裝nvidia-docker2
1 加入源
root@master:/home/hqc# distribution=$(. /etc/os-release;echo $ID$VERSION_ID) \
> && curl -s -L https://nvidia.github.io/nvidia-docker/gpgkey | sudo apt-key add - \
> && curl -s -L https://nvidia.github.io/nvidia-docker/$distribution/nvidia-docker.list | sudo tee /etc/apt/sources.list.d/nvidia-docker.list
OK
deb https://nvidia.github.io/libnvidia-container/stable/ubuntu18.04/$(ARCH) /
#deb https://nvidia.github.io/libnvidia-container/experimental/ubuntu18.04/$(ARCH) /
deb https://nvidia.github.io/nvidia-container-runtime/stable/ubuntu18.04/$(ARCH) /
#deb https://nvidia.github.io/nvidia-container-runtime/experimental/ubuntu18.04/$(ARCH) /
deb https://nvidia.github.io/nvidia-docker/ubuntu18.04/$(ARCH) /
2 更新
root@master:/home/hqc# sudo apt-get update
3 下載
root@master:/home/hqc# sudo apt-get install -y nvidia-docker2
正在讀取軟體包串列... 完成
正在分析軟體包的依賴關系樹
正在讀取狀態資訊... 完成
下列軟體包是自動安裝的并且現在不需要了：
chromium-codecs-ffmpeg-extra lib32gcc1 libc6-i386 libopencore-amrnb0 libopencore-amrwb0
linux-hwe-5.4-headers-5.4.0-42
使用'sudo apt autoremove'來卸載它(它們)，
將會同時安裝下列軟體：
libnvidia-container-tools libnvidia-container1 nvidia-container-toolkit
下列【新】軟體包將被安裝：
libnvidia-container-tools libnvidia-container1 nvidia-container-toolkit nvidia-docker2
升級了 0 個軟體包，新安裝了 4 個軟體包，要卸載 0 個軟體包，有 123 個軟體包未被升級，
需要下載 1,075 kB 的歸檔，
解壓縮后會消耗 4,747 kB 的額外空間，
獲取:1 https://nvidia.github.io/libnvidia-container/stable/ubuntu18.04/amd64 libnvidia-container1 1.7.0-1 [69.5 kB]
獲取:2 https://nvidia.github.io/libnvidia-container/stable/ubuntu18.04/amd64 libnvidia-container-tools 1.7.0-1 [22.7 kB]
獲取:3 https://nvidia.github.io/libnvidia-container/stable/ubuntu18.04/amd64 nvidia-container-toolkit 1.7.0-1 [977 kB]
獲取:4 https://nvidia.github.io/libnvidia-container/stable/ubuntu18.04/amd64 nvidia-docker2 2.8.0-1 [5,528 B]
已下載 1,075 kB，耗時 6秒 (170 kB/s)
正在選中未選擇的軟體包 libnvidia-container1:amd64，
(正在讀取資料庫 ... 系統當前共安裝有 221226 個檔案和目錄，)
正準備解包 .../libnvidia-container1_1.7.0-1_amd64.deb ...
正在解包 libnvidia-container1:amd64 (1.7.0-1) ...
正在選中未選擇的軟體包 libnvidia-container-tools，
正準備解包 .../libnvidia-container-tools_1.7.0-1_amd64.deb ...
正在解包 libnvidia-container-tools (1.7.0-1) ...
正在選中未選擇的軟體包 nvidia-container-toolkit，
正準備解包 .../nvidia-container-toolkit_1.7.0-1_amd64.deb ...
正在解包 nvidia-container-toolkit (1.7.0-1) ...
正在選中未選擇的軟體包 nvidia-docker2，
正準備解包 .../nvidia-docker2_2.8.0-1_all.deb ...
正在解包 nvidia-docker2 (2.8.0-1) ...
正在設定 libnvidia-container1:amd64 (1.7.0-1) ...
正在設定 libnvidia-container-tools (1.7.0-1) ...
正在設定 nvidia-container-toolkit (1.7.0-1) ...
正在設定 nvidia-docker2 (2.8.0-1) ...
組態檔 '/etc/docker/daemon.json'
==> 系統中的這個檔案或者是由您創建的，或者是由腳本建立的，
==> 軟體包維護者所提供的軟體包中也包含了該檔案，
您現在希望如何處理呢？ 您有以下幾個選擇：
Y 或 I ：安裝軟體包維護者所提供的版本
N 或 O ：保留您原來安裝的版本
D ：顯示兩者的區別
Z ：把當前行程切換到后臺，然后查看現在的具體情況
默認的處理方法是保留您當前使用的版本，
*** daemon.json (Y/I/N/O/D/Z) [默認選項=N] ? N
正在處理用于 libc-bin (2.27-3ubuntu1.2) 的觸發器 ...
# 此處我選擇的N：保留您當前使用的版本（默認）
4 重啟docker
root@master:/home/hqc# sudo systemctl restart docker
5 驗證
root@master:/home/hqc# sudo docker run --rm --gpus all nvidia/cuda:11.0-base nvidia-smi
Unable to find image 'nvidia/cuda:11.0-base' locally
11.0-base: Pulling from nvidia/cuda
54ee1f796a1e: Pull complete
f7bfea53ad12: Pull complete
46d371e02073: Pull complete
b66c17bbf772: Pull complete
3642f1a6dfb3: Pull complete
e5ce55b8b4b9: Pull complete
155bc0332b0a: Pull complete
Digest: sha256:774ca3d612de15213102c2dbbba55df44dc5cf9870ca2be6c6e9c627fa63d67a
Status: Downloaded newer image for nvidia/cuda:11.0-base
Wed Dec 15 08:38:22 2021
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 495.44 Driver Version: 495.44 CUDA Version: 11.5 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|===============================+======================+======================|
| 0 NVIDIA GeForce ... Off | 00000000:01:00.0 Off | N/A |
| 23% 30C P8 8W / 250W | 148MiB / 11178MiB | 0% Default |
| | | N/A |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=============================================================================|
+-----------------------------------------------------------------------------+
# Unable to find image 'nvidia/cuda:11.0-base' locally，需要先拉取
表示安裝成功！
4 拉取deepo鏡像配置深度學習環境
官網參考
1 拉取deepo完整版
出現錯誤：拉取不下來，可能是deepo這個鏡像太大了，而docker默認的儲存目錄/var/lib/docker的空間不夠
root@master:/home/hqc# docker pull ufoym/deepo
Using default tag: latest
latest: Pulling from ufoym/deepo
6e0aa5e7af40: Pull complete
d47239a868b3: Pull complete
49cbb10cca85: Pull complete
4450dd082e0f: Pull complete
b4bc5dc4c4f3: Pull complete
5353957e2ca6: Pull complete
f91e05a16062: Pull complete
7a841761f52f: Pull complete
698198ce2872: Pull complete
05a2da03249e: Downloading [==================================================>] 804.9MB/804.9MB
b1761864f72a: Download complete
29479e68065f: Download complete
3b8001916a15: Downloading [==================================================>] 3.871GB/3.871GB
latest: Pulling from ufoym/deepo
6e0aa5e7af40: Downloading [====> ] 2.489MB/26.71MB
d47239a868b3: Download complete
49cbb10cca85: Download complete
4450dd082e0f: Download complete
b4bc5dc4c4f3: Downloading [============================================> ] 7.625MB/8.486MB
5353957e2ca6: Download complete
f91e05a16062: Download complete
7a841761f52f: Downloading [> ] 537.5kB/664.6MB
698198ce2872: Waiting
05a2da03249e: Waiting
b1761864f72a: Waiting
29479e68065f: Waiting
3b8001916a15: Waiting
error pulling image configuration: read tcp 172.27.228.135:60664->104.18.125.25:443: read: connection reset by peer
# 拉取失敗
并且系統報var磁區空間不足
2 解決問題
方法：決定將鏡像完整遷移并更改目標路徑目錄為默認下載目錄
# 查看系統記憶體情況
root@master:/home/hqc# df -h
檔案系統 容量 已用 可用 已用% 掛載點
udev 32G 0 32G 0% /dev
tmpfs 6.3G 2.1M 6.3G 1% /run
/dev/nvme0n1p6 29G 1.7G 25G 7% /
/dev/nvme0n1p10 94G 18G 72G 20% /usr
tmpfs 32G 0 32G 0% /dev/shm
tmpfs 5.0M 4.0K 5.0M 1% /run/lock
tmpfs 32G 0 32G 0% /sys/fs/cgroup
/dev/nvme0n1p9 9.4G 37M 8.8G 1% /tmp
/dev/nvme0n1p7 946M 176M 706M 20% /boot
/dev/nvme0n1p8 47G 13G 32G 29% /home
/dev/nvme0n1p11 9.4G 6.6G 2.4G 74% /var
/dev/loop0 640K 640K 0 100% /snap/gnome-logs/106
/dev/nvme0n1p1 96M 32M 65M 33% /boot/efi
/dev/loop1 2.7M 2.7M 0 100% /snap/gnome-system-monitor/174
/dev/loop2 56M 56M 0 100% /snap/core18/2246
/dev/loop4 768K 768K 0 100% /snap/gnome-characters/761
/dev/loop3 219M 219M 0 100% /snap/gnome-3-34-1804/77
/dev/loop5 248M 248M 0 100% /snap/gnome-3-38-2004/87
/dev/loop7 128K 128K 0 100% /snap/bare/5
/dev/loop6 43M 43M 0 100% /snap/snapd/14066
/dev/loop8 384K 384K 0 100% /snap/gnome-characters/550
/dev/loop9 2.5M 2.5M 0 100% /snap/gnome-calculator/748
/dev/loop10 1.0M 1.0M 0 100% /snap/gnome-logs/100
/dev/loop11 63M 63M 0 100% /snap/gtk-common-themes/1506
/dev/loop12 62M 62M 0 100% /snap/core20/1242
/dev/loop13 219M 219M 0 100% /snap/gnome-3-34-1804/72
/dev/loop14 33M 33M 0 100% /snap/snapd/13640
/dev/loop15 2.5M 2.5M 0 100% /snap/gnome-calculator/884
/dev/loop16 56M 56M 0 100% /snap/core18/2253
/dev/loop17 62M 62M 0 100% /snap/core20/1270
/dev/loop18 2.3M 2.3M 0 100% /snap/gnome-system-monitor/148
/dev/loop19 522M 522M 0 100% /snap/pycharm-community/261
/dev/loop20 66M 66M 0 100% /snap/gtk-common-themes/1519
/dev/loop21 243M 243M 0 100% /snap/gnome-3-38-2004/76
tmpfs 6.3G 16K 6.3G 1% /run/user/121
tmpfs 6.3G 72K 6.3G 1% /run/user/1000
# 發現/usr目錄下的存盤空間最多，因此打算把這個作為默認下載目錄
具體操作參考這篇檔案
# 停止docker
root@master:/home/hqc# service docker stop
# 或
root@master:/home/hqc# systemctl stop docker.service
# 創建一個/usr下用來存放鏡像的新目錄
root@master:/home/hqc# mkdir -p /usr/hqc/docker_root
# 將原目錄下的所有鏡像檔案拷貝到這個目錄中
root@master:/home/hqc# cp -R /var/lib/docker/* /usr/hqc/docker_root
# 找到/etc/docker下的daemon.json修改配置
root@master:/home/hqc# cd /etc/docker
root@master:/etc/docker# ls
daemon.json daemon.json.dpkg-dist key.json
root@master:/etc/docker# vim daemon.json
{
"data-root":"/usr/hqc/docker_root",# 添加這一行，注意末尾有逗號
"registry-mirrors": ["https://zwir0uyv.mirror.aliyuncs.com"]
}
# 重新配置
root@master:/etc/docker# systemctl daemon-reload
# 再次運行docker
root@master:/etc/docker# systemctl start docker.service
# 再次查看默認目錄
root@master:/etc/docker# docker info |grep "Docker Root Dir"
WARNING: No swap limit support
Docker Root Dir: /usr/hqc/docker_root
# 成功更改
3 再次拉取deepo-拉取成功
root@master:/home/hqc# docker pull ufoym/deepo
Using default tag: latest
latest: Pulling from ufoym/deepo
6e0aa5e7af40: Pull complete
d47239a868b3: Pull complete
49cbb10cca85: Pull complete
4450dd082e0f: Pull complete
b4bc5dc4c4f3: Pull complete
5353957e2ca6: Pull complete
f91e05a16062: Pull complete
7a841761f52f: Pull complete
698198ce2872: Pull complete
05a2da03249e: Pull complete
b1761864f72a: Pull complete
29479e68065f: Pull complete
3b8001916a15: Pull complete
Digest: sha256:79473e5e182257ce0aff172670d32d09204c48785c5b5daff1830dad83f4a548
Status: Downloaded newer image for ufoym/deepo:latest
docker.io/ufoym/deepo:latest
# 下載成功！！！
4 驗證環境
中文翻譯官網
root@master:/home/hqc# nvidia-docker run --rm ufoym/deepo nvidia-smi
docker: Error response from daemon: Unknown runtime specified nvidia.
See 'docker run --help'.
5 解決問題
1 方案一
參考解決（還未解決）
2 方案二
可用nvidia-docker image ls陳述句先查看nvidia-docker是否安裝成功
root@master:/etc/docker# nvidia-docker image ls
REPOSITORY TAG IMAGE ID CREATED SIZE
registry.cn-beijing.aliyuncs.com/hqc-k8s/ali-array-plus v2.5 7f4f56bbf3c8 3 days ago 928MB
json-plus v1.2 fab5150c7c5e 5 days ago 928MB
python latest f48ea80eae5a 4 weeks ago 917MB
nginx latest ea335eea17ab 4 weeks ago 141MB
quay.io/coreos/flannel v0.15.1 e6ea68648f0c 4 weeks ago 69.5MB
rancher/mirrored-flannelcni-flannel-cni-plugin v1.0.0 cd5235cd7dc2 7 weeks ago 9.03MB
hello-world latest feb5d9fea6a5 2 months ago 13.3kB
registry.cn-beijing.aliyuncs.com/hqc-k8s/hello-world v1.0 feb5d9fea6a5 2 months ago 13.3kB
ufoym/deepo latest f07b2fdc30b2 6 months ago 14.3GB
# 和docker images查看一樣的效果，應該是已經裝好了
可嘗試執行一下sudo docker run --rm --gpus all nvidia/cuda:11.5 nvidia-smi，主要是將11.0-base換成11.5，可能是因為本機上安裝的是11.5，這個程序中remove掉了11.0-base，因此nvidia-docker可能失效了，
root@master:/etc/docker# sudo docker run --rm --gpus all nvidia/cuda:11.5 nvidia-smi
Unable to find image 'nvidia/cuda:11.5' locally
docker: Error response from daemon: manifest for nvidia/cuda:11.5 not found: manifest unknown: manifest unknown.
See 'docker run --help'.
失敗，
3 方案三
也有博客是運行sudo docker run --runtime=nvidia --rm nvidia/cuda nvidia-smi這句指令，可試試
root@master:/etc/docker# sudo docker run --runtime=nvidia --rm nvidia/cuda nvidia-smi
docker: Error response from daemon: Unknown runtime specified nvidia.
See 'docker run --help'.
# 不行
4 方案四
或者嘗試修改/etc/docker/daemon.json檔案
在其中加入
{
# "registry-mirrors": ["https://f1z25q5p.mirror.aliyuncs.com"],
# 這句是之前配置的阿里云docker加速
"runtimes": {
"nvidia": {
"path": "nvidia-container-runtime",
"runtimeArgs": []
}
}
}
不過這種方法好像是centos系統中的操作，或許不大對
驗證過后果然不行，會造成的docker沒法啟動
5 方案五
參考官網操作
ubuntu下，運行sudo apt-get install nvidia-container-runtime指令
root@master:/etc/docker# sudo apt-get install nvidia-container-runtime
正在讀取軟體包串列... 完成
正在分析軟體包的依賴關系樹
正在讀取狀態資訊... 完成
下列軟體包是自動安裝的并且現在不需要了：
chromium-codecs-ffmpeg-extra lib32gcc1 libc6-i386 libopencore-amrnb0 libopencore-amrwb0 linux-hwe-5.4-headers-5.4.0-42
使用'sudo apt autoremove'來卸載它(它們)，
下列【新】軟體包將被安裝：
nvidia-container-runtime
升級了 0 個軟體包，新安裝了 1 個軟體包，要卸載 0 個軟體包，有 123 個軟體包未被升級，
需要下載 4,984 B 的歸檔，
解壓縮后會消耗 21.5 kB 的額外空間，
獲取:1 https://nvidia.github.io/libnvidia-container/stable/ubuntu18.04/amd64 nvidia-container-runtime 3.7.0-1 [4,984 B]
已下載 4,984 B，耗時 1秒 (5,456 B/s)
正在選中未選擇的軟體包 nvidia-container-runtime，
(正在讀取資料庫 ... 系統當前共安裝有 221251 個檔案和目錄，)
正準備解包 .../nvidia-container-runtime_3.7.0-1_all.deb ...
正在解包 nvidia-container-runtime (3.7.0-1) ...
正在設定 nvidia-container-runtime (3.7.0-1) ...
# 驗證，還是不行
root@master:/etc/docker# nvidia-docker run --rm ufoym/deepo nvidia-smi
docker: Error response from daemon: Unknown runtime specified nvidia.
See 'docker run --help'.
6 方案六(最后成功的方案）
參考官網方案
root@master:/home/hqc# tee /etc/systemd/system/docker.service.d/override.conf <<EOF
> [Service]
> ExecStart=
> ExecStart=/usr/bin/dockerd --host=fd:// --add-runtime=nvidia=/usr/bin/nvidia-container-runtime
> EOF
[Service]
ExecStart=
ExecStart=/usr/bin/dockerd --host=fd:// --add-runtime=nvidia=/usr/bin/nvidia-container-runtime
# 輸入方法為：輸入第一行按enter鍵，在依次每行復制進去回車
# 更改組態檔使之生效
root@master:/home/hqc# sudo systemctl daemon-reload
# 重啟docker服務
root@master:/home/hqc# sudo systemctl restart docker
# 驗證
root@master:/home/hqc# nvidia-docker run --rm ufoym/deepo nvidia-smi
Fri Dec 17 02:59:02 2021
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 495.44 Driver Version: 495.44 CUDA Version: 11.5 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|===============================+======================+======================|
| 0 NVIDIA GeForce ... Off | 00000000:01:00.0 Off | N/A |
| 23% 28C P8 9W / 250W | 11MiB / 11178MiB | 0% Default |
| | | N/A |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=============================================================================|
+-----------------------------------------------------------------------------+
# 成功！！
6 再次驗證
# 運行驗證，并使Deepo能夠在docker容器內使用GPU
root@master:/home/hqc# nvidia-docker run --rm ufoym/deepo nvidia-smi
Fri Dec 17 03:04:18 2021
+-----------------------------------------------------------------------------+
| NVIDIA-SMI 495.44 Driver Version: 495.44 CUDA Version: 11.5 |
|-------------------------------+----------------------+----------------------+
| GPU Name Persistence-M| Bus-Id Disp.A | Volatile Uncorr. ECC |
| Fan Temp Perf Pwr:Usage/Cap| Memory-Usage | GPU-Util Compute M. |
| | | MIG M. |
|===============================+======================+======================|
| 0 NVIDIA GeForce ... Off | 00000000:01:00.0 Off | N/A |
| 23% 28C P8 8W / 250W | 11MiB / 11178MiB | 0% Default |
| | | N/A |
+-------------------------------+----------------------+----------------------+
+-----------------------------------------------------------------------------+
| Processes: |
| GPU GI CI PID Type Process name GPU Memory |
| ID ID Usage |
|=============================================================================|
+-----------------------------------------------------------------------------+
# 將一個互動式shell放入一個容器，該容器不會在你退出之后自動洗掉，
root@master:/home/hqc# nvidia-docker run -it ufoym/deepo bash
# 進入python虛擬環境
root@2e0a741f5da1:/# python
Python 3.6.9 (default, Jan 26 2021, 15:33:00)
[GCC 8.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import tensorflow
2021-12-17 03:06:21.636087: W tensorflow/stream_executor/platform/default/dso_loader.cc:64] Could not load dynamic library 'libcudart.so.11.0'; dlerror: libcudart.so.11.0: cannot open shared object file: No such file or directory; LD_LIBRARY_PATH: /usr/local/lib:/usr/local/nvidia/lib:/usr/local/nvidia/lib64
# 這段好像報錯了，但咱也不大懂為啥呀，好像是說不能使用GPU
2021-12-17 03:06:21.636112: I tensorflow/stream_executor/cuda/cudart_stub.cc:29] Ignore above cudart dlerror if you do not have a GPU set up on your machine.
>>> print(tensorflow.__name__, tensorflow.__version__)
tensorflow 2.5.0
# 好在可以正常顯示tensorflow版本
# 后面再次import tensorflow就沒出現之前的輸出資訊了，不知道為啥
# 再驗證一下torch環境
>>> import torch
>>> print(torch.__name__, torch.__version__)
torch 1.9.0.dev20210415+cu101
# 沒出現問題
總之，總算成功拉！
5 總結
整個流程下來，好像本地cuda和cudnn都不是搭建的必須，由于網速和檔案很大的因素，可選擇安裝，
轉載請註明出處，本文鏈接：https://www.uj5u.com/qita/385459.html
標籤：其他
上一篇：NMAP工具的使用：埠掃描
