🍓1 情景引入
在普通分類問題上，我們一般通過sklearn.metrics庫評估模型，比如使用混淆矩陣
from sklearn.metrics import confusion_matrix y_true = [2, 0, 2, 2, 0, 1] y_pred = [0, 1, 2, 2, 0, 2] cm=confusion_matrix(y_true, y_pred) print(cm)結果如下：
[[1 1 0] [0 0 1] [1 0 2]]

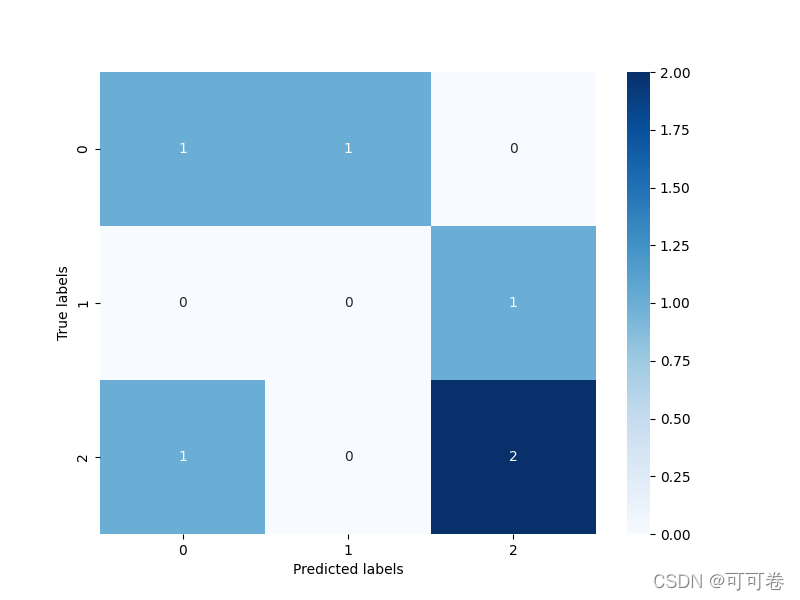

還可以結合熱力圖進行可視化
from matplotlib import pyplot as plt plt.figure(figsize=(8, 6)) sns.heatmap(cm, annot=True, cmap='Blues') plt.xlabel('Predicted labels') plt.ylabel('True labels') plt.show()結果如下：
在需要依據多個指標評價模型時，classification_report也是個不錯的選擇
from sklearn.metrics import classification_report y_true = [2, 0, 2, 2, 0, 1] y_pred = [0, 1, 2, 2, 0, 2] report=classification_report(y_true,y_pred) print(report)結果如下：
precision recall f1-score support 0 0.50 0.50 0.50 2 1 0.00 0.00 0.00 1 2 0.67 0.67 0.67 3 accuracy 0.50 6 macro avg 0.39 0.39 0.39 6 weighted avg 0.50 0.50 0.50 6
不過，當我們需要更多指標進行模型評估時，該怎么辦呢？
我們通常會從sklearn.metrics匯入我們需要的指標，再分別呼叫，進行分析
from sklearn.metrics import cohen_kappa_score,hamming_loss,jaccard_score,accuracy_score acc=accuracy_score(test_labels, pred_labels) # 1.0 kappa = cohen_kappa_score(test_labels, pred_labels) # 1.0 ham_distance = hamming_loss(test_labels, pred_labels) # 0.0 jaccrd_score = jaccard_score(test_labels, pred_labels,average='micro') # 1.0 print(f'acc is {acc}') print(f'kappa is {kappa}') print(f'ham_distance is {ham_distance}') print(f'jaccrd_score is {jaccrd_score}')這不禁讓我思考，是否存在更方便的方法呢？🎈
🎈🎈🎈我是分割線🎈🎈🎈

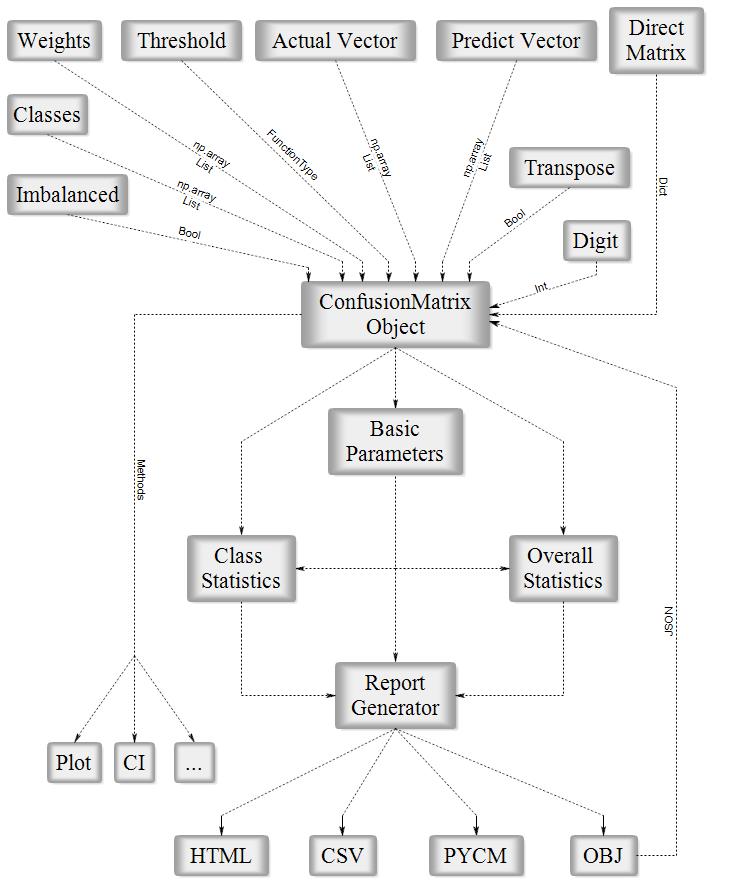

🍓2 pycm介紹
PyCM is a multi-class confusion matrix library written in Python that supports both input data vectors and direct matrix, and a proper tool for post-classification model evaluation that supports most classes and overall statistics parameters. PyCM is the swiss-army knife of confusion matrices, targeted mainly at data scientists that need a broad array of metrics for predictive models and accurate evaluation of a large variety of classifiers.
總結一下，就是說pycm是一個python庫，適用于多分類模型的評估，
🎈🎈🎈我是分割線🎈🎈🎈
🍓3 pycm安裝
?? PyCM 2.4 is the last version to support Python 2.7 & Python 3.4
?? Plotting capability requires Matplotlib (>= 3.0.0) or Seaborn (>= 0.9.1)
Source code
- Download Version 3.3 or Latest Source
- Run
pip install -r requirements.txtorpip3 install -r requirements.txt(Need root access)- Run
python3 setup.py installorpython setup.py install(Need root access)PyPI
- Check Python Packaging User Guide
- Run
pip install pycm==3.3orpip3 install pycm==3.3(Need root access)Conda
- Check Conda Managing Package
- Update Conda using
conda update conda(Need root access)- Run
conda install -c sepandhaghighi pycm(Need root access)Easy install
- Run
easy_install --upgrade pycm(Need root access)
總結一下，pycm2.4需要python版本在2.4以上，且畫圖部分對Matplotlib和Seaborn的版本也有要求，推薦大家使用pip或conda安裝，比較常用，遇到問題也容易解決，
🎈🎈🎈我是分割線🎈🎈🎈
🍓4 pycm使用
🍎4.1 輸入向量
直接輸入真實的類向量和預測的類向量
from pycm import * y_true = [0,1,2,0,1,2,0,1,2] y_pred = [2,1,2,1,0,1,2,1,0] cm = ConfusionMatrix(actual_vector=y_true, predict_vector=y_pred) print(cm)輸出結果分為3部分：
🍊4.1.1 混淆矩陣
Predict 0 1 2 Actual 0 0 1 2 1 1 2 0 2 1 1 1🍊4.1.2 總體指標
Overall Statistics : 95% CI (0.02535,0.64132) ACC Macro 0.55556 ARI -0.07143 AUNP 0.5 AUNU 0.5 Bennett S 0.0 CBA 0.27778 CSI -0.38889 Chi-Squared 3.5 Chi-Squared DF 4 Conditional Entropy 1.14052 Cramer V 0.44096 Cross Entropy 1.6416 F1 Macro 0.30159 F1 Micro 0.33333 FNR Macro 0.66667 FNR Micro 0.66667 FPR Macro 0.33333 FPR Micro 0.33333 Gwet AC1 0.00461 Hamming Loss 0.66667 Joint Entropy 2.72548 KL Divergence 0.05664 Kappa 0.0 Kappa 95% CI (-0.46198,0.46198) Kappa No Prevalence -0.33333 Kappa Standard Error 0.2357 Kappa Unbiased -0.00935 Lambda A 0.33333 Lambda B 0.2 Mutual Information 0.38998 NIR 0.33333 Overall ACC 0.33333 Overall CEN 0.73254 Overall J (0.6,0.2) Overall MCC 0.0 Overall MCEN 0.79544 Overall RACC 0.33333 Overall RACCU 0.33951 P-Value 0.62282 PPV Macro 0.27778 PPV Micro 0.33333 Pearson C 0.52915 Phi-Squared 0.38889 RCI 0.24605 RR 3.0 Reference Entropy 1.58496 Response Entropy 1.53049 SOA1(Landis & Koch) Slight SOA2(Fleiss) Poor SOA3(Altman) Poor SOA4(Cicchetti) Poor SOA5(Cramer) Relatively Strong SOA6(Matthews) Negligible Scott PI -0.00935 Standard Error 0.15713 TNR Macro 0.66667 TNR Micro 0.66667 TPR Macro 0.33333 TPR Micro 0.33333 Zero-one Loss 6🍊4.1.3 各類指標
Class Statistics : Classes 0 1 2 ACC(Accuracy) 0.44444 0.66667 0.55556 AGF(Adjusted F-score) 0.0 0.69338 0.4714 AGM(Adjusted geometric mean) 0 0.66667 0.54951 AM(Difference between automatic and manual classification) -1 1 0 AUC(Area under the ROC curve) 0.33333 0.66667 0.5 AUCI(AUC value interpretation) Poor Fair Poor AUPR(Area under the PR curve) 0.0 0.58333 0.33333 BCD(Bray-Curtis dissimilarity) 0.05556 0.05556 0.0 BM(Informedness or bookmaker informedness) -0.33333 0.33333 0.0 CEN(Confusion entropy) 0.96096 0.60158 0.69499 DOR(Diagnostic odds ratio) 0.0 4.0 1.0 DP(Discriminant power) None 0.33193 -0.0 DPI(Discriminant power interpretation) None Poor Poor ERR(Error rate) 0.55556 0.33333 0.44444 F0.5(F0.5 score) 0.0 0.52632 0.33333 F1(F1 score - harmonic mean of precision and sensitivity) 0.0 0.57143 0.33333 F2(F2 score) 0.0 0.625 0.33333 FDR(False discovery rate) 1.0 0.5 0.66667 FN(False negative/miss/type 2 error) 3 1 2 FNR(Miss rate or false negative rate) 1.0 0.33333 0.66667 FOR(False omission rate) 0.42857 0.2 0.33333 FP(False positive/type 1 error/false alarm) 2 2 2 FPR(Fall-out or false positive rate) 0.33333 0.33333 0.33333 G(G-measure geometric mean of precision and sensitivity) 0.0 0.57735 0.33333 GI(Gini index) -0.33333 0.33333 0.0 GM(G-mean geometric mean of specificity and sensitivity) 0.0 0.66667 0.4714 IBA(Index of balanced accuracy) 0.0 0.44444 0.14815 ICSI(Individual classification success index) -1.0 0.16667 -0.33333 IS(Information score) None 0.58496 0.0 J(Jaccard index) 0.0 0.4 0.2 LS(Lift score) 0.0 1.5 1.0 MCC(Matthews correlation coefficient) -0.37796 0.31623 0.0 MCCI(Matthews correlation coefficient interpretation) Negligible Weak Negligible MCEN(Modified confusion entropy) 0.96096 0.69658 0.72877 MK(Markedness) -0.42857 0.3 0.0 N(Condition negative) 6 6 6 NLR(Negative likelihood ratio) 1.5 0.5 1.0 NLRI(Negative likelihood ratio interpretation) Negligible Negligible Negligible NPV(Negative predictive value) 0.57143 0.8 0.66667 OC(Overlap coefficient) 0.0 0.66667 0.33333 OOC(Otsuka-Ochiai coefficient) 0.0 0.57735 0.33333 OP(Optimized precision) -0.55556 0.66667 0.22222 P(Condition positive or support) 3 3 3 PLR(Positive likelihood ratio) 0.0 2.0 1.0 PLRI(Positive likelihood ratio interpretation) Negligible Poor Negligible POP(Population) 9 9 9 PPV(Precision or positive predictive value) 0.0 0.5 0.33333 PRE(Prevalence) 0.33333 0.33333 0.33333 Q(Yule Q - coefficient of colligation) -1.0 0.6 0.0 QI(Yule Q interpretation) Negligible Moderate Negligible RACC(Random accuracy) 0.07407 0.14815 0.11111 RACCU(Random accuracy unbiased) 0.07716 0.15123 0.11111 TN(True negative/correct rejection) 4 4 4 TNR(Specificity or true negative rate) 0.66667 0.66667 0.66667 TON(Test outcome negative) 7 5 6 TOP(Test outcome positive) 2 4 3 TP(True positive/hit) 0 2 1 TPR(Sensitivity, recall, hit rate, or true positive rate) 0.0 0.66667 0.33333 Y(Youden index) -0.33333 0.33333 0.0 dInd(Distance index) 1.05409 0.4714 0.74536 sInd(Similarity index) 0.25464 0.66667 0.47295
可以看到，大部分總體指標比如F1 score、Kappa等都被包含在內，各類指標如基尼指數、AUC也在內，
🍎4.2 輸入矩陣
from pycm import * cm = ConfusionMatrix(matrix={"Class1": {"Class1": 1, "Class2":2}, "Class2": {"Class1": 3, "Class2": 4}}) print(cm)結果如下：
Predict Class1 Class2 Actual Class1 1 2 Class2 3 4其余指標與4.1相同，
🎈🎈🎈我是分割線🎈🎈🎈
🍓5 進階用法
🍎5.1 獲取各類指標
- 通過cm.print_matrix()列印混淆矩陣
- 通過cm.print_normalized_matrix()列印歸一化后的混淆矩陣
- 通過cm.plot()作熱力圖，可以通過修改cmap=plt.cm.Greens引數自定義顏色
- 通過cm.overall_stat,cm.class_stat分別獲取總體指標與各類指標的字典
- 通過cm.overall_stat['Kappa']的形式獲取某一個具體指標
🍎5.2 比較器
這里給出一個官方的用例：
>>> cm2 = ConfusionMatrix(matrix={0:{0:2,1:50,2:6},1:{0:5,1:50,2:3},2:{0:1,1:7,2:50}}) >>> cm3 = ConfusionMatrix(matrix={0:{0:50,1:2,2:6},1:{0:50,1:5,2:3},2:{0:1,1:55,2:2}}) >>> cp = Compare({"cm2":cm2,"cm3":cm3}) >>> print(cp) Best : cm2 Rank Name Class-Score Overall-Score 1 cm2 9.05 2.55 2 cm3 6.05 1.98333 >>> cp.best pycm.ConfusionMatrix(classes: [0, 1, 2]) >>> cp.sorted ['cm2', 'cm3'] >>> cp.best_name 'cm2'

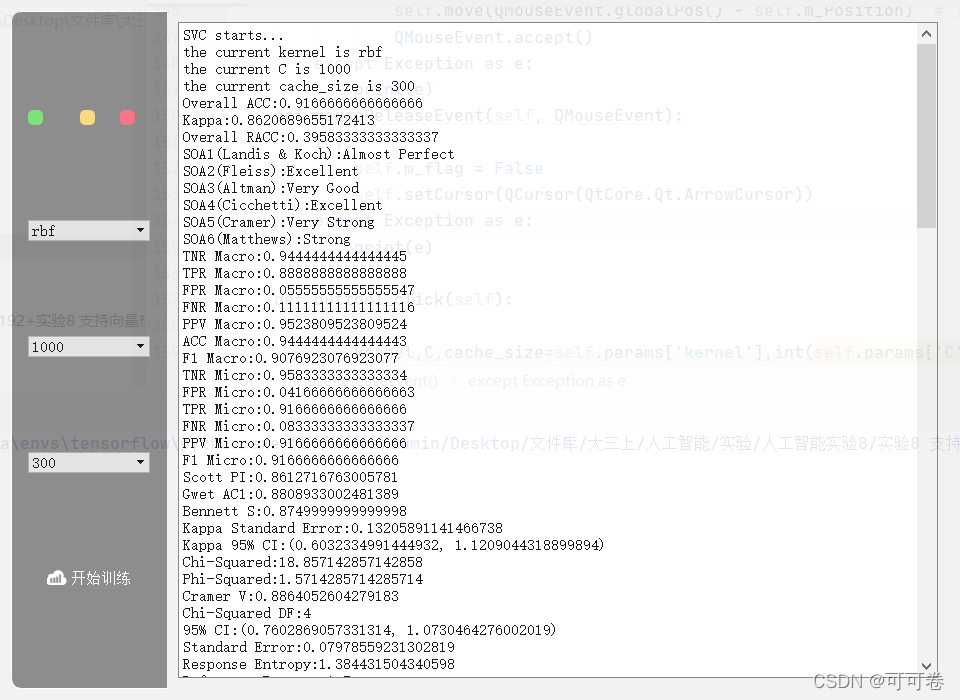

🍎 5.3 配合pyQt搭建GUI
🎈🎈🎈我是分割線🎈🎈🎈
🍓6 結語
以后再遇到分類問題，就不用為尋找評估指標發愁啦，一鍵使用pycm，直接給出大量指標，還可以通過比較器選出最優預測結果，高效！
